JBC NANE-1C Nano Rework Station + 2x NT115-A (Electronics Lab Equipment)
Overview & Specs
- Condition
- Used, Like New
- Usage
- < 1 year
Description from Seller
Selling a lightly used JBC NANE-1C Nano Rework Station with two NT115-A handpieces.

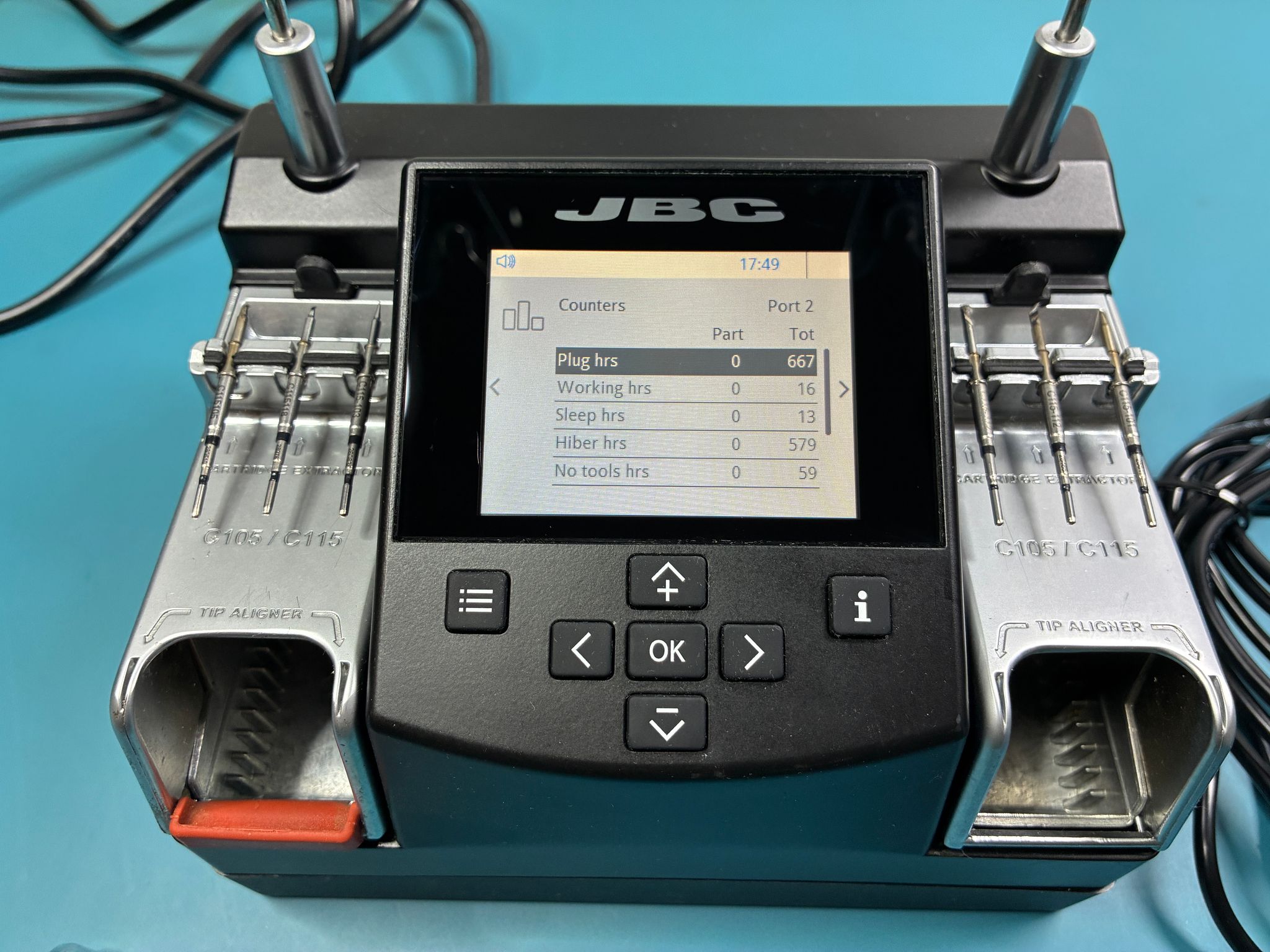

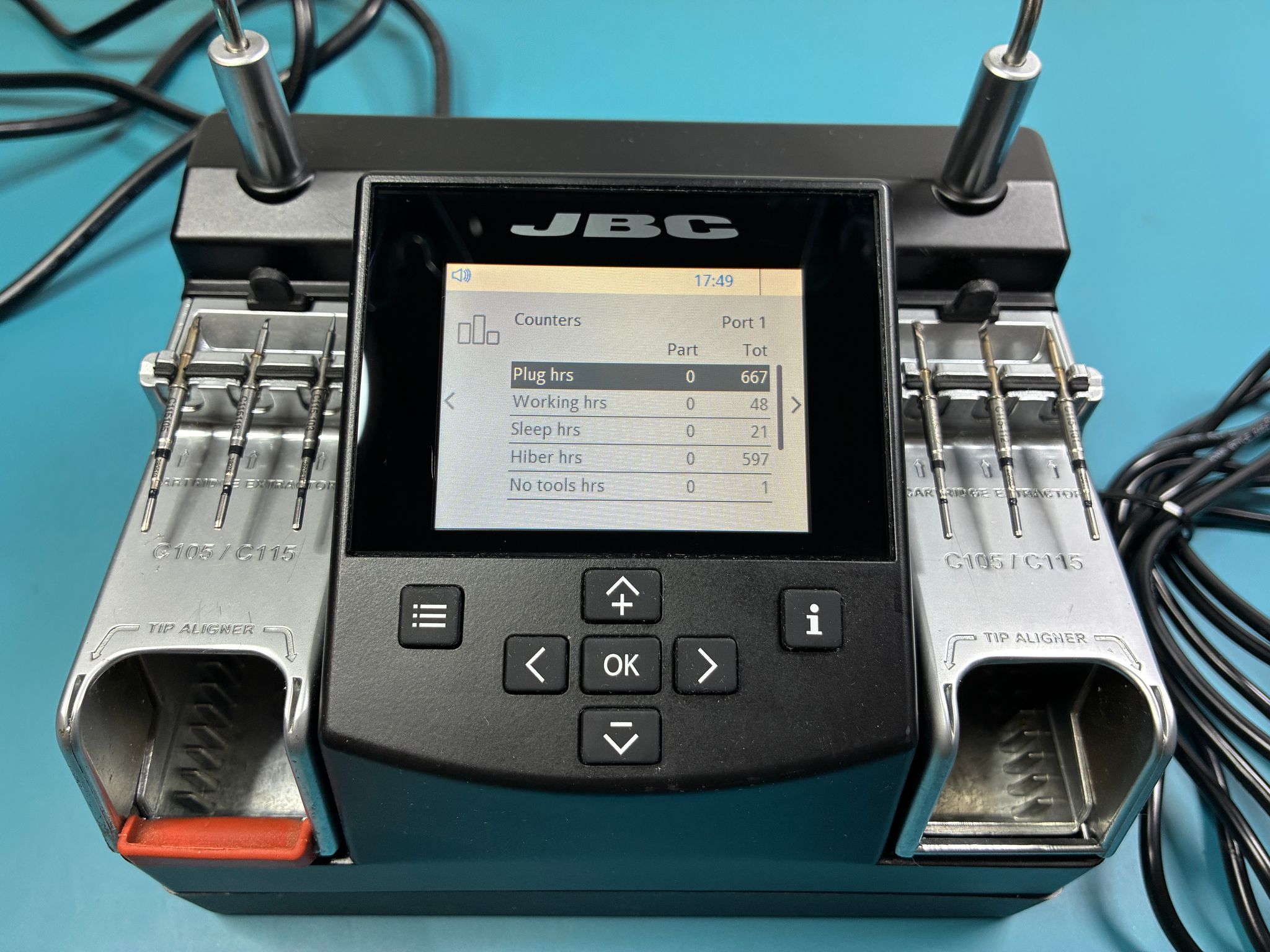

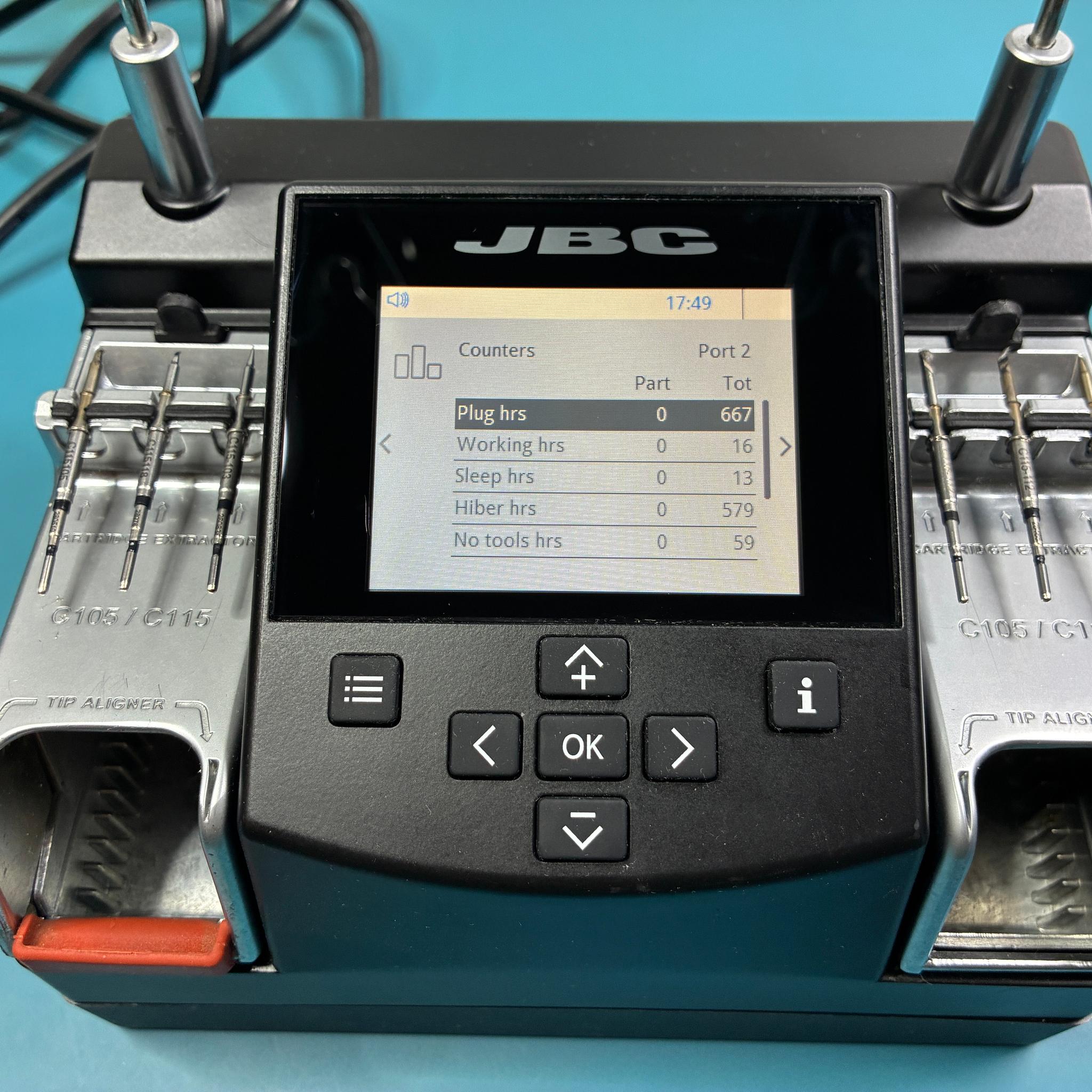

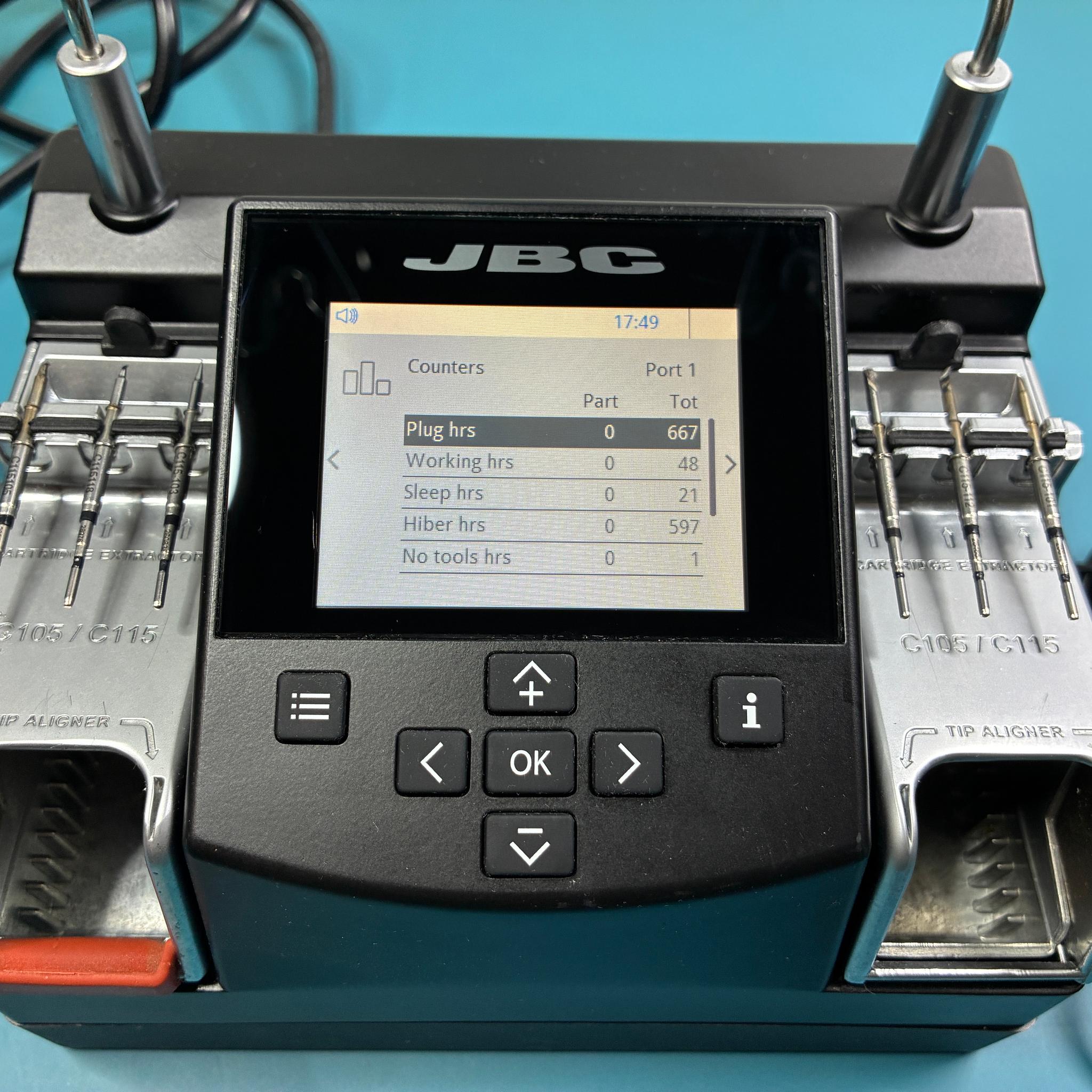

I purchased this station for prototyping and developing IR/VR sensors for first responder medical training and simulations. I added other equipment shortly afterward, so this unit has gone mostly unused, with 48 working hours on port 1 and 16 working hours on port 2. The project has since moved into production, and I'm selling surplus lab equipment.
Potential applications include electronics assembly, sensor prototyping, and precision SMD work under a microscope. It can also support motherboard and GPU repair, such as replacing small passives, touching up accessible fine-pitch IC leads, and attaching fine jumper wires. The NT115-A's short tip-to-grip distance helps with control in dense component areas.
TEquipment lists this model at a $1,975 new list price.
Station Specifications
Per JBC's manual and TEquipment's published specifications:

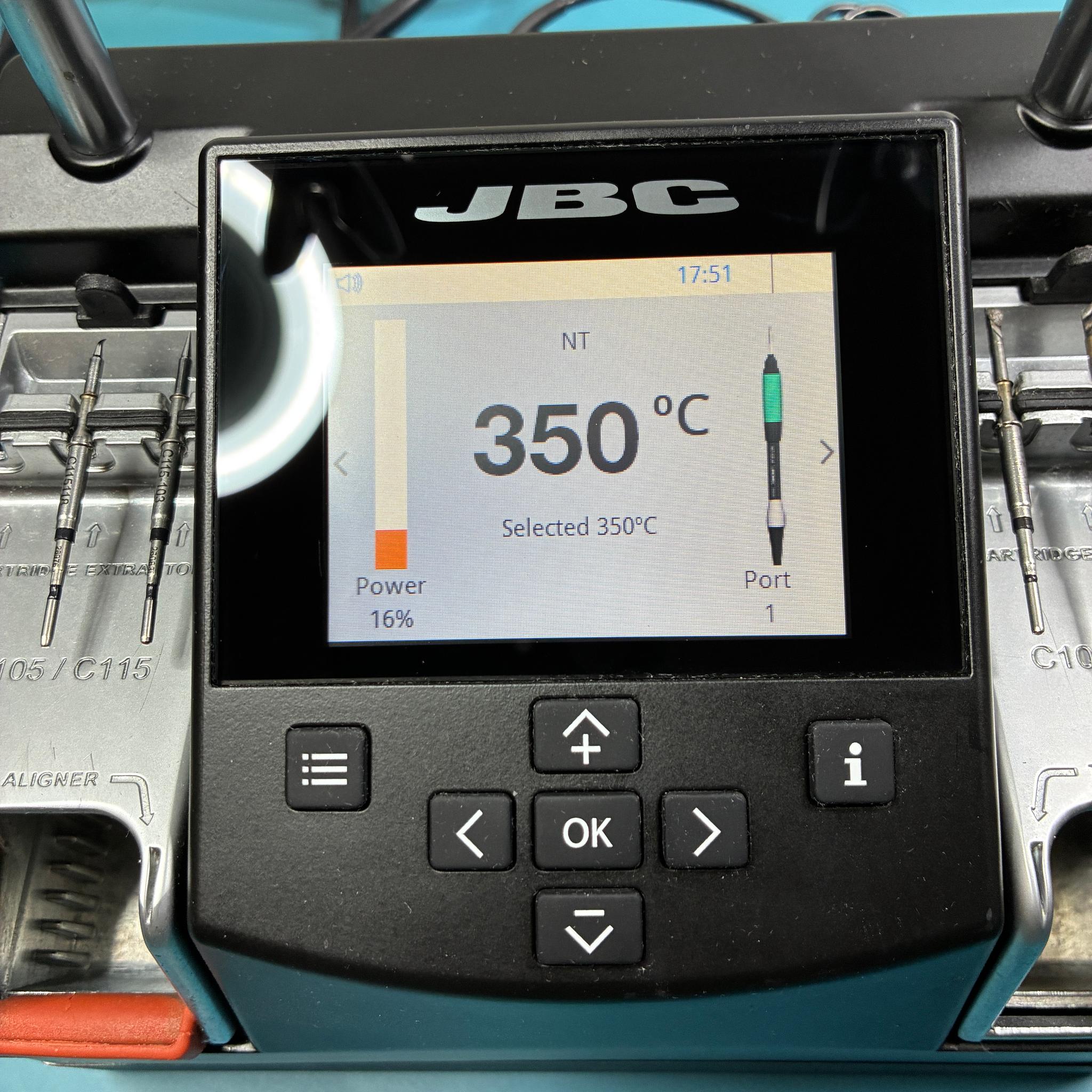

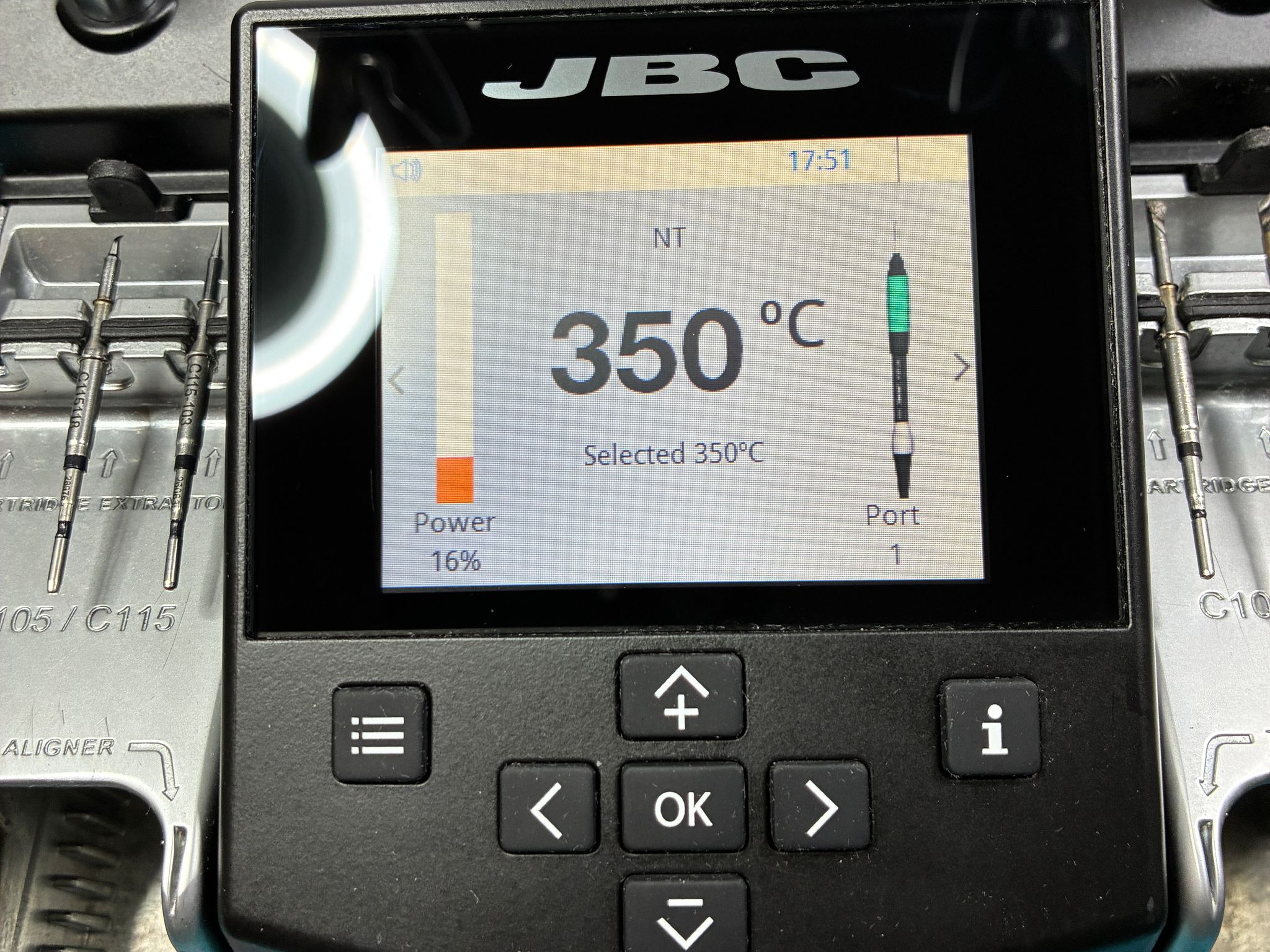

- Channels / display: 2 tool channels; digital display.

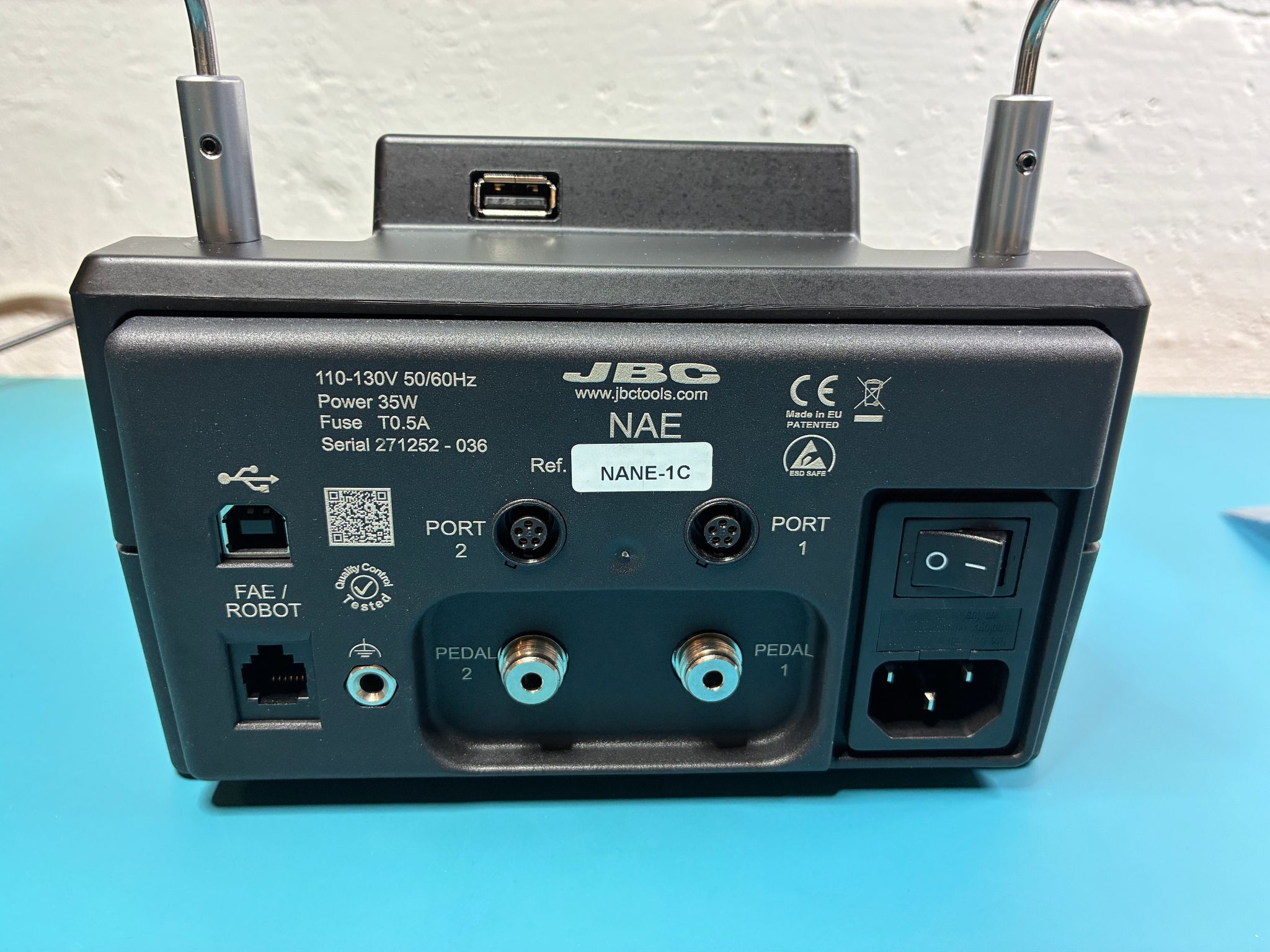

- Input: 120V, 50/60Hz per JBC's NANE-1C manual.
- Peak tool power: 14W per tool at 8.5V.
- Temperature range: 90–450°C / 190–840°F.
- Cartridges: JBC C115; options for 0402, 0201, 01005 components and fine-pitch IC leads.
- Dynamic Soldering Profiles: Controlled heating for thermally sensitive components, including MLCC capacitors.
- ESD-safe: Tip-to-ground resistance <2Ω; voltage <2mV RMS; equipotential bonding connection.

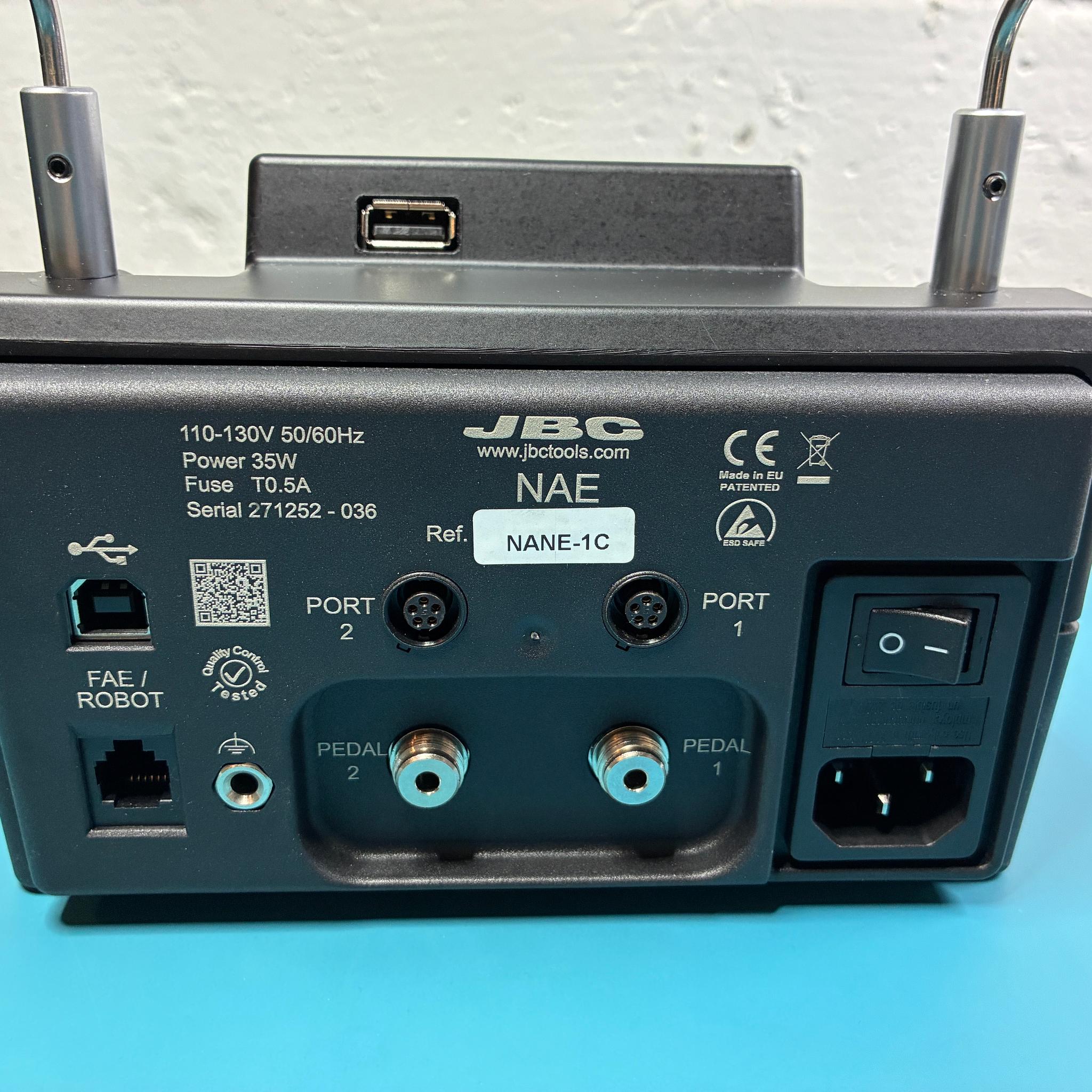

- Pedal inputs: One per tool, supporting P-405 control.
- USB-B: PC software / traceability. USB-A: Firmware updates and soldering-graph management.
- Robot port: RS-232 remote control or Smart Fume Extractor connection.
- Control unit: 170 × 90 × 135mm; 2.50kg per TEquipment.
Condition
Usage: Lightly used station and tips; working hours noted above.
Holder repair: The cable whips were epoxied back into the holders.

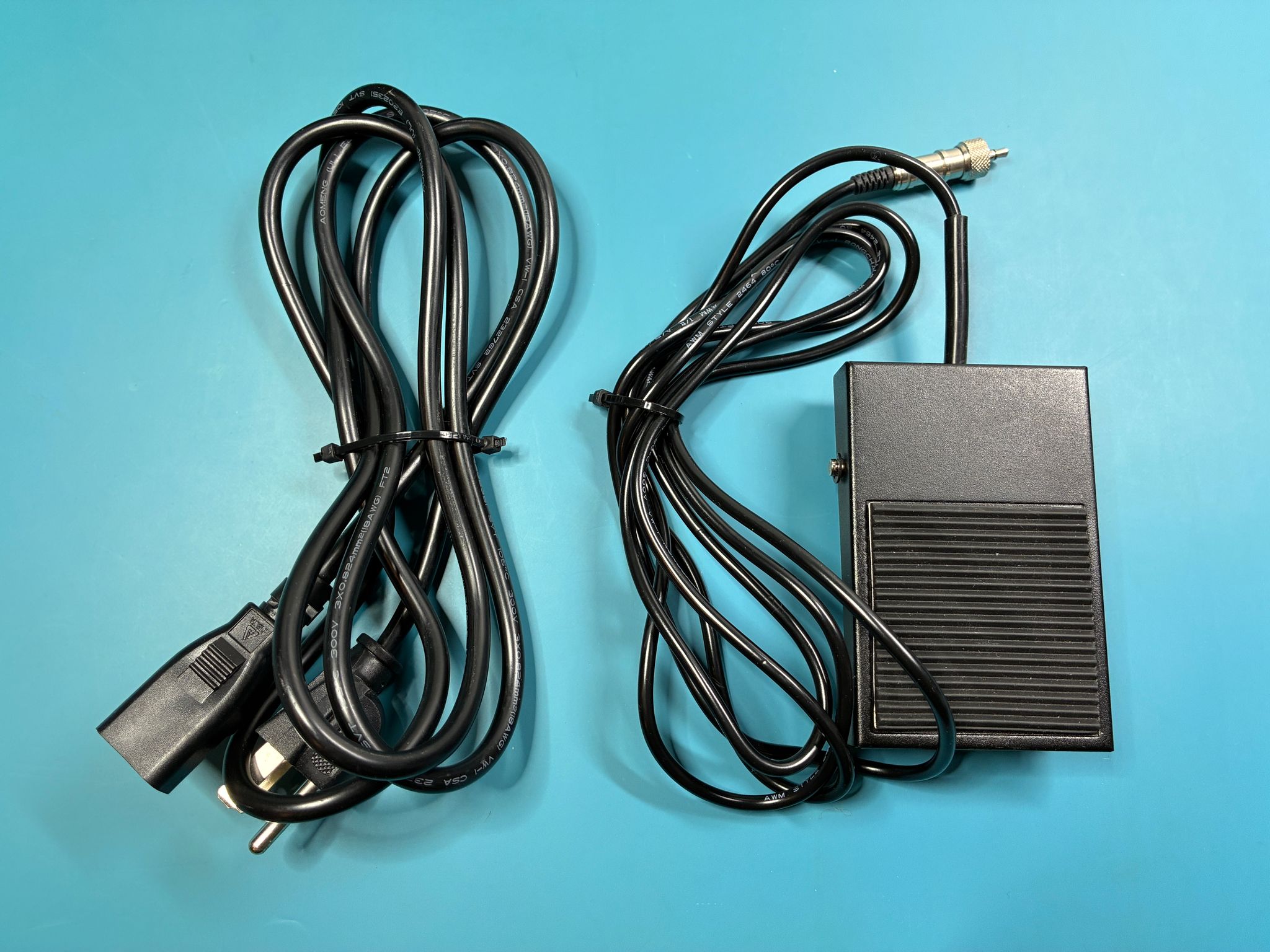

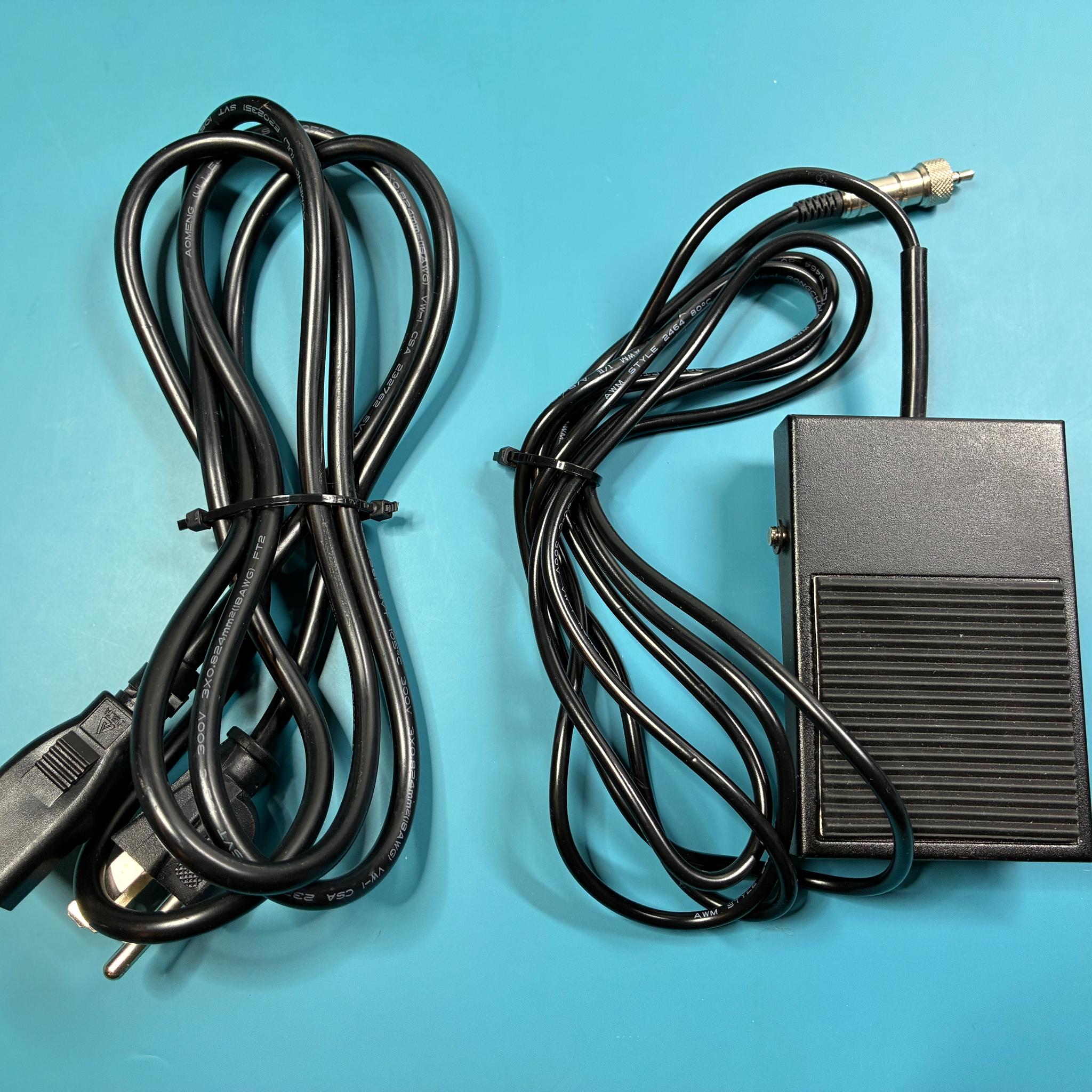

Pedal cable: A small nick in the outer covering does not expose any wires or affect pedal operation.
Please review photos of these areas and the condition of the station, handpieces, holders, pedal, and tips.

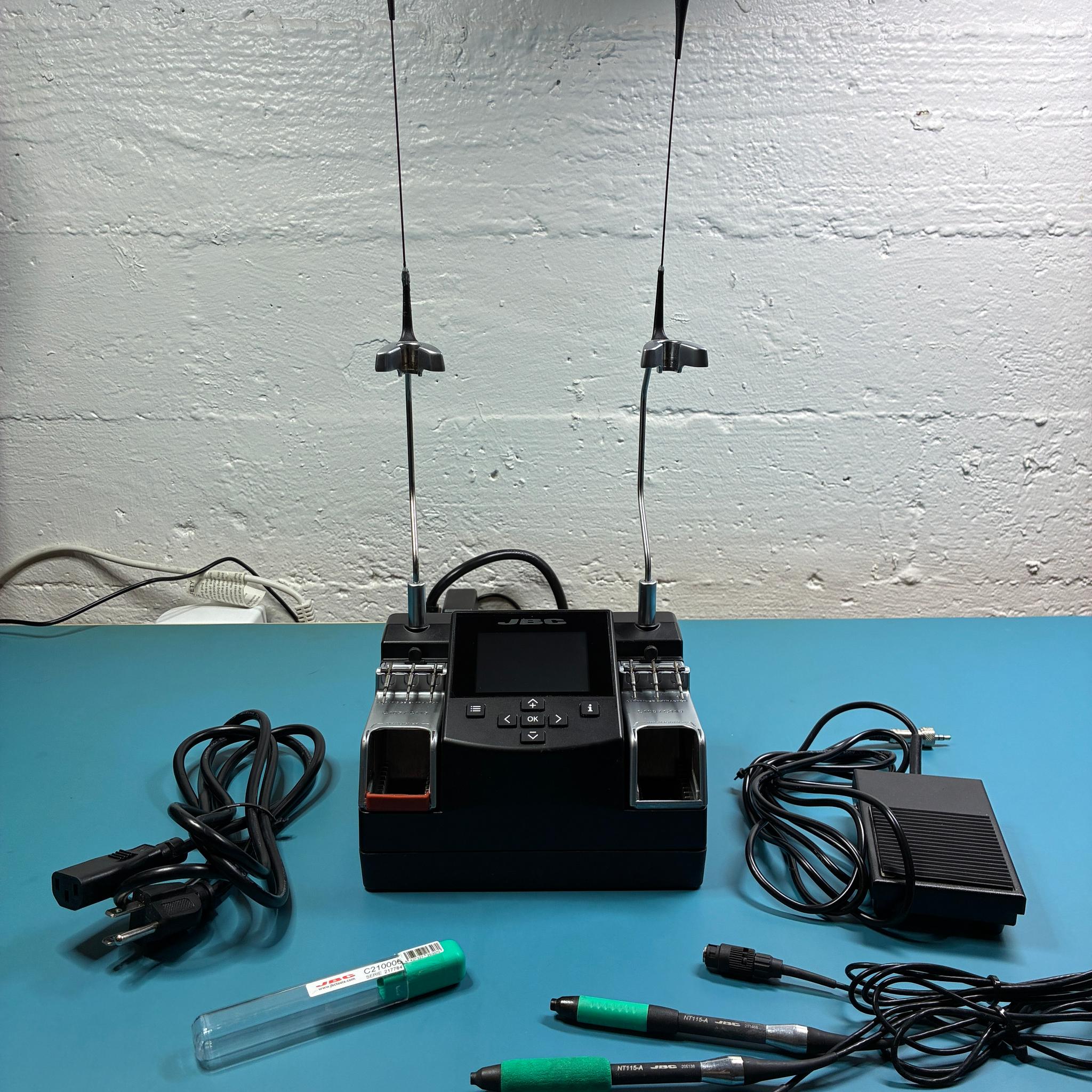

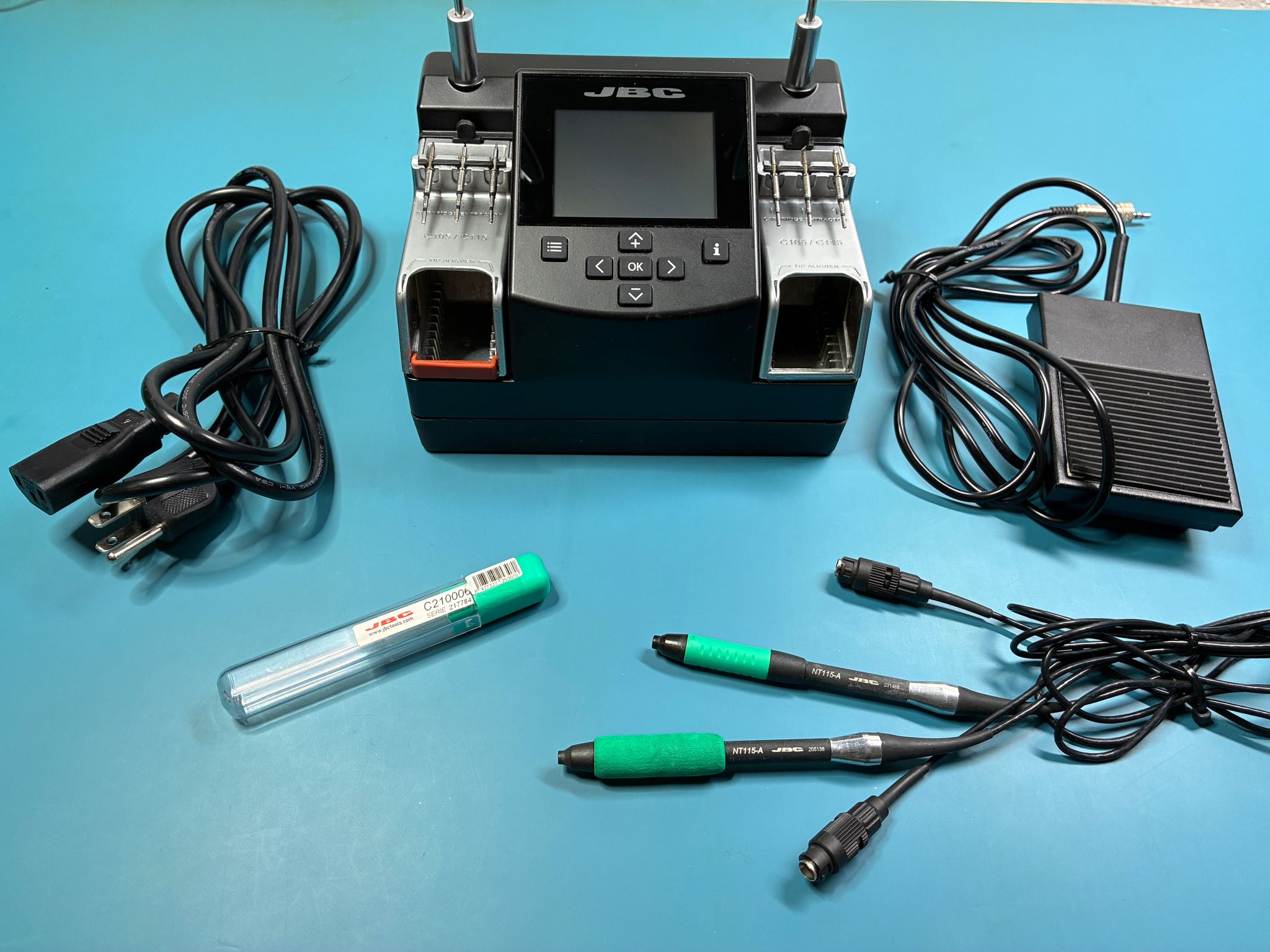

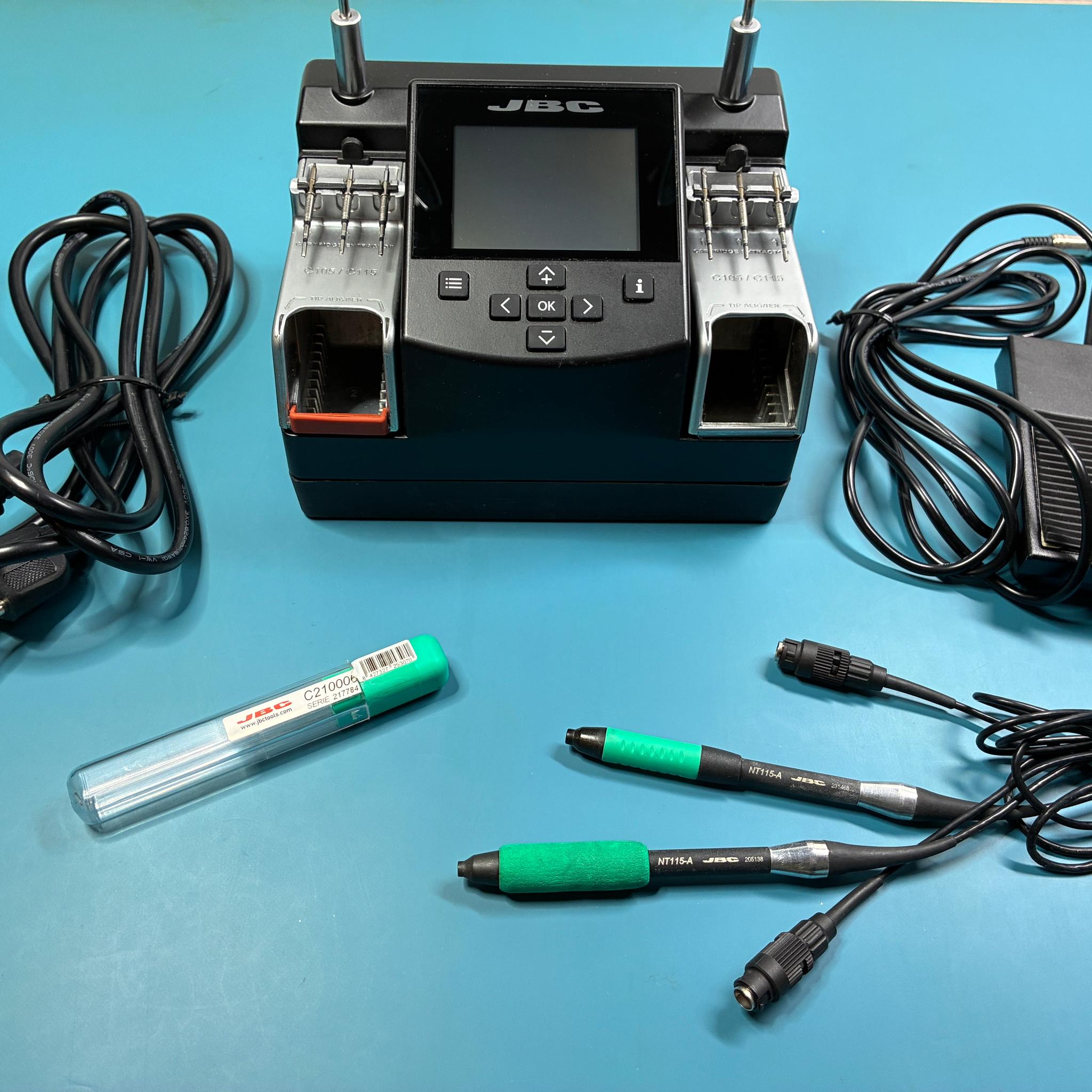

Included

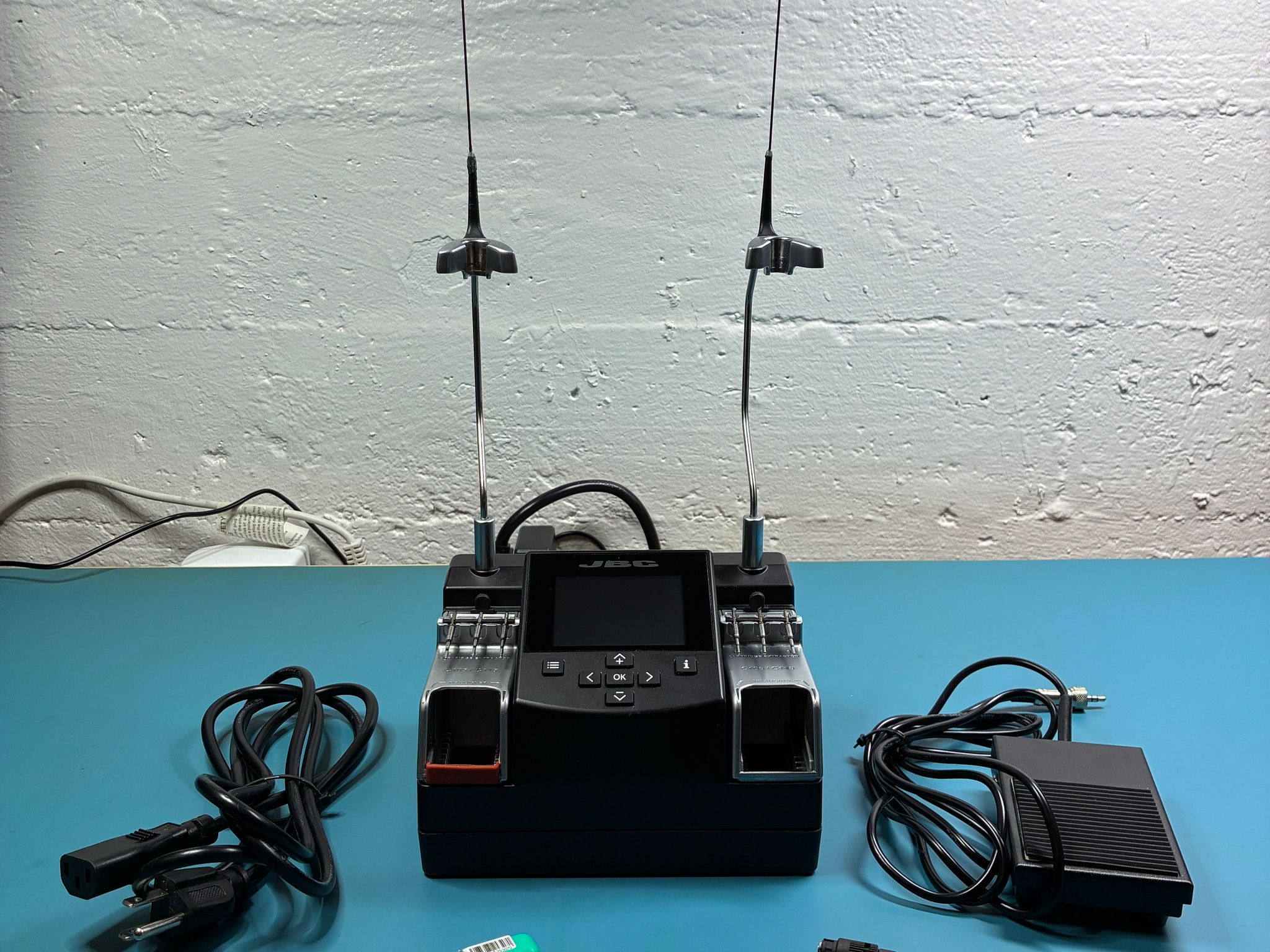

- JBC NANE-1C main power station + power cable

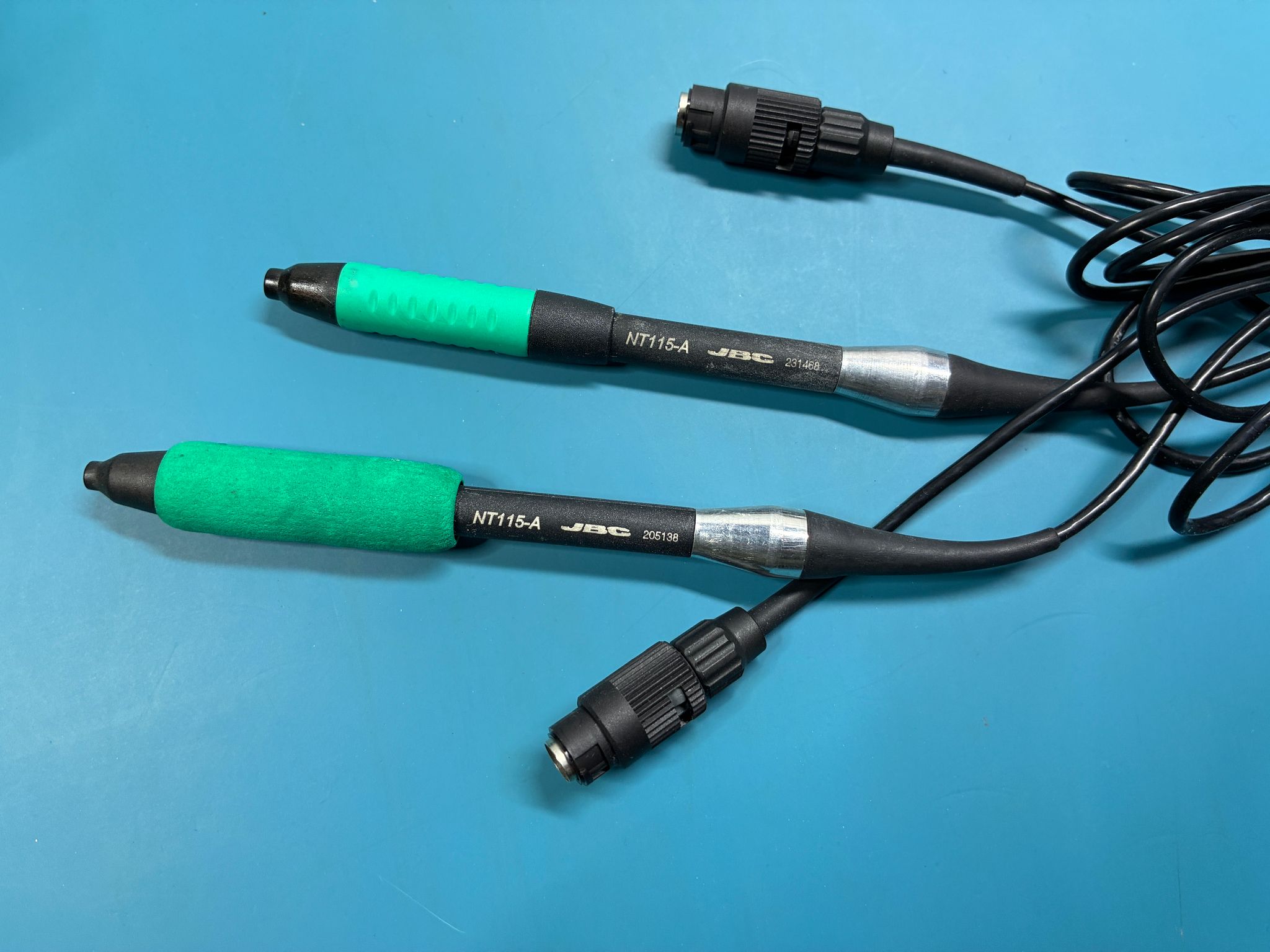

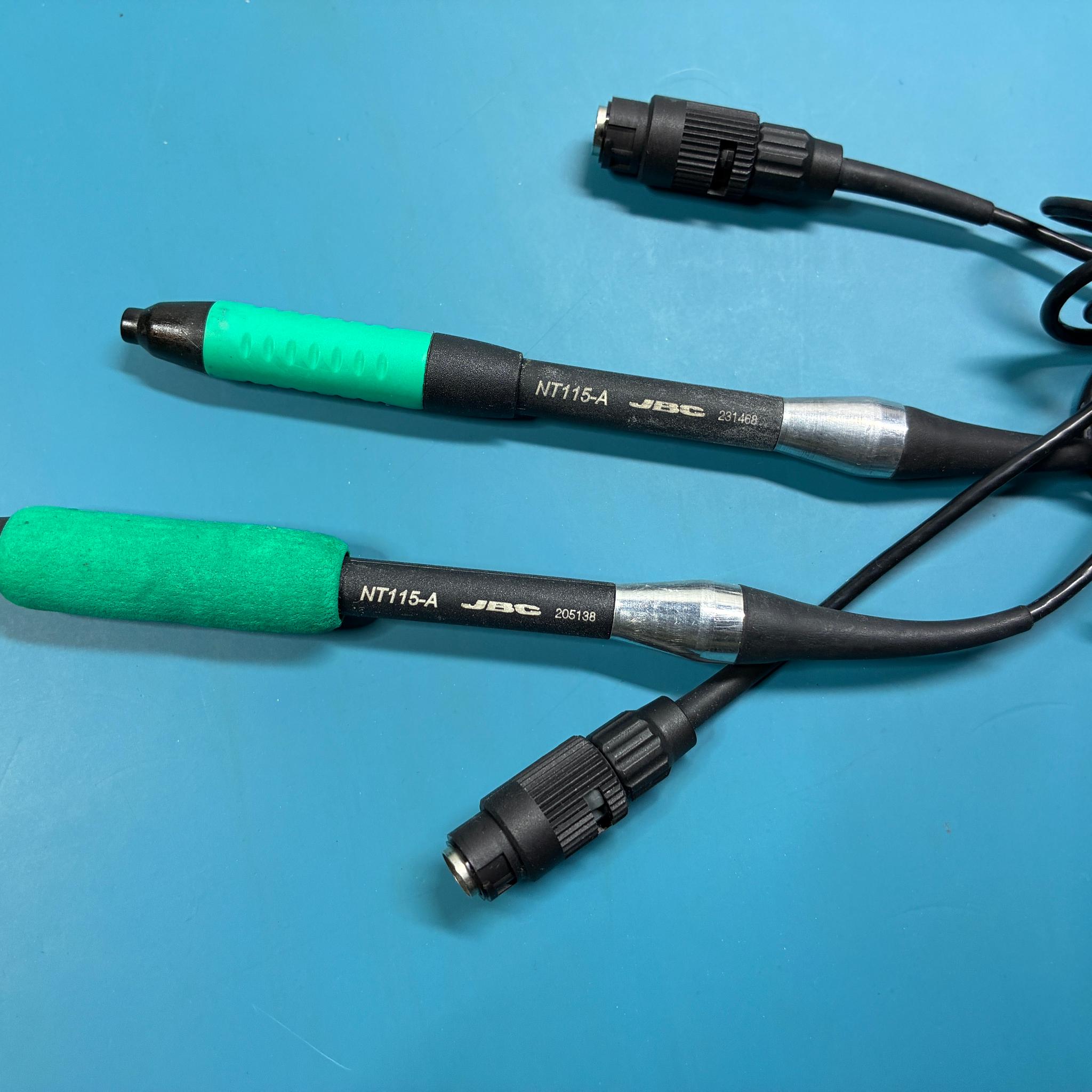

- 2x JBC NT115-A handpieces
- 2x tool holders / stands
- 1x JBC P-405 pedal

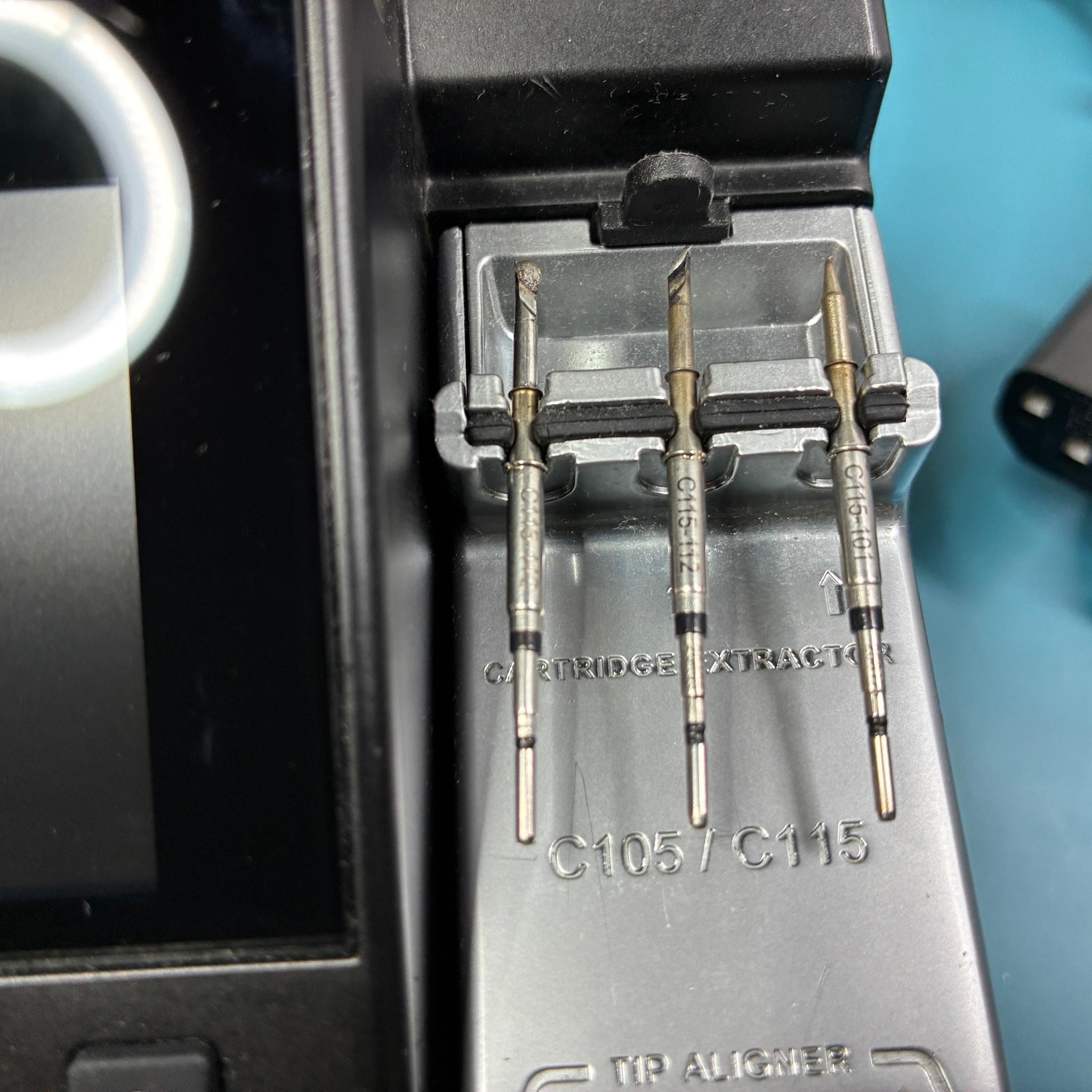

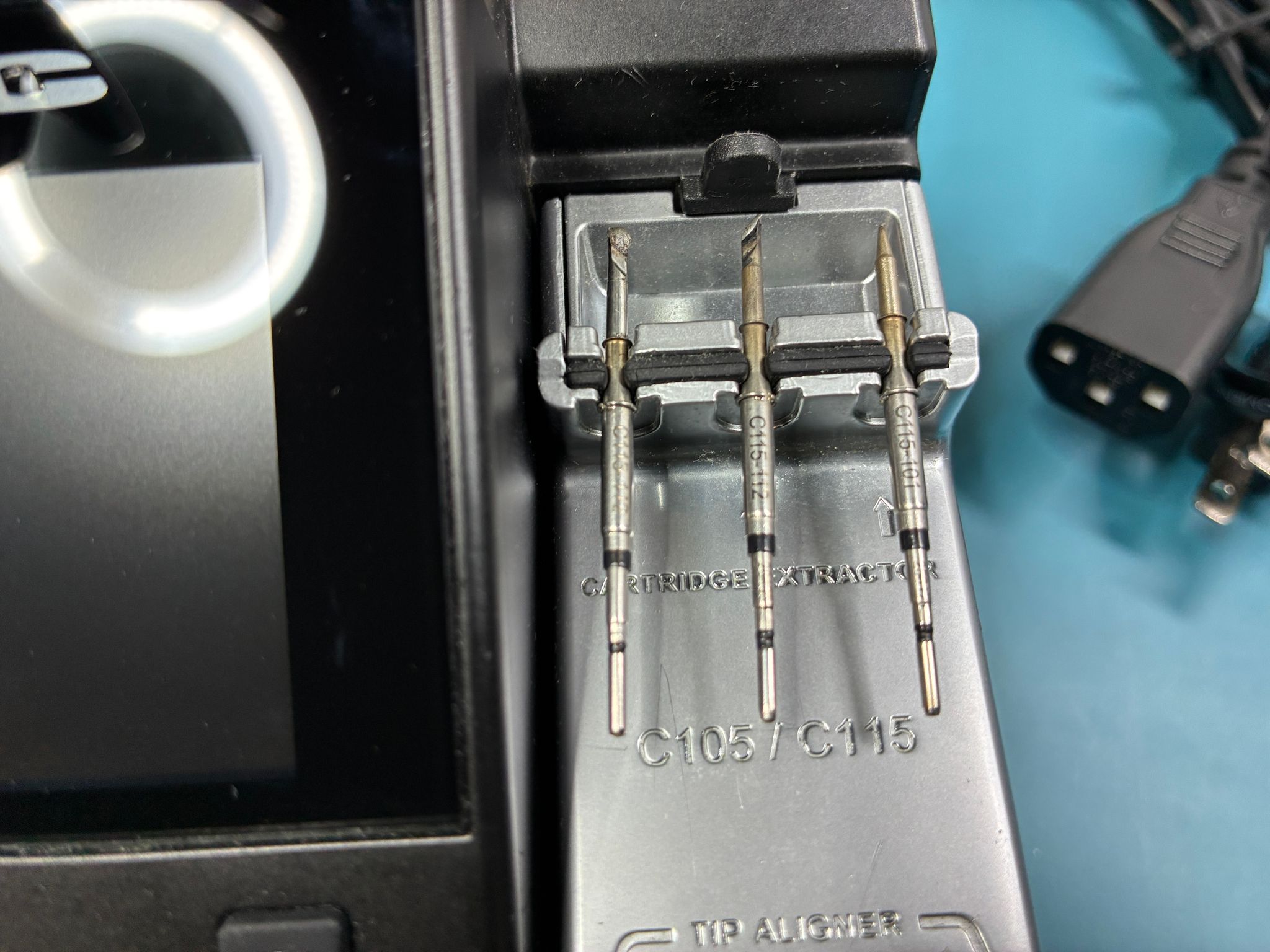

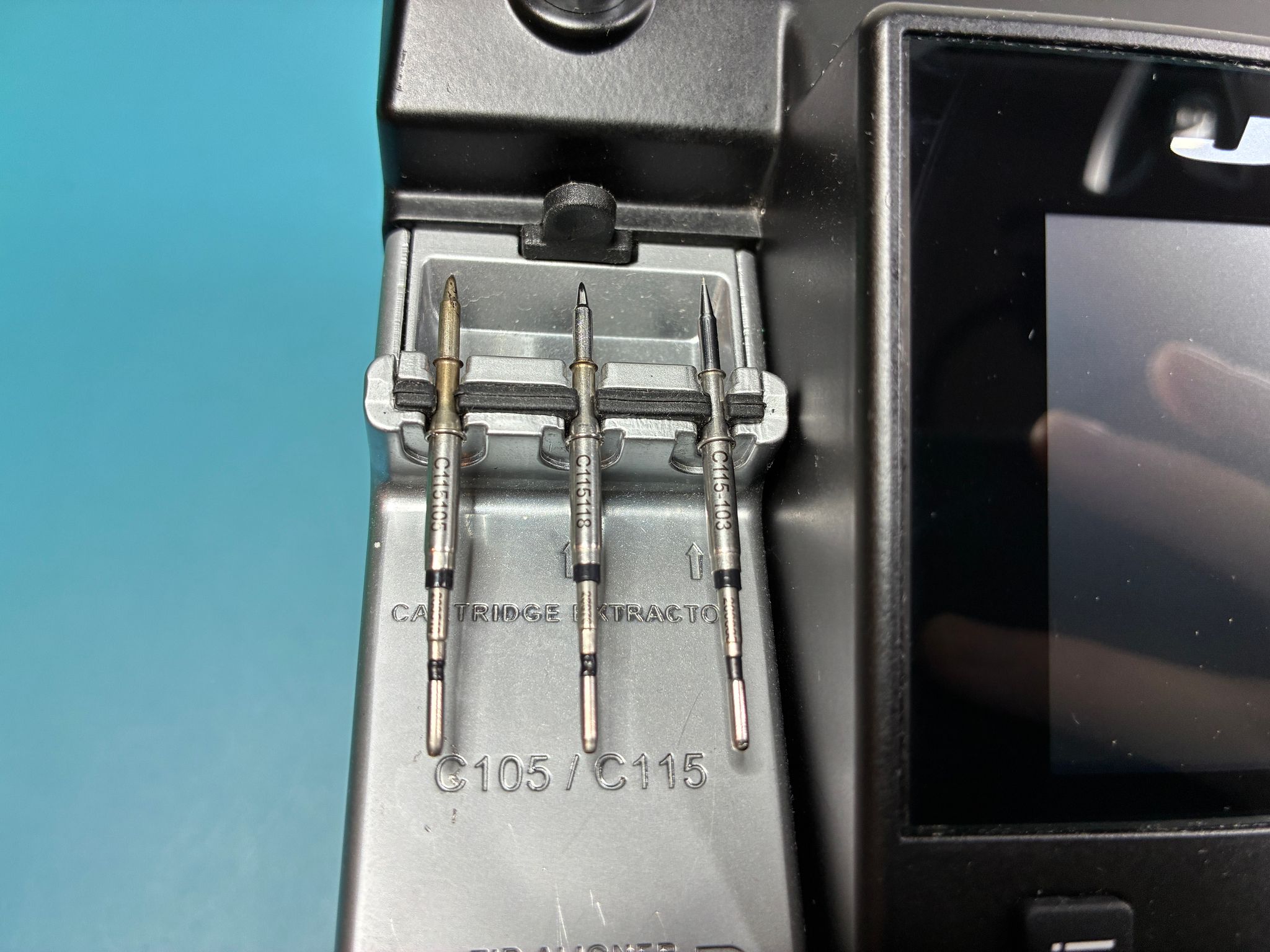

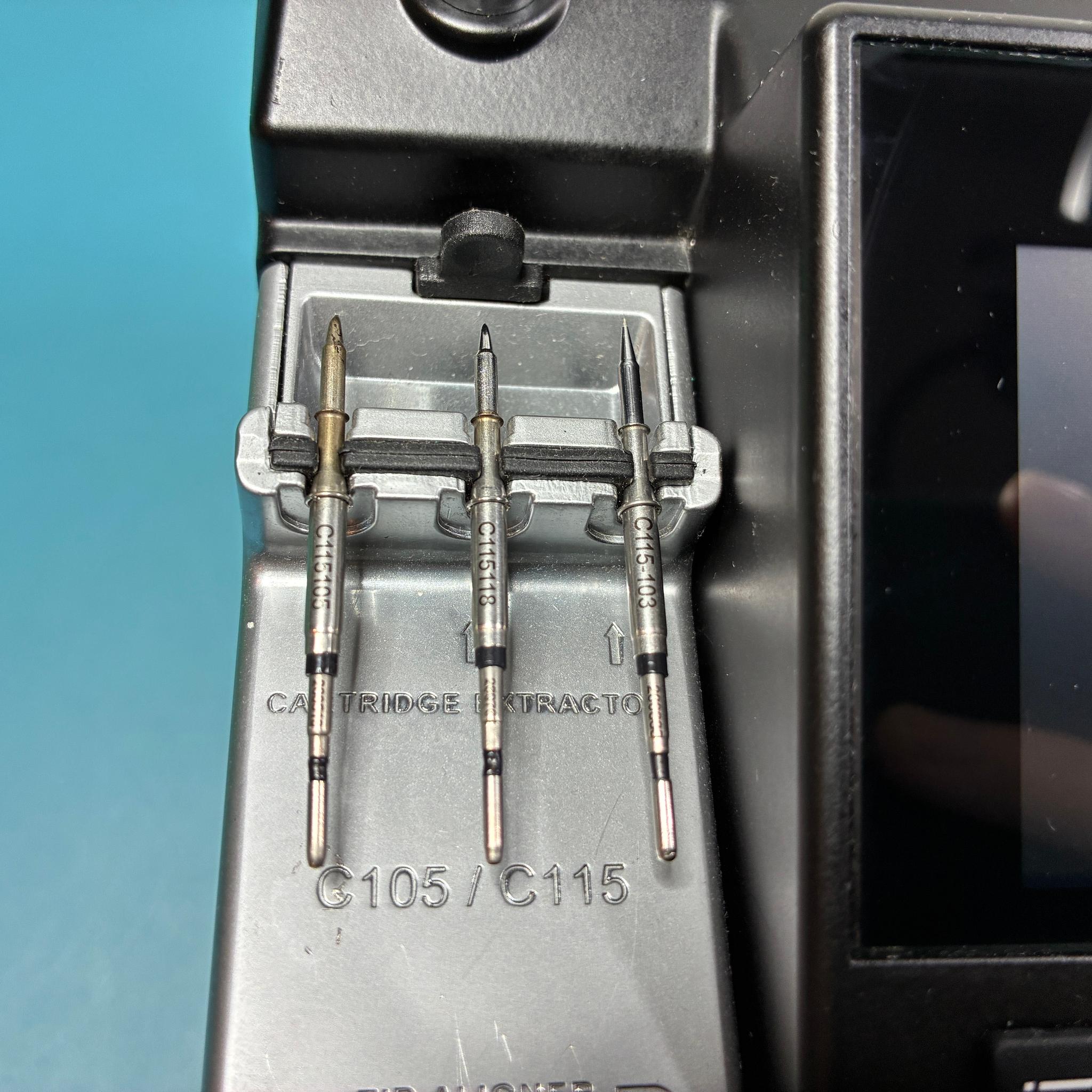

- 6x lightly used soldering tips
No original retail box, soldering sponge, or brass tip cleaner is included.
Compatibility / Technical Notes
Suitability depends on cartridge shape, pad condition, and board thermal demands. Review photos for the included tip shapes; additional C115 cartridges may be needed. Large ground-plane joints may require preheating or a higher-power handpiece. GPU core and VRAM BGA removal, reballing, and replacement require separate rework equipment.
Buyer Notes
- Sold exactly as pictured and described. Please review the holder repair and pedal cable nick, and confirm the station and tips meet your needs.
- Serial numbers are recorded and logged before shipment for fraud prevention and shipment verification.
- Item condition and packaging are photographed/recorded before shipment to help prevent shipping or return disputes.
Packing / Shipping
Components will be wrapped and separated with ESD bubble wrap and foam where needed. The shipment will be double boxed, with padding inside the inner box and between both boxes to prevent movement in transit.
References
Tags
JBC, NANE-1C, NT115-A, C115, microsoldering, electronics assembly, prototyping, motherboard repair, GPU repair, SMD rework, soldering station
