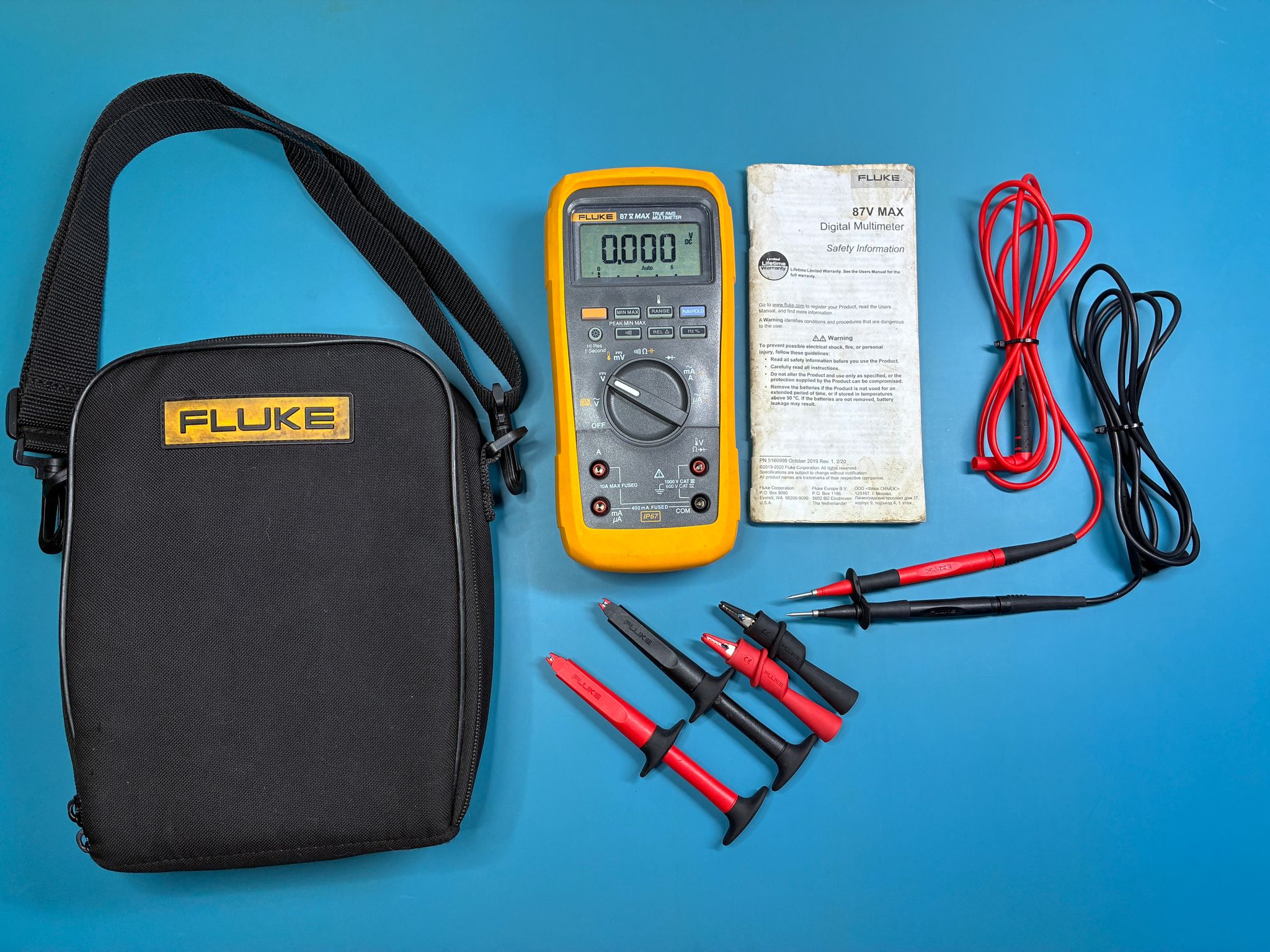

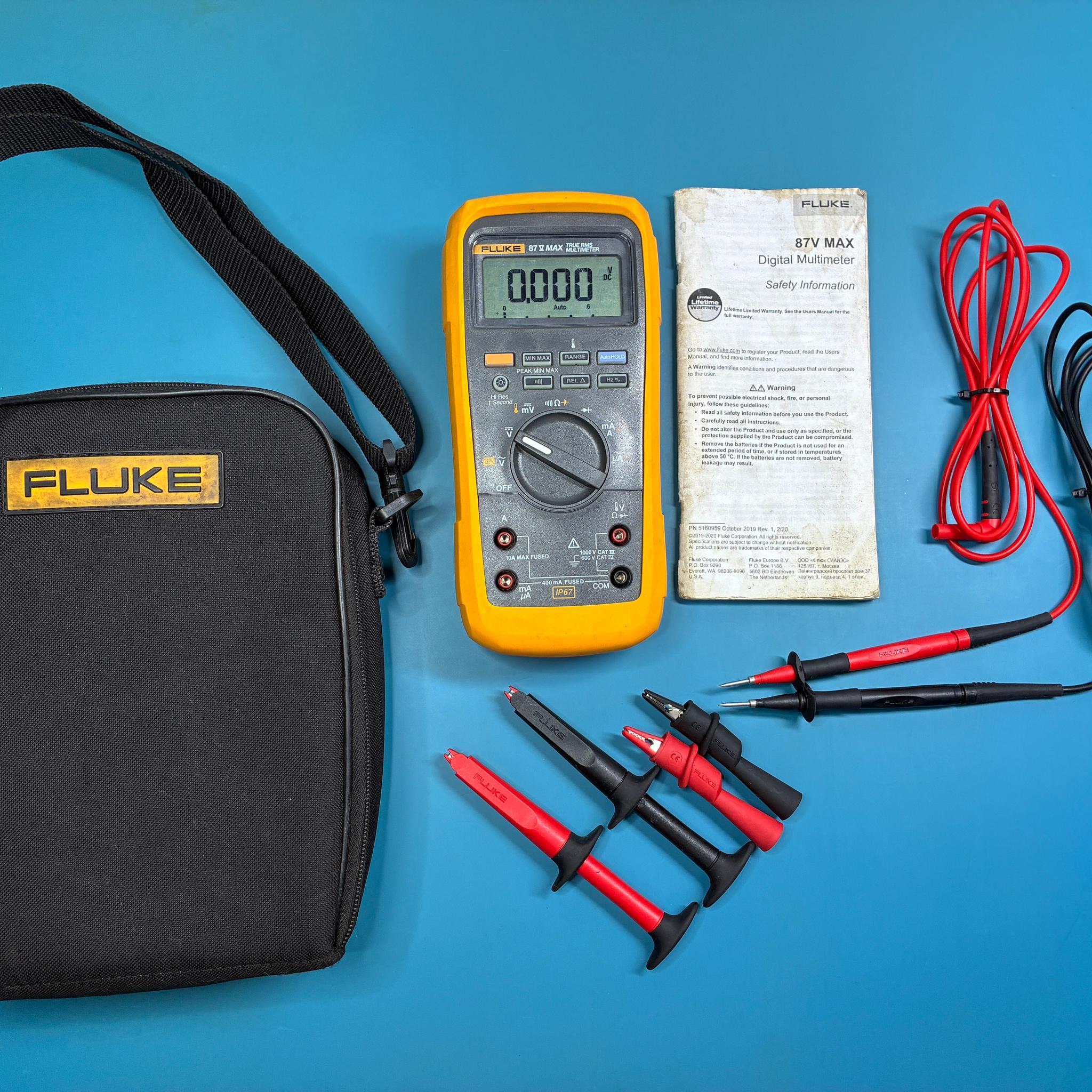

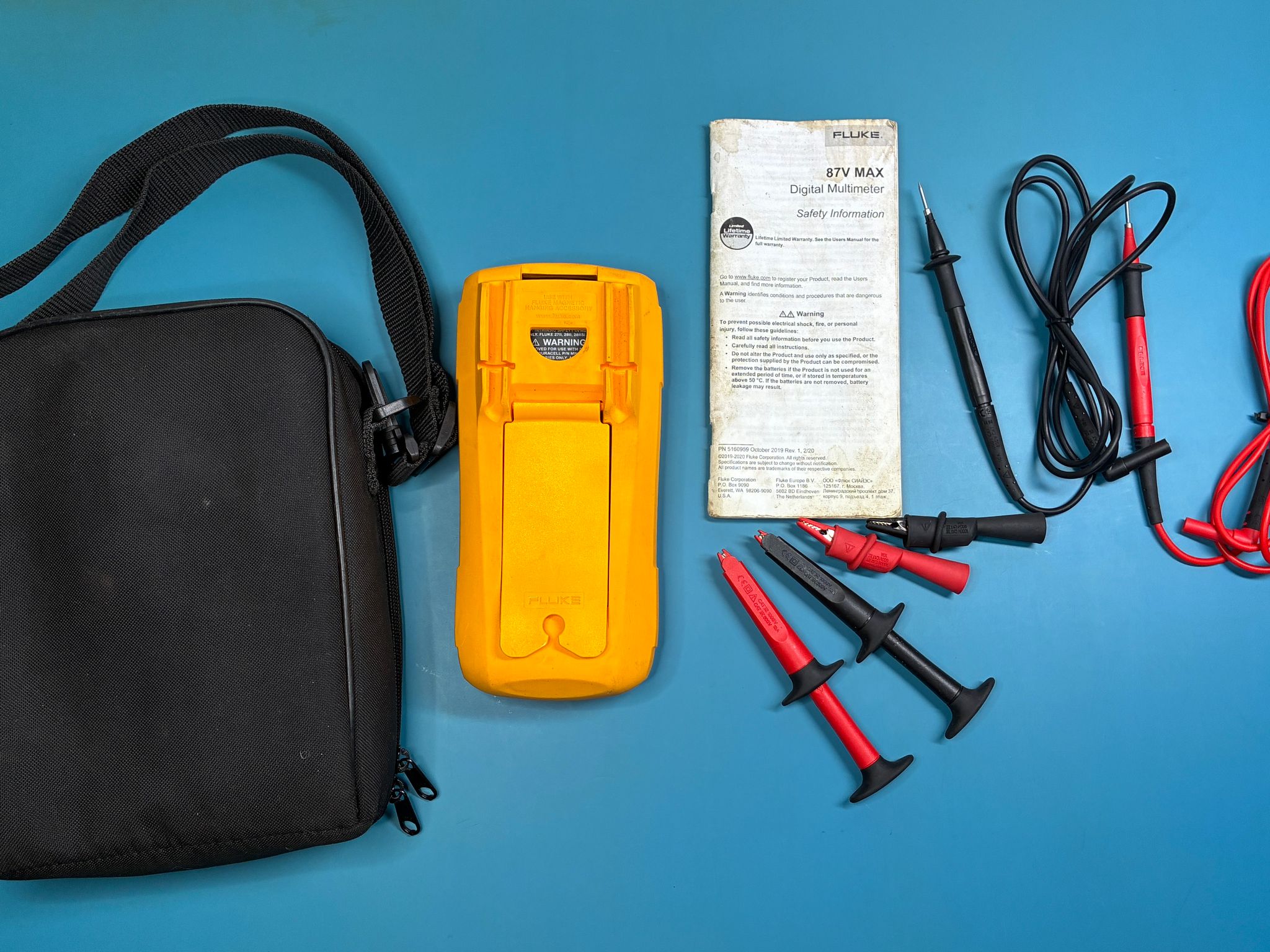

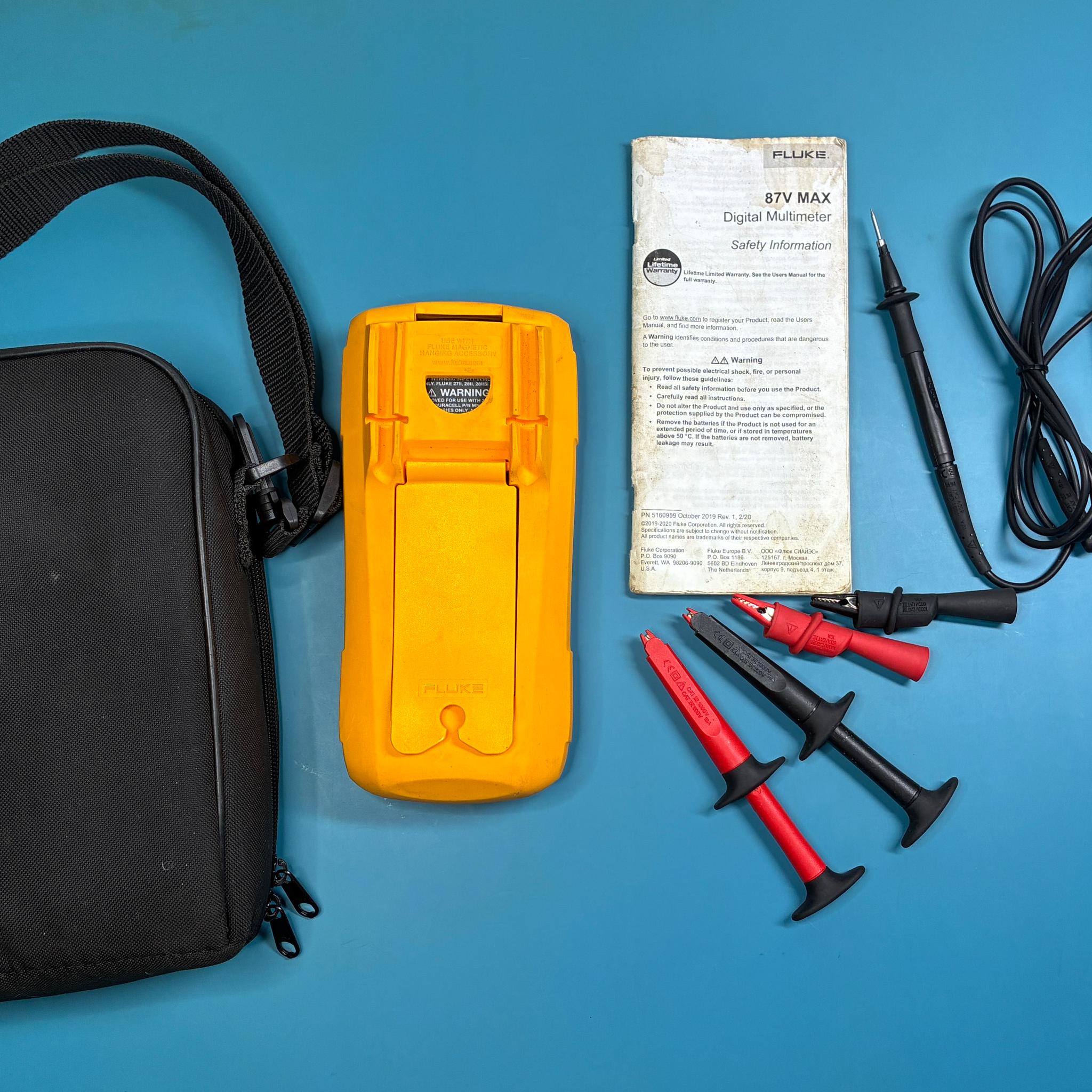

Selling a Fluke 87V MAX True-RMS Digital Multimeter in used — good condition, with case, manual, test leads, and the accessories shown in the listing photos.

I used this meter over approximately 1.5 years while prototyping and developing IR/VR sensors for first responder medical training and simulations. It saw light use during that period. The project has since moved into production, and I now use a benchtop multimeter at my workstation, so I no longer need this handheld unit.

Its voltage, current, resistance, continuity, diode, and capacitance functions make it useful for electronics prototyping, circuit development, and general electrical troubleshooting.

Specifications

Per Fluke's published specifications:

• Voltage: AC/DC to 1000V; 0.1mV maximum resolution. DC accuracy ±(0.05% of reading + 1 count).
• Current: AC/DC to 10A; 20A for up to 30 seconds; 0.1µA maximum resolution.
• True-RMS: AC voltage and current measurement.
• Resistance: To 50MΩ; 0.1Ω maximum resolution.
• Capacitance: 0.01nF–9,999µF.
• Diode test: 2V range, 0.001V resolution; continuity mode.
• Frequency: 0.5Hz–199.99kHz.
• Display: 6,000 counts; 19,999-count high-resolution mode; backlit display and keypad.
• Capture / controls: Min/Max/Average, 250µs Peak Min/Max, relative reference, Hold/AutoHold, and low-pass filter.
• Construction: IP67 enclosure; rated for 4m drops with holster.
• Safety ratings: CAT III 1000V / CAT IV 600V.
• Power: 3x AA batteries; typical 800-hour life without backlight.
• Size / weight with holster: 6.0 × 10.1 × 21.5cm; 698.5g.

Condition

Usage: Used — good condition. Light use over approximately 1.5 years for the sensor prototyping and development project described above.

Cosmetic: Please review the listing photos for the exact condition of the meter, case, leads, and accessories.

Accessory Note: Some original accessories are missing. Only the accessories shown in the listing photos are included. The manufacturer's standard package contents do not represent everything included in this sale.

Included

• Fluke 87V MAX True-RMS Digital Multimeter

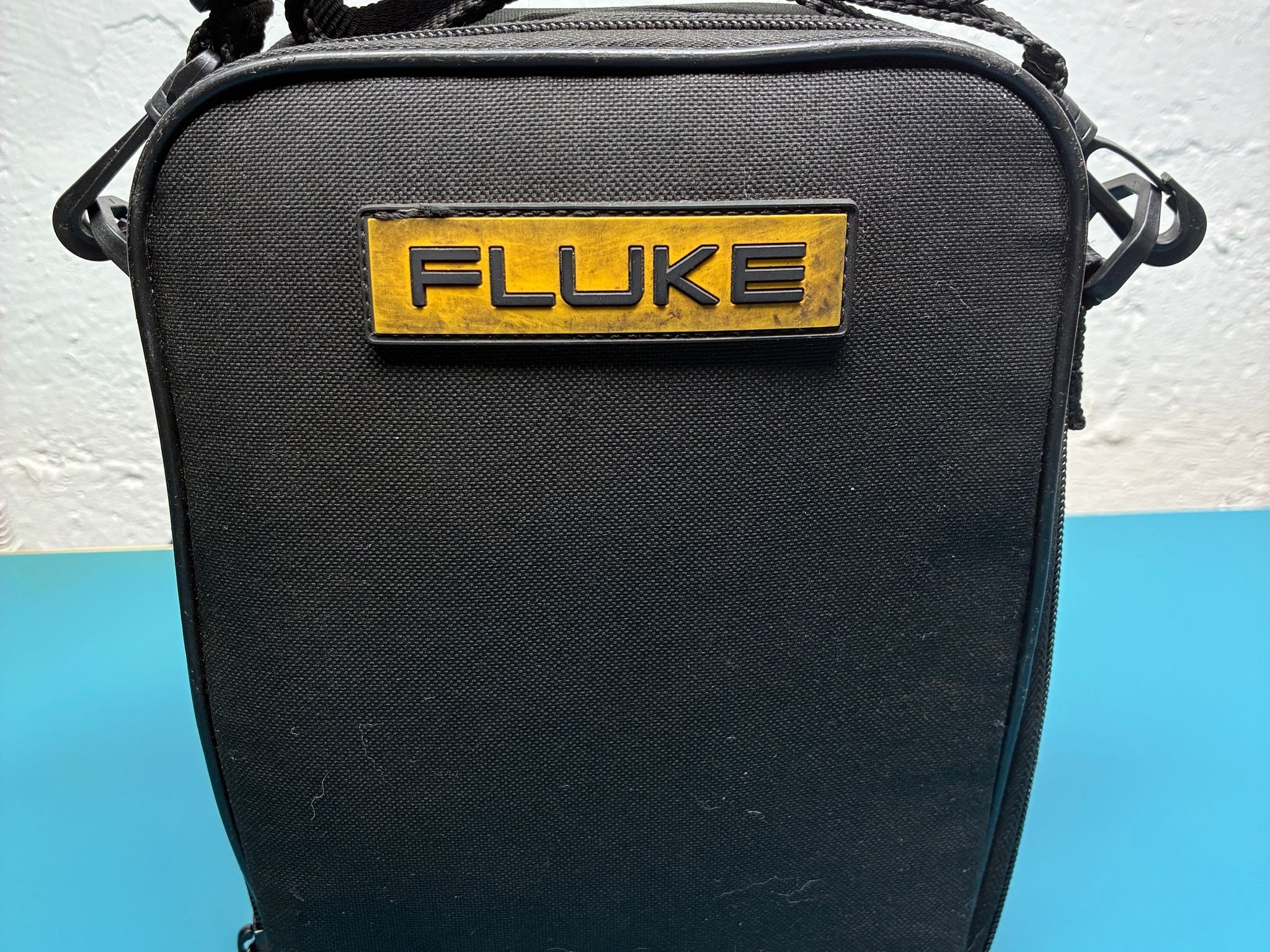

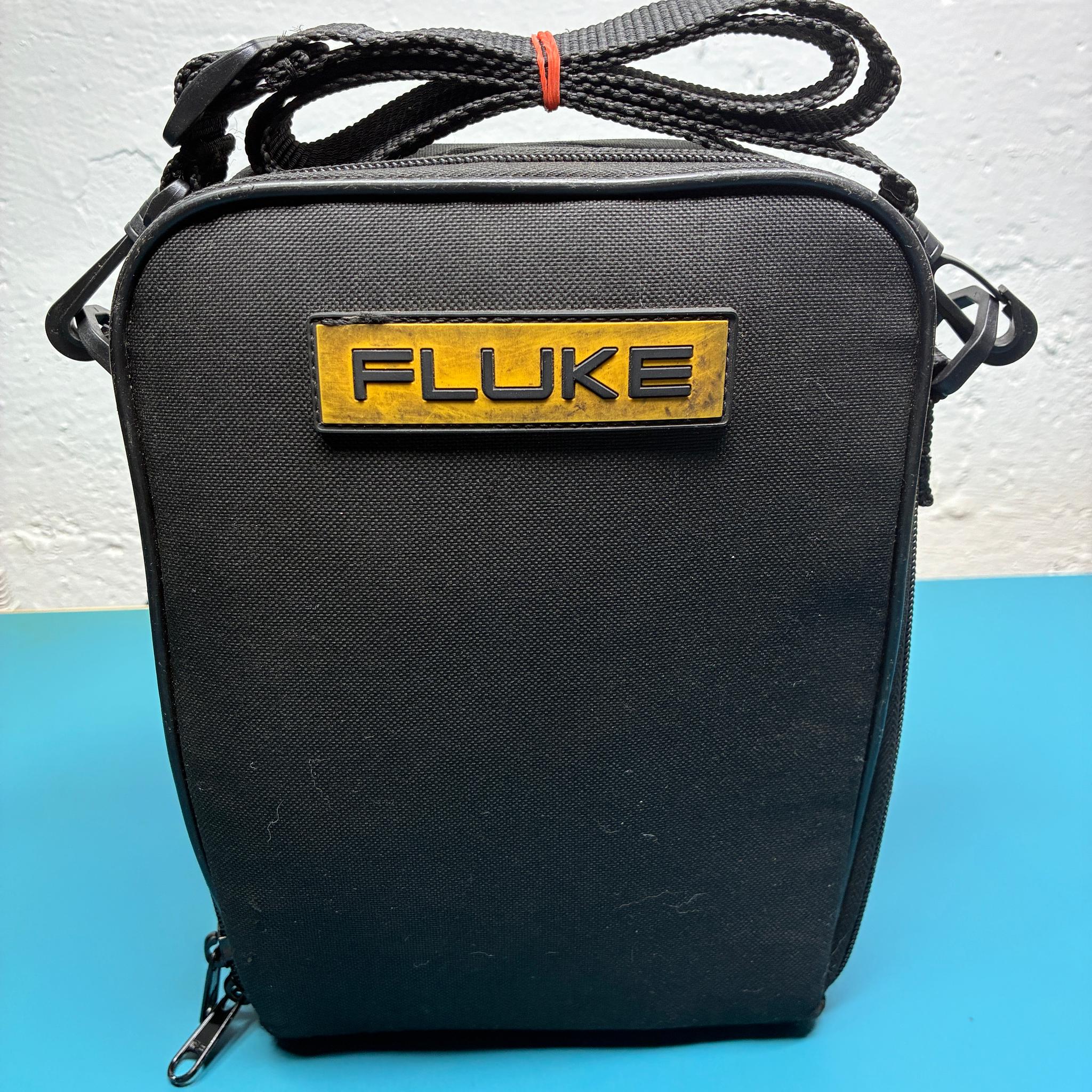

• Case
• Manual
• Test leads

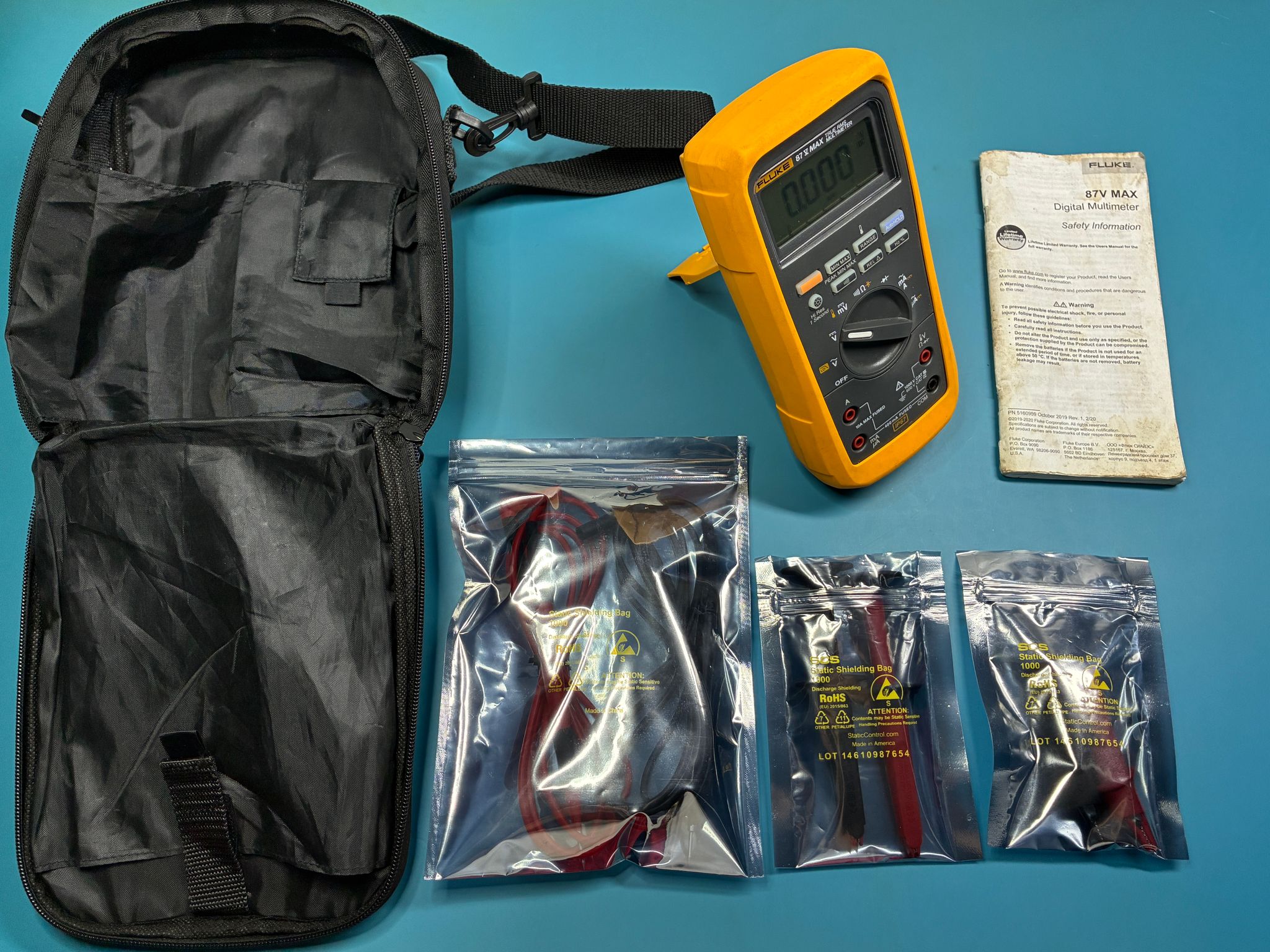

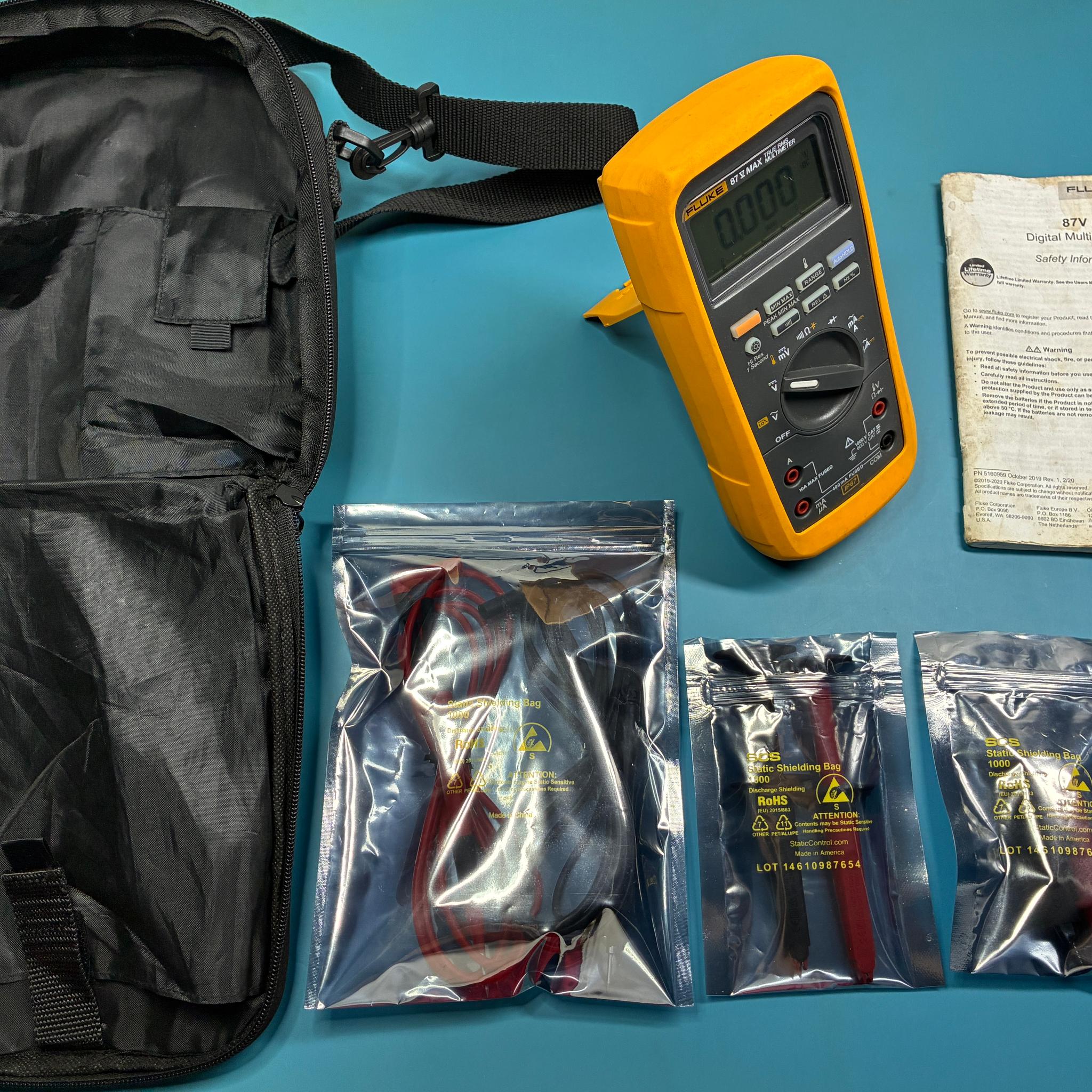

• Additional accessories shown in the listing photos only

Applications / Technical Notes

Applications include checking sensor supply voltages, measuring circuit current, verifying continuity, and evaluating components. The meter can also support motherboard or GPU diagnostics through supply-rail checks, resistance measurements, and diode-mode comparisons.

Low resistance on CPU/GPU core rails can be normal; interpret readings against the board design or a known-good reference. In-circuit parallel paths can affect resistance, diode, and capacitance readings. Fine-pitch probing may require additional probes suited to the board. An oscilloscope is needed to inspect switching waveforms and fast ripple behavior.

Buyer Notes

• Sold exactly as pictured and described. Review all photos for the included accessories.
• Serial numbers are recorded and logged before shipment for fraud prevention and shipment verification.
• Item condition and packaging are photographed/recorded before shipment to help prevent shipping or return disputes.
