🧰 Phil’s Builds – AM5 Micro ATX Validation Sheet

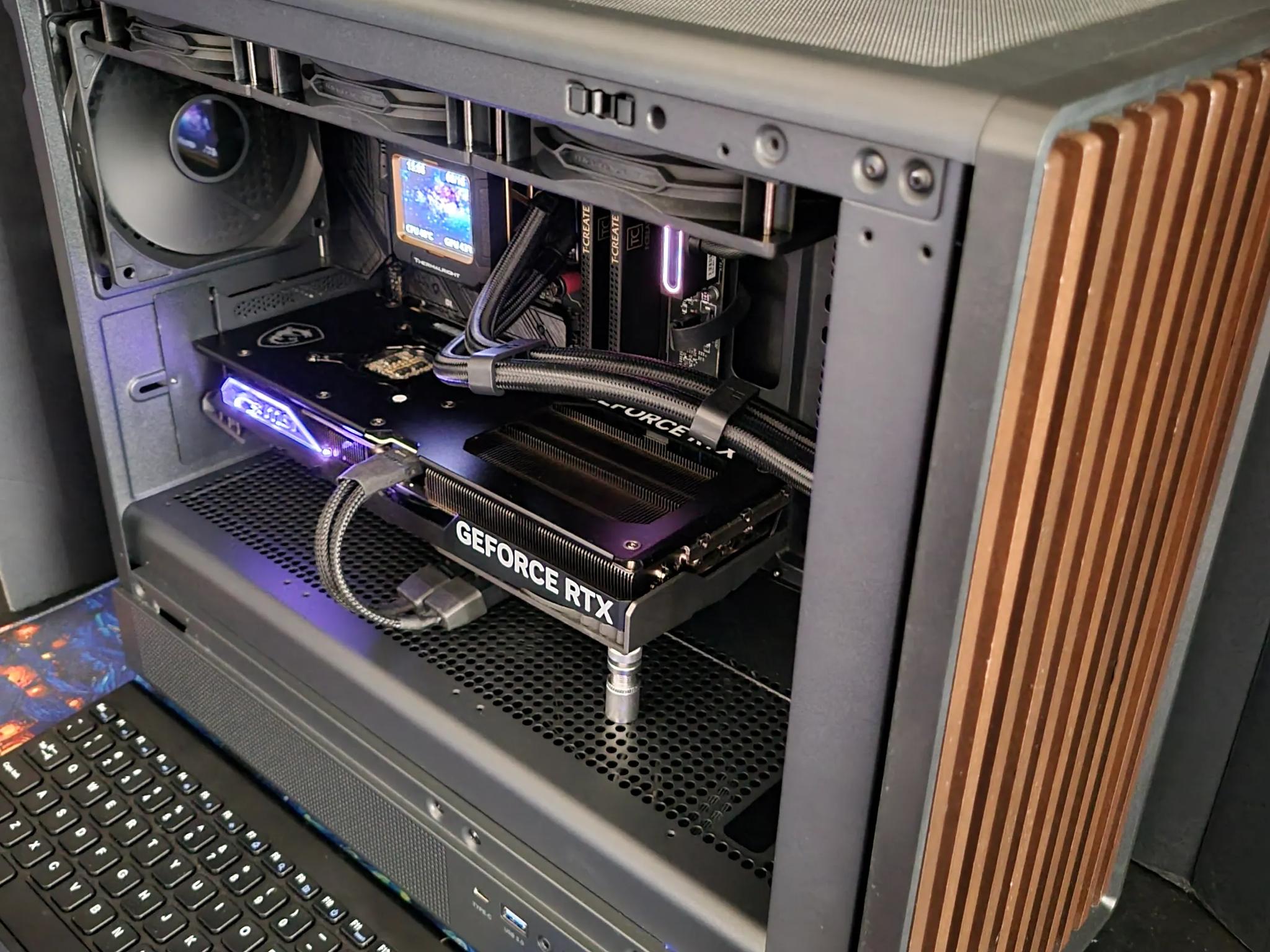

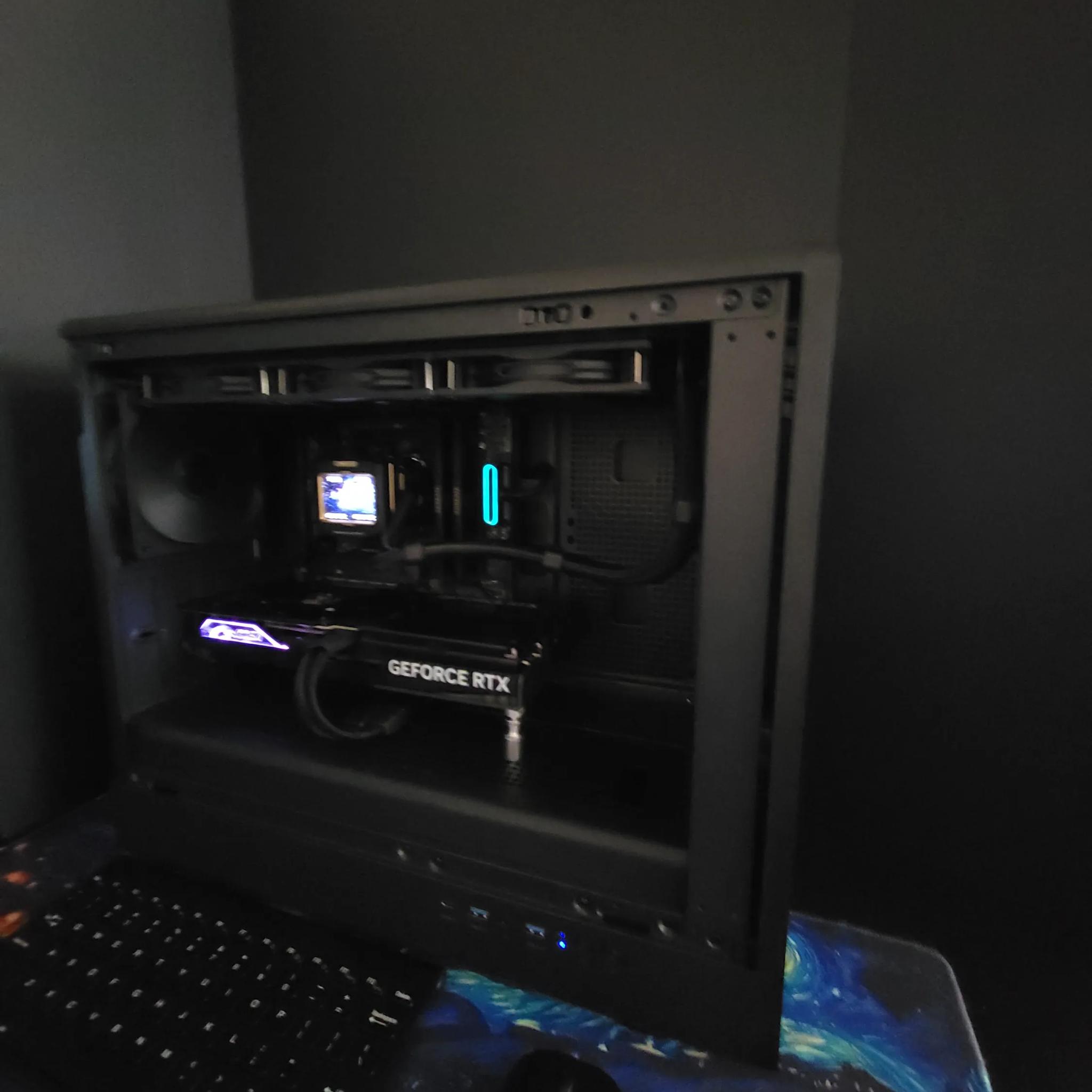

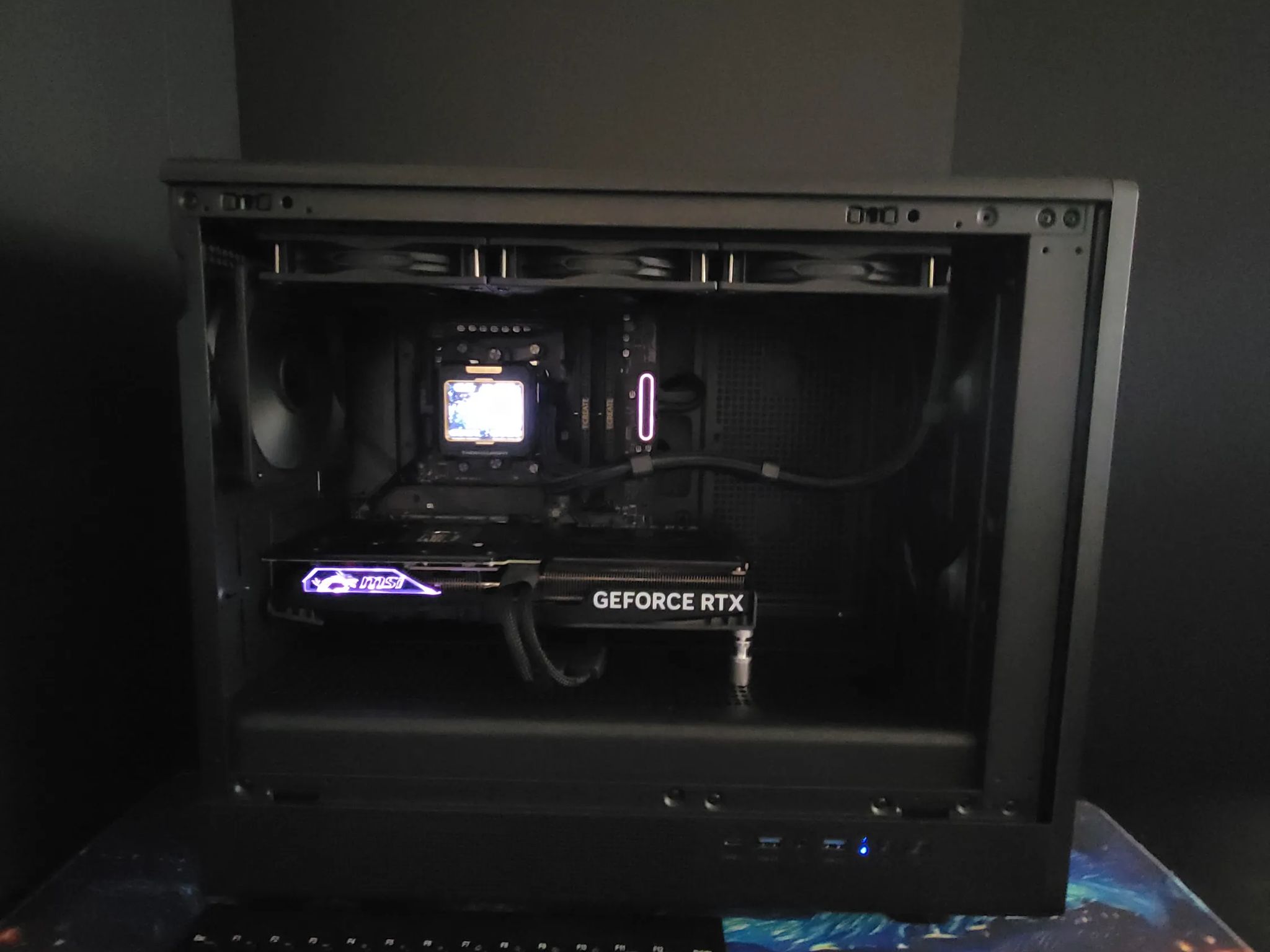

🖥️ Core Components CPU: AMD Ryzen 5 9600X – 6C/12T, Zen 5, 3.9 GHz base / 5.4 GHz boost, 65W TDP No cooler included, unlocked for OC ** Motherboard:** MSI MAG B650M MORTAR WIFI – AM5, DDR5, Wi-Fi 6E, Micro-ATX. GPU: MSI RTX 4070 Super Gaming X Slim – 12GB GDDR6X, 192-bit, 2655 MHz boost 3× DP 1.4a, 1× HDMI 2.1, dual 8-pin PCIe (no 12VHPWR)(6 month old light gaming.)

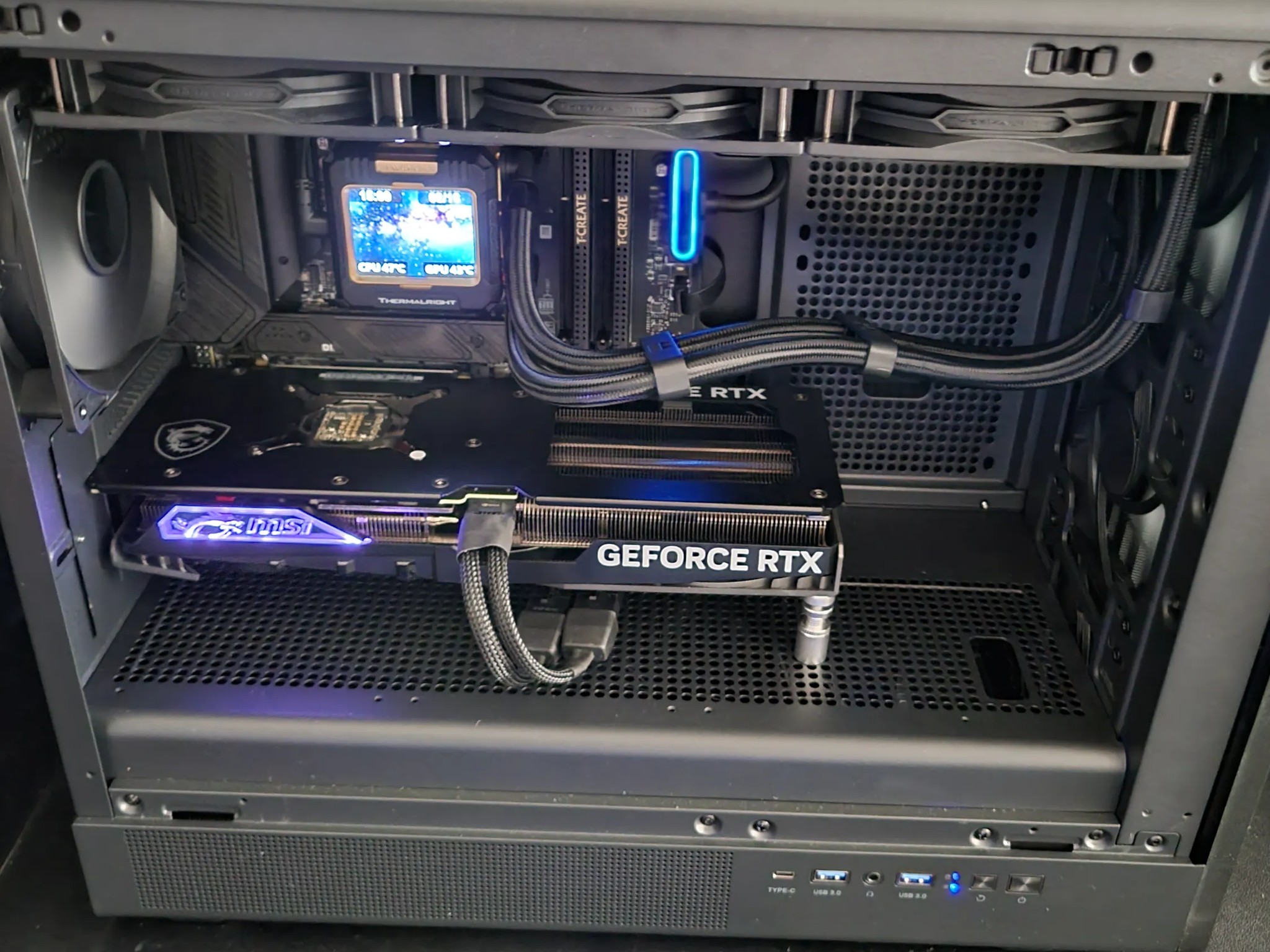

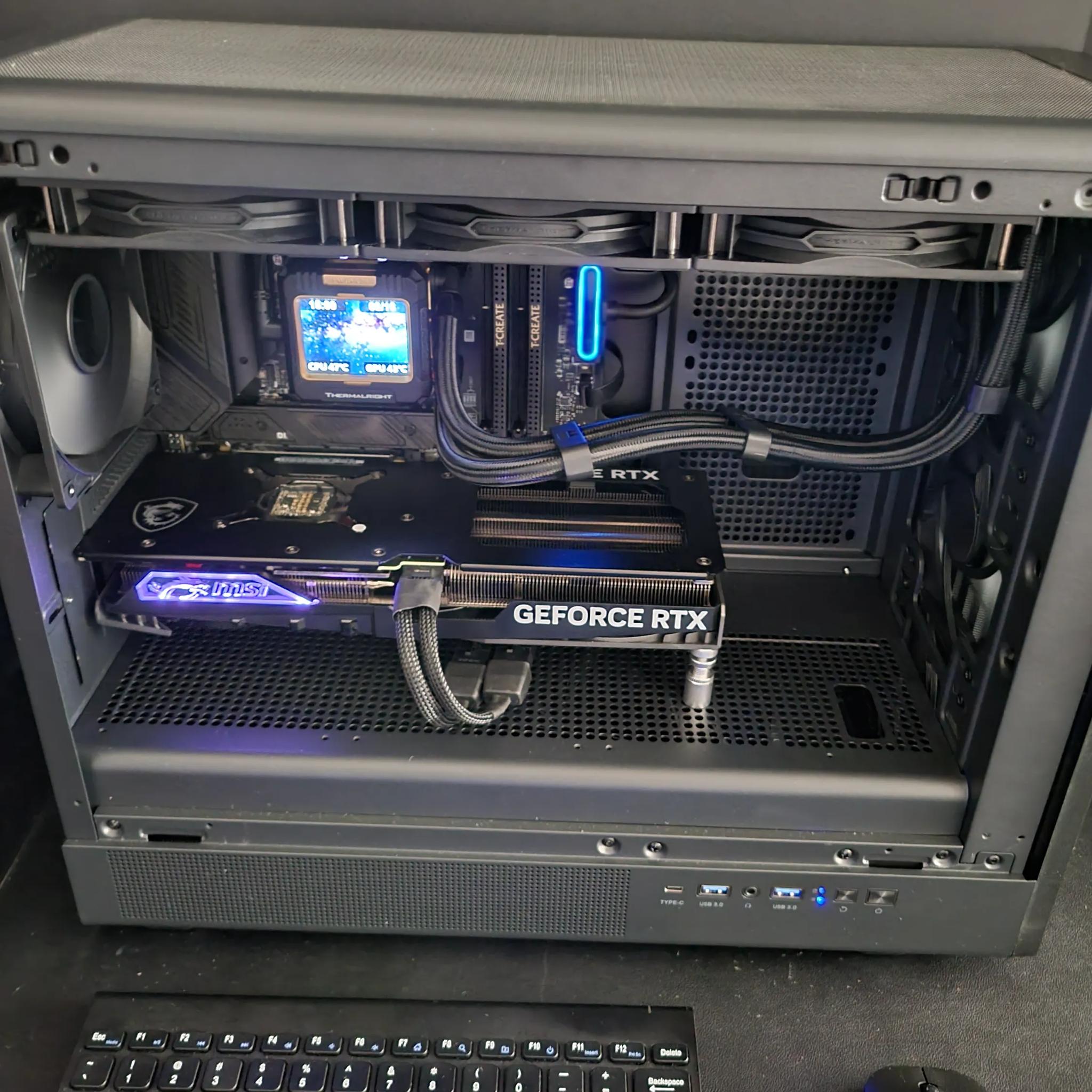

🧊 Cooling AIO: Thermalright FW360 Black – 360mm rad 3x exhaust fan, Thermalright C12015B 3x front intake, 1x rear exhaust, IPS LCD screen AM5 bracket, USB 9-pin header, no ARGB

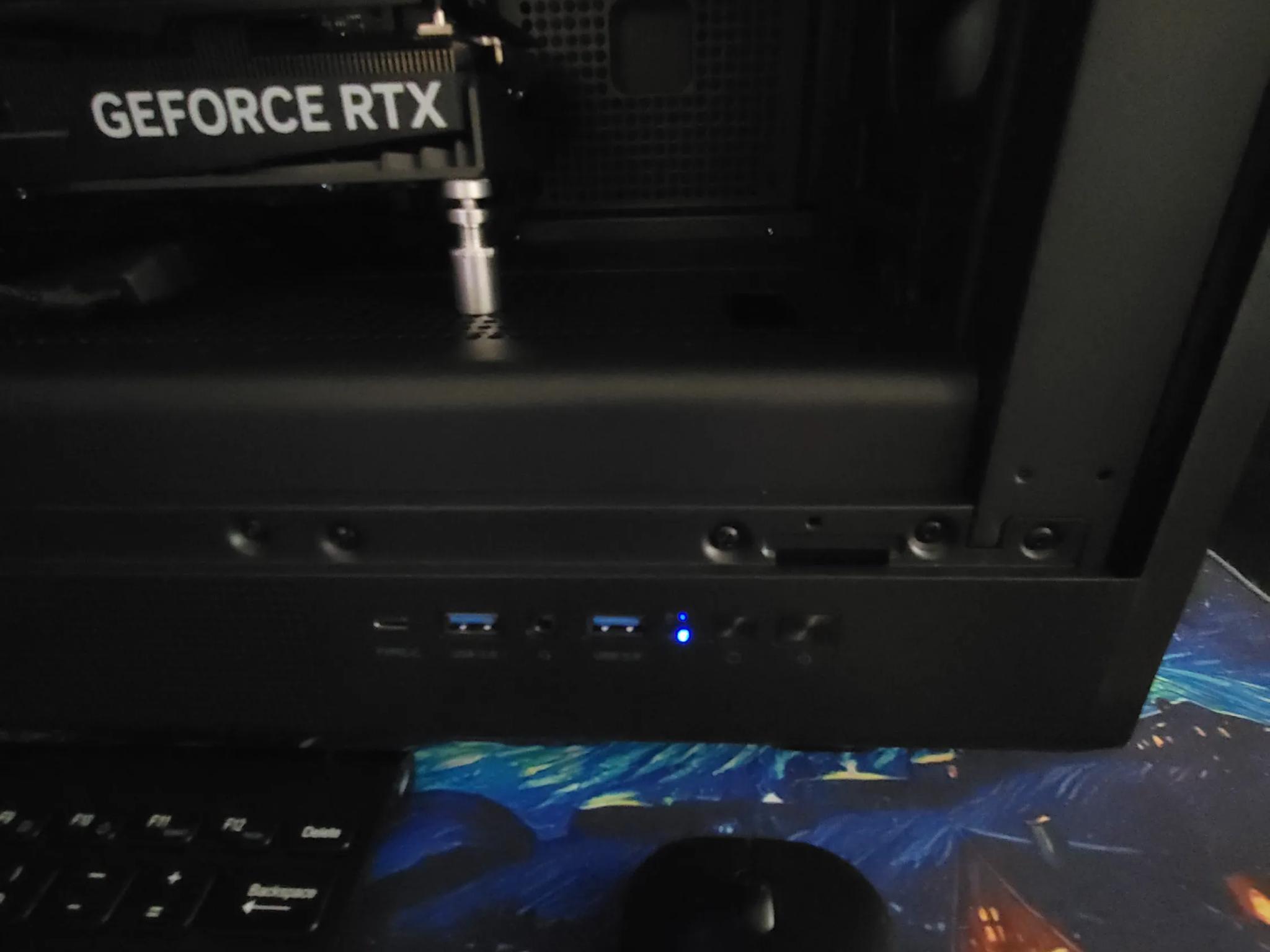

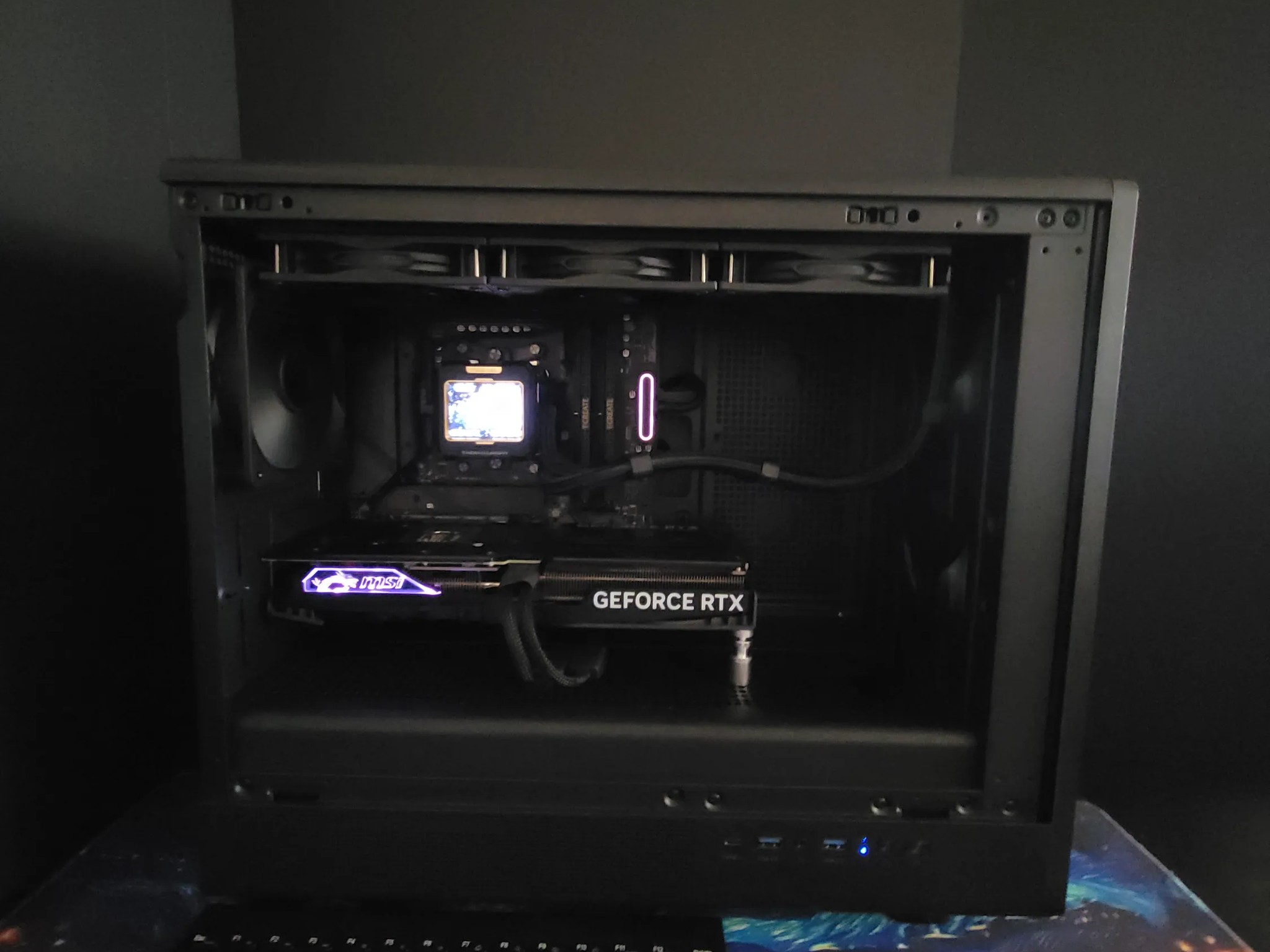

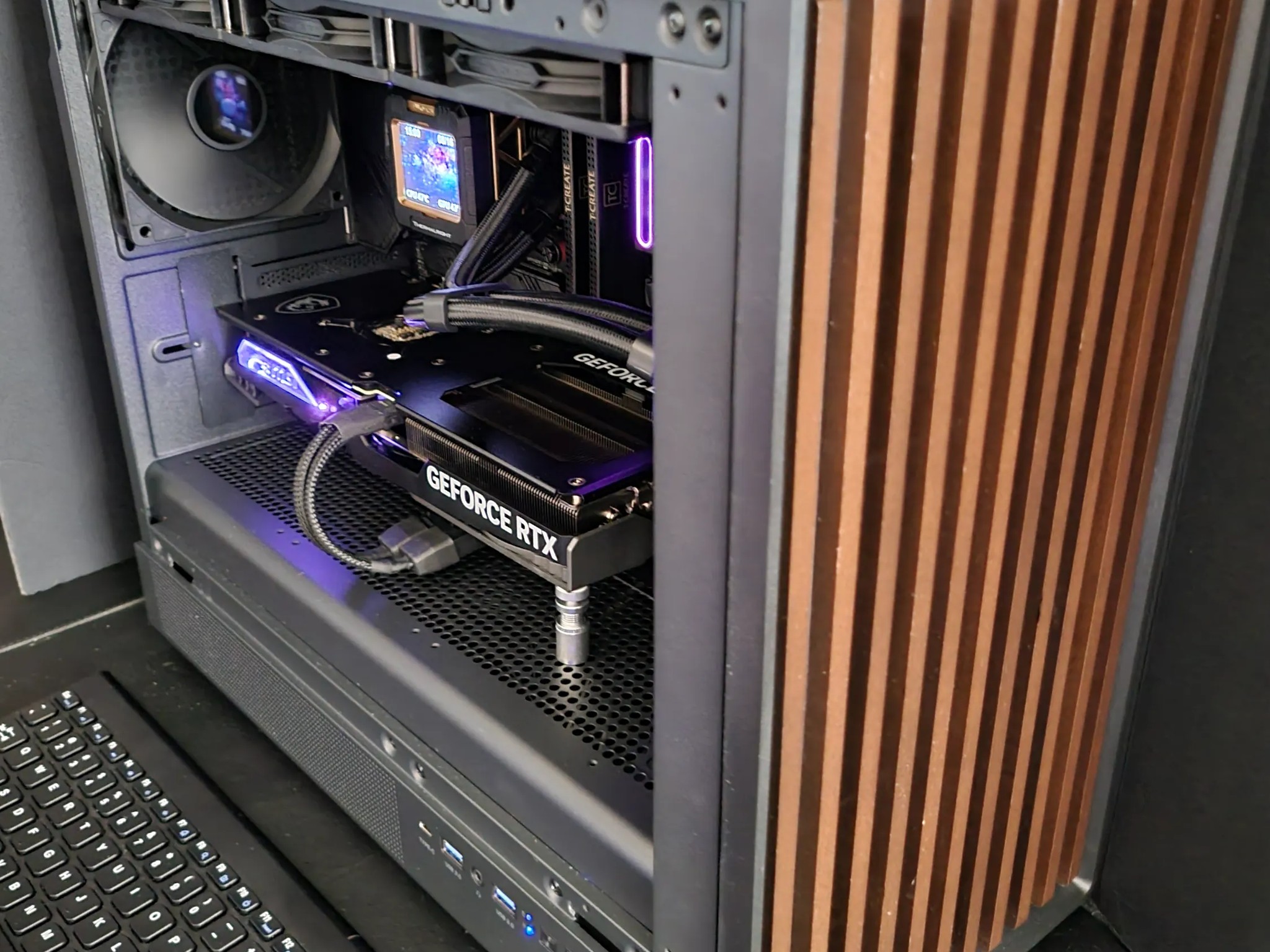

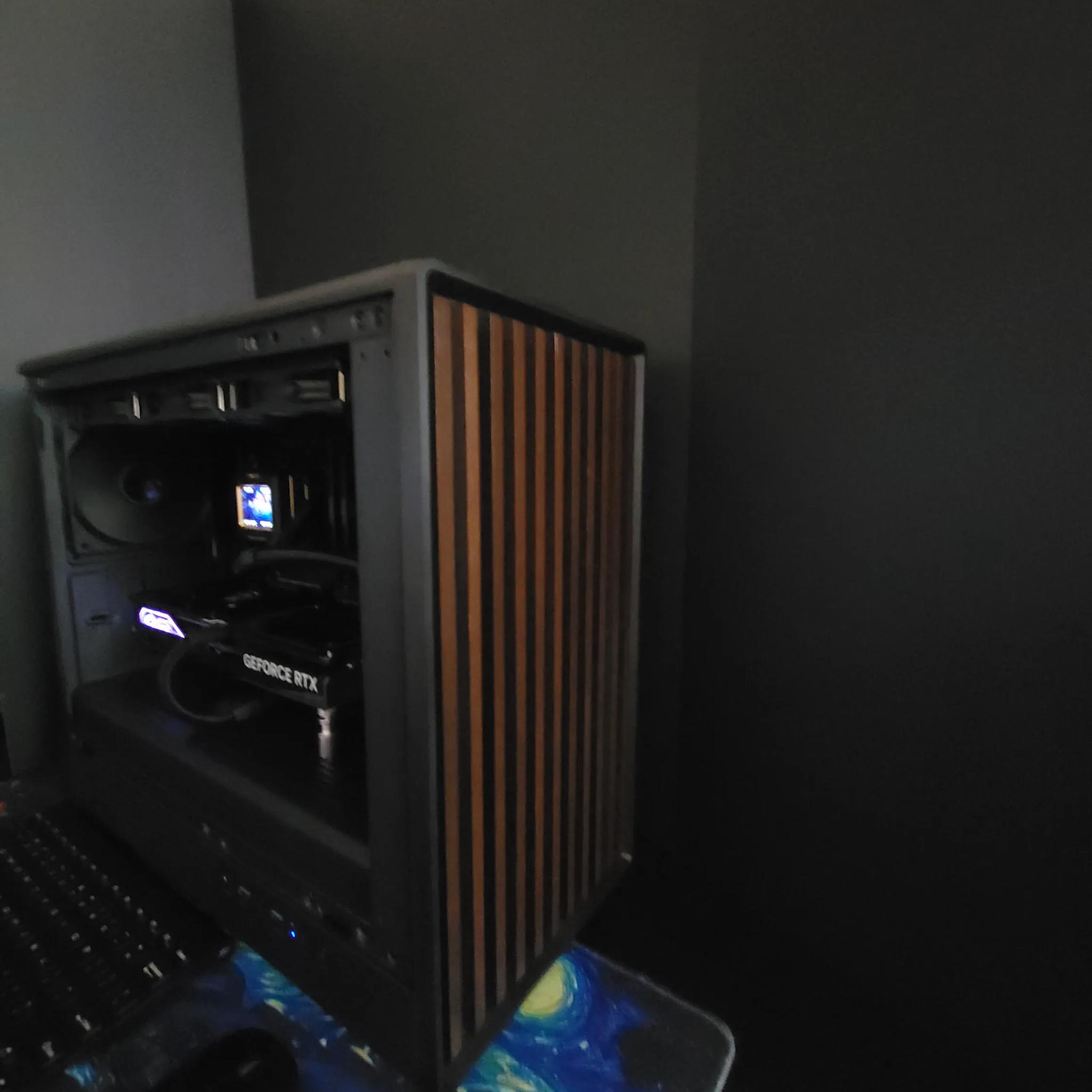

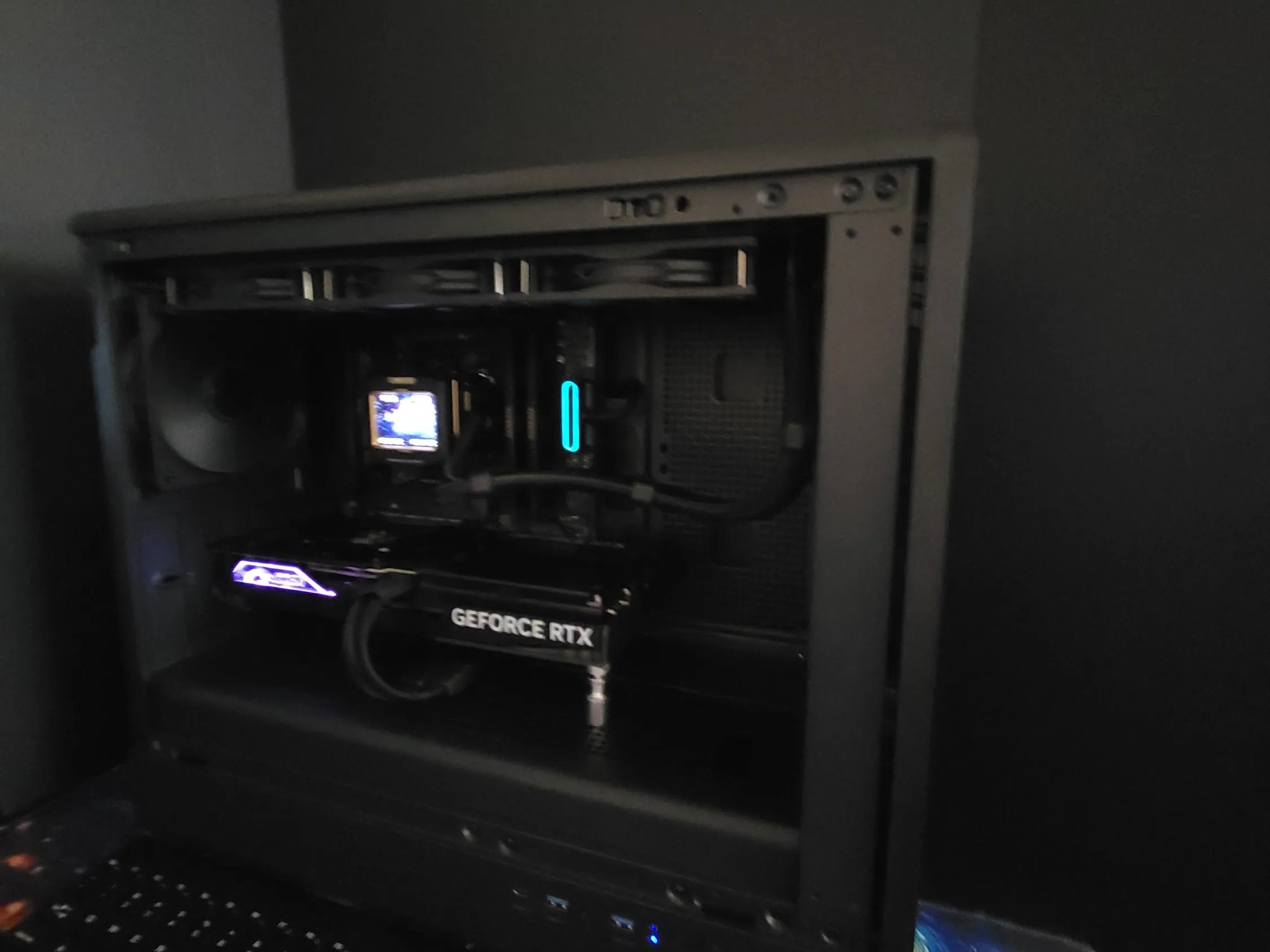

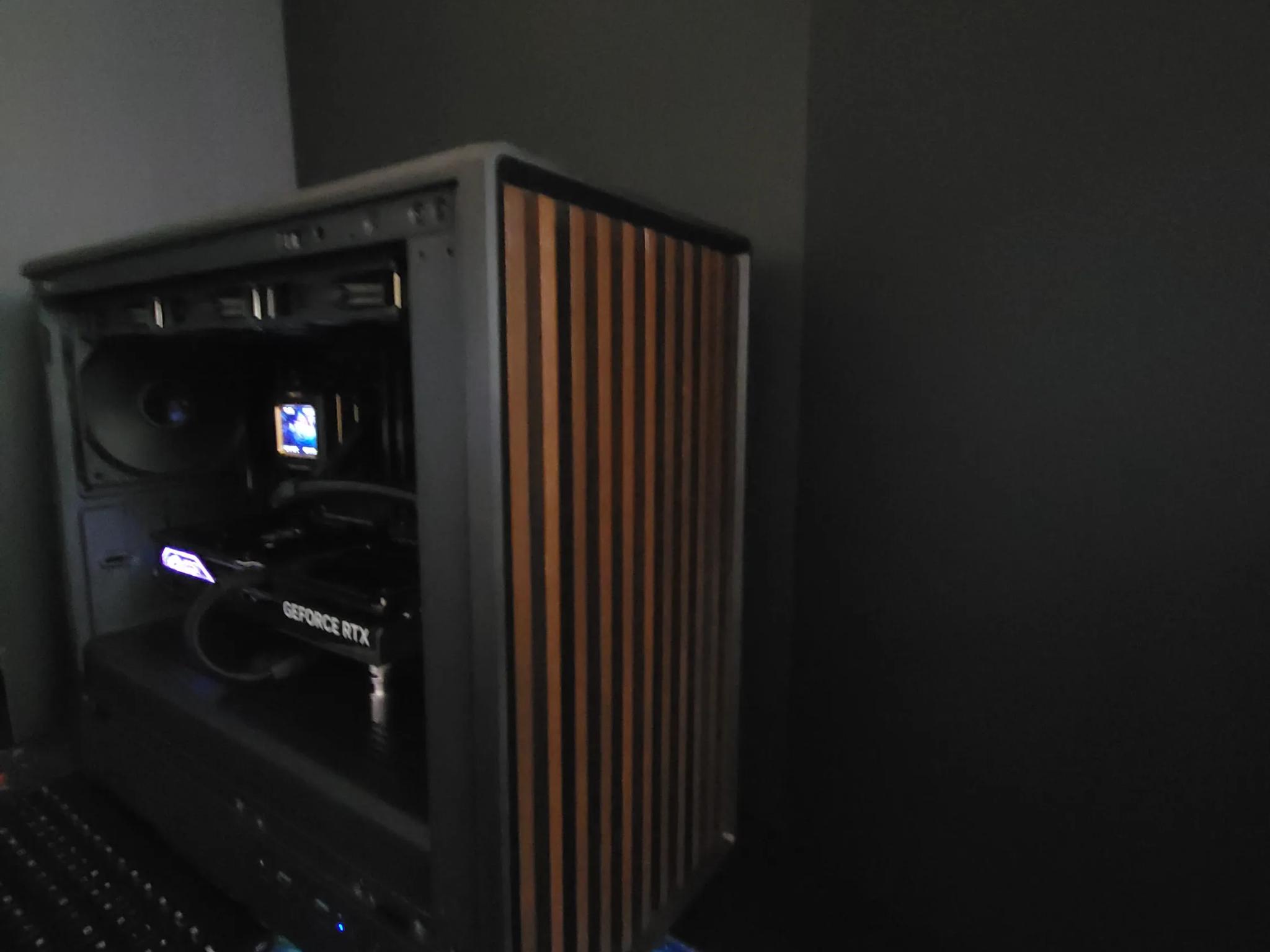

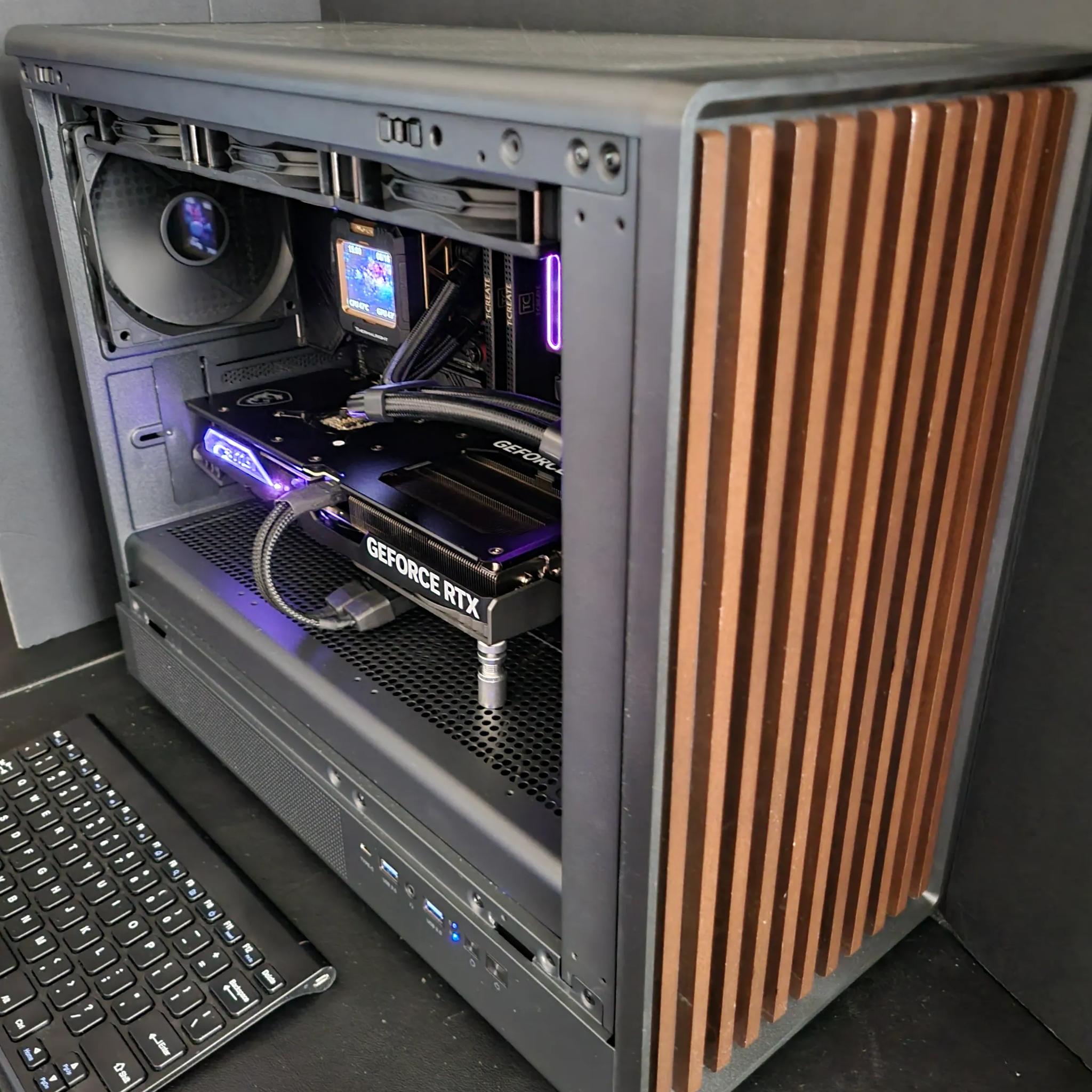

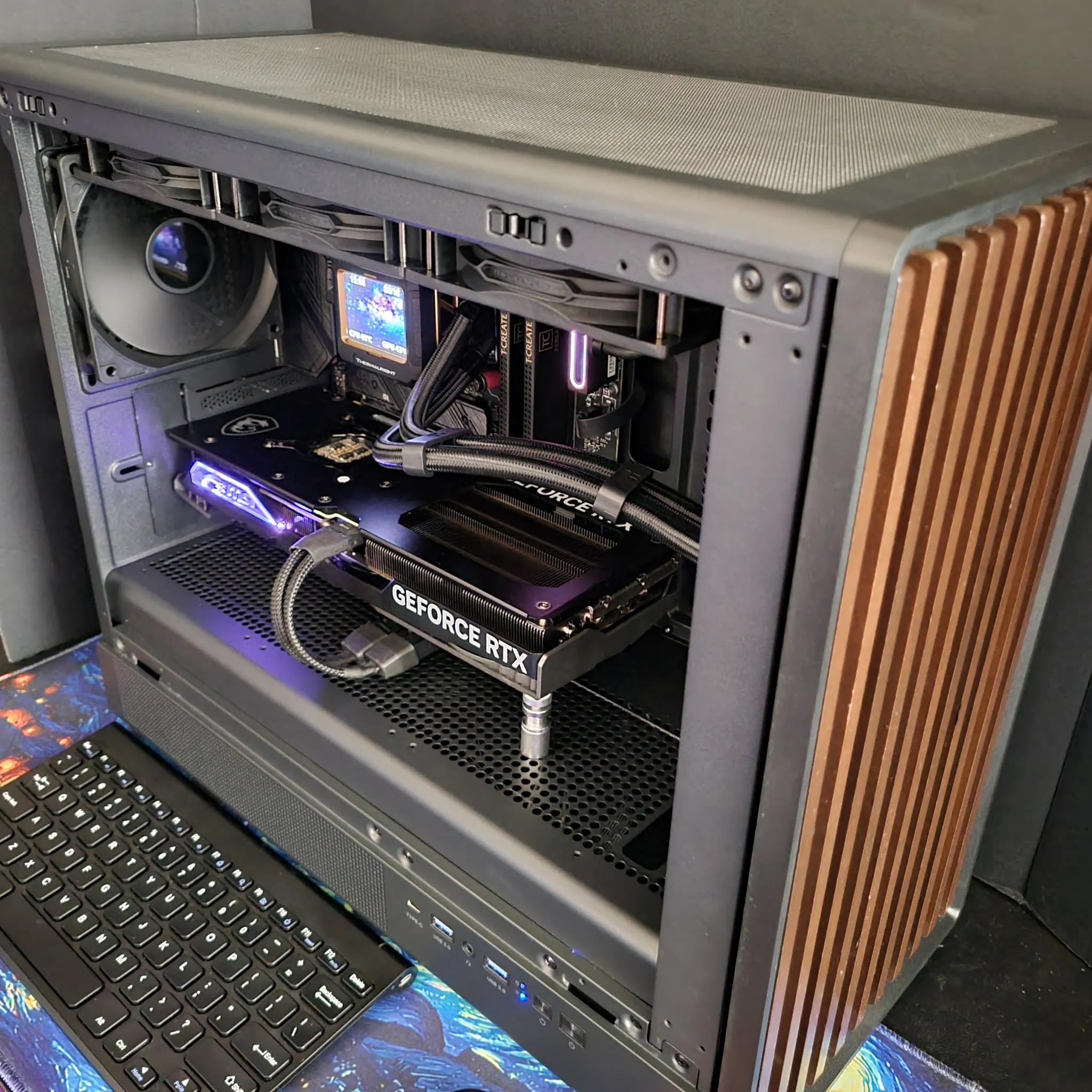

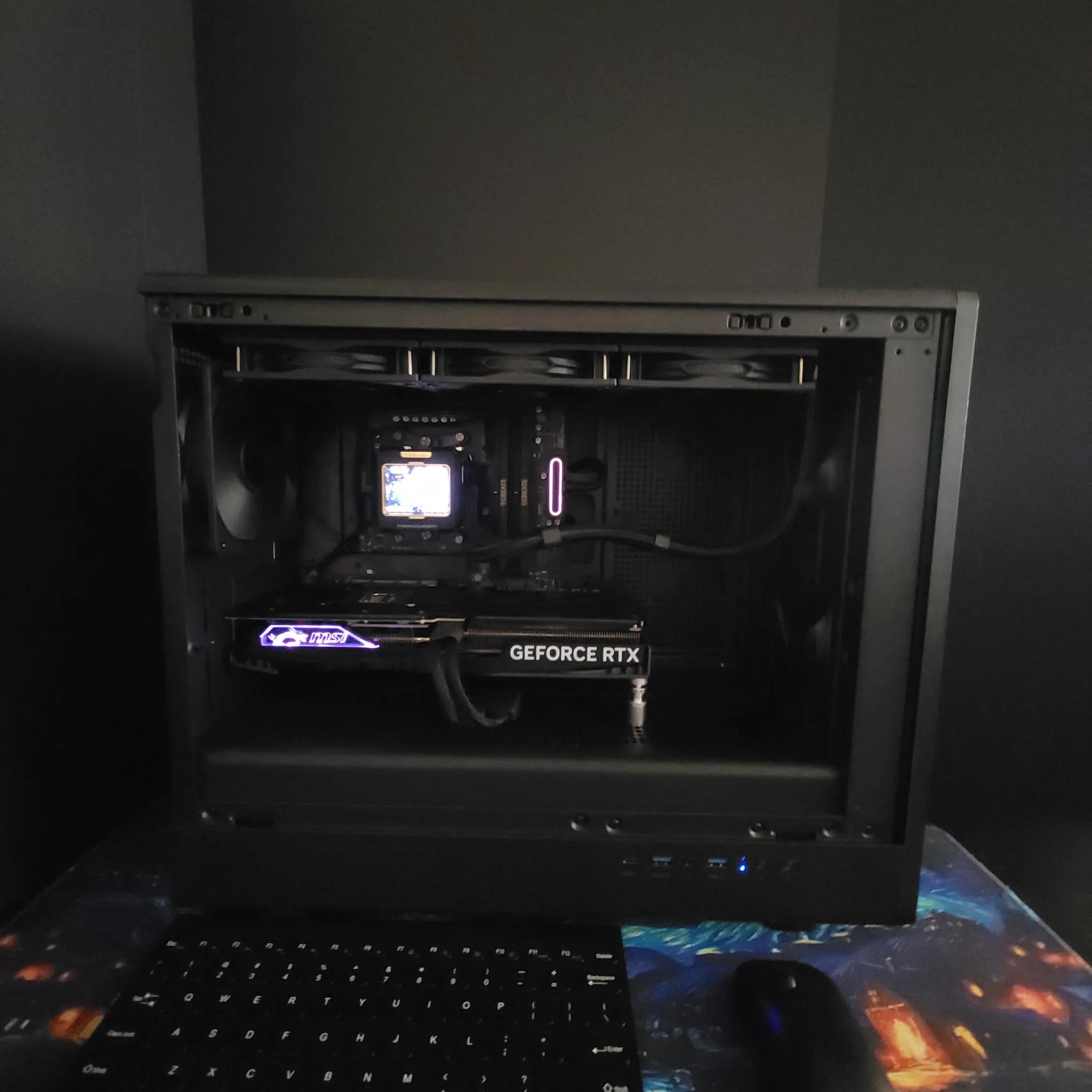

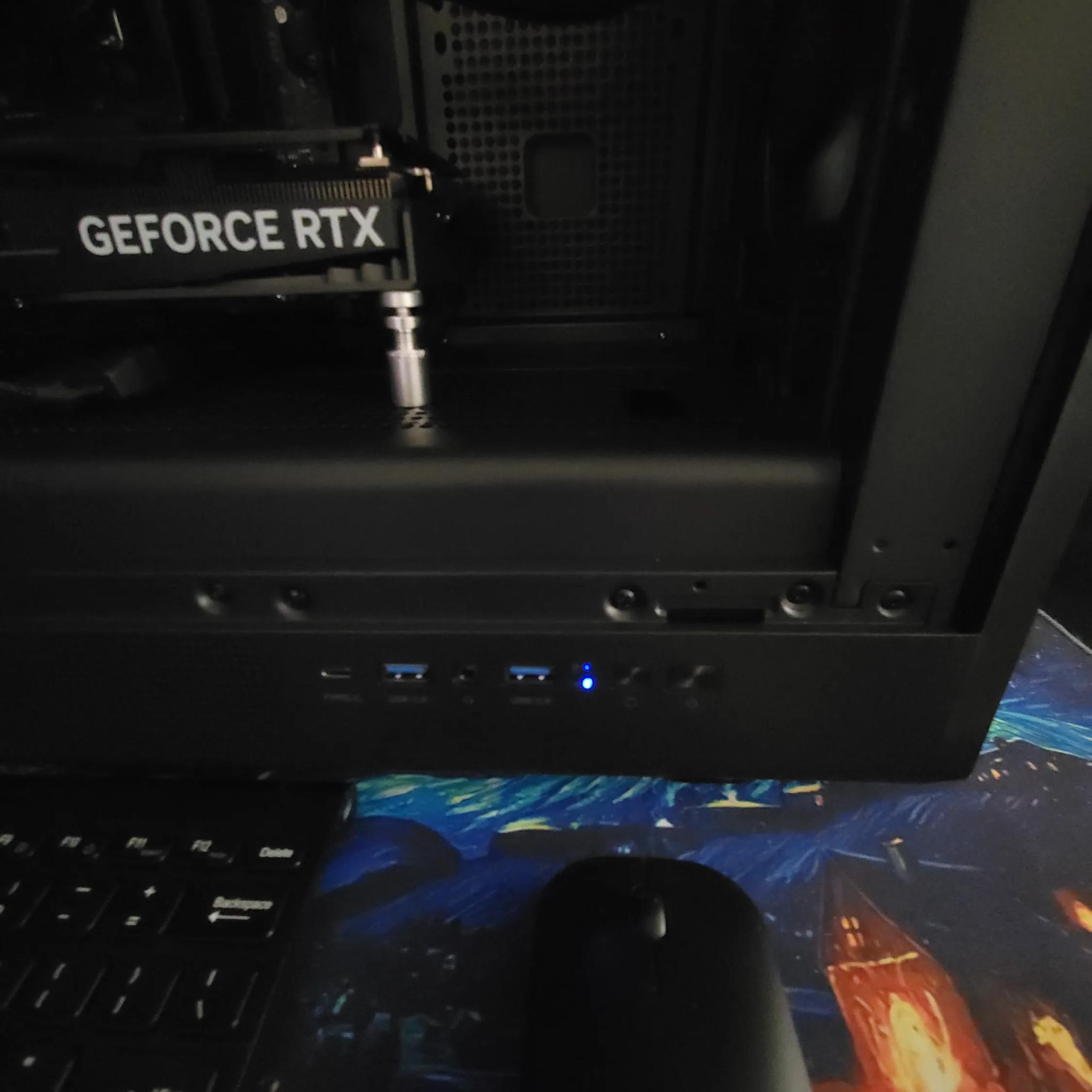

🧱 Case Chassis: DIYPC DIY-mATX06-Wood – Micro ATX, tempered glass, walnut front, 4× PWM fans Supports 402mm GPU, 174mm cooler, 360mm top rad

⚡ Power PSU: Cooler Master MWE Gold 850 V2 – 850W, 80+ Gold, full modular, dual EPS No ATX 3.0

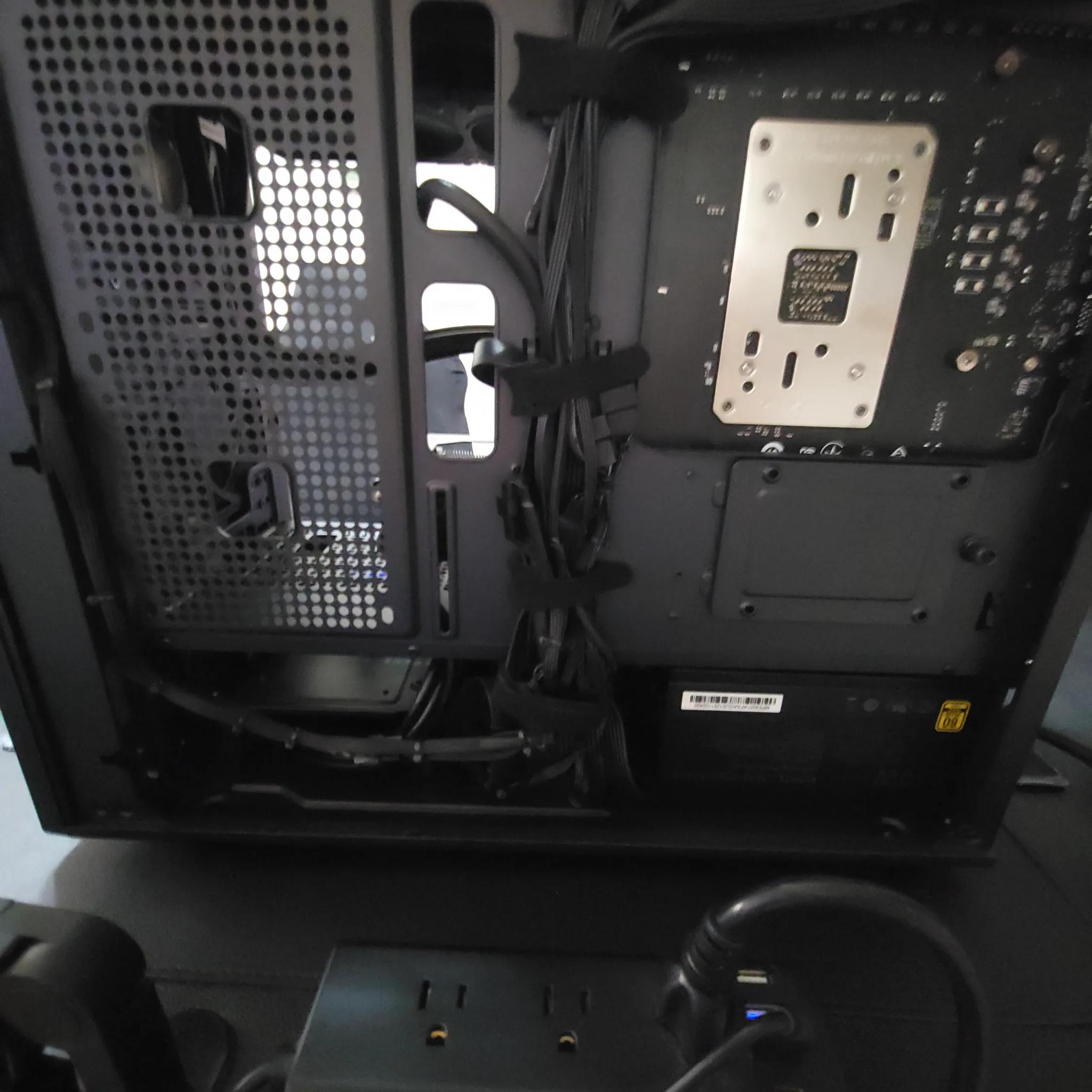

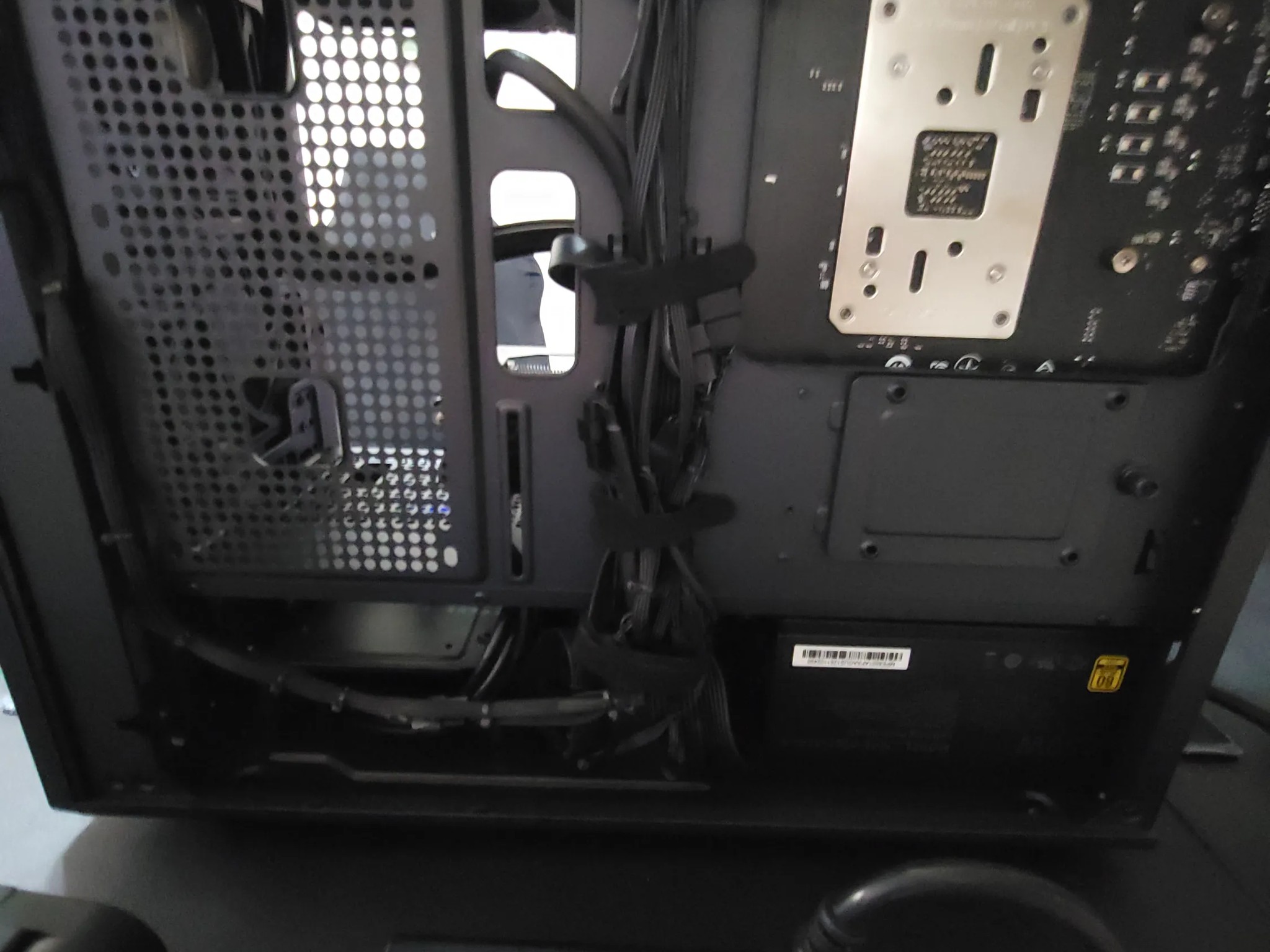

🧵 Cable Management 24-pin Extension: AsiaHorse Hydrus-24PIN – 90° right-angle, RGB breathing mode, 2000W rated 18AWG copper, brass tin-plated terminals, 40,000+ bend durability Not Aura Sync compatible

💾 Storage OS Drive: KingSpec NX Series 256GB Gen3x4 – 3,500 MB/s read, 1,000–1,600 MB/s write 3D NAND, 250TBW, 3-year warranty Game Drive: Samsung 990 PRO 2TB Gen4 – 7,450 MB/s read, 6,900 MB/s write 2GB LPDDR4 cache, nickel-coated controller, 1200TBW

🧠 Memory RAM: Team T-CREATE EXPERT 32GB (2×16GB) DDR5-6000 CL38 1.25V, black, lifetime warranty, confirmed AM5/B650 compatibility

🔑 OS & Software Windows 11 Pro – Activated via validated Windows 10 Pro retail key MSI Afterburner – Preinstalled, fan curve and overlay ready Steam Client – Installed, ready for login NVIDIA App – Latest version, RTX 4070 Super recognized TRCC Display App – IPS LCD controller for FW360 AIO

🧪 Benchmark & Stress Test Suite – Phil’s Builds Validation.

Port Royal ✅ 99.8% consistency RT stability confirmed

Steel Nomad 4678 pts, GPU 70 °C Vulkan-based, solid thermal profile

Time Spy Extreme 8860 (GFX), 9961 (CPU), 5448 (Combined) DX12 high-load validation

Speed Way 5355 pts, GPU 67 °C DX12 Ultimate, no throttling

Fire Strike Extreme 23,340 (GFX), 24,635 (Physics), 32,187 (Combined), 12,922 (Stress) Legacy DX11, high throughput

Time Spy Stress ✅ Passed – 99.7% stability over 20 loops Final soak test, zero throttling

🔧 Thermal & Acoustic Notes GPU Temps: 67–70 °C across all tests CPU Temps: 54–56 °C stable Acoustics: Minor tonal flutter from stock DIYPC fans, non-intrusive.
