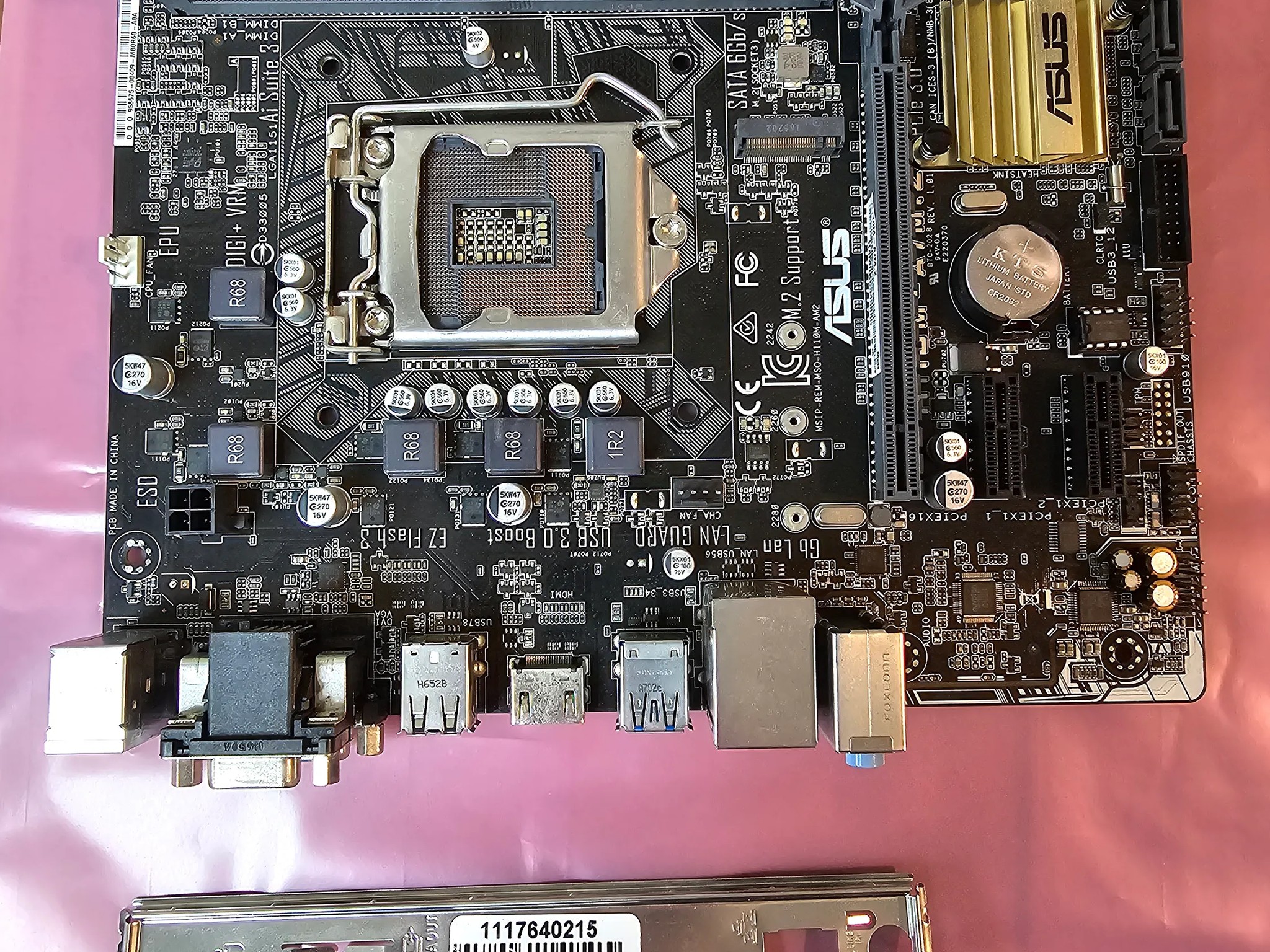

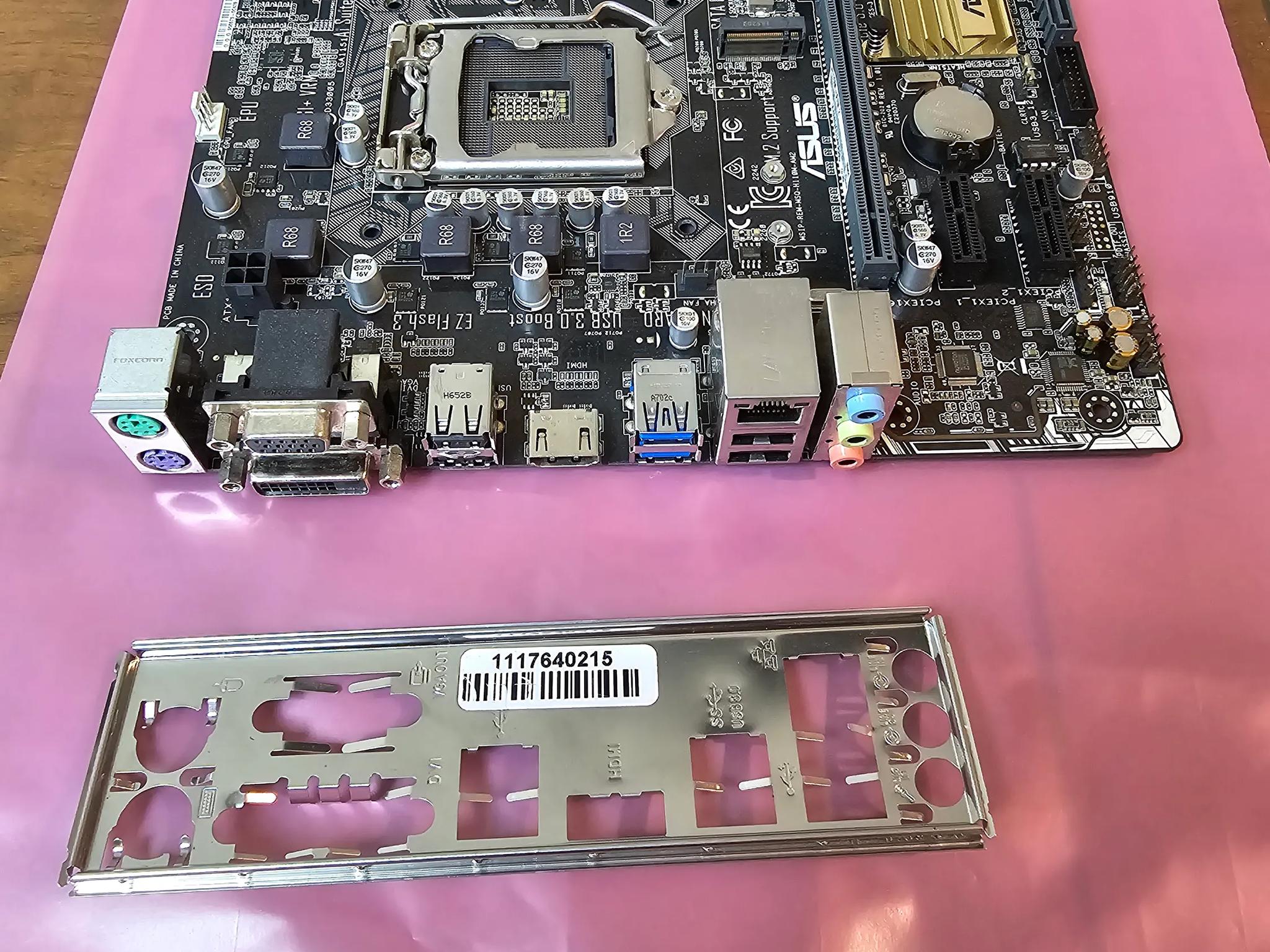

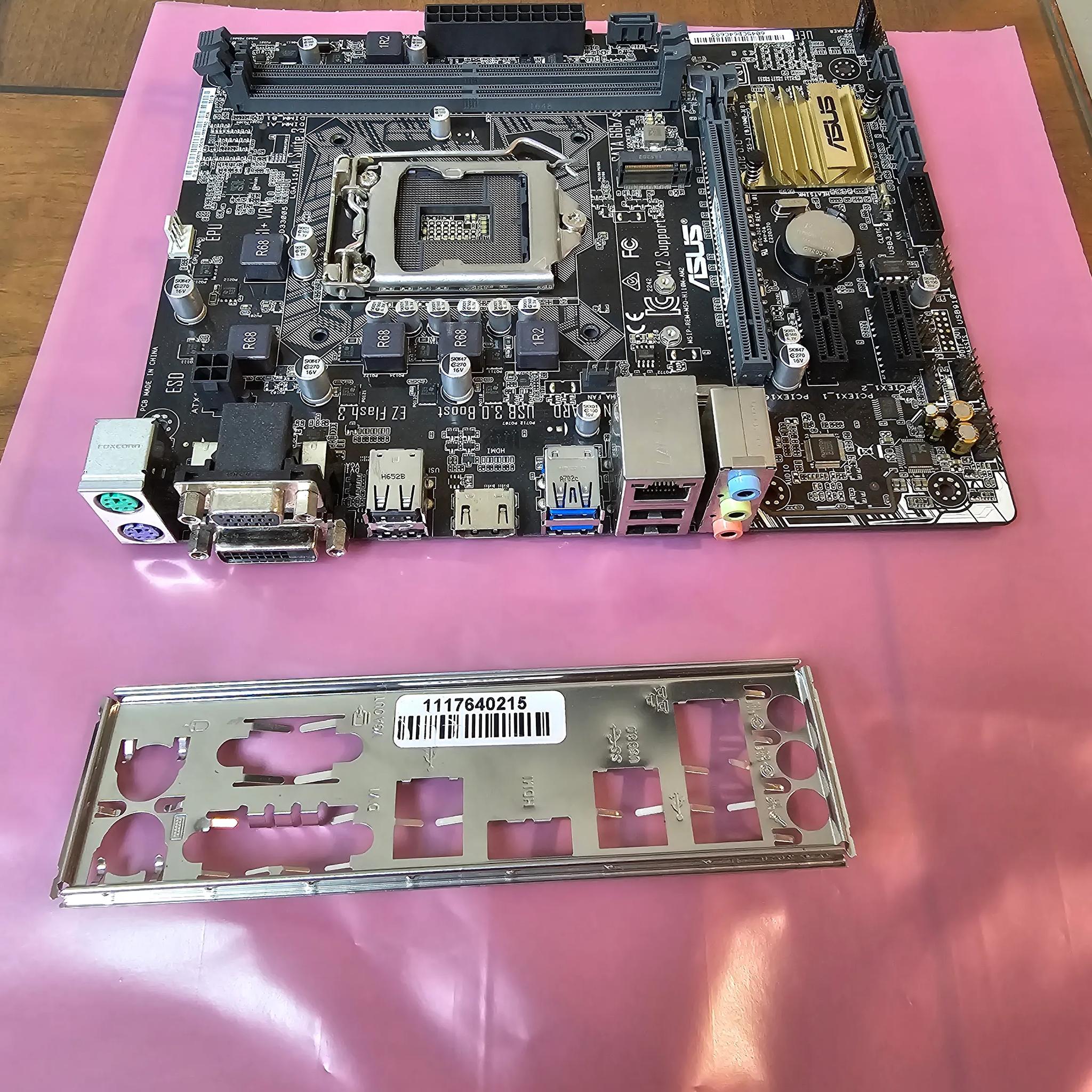

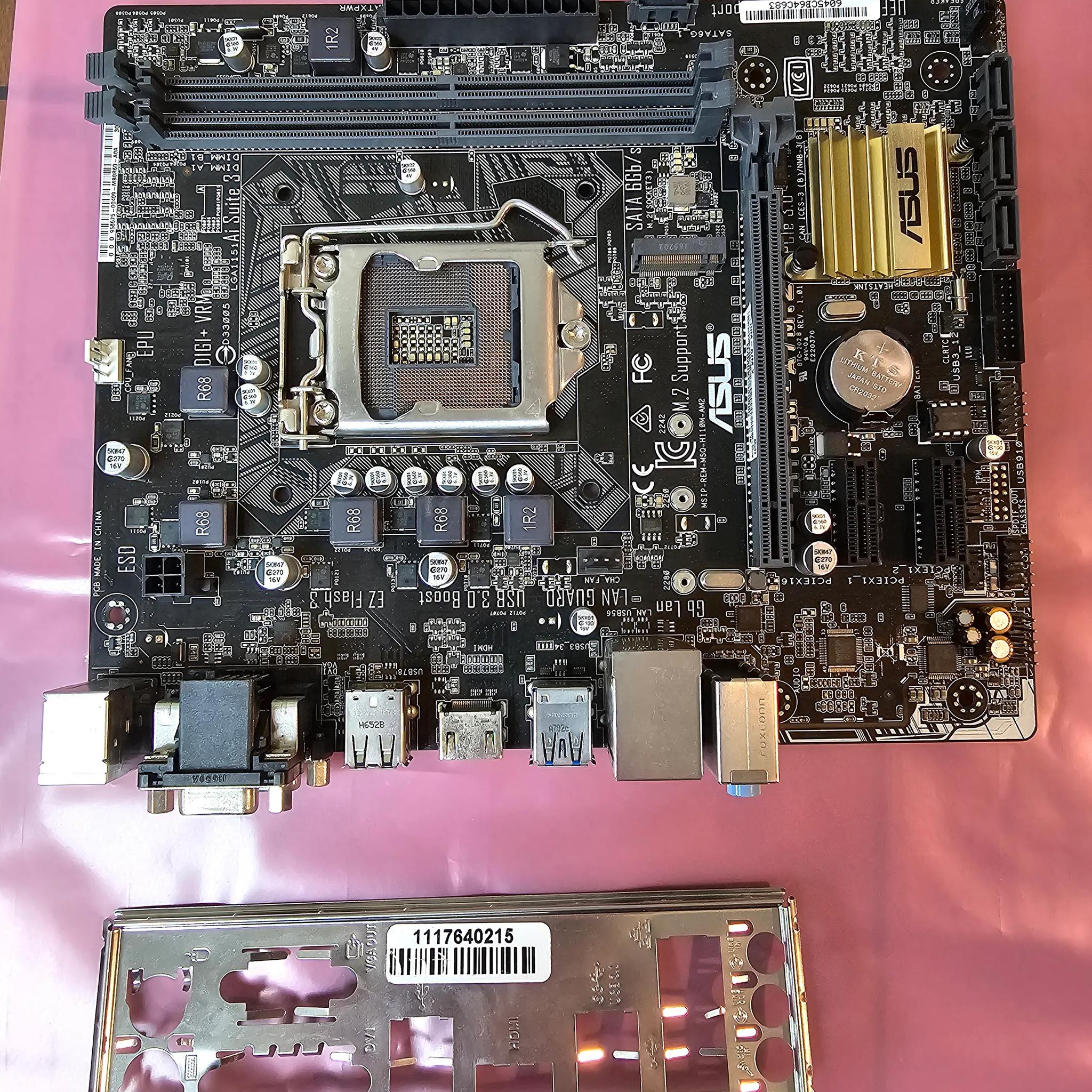

Every board is tested to POST and comes with an I/O shield. This board supports 6/7th gen Intel CPUs. See below for specs:

Model Brand ASUS - MOTHERBOARDS Model H110M-A/M.2

Supported CPU CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium Supported CPU Technologies Turbo Boost Technology 2.0

Chipsets Chipset Intel H110

Onboard Video Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D/RGB ports

• Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024MB Supports up to 2 displays simultaneously

Memory Number of Memory Slots 2x288pin (DDR4) Memory Standard DDR4 2133 Maximum Memory Supported 32GB

Expansion Slots PCI Express 3.0 x16 1 x PCIe 3.0/2.0 x16 (x16 mode) PCI Express x1 2 x PCIe 2.0 x1

Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)

Onboard Audio Audio Chipset Realtek ALC887 Audio Channels 8 Channels

Onboard LAN LAN Chipset Intel I219-V

Rear Panel Ports Back I/O Ports 1 x HDMI / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1 PS/2 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) Video Ports 1 x DVI-D 1 x D-Sub HDMI 1 x HDMI RJ45 1 x RJ45 USB 3.0 2 x USB 3.0 (blue) USB 1.1/2.0 4 x USB 2.0 Audio Ports 3 Ports

Internal I/O Connectors Onboard USB 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) Other Connectors 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector Physical Spec Form Factor Micro ATX Dimensions (W x L) 8.9" x 7.3" Power Pin 24 Pin Features Features Special Features: ASUS 5X Protection II:

• ASUS LANGuard - 2.5X higher surge tolerance
• ASUS DIGI+ VRM - 5 Phase digital power design
• ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
• ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
• ASUS ESD Guards - Electrostatic discharge protection ASUS EPU:
• EPU ASUS Exclusive Features:
• AI Suite 3
• Ai Charger
• Low EMI Solution
• USB 3.0 Boost
• Mobo Connect
• PC Cleaner ASUS Quiet Thermal Solution:
• Stylish Fanless Design Heat-sink solution
• ASUS Fan Xpert ASUS EZ DIY:
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• Push Notice ASUS Q-Design:
• ASUS Q-Slot
• ASUS Q-DIMM

Operating System Support: Windows 10, 64bit Windows 8.1, 64bit Windows 7, 32bit/64bit *3 *3: Please refer to ASUS website and download "Windows 7 installation guide" and "ASUS EZ installer" to install Windows 7.

BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE
