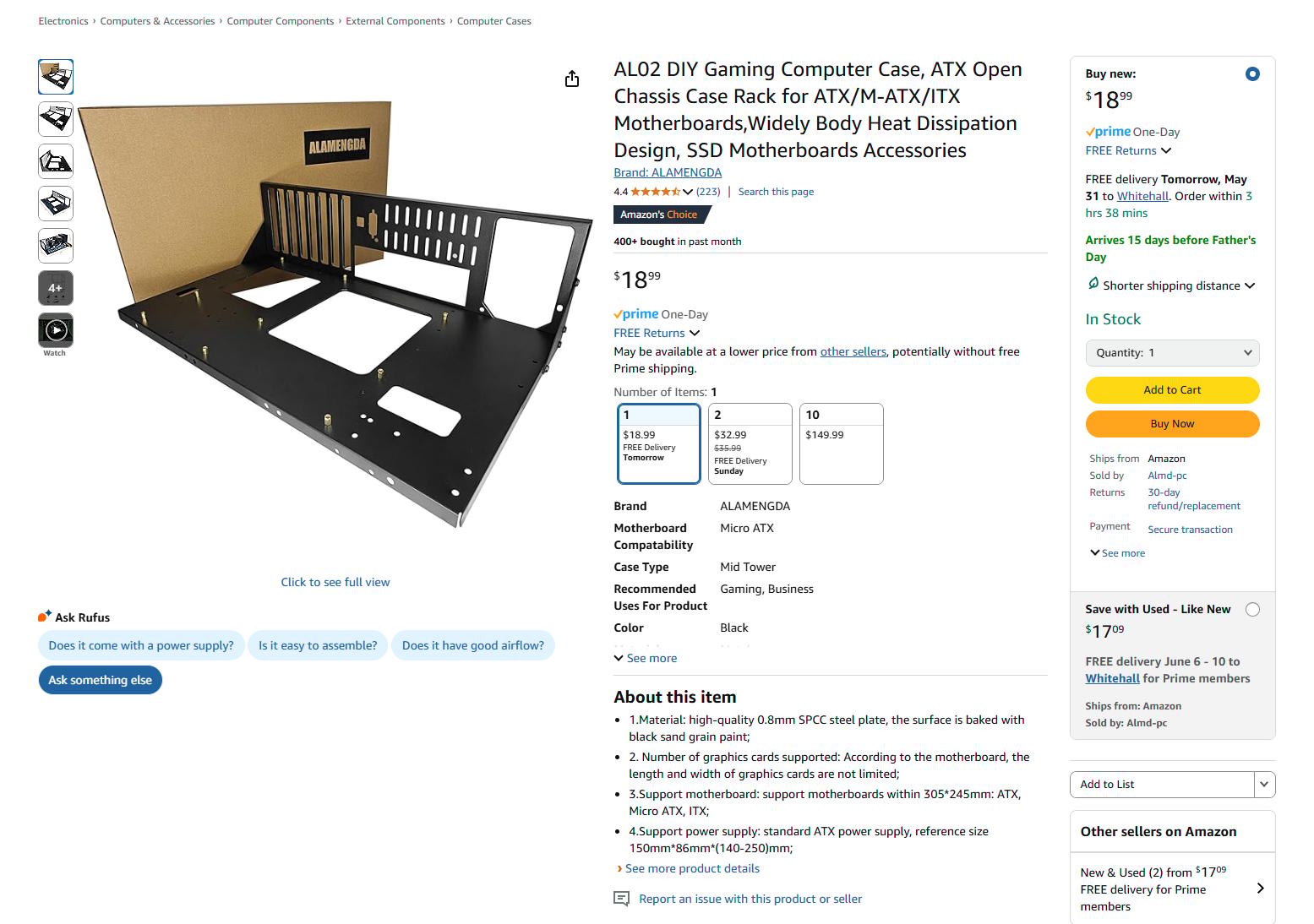

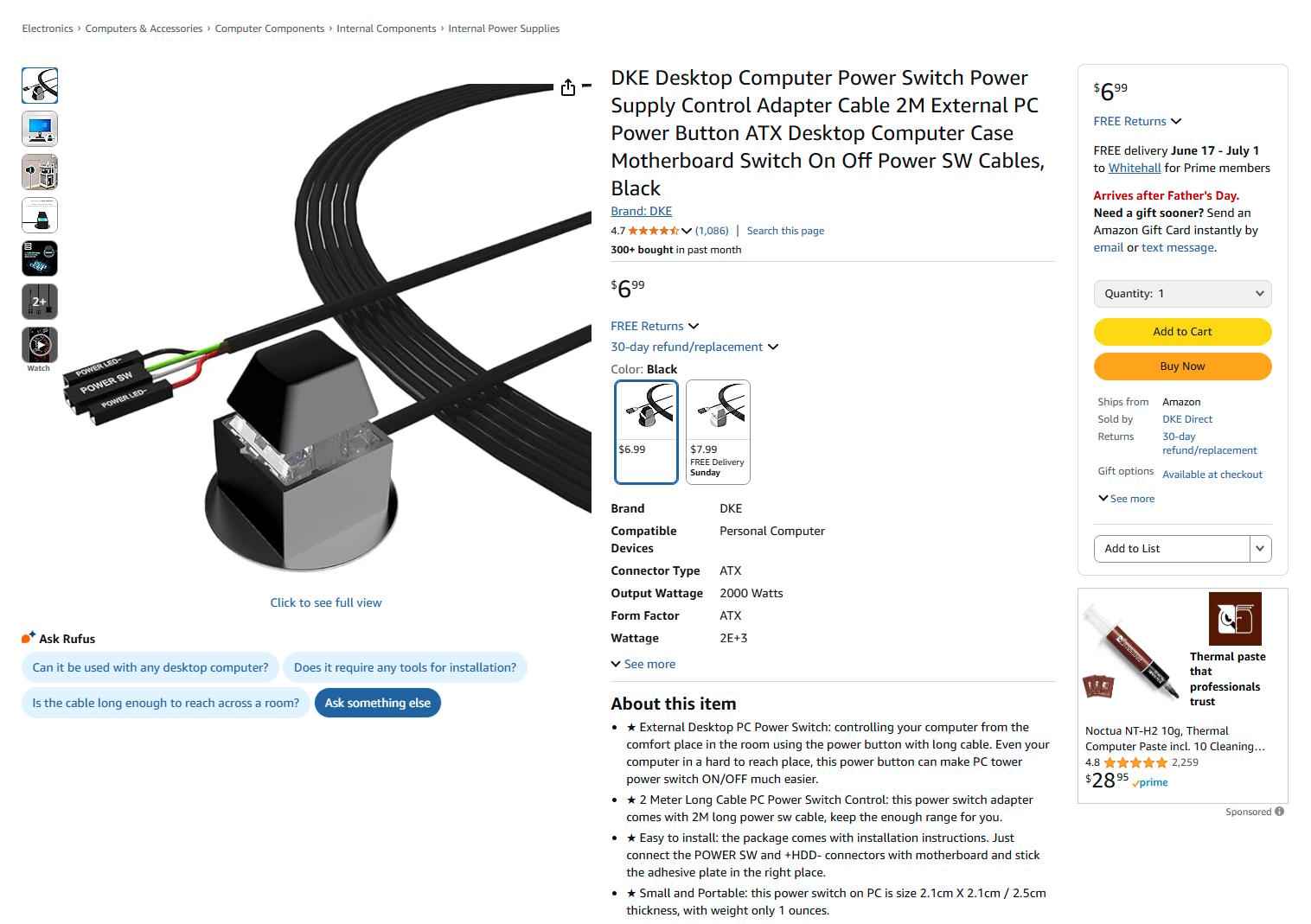

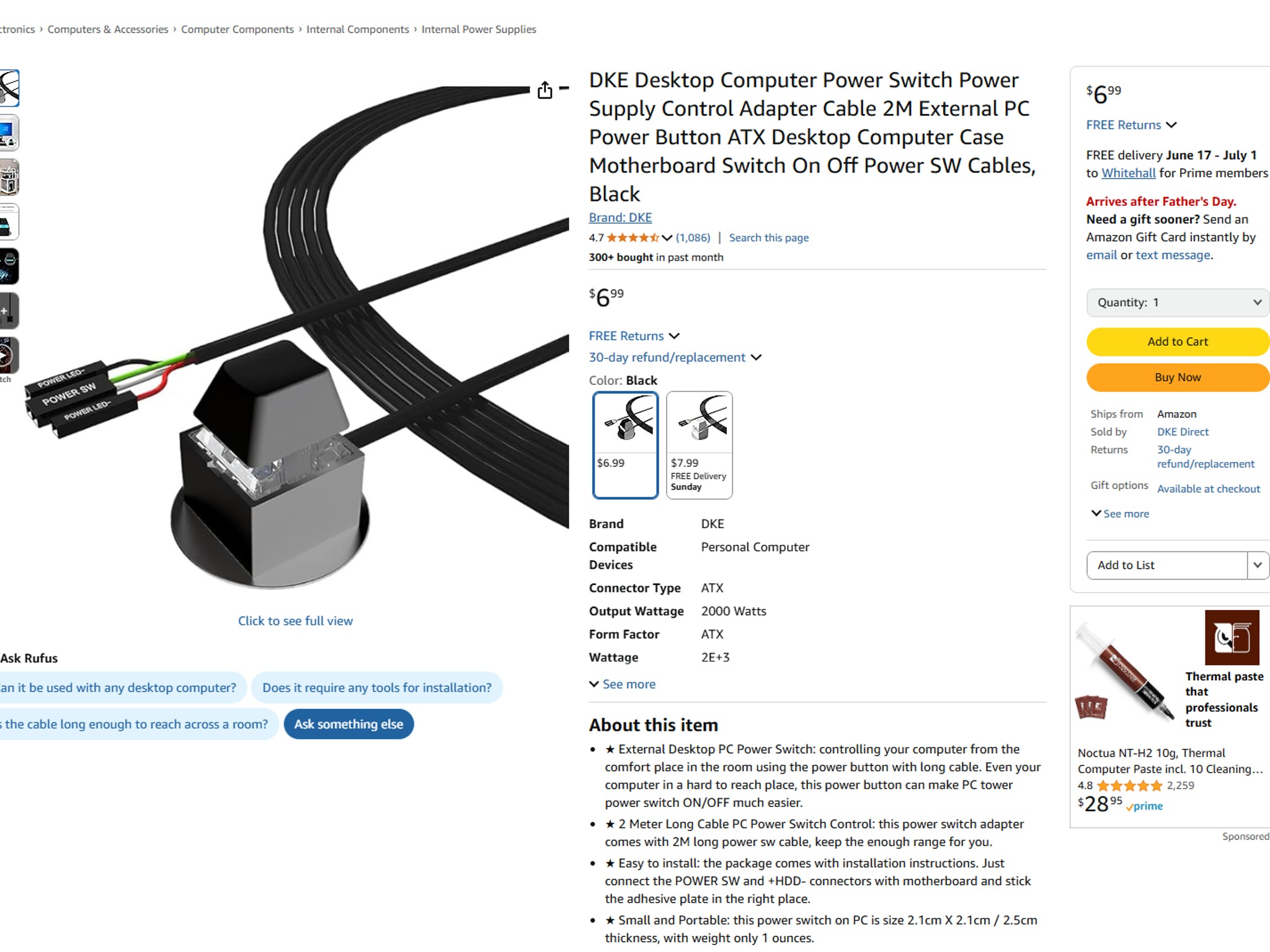

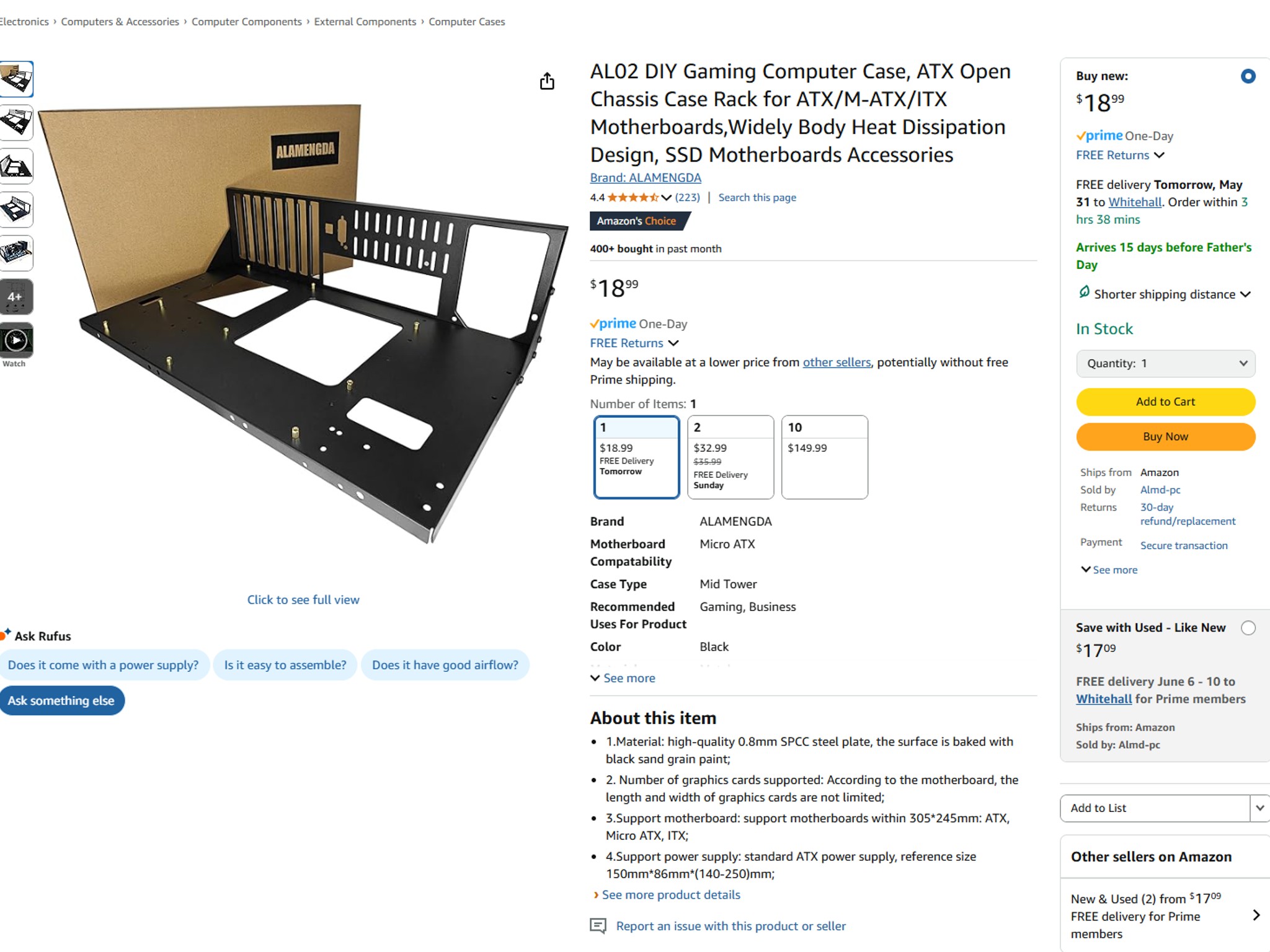

Idea with this would be that you could use this motherboard with an open air frame case and power button from Amazon, drop in one of the supported Ryzen CPUs ($10-$50) listed below, add an NVMe SSD, low power, budget GPU, and then a compatible HP PSU ($15-35) to get this board up and running.

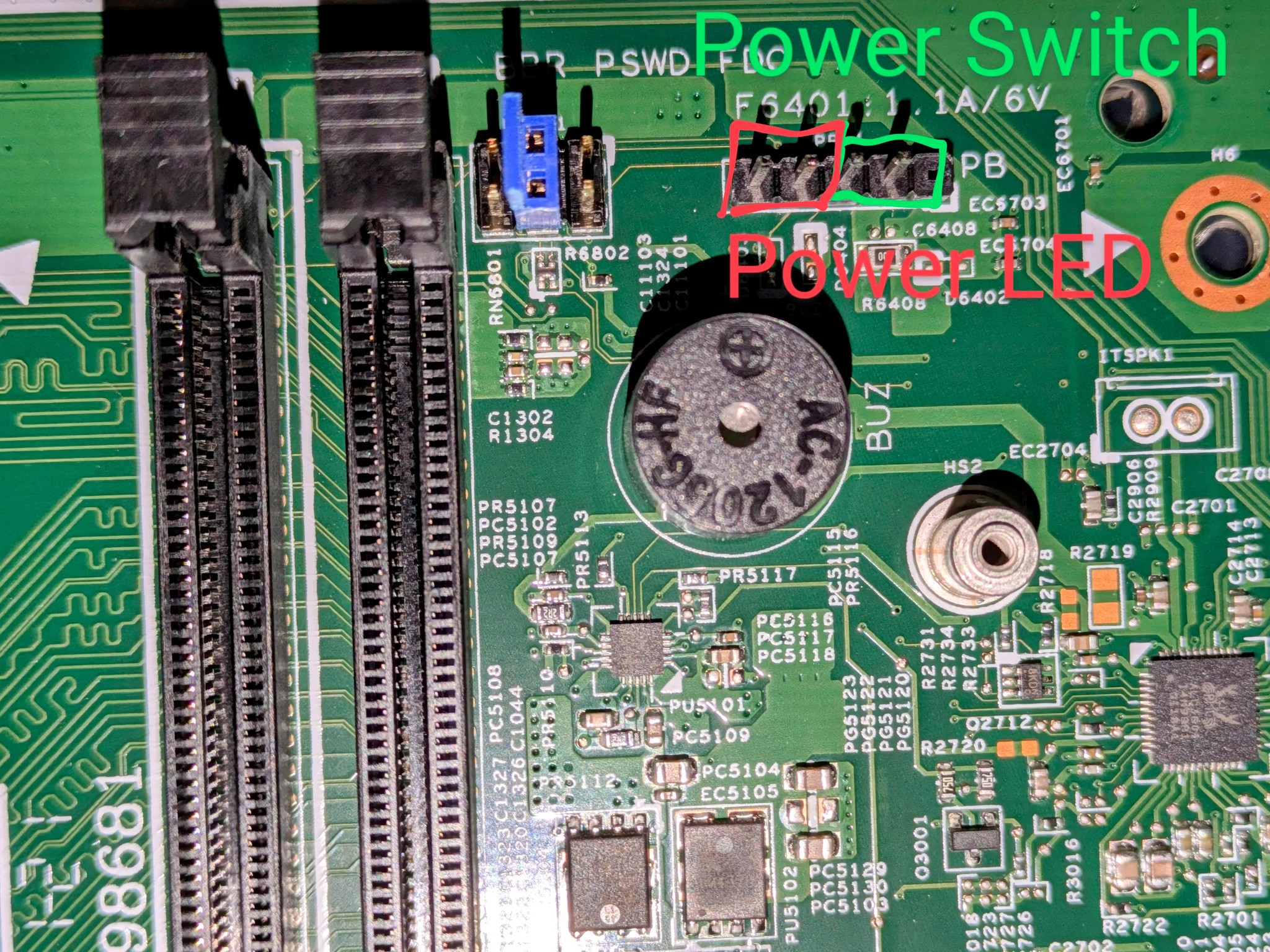

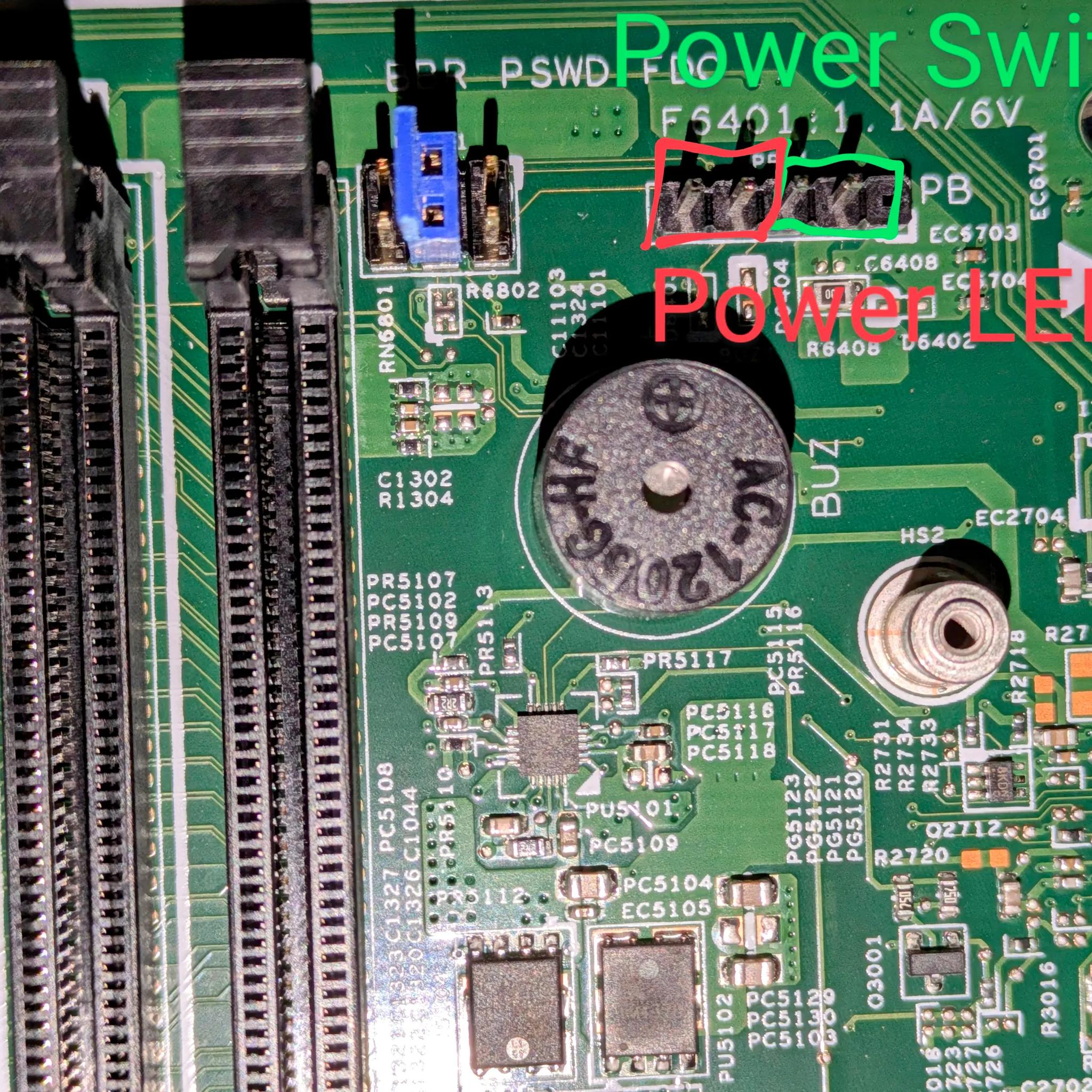

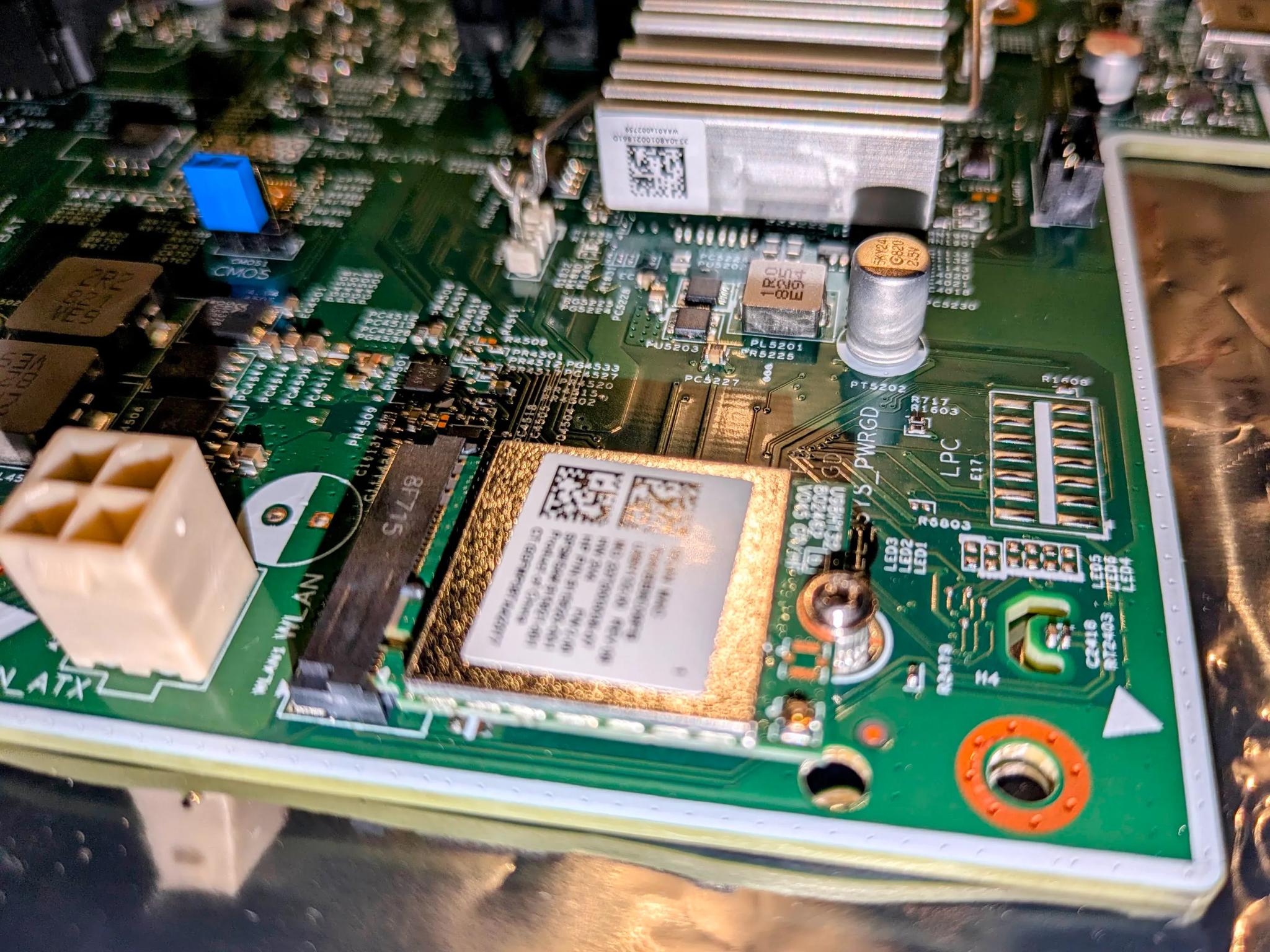

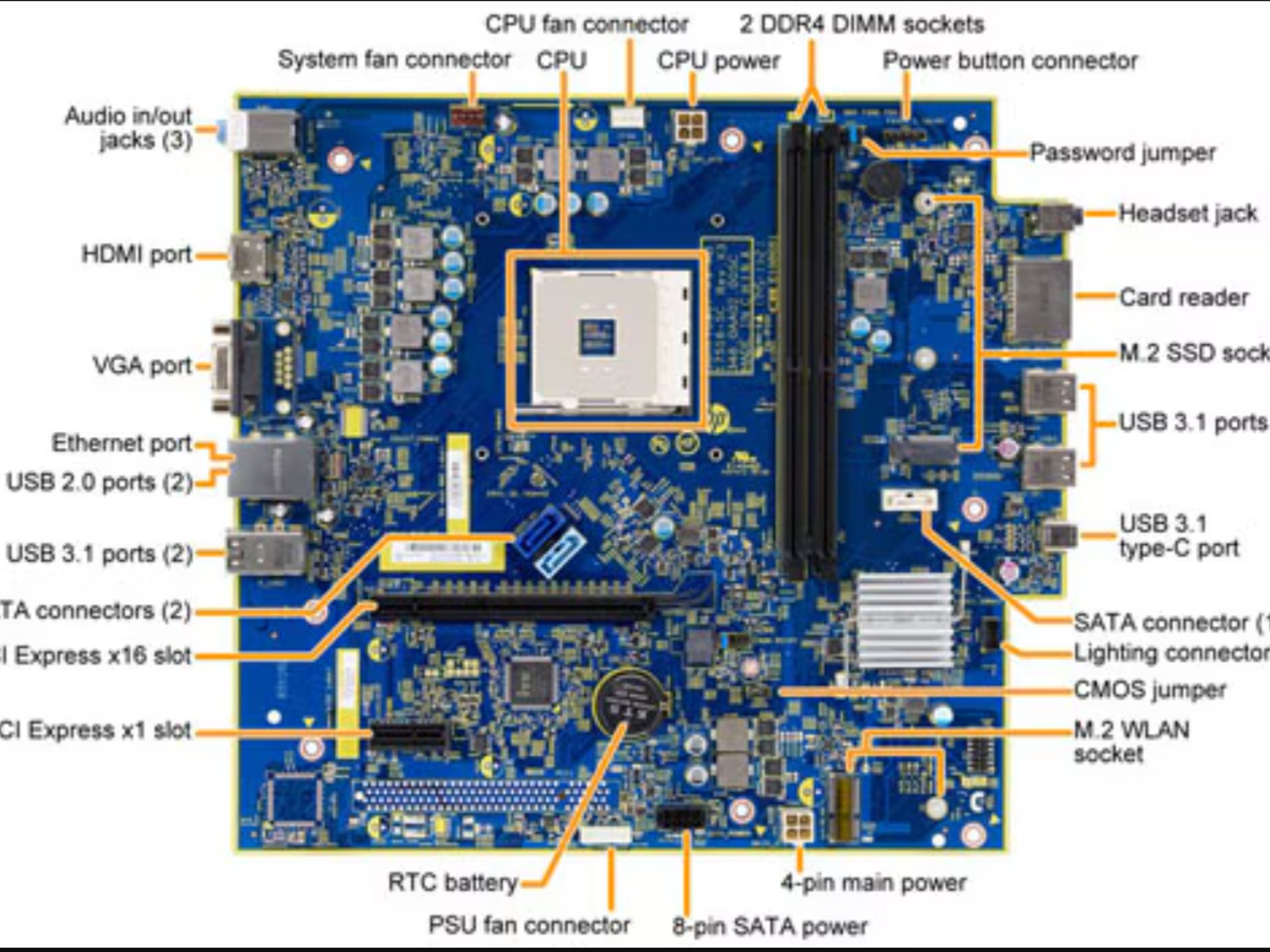

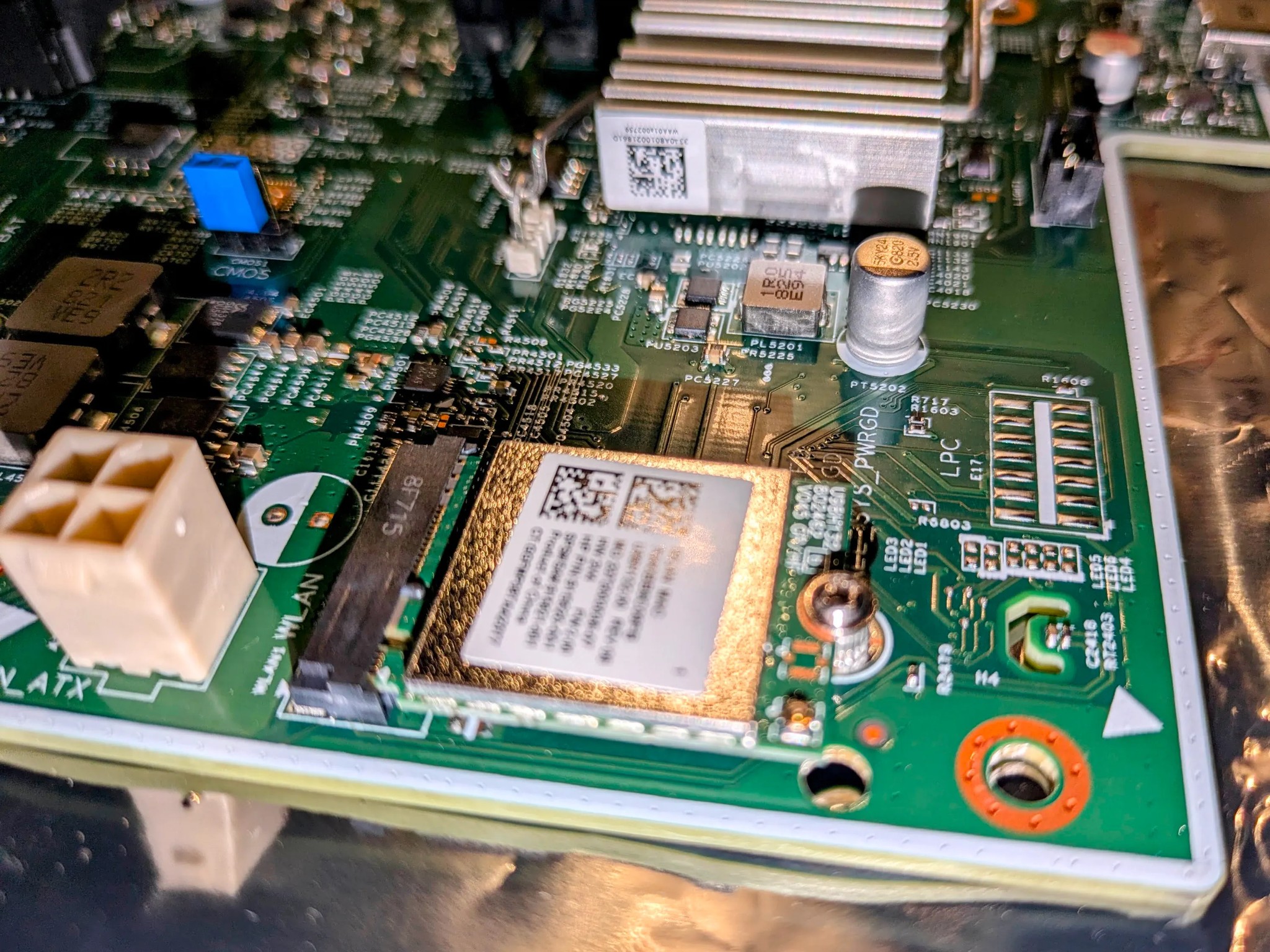

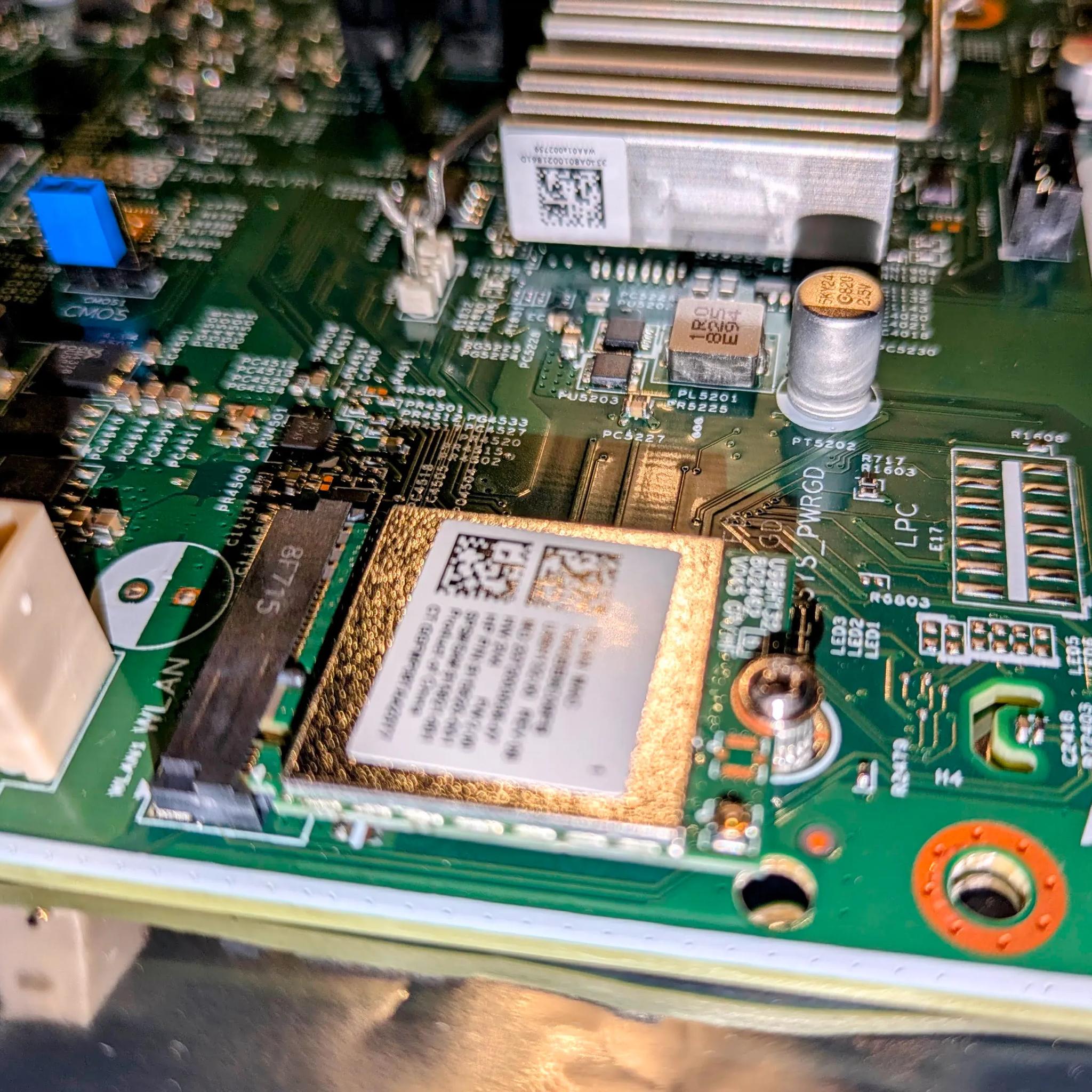

The 2 pins furthest right are for the power button, the other 2 pins to the left are for power led. I've also tested the motherboards with a PSU from an HP EliteDesk and it works without issue. As long as the power supply uses dual 4 pins to the motherboard and not a 4 pin + 6 pin, the PSU should work.
The HP Pavilion 590-P series, specifically models like the 590-P0109, 590-P0201a, and 590-P0207A, are known to use the Sunflower motherboard if you are looking to replace the board on any of those specific models.
Supported Processors:
- AMD Ryzen 7 2700: 8 cores/16 threads, 3.2 GHz (up to 4.1 GHz).
- AMD Ryzen 5 2600: 6 cores/12 threads.
- AMD Ryzen 7 1700: 8 cores/16 threads, 3.0 GHz.
- AMD Ryzen 5 1600: 6 cores/12 threads, 3.2 GHz.
- AMD Ryzen 5 2400G: 4 cores/8 threads, 3.6 GHz.
- AMD Ryzen 3 2200G: 4 cores/4 threads, 3.5 GHz.
- AMD A12-9800 APU: 4 cores, 3.8 GHz.
- AMD A10-9700 APU: 4 cores, 3.5 GHz.
- AMD A8-9600 APU: 4 cores, 3.1 GHz
Recommended GPUs:
- Rx 460/560 (180W PSU)
- Rx 470/570 (240W PSU)
- RTX 3050 6GB (180W PSU)
- GTX 1660/Super/Ti (300W+ PSU)
- RTX 3050 8GB (240W PSU)
- Rx 6600 (300W+ PSU)
- RTX 4060 (300W+ PSU)
- BrandOther
- Form FactorOther
- CPU BrandAMD

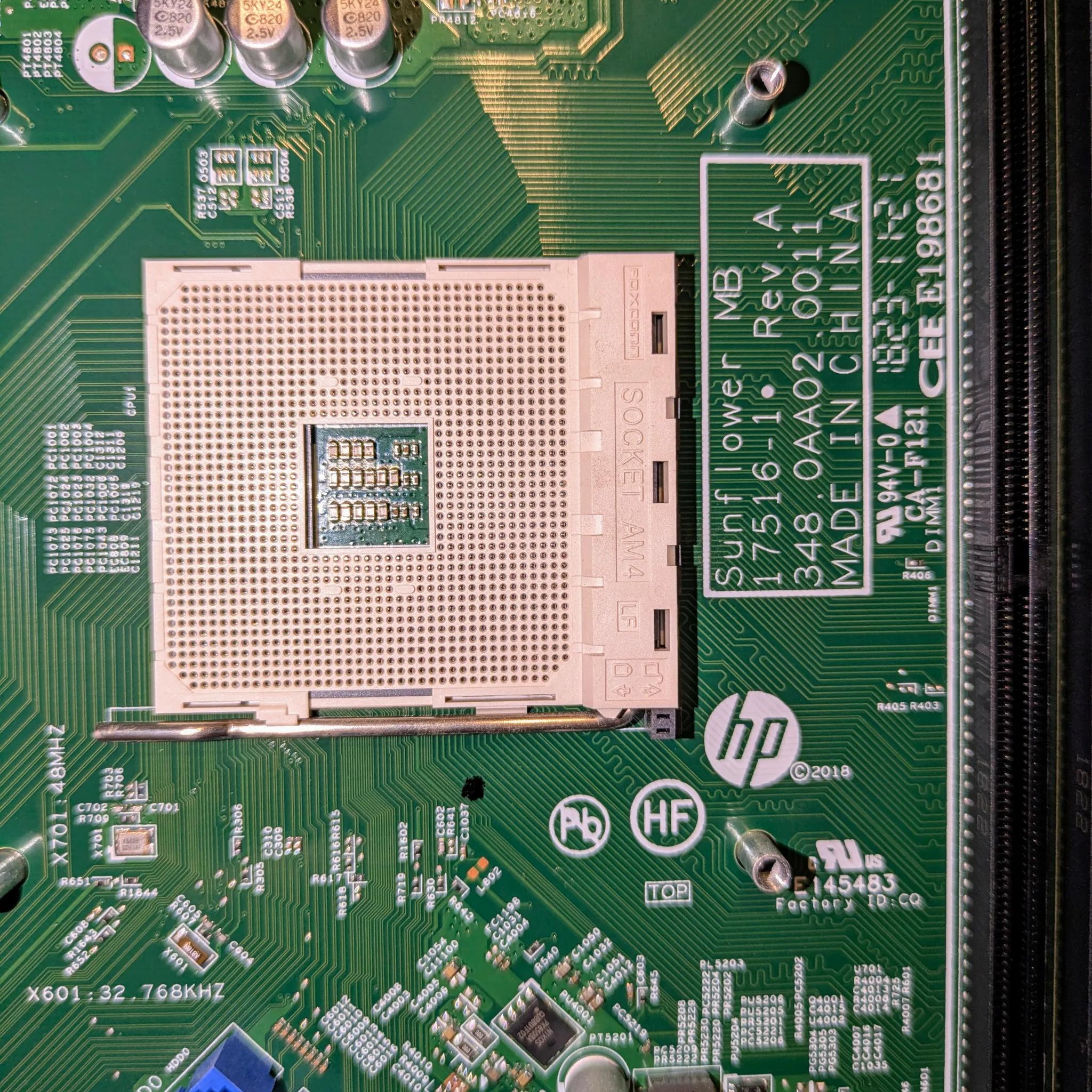

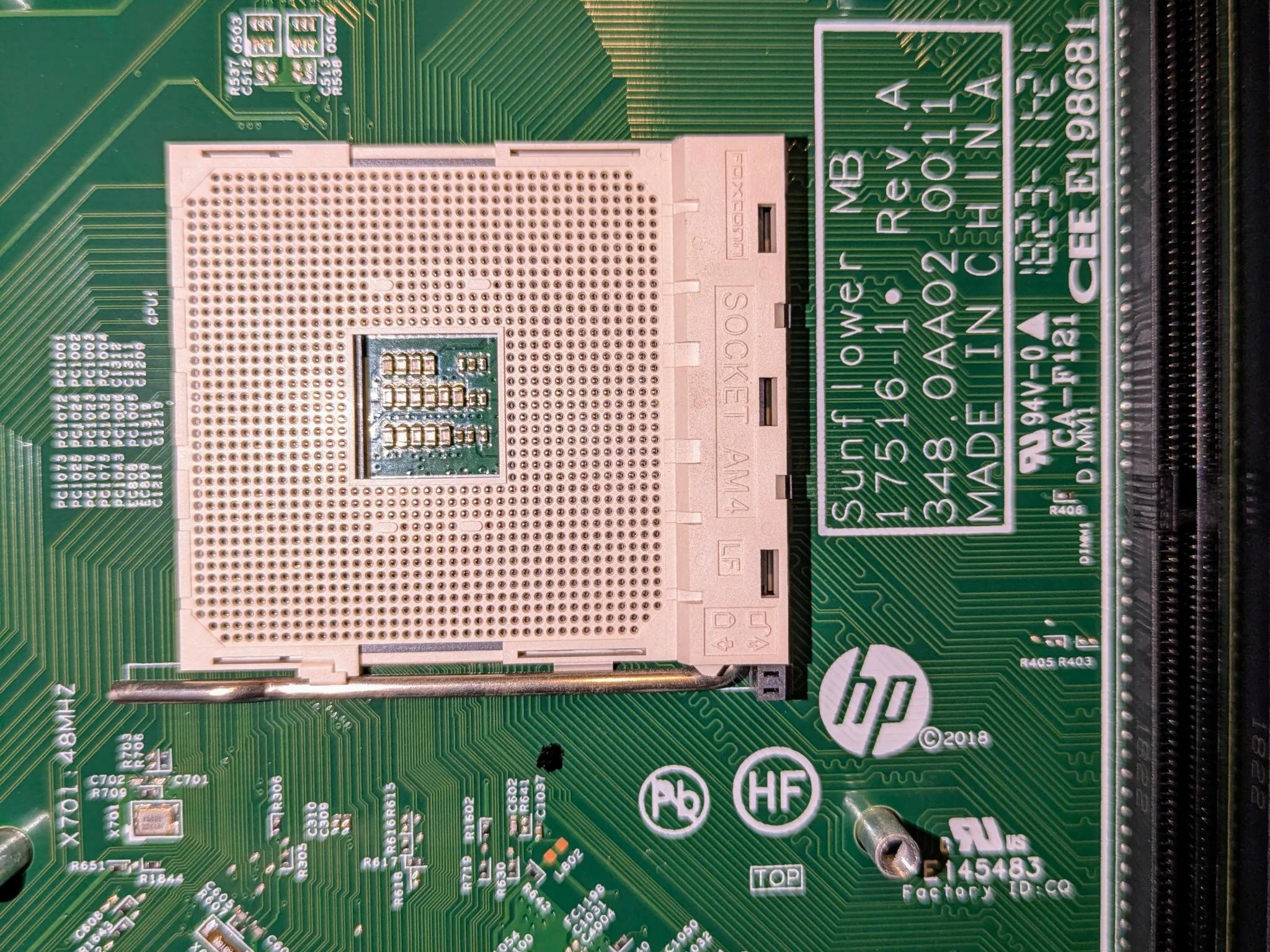

- CPU SocketAM4
- NetworkingEthernet and WiFi

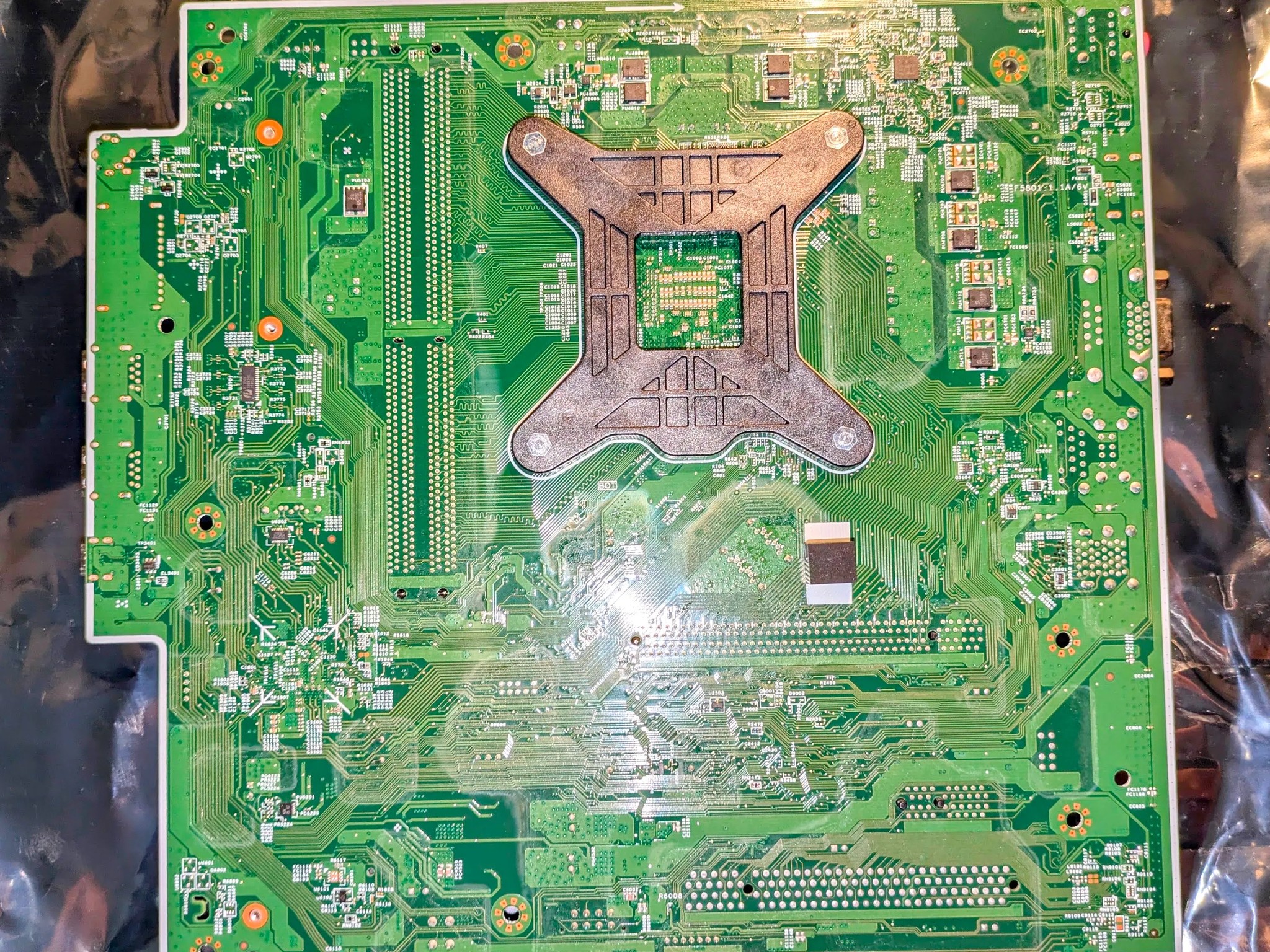

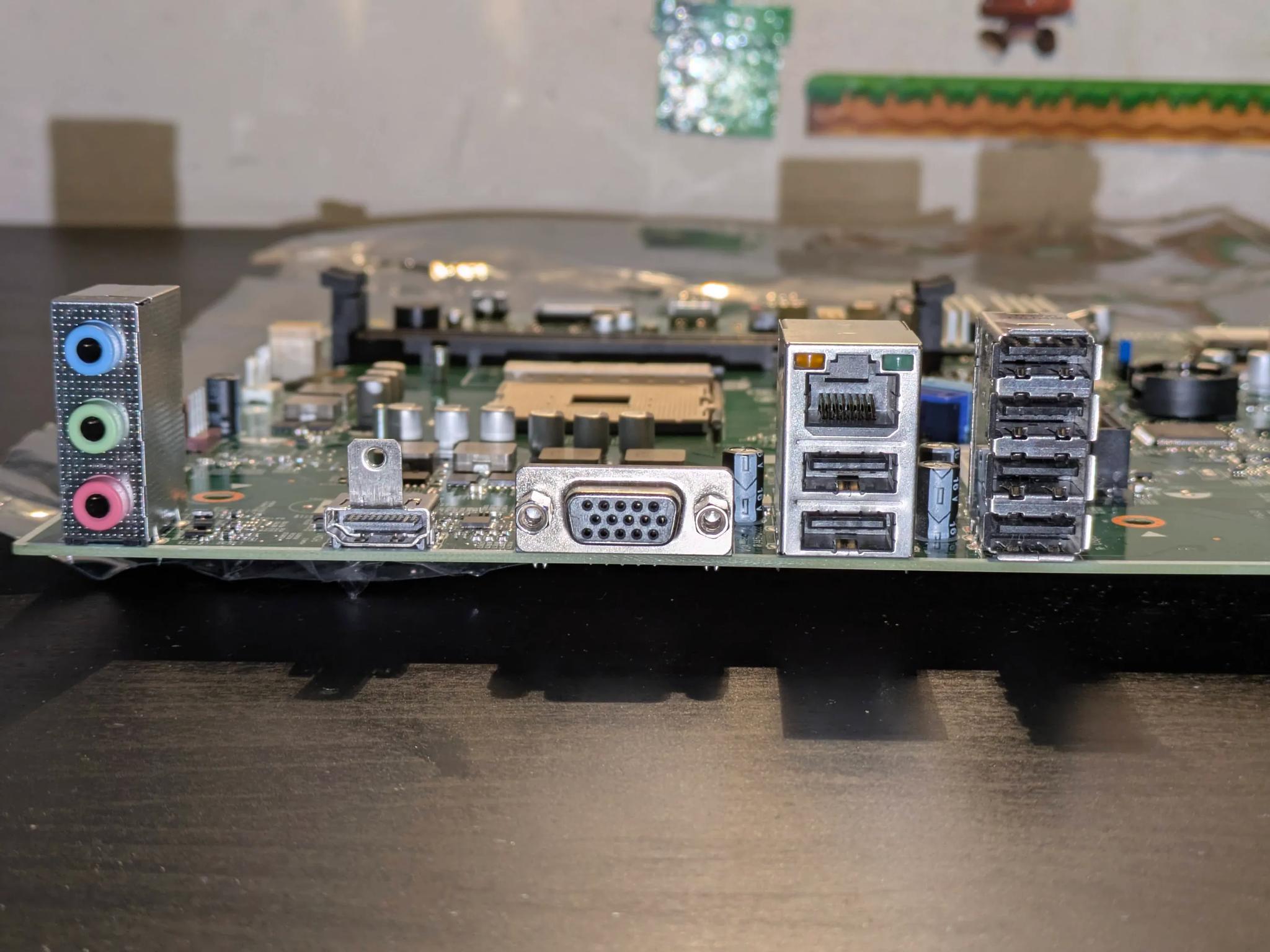

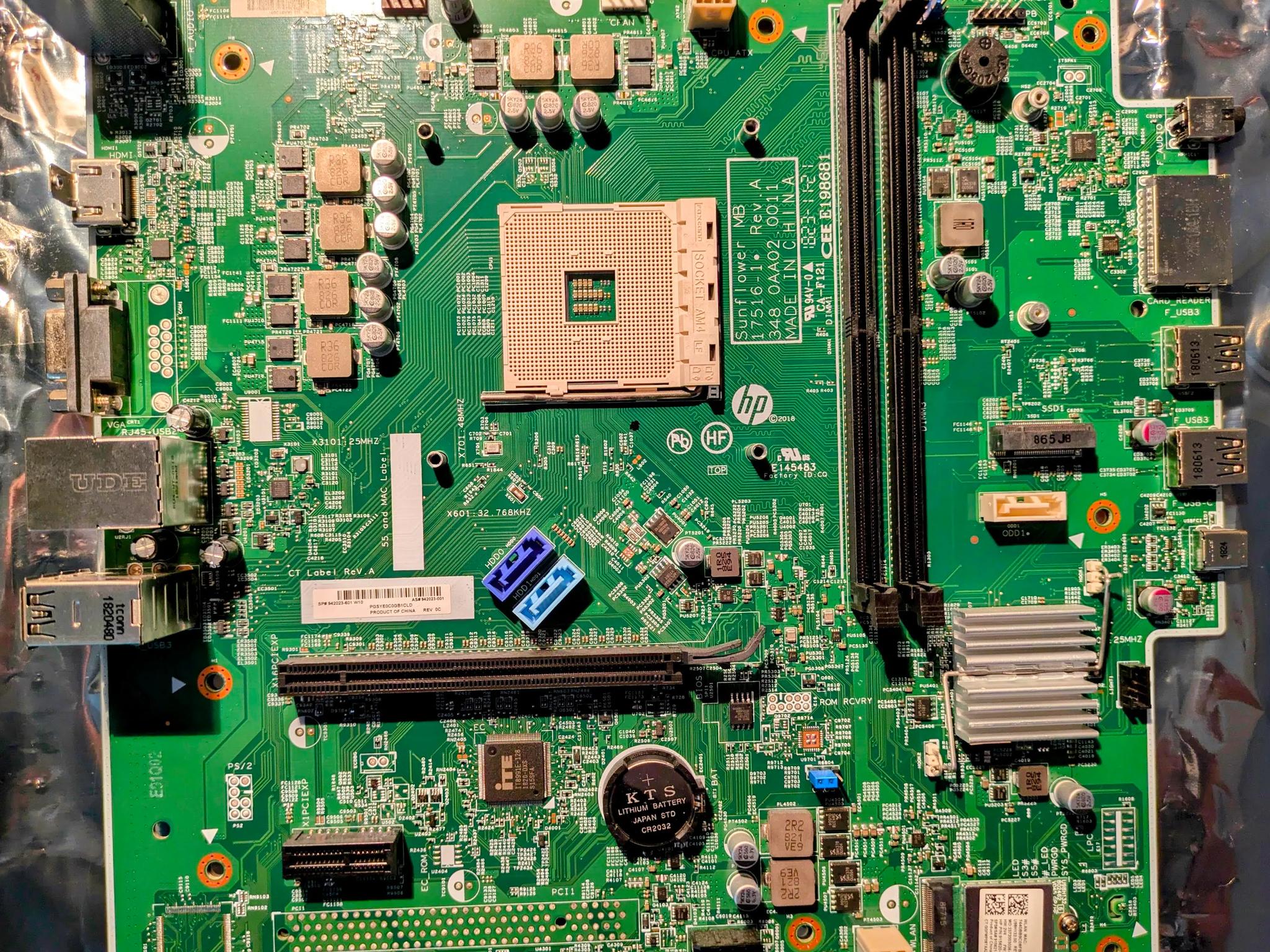

HP Sunflower Motherboard for 1st/2nd Gen Ryzen CPUs (HP Pavilion)
