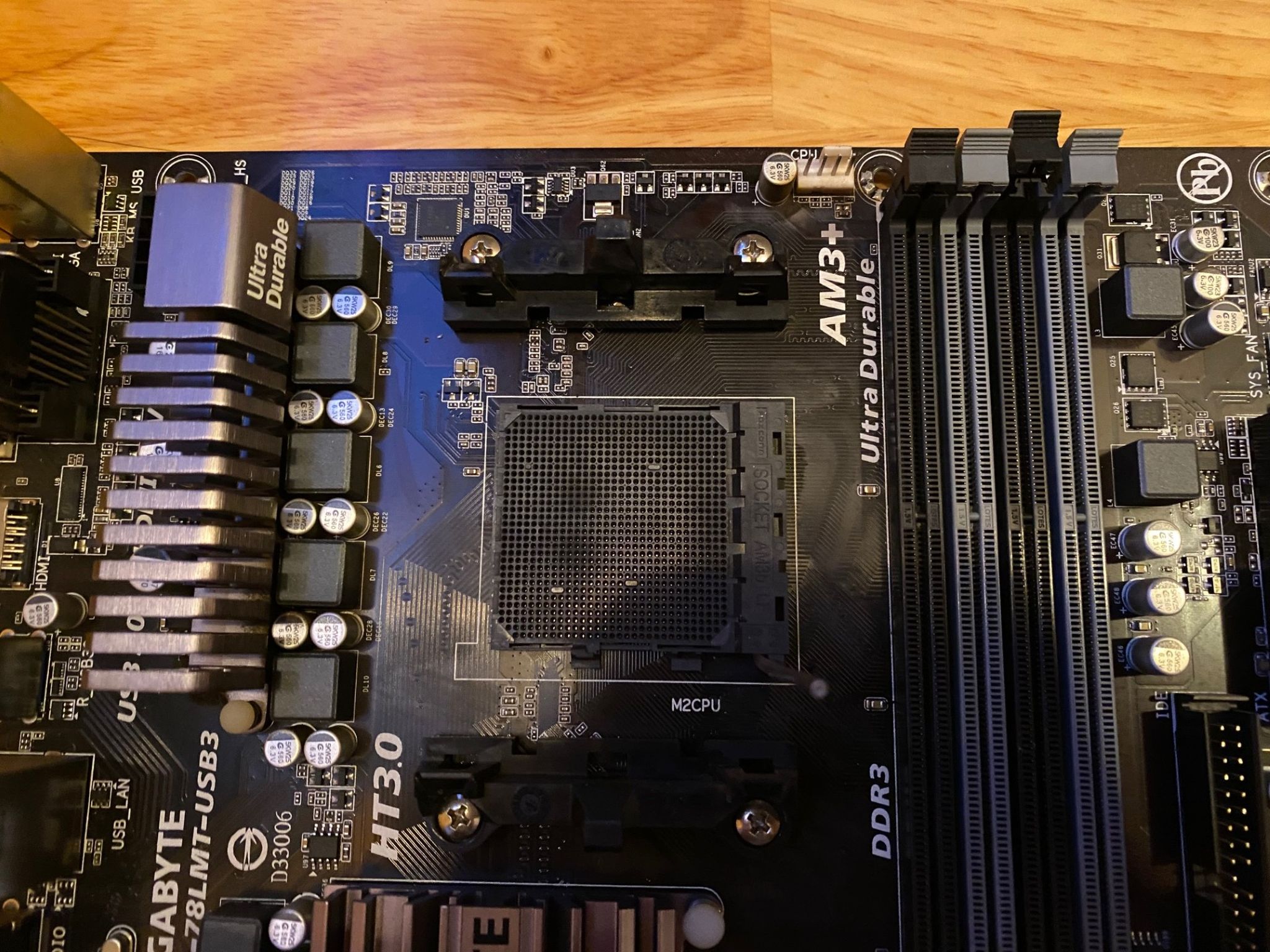

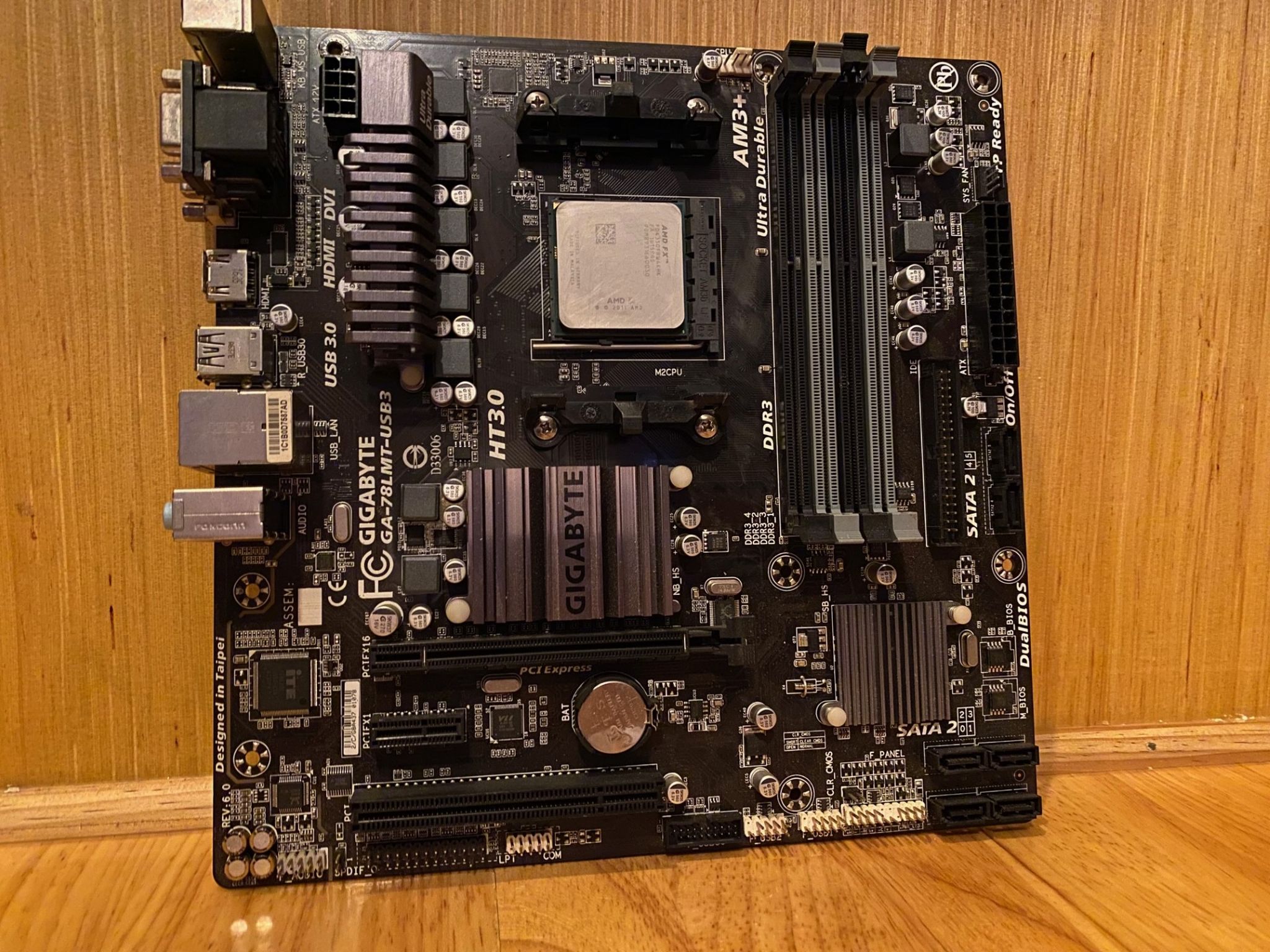

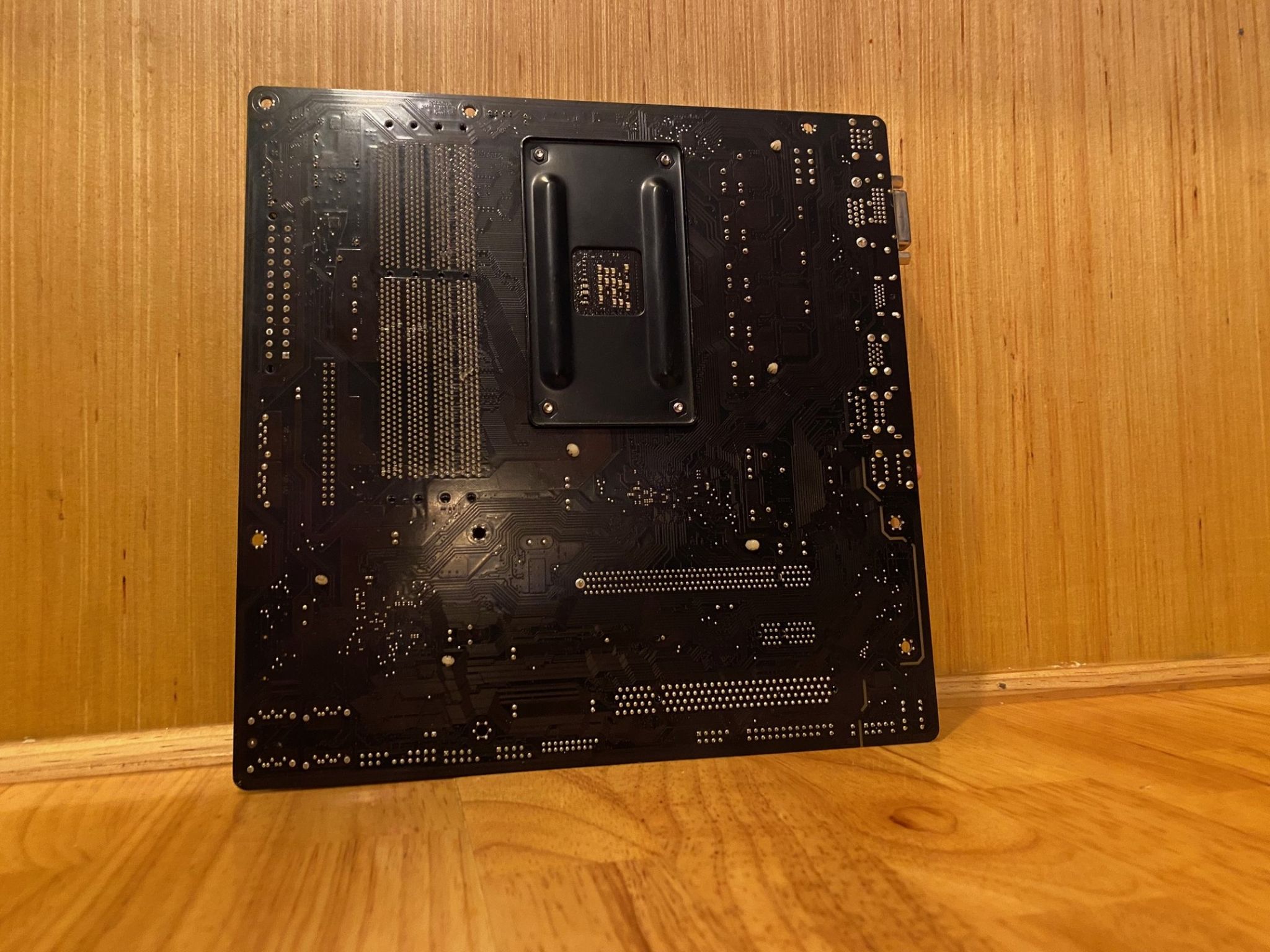

GIGABYTE GA-78LMT-USB3 (rev. 6.0) AM3+/AM3 AMD 760G USB 3.0 HDMI Micro ATX AMD Motherboard

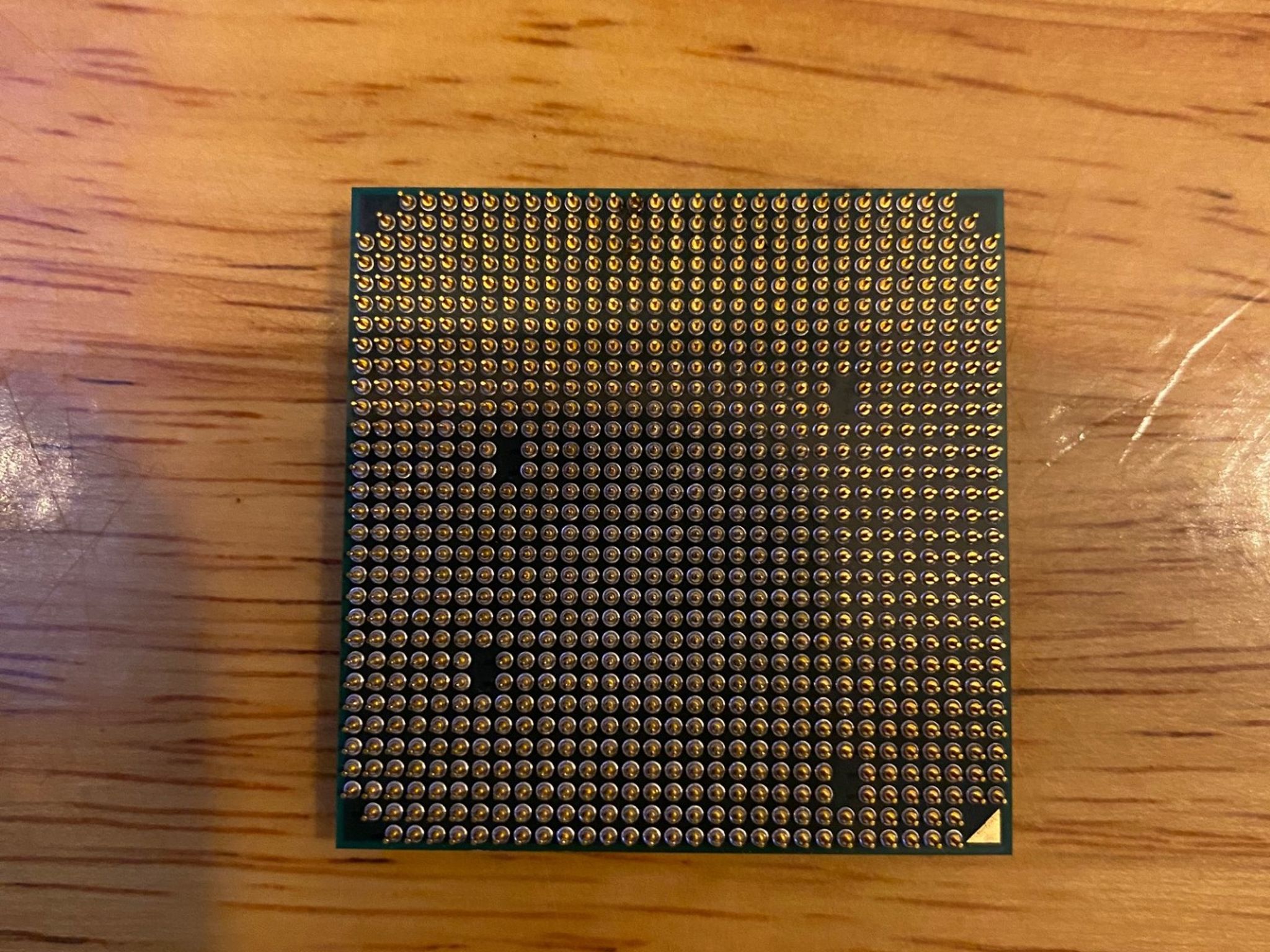

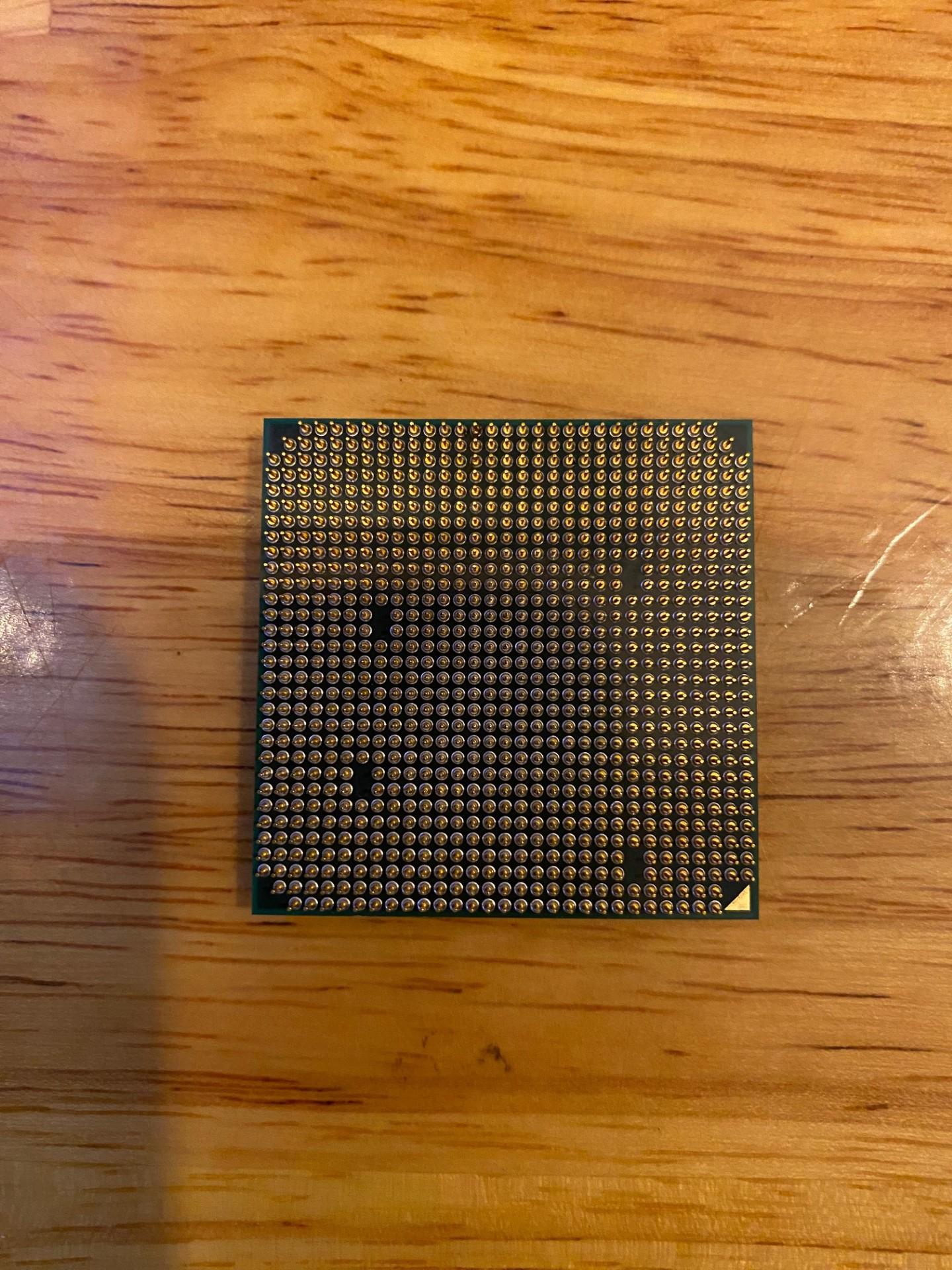

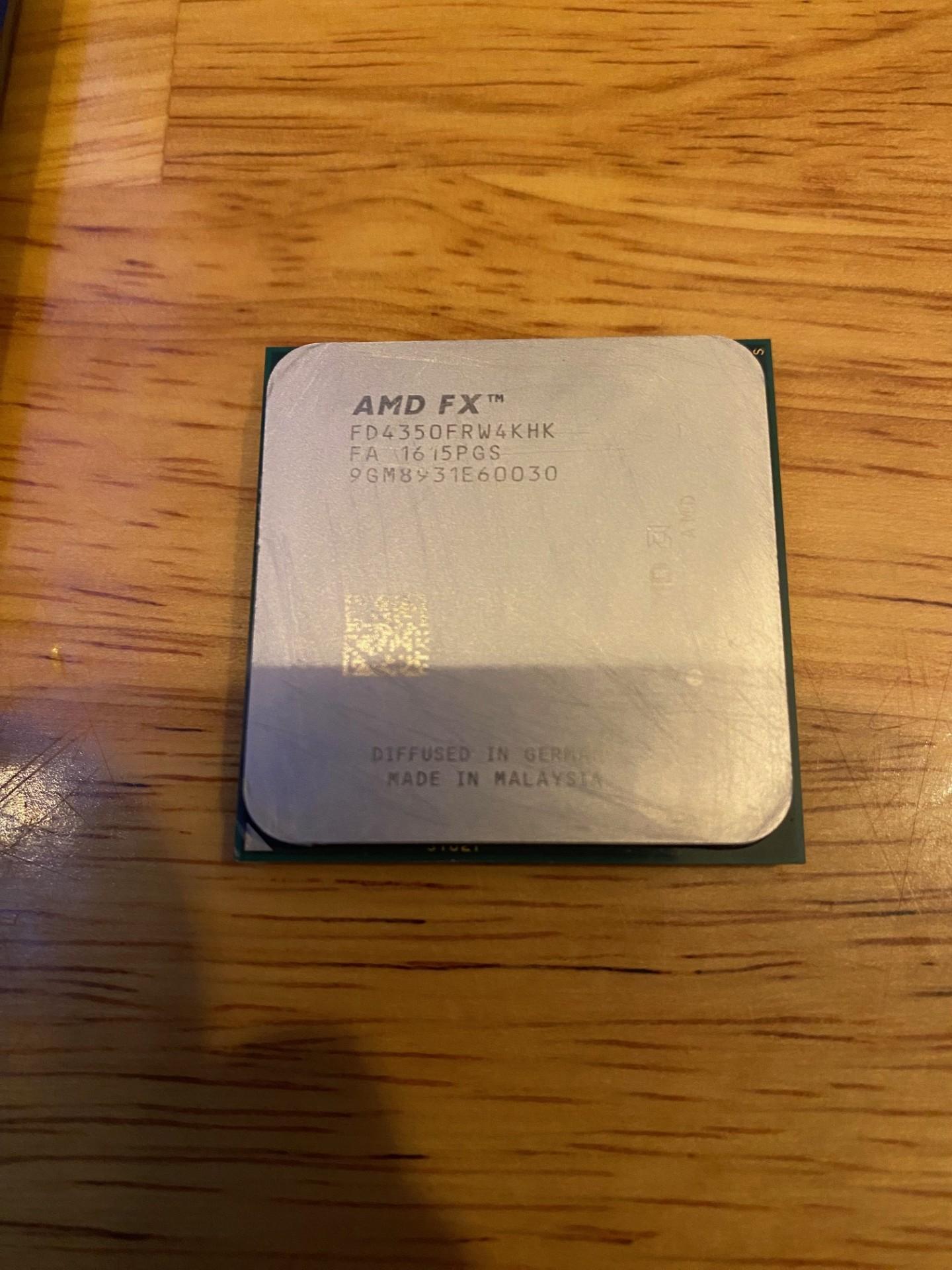

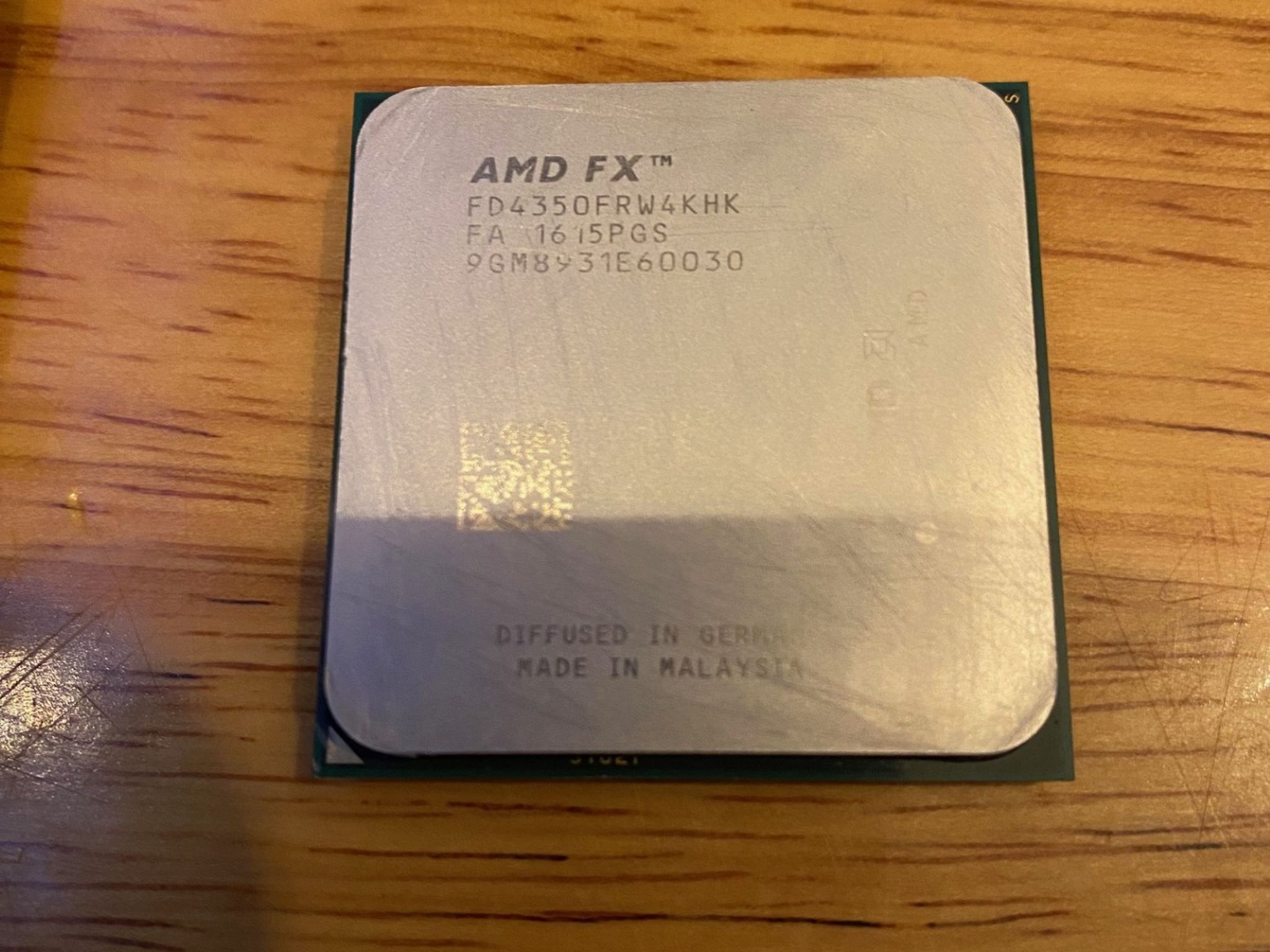

COMES WITH AMD FX AMD FX-4350

CPU Socket Type AM3+/AM3 CPU Type Support for AMD AM3+ processor Support for AMD AM3 Phenom II processor / AMD Athlon II processor

Chipset AMD 760G South Bridge AMD SB710

Number of Memory Slots 4x240pin Memory Standard DDR3 1600(O.C.)/ 1333/ 1066 Maximum Memory Supported 32GB Channel Supported Dual Channel

PCI Express 2.0 x16 1 x PCI Express x16 slot, running at x16 PCI Express x1 1 x PCI Express x1 slot (All PCI Express slots conform to PCI Express 2.0 standard.) PCI Slots 1 x PCI Slot

SATA RAID 0/1/10/JBOD

Audio Chipset Realtek ALC892 Audio Channels 2/4/5.1/7.1-channel*

Onboard LAN LAN Chipset Realtek GbE LAN chip Max LAN Speed 1Gbps

Back I/O Ports 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1 PS/2 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port HDMI 1 x HDMI RJ45 1 x RJ45 USB 3.0 2 x USB 3.0/2.0 ports USB 1.1/2.0 4 x USB 2.0/1.1 ports Audio Ports 3 x audio jacks (Line In/Line Out/Microphone)

Onboard USB 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

Micro ATX

Power Pin 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Hyper Transport Bus: HyperTransport 3.0 Support up to 5200 MT/s

iTE I/O Controller Chip

System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control (Note 5)

2 x 32 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Support for @BIOS Support for Q-Flash Support for Xpress BIOS Rescue Support for Download Center Support for Xpress Install Support for EasyTune (Note 6) Support for Smart Recovery2 Support for Auto Green Support for ON/OFF Charge Support for Q-Share
