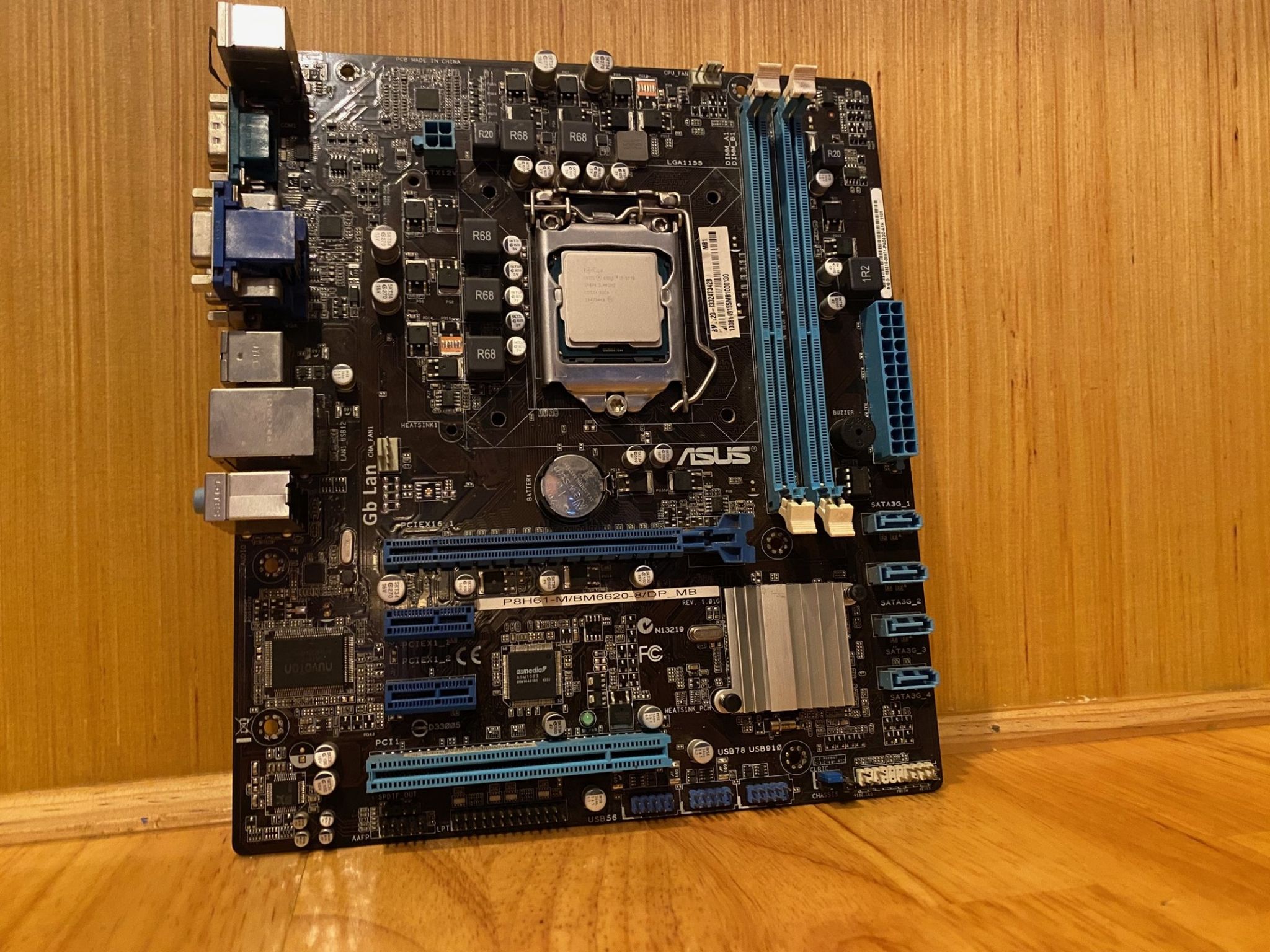

ASUS P8H61-M

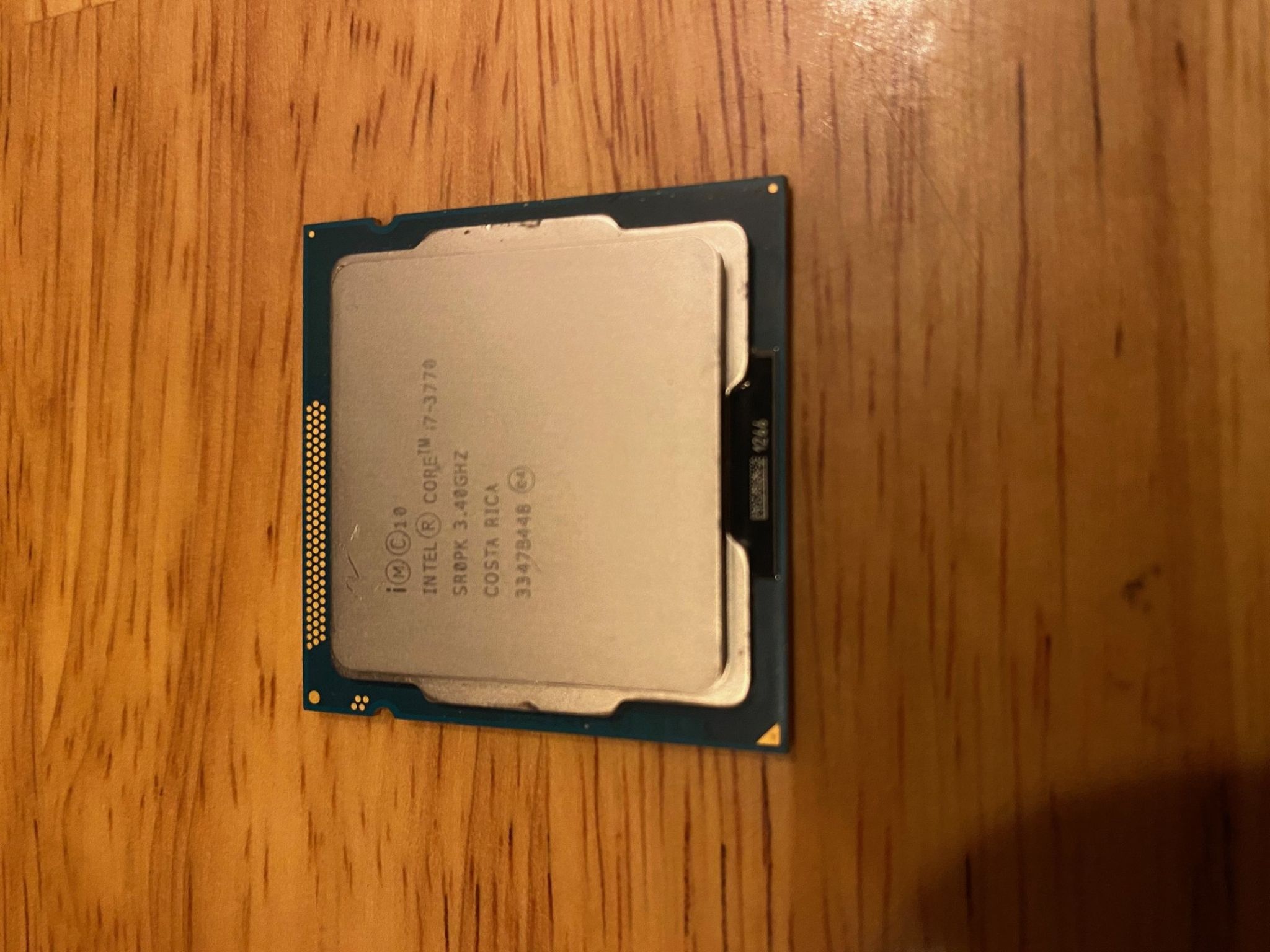

COMES WITH Intel Core i7 3770

CPU Socket Type LGA 1155 CPU Type Core i7 / i5 / i3 (LGA1155) Supported CPU Technologies Support Enhanced Intel SpeedStep Technology (EIST) Supports Intel Turbo Boost Technology 2.0

Chipset Intel H61

Onboard Video Chipset Supported only by CPU with integrated graphic

Number of Memory Slots 2x240pin Memory Standard DDR3 1333/1066 Maximum Memory Supported 16GB Channel Supported Dual Channel

PCI Express 2.0 x16 1 x PCI Express 2.0 x16 PCI Express x1 2 x PCI Express x1 PCI Slots 1 x PCI Slot

Audio Chipset Realtek ALC887 Audio Channels 8 Channels

LAN Chipset Realtek 8111E Max LAN Speed 1Gbps

Back I/O Ports 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 2.0/1.1 PS/2 1 x PS/2 Keyboard/Mouse Combo port Video Ports D-Sub + DVI HDMI 1 x HDMI USB 1.1/2.0 6 x USB 2.0 S/PDIF Out 1 x Optical Audio Ports 3 Ports

Onboard USB 4 x USB 2.0 Physical Spec Form Factor Micro ATX

Features GPU Boost - Instant iGPU Level Up!

EPU - Energy Efficiency All Around

TurboV - Easy, Real-Time O.C. Tunings

Protect 3.0 - Protect the Earth & the system & you

EFI BIOS - EZ Mode - Flexible & Easy BIOS Interface

AI Suite II - One-stop Access to Innovative ASUS Features
