Overview & Specs
8L mini ITX 1440p box. Let me know if you have questions.
All parts but RAM were purchased new or open box.
2 year limited parts and labor warranty included. Excludes physical damage and settings changed from what it ships with(Excluding the GPU undervolt).
Parts CPU: AMD Ryzen 5 7600X3D
Cooler: Thermalright AXP90-X53
Board: ASRock A620AI WiFi (WiFi 6E, BT, 2.5GbE), current BIOS
RAM: 32GB (2x16) SK Hynix M-die DDR5, validated at 6000
CL30-38-38-56 1.40V with TestMem5
GPU: PowerColor Reaper RX 9070 GRE 12GB
Storage: 2TB Ediloca EN870, PCIe 4.0 x4. Maxio MAP1602 controller, YMTC 232-layer TLC NAND, DRAM-less with HMB. Same controller/NAND combination as the well-reviewed budget Gen4 drives from the bigger brands; the difference is the sticker. Rated 7,400 MB/s read.
PSU: Corsair SF750 (2024) 80+ Platinum, fully modular
Case: Shiny Snake S300, 8.1L, 1x Thermalright C12015 slim exhaust fan
OS: Windows 11 pro
Numbers 3DMark Steel Nomad: 5517 (above the average for this card, from inside 8 liters).
GPU is running a validated -100mV undervolt with VRAM at 2450 fast timings. The stock Adrenalin profile is included; one click to revert.
At full gaming load the PSU fan doesn't spin.
Notes Everything is stock-fit, nothing modded or de-shrouded.

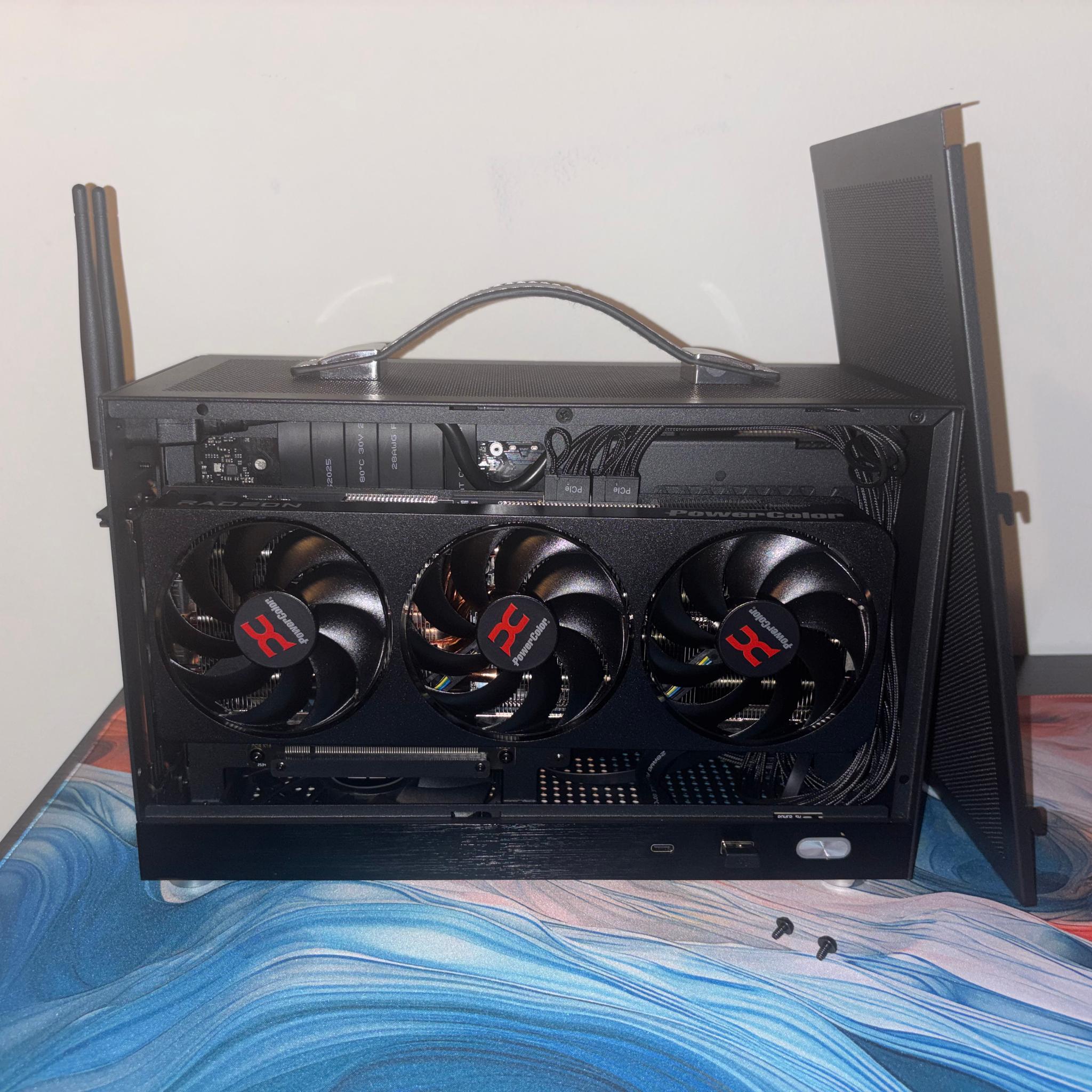

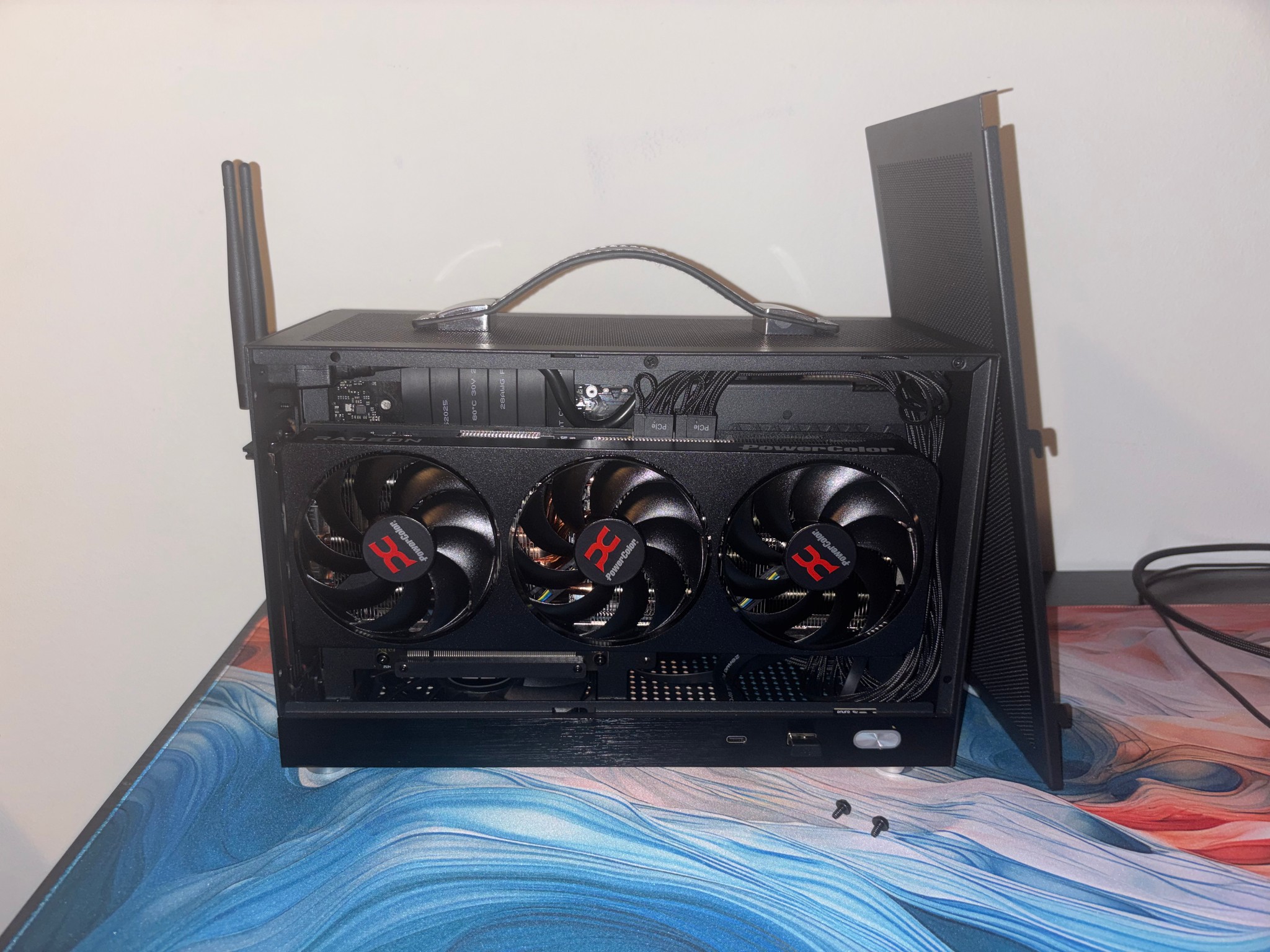

The GPU is a 304mm card in a 305mm case, tight fit but it fills the case nicely.
12GB VRAM: this is a 1440p card. I'm pretty sure it wont Indiana Jones at Ultra settings 1440p, but the vast majority of games it will run great.
6 cores: it's an X3D. The cache is why the 1% lows beat an 8-core non-X3D at this price.
RAM is OEM Hynix, TM5-validated at the profile it ships at, and covered by the warranty like everything else.
Ediloca is a white-label brand and I know that. I bought it for the internals, verified them, and I'm the one warrantying it.

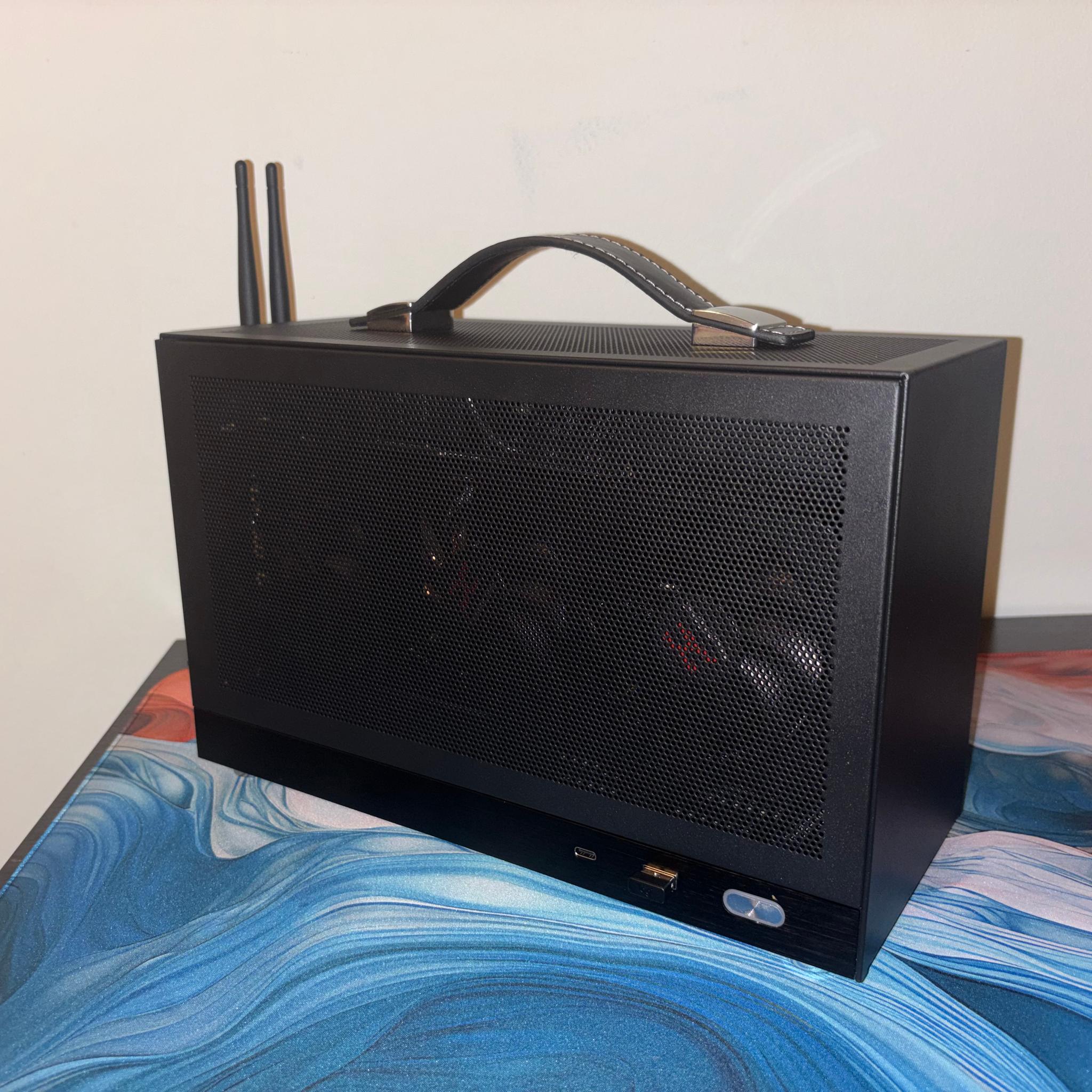

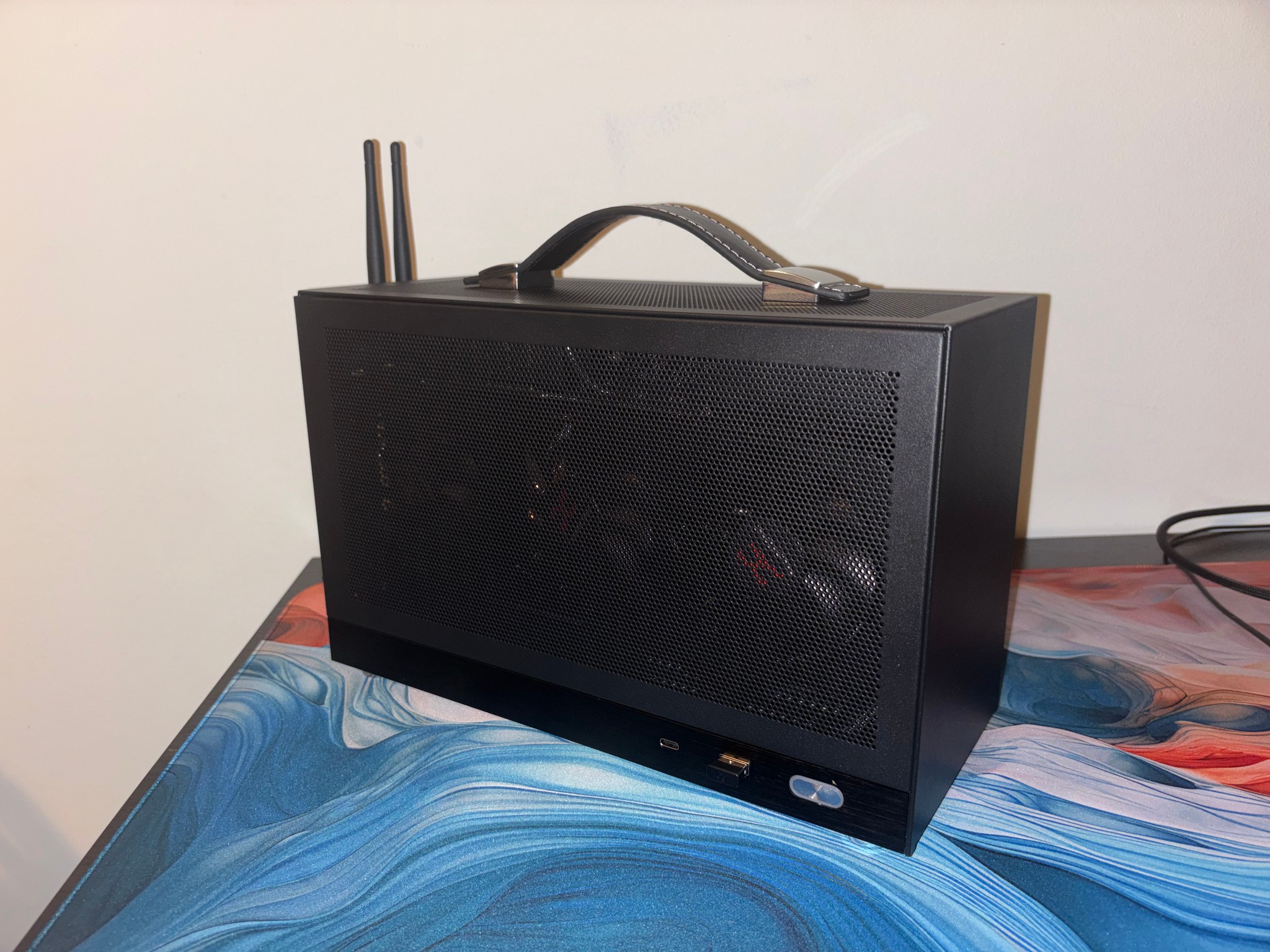

Why this over a tower: it's 8 liters with a handle. If you want a tower, a tower is cheaper.
Disclosures The riser is PCIe 3.0, which costs about 2% on this card. The BIOS is set for it, and I include a one-page note covering that setting and how to get back into BIOS via the board's HDMI if you ever clear CMOS.
A620 does not expose CPU undervolting or overclocking, so the CPU runs stock. The X53 has plenty of headroom for a 65W chip.
Two M.2 slots on the board: the first is PCIe 4.0 (occupied), the second is PCIe 3.0 x4, fine for a game drive.
Windows 11 pro is installed and activated.
No mining, no RGB. Free shipping, double-boxed.
CPU:AMD Ryzen 5 7600X3D
- BrandAMD
- SeriesRyzen 5
- ModelRyzen 5 7600X3D
- SocketAM5
- Core count6 cores
CPU Cooler:Thermalright AXP90-X53
- BrandThermalright
- TypeAir
- SocketMultiple Intel and AMD
GPU:PowerColor AMD Radeon RX 9070 GRE
- ChipsetAMD
- BrandPowerColor
- SeriesRadeon RX 9070 GRE
- Memory12GB
Memory:32GB DDR5
- Capacity32GB
- Memory BrandOther
- TypeDDR5
- Number of Modules2
- Form FactorDIMM (Desktop)
Internal Storage:2TB NVMe SSD
- Capacity2TB
- InterfaceNVMe SSD
- Form FactorM.2
- BrandOther
Motherboard:ASRock Mini-ITX with Ethernet and Wi-Fi
- BrandASRock
- Form FactorMini-ITX
- NetworkingEthernet and Wi-Fi
Case:Other Small Form Factor
- BrandOther
- Form FactorSmall Form Factor
Power Supply:Corsair SF750
- BrandCorsair
- Wattage750W
- Form FactorSFX
