Chipset: Intel C602

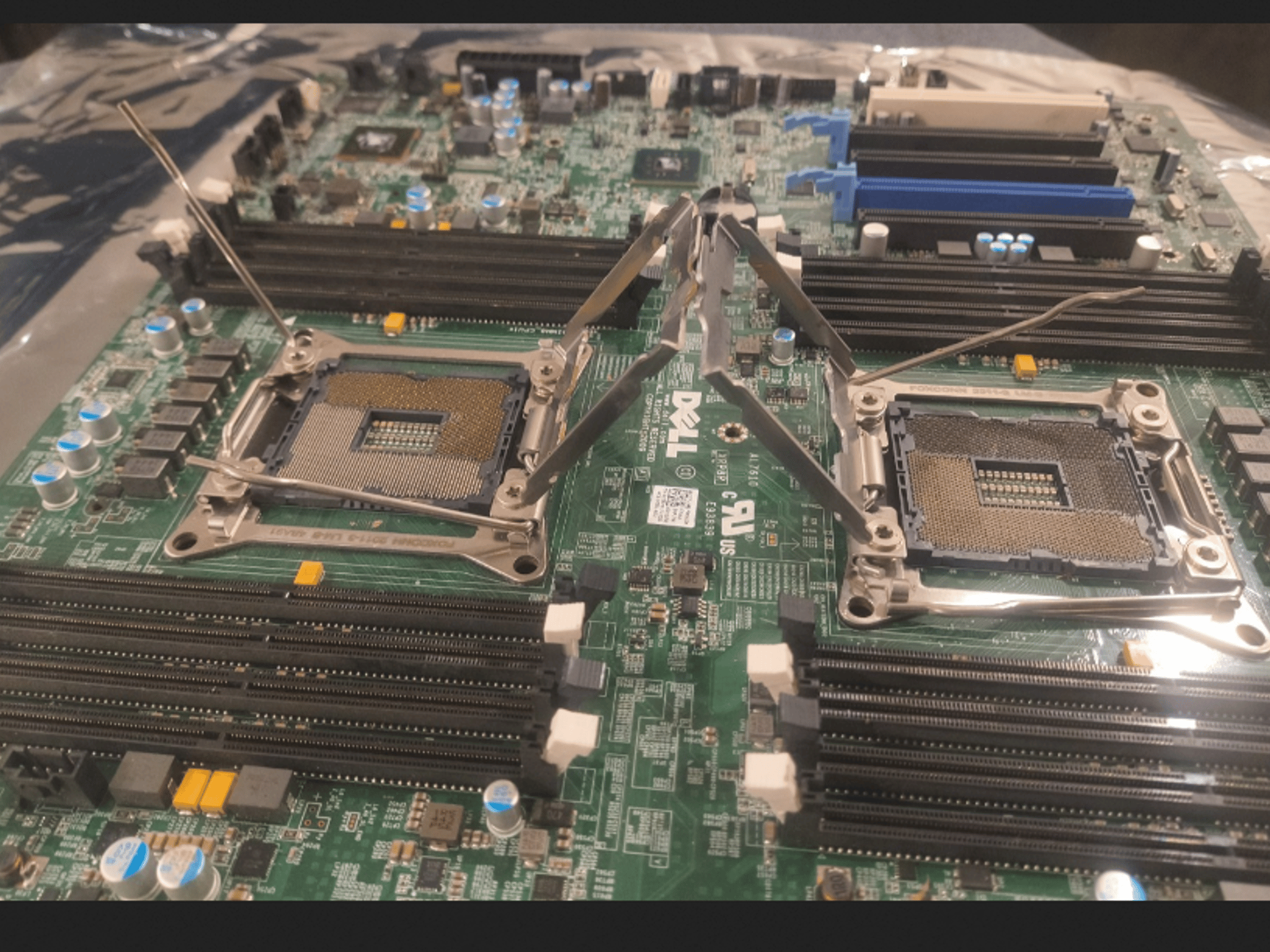

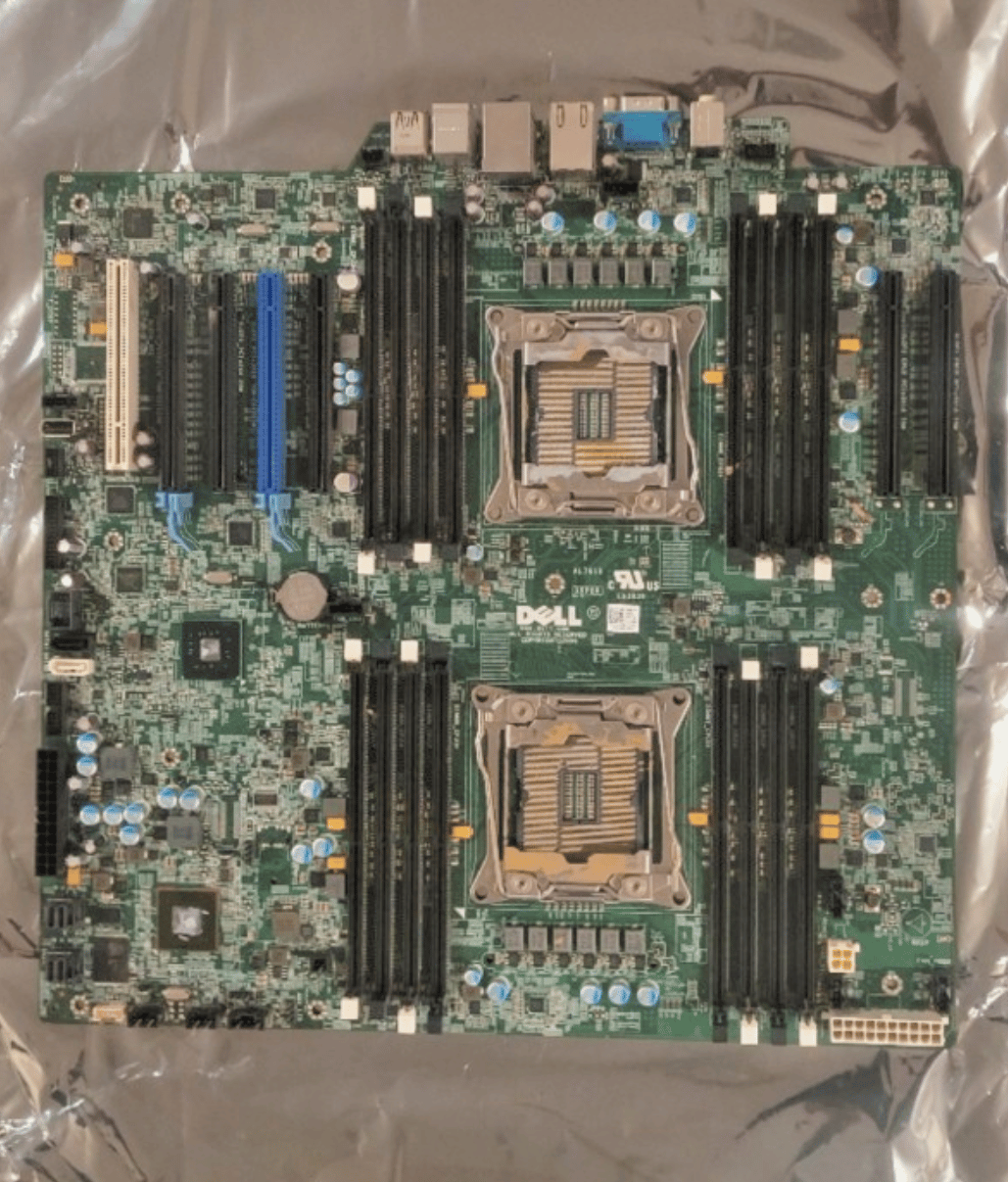

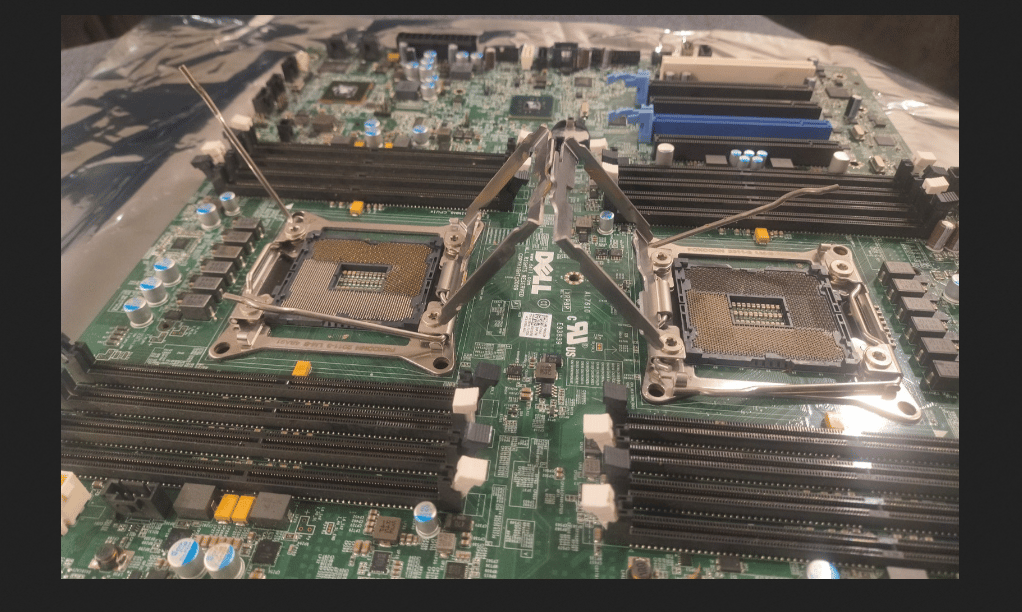

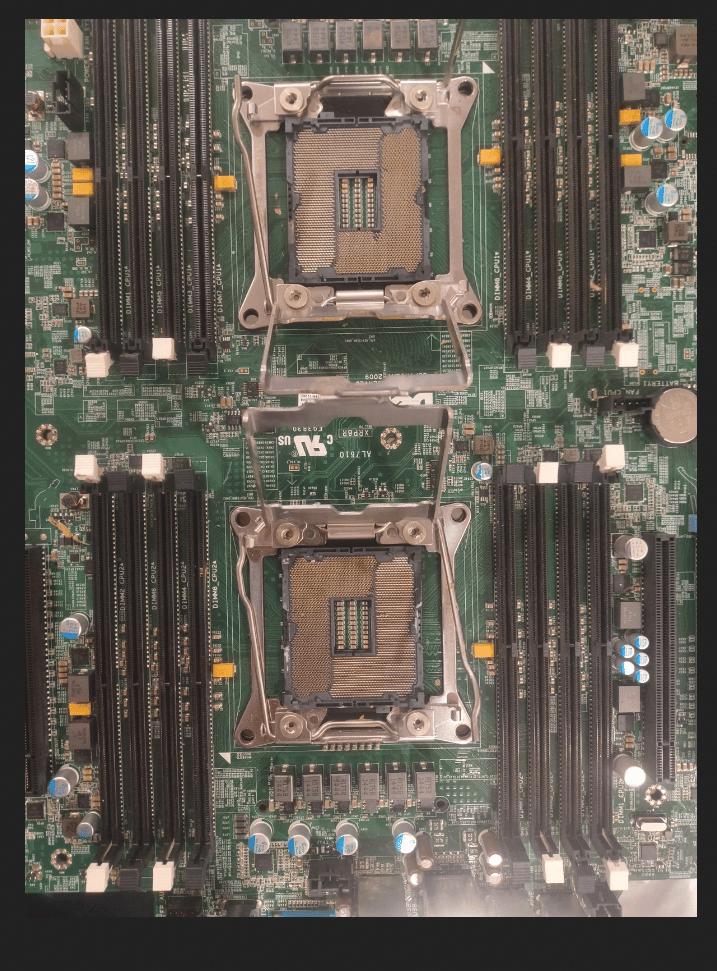

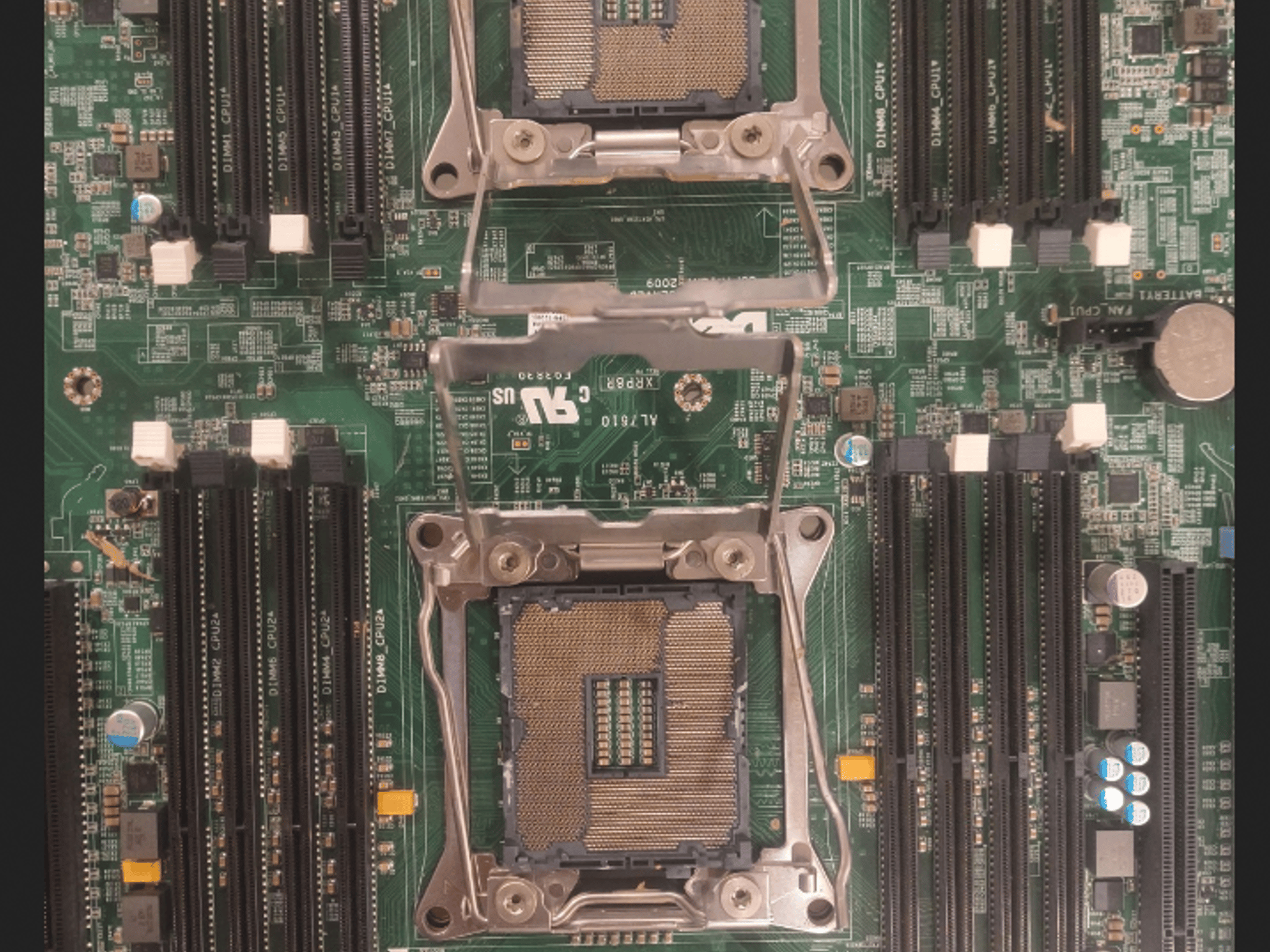

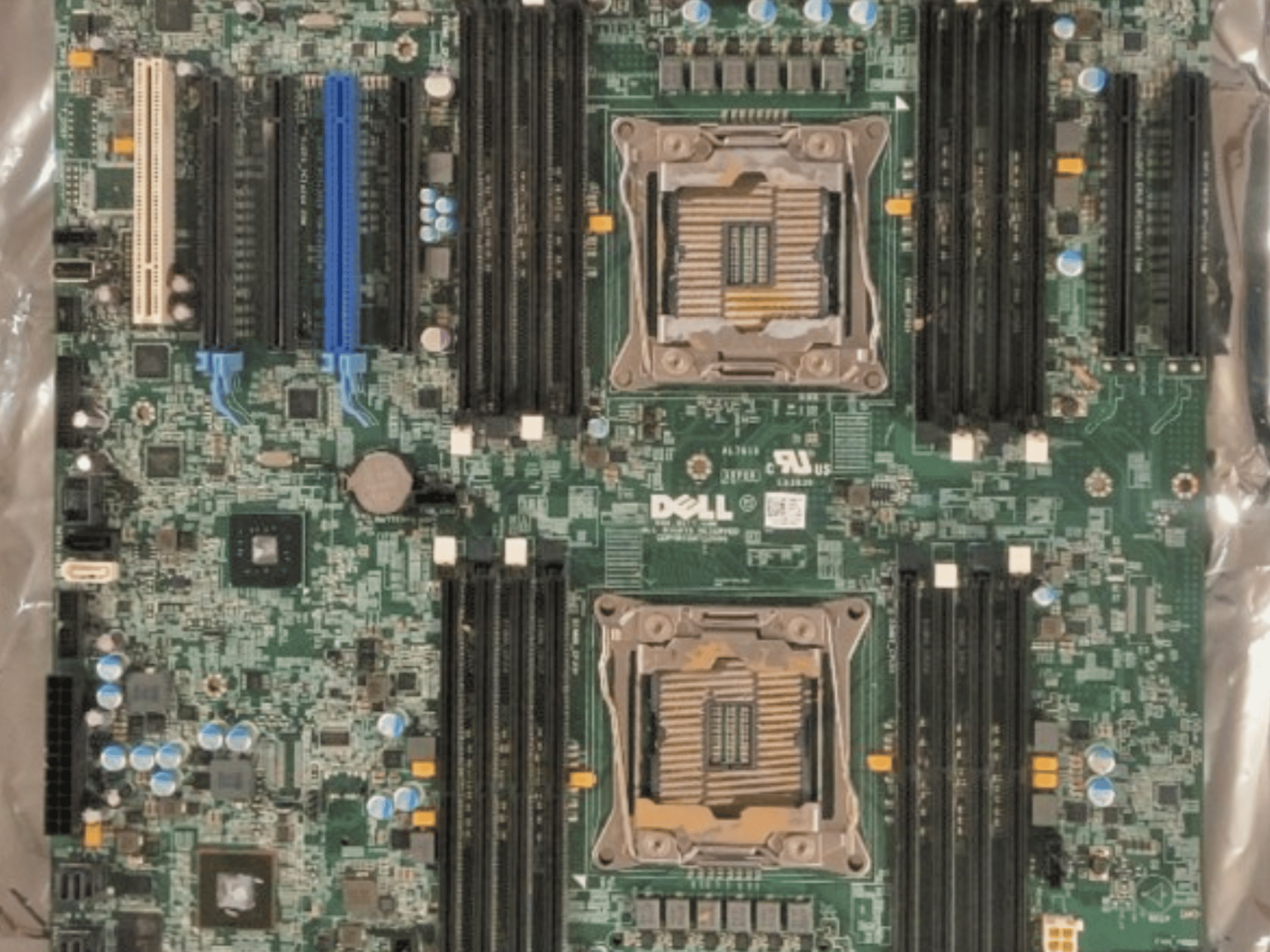

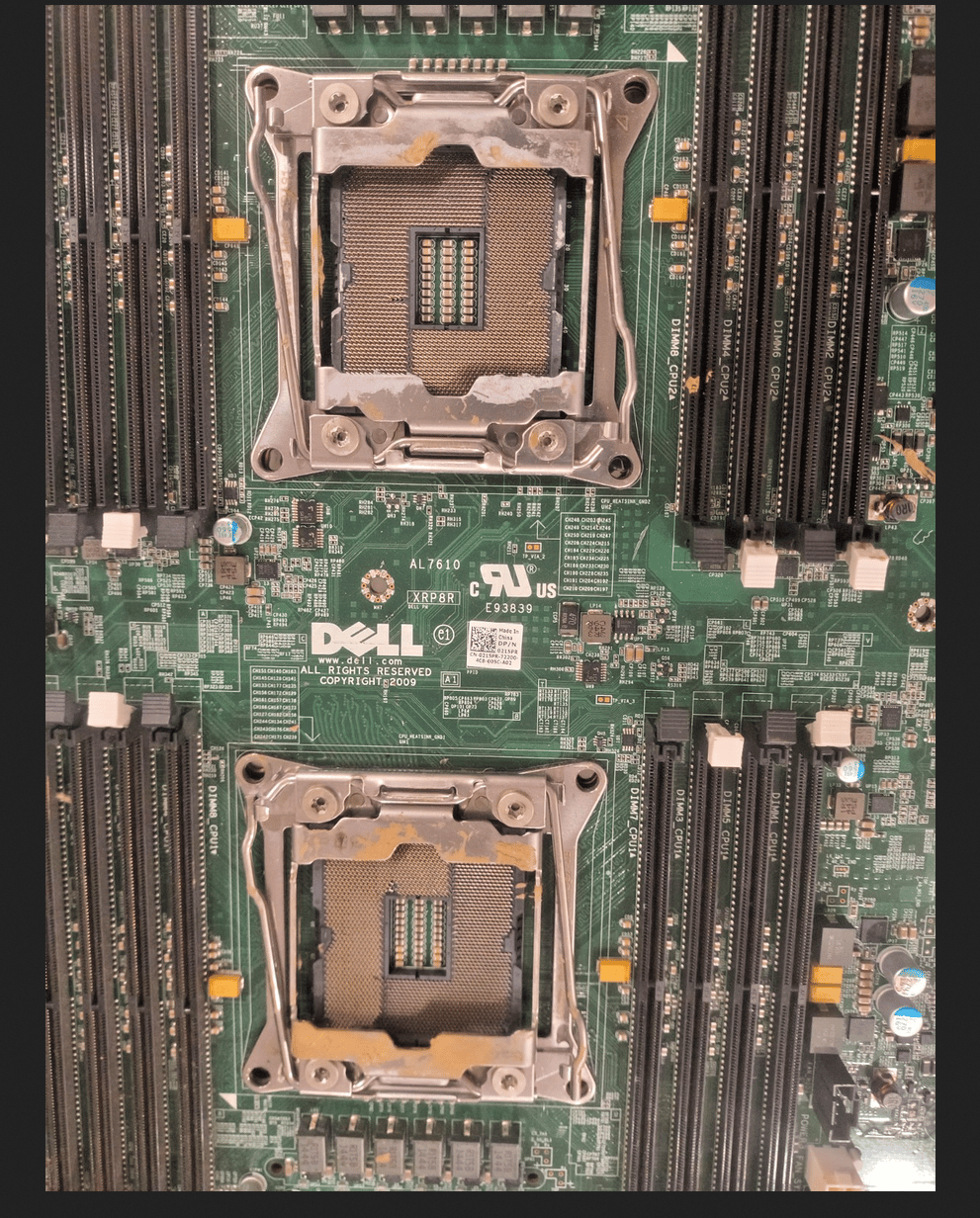

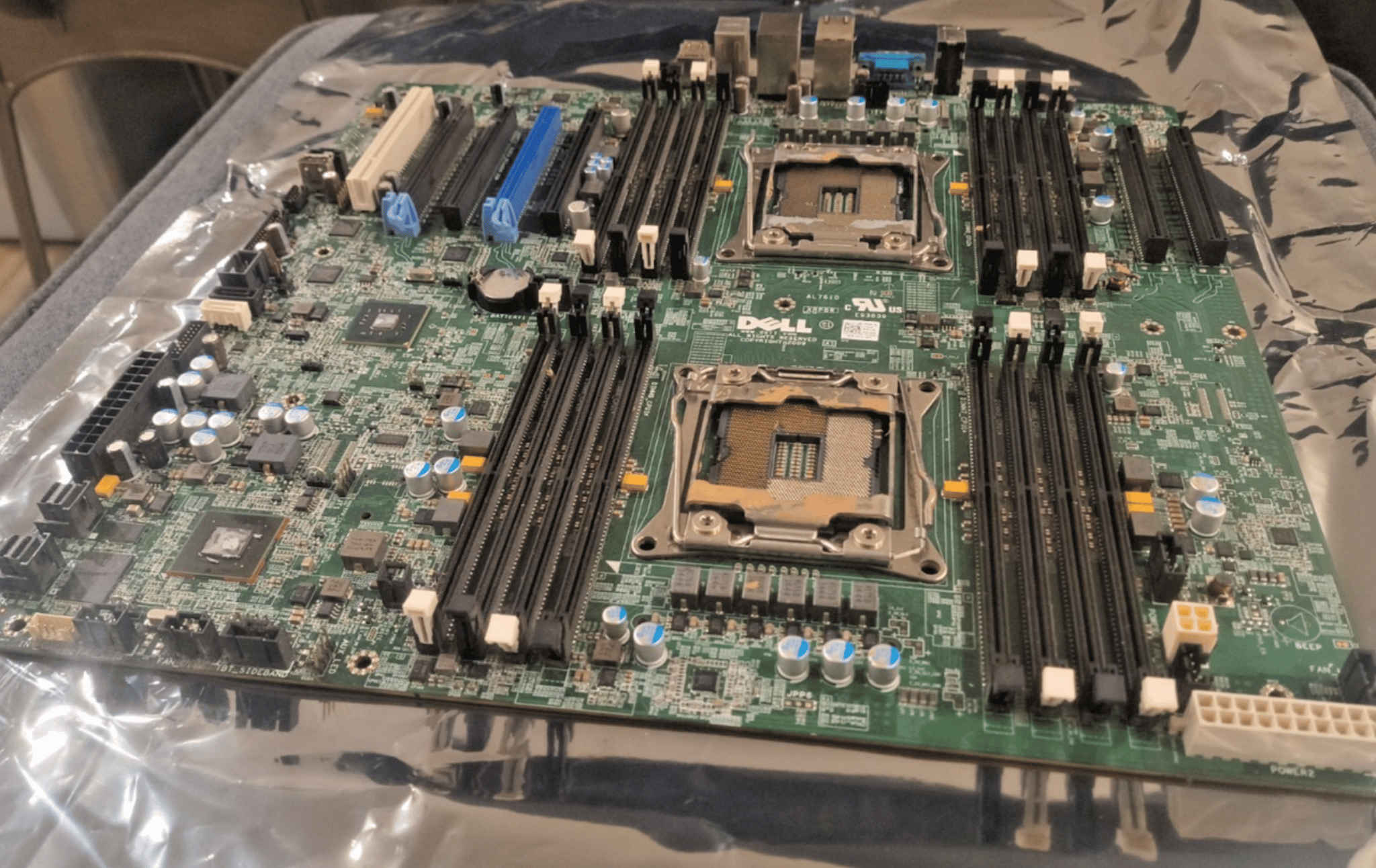

Processor Support: Dual LGA 2011 (Socket R), Supports up to two Intel Xeon E5-2600 v1 and E5-2600 v2 product family processors (Up to 12 cores / 24-threads per CPU), Dual Intel QuickPath interconnect (QPI) links up to 8.0 GT/s.

Advanced Memory Capabilities

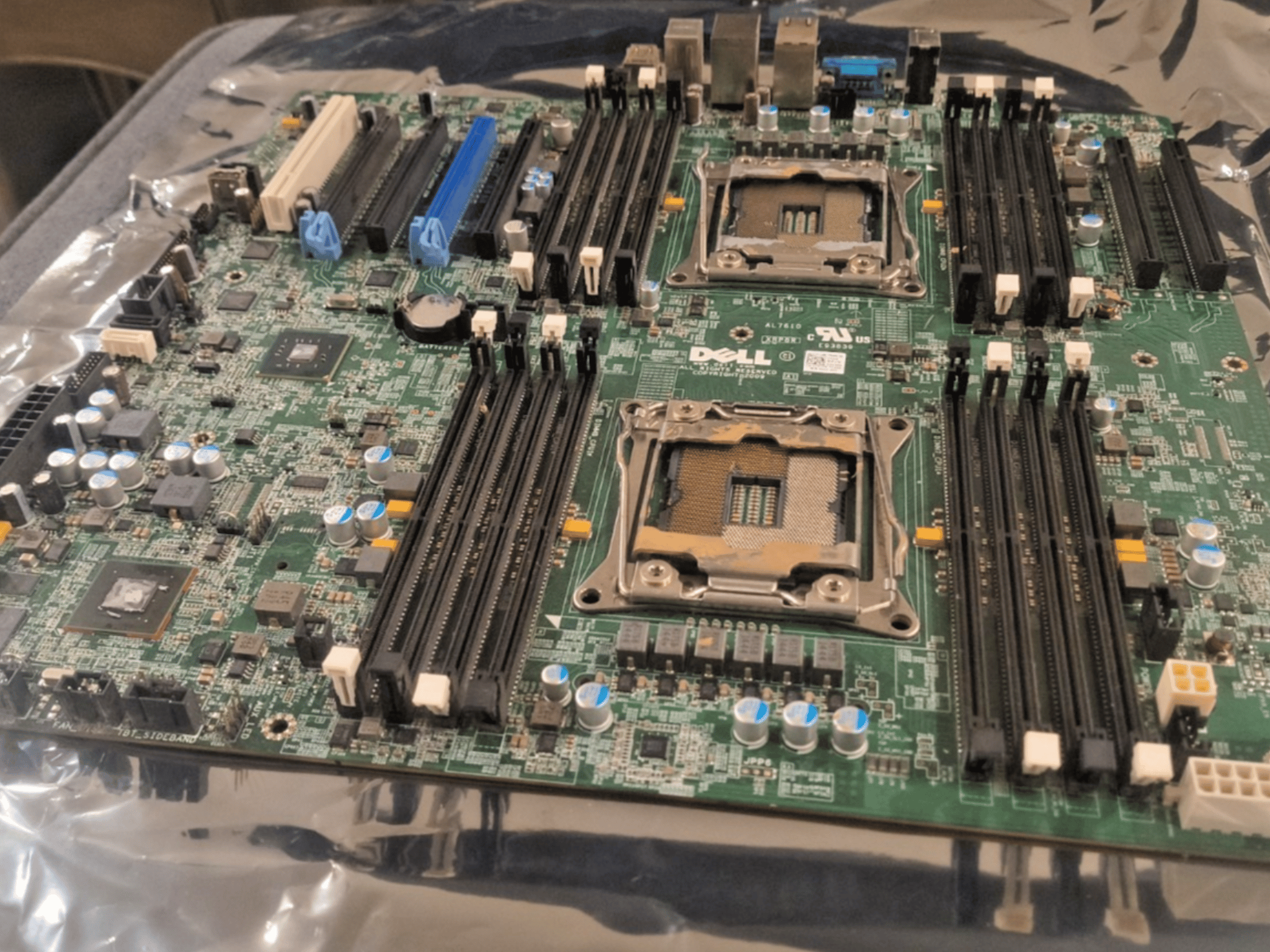

Total Slots: 16x 240-pin DDR3 DIMM slots (8 slots allocated per CPU)

Memory Type Support: DDR3 ECC Registered (LRDIMM) and Load-Reduced (LRDIMM) modules

Speeds Supported: 1333MHz, 1600MHz, and 1866MHz

Maximum Capacity: Up to 512GB of system RAM using 32GB LRDIMM modules

SAS/SATA Primary Storage: Integrated LSI 2308 SAS 2.0 / SATA 3.0 controller operating at 6 Gbps across 8 ports (SAS0 and SAS1 headers)

SATA Storage (Optical/Auxiliary): Integrated Intel AHCI SATA 3.0 6 Gbps controller powering the SATA0 and SATA1 ports

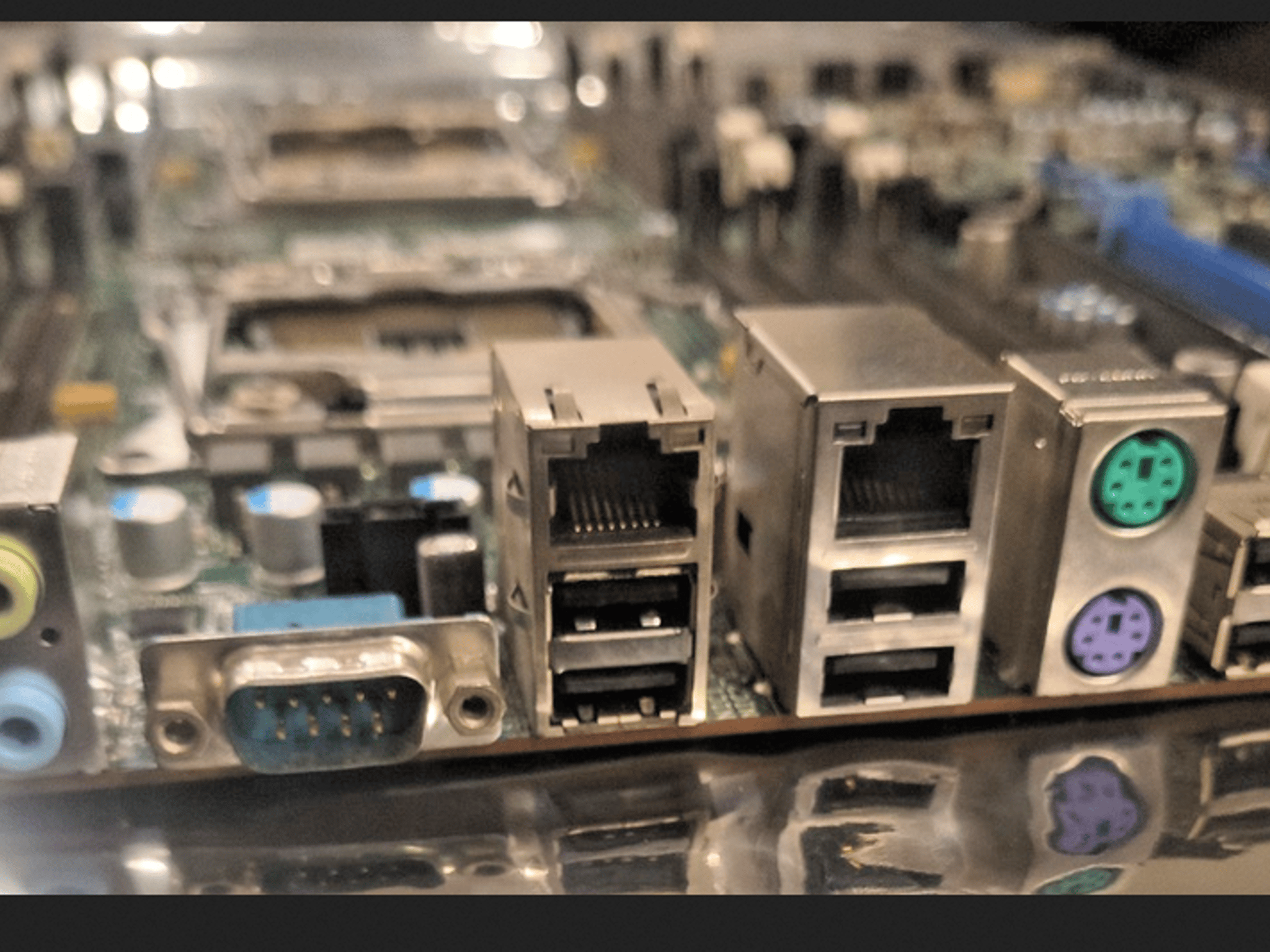

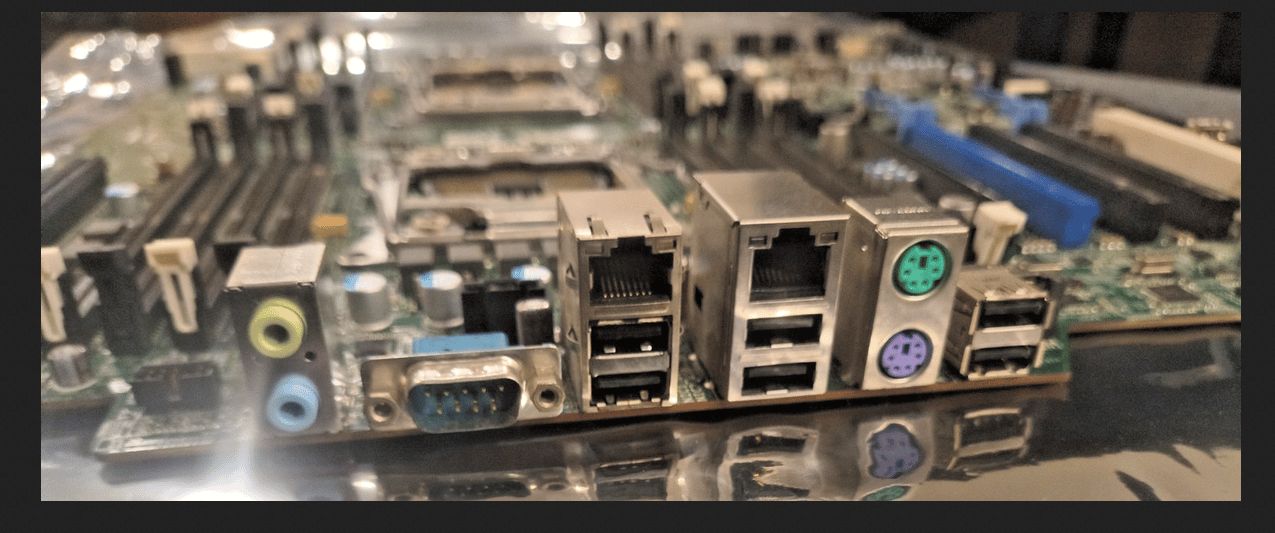

Networking: Dual Integrated Gigabit Ethernet Ports with PXE and Wake-on LAN support

USB Ports: 3x USB 3.0, 3x USB 2.0

Audio: Onboard Realtek High Definition Audio jacks

Legacy Ports: 1x Serial 9-pin COM port, 2x PS/2 ports for keyboard & mouse
