Lenovo CIB85M (LGA 1150) Motherboard + OEM Heatsink

Overview

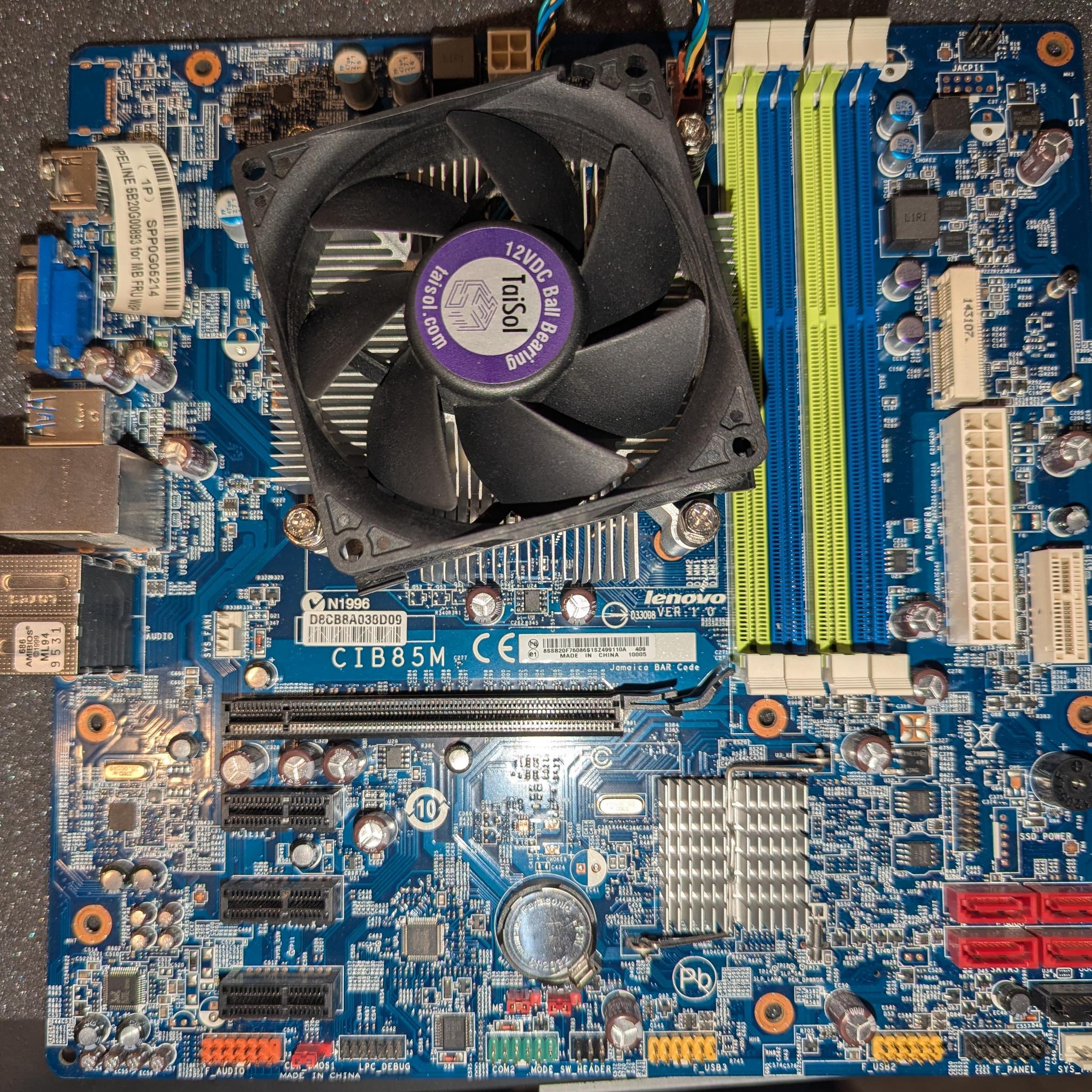

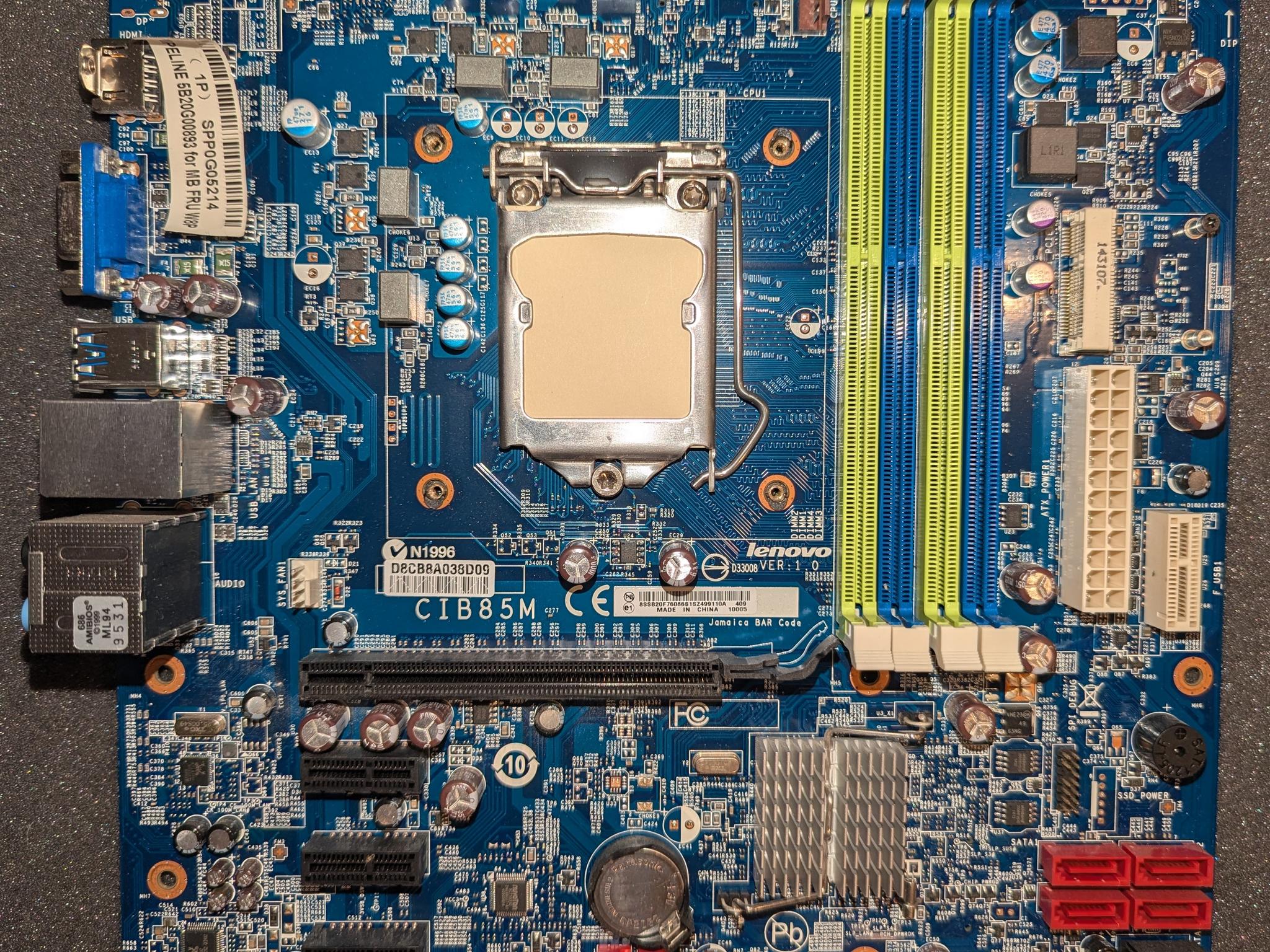

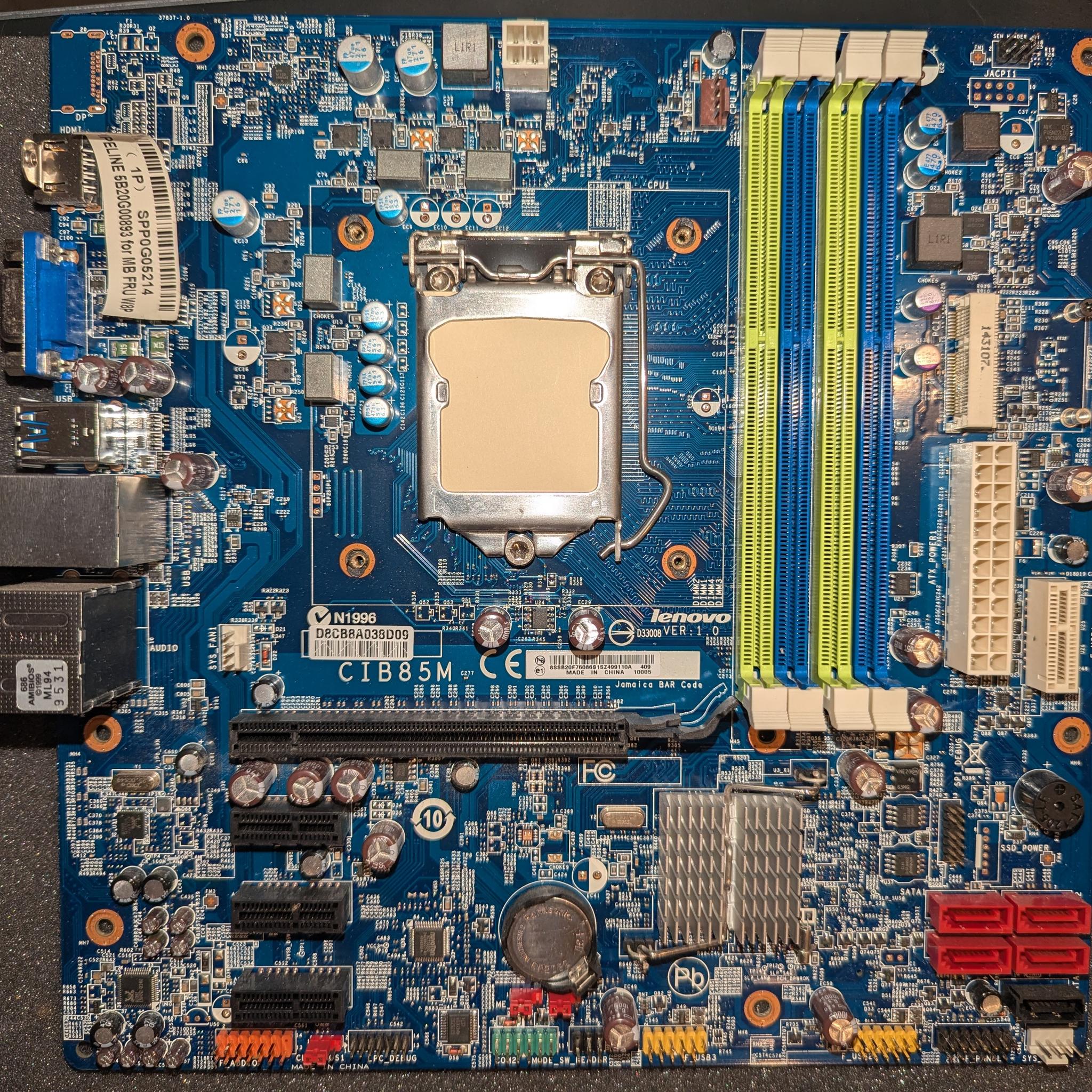

Up for sale is a Lenovo CIB85M Micro-ATX motherboard. This motherboard is from a Lenovo IdeaCentre K450e desktop. It is a standard MATX form factor board so it will fit in a standard case. Thankfully It also uses standard ATX power connectors.

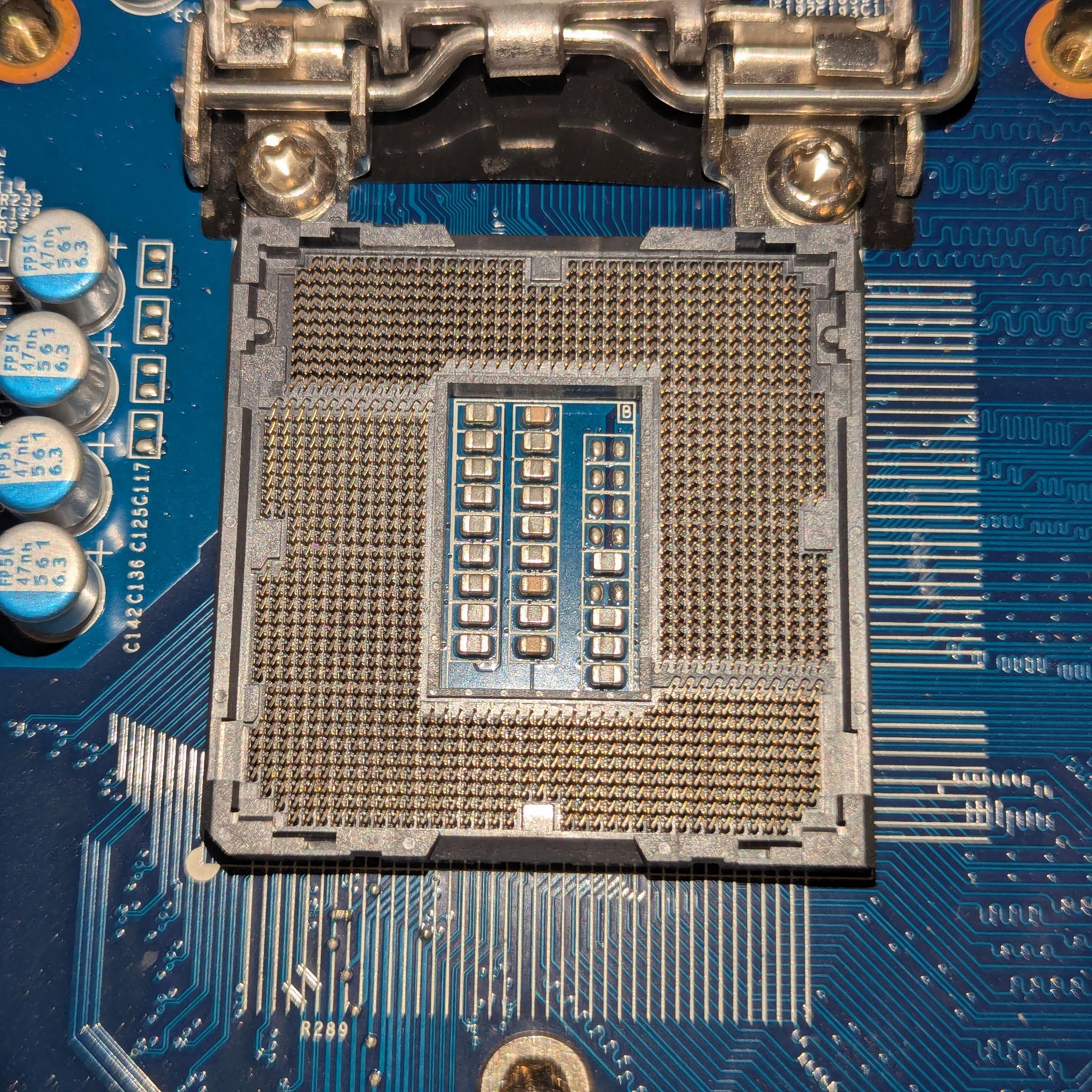

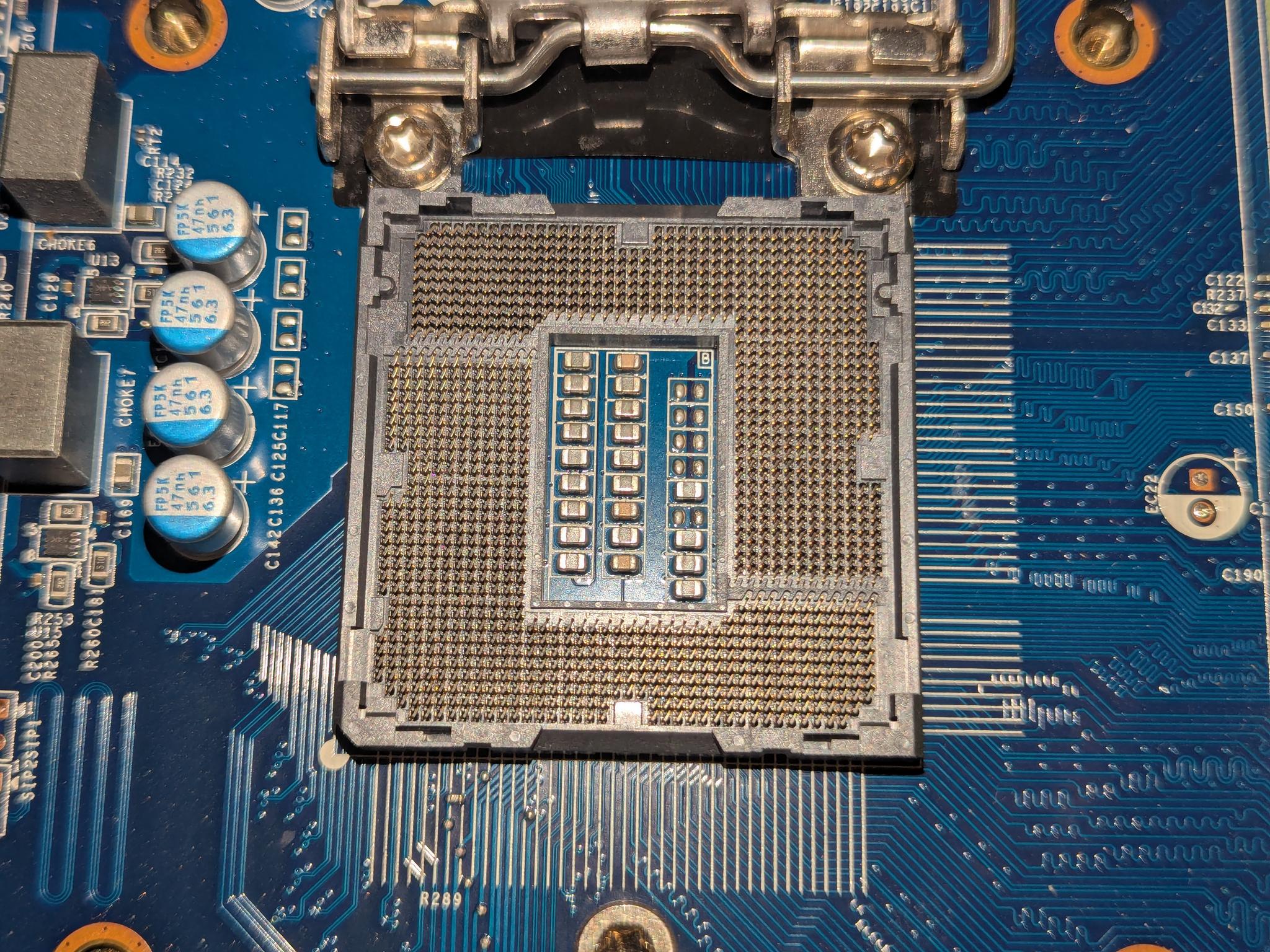

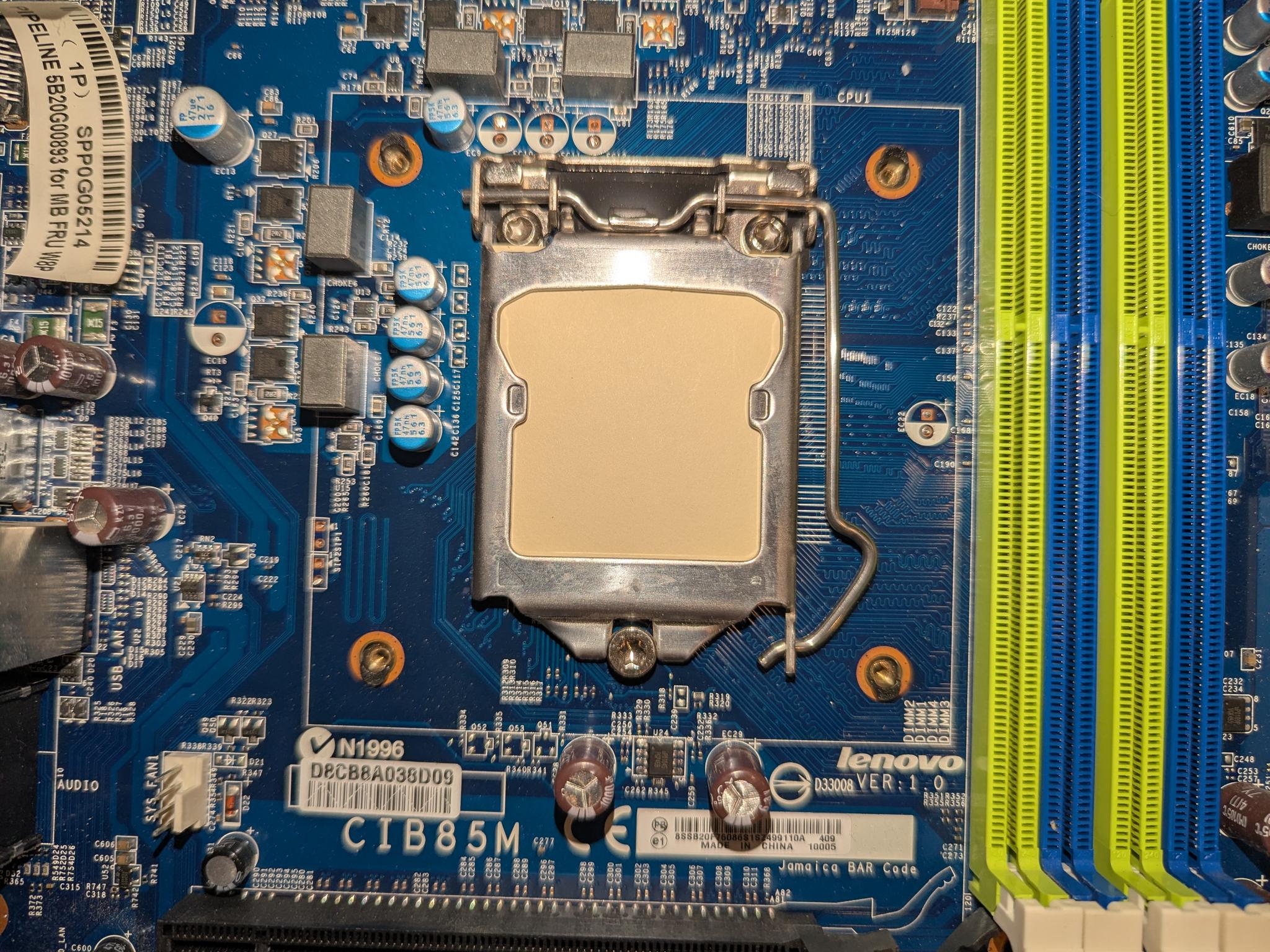

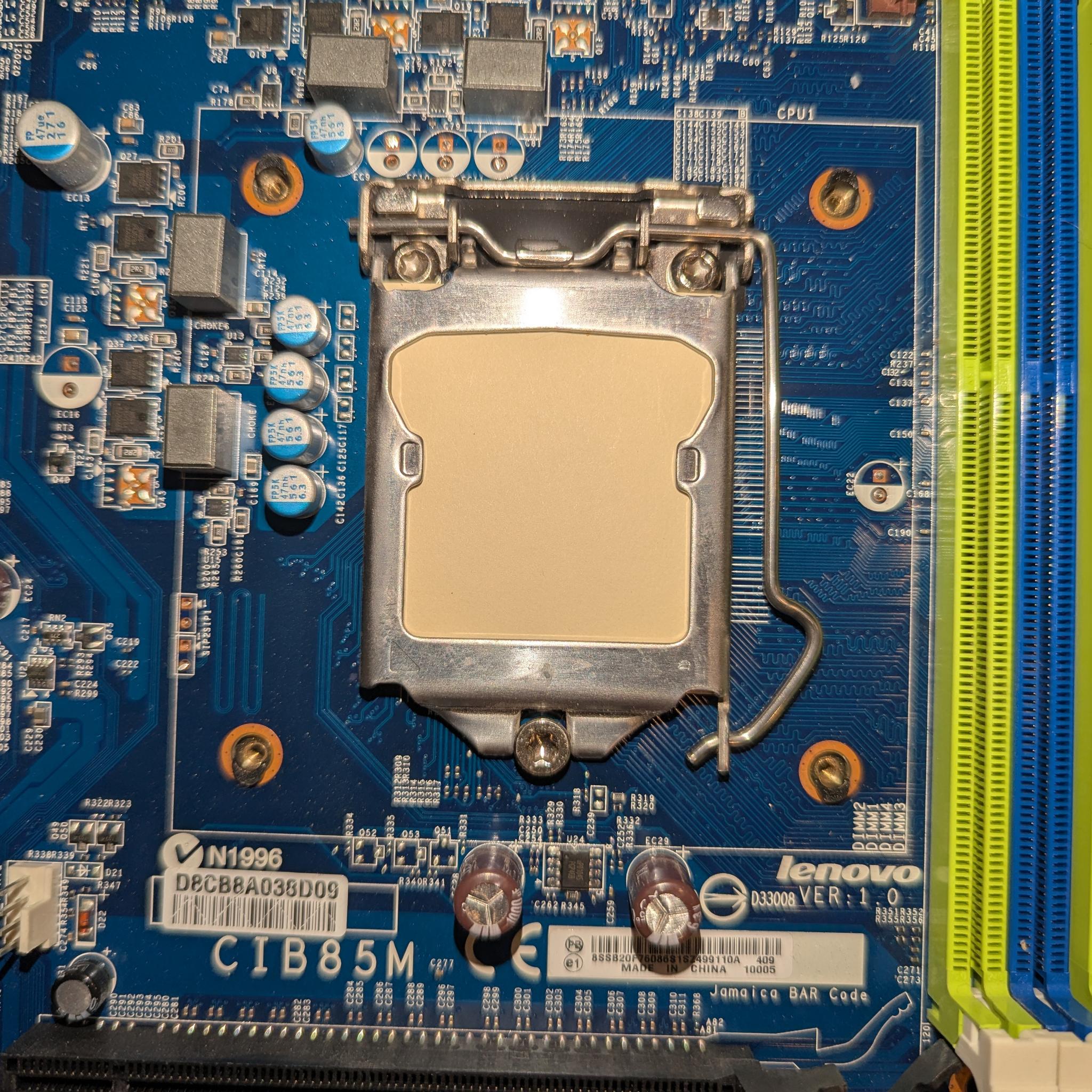

• Socket: LGA 1150 (Supports 4th Gen Intel Core i3/i5/i7 "Haswell" processors)

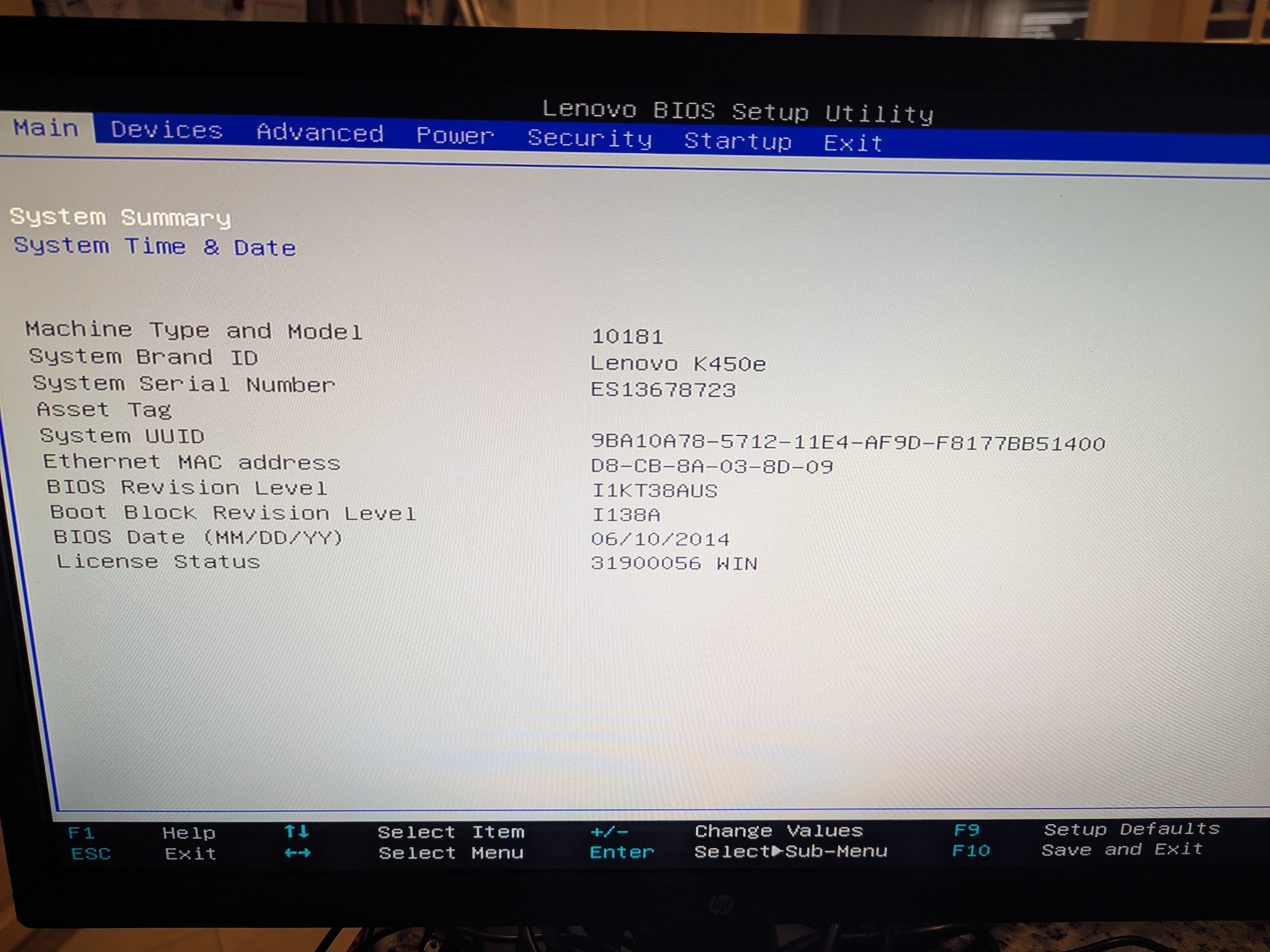

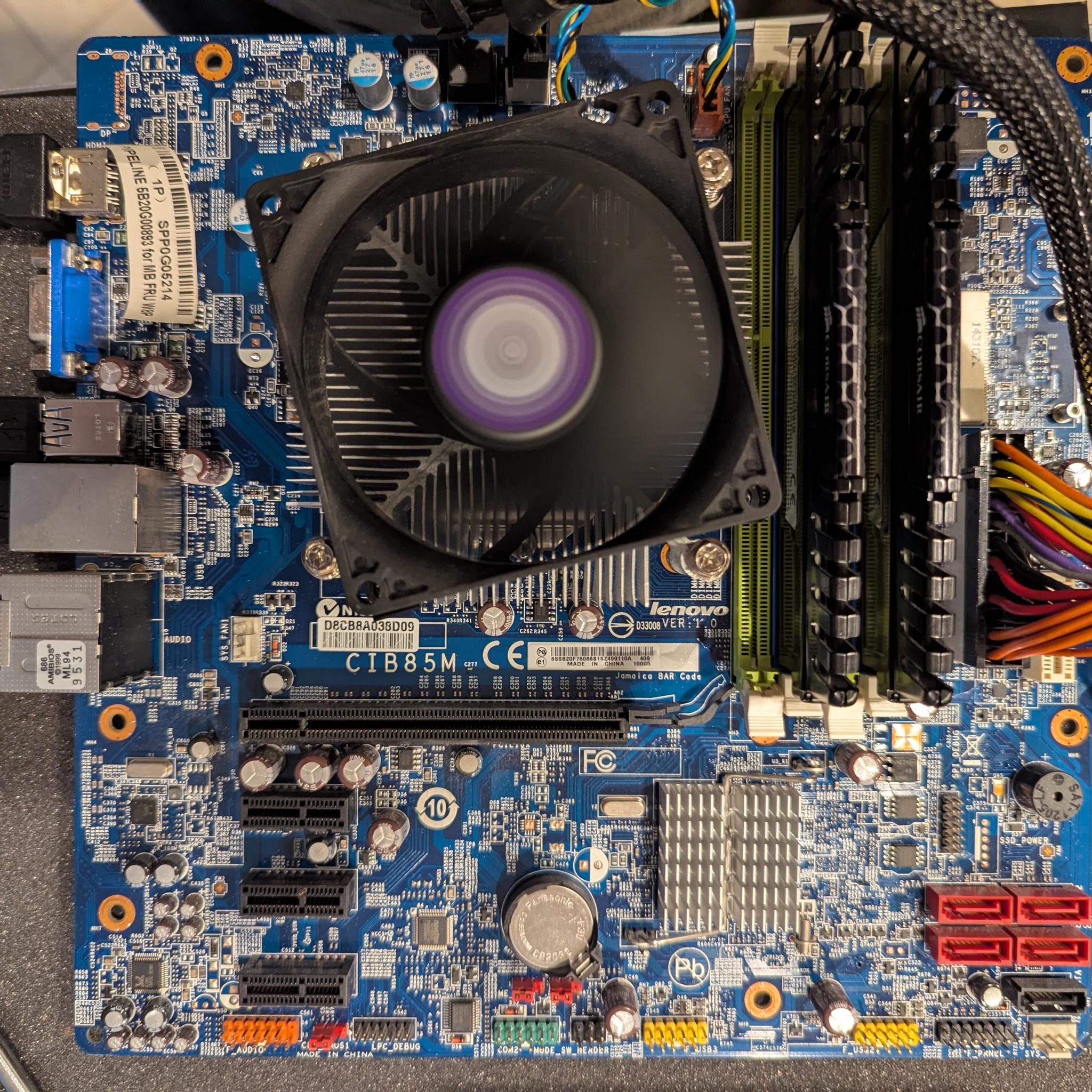

• Testing: Fully tested

Technical Specifications

• Chipset: Intel B85
• Form Factor: Micro-ATX (Standard mounting holes)
• Power Connectors: Standard 24-pin ATX + 4-pin CPU (No adapters needed)
• Memory: 4x DDR3 DIMM slots (Dual Channel)
• Expansion: 1x PCIe x16, 3x PCIe x1, 1x mini PCIE for a Half Mini Wi-Fi card
• Rear I/O: VGA, HDMI, 2x USB 3.0, 2x USB 2.0, RJ45 Ethernet, Audio

Important Notes

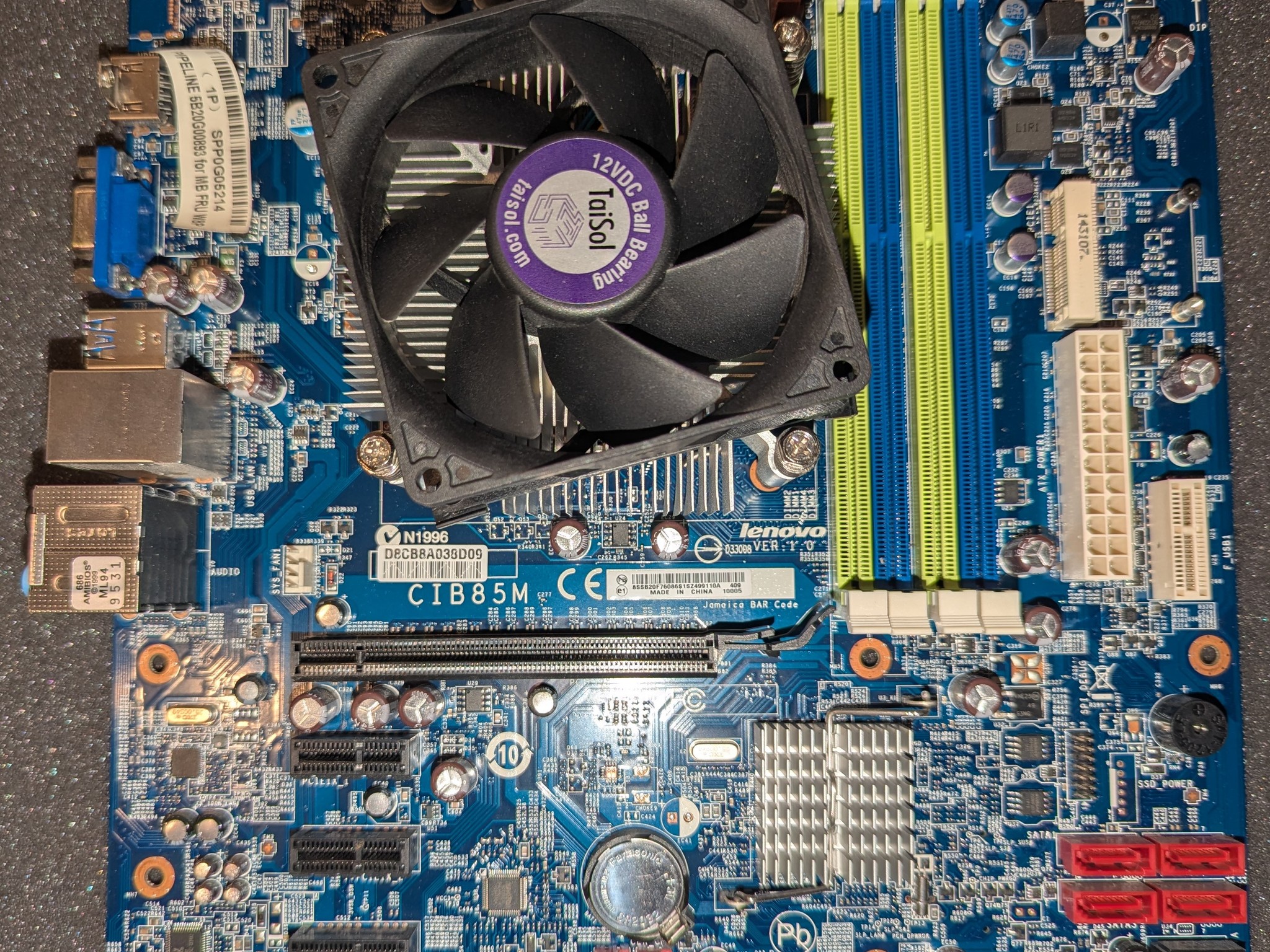

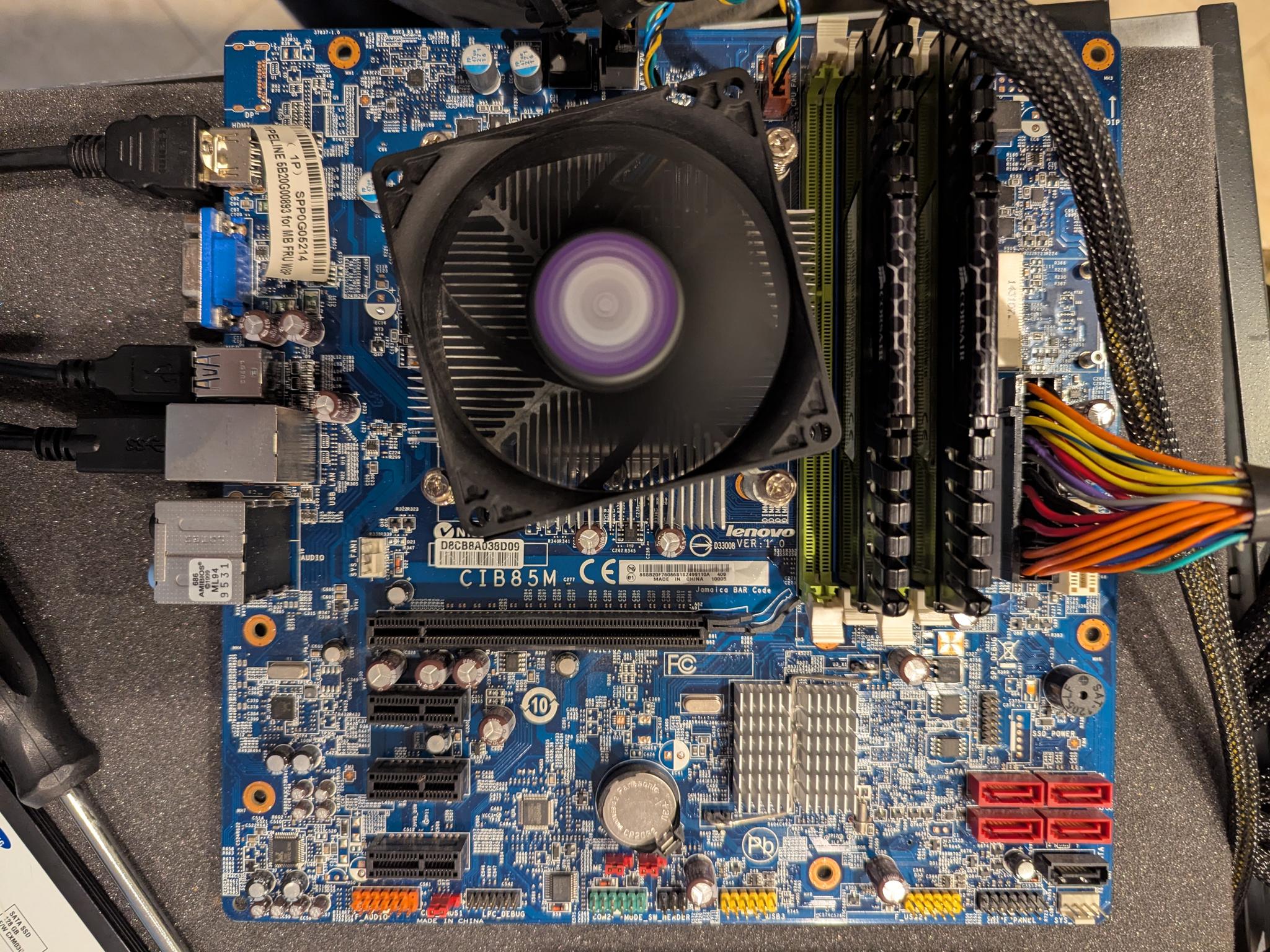

• Heatsink: Includes the original Lenovo OEM heatsink and fan.
• I/O Shield: NOT included.
• CPU/RAM: NOT included.

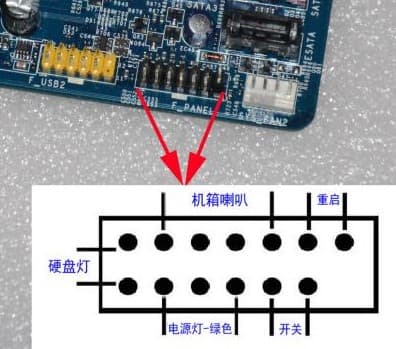

I have included a picture of the front panel pinout I found to help make it easier to hook up to a standard case.
Here is the translation for it:

Translation

• 机箱喇叭: Chassis speaker
• 重启: Restart (Reset Switch)
• 硬盘灯: Hard drive light
• 电源灯-绿色: Power light-green
• 开关: Switch (Power Switch)

Package Contents

• (1) Lenovo CIB85M Motherboard
• (1) Original OEM CPU Heatsink/Fan

Condition: Used Item has been cleaned and inspected. Ships in anti-static packaging.
