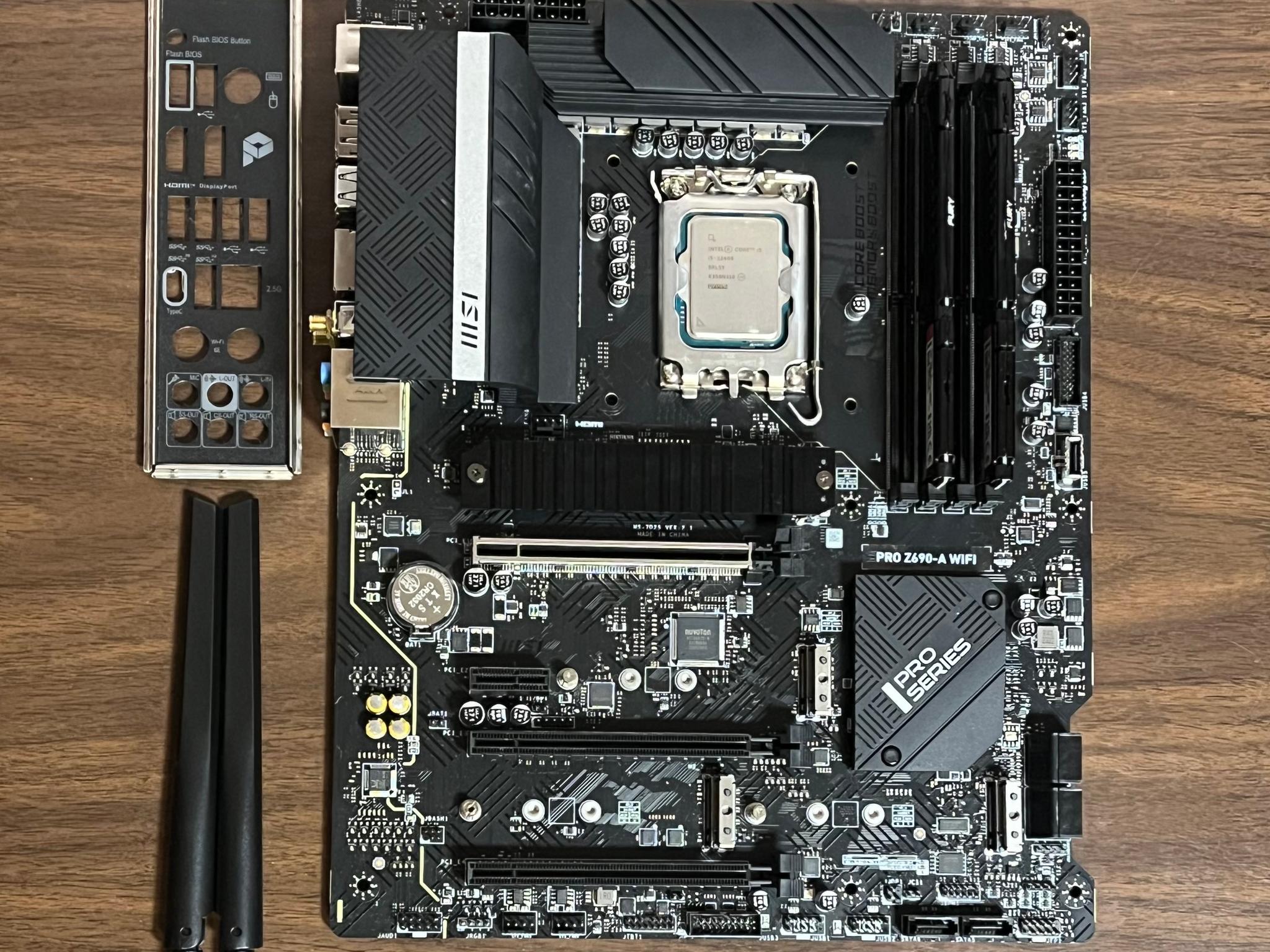

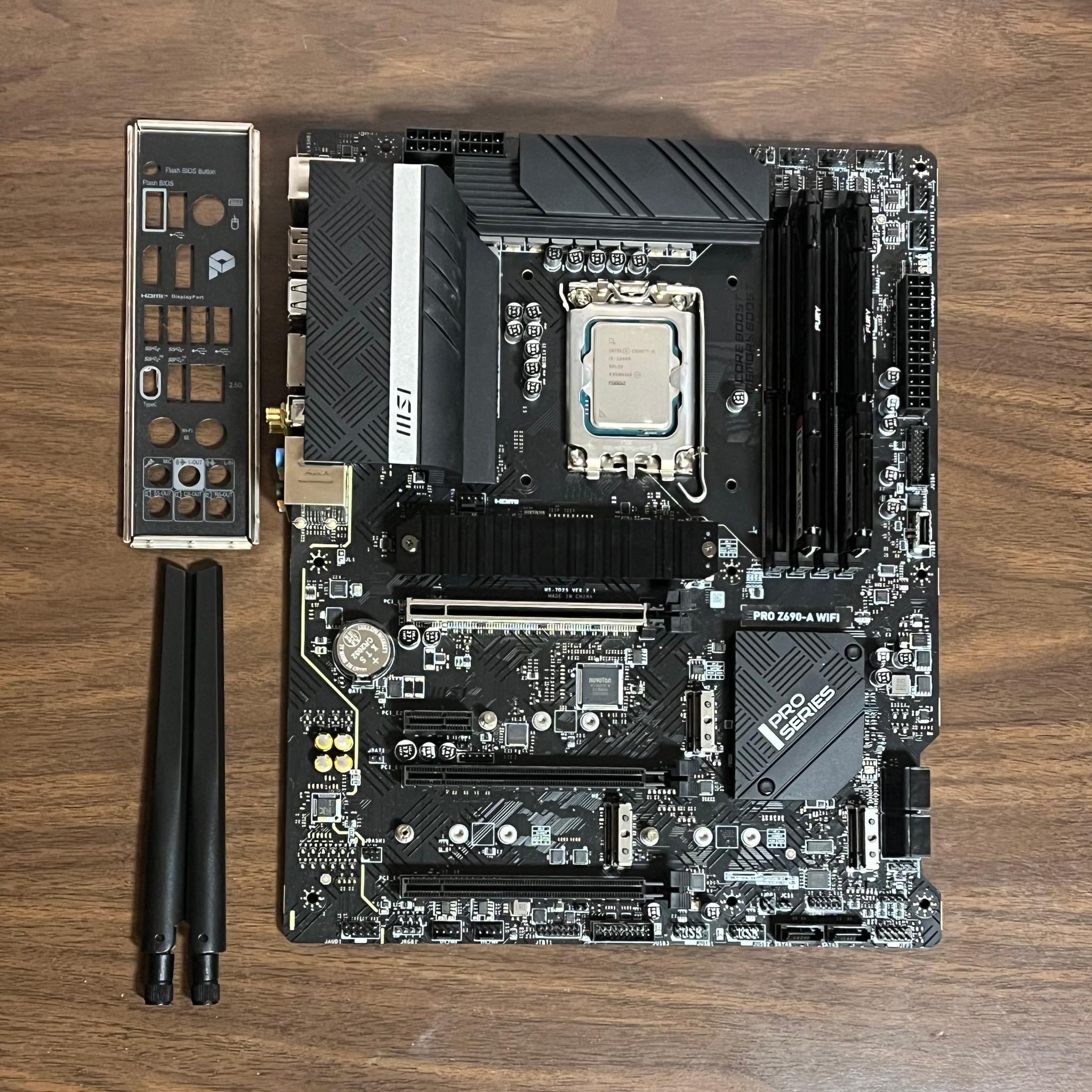

I5-12400 | MSI Z690 Pro-A Motherboard | 32GB DDR5

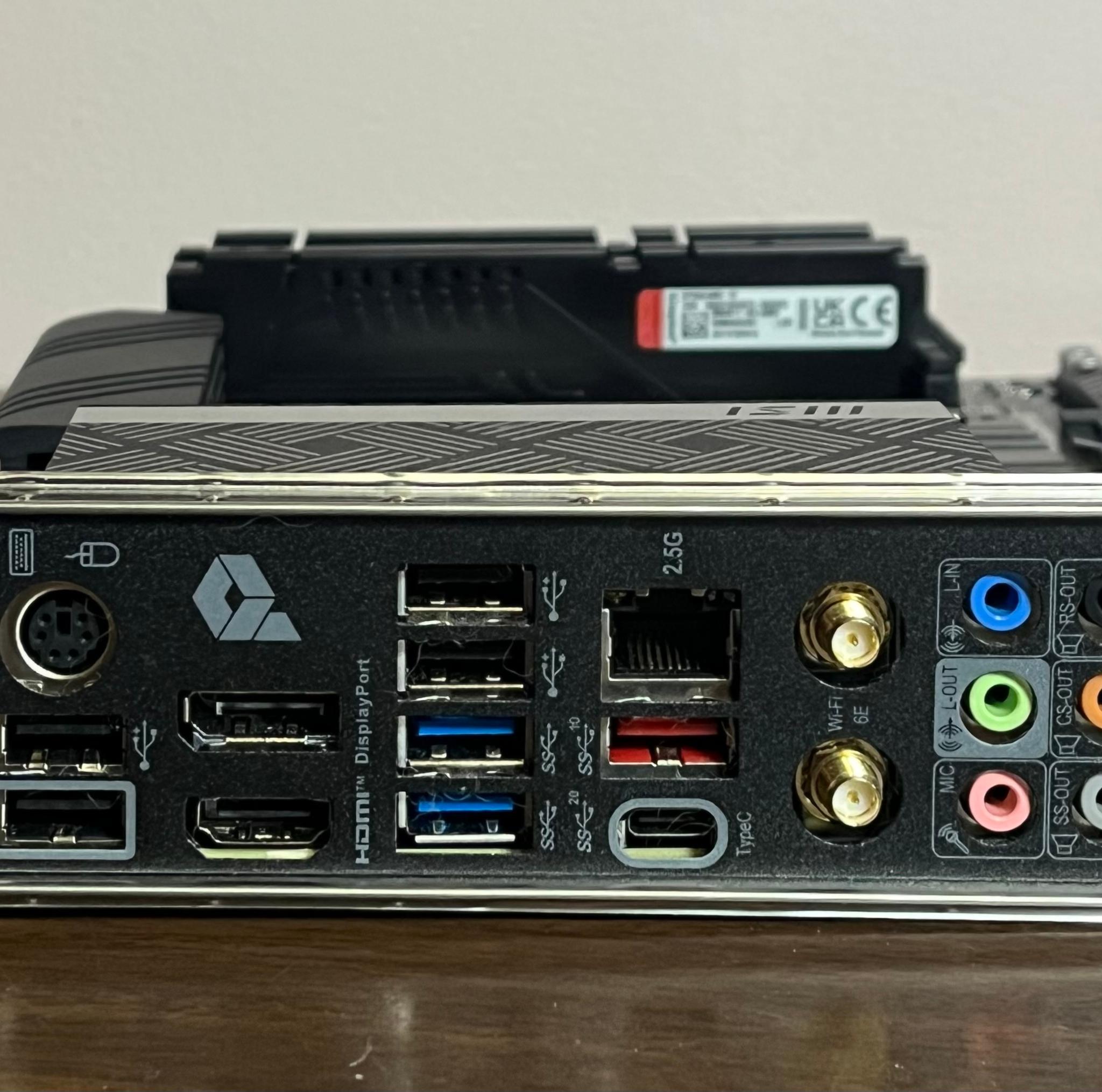

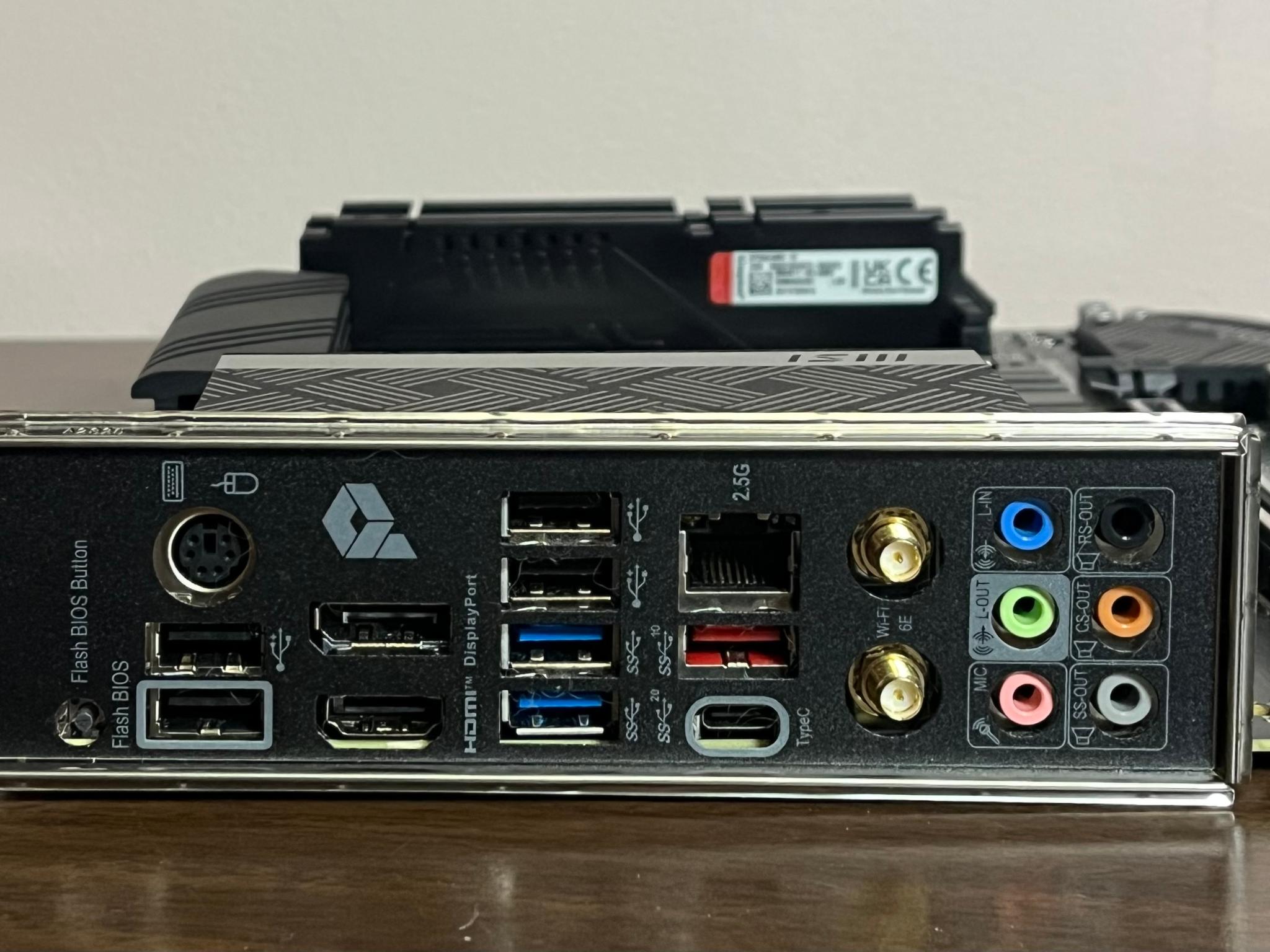

Pulled from MSI Aegis Prebuilt. Comes with Wi-Fi antenna and a fully updated BIOS. The CPU and RAM will be preinstalled and safely packed. Let me know if you have any questions.

Why Buy From Bit by Bit?

• Over of decade of technical experience
• Extensively tested to ensure proper performance and stability
• Available for consultation or help with technical questions
• Orders shipped by next business day
• Shipments will be insured and well packed to ensure they arrive safely
• Extended Buyer Protection
• 30-day Return Policy

Motherboard Specifications

• 4x DDR5 memory slots, supporting up to 192GB 1
• Supports 1R 5600 MHz (by JEDEC & POR)
• Max overclocking frequency:
• 1DPC 1R Max speed up to 6400+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel® XMP 3.0 OC
• Supports Dual Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory
• 3x PCIe x16 slot (PCIe 4.0 for 11th Gen Intel® CPU)
• PCI_E1 (from CPU)
• Supports up to PCIe 5.0 x16
• PCI_E3 & PCI_E4 (from Z690 chipset)
• Supports up to PCIe 3.0 x4 & 3.0 x1
• 1x PCIe 3.0 x1 slot (from Z690 chipset)
• 6x SATA 6Gb/s ports (from Z690 chipset)
• 4x M.2 slots (Key M)
• M2_1 slot (from CPU)
• Supports PCIe 4.0 x4
• Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 slot (from Z690 chipset)
• Supports PCIe 4.0 x4
• Supports 2242/ 2260/ 2280 storage devices
• M2_3 slot (from Z690 chipset)
• Supports PCIe 3.0 x4
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• M2_4 slot (from Z690 chipset)
• Supports PCIe 4.0 x4
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
• Support Intel® Smart Response Technology for Intel Core™ processors

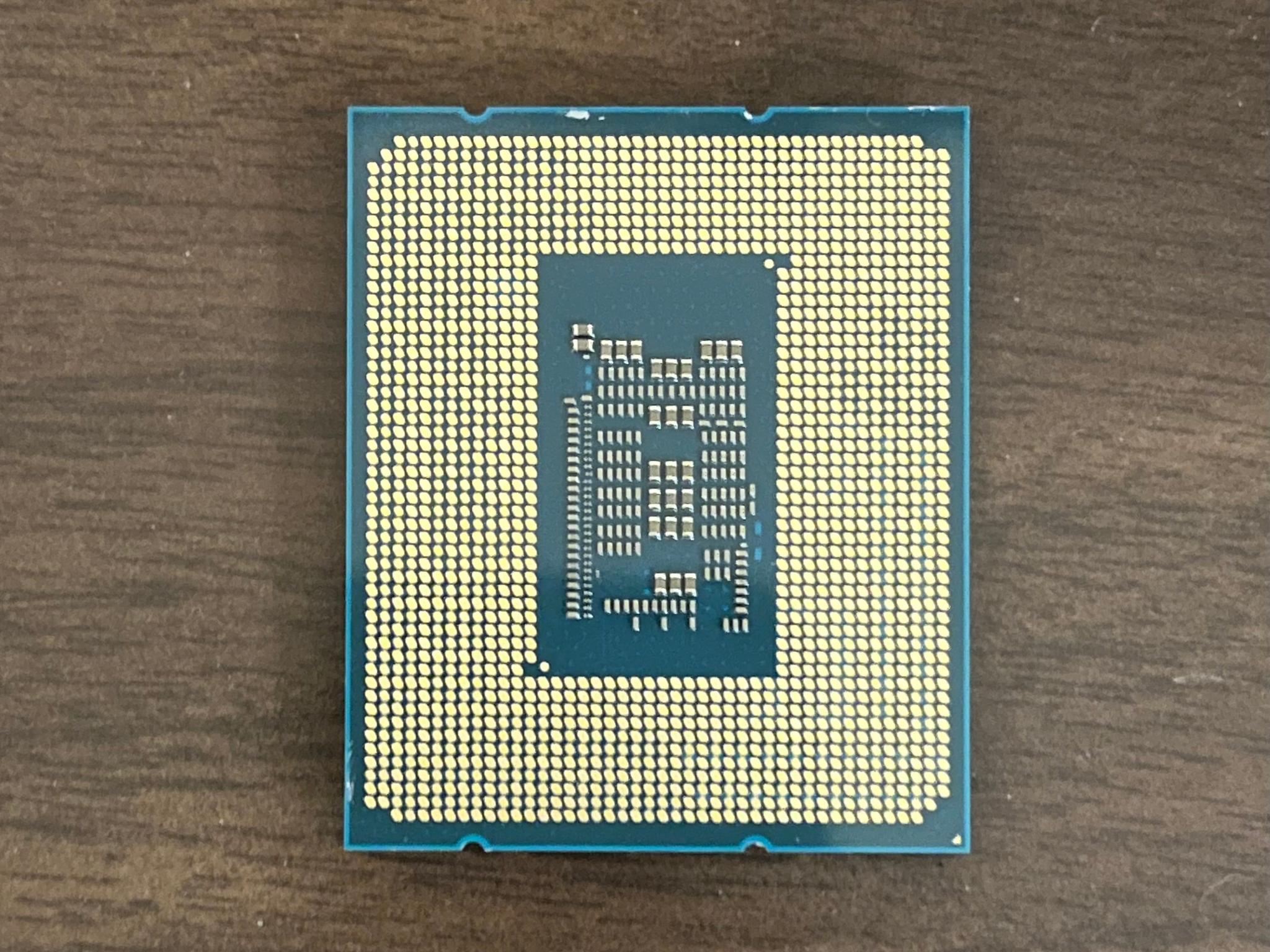

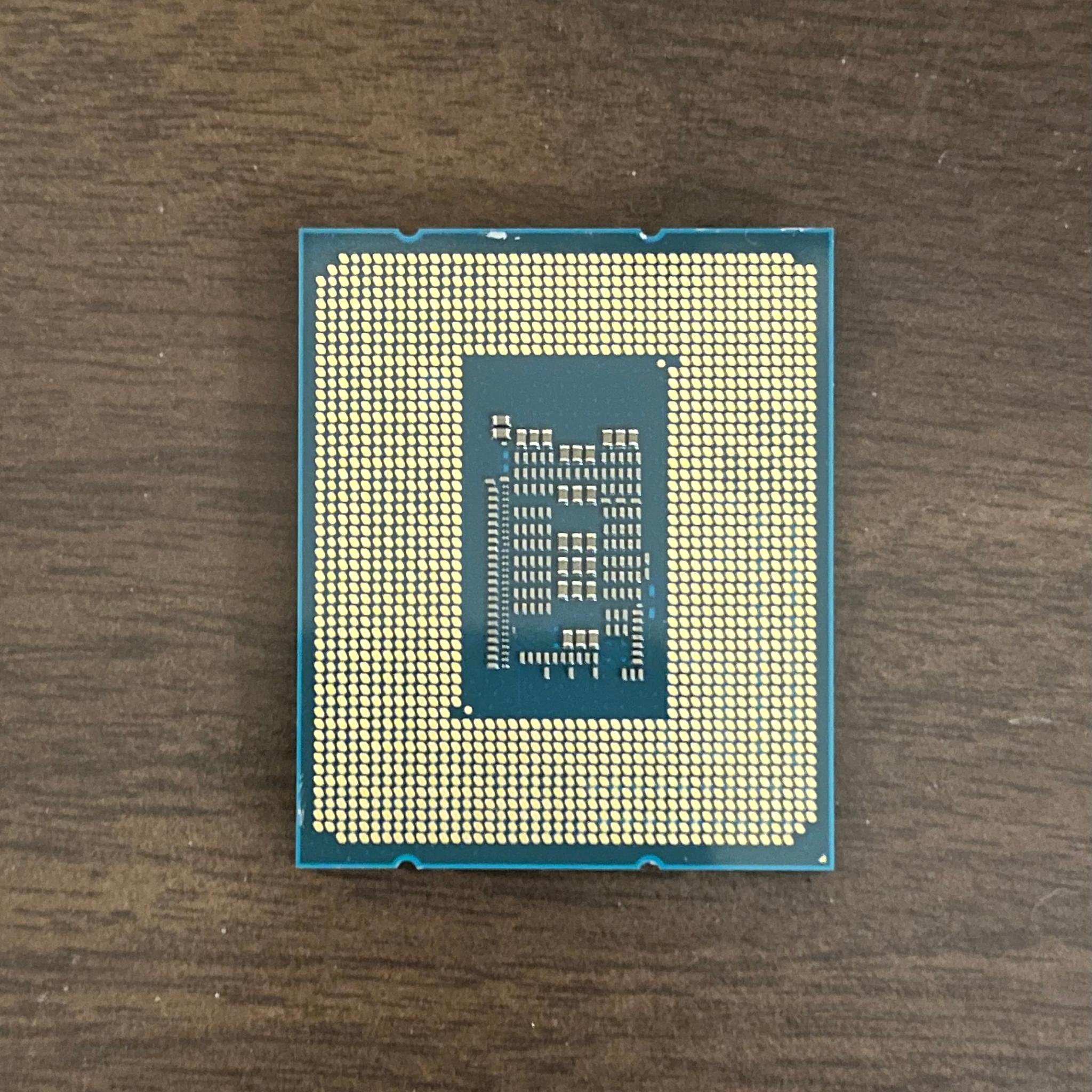

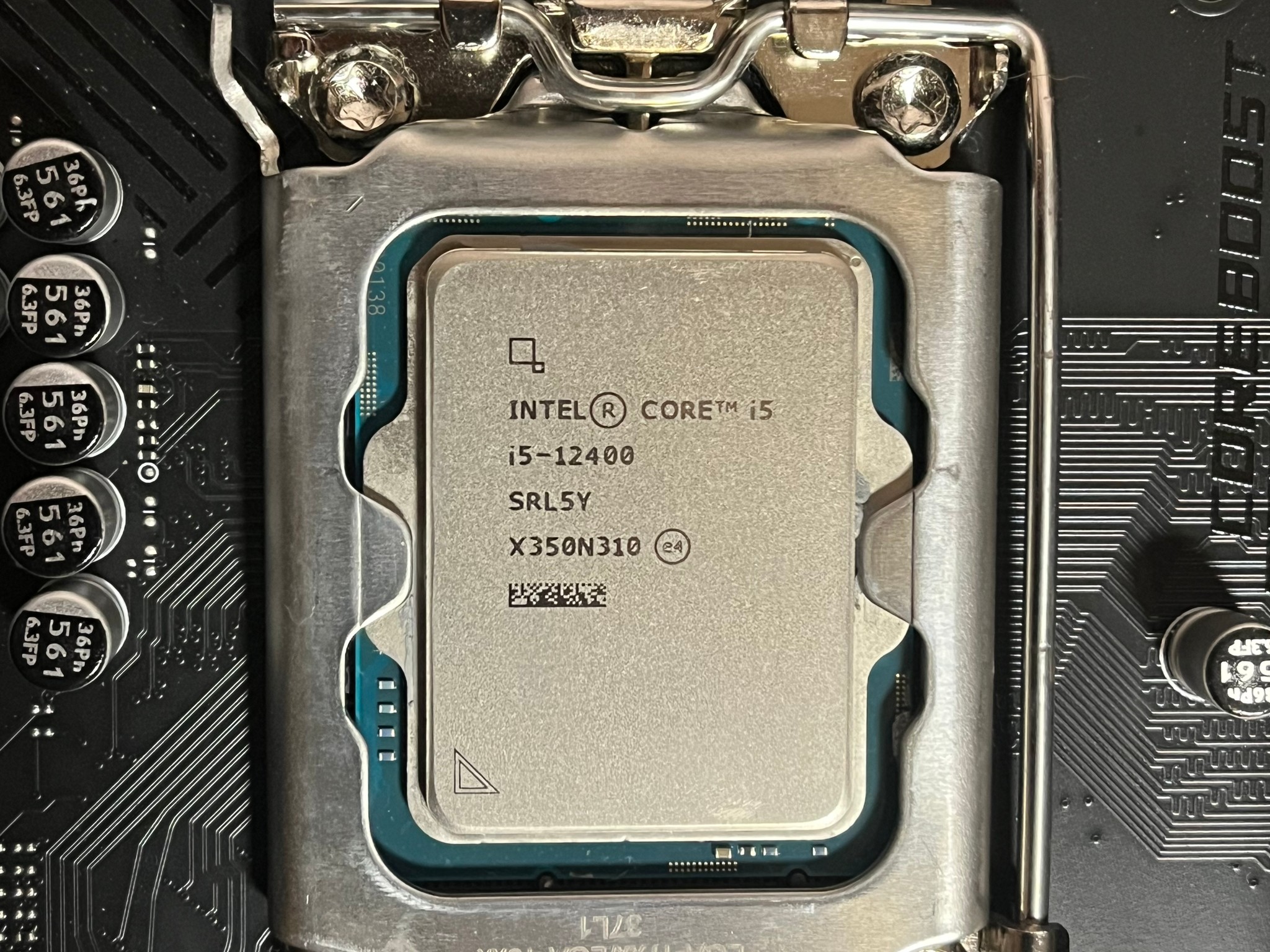

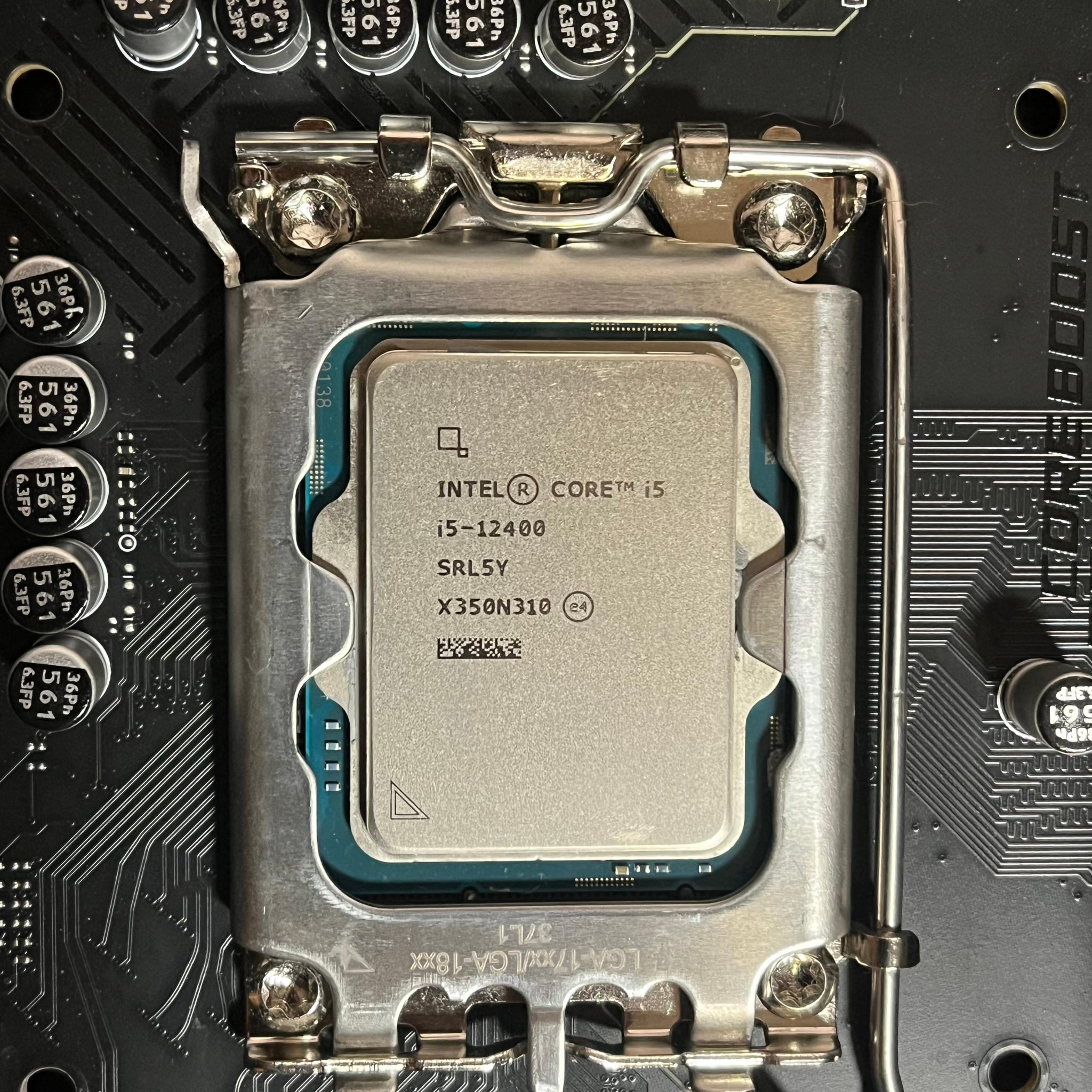

CPU Specifications

• Total Cores 6
• Total Threads 12
• Max Turbo Frequency 4.40 GHz
• Processor Base Frequency 2.5 GHz
• Cache 18MB
• TDP 117W
• GPU Intel® UHD Graphics 730

RAM Specifications

• Heat Spreader: Anodized Aluminum
• Memory Series: Kingston FURY BEAST
• Memory Size: 32GB (16GBx2)
• Tested Speed (Up To): 5600
• Tested Latency: 40-40-40-80
• Memory Type: DDR5
• Package Memory Format: DIMM
• Package Memory Pin: 288
• Tested Voltage: 1.25V
