GPUNVIDIA GeForce RTX 5060 Ti GPU

CUDA cores4608

Video Memory16GB GDDR7

Memory Bus128-bit

Engine Clock2572 MHz

Memory Clock28 Gbps

AI TOPS759

PCI ExpressPCI Express 5.0 x8

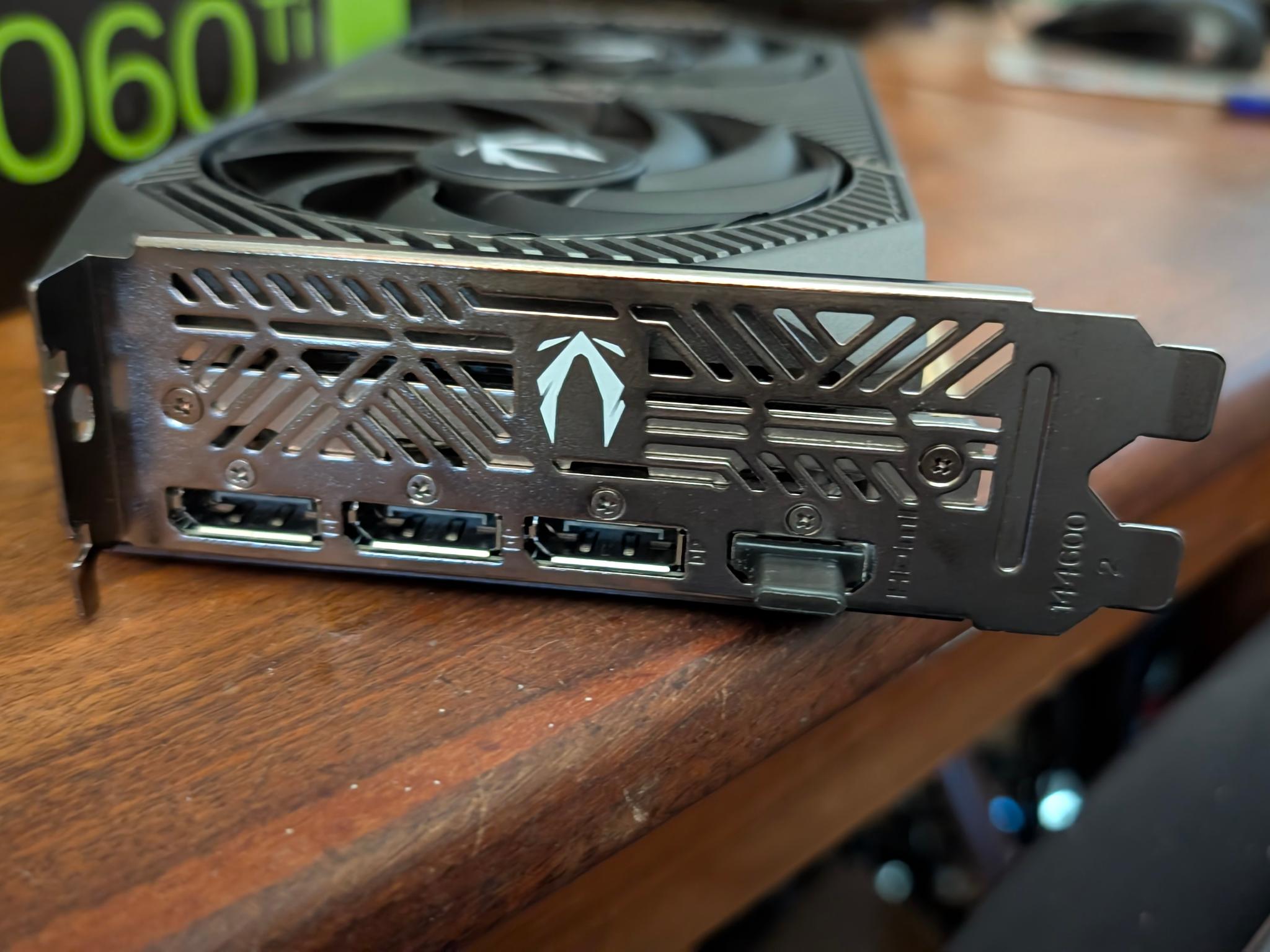

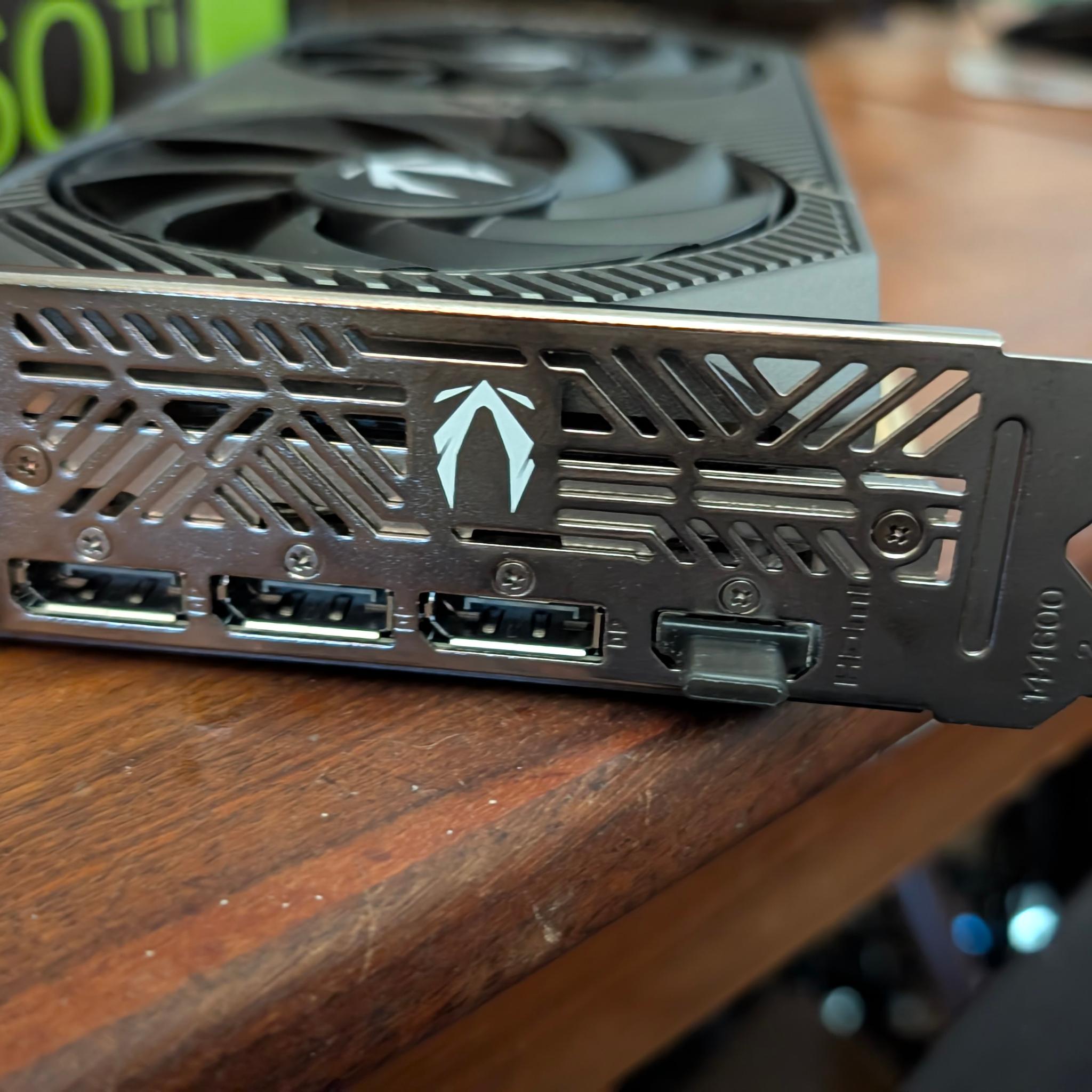

Display Outputs3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC)

HDCP Support2.3 Multi Display CapabilityQuad Display

Recommended Power Supply600W

Power Consumption180W

Power Input1 x 8-pin power input

DirectXMicrosoft DirectX® 12 Ultimate

OpenGL4.6

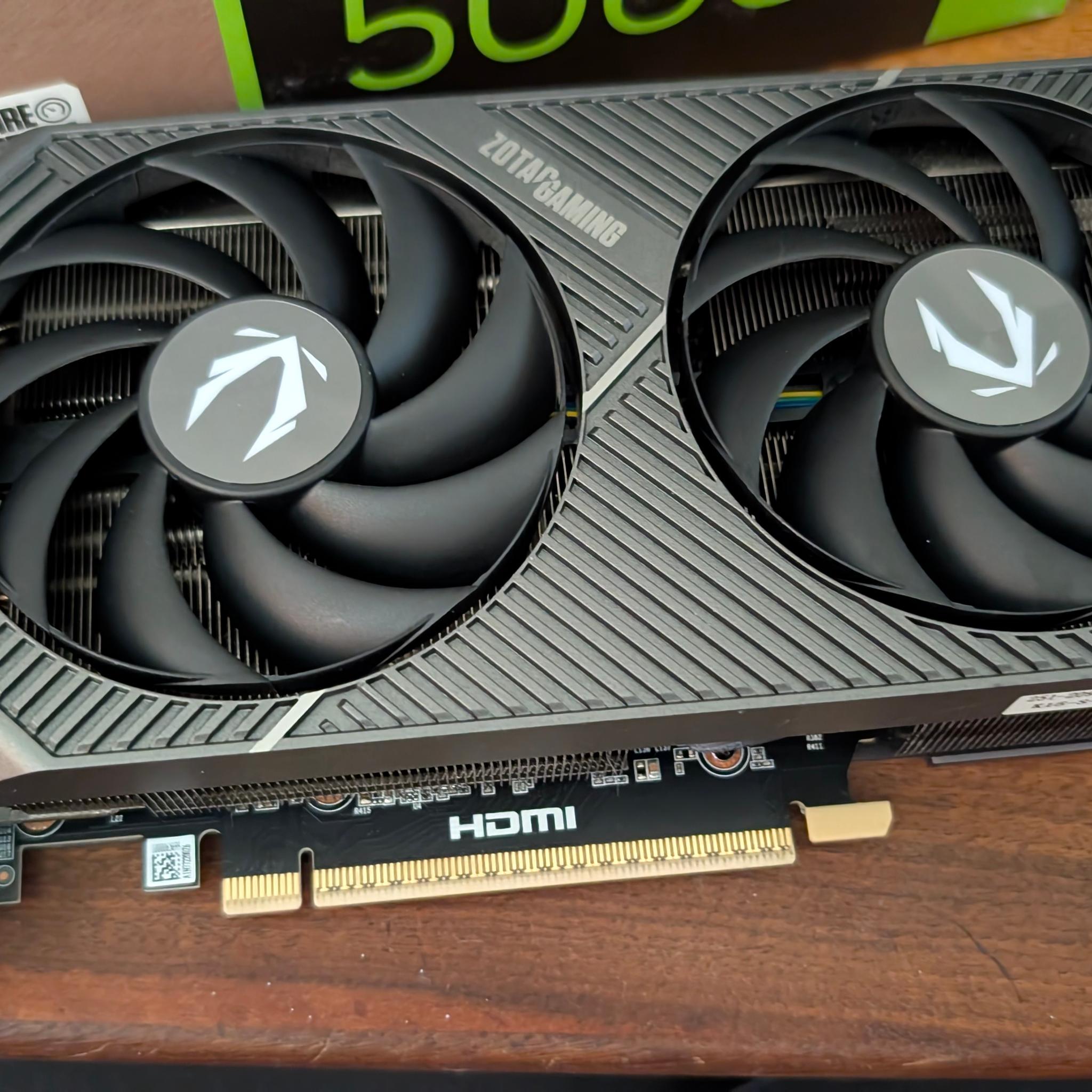

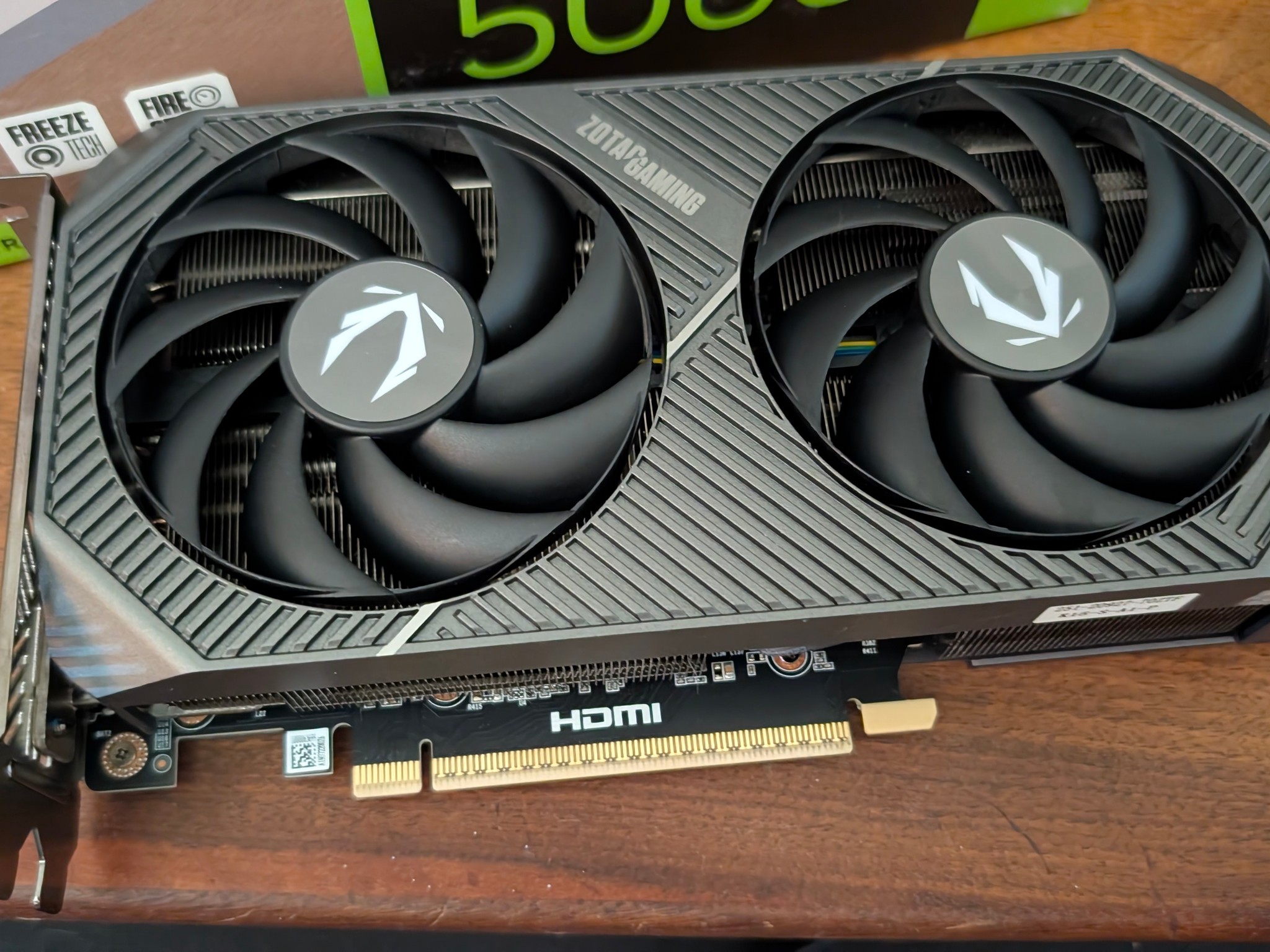

CoolingIceStorm 2.0

Slot Size2

SLINo

Supported OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
