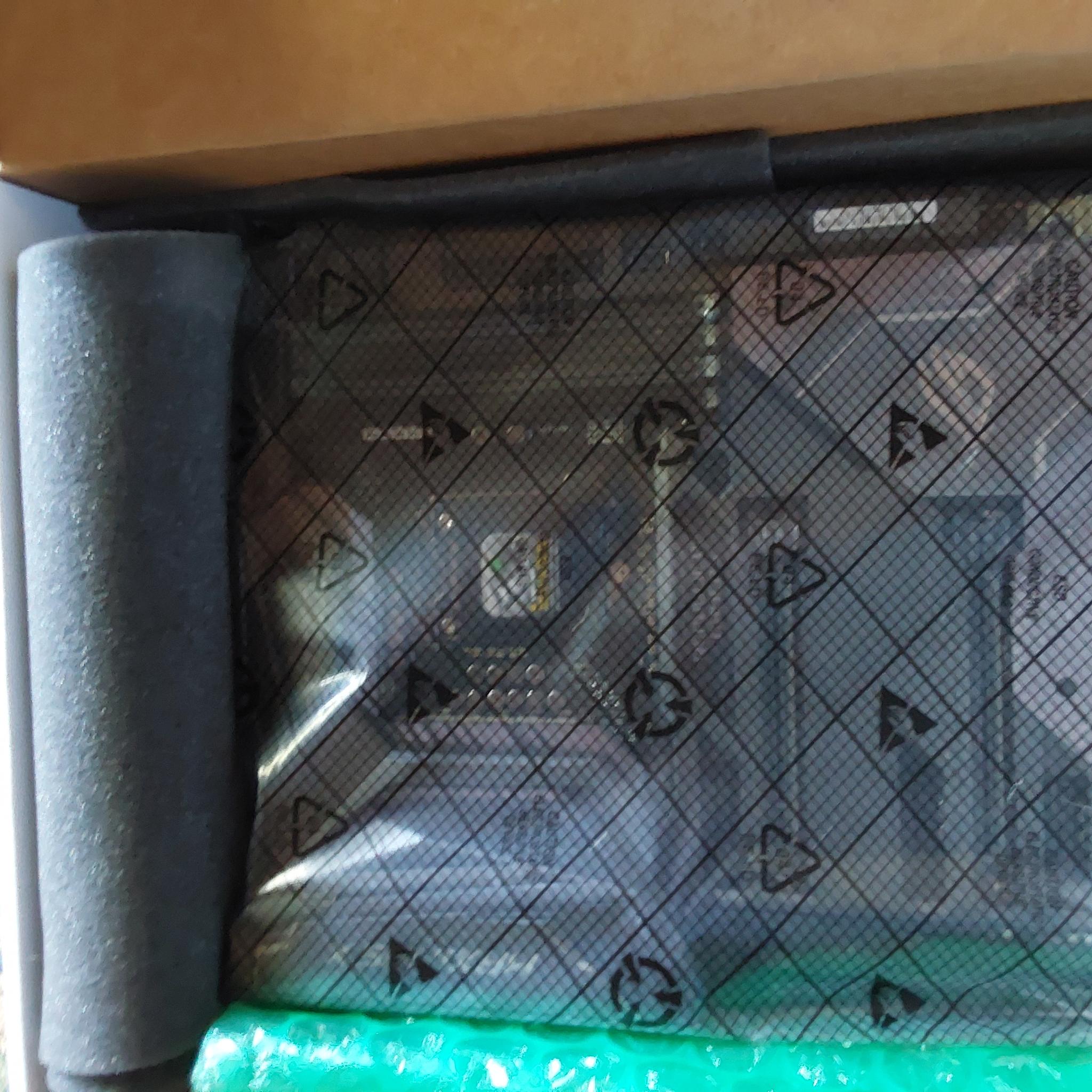

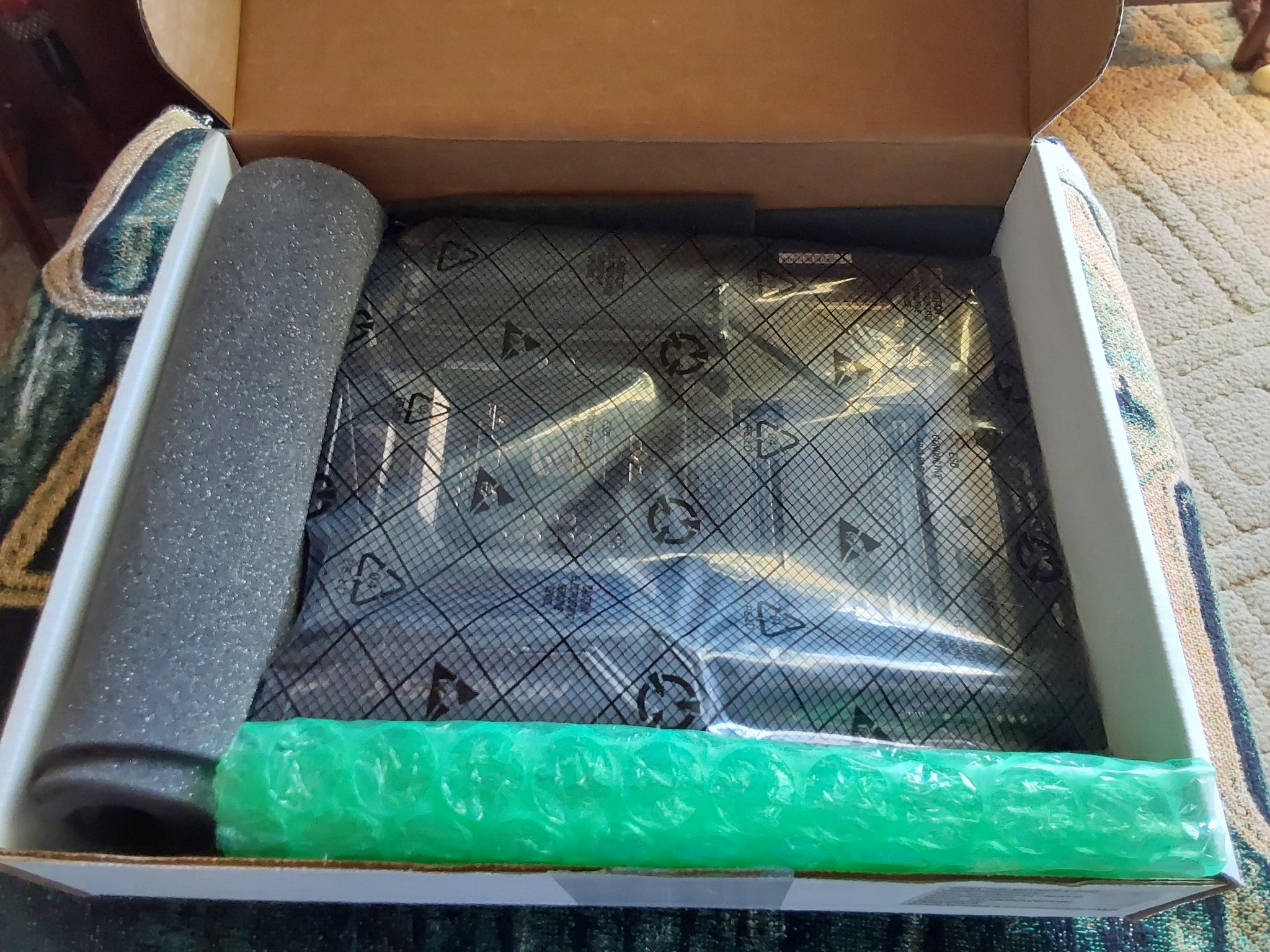

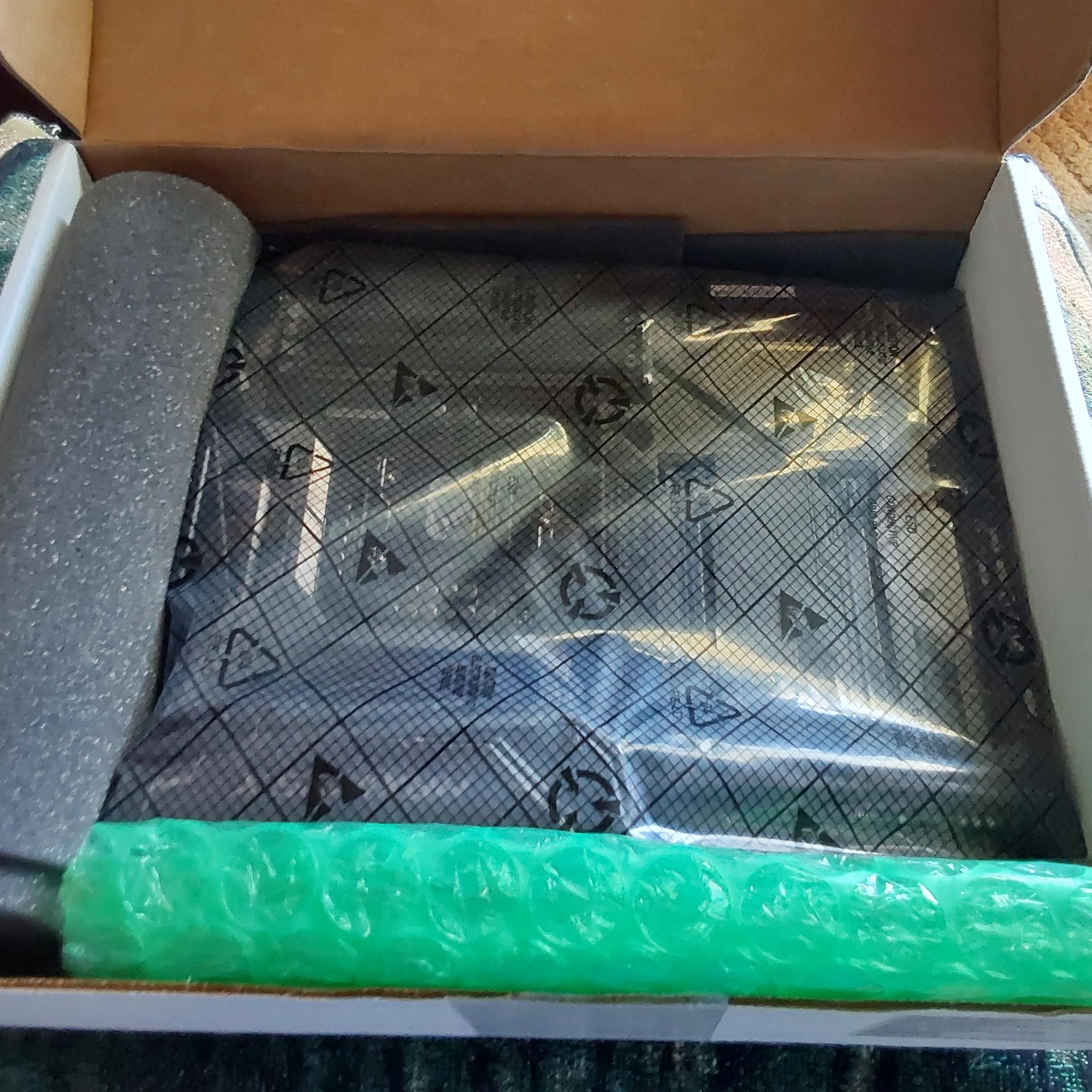

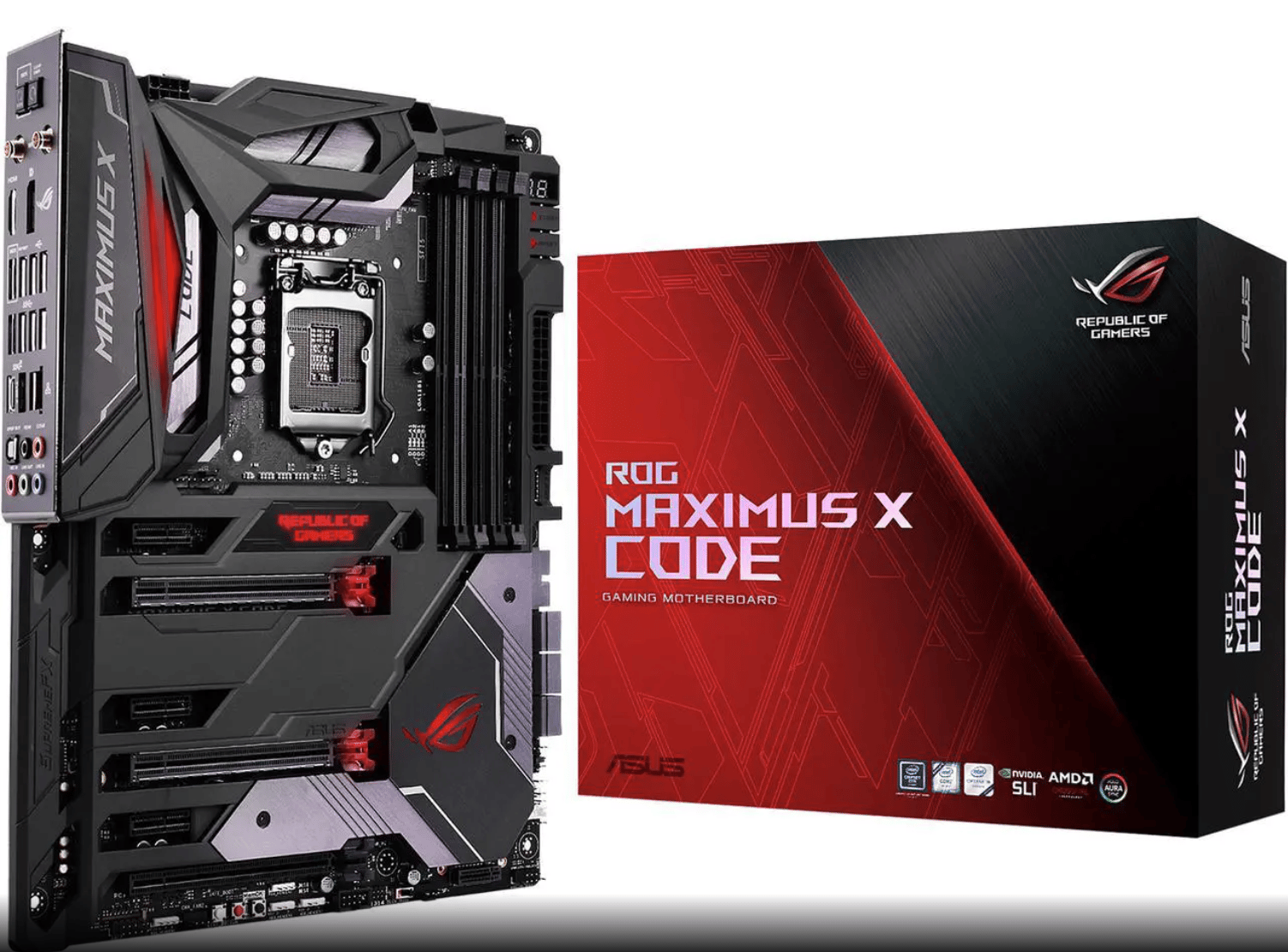

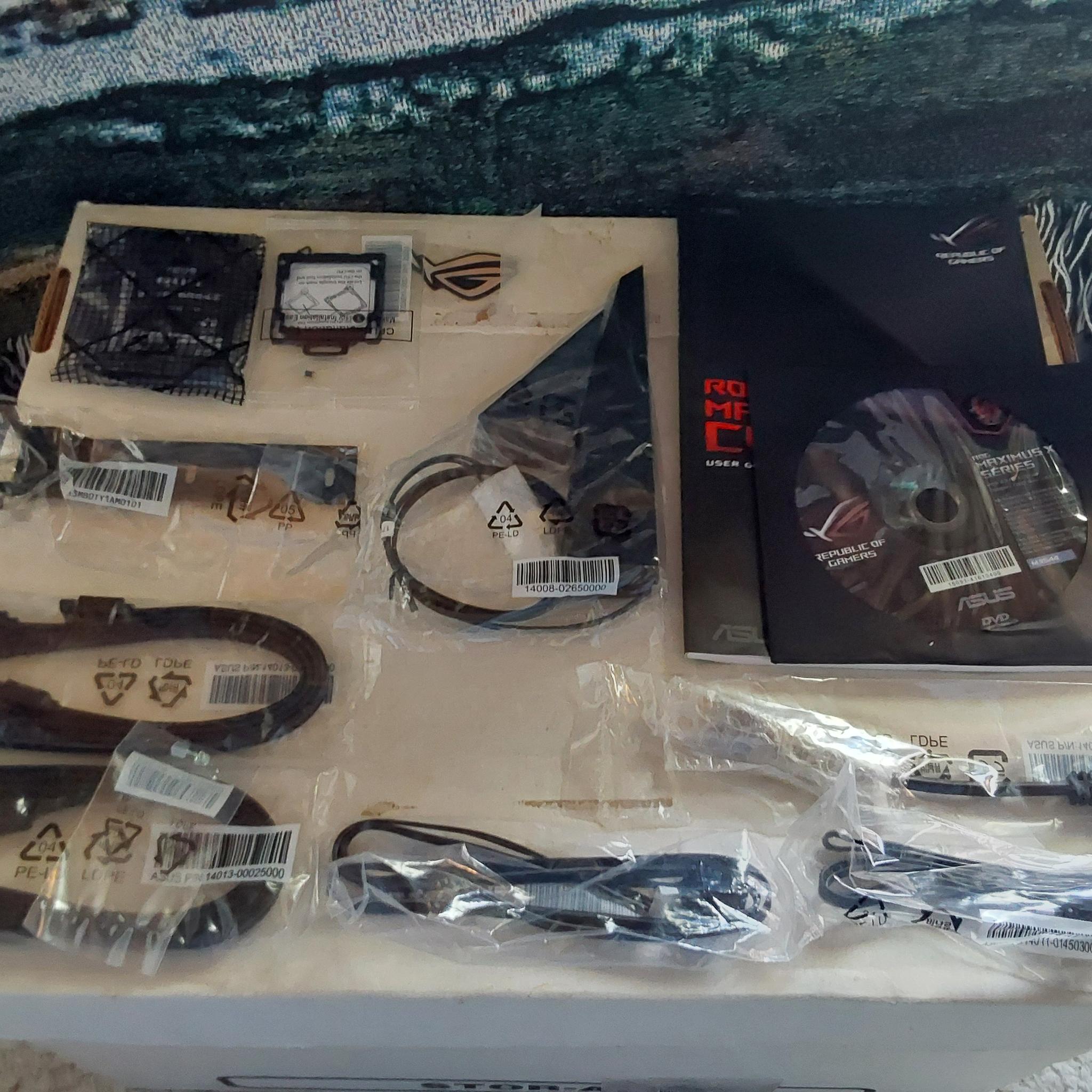

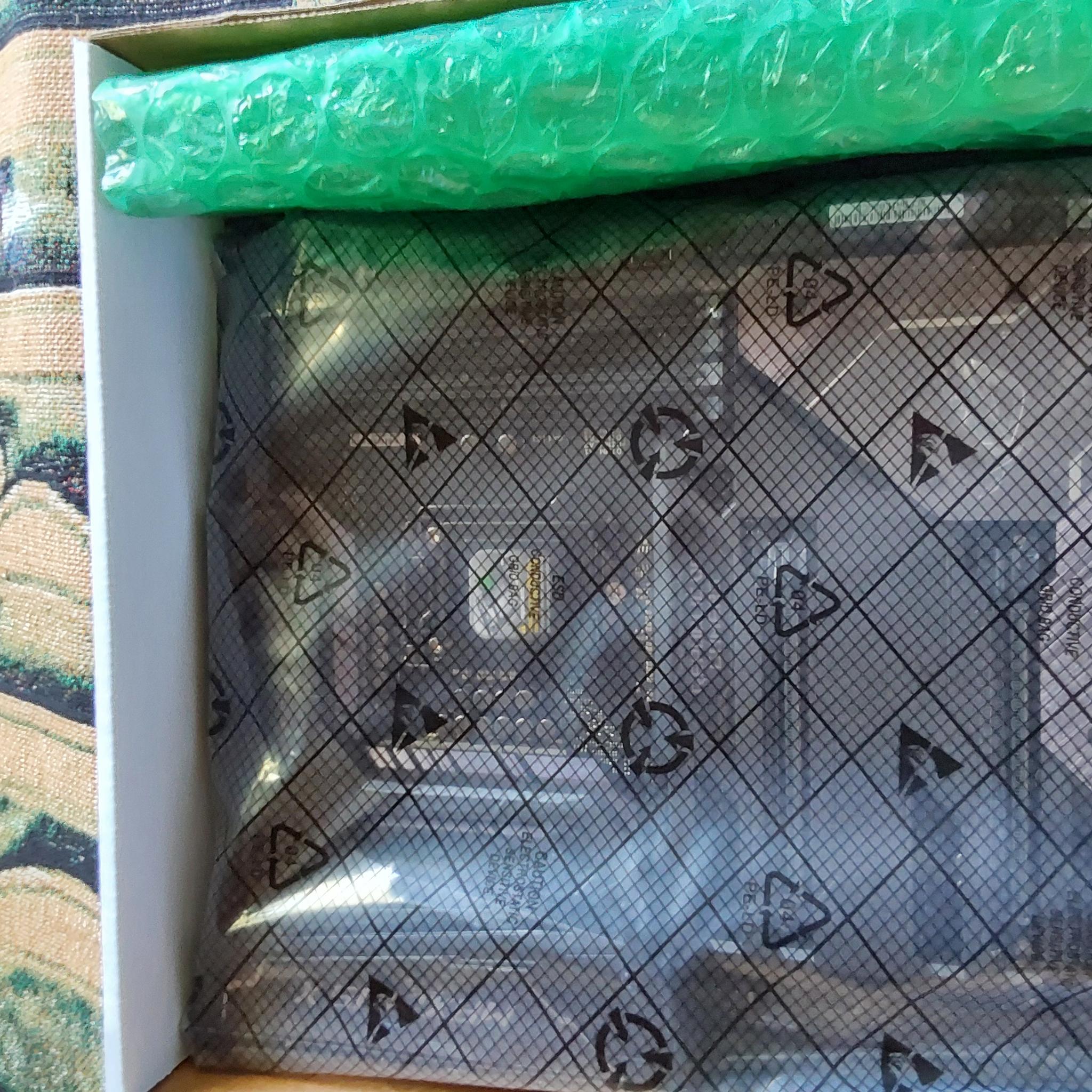

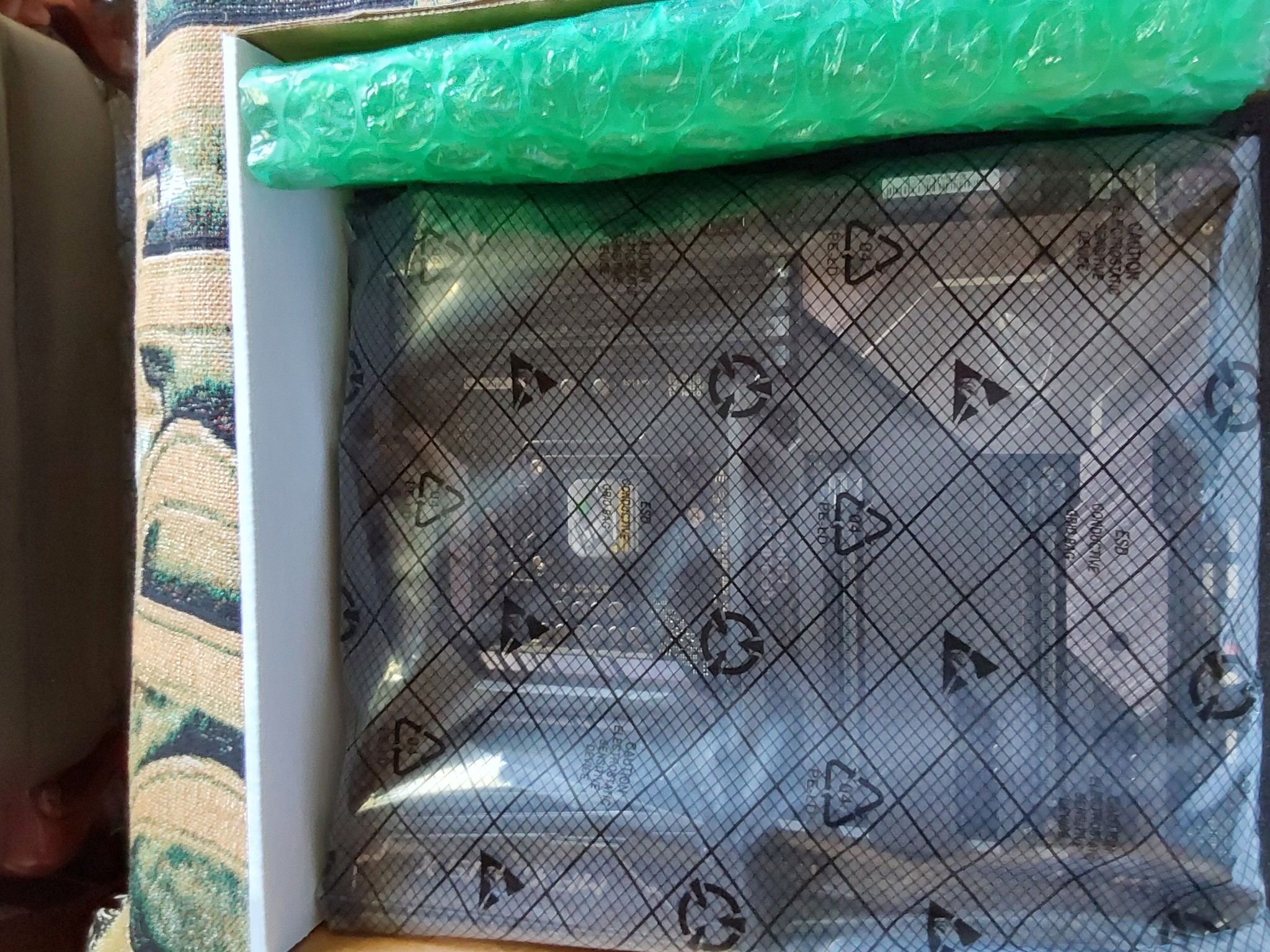

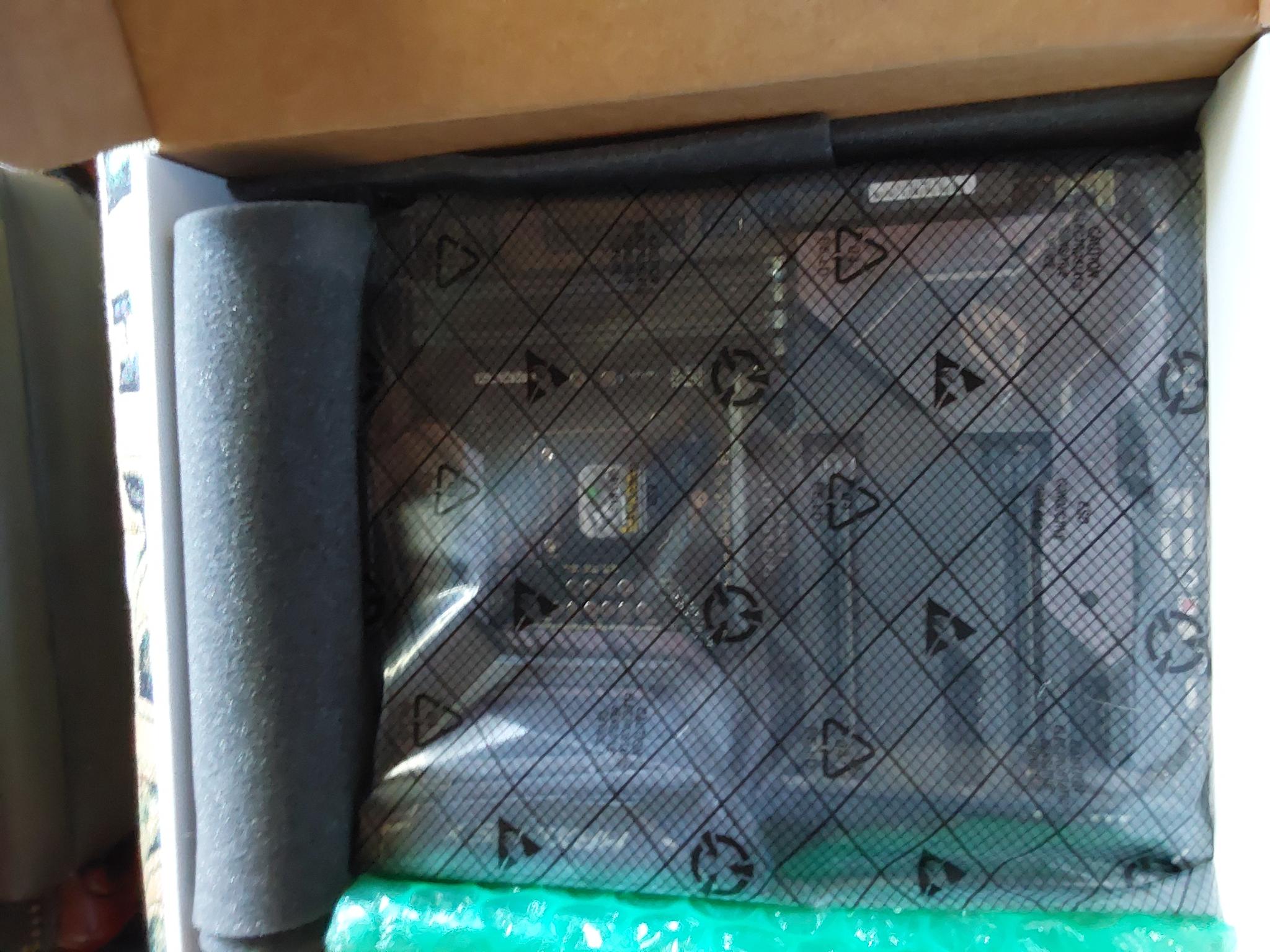

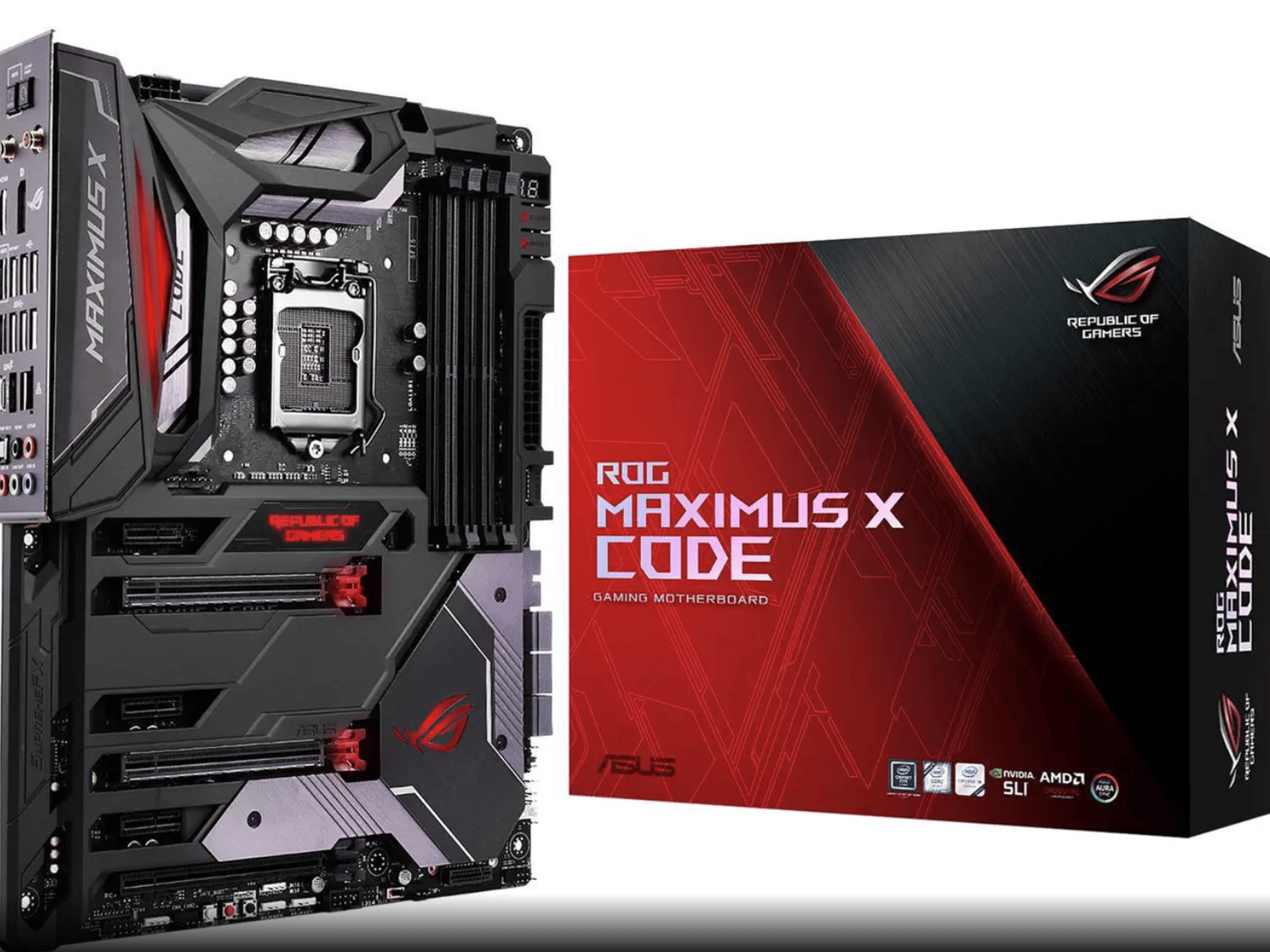

This is an Z370 ASUS ROG MAXIMUS X CODE motherboard. Purchased as a “Open Box” item from NewEgg but never put into a build. It is complete with ALL original documentation, media, parts and accessories except for sheet of ROG stickers. The ROG Maximus X Code is a fully-loaded and good-looking top-tier ATX form factor motherboard, compatible with Intel’s 9th and 8th generation LGA 1151 processors and DDR4 SDRAM.

Please scroll pictures for further details and specs

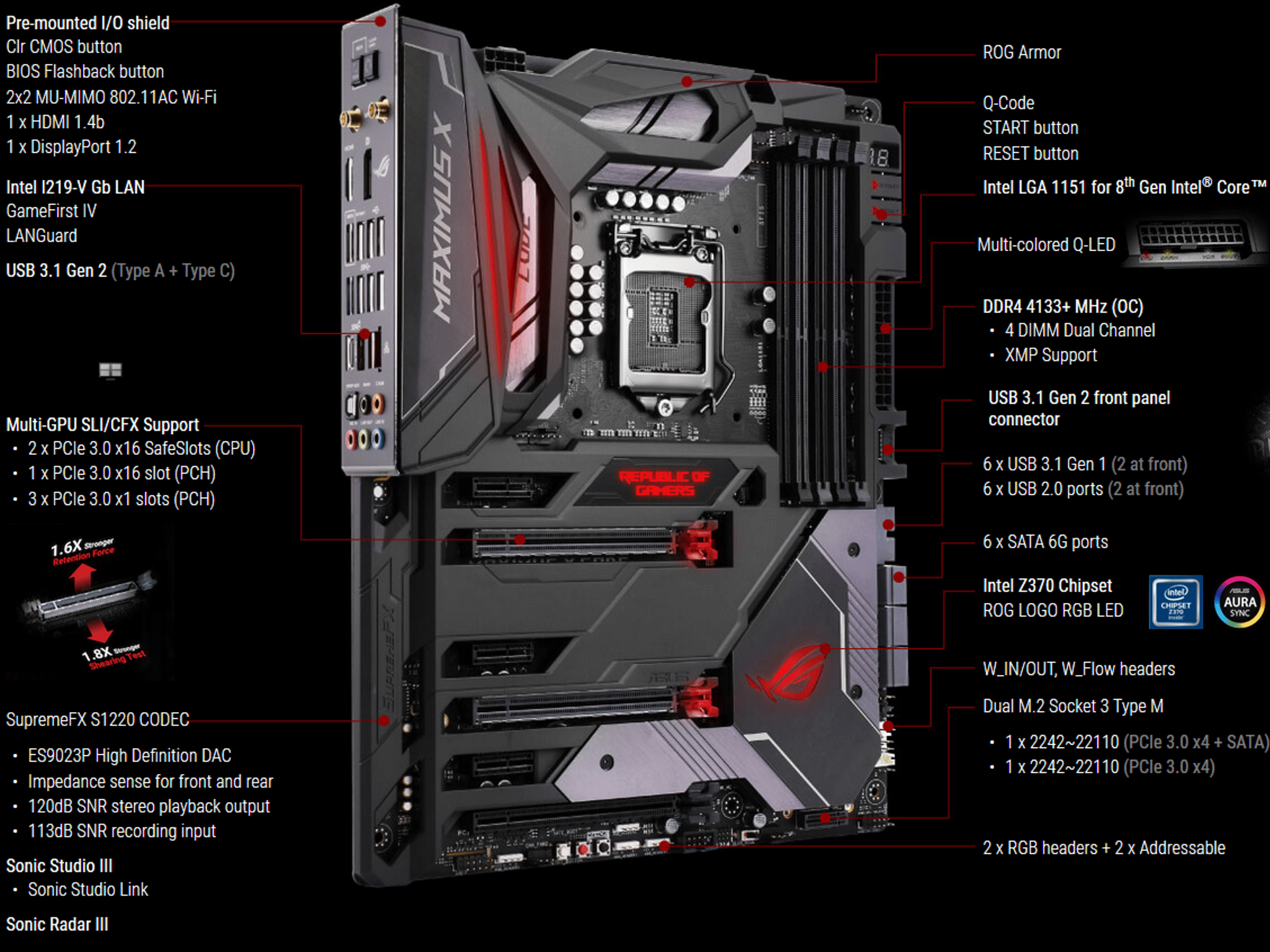

SPECS:

• CPU Intel® Socket 1151 for 8th & 9th Generation Core™ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0

• Chipset Intel® Z370

• Memory 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.) /3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory

• Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4) 1 x PCIe 3.0/2.0 x16 (x4 mode, black) 3 x PCIe 3.0/2.0 x1

• Storage 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready

• LAN Intel® I219V Anti-surge LANGuard ROG GameFirst IV

• Wireless Data Network Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO

• Bluetooth V4.2

• Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

• SupremeFX Shielding Technology

• ESS® ES9023P

• Supports up to 32-Bit/192kHz playback Audio Feature :

• Gold-plated jacks

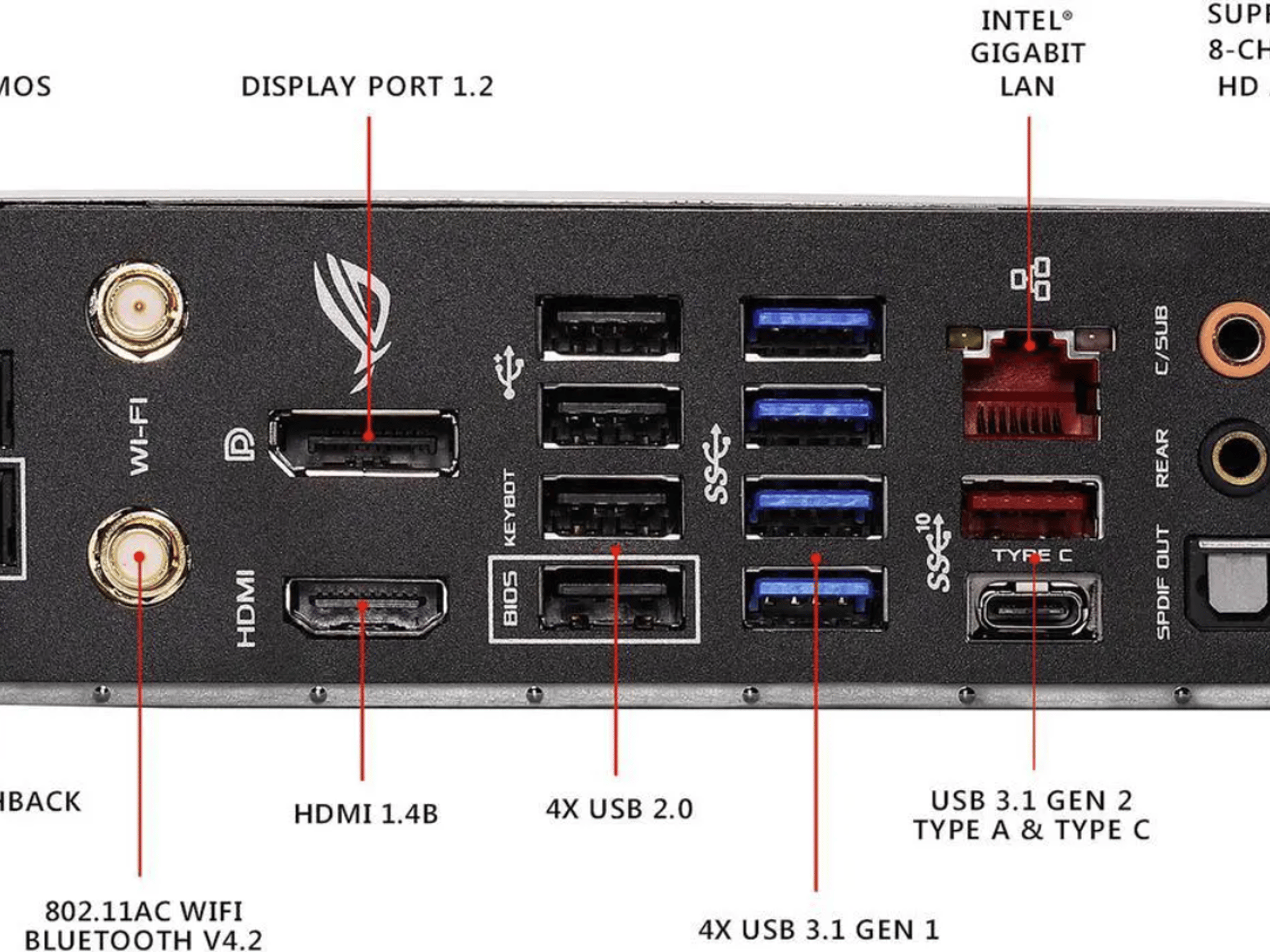

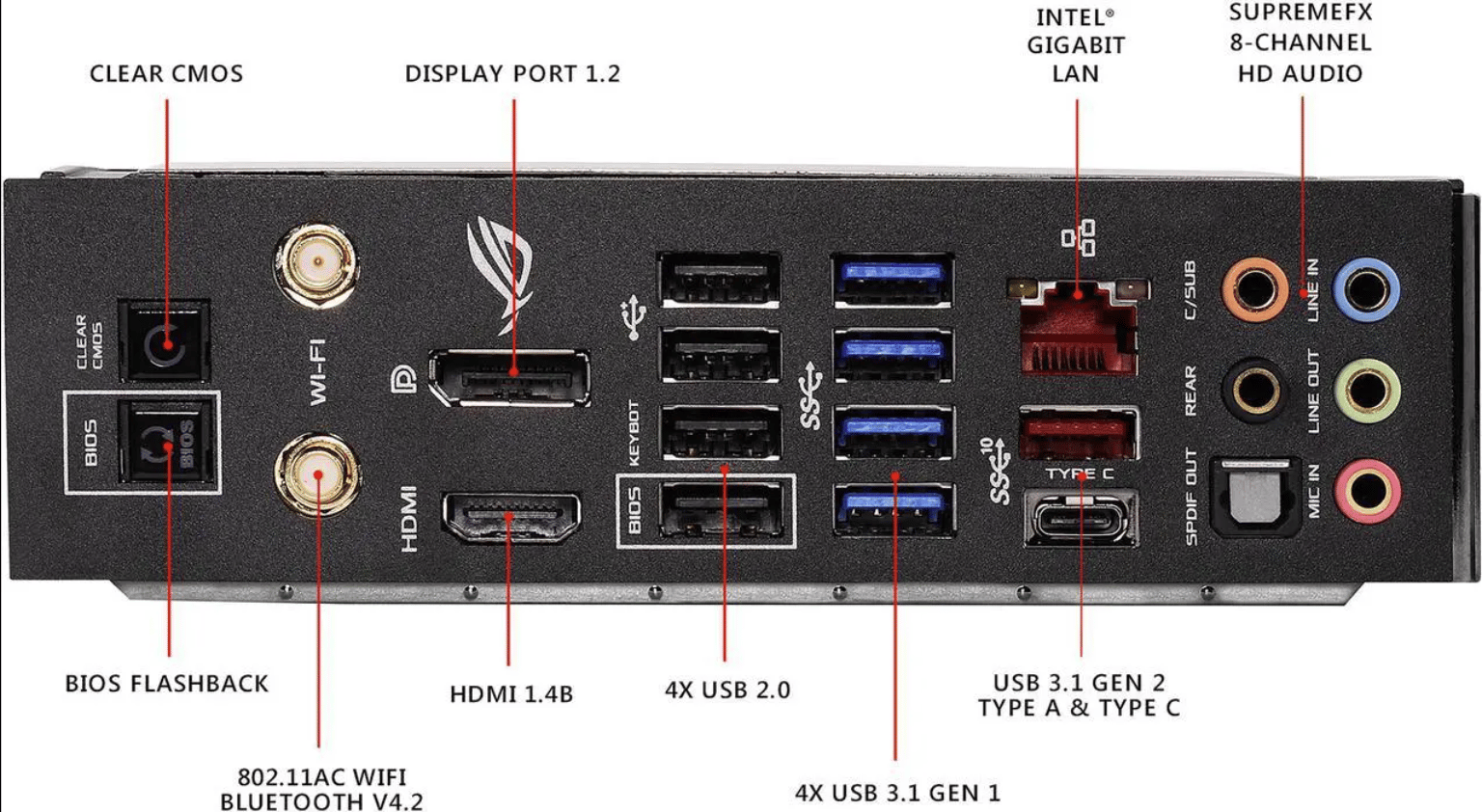

• Optical S/PDIF out port(s) at back panel

• Sonic Radar III

• Sonic Studio III

• USB Ports ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM) Intel® Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z370 Chipset : 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)

• Internal I/O Ports 2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button 1 x USB 3.1 Gen 2 front panel connector

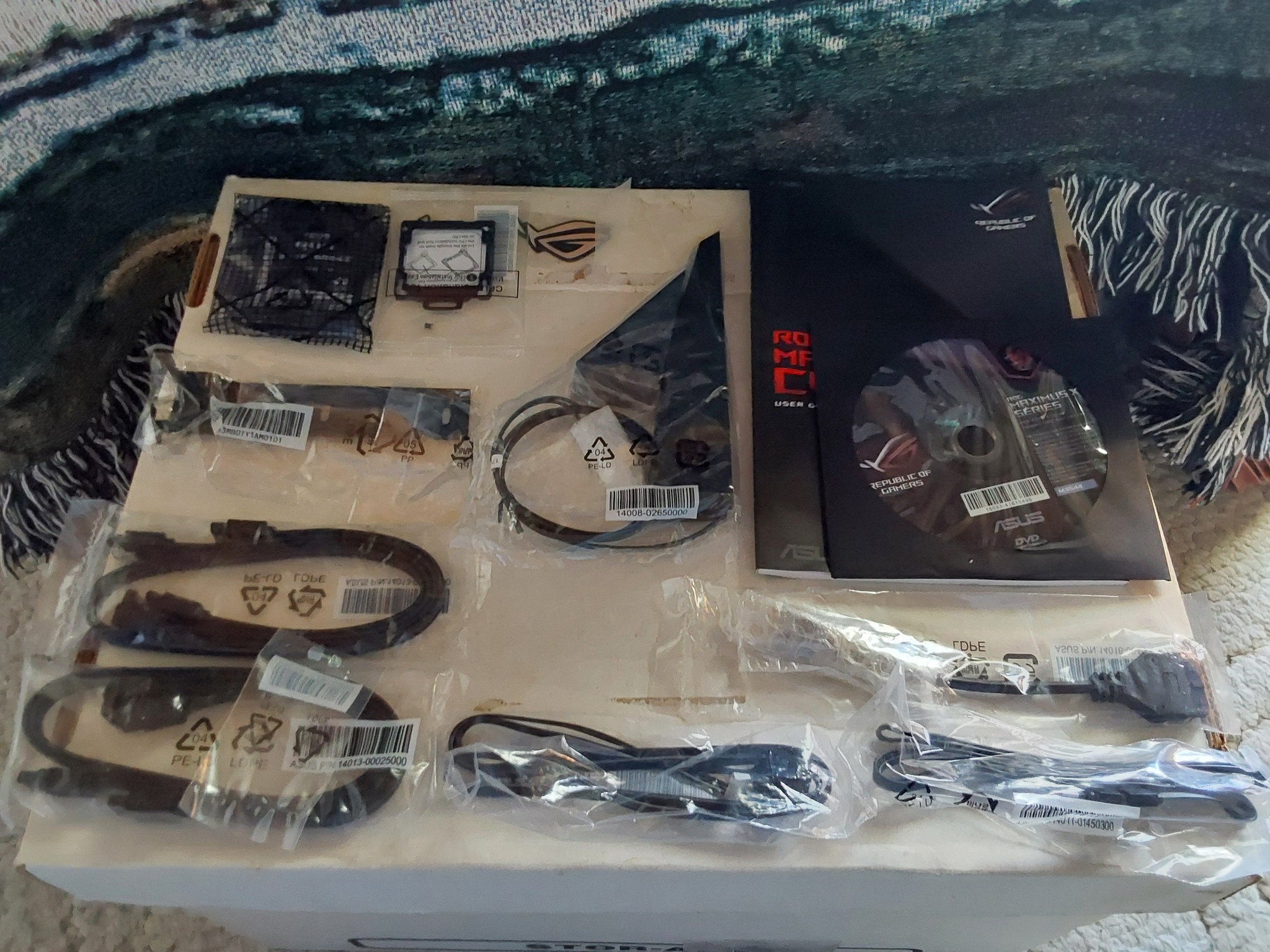

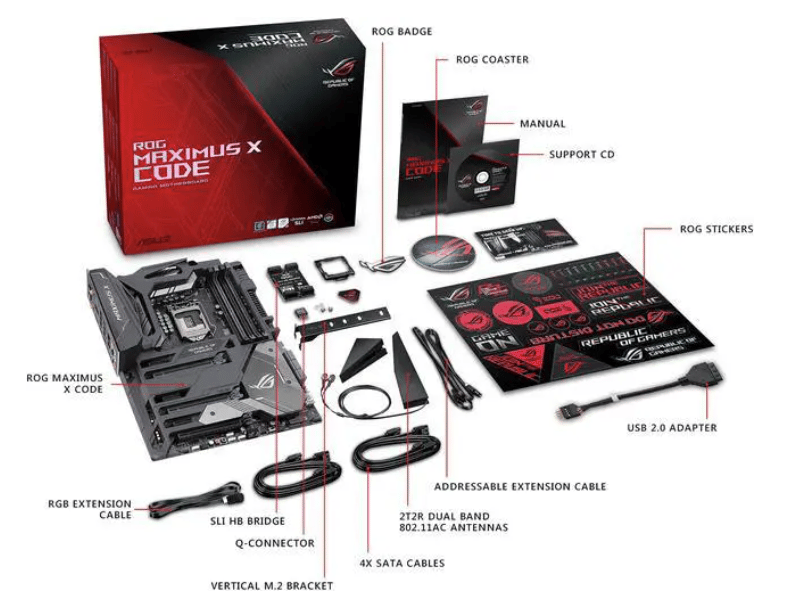

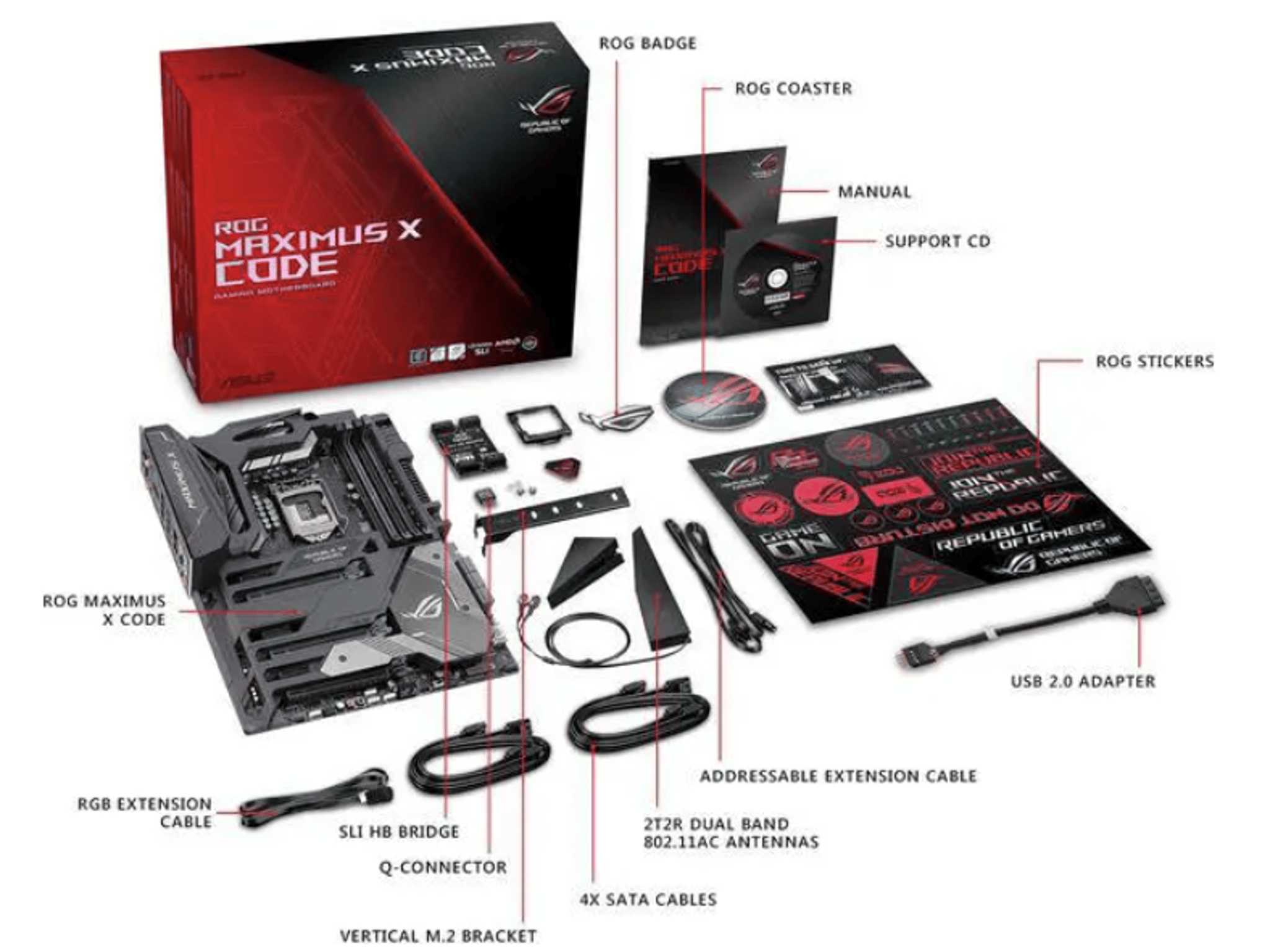

• Accessories User's manual 1 x ROG logo plate sticker 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x SLI HB BRIDGE (2-WAY-M) 1 x Q-Connector 1 x M.2 bracket 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable ATX Form Factor 12-inch x 9.6 inch (30.5 cm x 24.4 cm)
