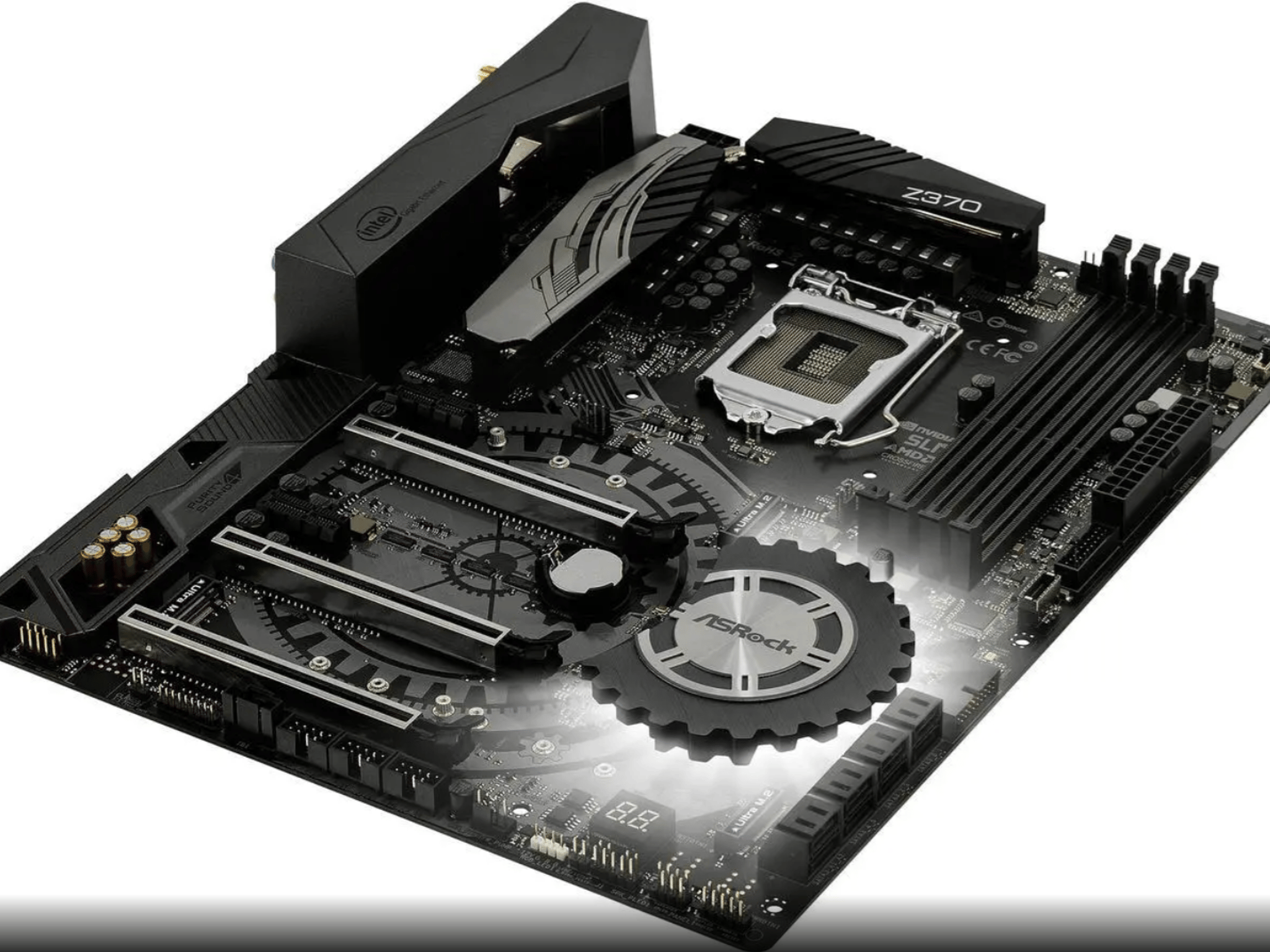

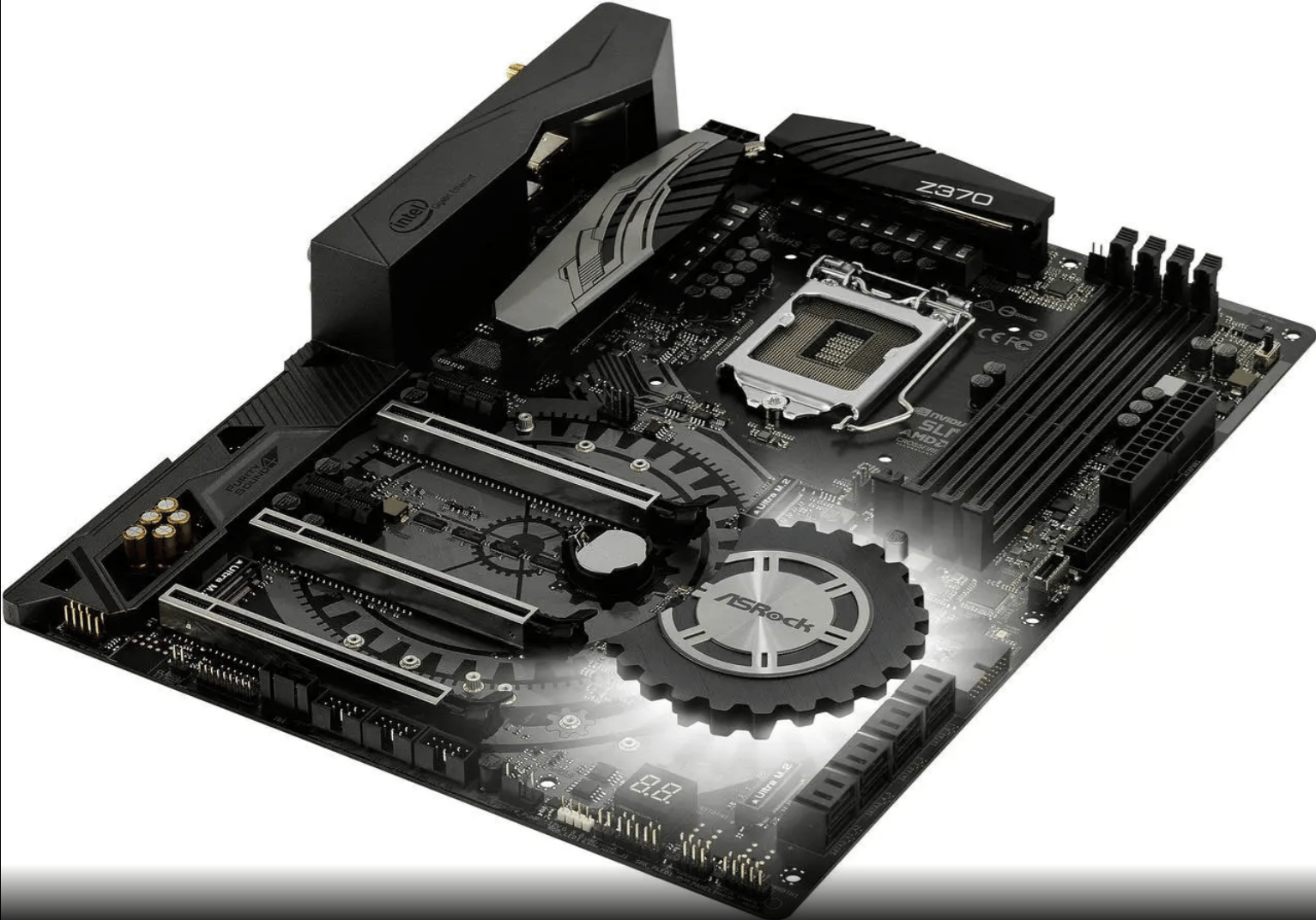

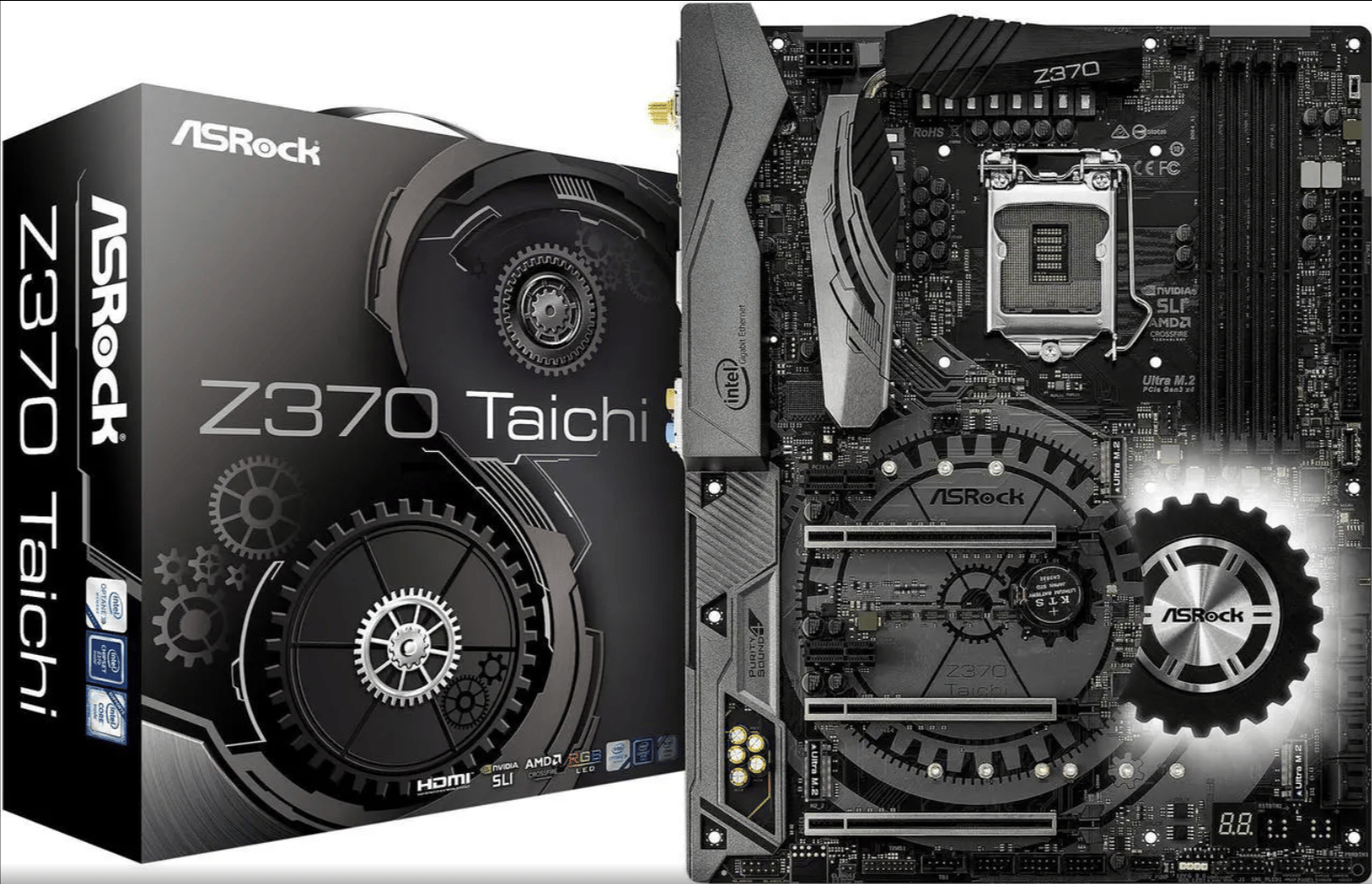

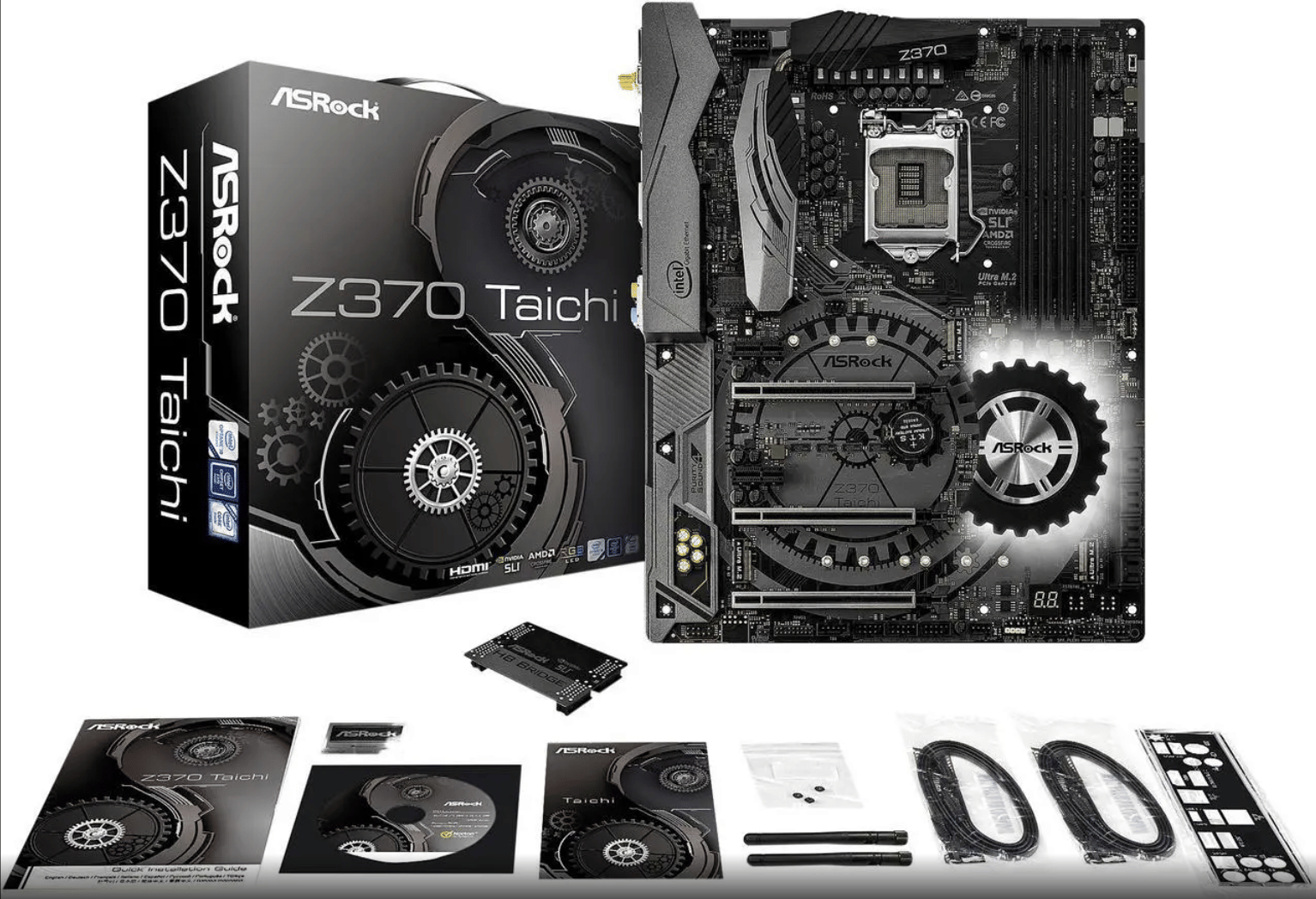

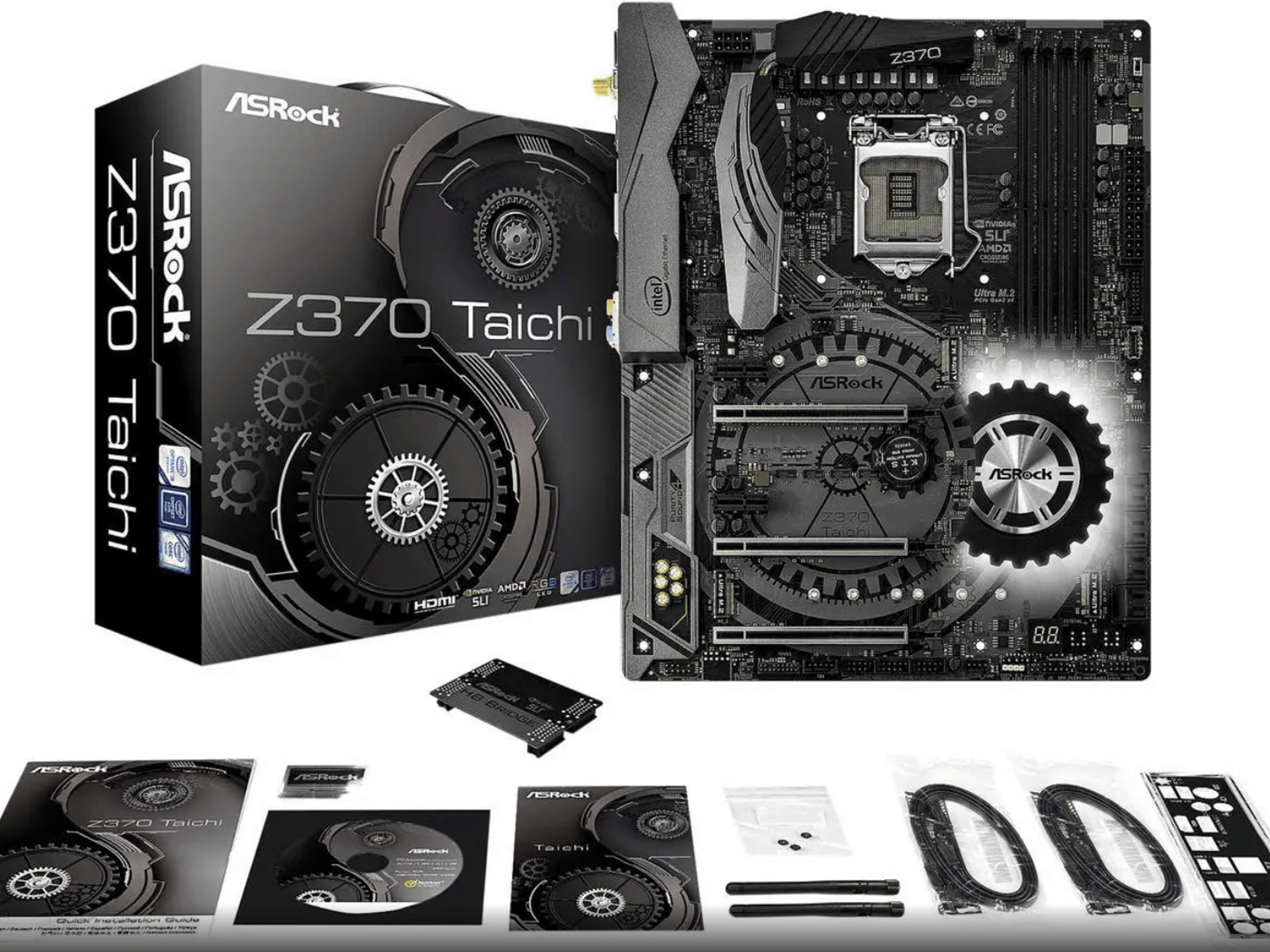

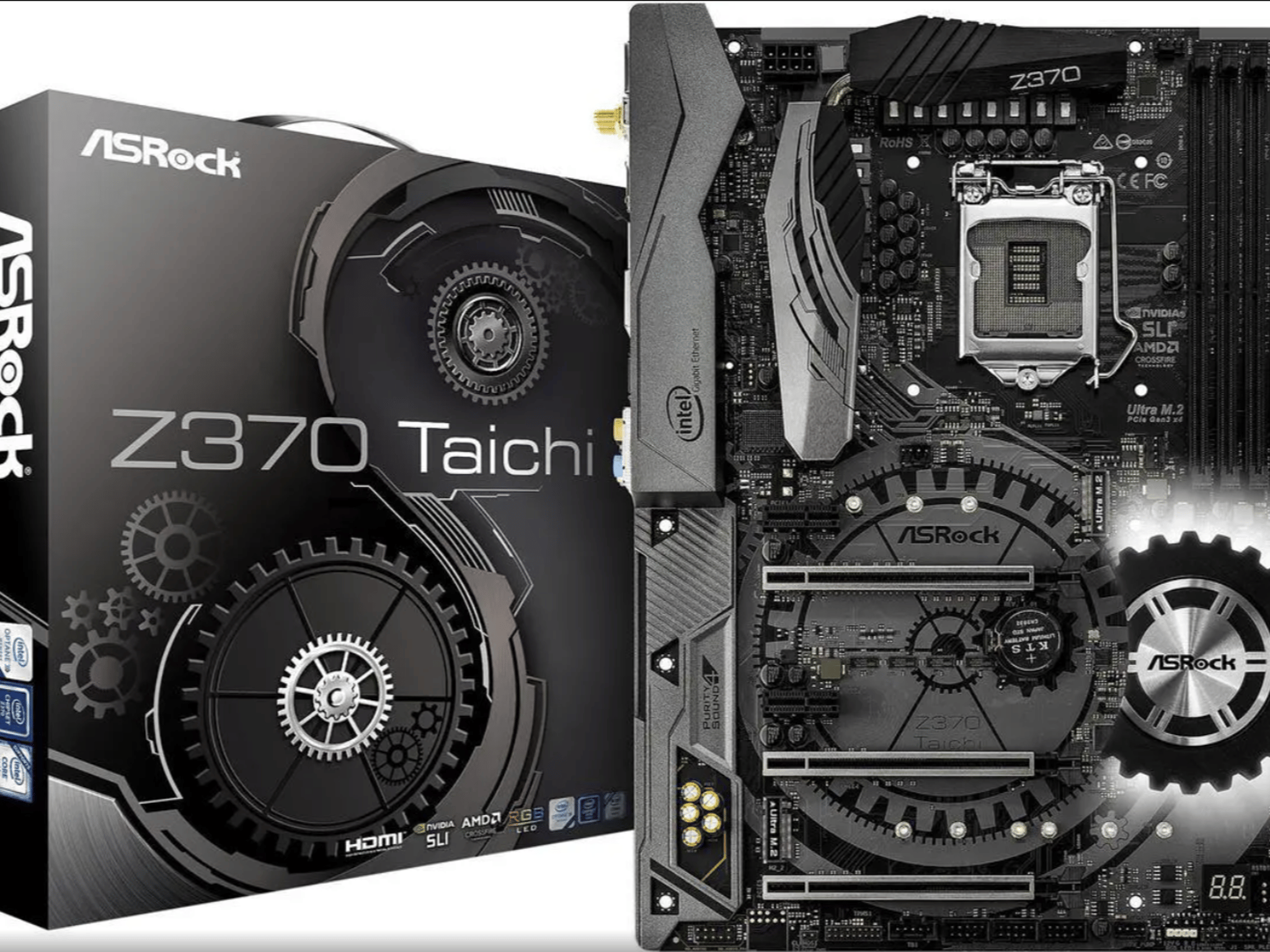

This is a NEW & UNUSED ASRock Intel Z370 TAICHI model motherboard in original retail box, 100% complete with all parts, accessories, documentation and packaging. The TAICHI is a top-tier “ATX” form factor motherboard designed for extreme overclocking and compatible with Intel’s 9th and 8th generation LGA 1151 processors and DDR4 SDRAM. Please scroll below and pictures for further details and specs

SPECIFICATIONS

• CPU Support: Supports 8th Generation Intel Core Processors (Socket 1151)
• Power Design CPU Power: 12 Phase; Memory Power: 2 Phase
• Chipset: Intel Z370
• Graphics: Dependent on installed CPU
• Memory: 4x DIMM, Support Dual Channel DDR4-4333 (OC)+
• BIOS: Dual AMI UEFI BIOS
• Expansion: 3x PCIe 3.0 x16 slots (connectivity varies based on CPU); 2x PCIe 3.0 x1 slot
• Storage: 8x SATA 6 Gb/s port (6 from Intel Z370, 2 from ASMedia ASM1061); 3x M.2 port (PCIe 3.0 x4 and SATA 6 Gb/s)
• Networking: 1x Intel I219-V, 1x Intel I211AT

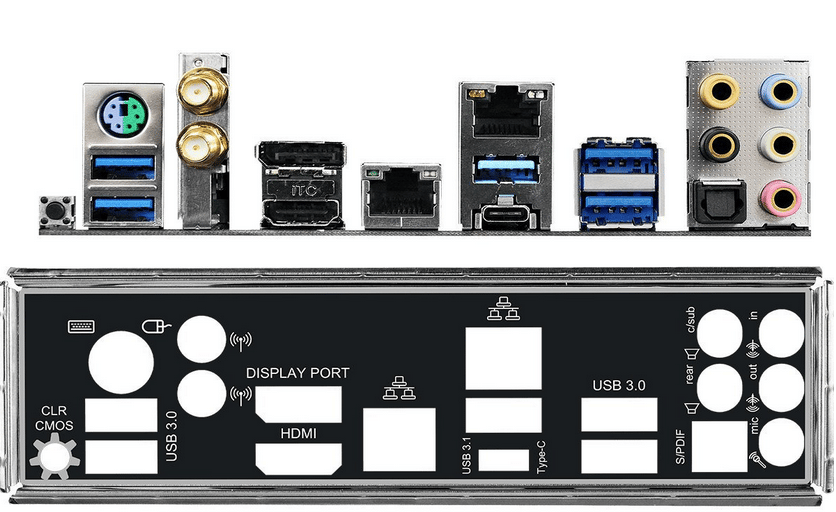

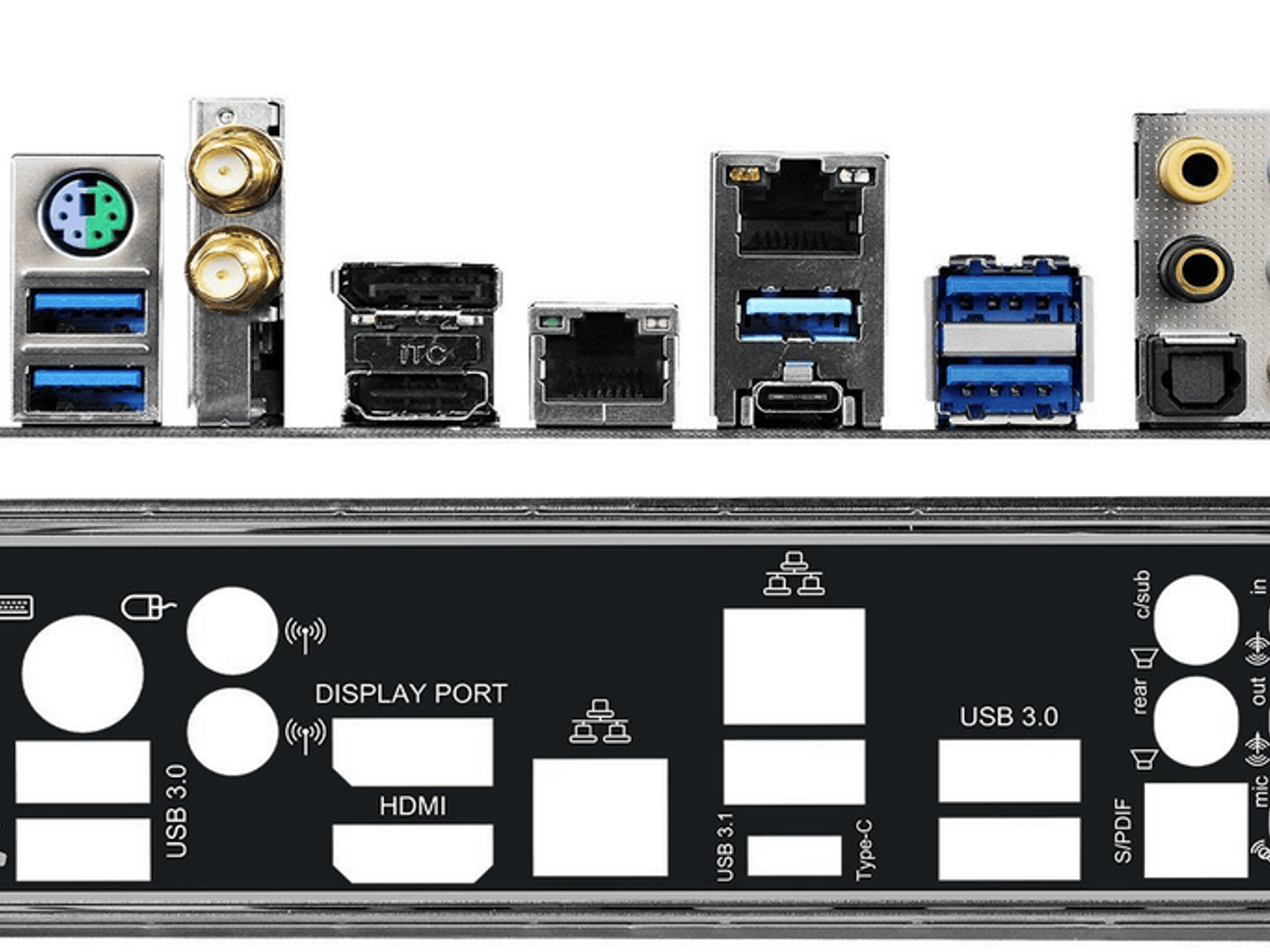

• Rear Ports: 2x Antenna Port 1x PS/2 keyboard/ mouse combo port 1x HDMI ports 1x DisplayPort 4x USB 3.1 Gen1 Type-A ports 2x LAN (RJ45) port 1x USB 3.1 Gen2 Type-A port 1x USB 3.1 Gen2 Type-C port 5x Audio jacks 1x Optical S/PDIF OUT connector
• Audio: Realtek ALC1220 Audio Codec
• Fan Headers: 5x 4-pin
• Form Factor: ATX Form Factor: 12.0 in x 9.6 in, 30.5 cm x 24.3 cm

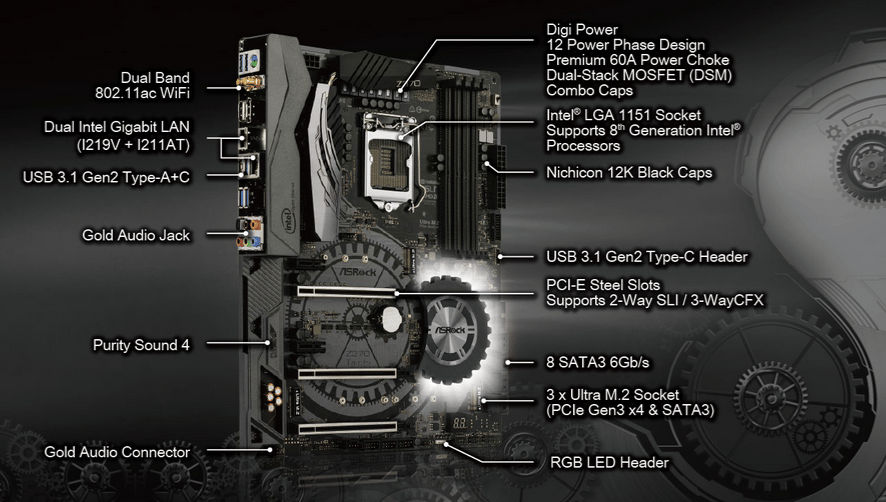

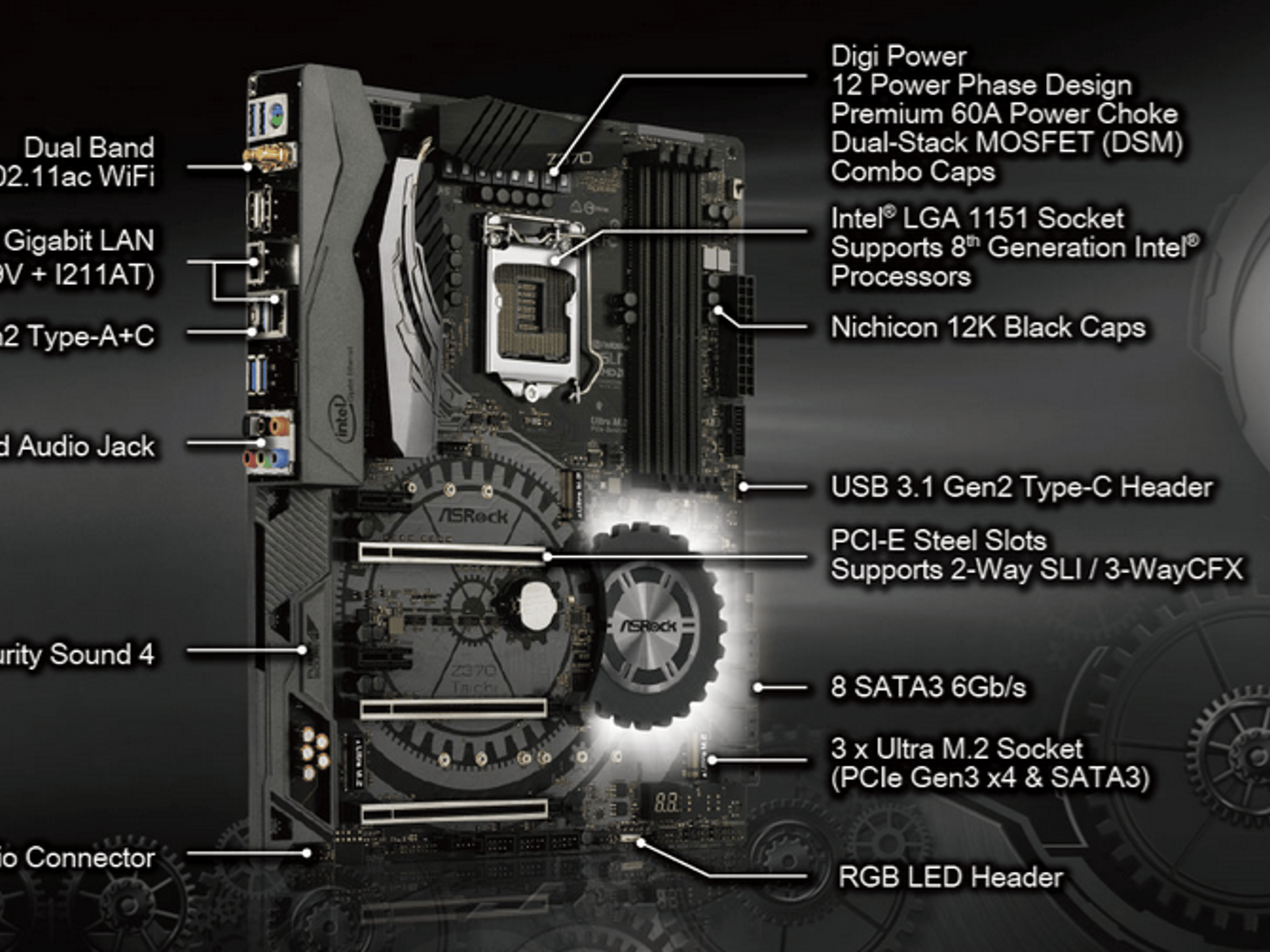

• Features: • ASRock USB 3.1 Gen2 • ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) • ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) • ASRock Super Alloy • XXL Aluminium Alloy Heatsink • Premium 60A Power Choke • Nichicon 12K Black Caps • Dr. MOS • I/O Armor • ASRock 802.11ac WiFi • ASRock Steel Slots • ASRock Triple Ultra M.2 (PCIe Gen3 x4 & SATA3) • ASRock Full Spike Protection (for all USB, Audio, LAN Ports) • ASRock Live Update & APP Shop
