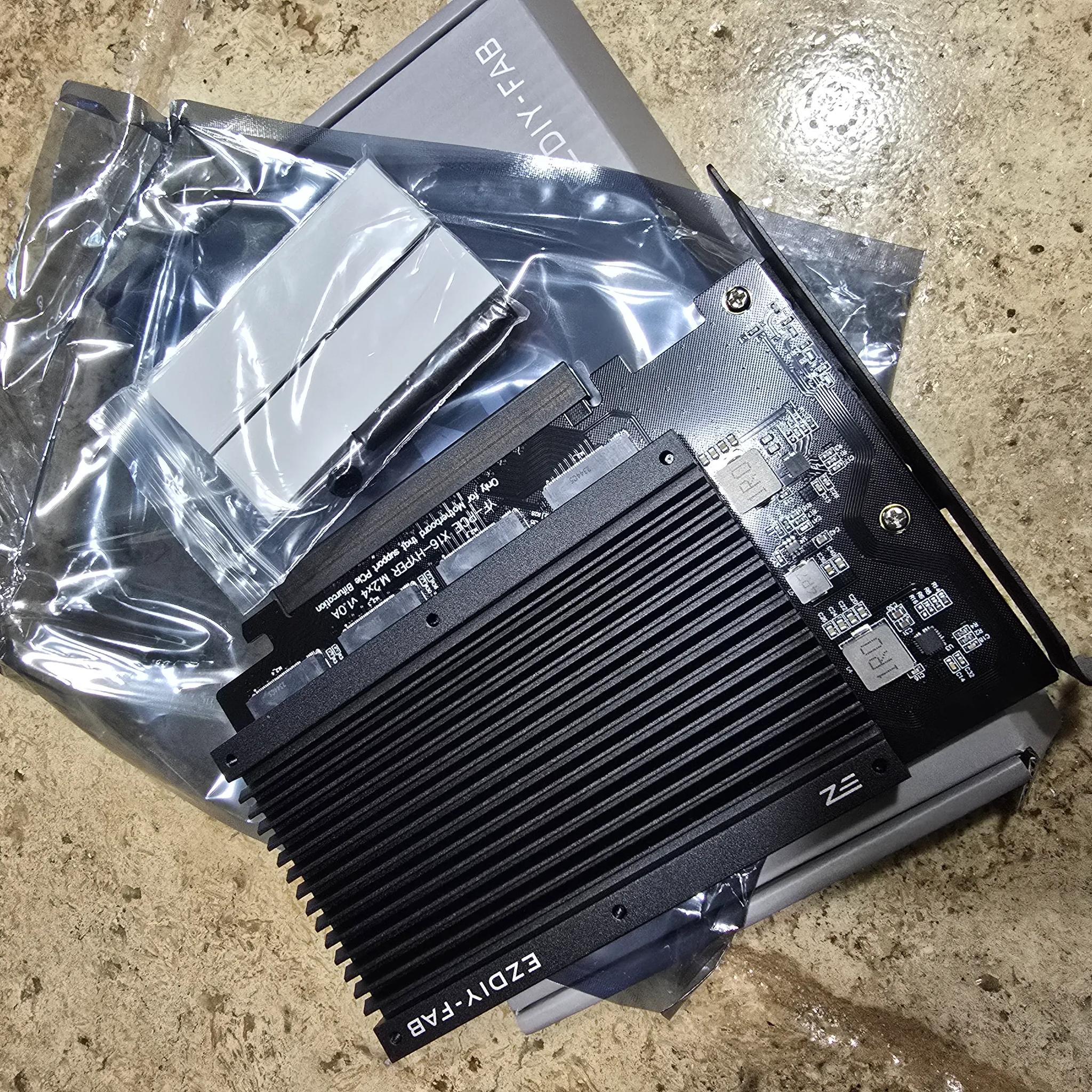

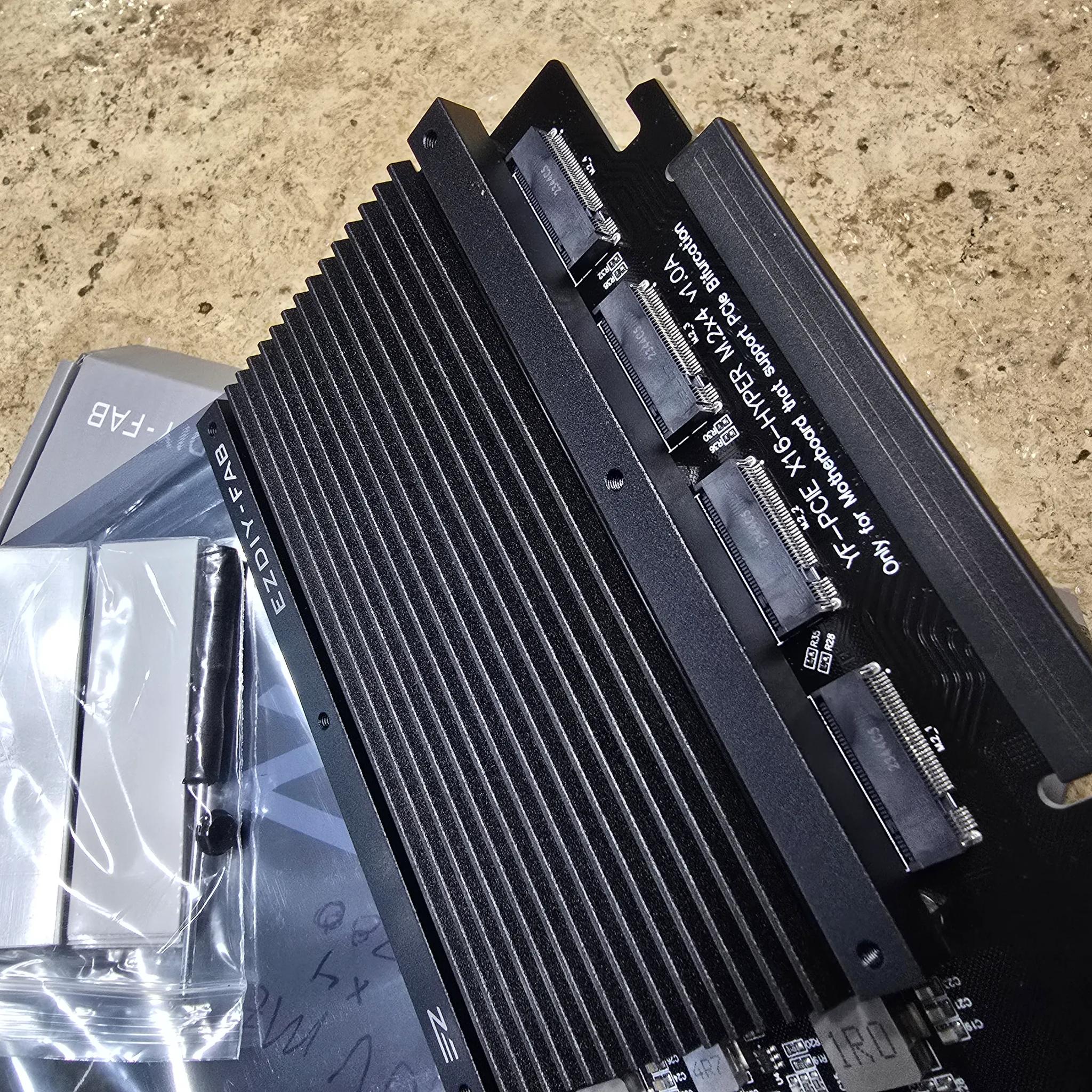

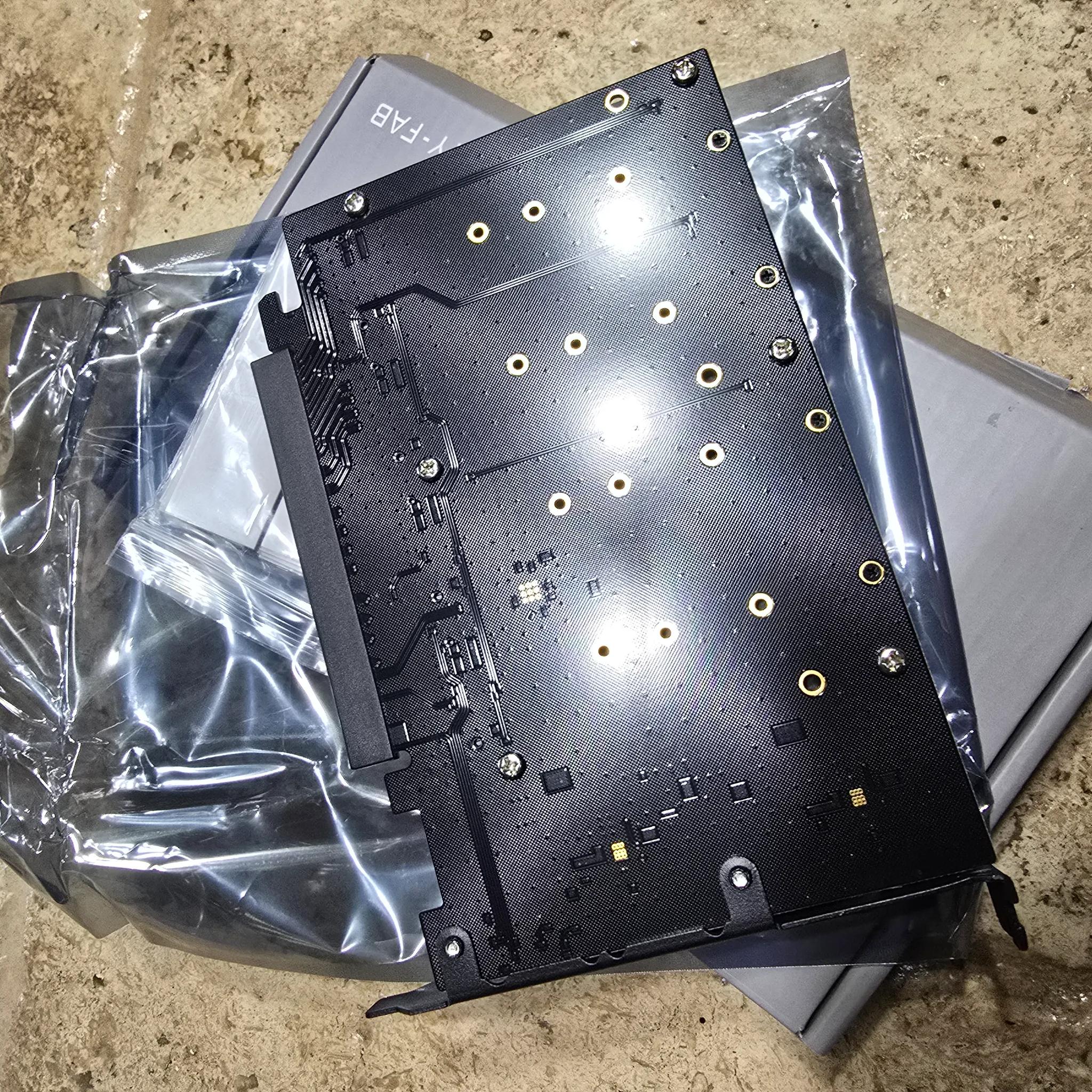

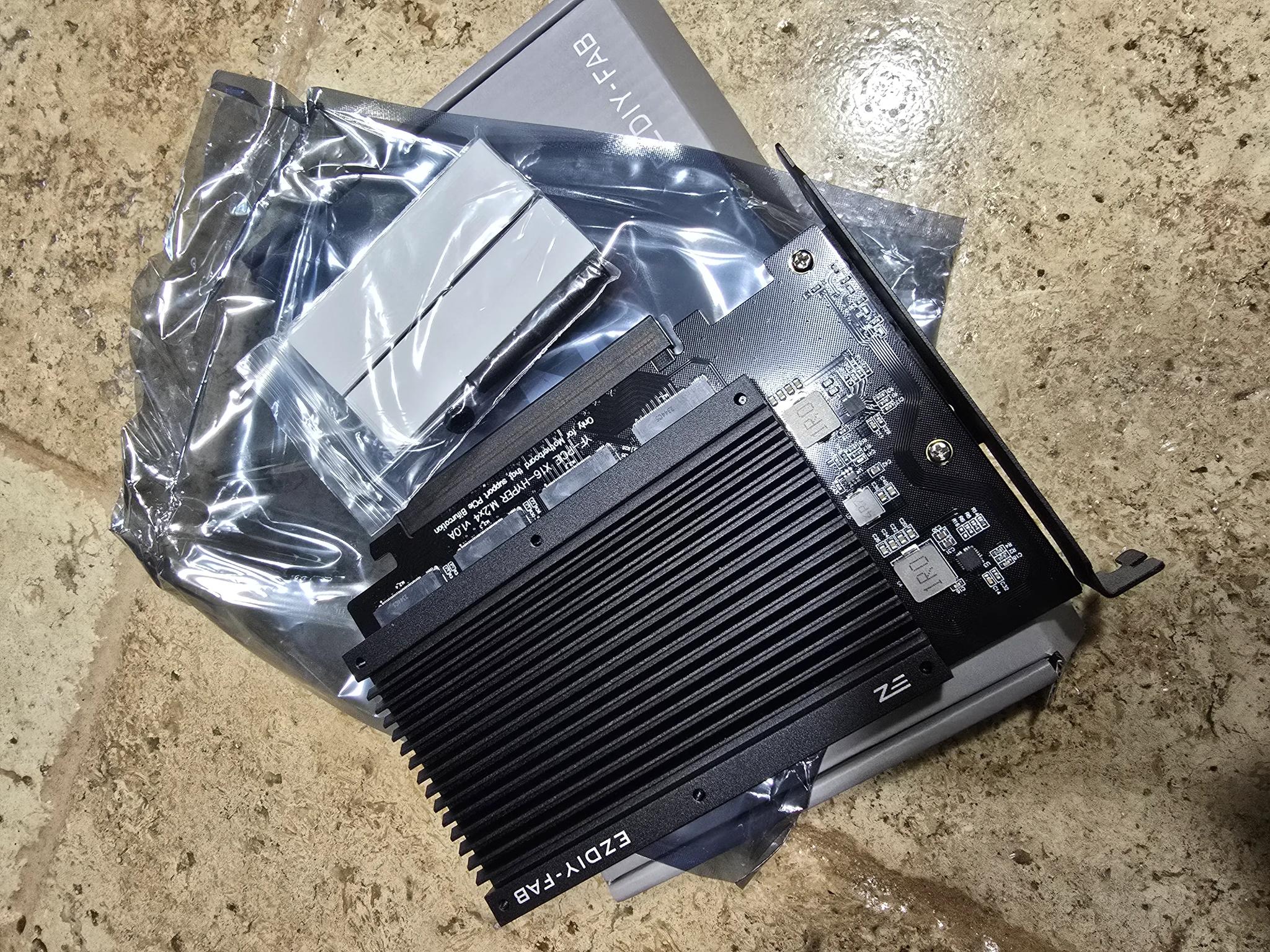

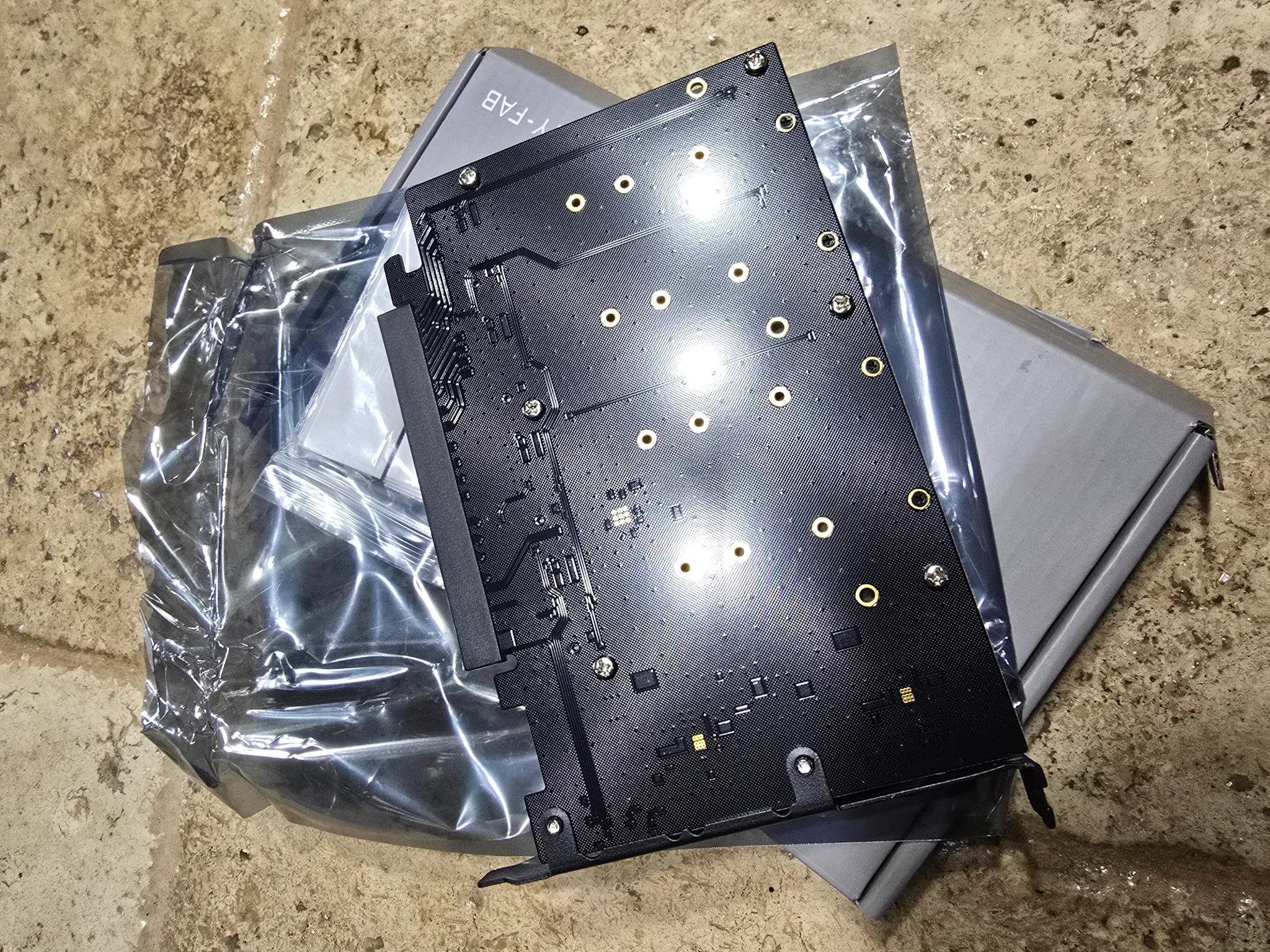

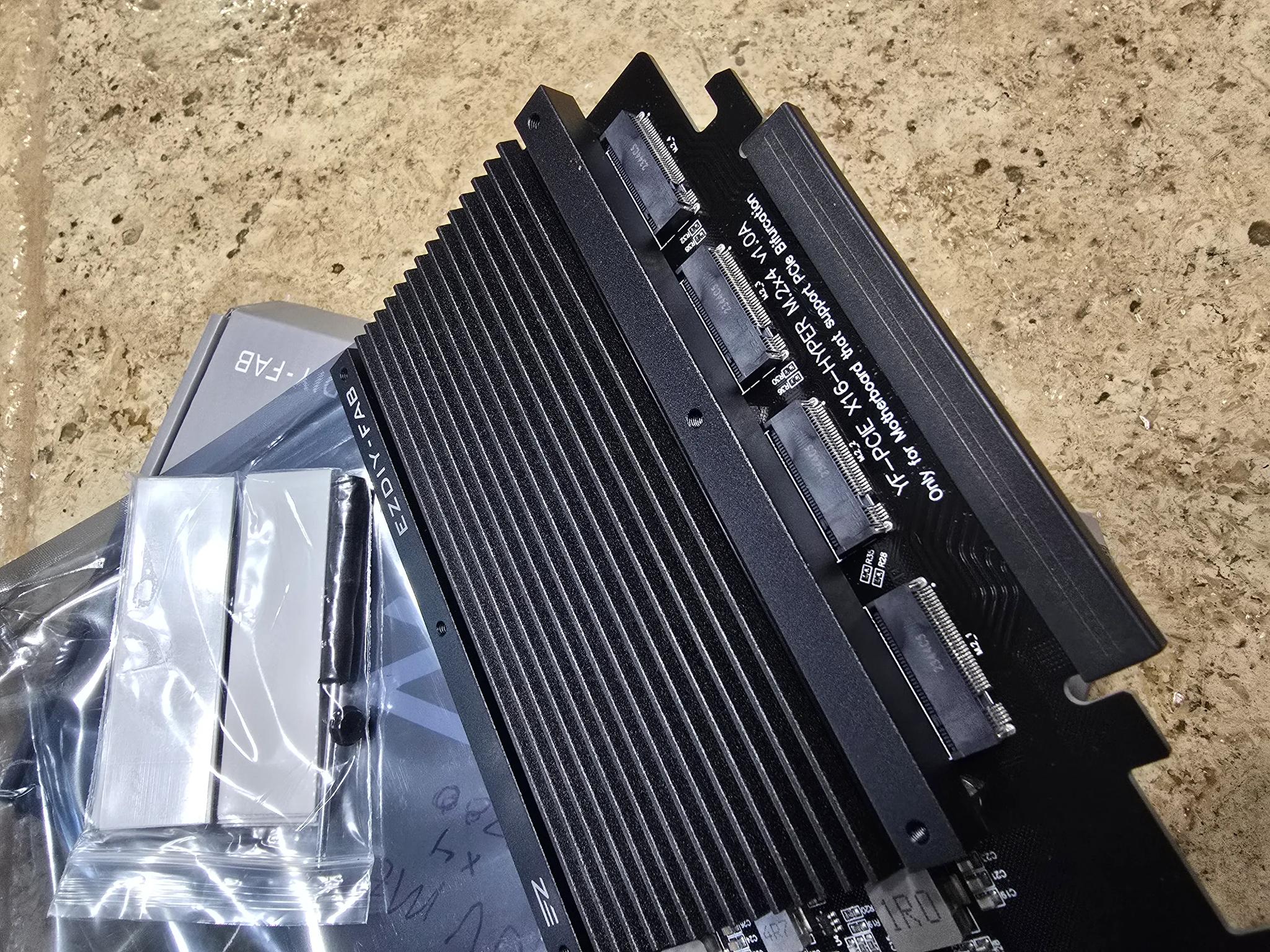

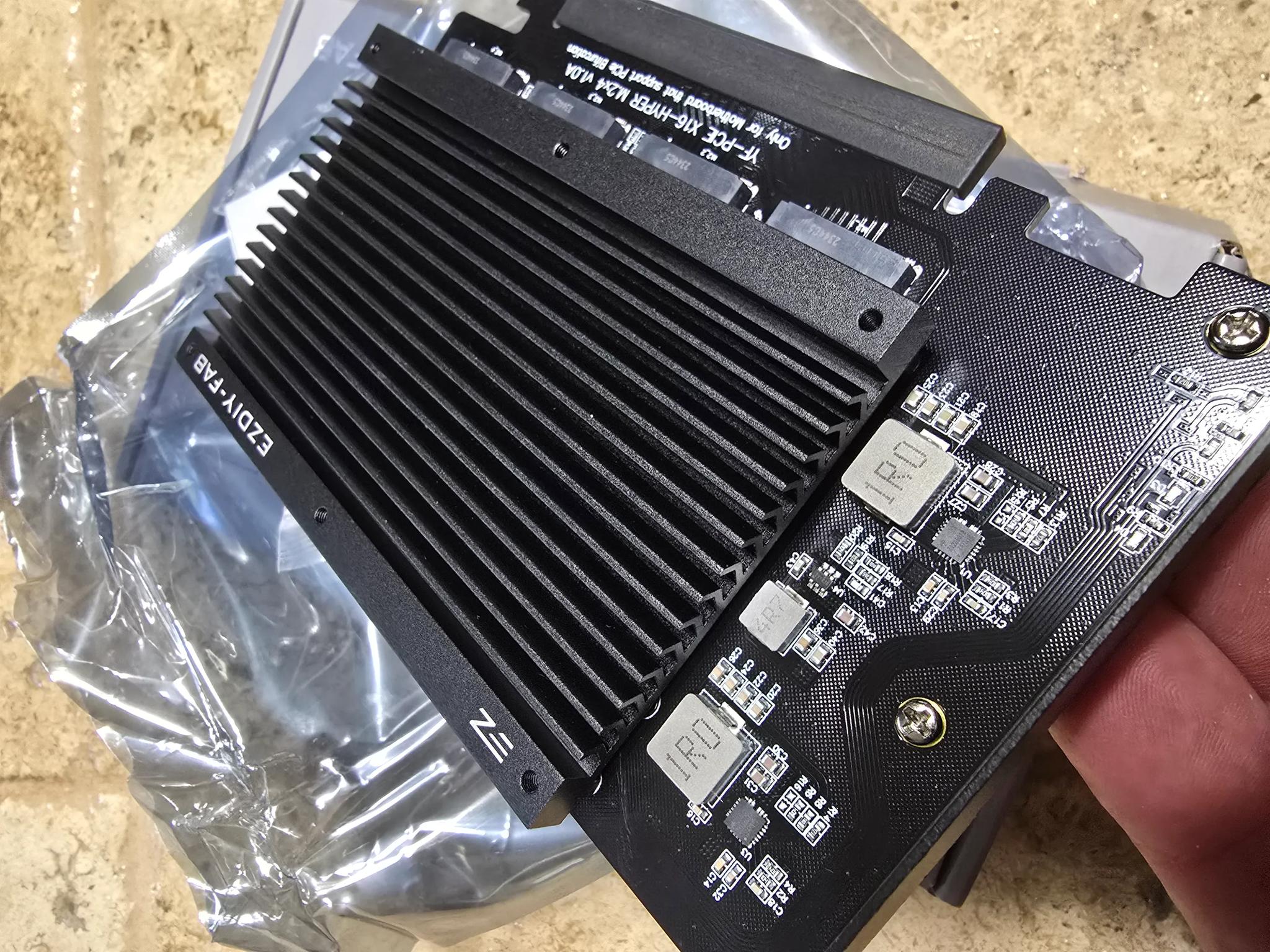

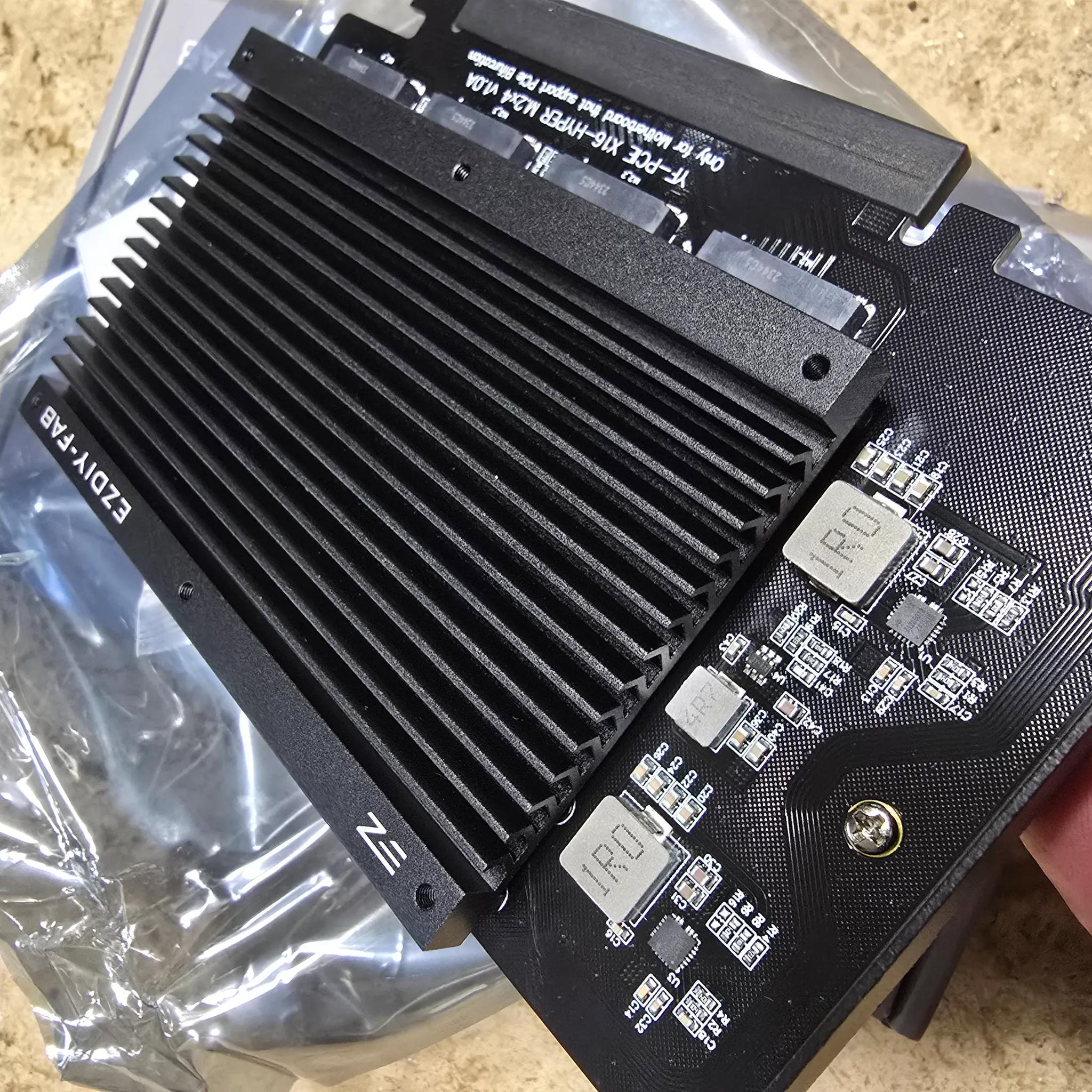

EZDIY-FAB Quad M.2 PCIe 4.0/3.0 X16 Expansion Cad with Heatsink, Support 4 x PCIe NVME M.2 SSD, RAID-on-CPU (VROC) in Intel Platform and PCIe 4.0 RAID in AMD Platform, M/B PCIe Bifurcatin is Required

About this item The card supports the use of 4 NVME M.2 SSDs simultaneously, but the motherboard must be equipped with PCIe bifurcation function, and be able to set PCIe X4X4X4X4 or 4X4 mode. M.2 SSDs will generate a lot of heat when working at the same time. The configuration of large heatsink can quickly dissipate the heat, so that the M.2 SSD can maintain a stable working state. Assemble four M.2 SSDs, It is recommended to use NVME M.2 SSDs of the same model. Suitable for NVMe SSDs of different sizes including 2230,2242, 2260, 2280. This card does not have the RAID function, only supports the motherboard to read four M.2 SSD SSDs at the same time. To set up hardware or software RAID, you need to refer to the motherboard configuration and setup tutorial.

Note: Please check if your PC motherboard supports PCIe Bifurcation before placing orders. *To support Gen4 speeds, the motherboard, CPU, and NVME card must all be PCIe 4.0 Specs.

Motherboard only supports x8+x4+x4, it can only detect three M.2 SSDs; motherboard has no bifurcation function, only one M.2 SSD can be detected. If your motherboard supports PCIe Bifurcation, please make sure there are over 24 PCIe lanes in CPU so that your graphics card can reach full potential performance, since some motherboards PCIe slot is bandwidth sharing. To achieve the expected transmission bandwidth, please confirm the actual number of lanes allocated to the x16 slot by the CPU.

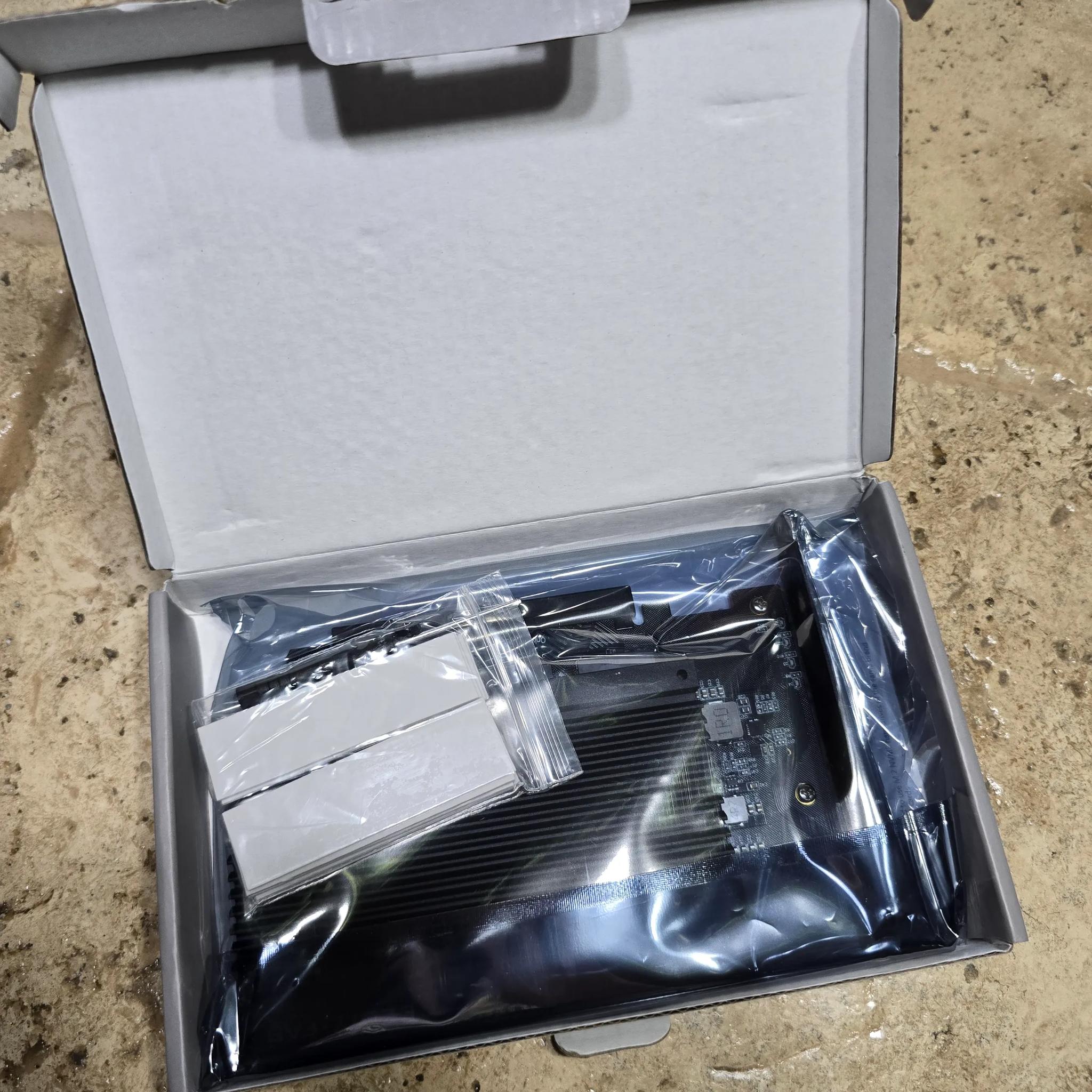

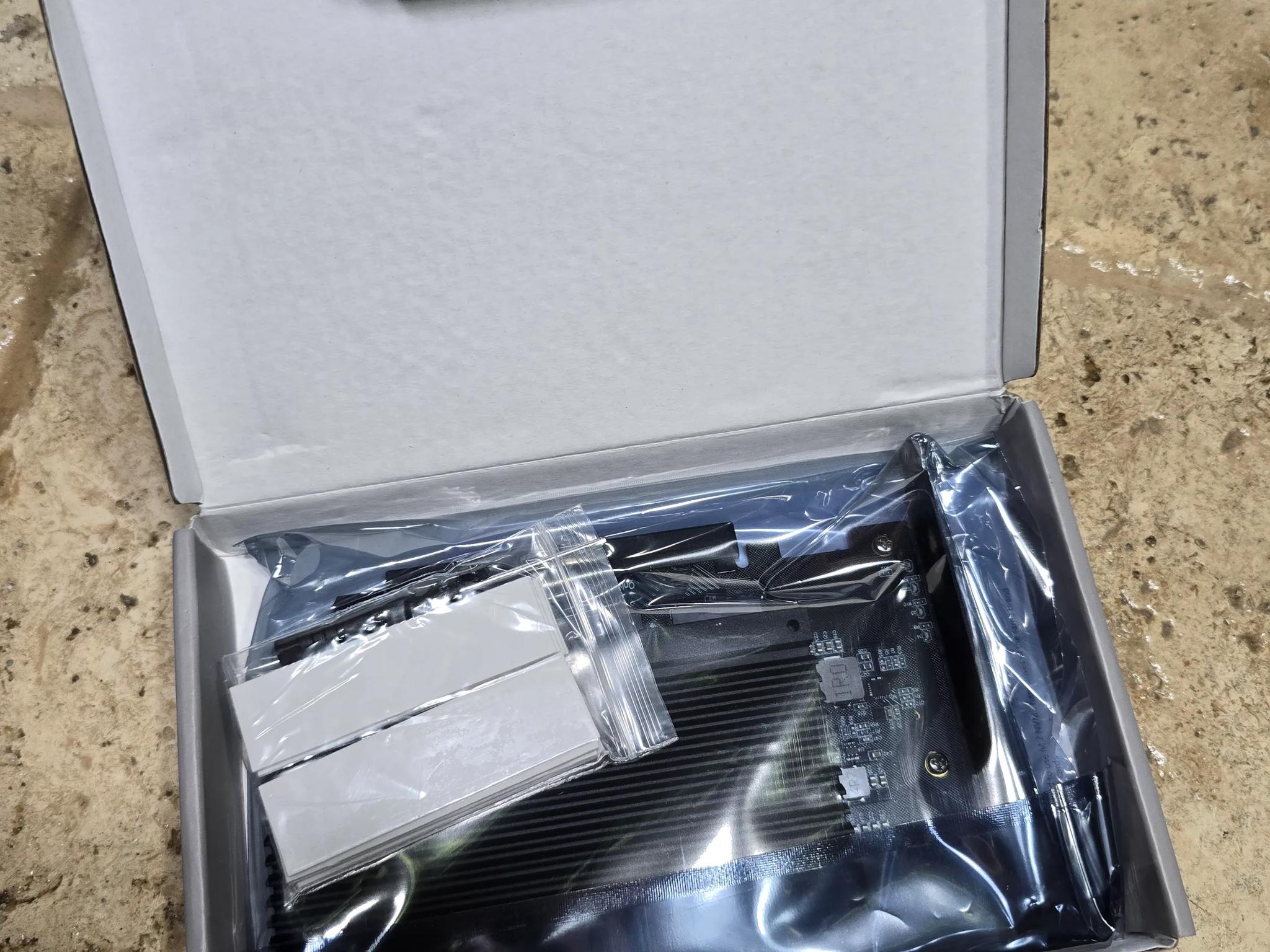

What's in Box?

1x EZDIY-FAB Quad M.2 SSD Expansion Card 4x Thermal Pad 22x70x1.0mm 4x Thermal Pad 22x70x1.5mm 1x Screwdrive 1x Screw pack 1x User Manual
