Colorfire Meow Cat Series orange white

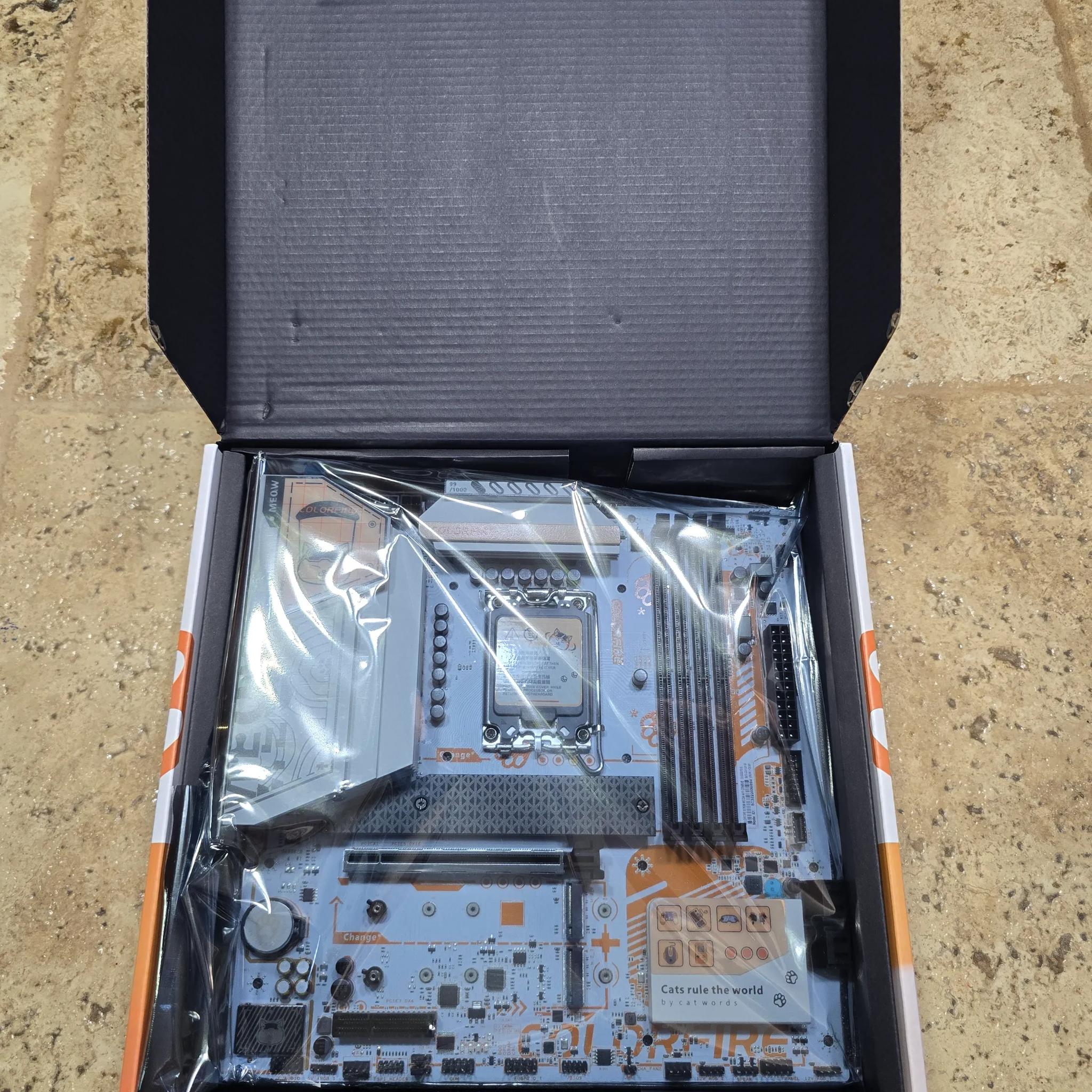

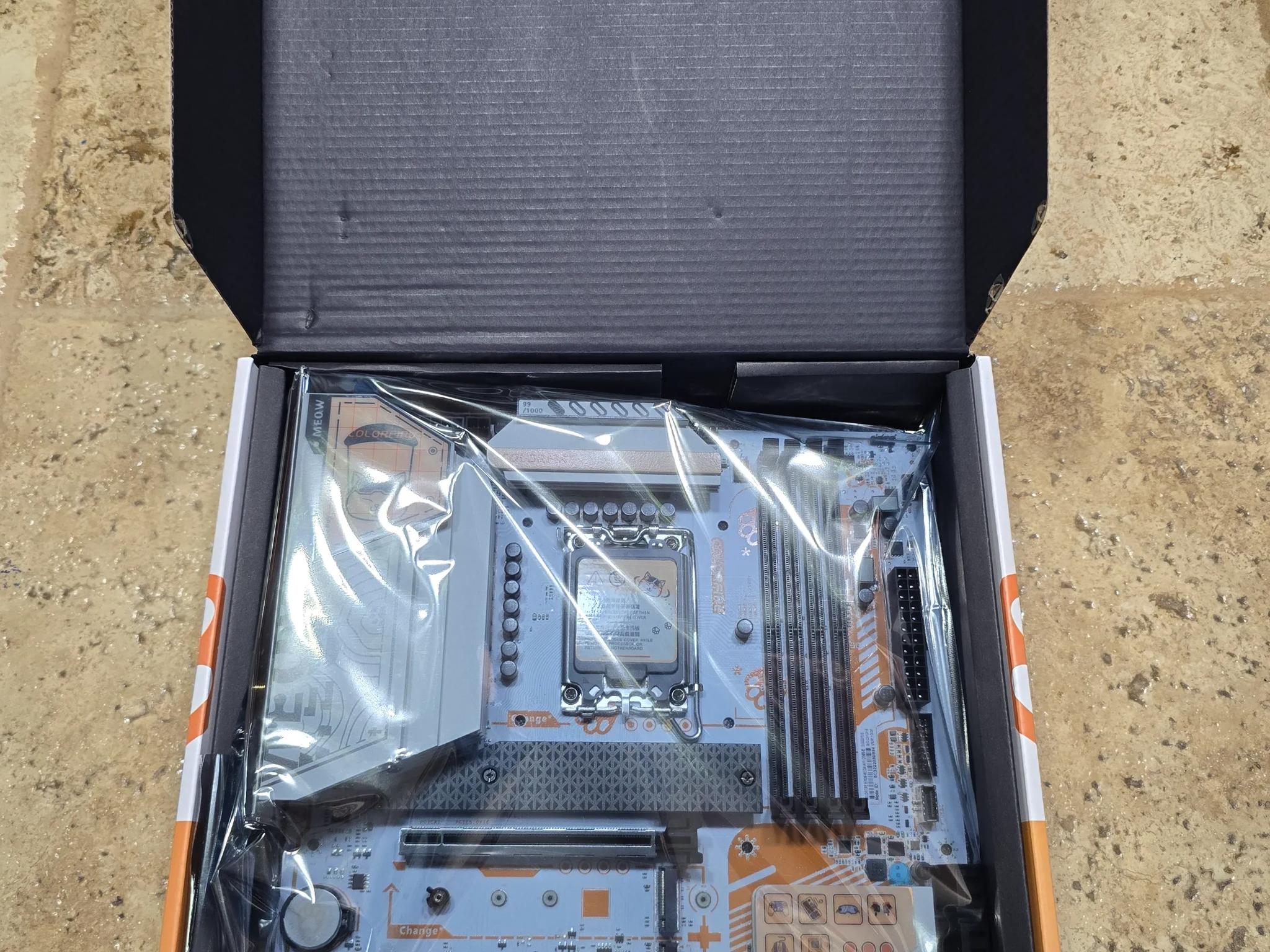

ew in box, opened the first time for pictures. Mobo is still factory sealed with tamper sticker in place.

Feature Highlights: CVN series exclusive customization of cute pet "Orange Cat" motherboard CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation Support dual channel DDR5-7200 (OC) MHz memory 12+1+1 phase reinforced power supply, F.C.C ferrite inductor (Dr MOS 55A) Provide 3 PCIe 4.0 x4 M.2 SSD slots Provide one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces Equipped with Realtek 2.5G high-speed wired network card and AX201/AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2 Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory The I/O backplane supports one click BIOS upgrade Six protection technologies, more stable product operation 200 processes are strictly tested with guaranteed quality PCB atomization process comprehensively upgraded

From website:

Model COLORFIRE B760M-MEOW WIFI D5 ORANGE Product Series COLORFIRE Series Chipset Intel B760 Processor Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) Memory Four DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)

• DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
• Intel is supported ® Extreme Memory Profile (XMP) memory technology
• supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) SATA Ports A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
• M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
• M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
• M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) Board I/O Rear I/O interface:
• 4×USB 2.0 interfaces
• 2×USB 3.2 Gen 1 Type-A interfaces
• 1×USB 3.2 Gen 2 Type-C interface
• 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
• 1×HDMI 2.0 interface, Up to 4K 60Hz resolution
• 1×2.5G network interface
• 2×Wi-Fi 6 antenna interfaces
• 3×audio interfaces (audio input/audio output/microphone)
• 1×BIOS update button On board device interface:
• 1×CPU fan pin
• 3×system fan pins
• 1×water-cooled pump pin
• 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces
• 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces
• 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface
• 2×5V 3-pin ARGB pins
• 2×12V 4-pin RGB pins
• 1×Front audio pin
• 1×front panel pin
• 1×speaker pin
• 1×clear CMOS jumper
• 1×COM port pin
• 1×BIOS burner pin
• 1×POST card pin
• 1×ME write protection jumper
• 1×RGB light effect control jumper Expansion Slots 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot BIOS 128M UEFI, supporting multiple languages Power Management Support S3, S4, network S5 wake-up, regular power on and power on Hardware Monitor CPU fan speed is controllable, system fan speed is controllable（Fan1 supports independent control and Fan2 and Fan3 share control）, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring LAN RTL8125 2.5Gbit LAN, AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2 Audio 5.1 Channel sound card Configuration M-ATX 245mm x 245mm
