CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 1x 700mm (m) PCIe Cable 1x 700mm, 1x 700mm, 850mm (m) SATA Cable 2x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m) Floppy Adapter 1x 100mm AC Power 1x 1500mm (m) Modular Cable Type Full
CONNECTOR QUANTITY 24 Pin ATX 1x 24pin EPS (CPU) 1x 8pin (4+4) PCIe 3x 8pin (6+2) SATA 6x Four-Pin Peripheral 4x Floppy 1x
POWER SPECS AC Input 100 - 240 VAC, 10-5A, 50/60 Hz Rail +3.3V +5V +12V +5Vsb -12V Max Output 24A 24A 54.1A 3A 0.5A 649.2W 120W 649.2W 15W 6W Total 650W @ +50C

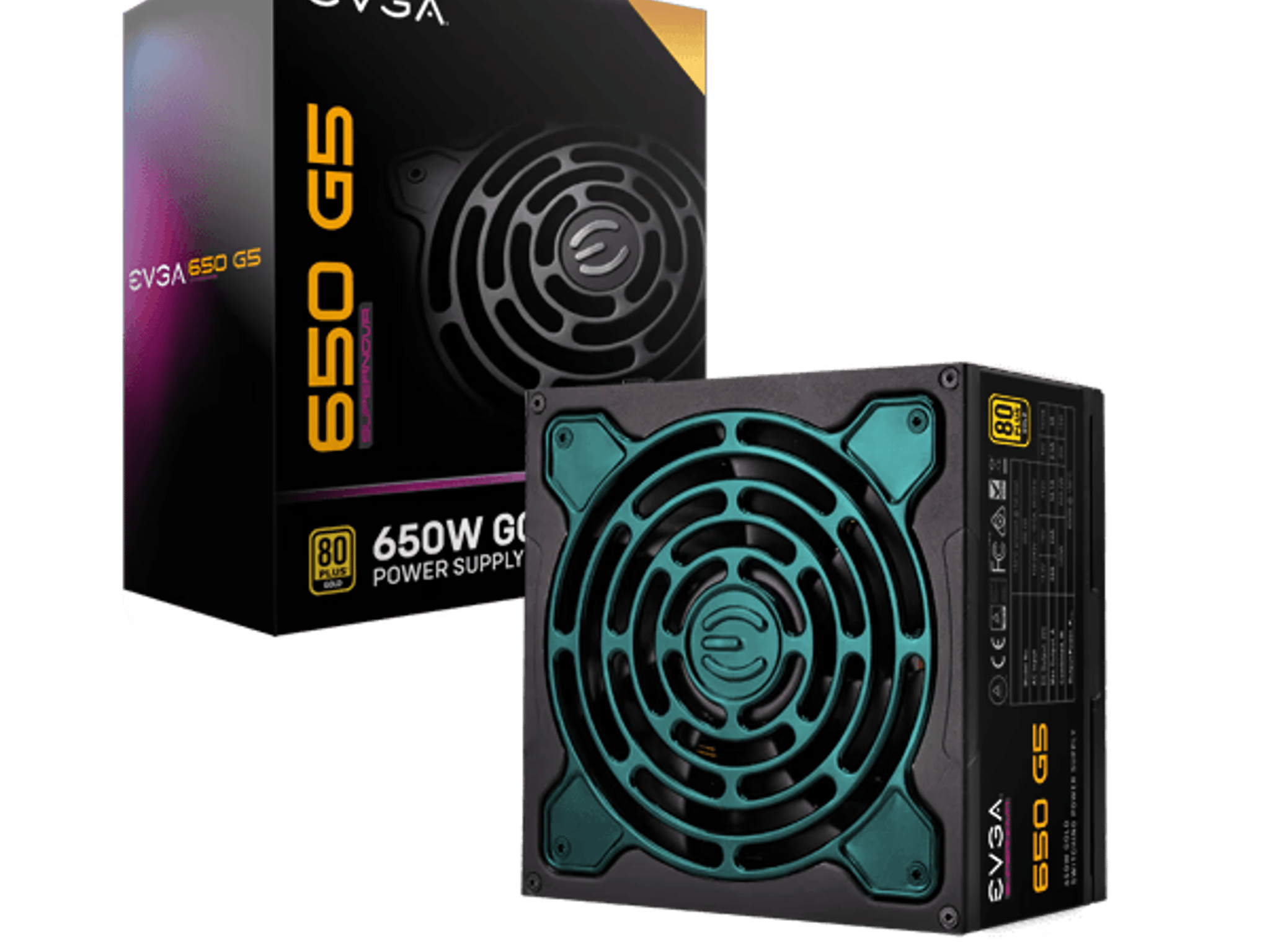

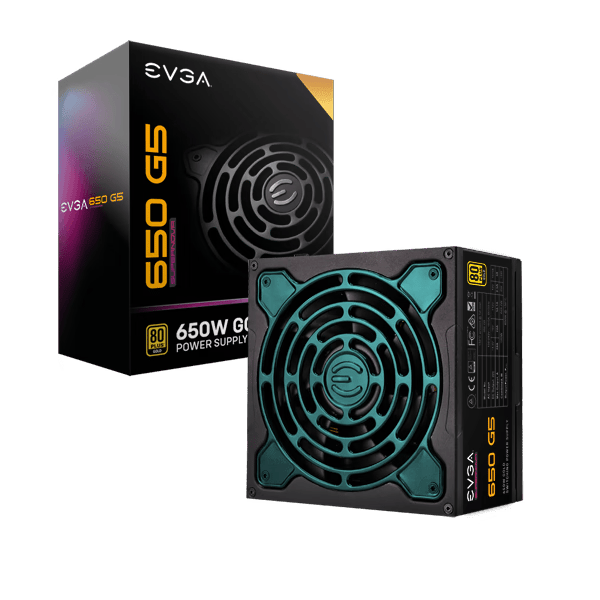

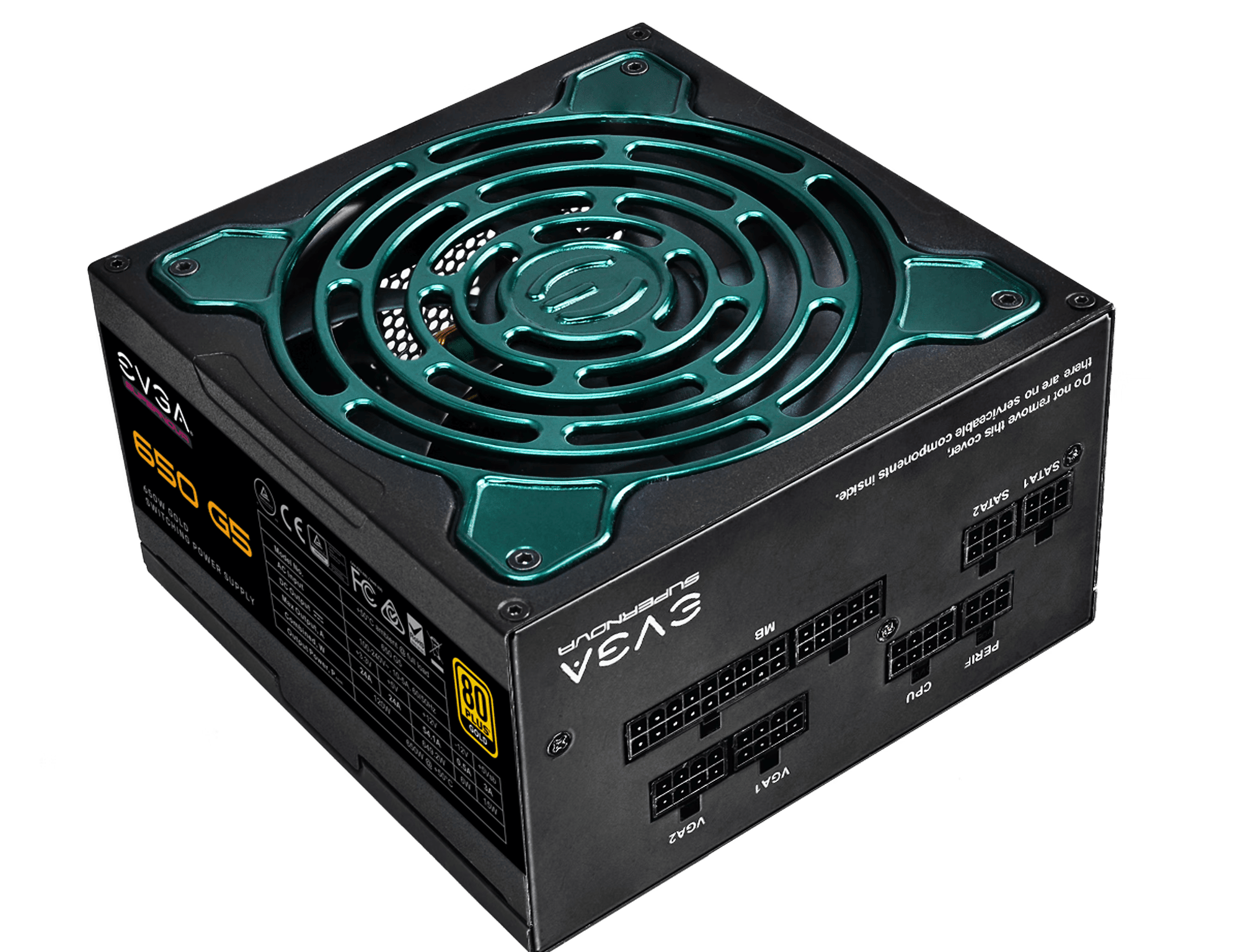

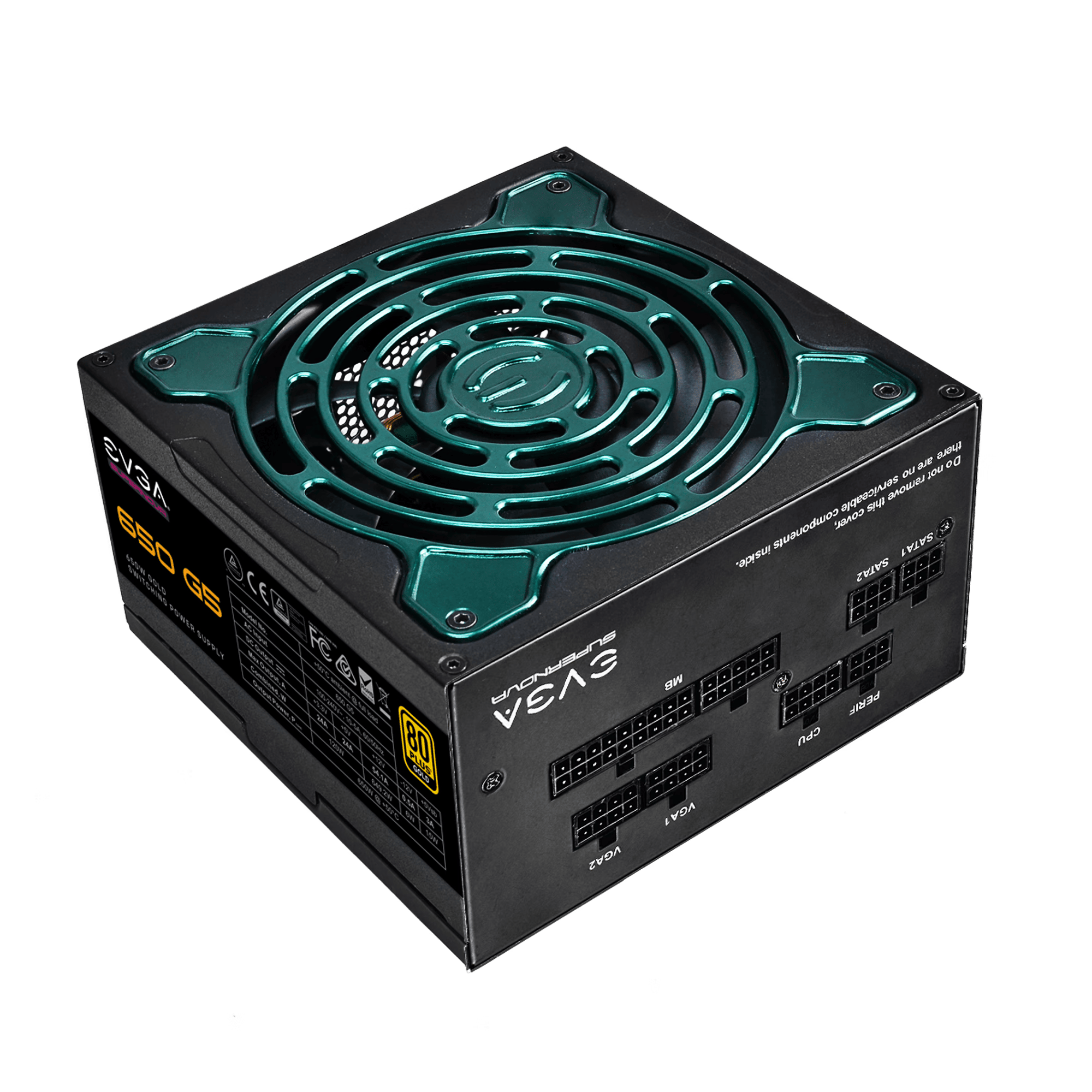

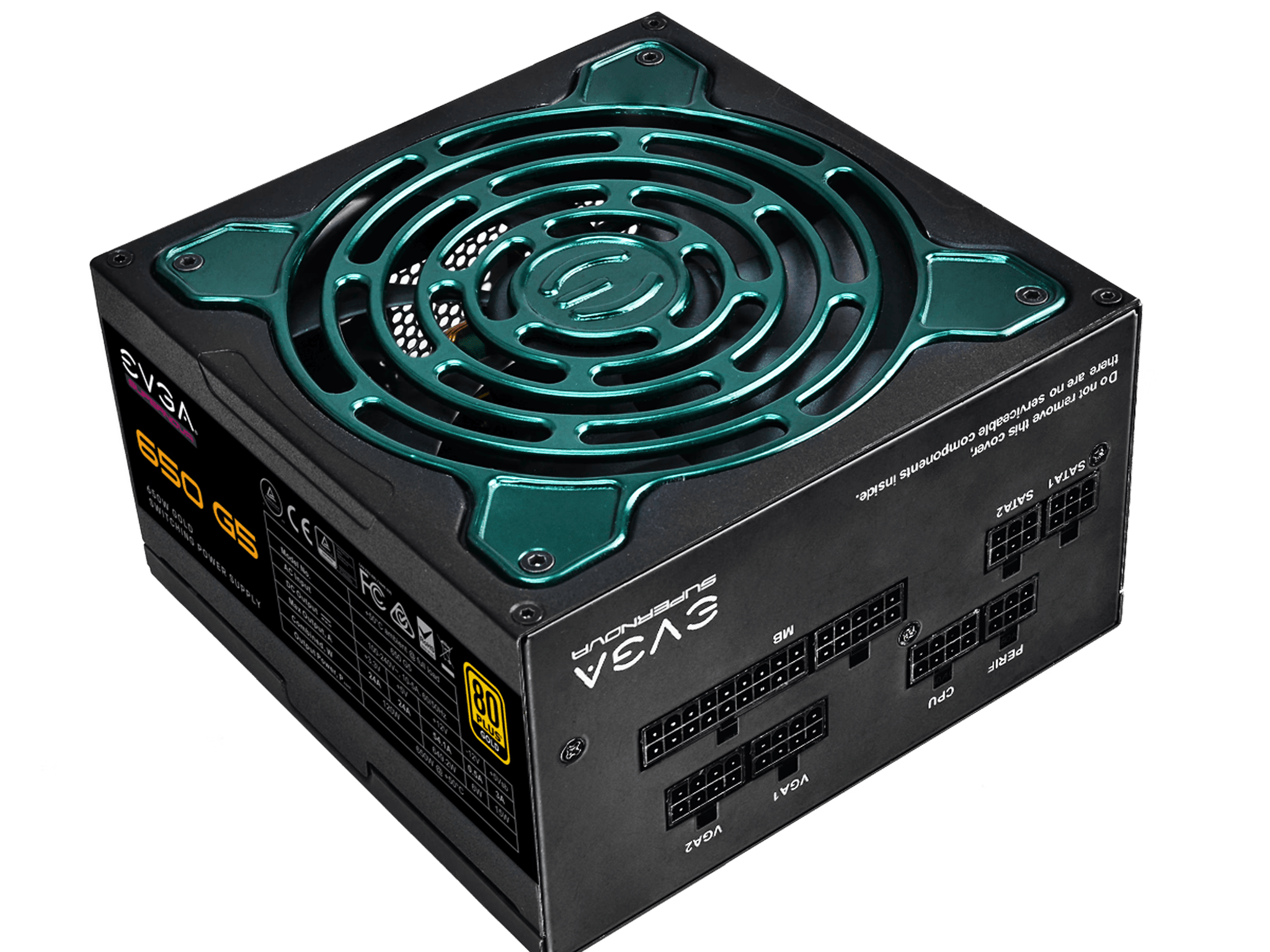

EVGA SuperNOVA 650 G5
CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 1x 700mm (m) PCIe Cable 1x 700mm, 1x 700mm, 850mm (m) SATA Cable 2x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m) Floppy Adapter 1x 100mm AC Power 1x 1500mm (m) Modular Cable Type Full
CONNECTOR QUANTITY 24 Pin ATX 1x 24pin EPS (CPU) 1x 8pin (4+4) PCIe 3x 8pin (6+2) SATA 6x Four-Pin Peripheral 4x Floppy 1x
POWER SPECS AC Input 100 - 240 VAC, 10-5A, 50/60 Hz Rail +3.3V +5V +12V +5Vsb -12V Max Output 24A 24A 54.1A 3A 0.5A 649.2W 120W 649.2W 15W 6W Total 650W @ +50C
