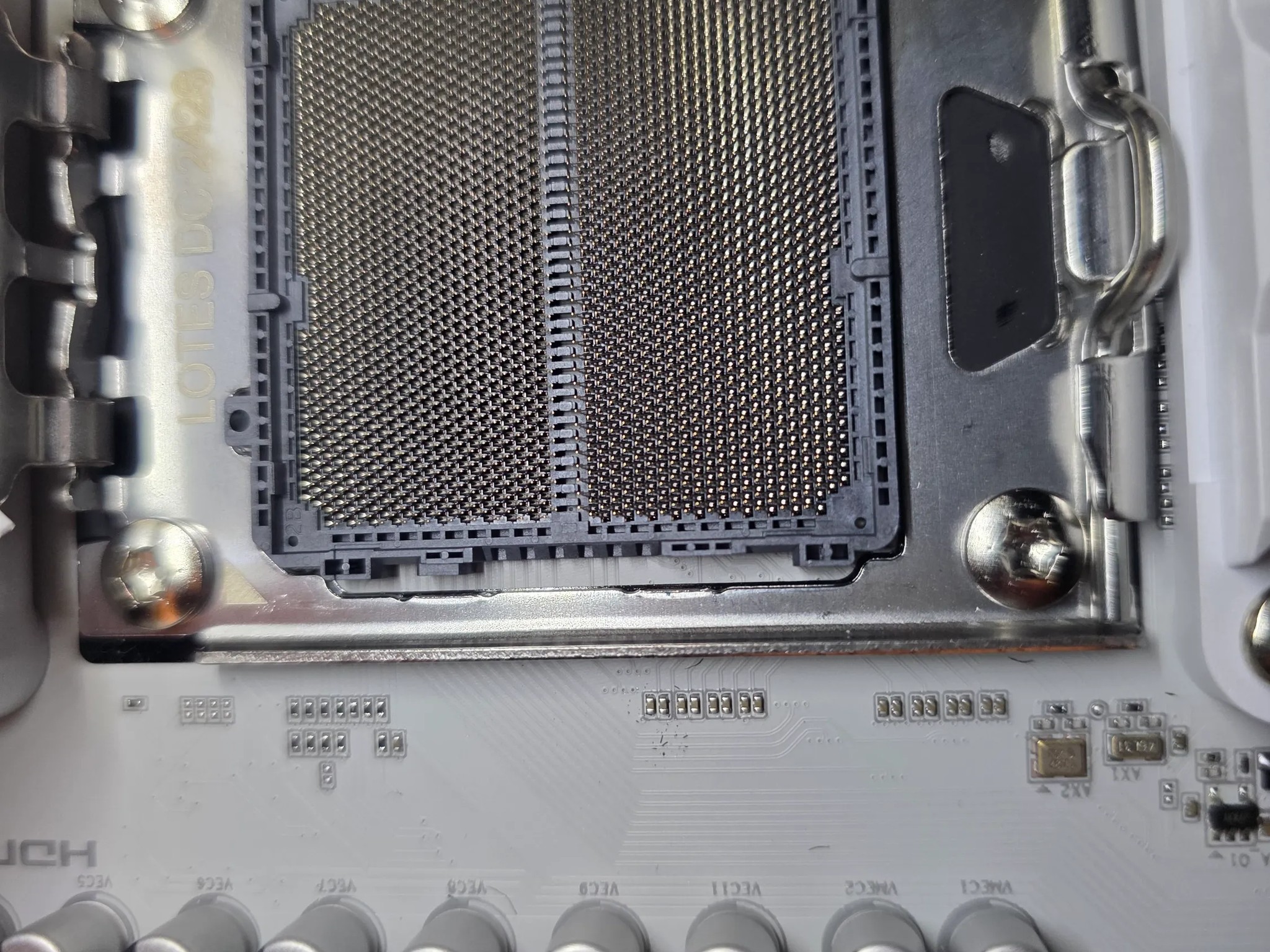

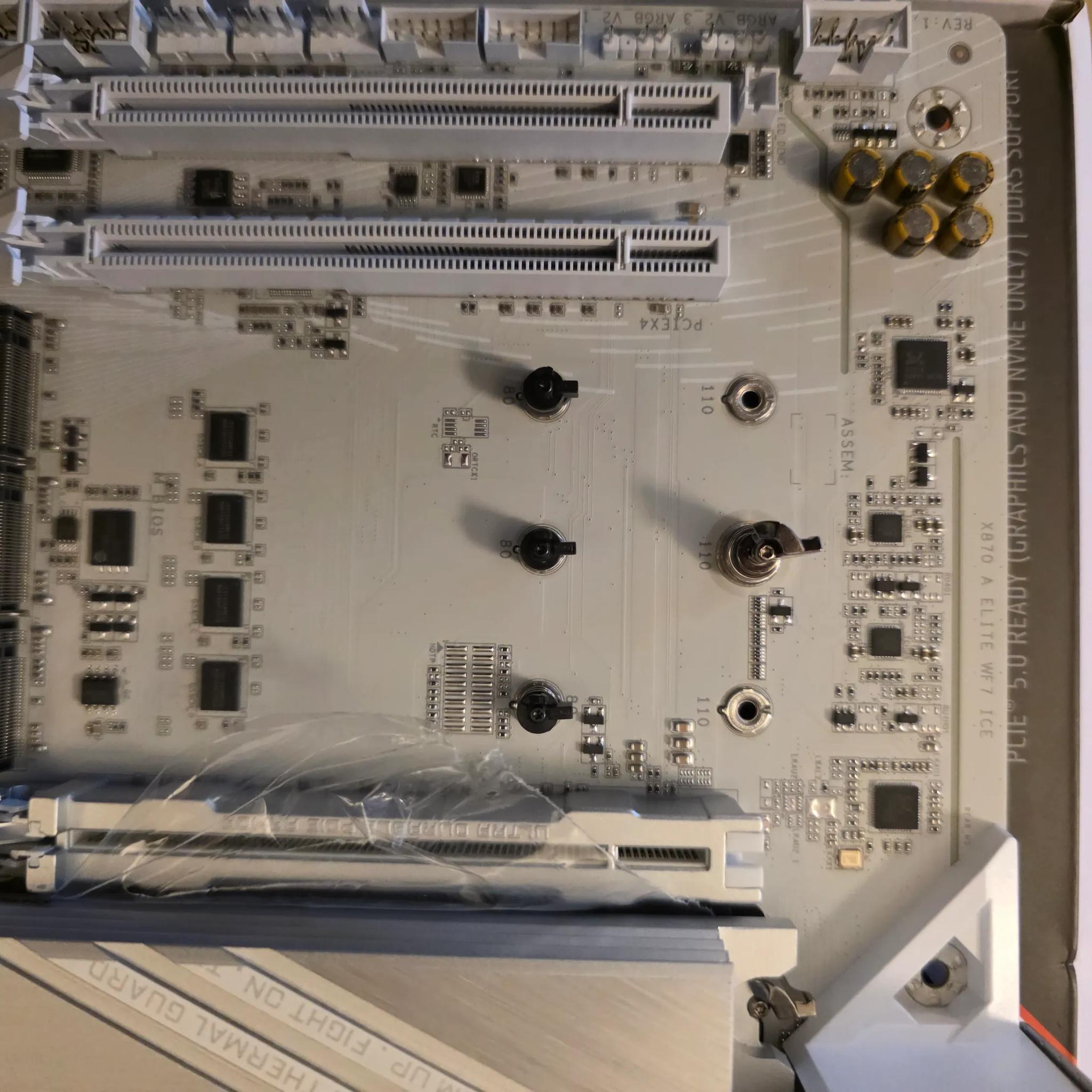

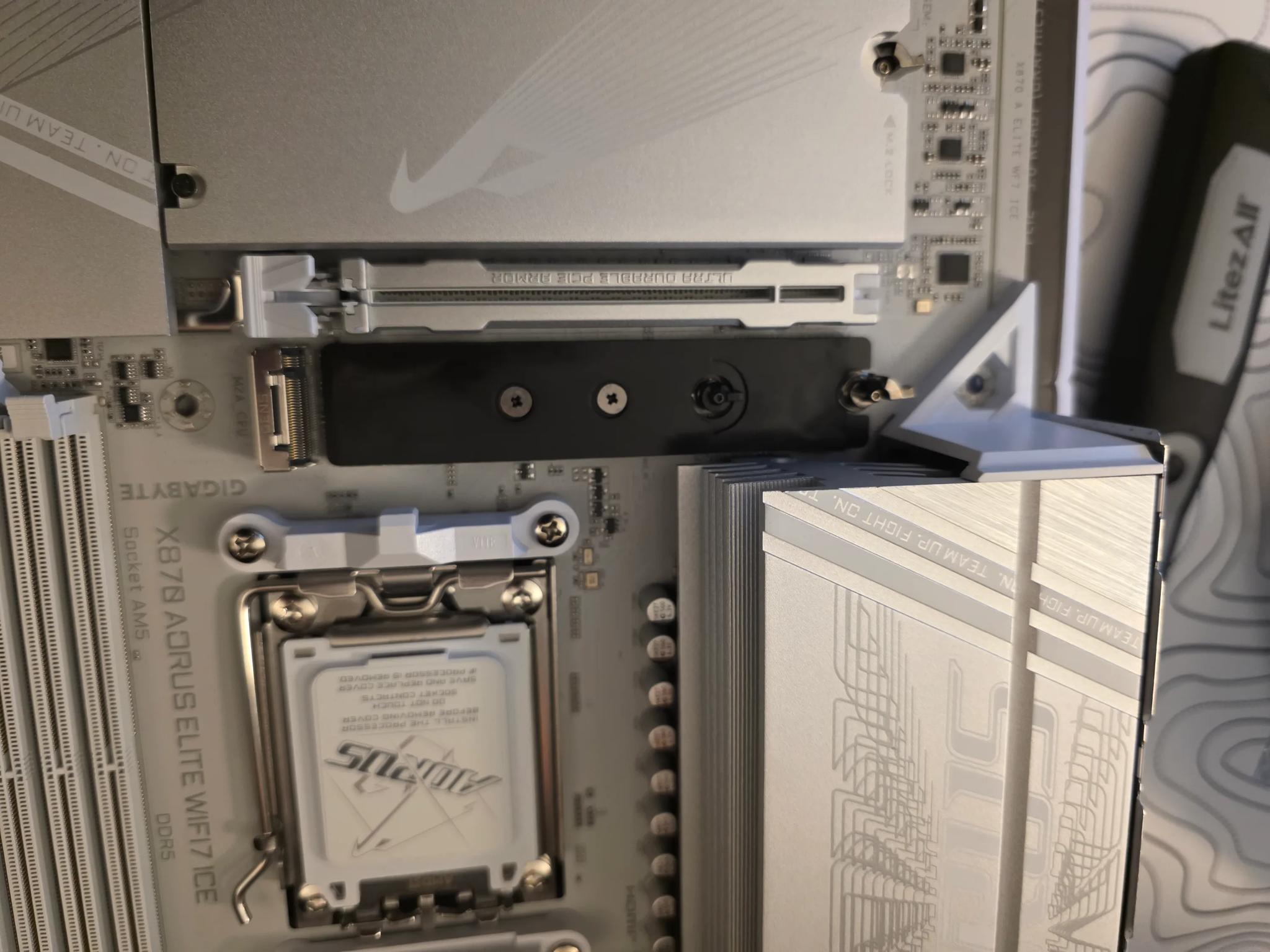

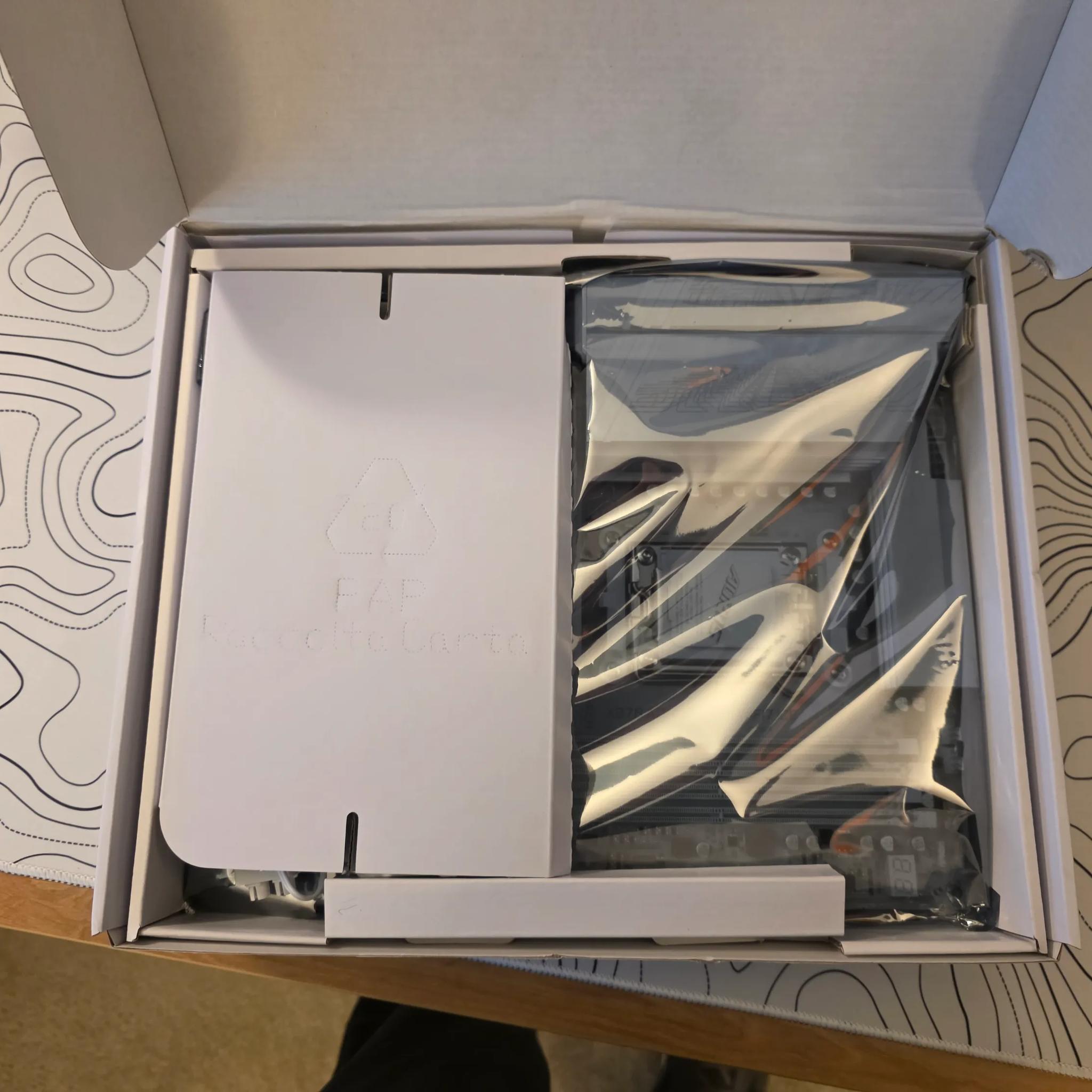

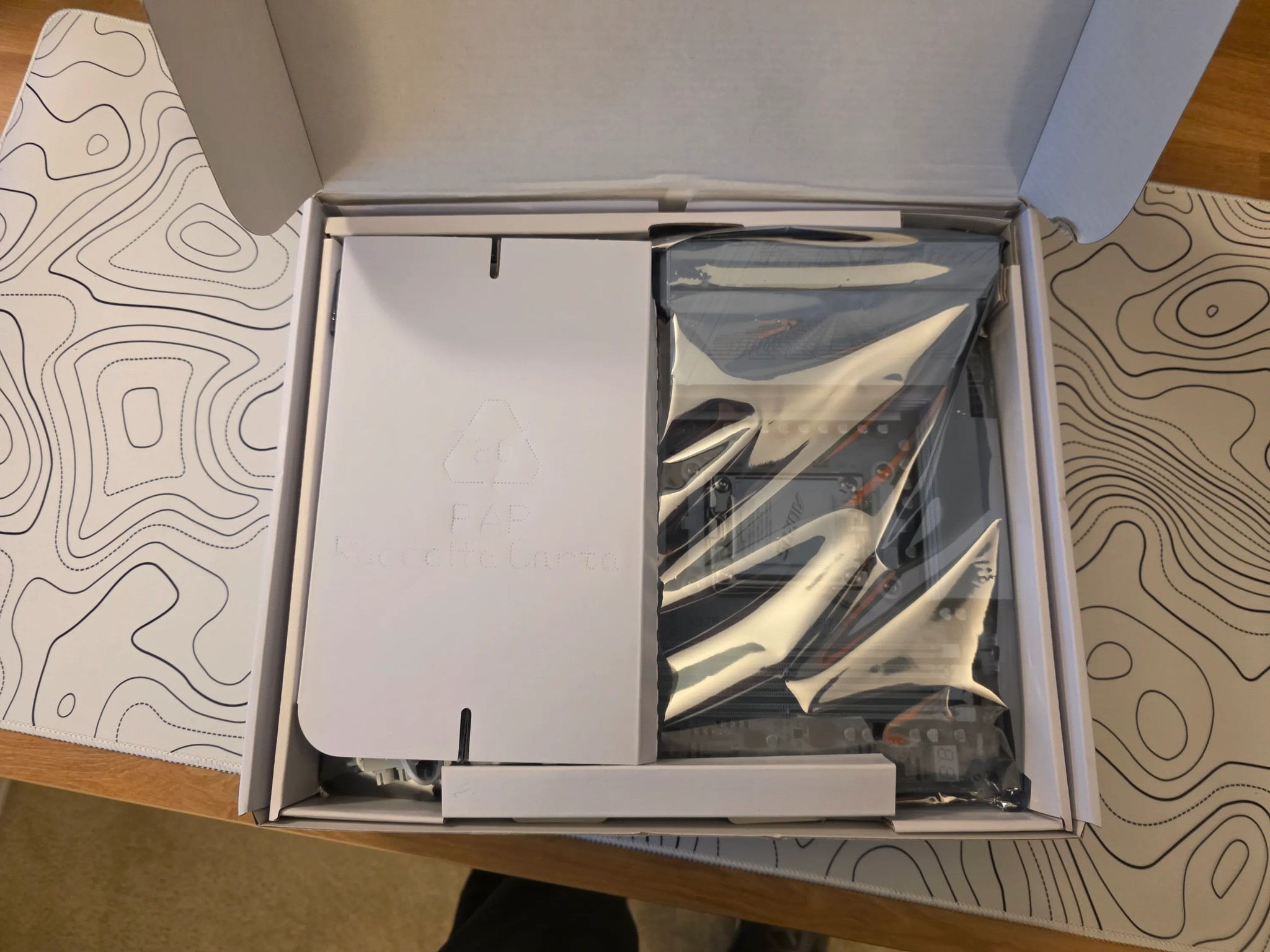

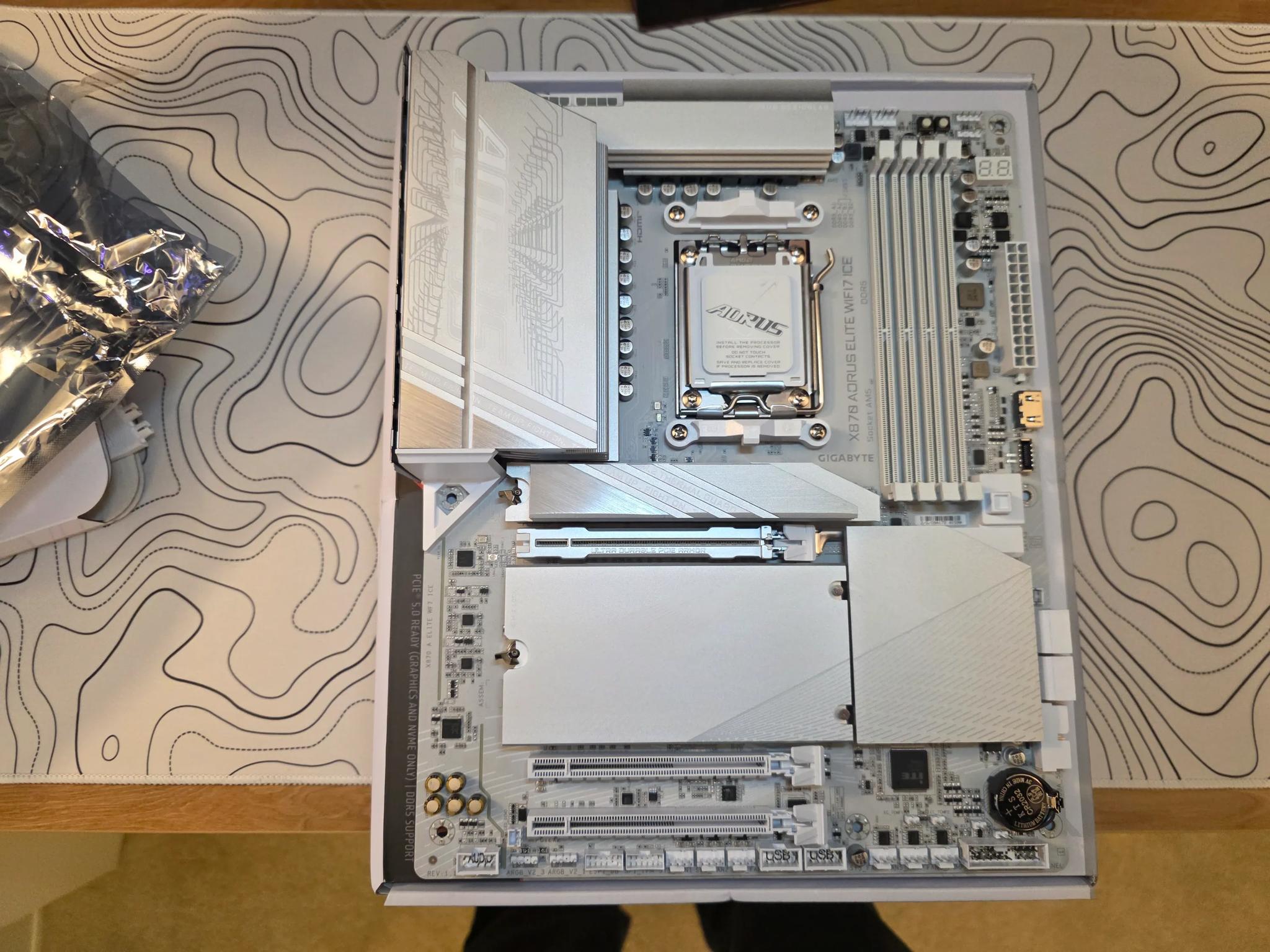

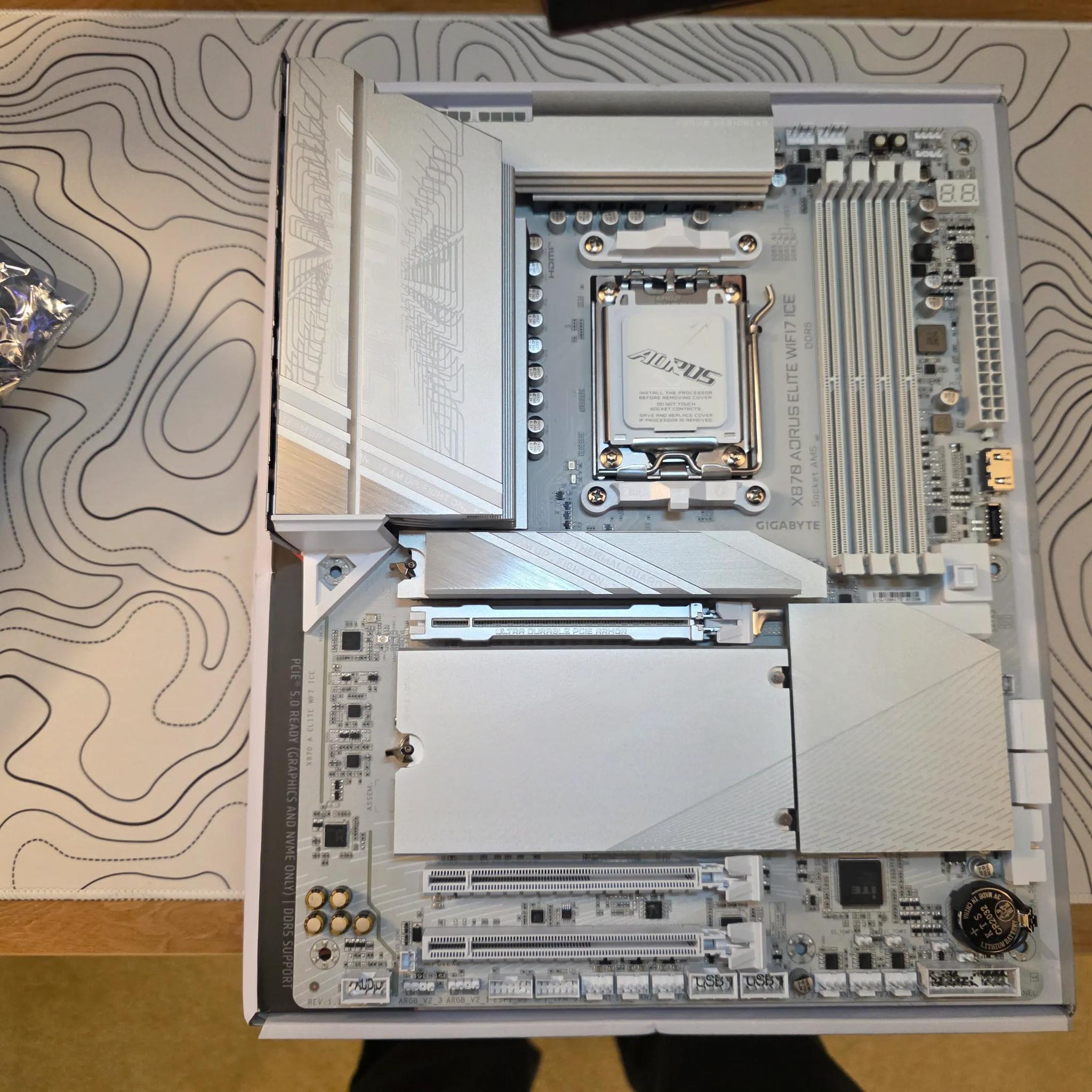

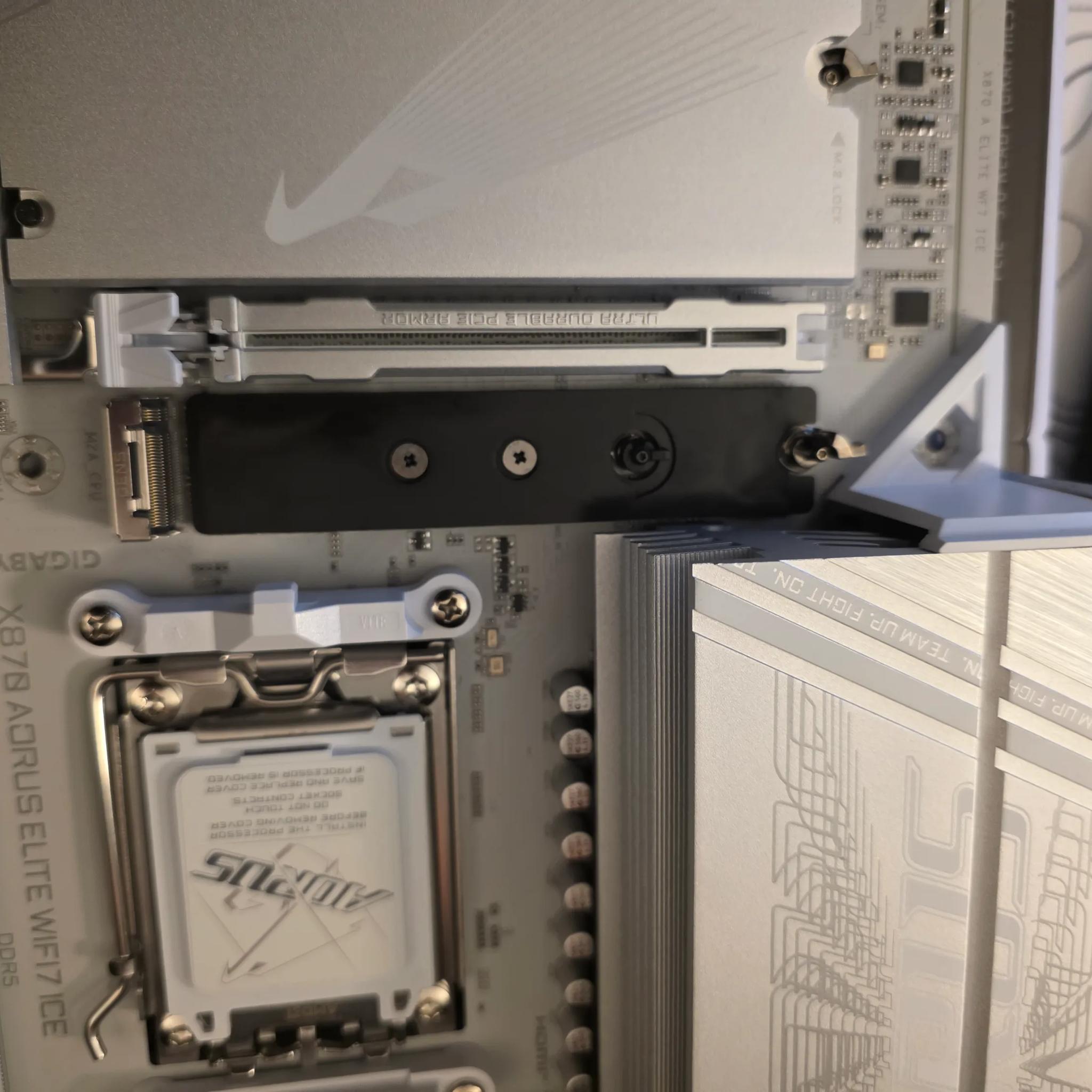

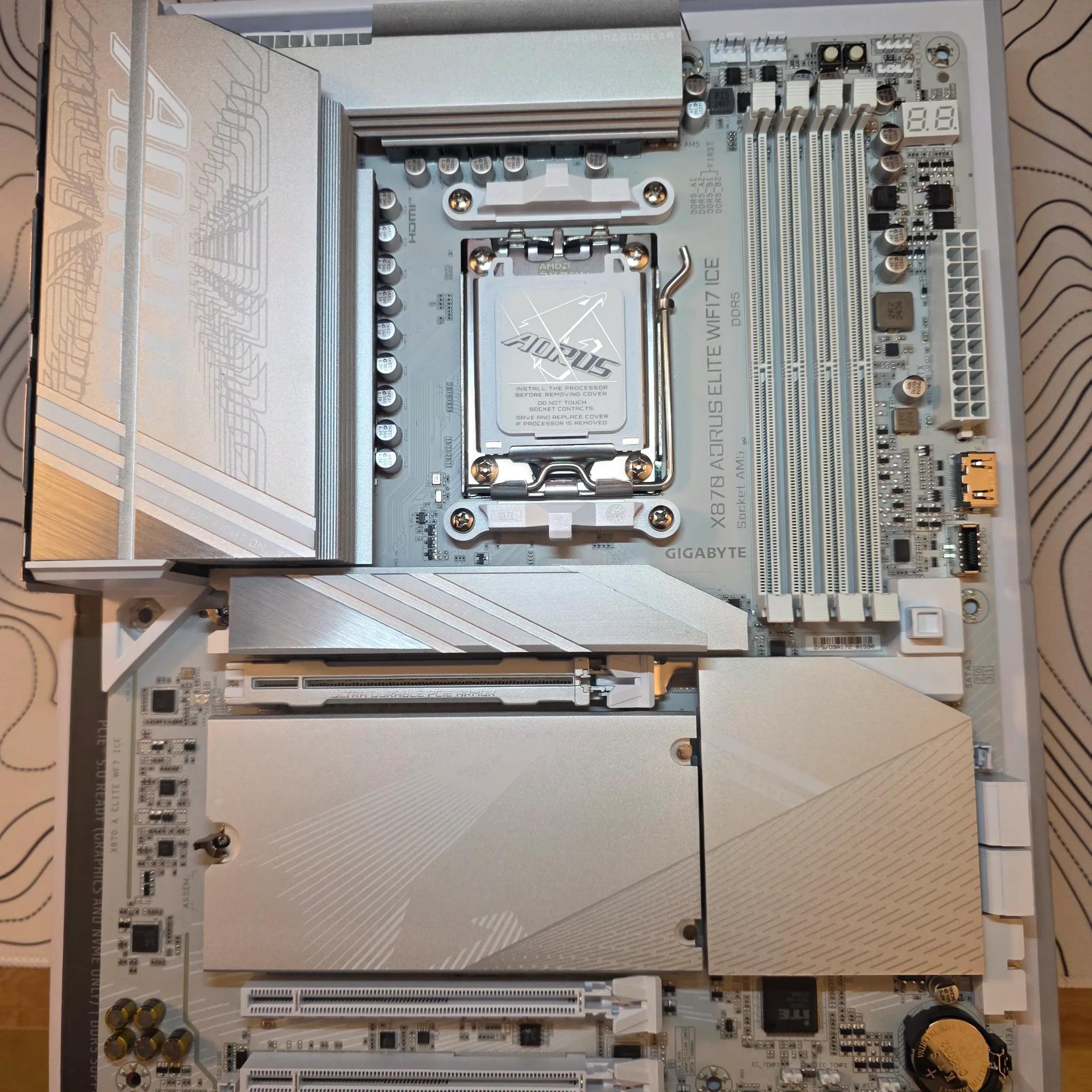

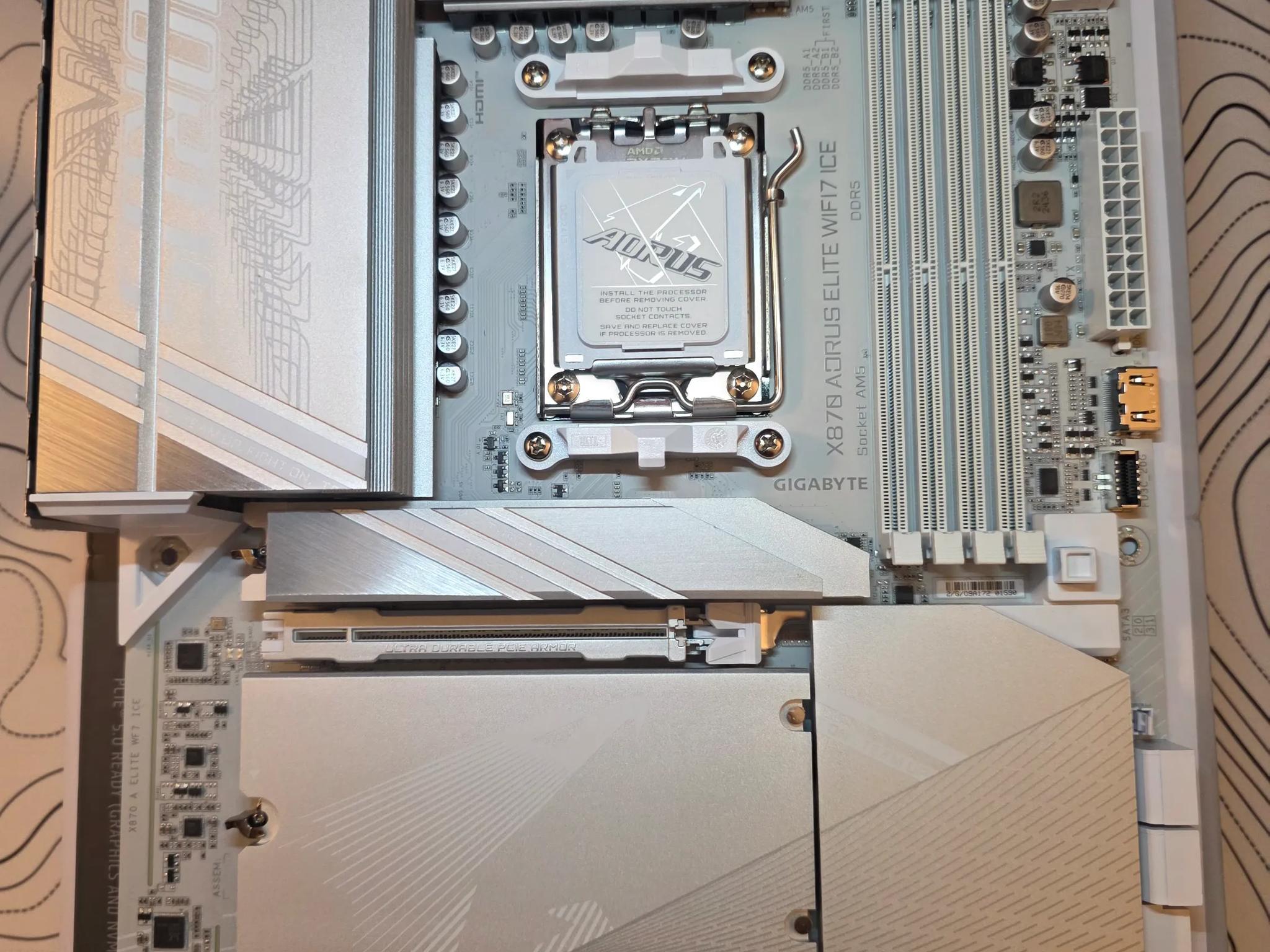

Original Purchase date: 2/2/2025 and pulled on 3/15/2025 for an upgrade to an X870E. Used no more than a few hours with an 9950X CPU. The BIOS was updated to the F4 March 13th Version. In Perfect, Like New Condition. Great board with plenty of USB conductivity on the IO (12 Ports), 4 M.2 slots, and 3 PCIe Slots! In addition this board has USB4 type C Display Port (2X) conductivity, and an optical SPDIF audio out!!

Product Information SKU 755413 Mfr Part# X870AORELWF7ICE UPC 889523045176

General Specifications Packaging Retail

Chipset Chipset AMD X870 BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability PnP 1.0a WfM 2.0 SM BIOS 2.7 ACPI 5.0 DMI 2.7

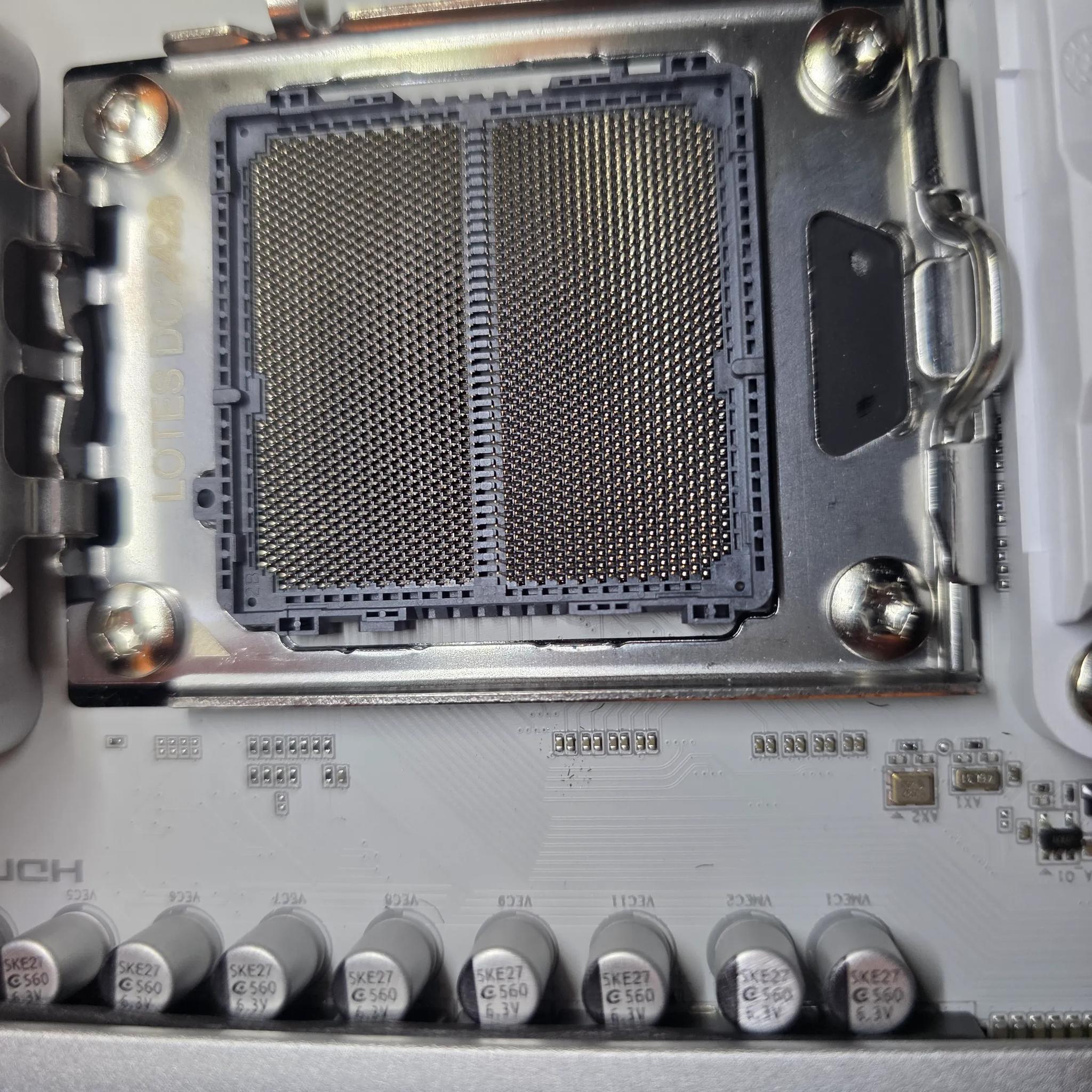

CPU Support AMD CPU Support Ryzen Socket Type AM5

Memory Specifications ECC Non-ECC; Non-Registered Memory Type DDR5-4800 DDR5-5200 DDR5-4400 Memory Speeds Supported 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MHz Memory Slots 4 x 288pin DIMM Memory Channel Support Dual Channel Max Memory Supported 256GB Maximum Memory Supported Per Slot 64GB

Video Specifications Onboard Graphic Chipset Requires CPU with Integrated Graphics

Storage Specifications M.2 Port Type 2280 22110 25110 2580 SATA Express 4 x M.2 Socket 3 M Key SATA 6Gb/s 4 RAID Support RAID 0 RAID 1 RAID 5 RAID 10

Audio Specifications Audio Chipset Realtek ALC1220 Audio Channels 7.1

Networking WiFi Support Onboard WiFi LAN Chipset Realtek 2.5Gb Ethernet LAN Speed 10/100/1000/2500Mbps Wireless LAN Chipset Realtek Wi-Fi 7 RTL8922AE Wireless Technology 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.4 WiFi 7 (802.11be)

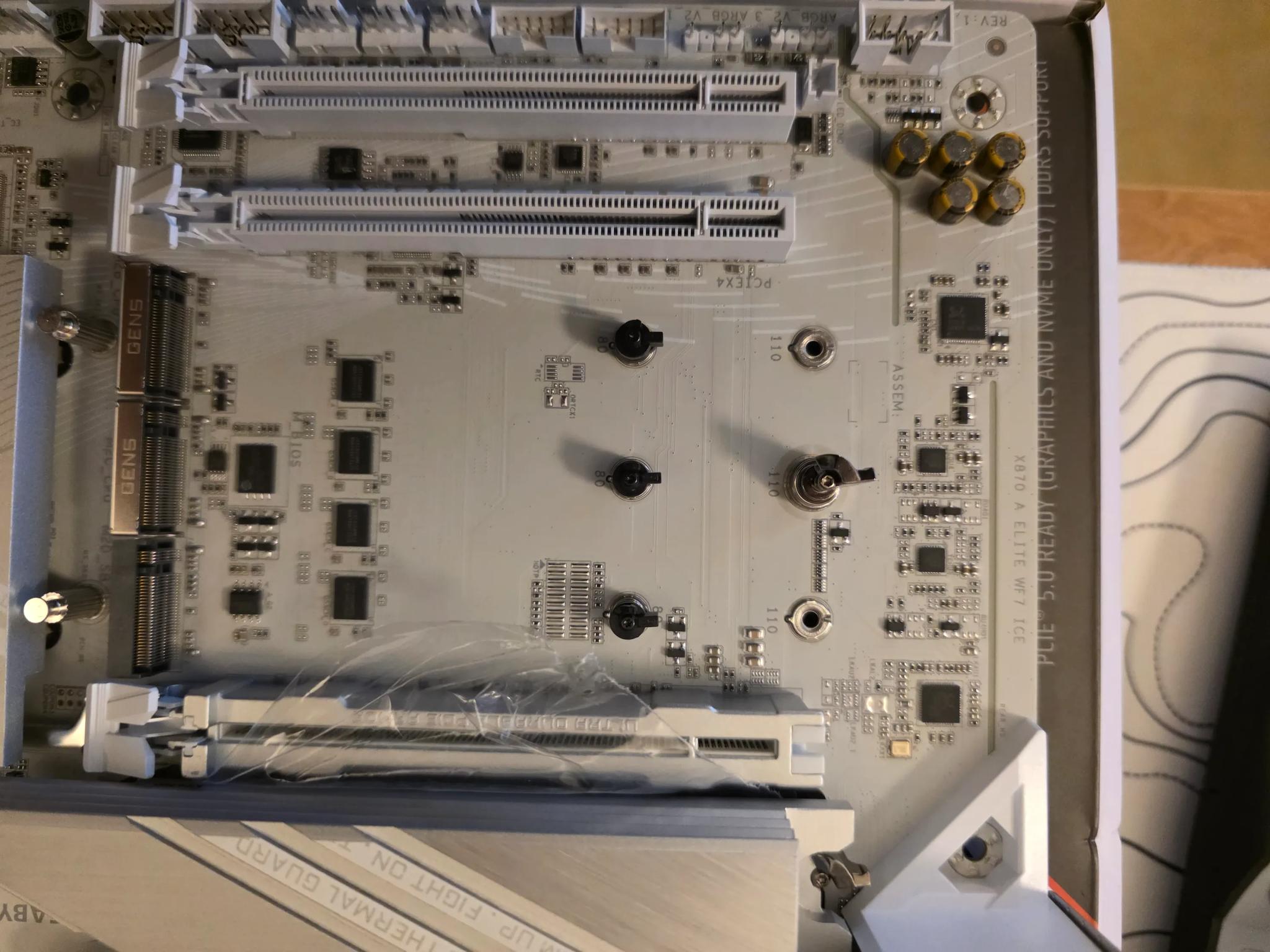

Expansion Slots PCI Express 4.0 x16 1 PCI Express 5.0 x16 1 PCI Express 3.0 x16 1

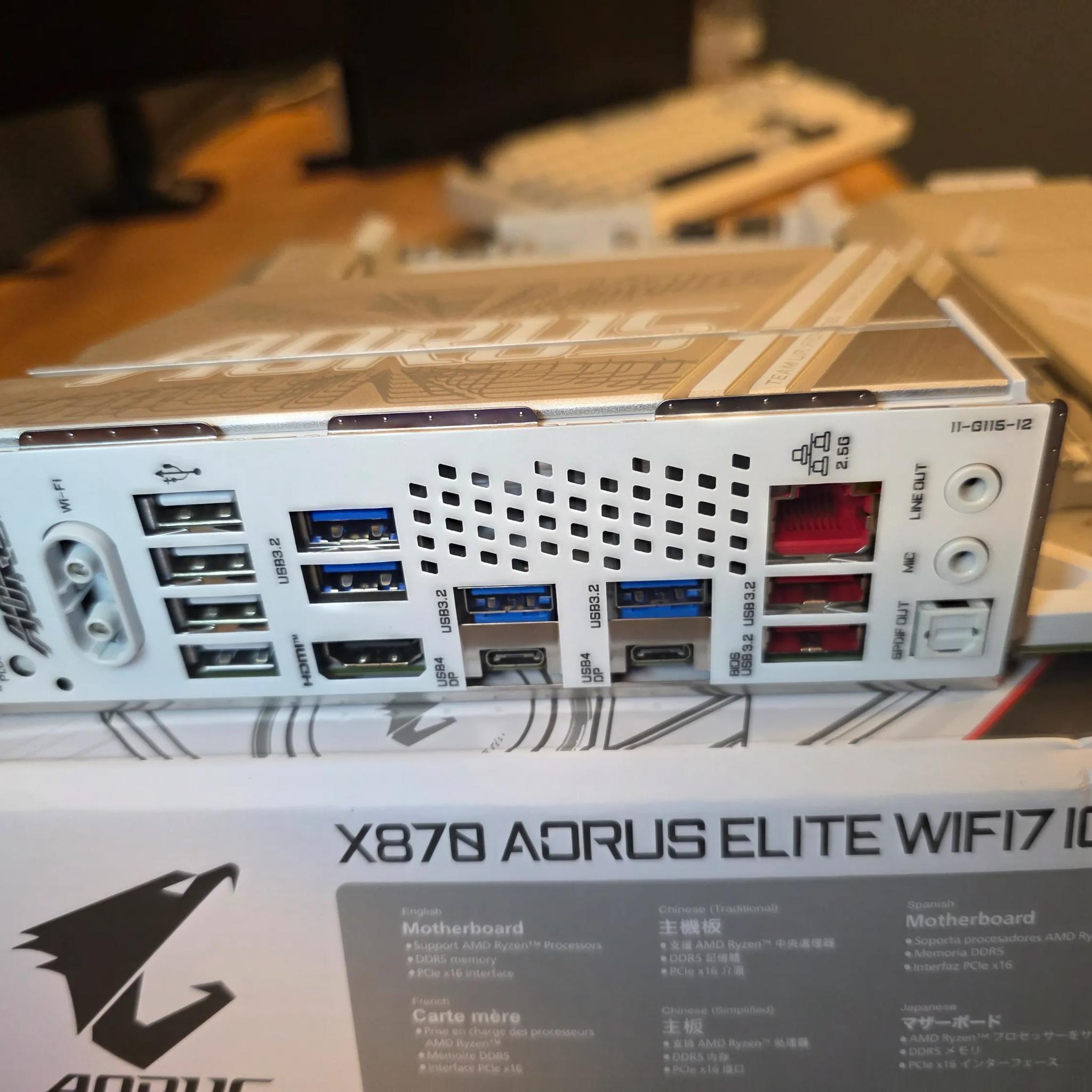

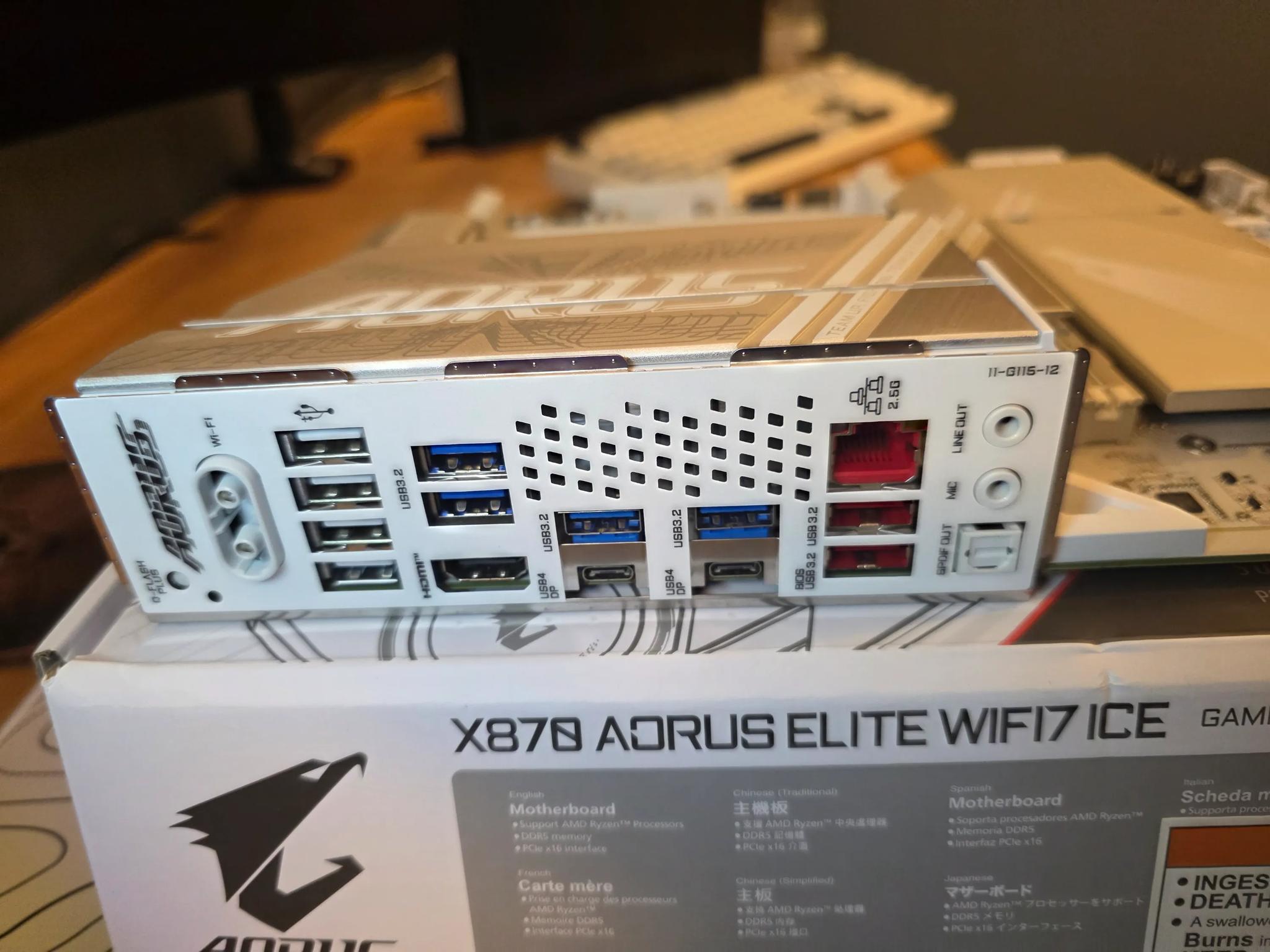

Back Panel Ports LAN Ports 1 x 10/100/1000/2500 RJ-45 LAN Audio Ports 1 x 3.5 mm Microphone 1 x 3.5 mm Line-Out Specialty Ports 2 x WiFi Antenna Ports USB 2.0 4 x USB 2.0 (Type-A) USB 3.1 4 x USB 3.2 (Gen 1 Type-A) 2 x USB 3.2 (Gen 2 Type-A) Video Connectors 1 x HDMI 2.1 2 x USB4 Type-C (DisplayPort) Digital Audio 1 x Optical

Internal I/O & Connectors Headers 1 x CPU Fan Header 4 x System Fan Header 2 x Water Pump Header USB 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2x2 Type-C Header (1 Port) Other I/O 1 x RGB LED connector

Power Power Connectors 1 x 24-pin ATX Connector 2 x 8-pin +12 V Connector ATX Connector 24-pin ATX Power Connector

Physical Specifications Depth 12.00 in. (305.00 mm) Width 9.61 in. (244.00 mm) Form Factor ATX
