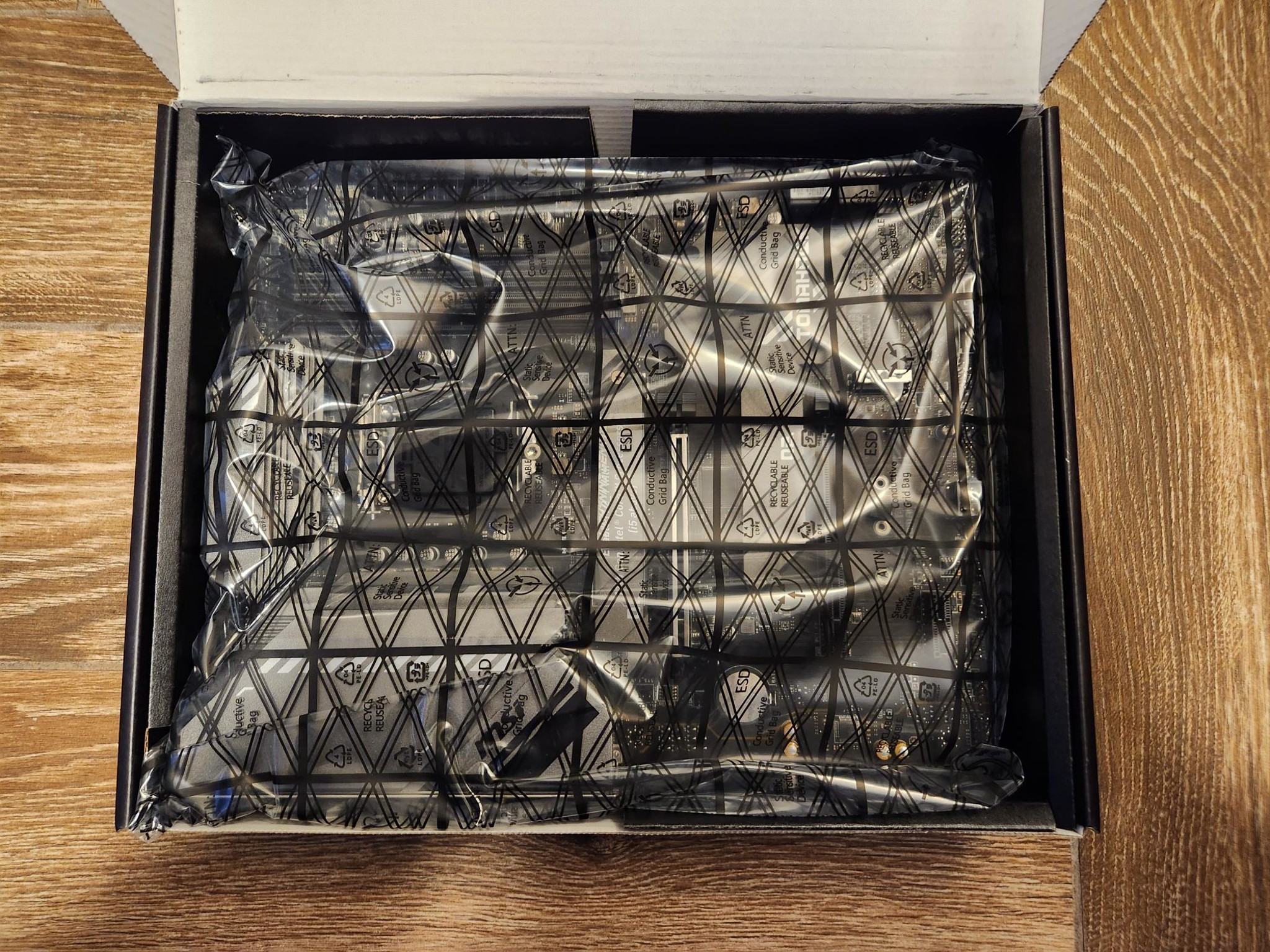

This motherboard was purchased new and never used. Box is open but motherboard still has the original seal (never opened) motherboard in static protected bag.

You can learn more about the motherboard on its MSI webpage

Processor See supported processors

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron®1.

• Processor socket LGA1200
• Intel® B560 Chipset

Memory See supported memory

• 4 x DDR4 memory slots, support up to 128GB
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency:
• 1DPC 1R Max speed up to 5066 MHz
• 1DPC 2R Max speed up to 4600+ MHz
• 2DPC 1R Max speed up to 4266+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots

• 2x PCIe x16 slots
• PCI_E1 (from CPU)
• Support up to PCIe 4.0 for 11th Gen Intel® CPU
• Support up to PCIe 3.0 for 10th Gen Intel ® CPU
• PCI_E2 (from B560 chipset)
• Support up to PCIe 3.0 x4
• 1x PCIe 3.0 x1 slot (from B560 chipset)

Onboard Graphics

• 1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
• Available only on processors featuring integrated graphics
• Graphics specifications may vary depending on the CPU installed.

Intel® B560 Chipset

• 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
• 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
• 4x USB 2.0 ports on the back panel
• 4x USB 2.0 ports available through the internal connectors

Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek® RTL8125B 2.5Gbps LAN controller

Wireless and Bluetooth

• Intel®Wi-Fi 6E AX210
• The Wireless module is pre-installed in the M.2 [Key-E] slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.22, FIPS, FISMA
• Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
• Bluetooth 5.2 will be ready in WIN10 21H1.

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 5x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector

LED Feature

• 1x EZ LED Control switch
• 2x 4-pin RGB LED connectors
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED
