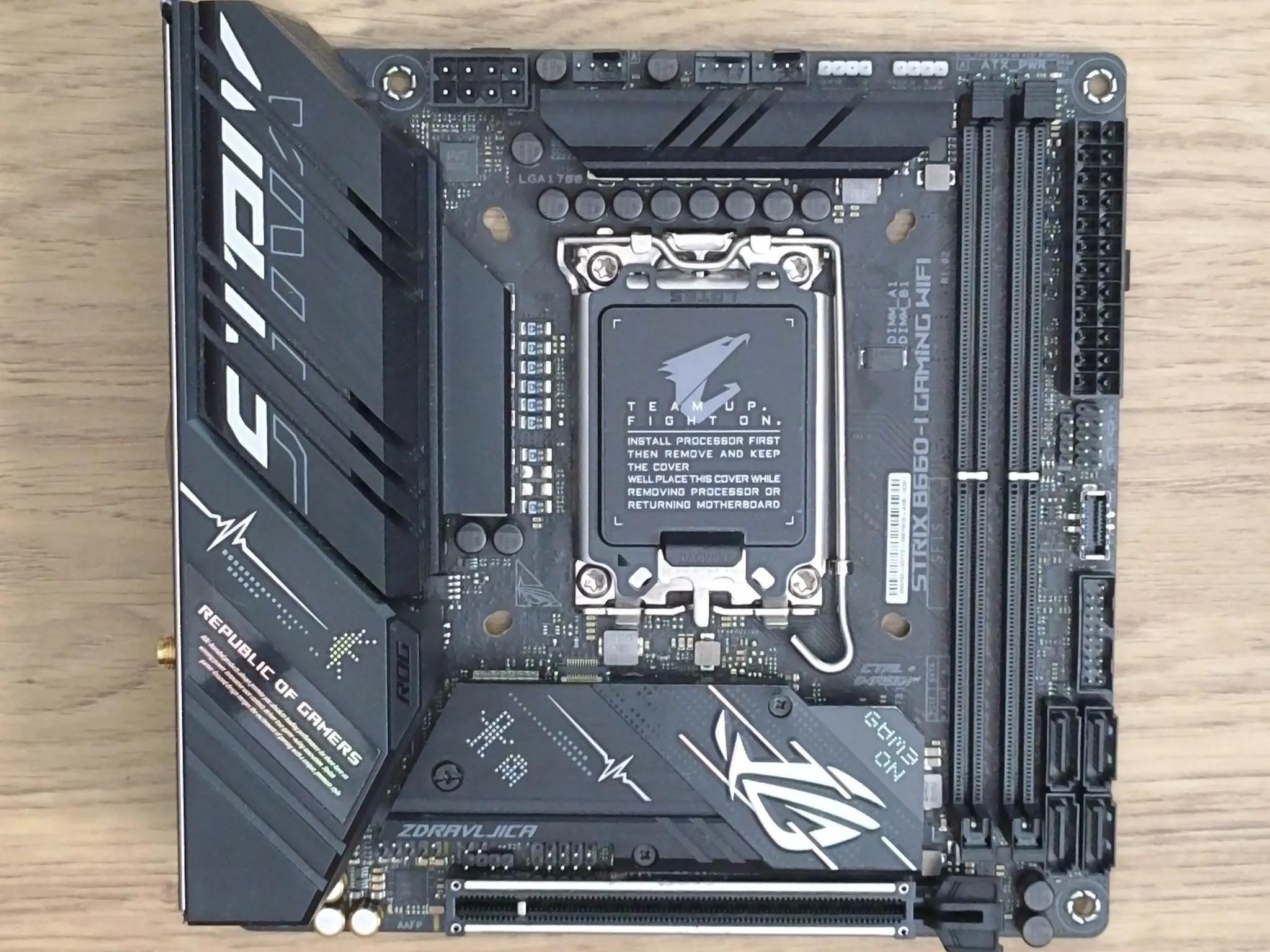

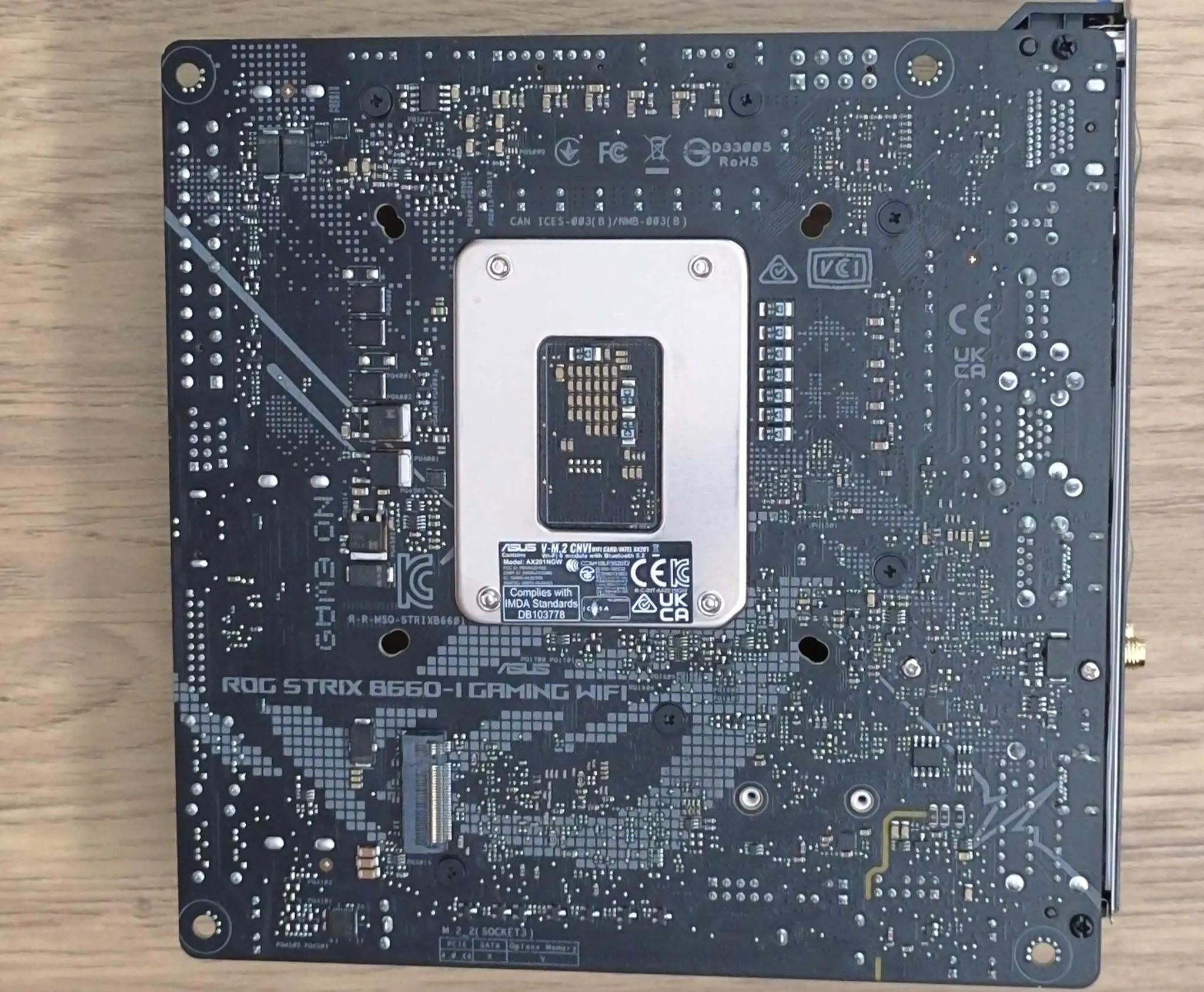

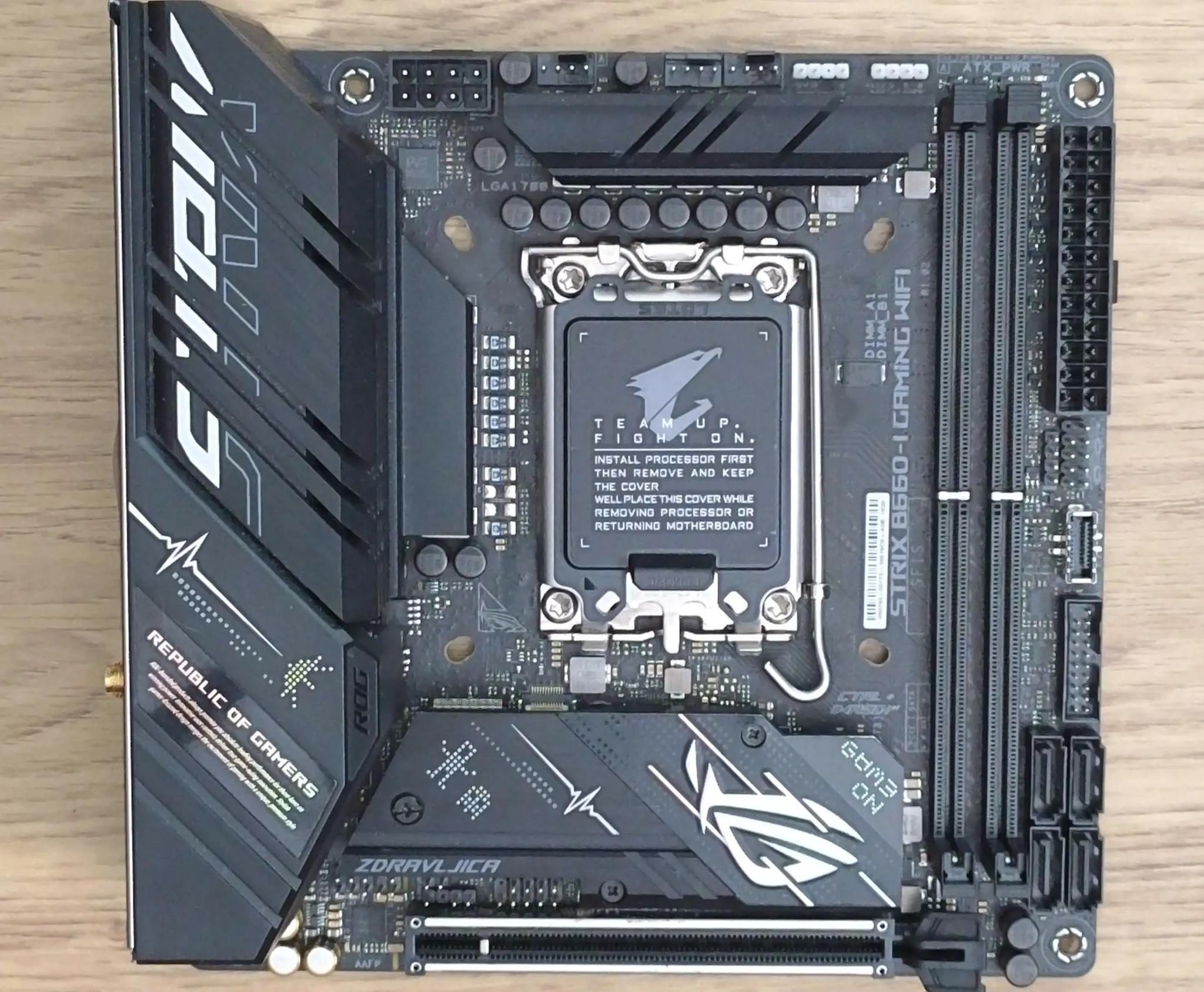

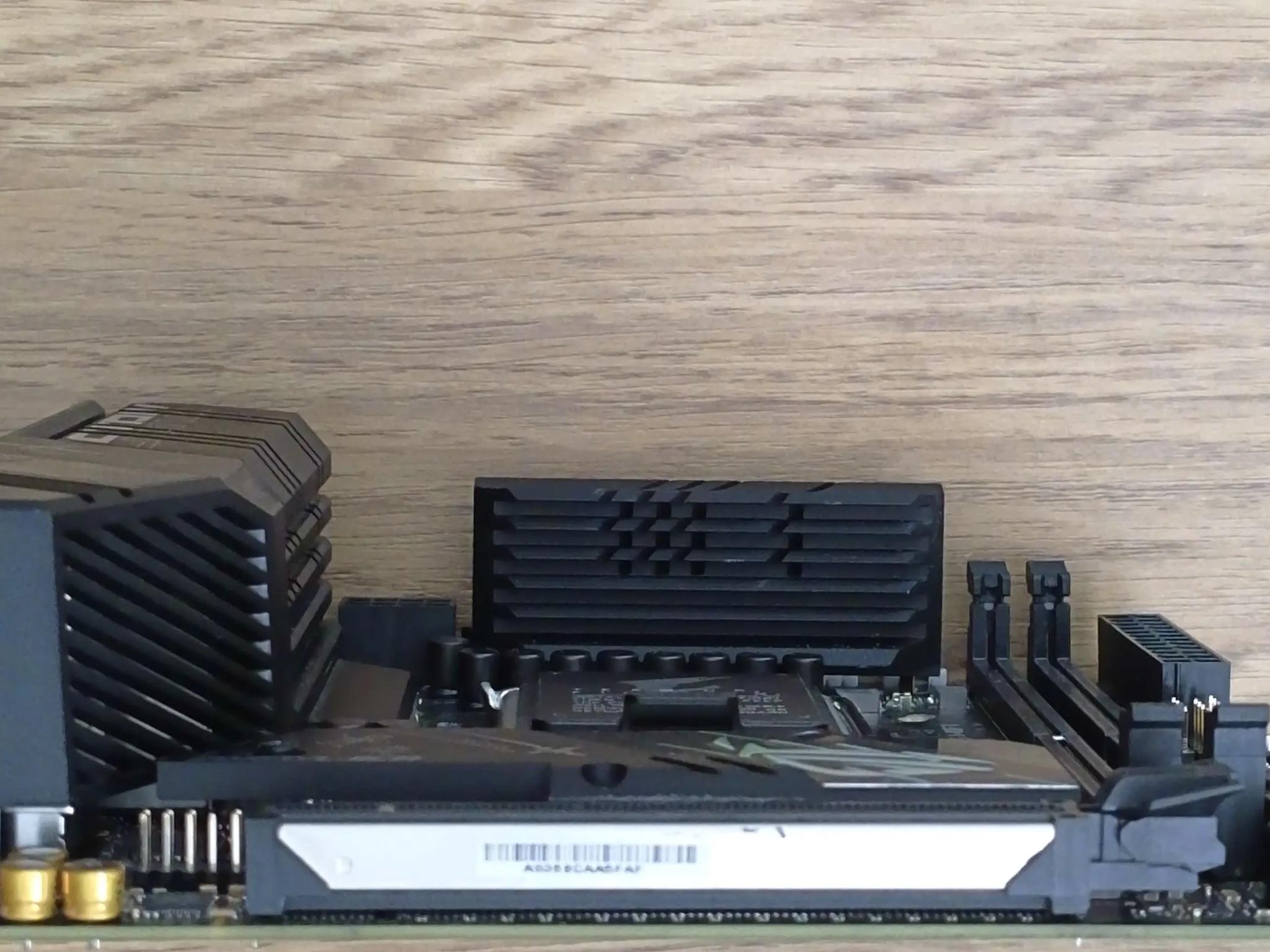

ASUS B660-I ROG Strix Gaming WiFi D5 Intel LGA 1700 Mini-ITX Motherboard
Overview & Specs
- Condition
- Used, Like New
- Usage
- < 1 year
Description from Seller
ASUS B660-I ROG Strix Gaming WiFi D5 Intel LGA 1700 Mini-ITX Motherboard ready for Intel 14th, 13th, 12th Gen in great condition

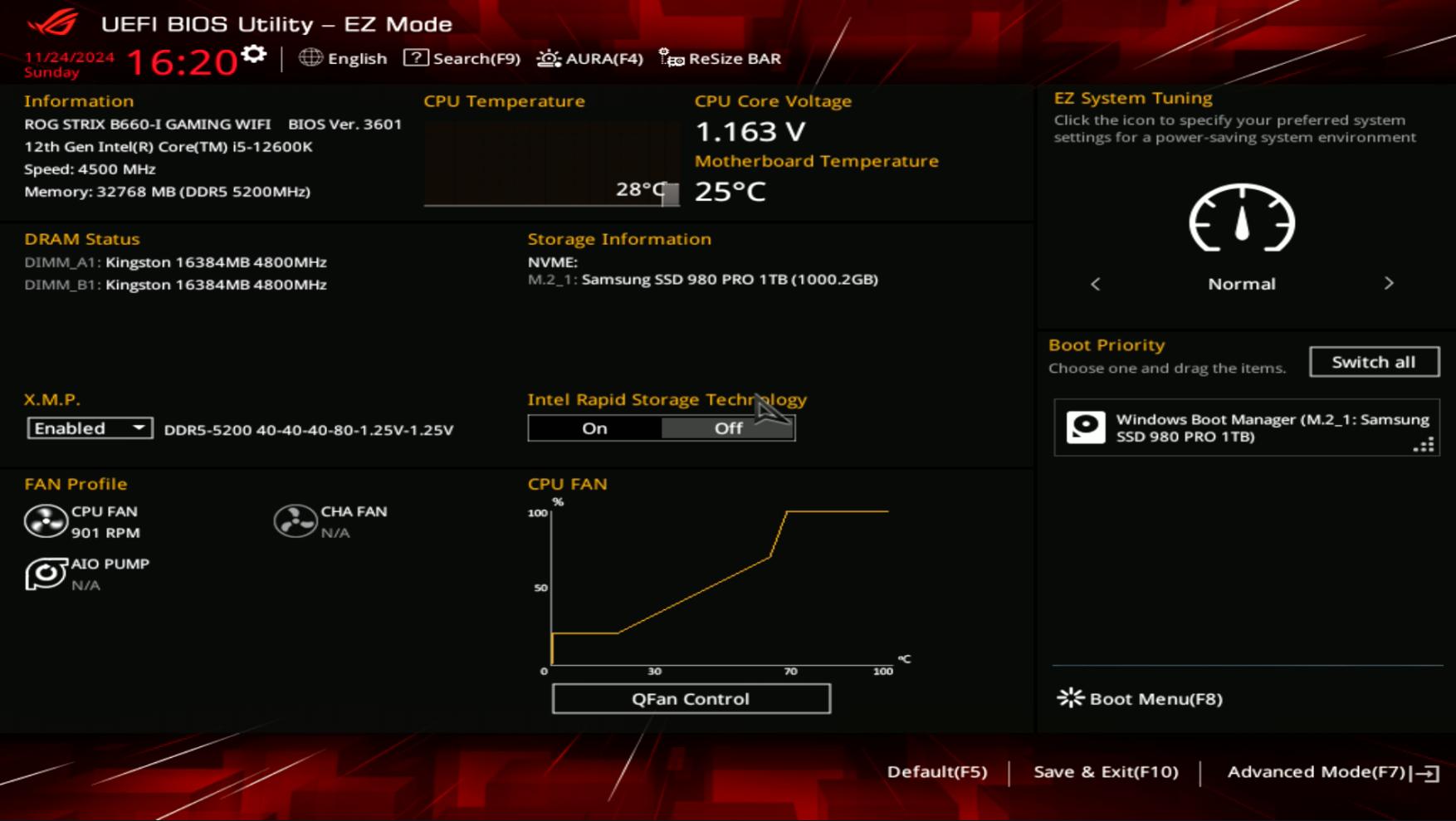

- The latest BIOS version installed: 3601

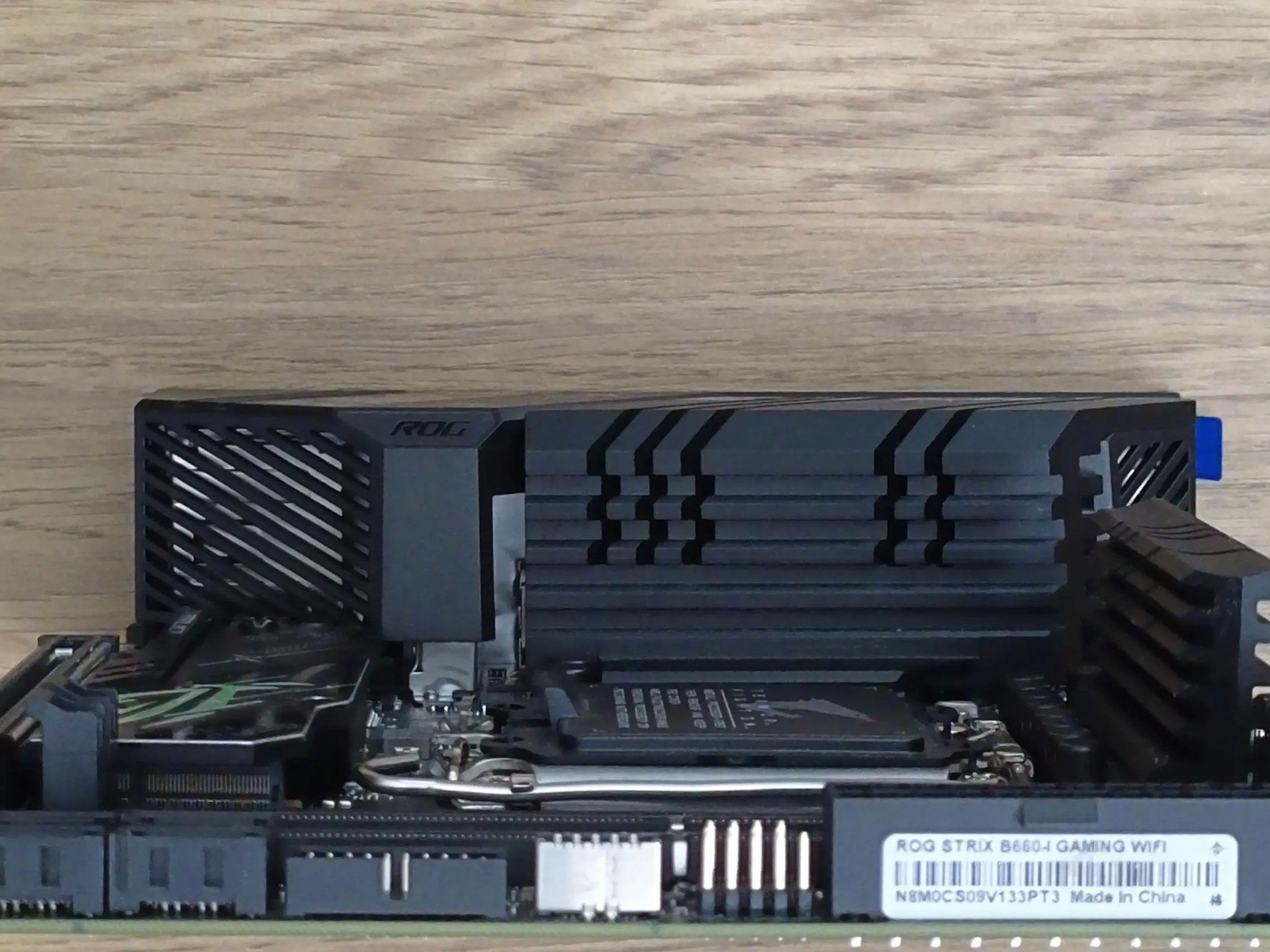

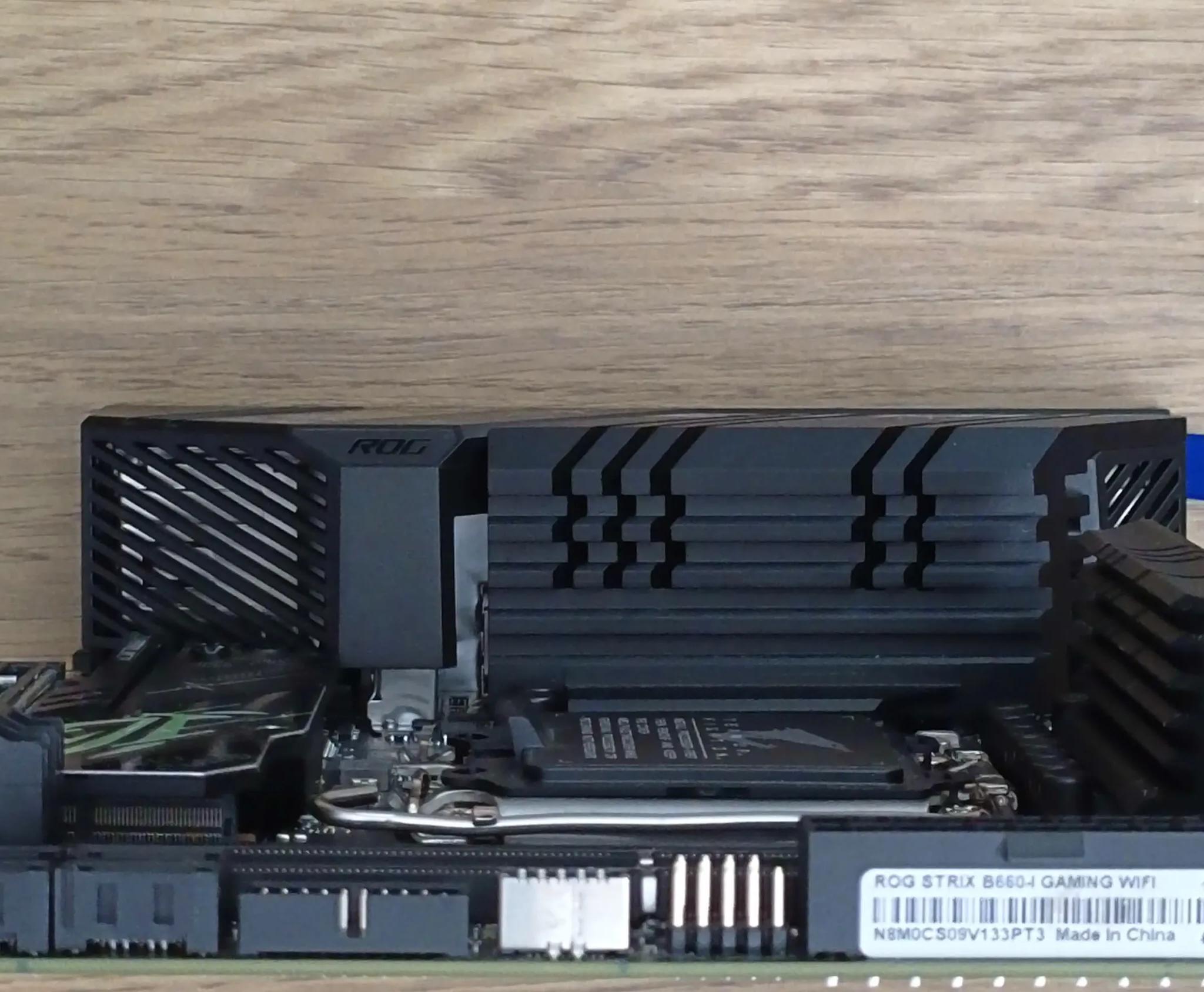

- Serial Number: N8M0CS09V133PT3
-
Mfr Part#: STXB660-IGMWIFI
-
UPC: 195553514965
-
Windows 11 Ready
-
Intel CPU Support: Core i7 Core i5 Core i3 Celeron Pentium Core i9
-

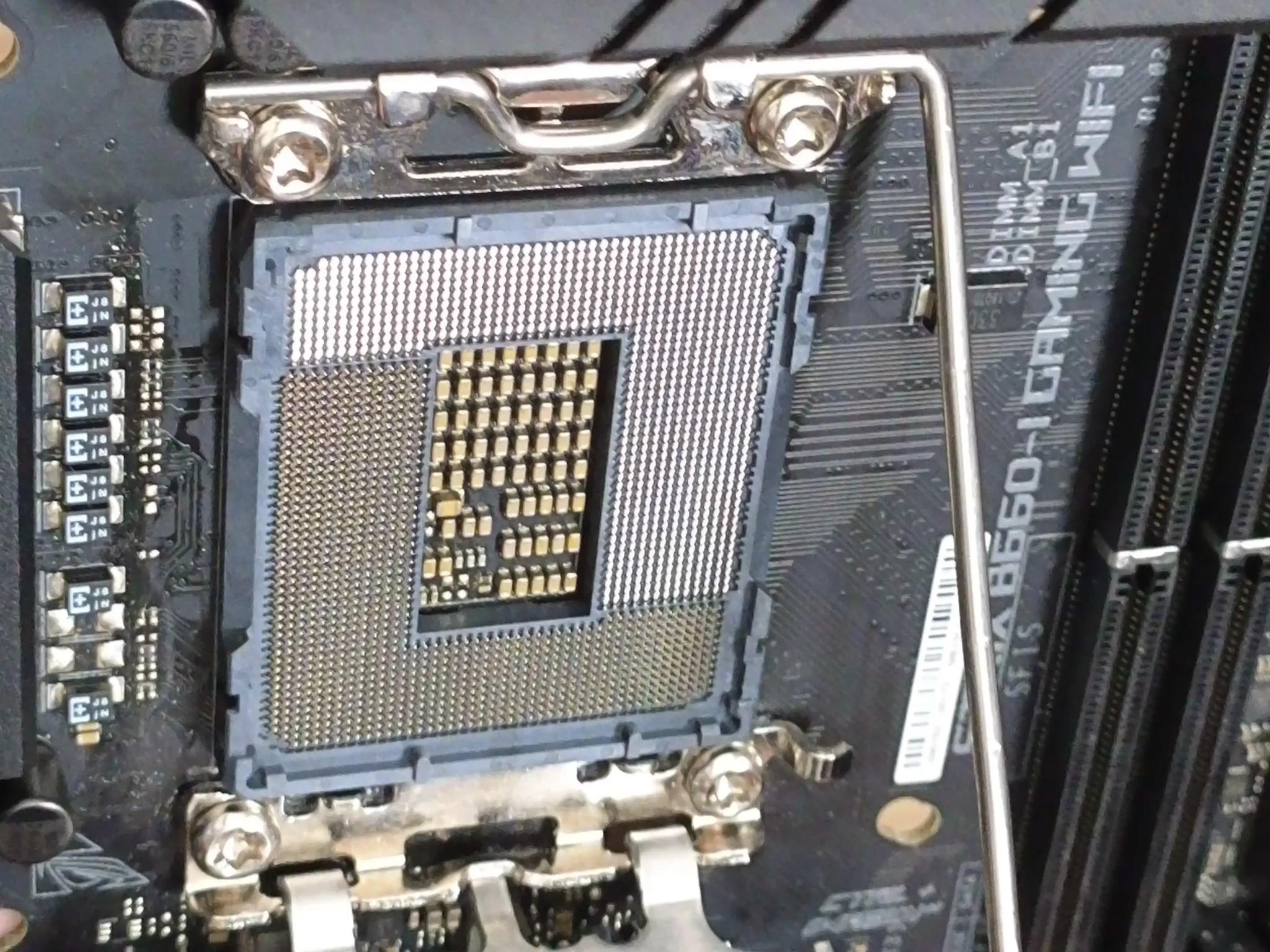

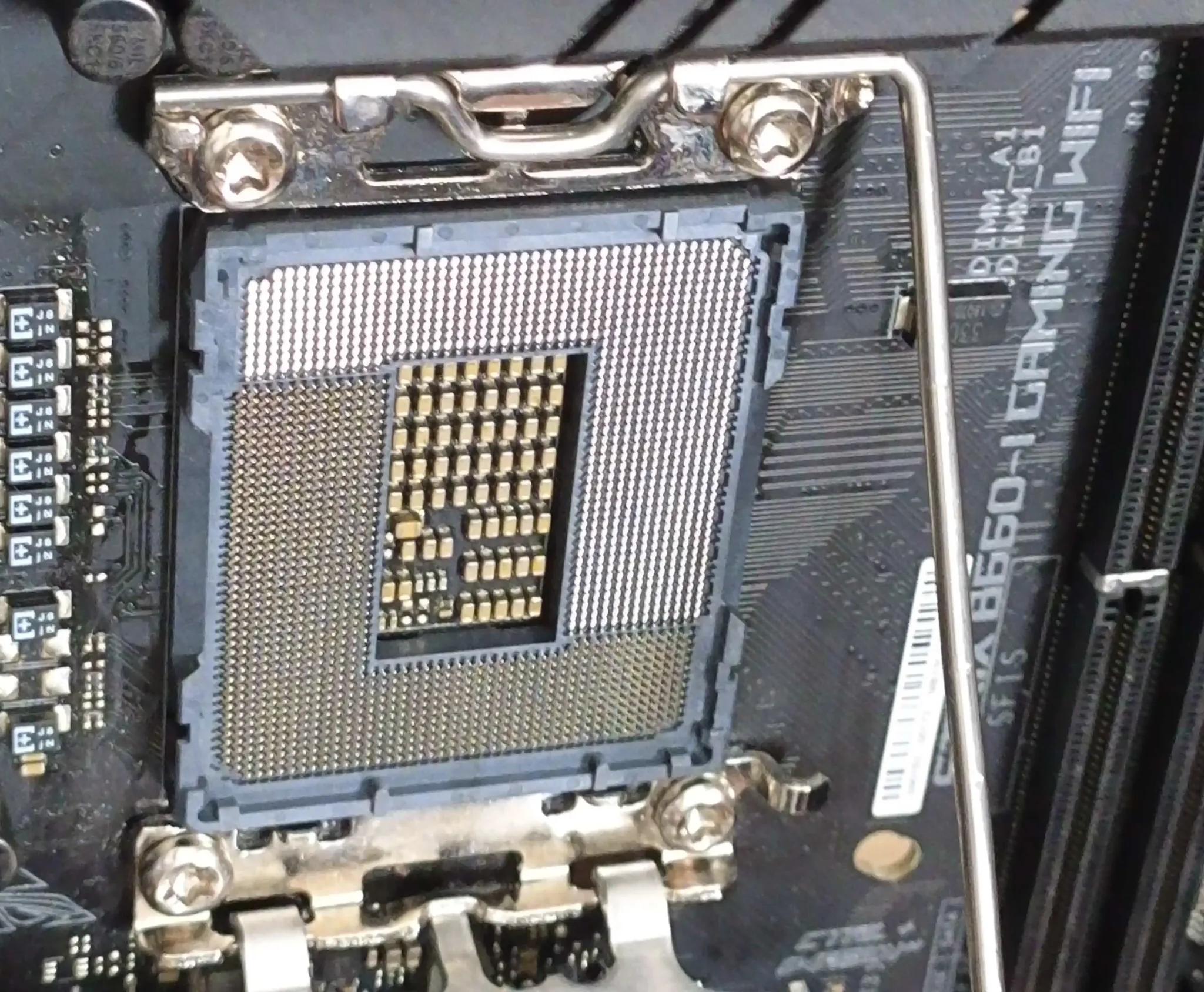

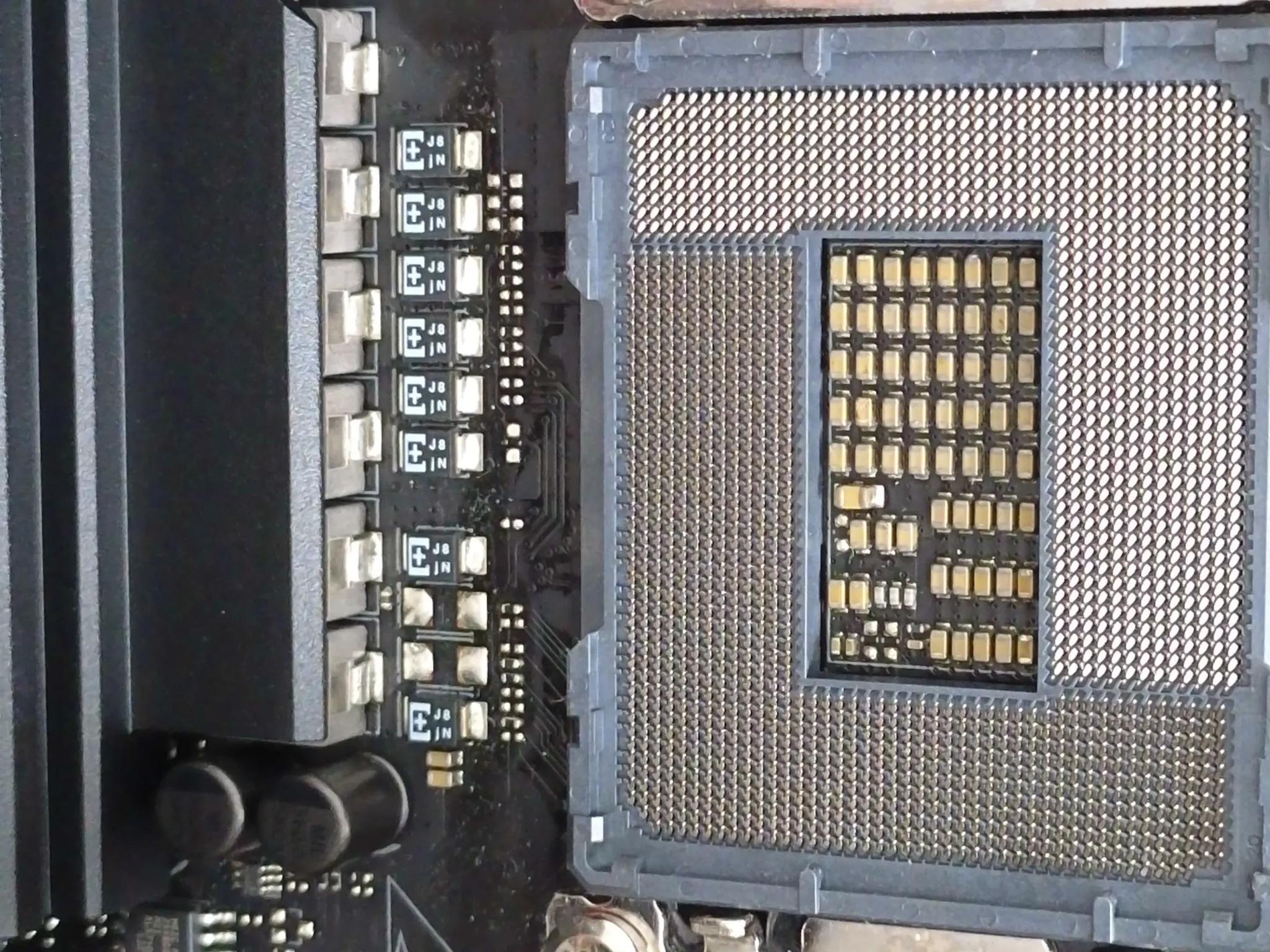

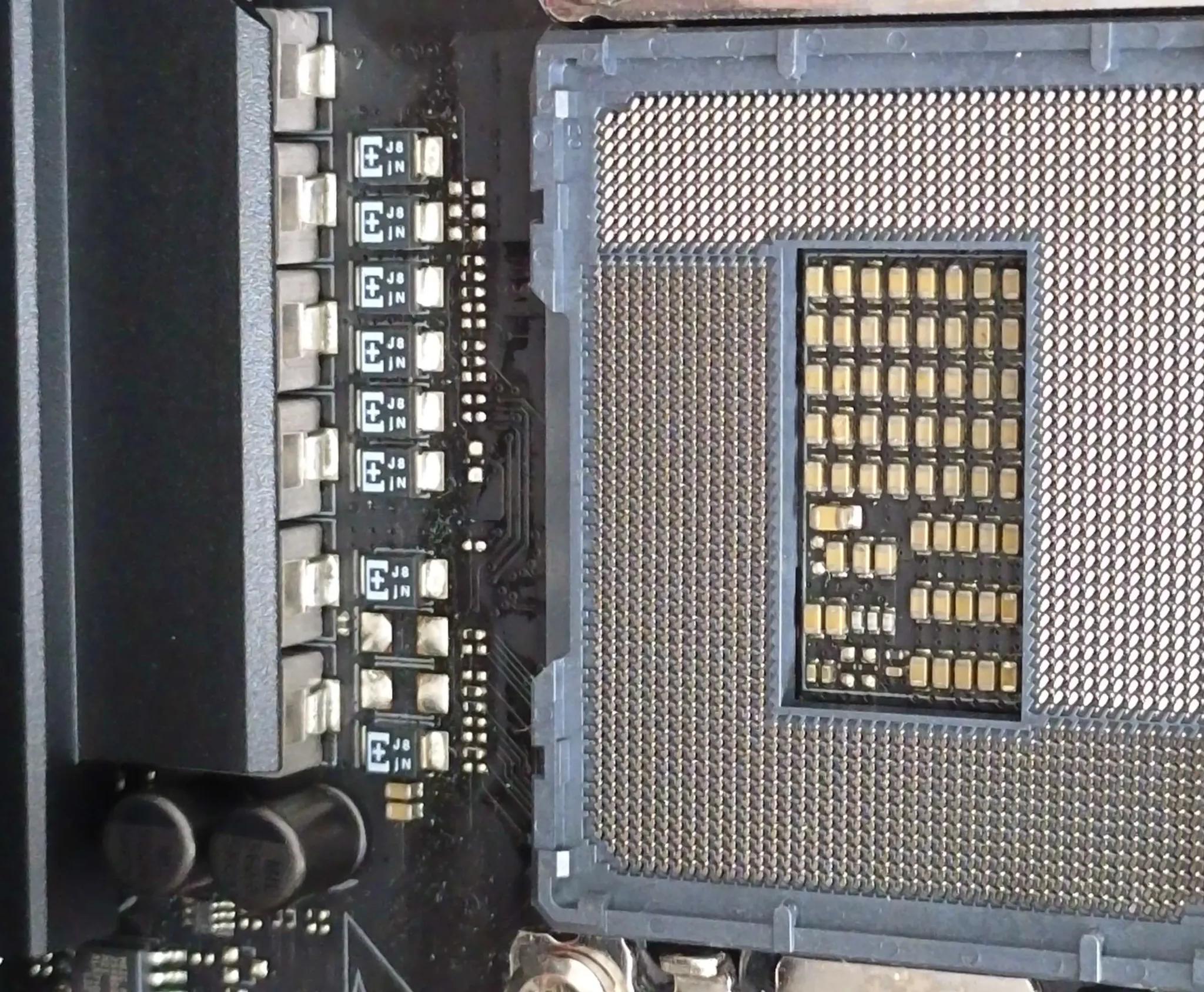

Socket Type: LGA 1700
MEMORY SPECIFICATIONS
-
Memory Type: DDR5-4800
-
Memory Speeds Supported: 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800
-
Memory Slots: 2 x 288pin DIMM
-
Memory Channel Support: Dual Channel
-
Max Memory Supported: 64GB
-
Maximum Memory Supported Per Slot: 32GB
-
Supported Memory Technologies: Non-ECC Memory Supported
VIDEO SPECIFICATIONS
- Onboard Graphic Chipset: Requires CPU with Integrated Graphics
STORAGE SPECIFICATIONS
-
M.2 Port Type: 2242 2260 2280
-
SATA Express: 2 x M.2 Socket 3 M Key
-
SATA 6Gb/s: 4
-
RAID Support: RAID 0 RAID 1 RAID 5 RAID 10
AUDIO SPECIFICATIONS
- Audio Chipset: ROG SupremeFX S1220A
- Audio Channels: 7.1
NETWORKING
- WiFi Support: Onboard WiFi
- LAN Chipset: Intel I225-V
- LAN Speed: 10/100/1000/2500Mbps
- Wireless LAN Chipset: 2x2 Wi-Fi 6
- Wireless Technology: 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2
EXPANSION SLOTS
- PCI Express 5.0 x16: 1

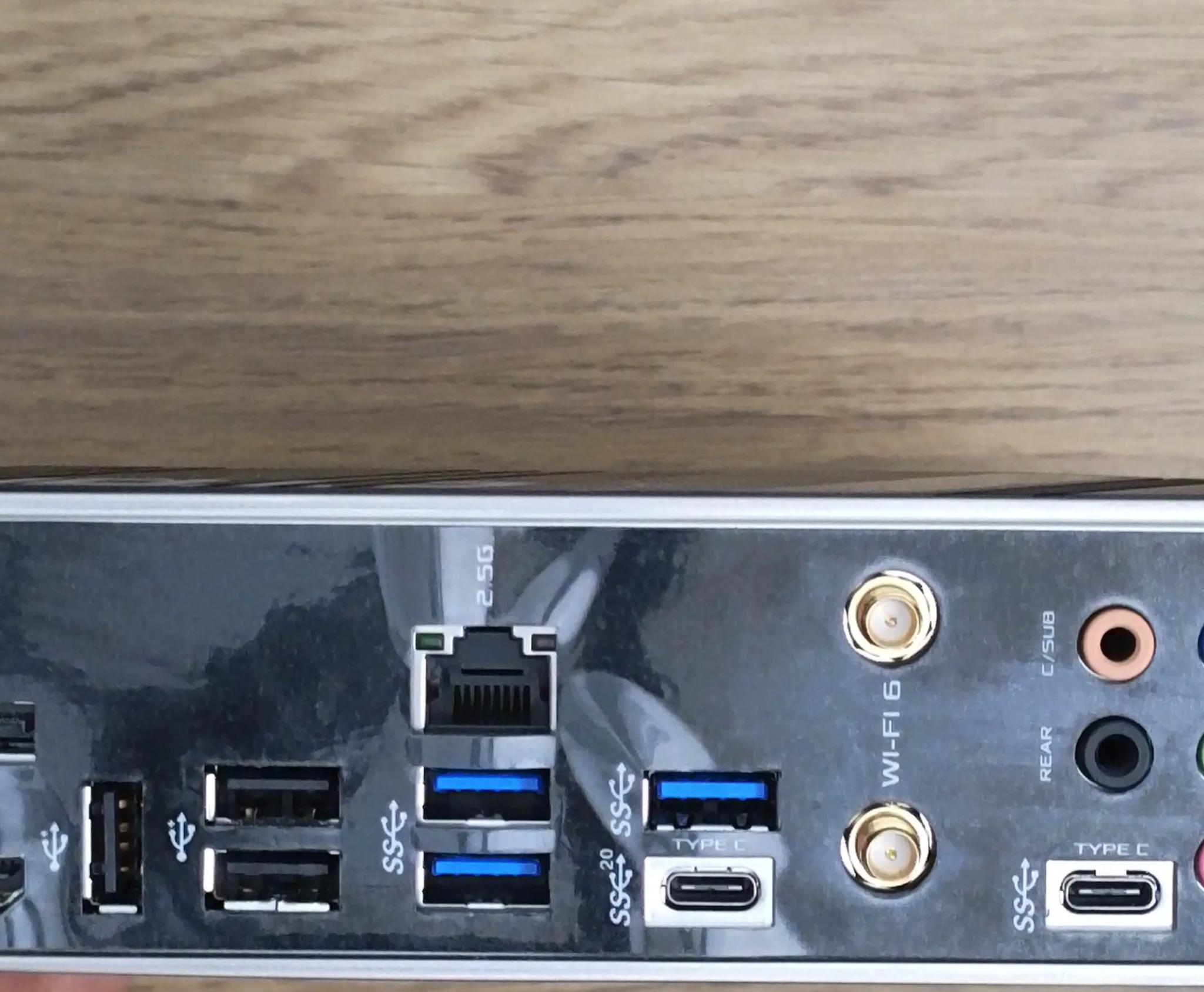

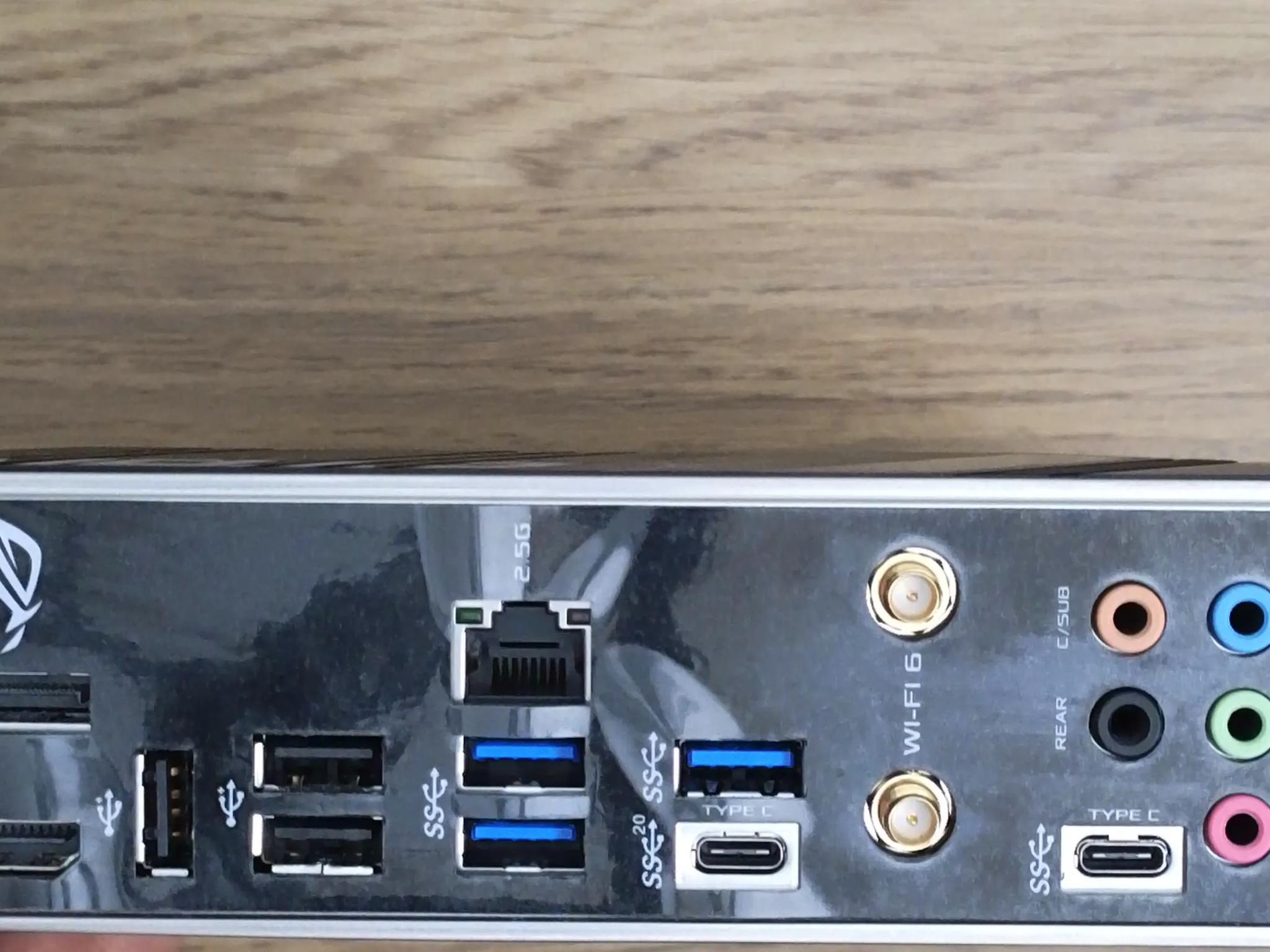

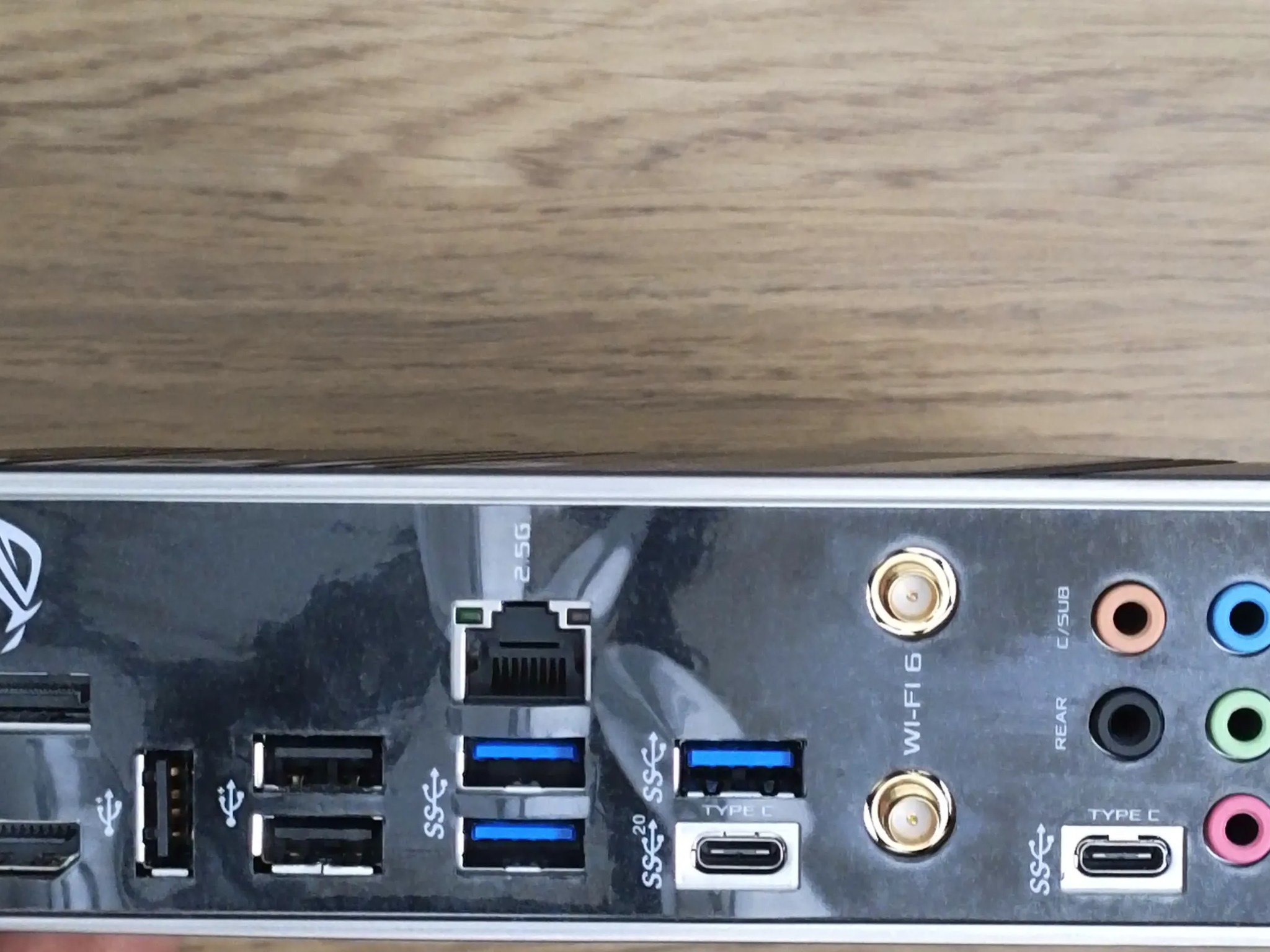

BACK PANEL PORTS
-
LAN Ports: 1 x 10/100/1000/2500 RJ-45 LAN
-
Audio Ports: 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out
-
Specialty Ports: 2 x WiFi Antenna Ports
-
USB 2.0: 3 x USB 2.0 (Type-A)
-
USB 3.1: 1 x USB 3.2 (Gen 2x2 Type-C) 3 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 1 Type-C)
-
Video Connectors 1 x HDMI 2.1 1 x DisplayPort 1.4
INTERNAL I/O & CONNECTORS
-
Headers: 1 x CPU Fan Header 1 x Water Pump Header 1 x System Fan Header
-
USB: 1 x USB 2.0 Header (2 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port)
POWER
- Power Connectors: 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector
ATX Connector: 24-pin ATX Power Connector
PHYSICAL SPECIFICATIONS
- Depth: 6.70 in. (170.00 mm)
- Width: 6.70 in. (170.00 mm)
- Form Factor: Mini-ITX

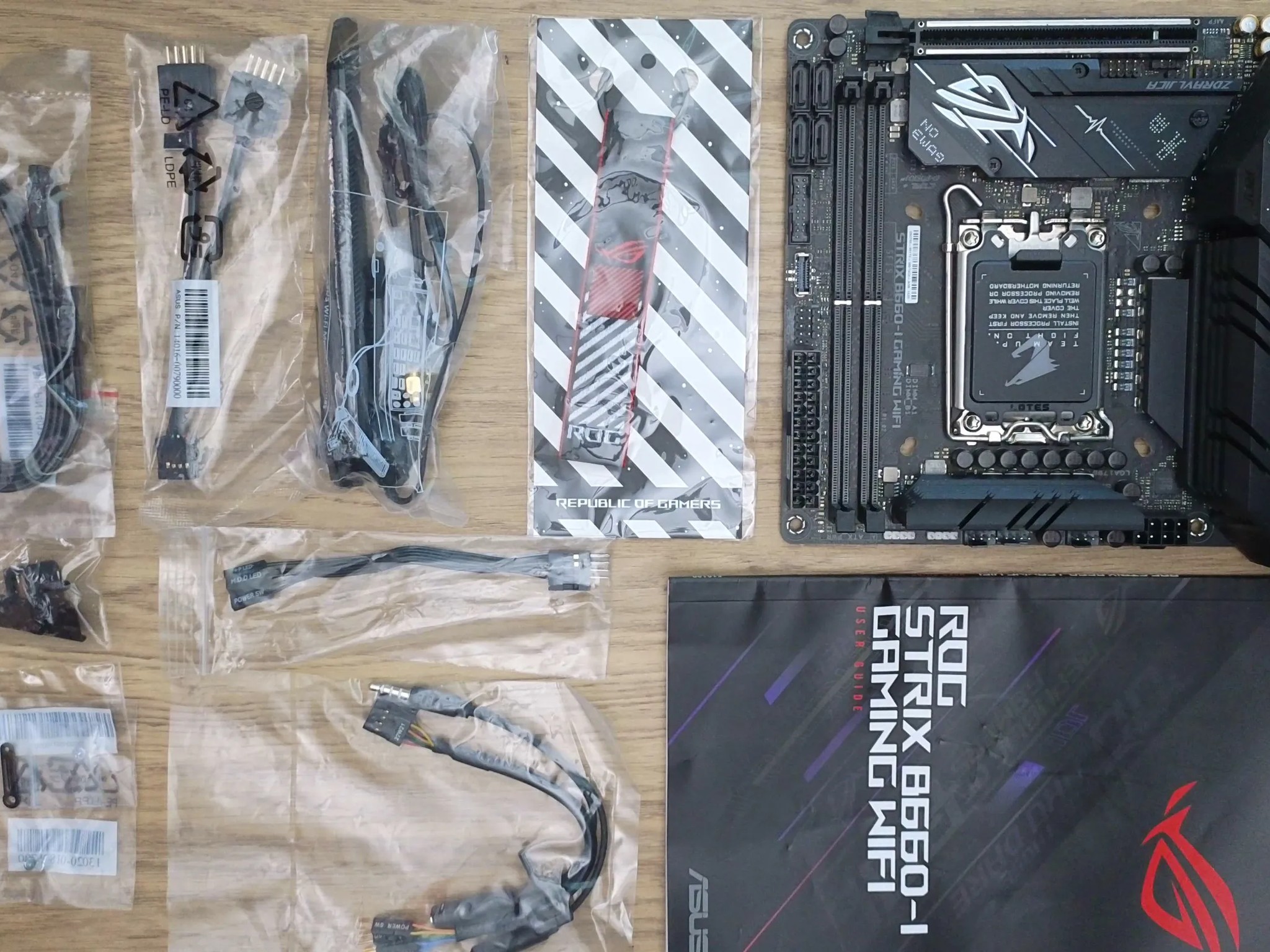

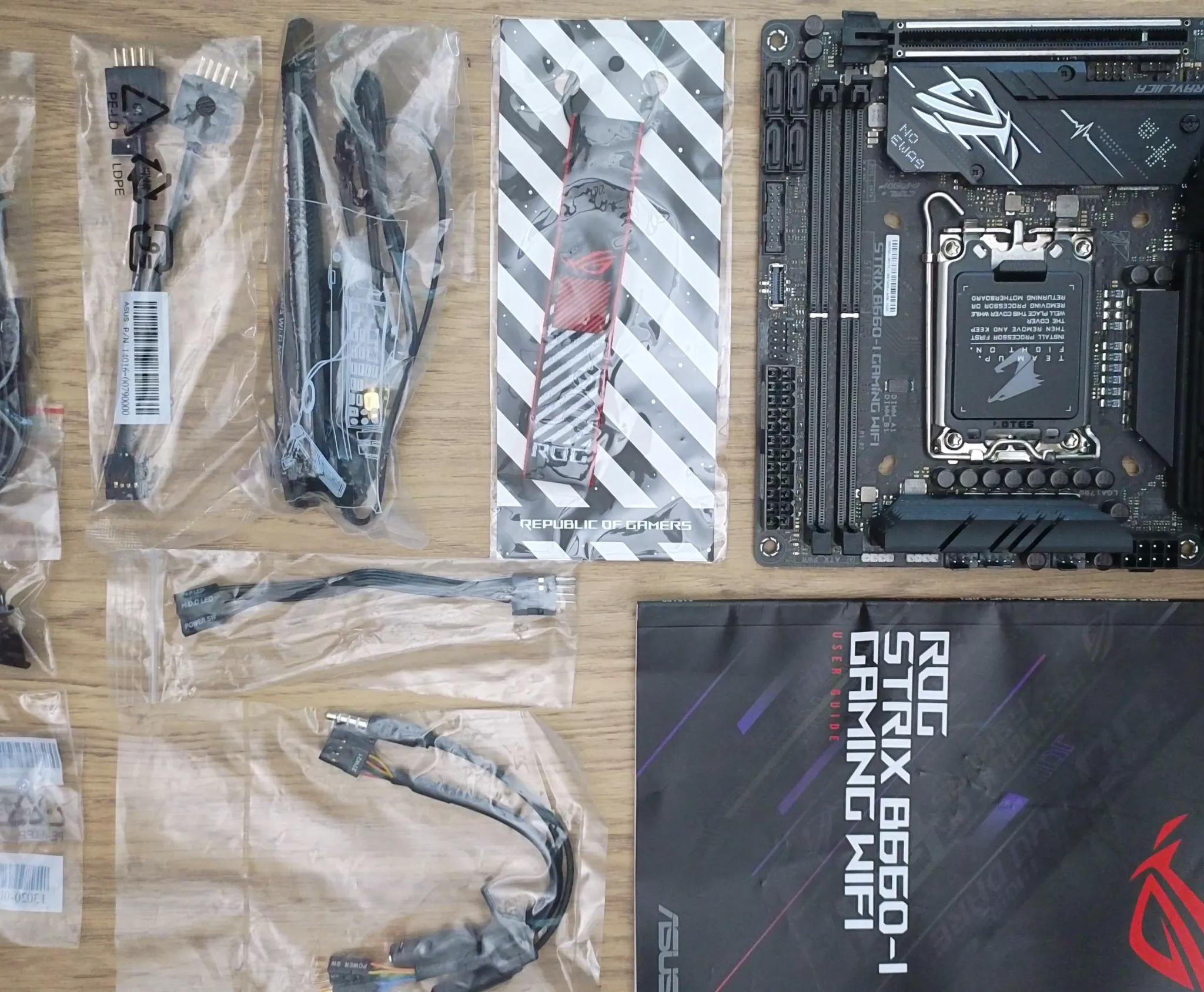

What's in the Box Motherboard, SATA Cables, Panel Cable, Antennas, M.2 Screws, M.2 Bracket, ROG Key Chain, Guide
Specifications
Specifications
- Brand
- Asus
- Form Factor
- Mini-ITX
- CPU Brand
- Intel
- CPU Socket
- LGA 1700
- Networking
- Ethernet and Wi-Fi
