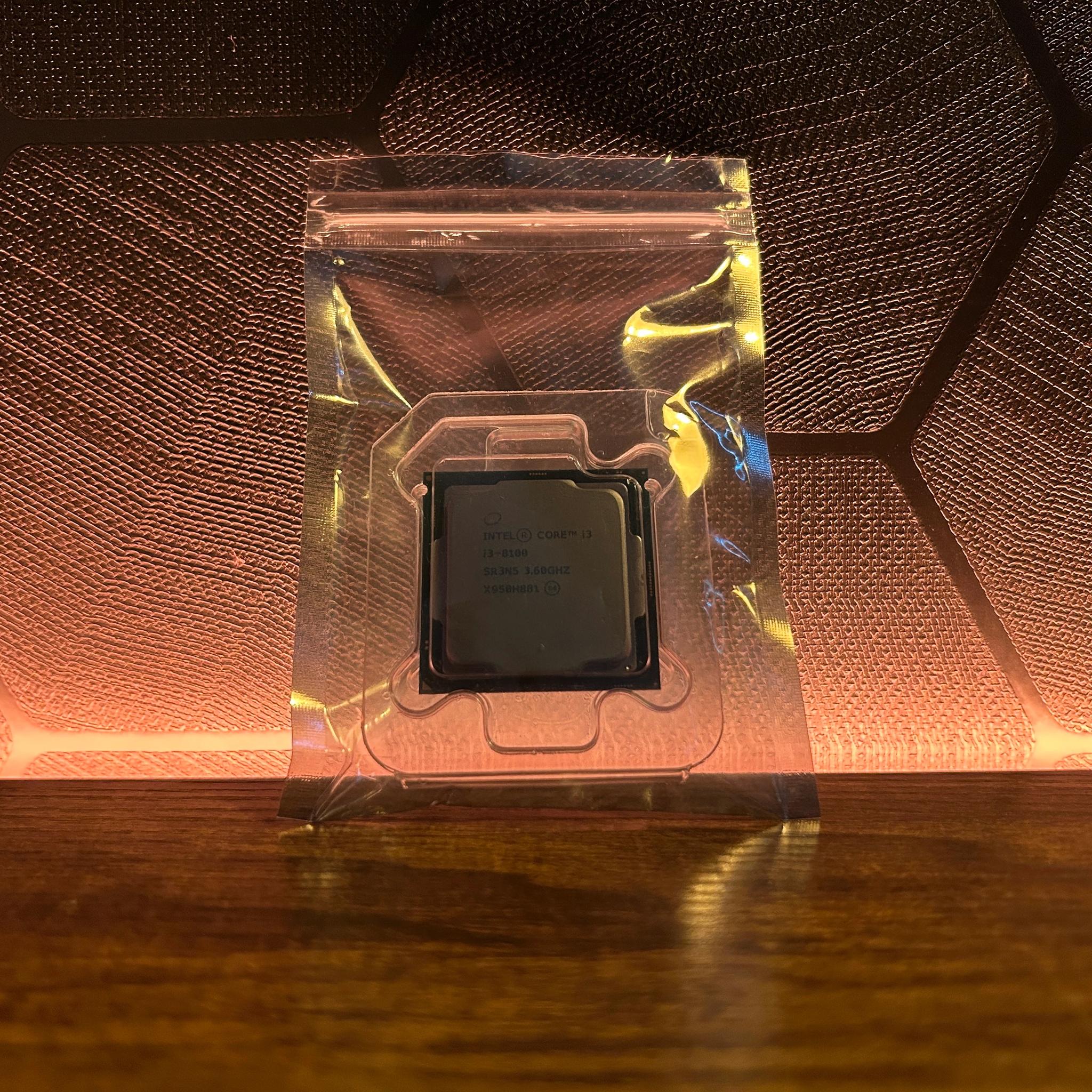

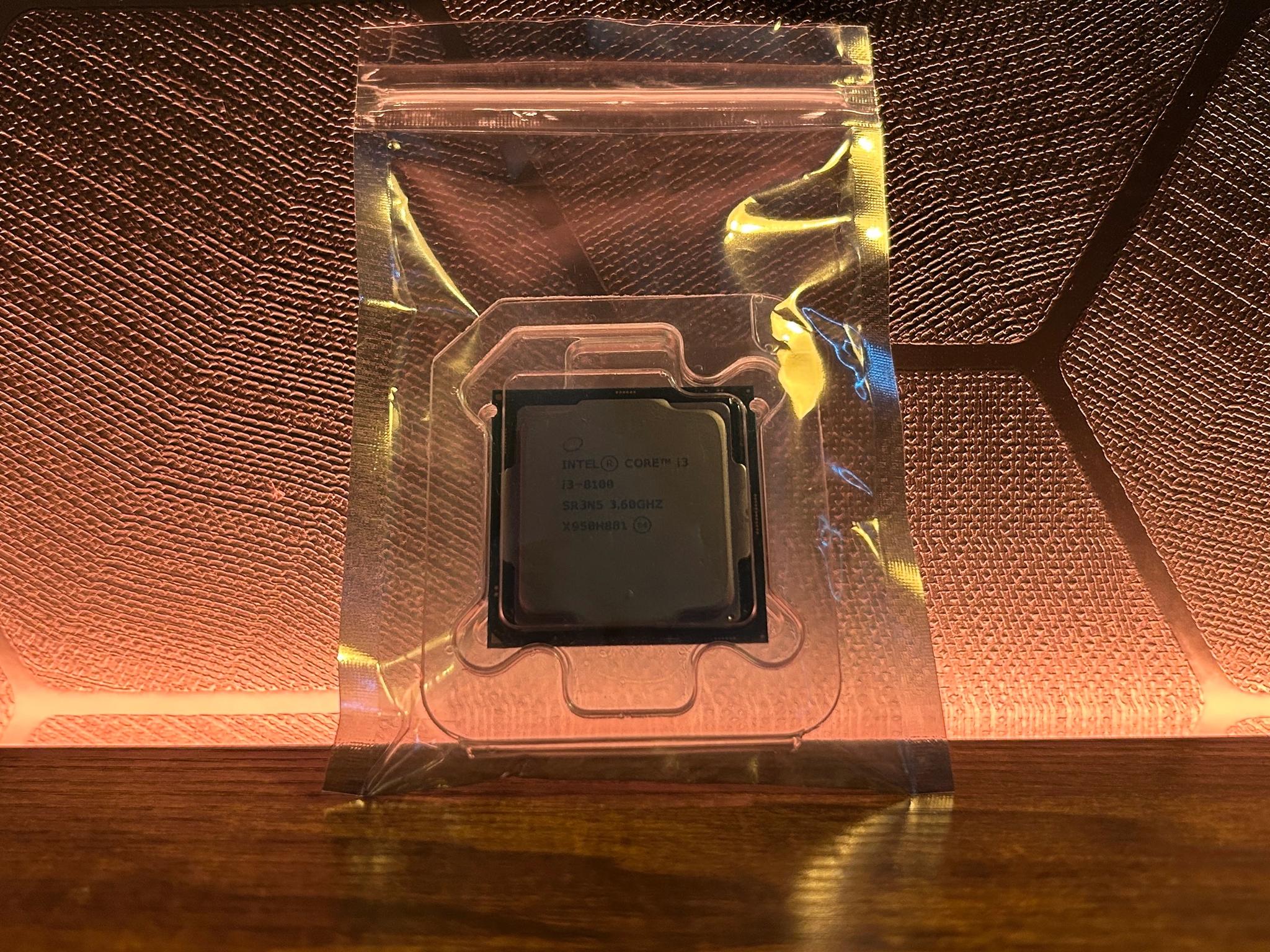

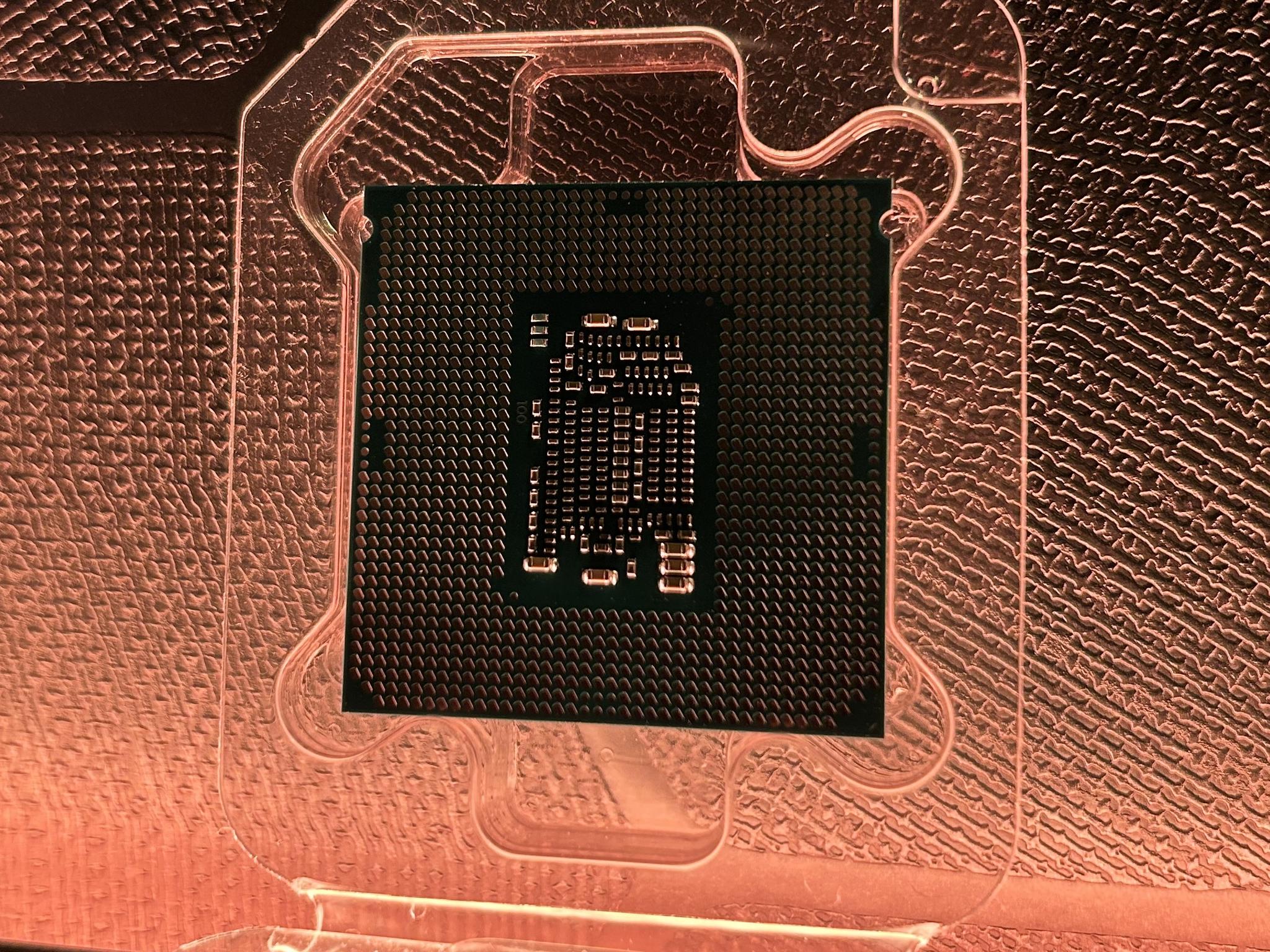

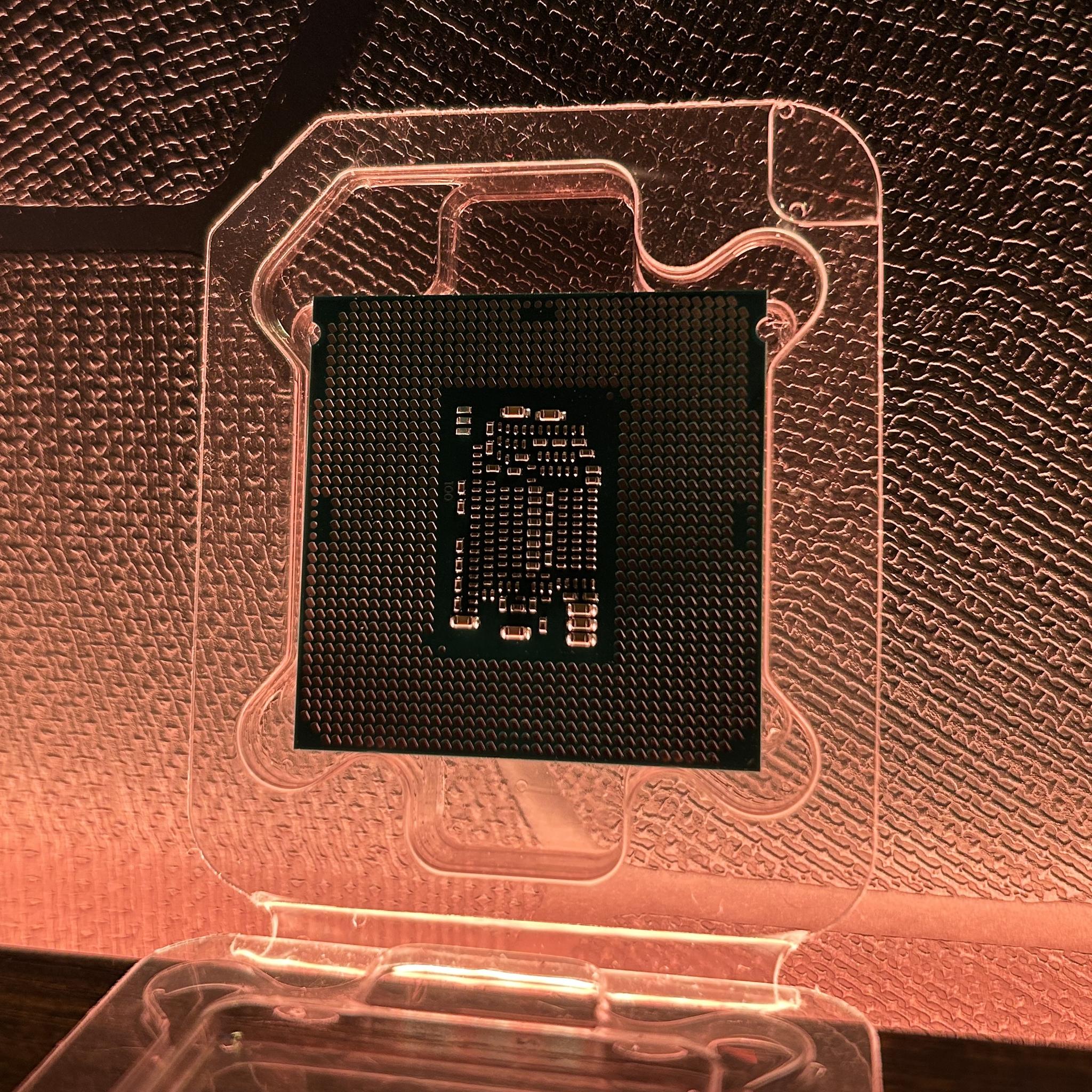

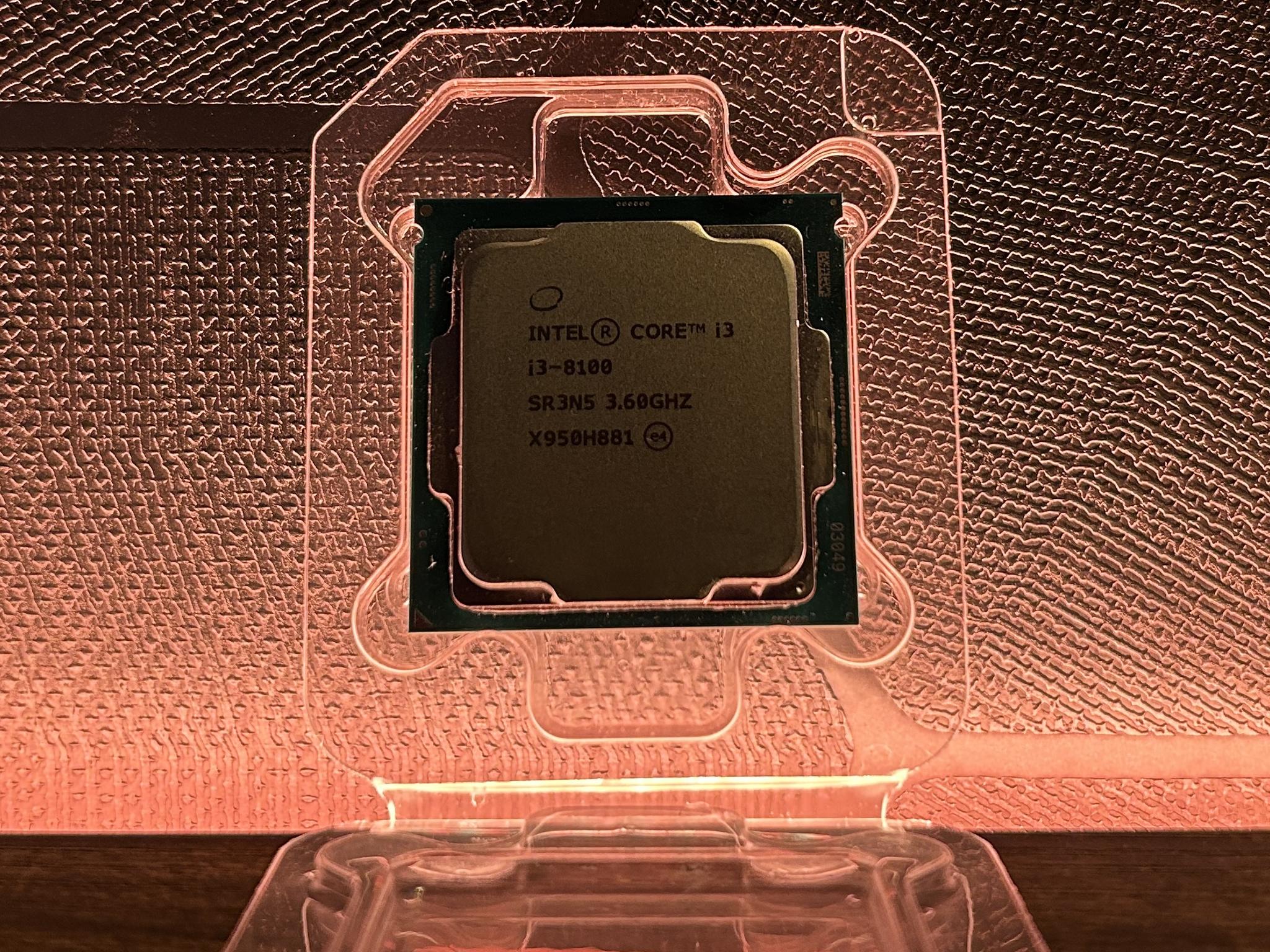

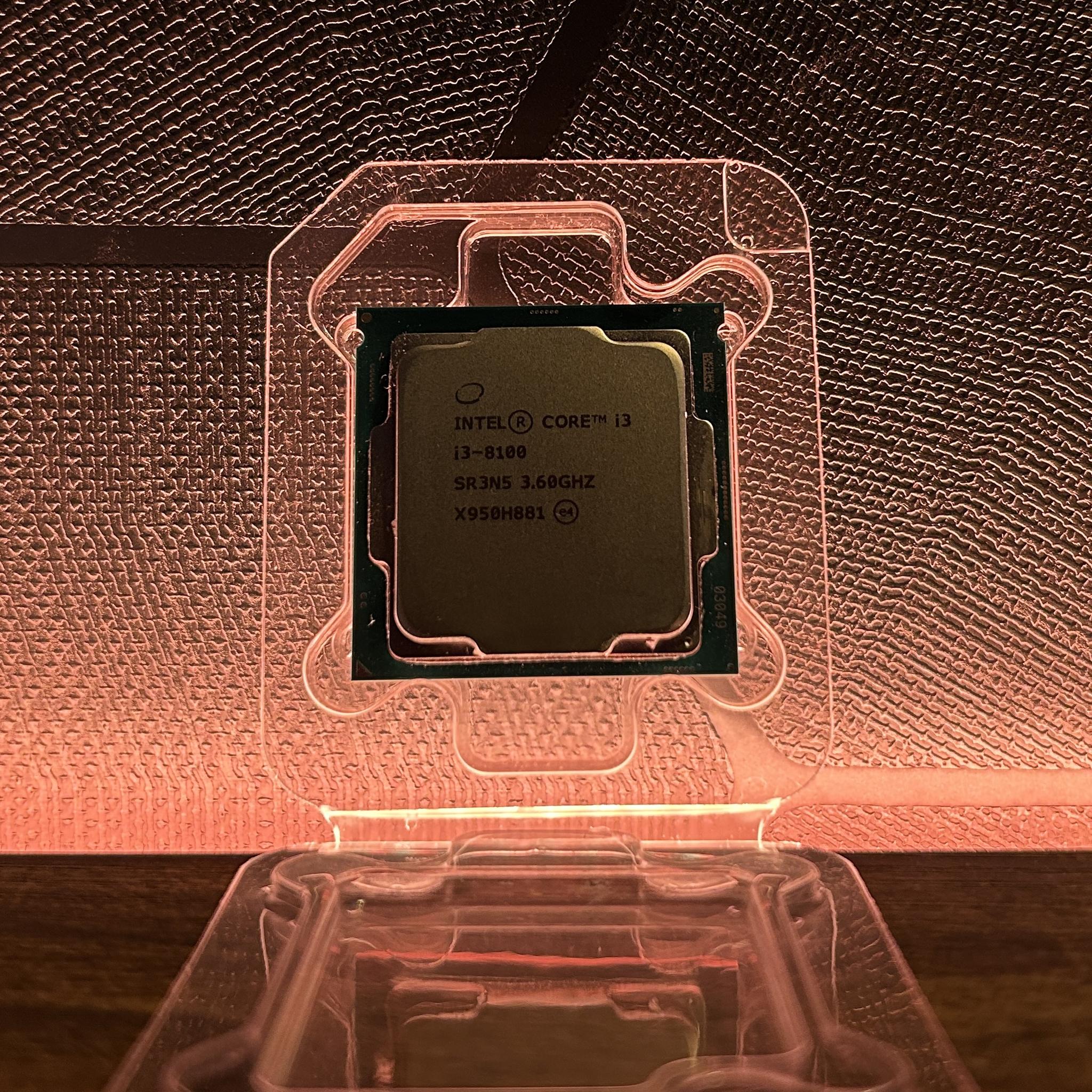

Intel® Core™ i3-8100 Processor

Essentials Product Collection 8th Generation Intel® Core™ i3 Processors Code Name Products formerly Coffee Lake Vertical Segment Desktop Processor Number i3-8100 Lithography 14 nm Recommended Customer Price $117.00

CPU Specifications Total Cores 4 Total Threads 4 Processor Base Frequency 3.60 GHz Cache 6 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W

Supplemental Information Marketing Status Discontinued Launch Date Q4'17 Embedded Options Available Yes Use Conditions Embedded Broad Market Commercial Temp, PC/Client/Tablet Datasheet View now

Memory Specifications Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-2400 Max # of Memory Channels 2 Max Memory Bandwidth 37.5 GB/s ECC Memory Supported ‡ Yes GPU Specifications GPU Name‡ Intel® UHD Graphics 630 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.10 GHz Graphics Video Max Memory 64 GB 4K Support Yes, at 60Hz Max Resolution (HDMI)‡ 4096x2304@24Hz Max Resolution (DP)‡ 4096x2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz DirectX* Support 12 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes

of Displays Supported ‡

3 Device ID 0x3E91/x92

Expansion Options Scalability 1S Only PCI Express Revision 3.0 PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4 Max # of PCI Express Lanes 16

Package Specifications Sockets Supported FCLGA1151 Max CPU Configuration 1 Thermal Solution Specification PCG 2015C (65W) TJUNCTION 100°C Package Size 37.5mm x 37.5mm

Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Turbo Boost Technology ‡ No Intel® Hyper-Threading Technology ‡ No Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes

Security & Reliability Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME Intel® AES New Instructions Yes Secure Key Yes Intel® Memory Protection Extensions (Intel® MPX) Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ No Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Stable IT Platform Program (SIPP) No Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
