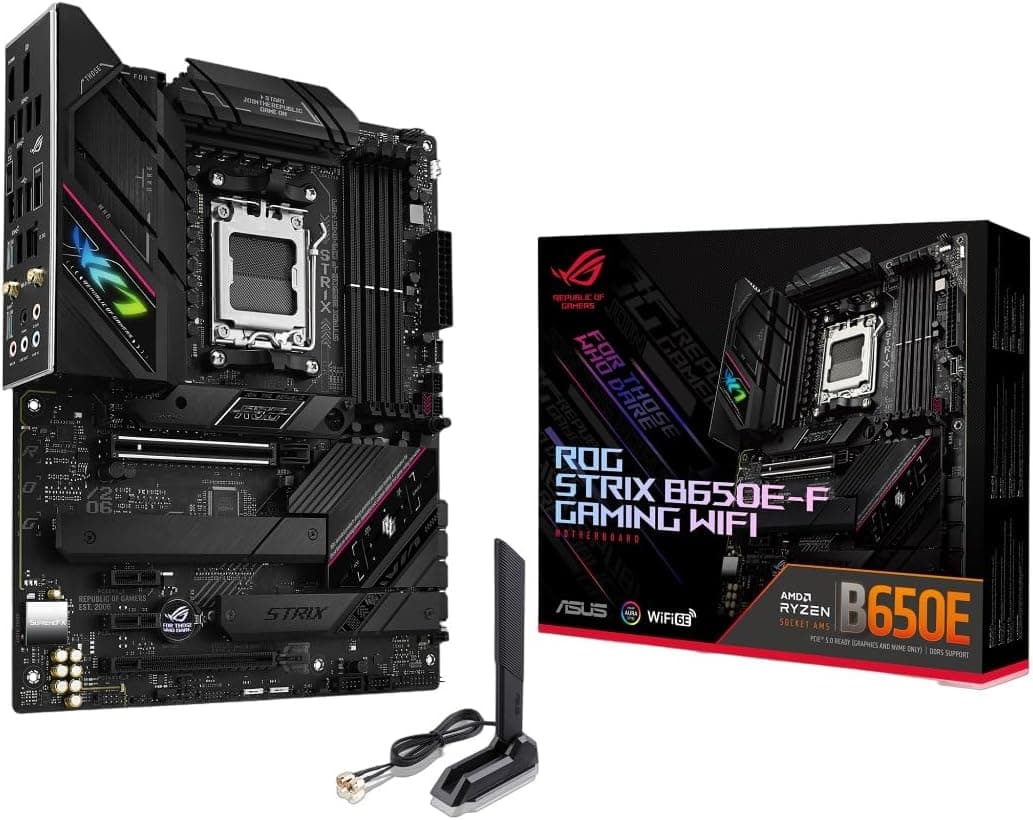

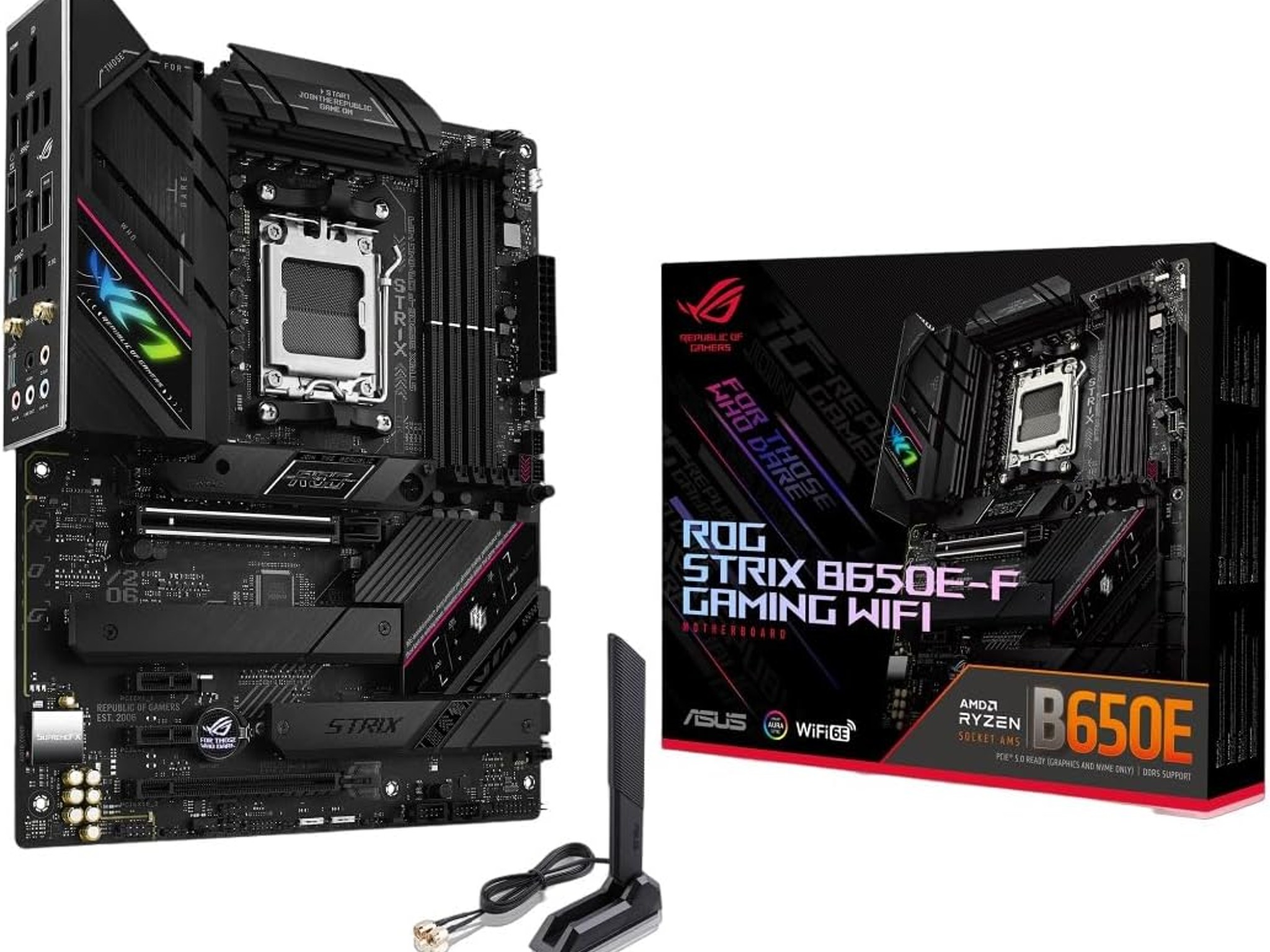

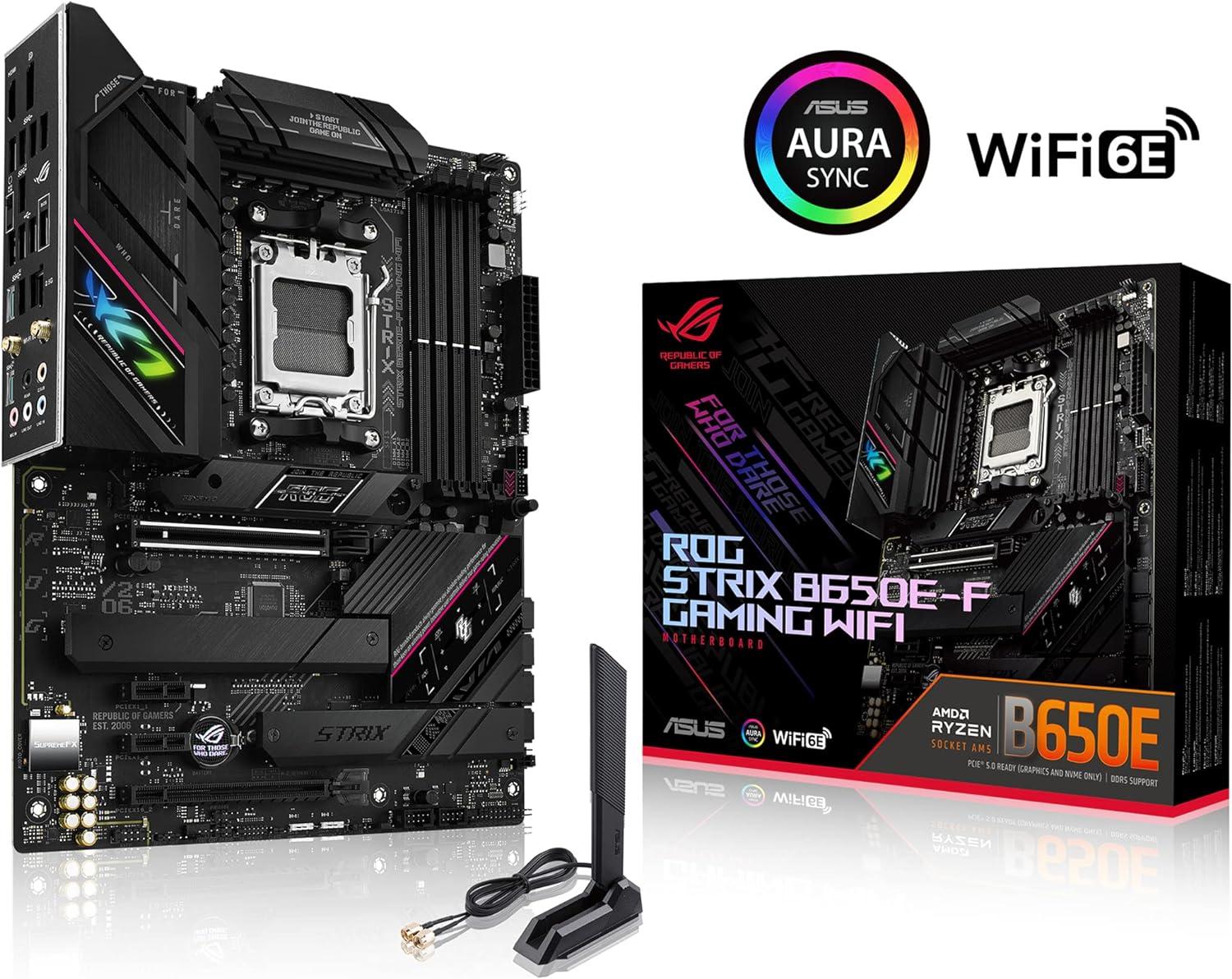

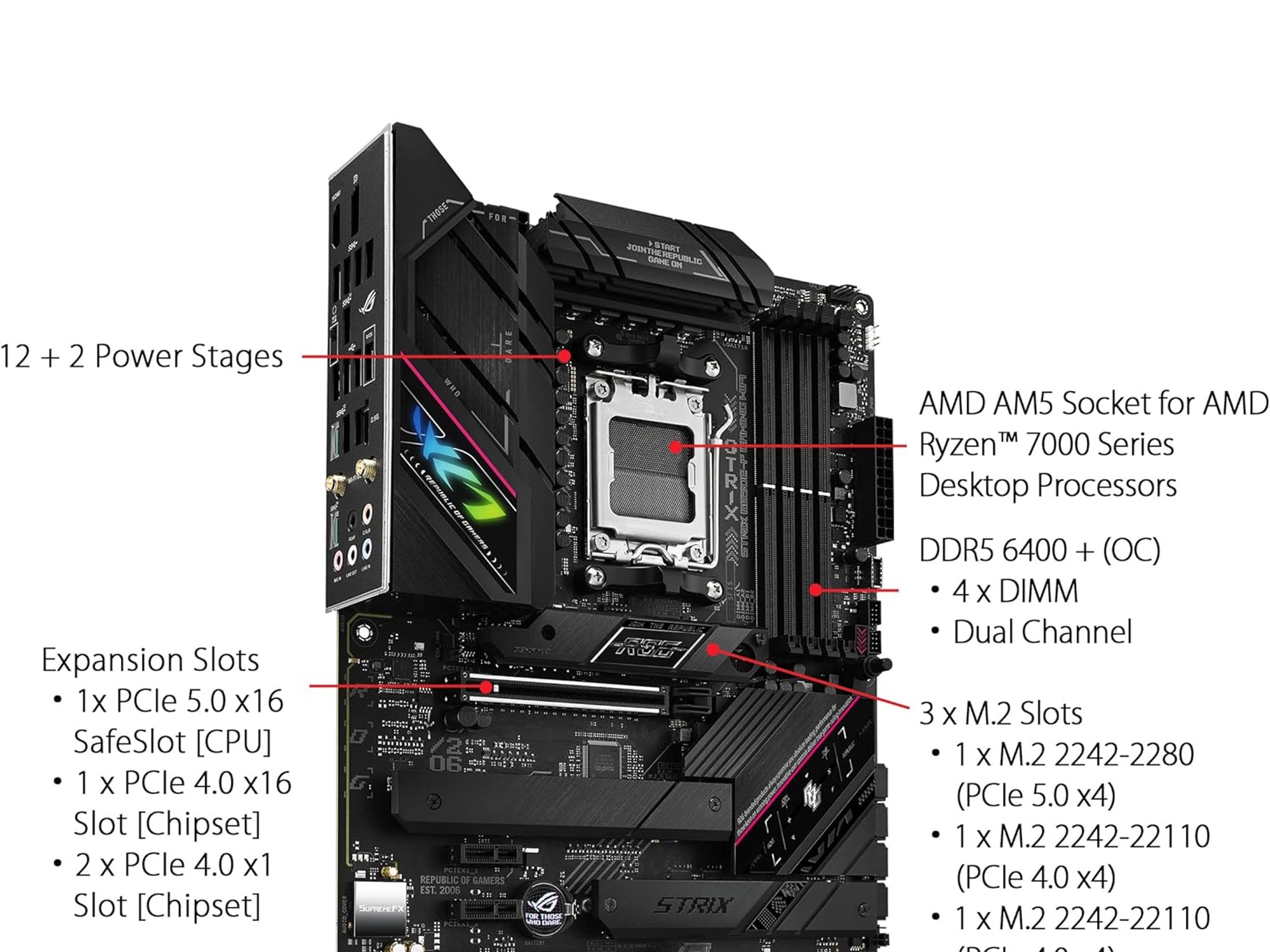

B650E-F ROG STRIX GAMING WIFI AMD AM5 ATX Motherboard ASUS ROG STRIX B650E-F GAMING WIFI motherboard is built for gamers who pursue optimal in-game experience with boosted power delivery and an optimized cooling design to maximize the demand for Ryzen 7000 series processors. Along with the latest Wi-Fi 6E, DDR5 Memory, and PCI Express 5.0 for superfast data transfer, memory, and storage performance, ROG STRIX B650E-F GAMING WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look.

GENERAL SPECIFICATIONS

PACKAGING Retail

CHIPSET AMD B650E

BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Manageability WOL PXE

CPU SUPPORT AMD CPU Support Ryzen

Socket Type AM5 MEMORY SPECIFICATIONS

ECC Non-ECC; Non-Registered ECC; Non-Registered

Memory Type DDR5-4800 DDR5-5200 DDR5-5000

Memory Speeds Supported 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800

Memory Slots 4 x 288pin DIMM

Memory Channel Support Dual Channel

Max Memory Supported 128GB

Maximum Memory Supported Per Slot 32GB

Supported Memory Technologies ECC Memory Supported Non-ECC Memory Supported

VIDEO SPECIFICATIONS Onboard Graphic Chipset Requires CPU with Integrated Graphics

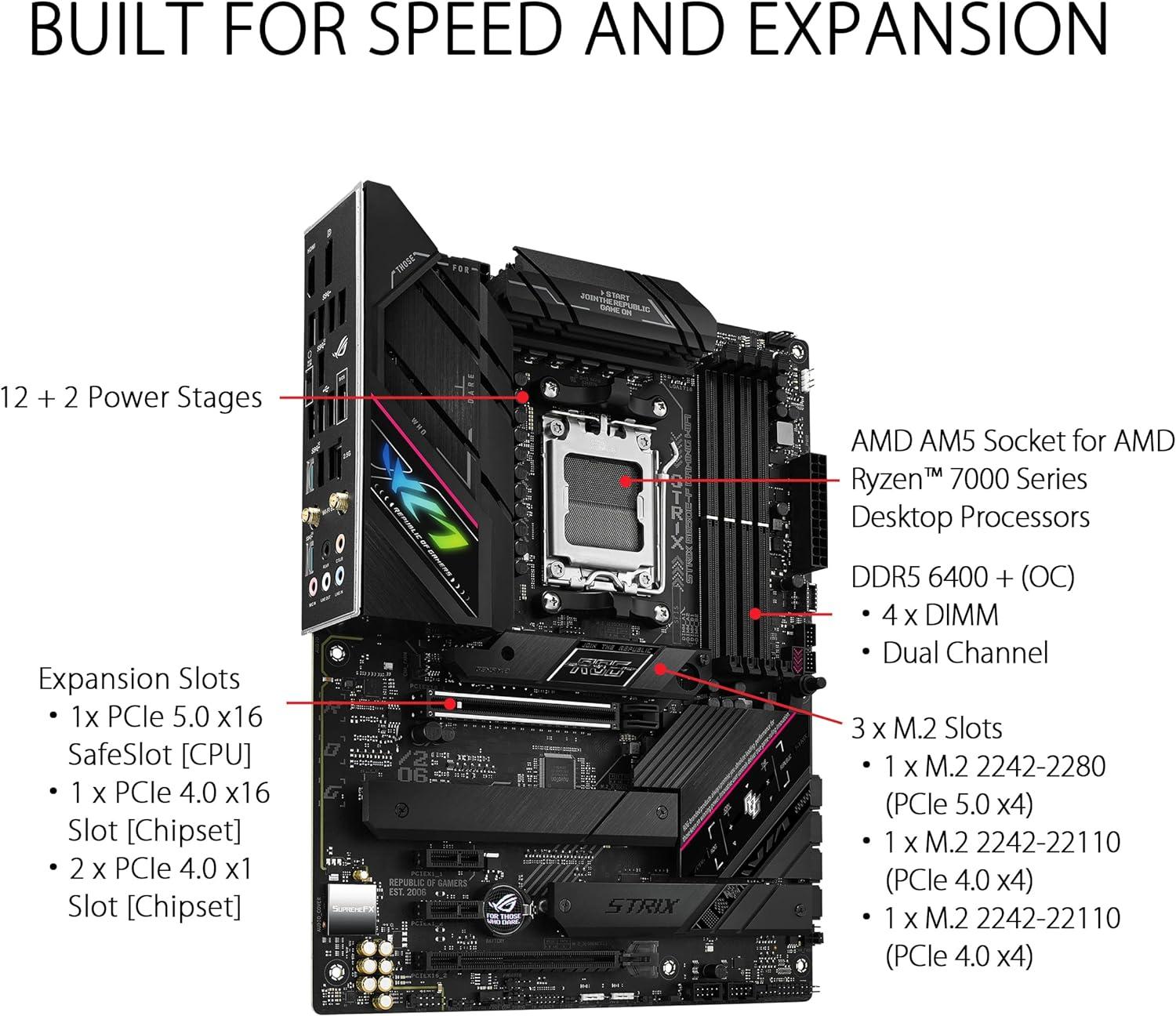

STORAGE SPECIFICATIONS M.2 Port Type 2242 2260 2280 22110 SATA Express 3 x M.2 Socket 3 M Key SATA 6Gb/s 4 RAID Support RAID 0 RAID 1 RAID 10

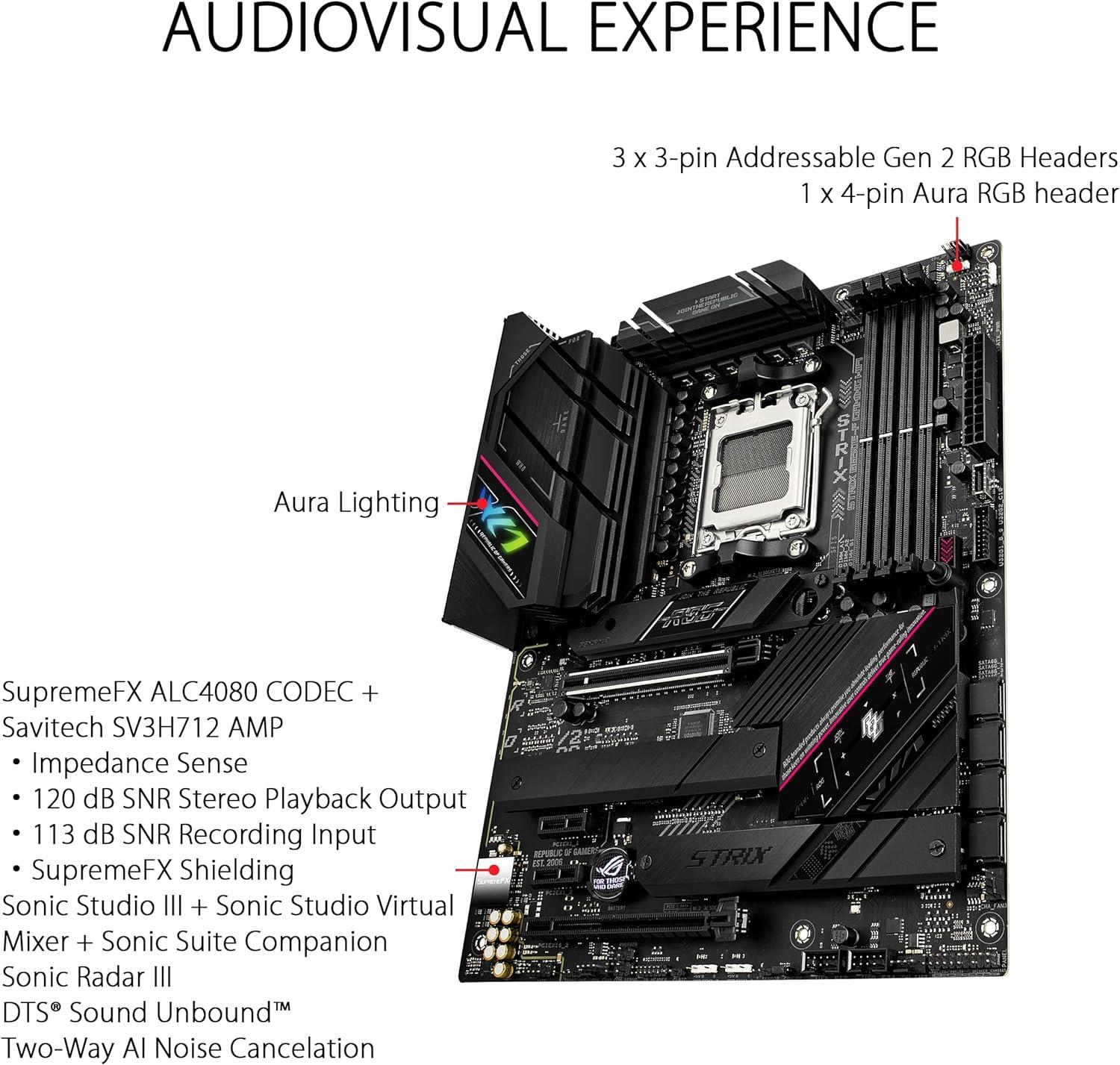

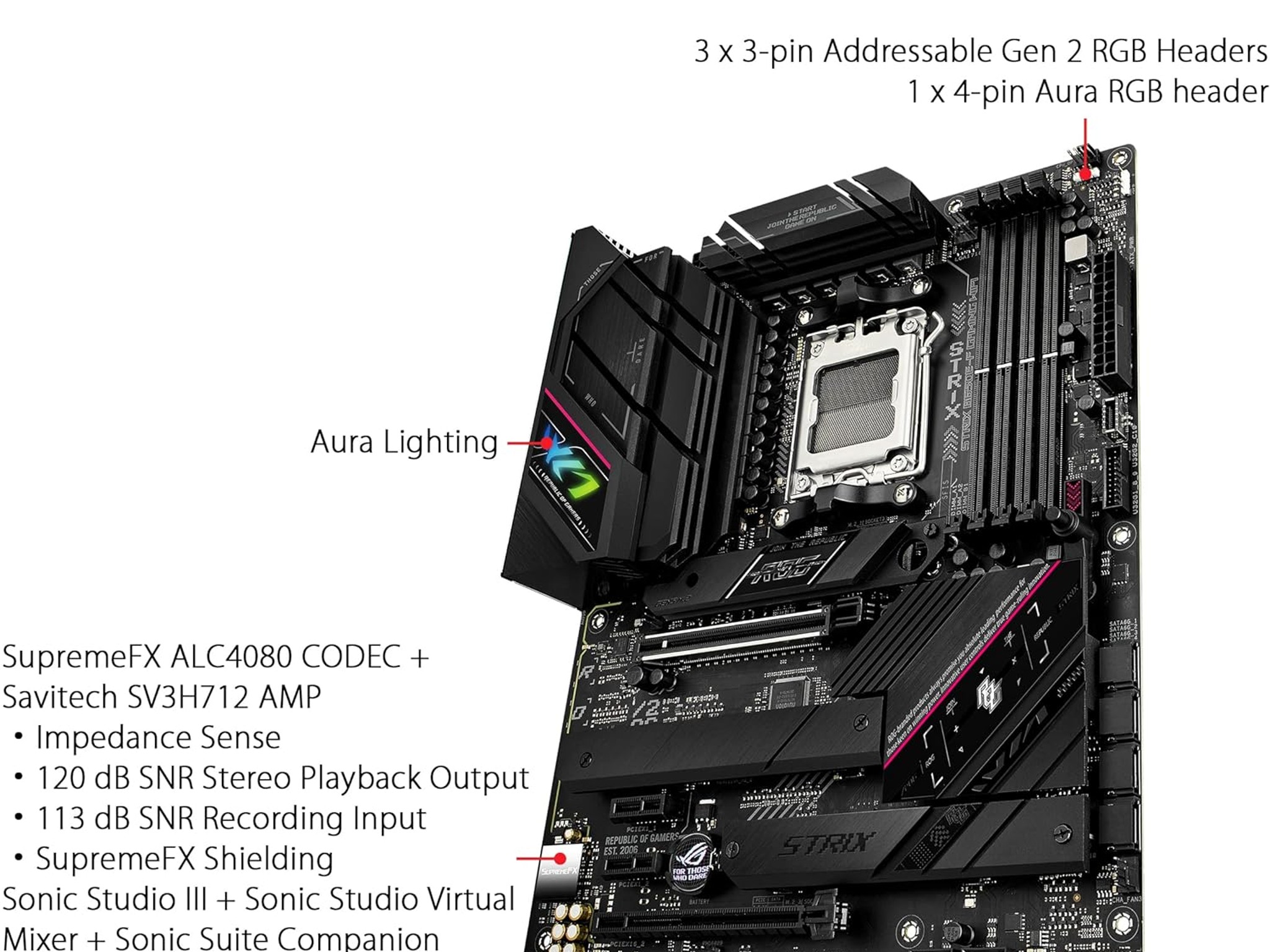

AUDIO SPECIFICATIONS Audio Chipset ROG SupremeFX ALC4080 Audio Channels 7.1

NETWORKING WiFi Support Onboard WiFi

LAN Chipset Intel 2.5GbE LAN LAN Speed 10/100/1000/2500Mbps Wireless Technology 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.2 EXPANSION SLOTS PCI Express 4.0 x16 1 PCI Express 5.0 x16 1 PCI Express x1 2

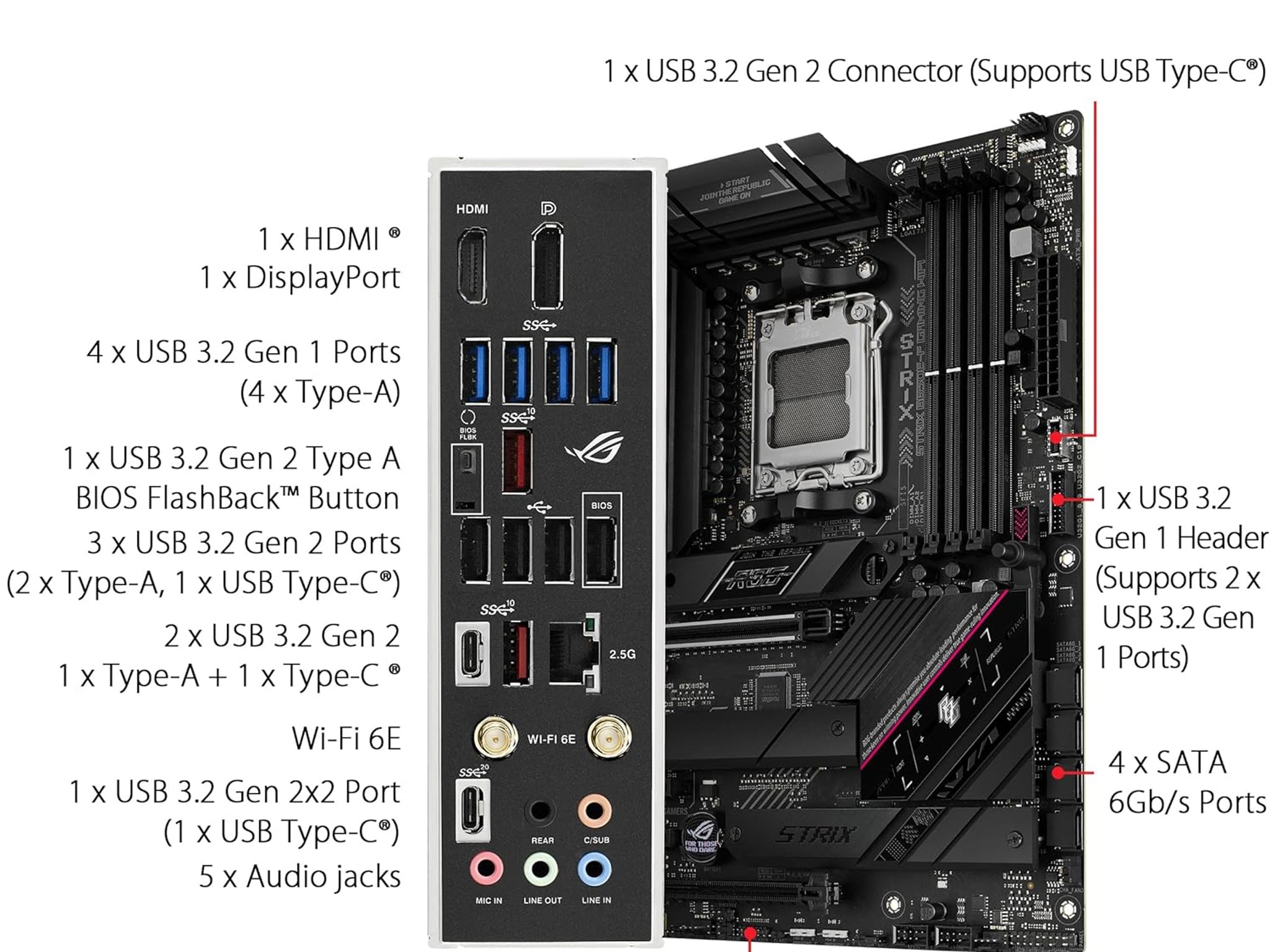

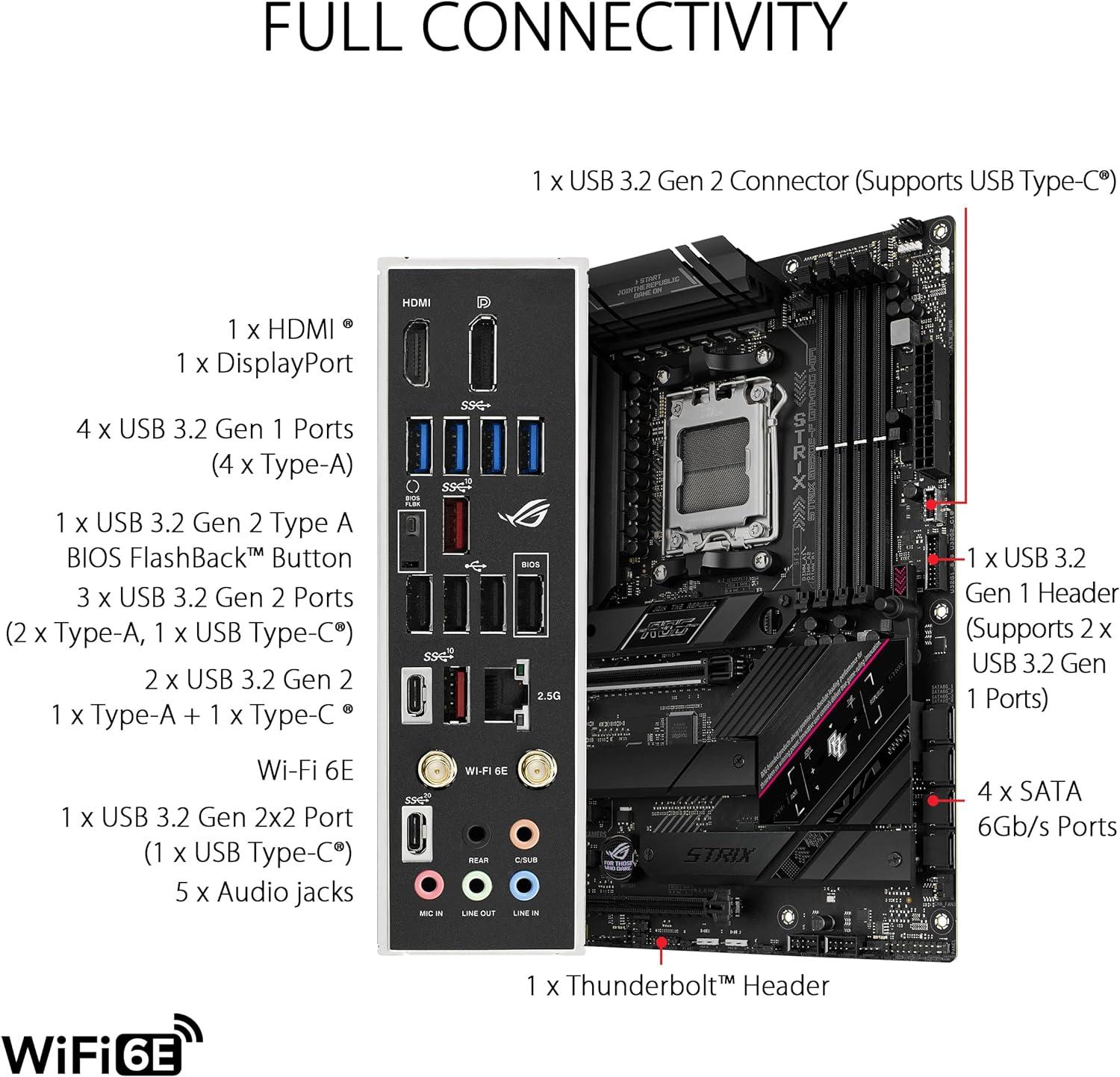

BACK PANEL PORTS

Specialty Ports 2 x WiFi Antenna Ports USB 2.0 4 x USB 2.0 (Type-A) USB 3.1 4 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2x2 Type-C) 2 x USB 3.2 (Gen 2 Type-A)

Video Connectors 1 x HDMI 2.1 1 x DisplayPort 1.4 LAN Ports 1 x 10/100/1000/2500 RJ-45 LAN

Audio Ports 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Line-Out Digital Audio 1 x USB Type-C Audio

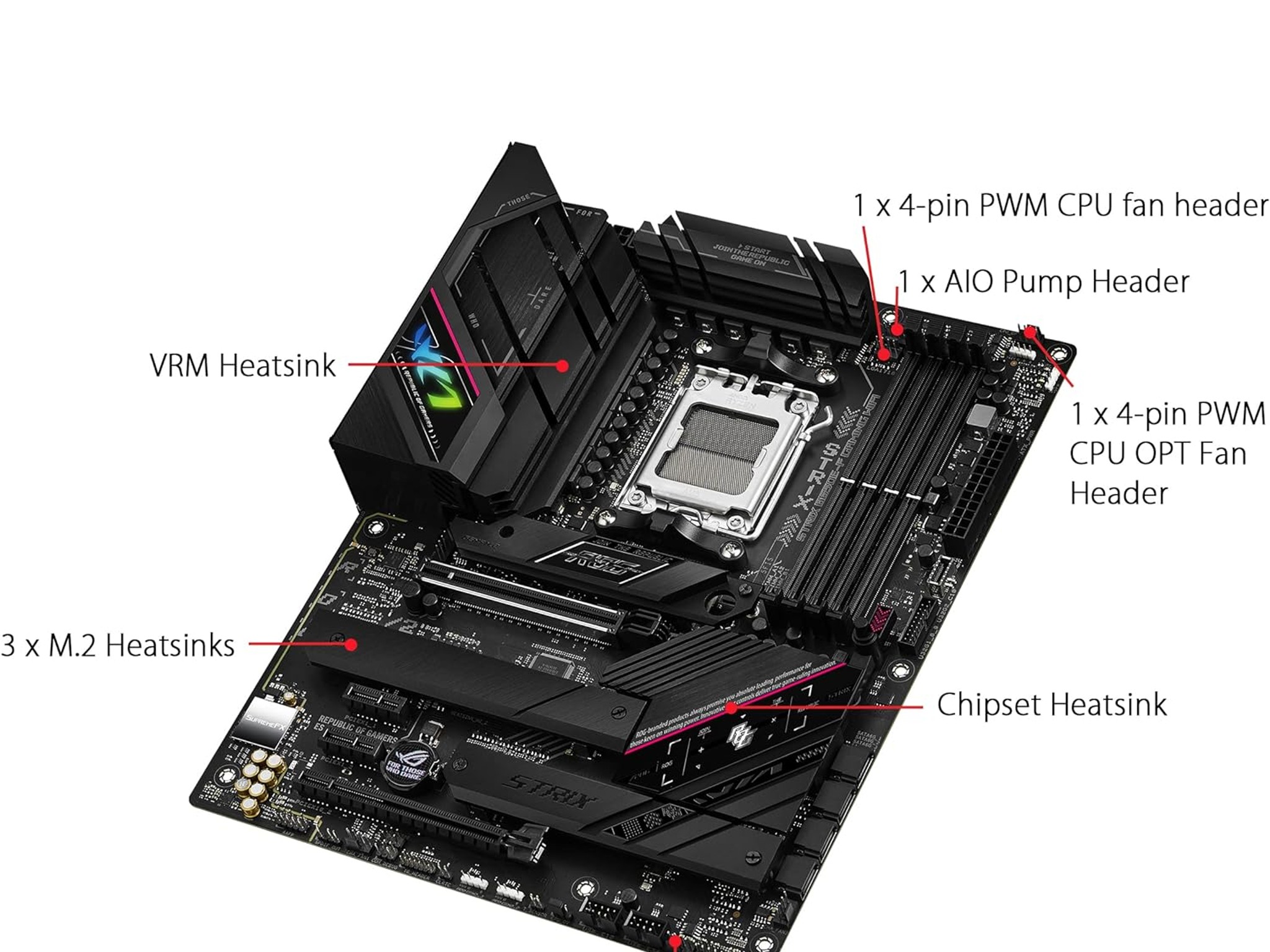

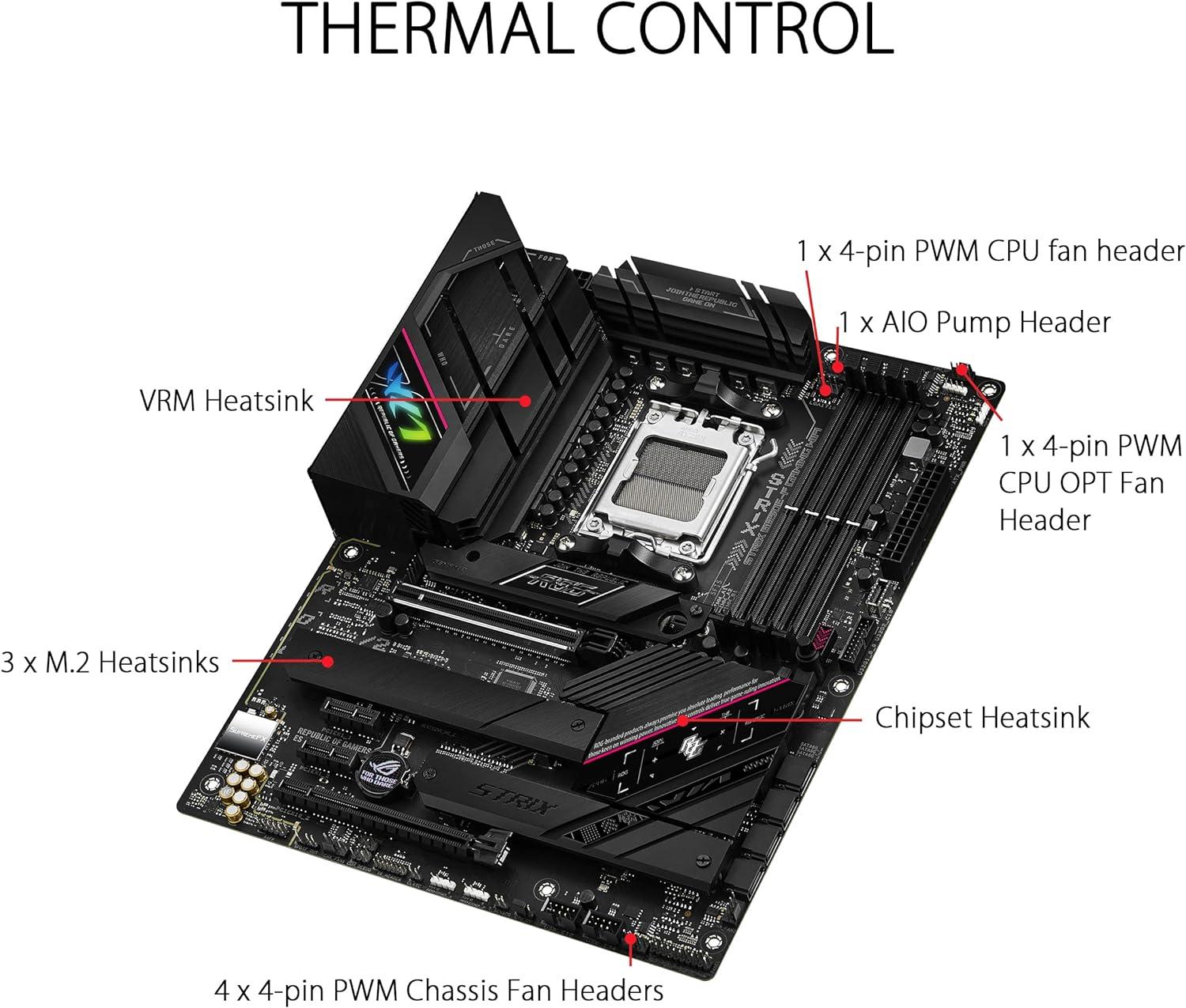

INTERNAL I/O & CONNECTORS Headers 4 x System Fan Header 1 x Water Pump Header 2 x CPU Fan Header

USB 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port) POWER

Power Connectors 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector ATX Connector 24-pin ATX Power Connector

PHYSICAL SPECIFICATIONS Depth 12.00 in. (305.00 mm) Width 9.60 in. (243.84 mm) Form Factor ATX

WARRANTY Parts 3 Years Labor 3 Years

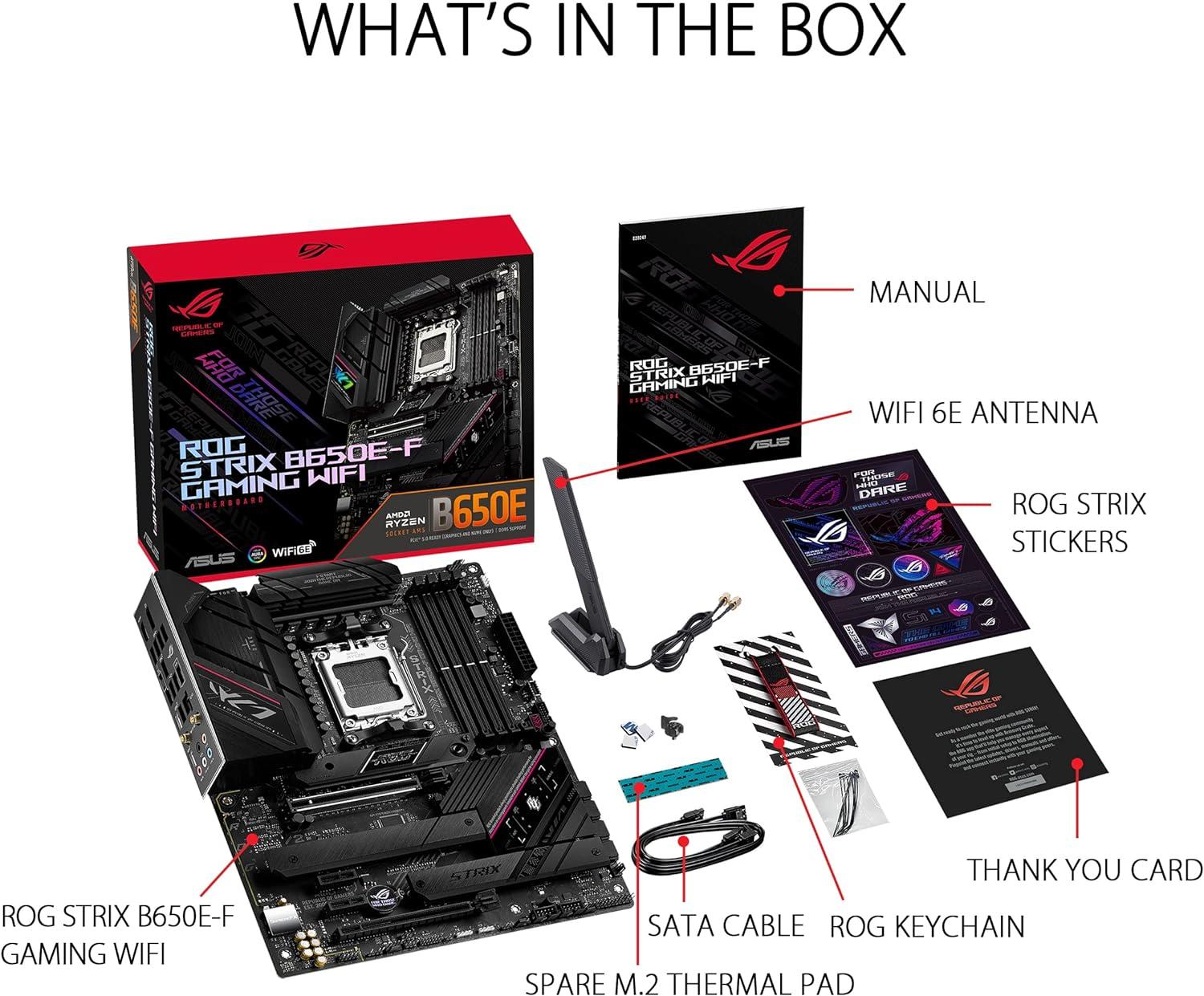

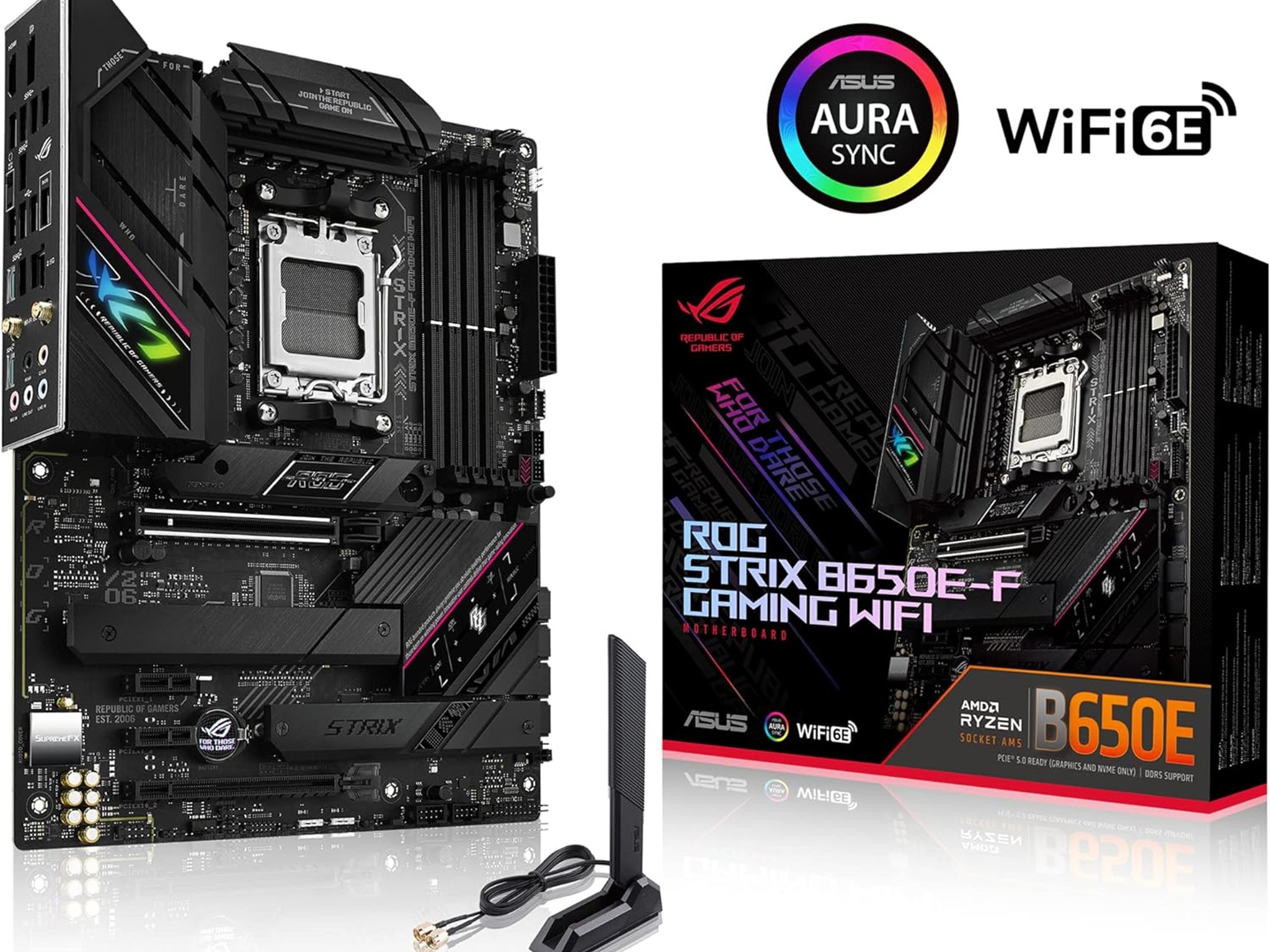

PACKAGE CONTENTS What's in the Box Motherboard, 2x SATA Cables, M.2 Thermal Pad, Antenna, Cable Ties, M.2 Q-Latch Package, ROG Key Chain, ROG Strix Stickers, M.2 Rubber Packages, Documentation
