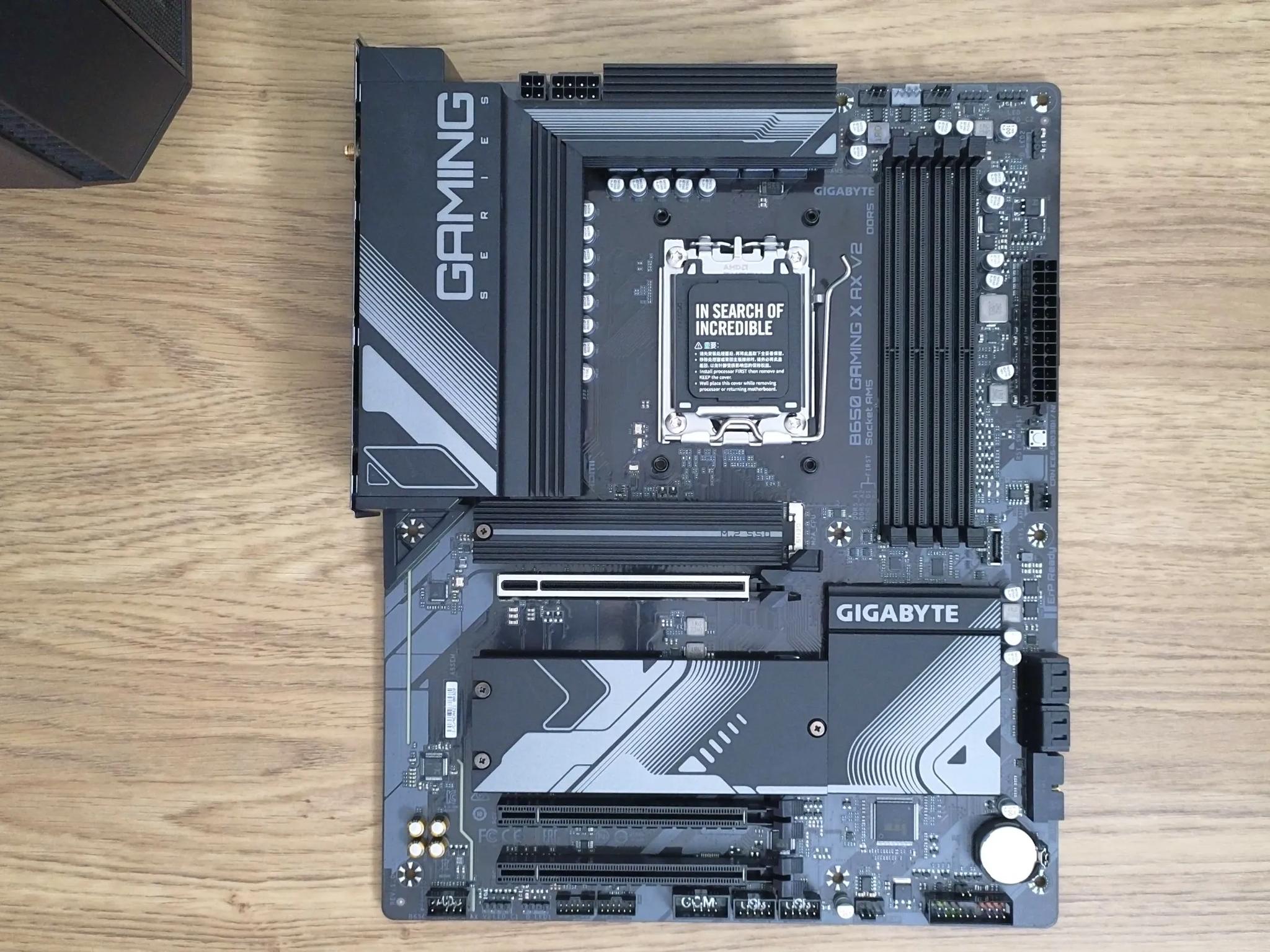

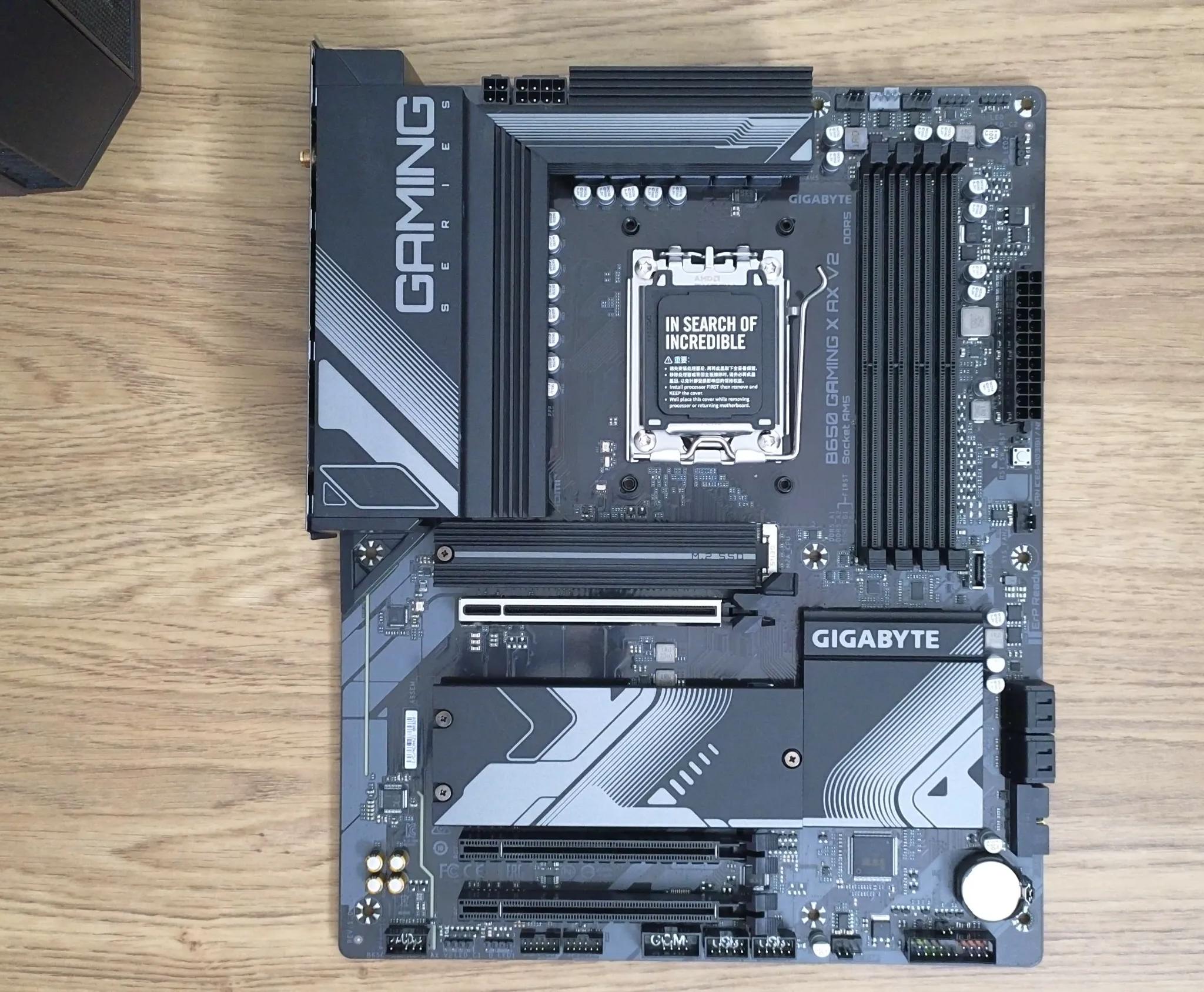

Gigabyte B650 Gaming X AX V2 AMD AM5 ATX Motherboard

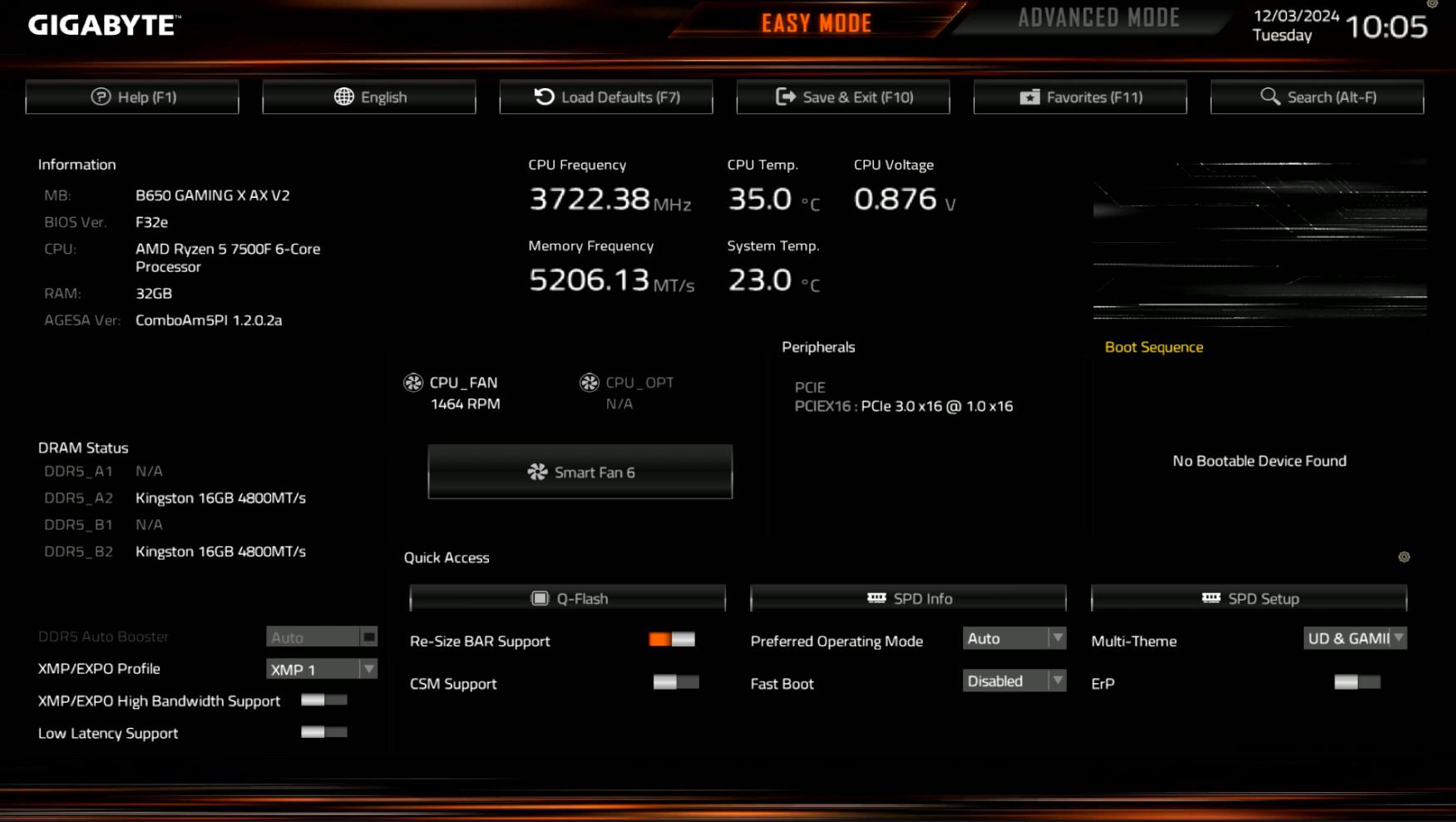

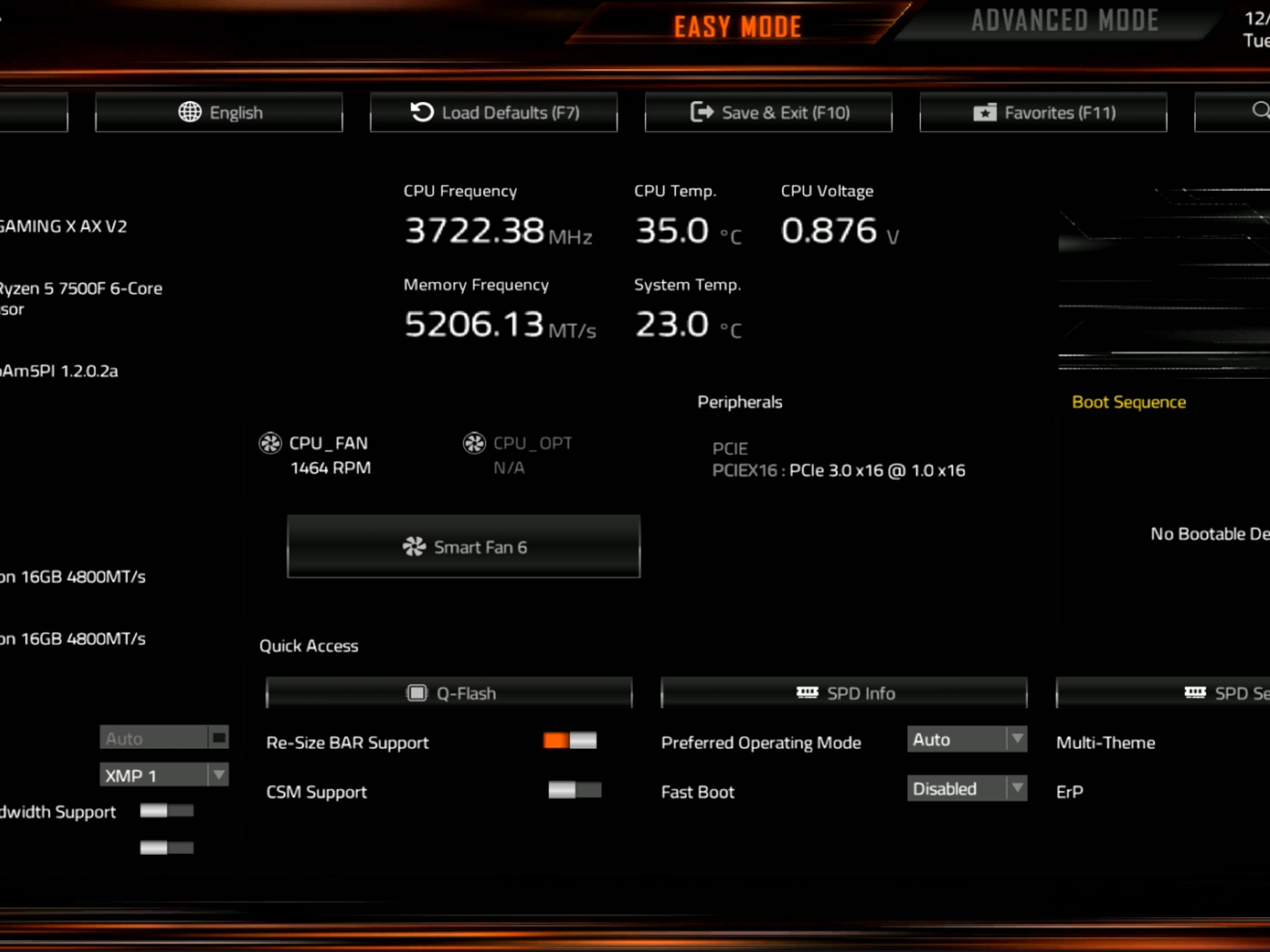

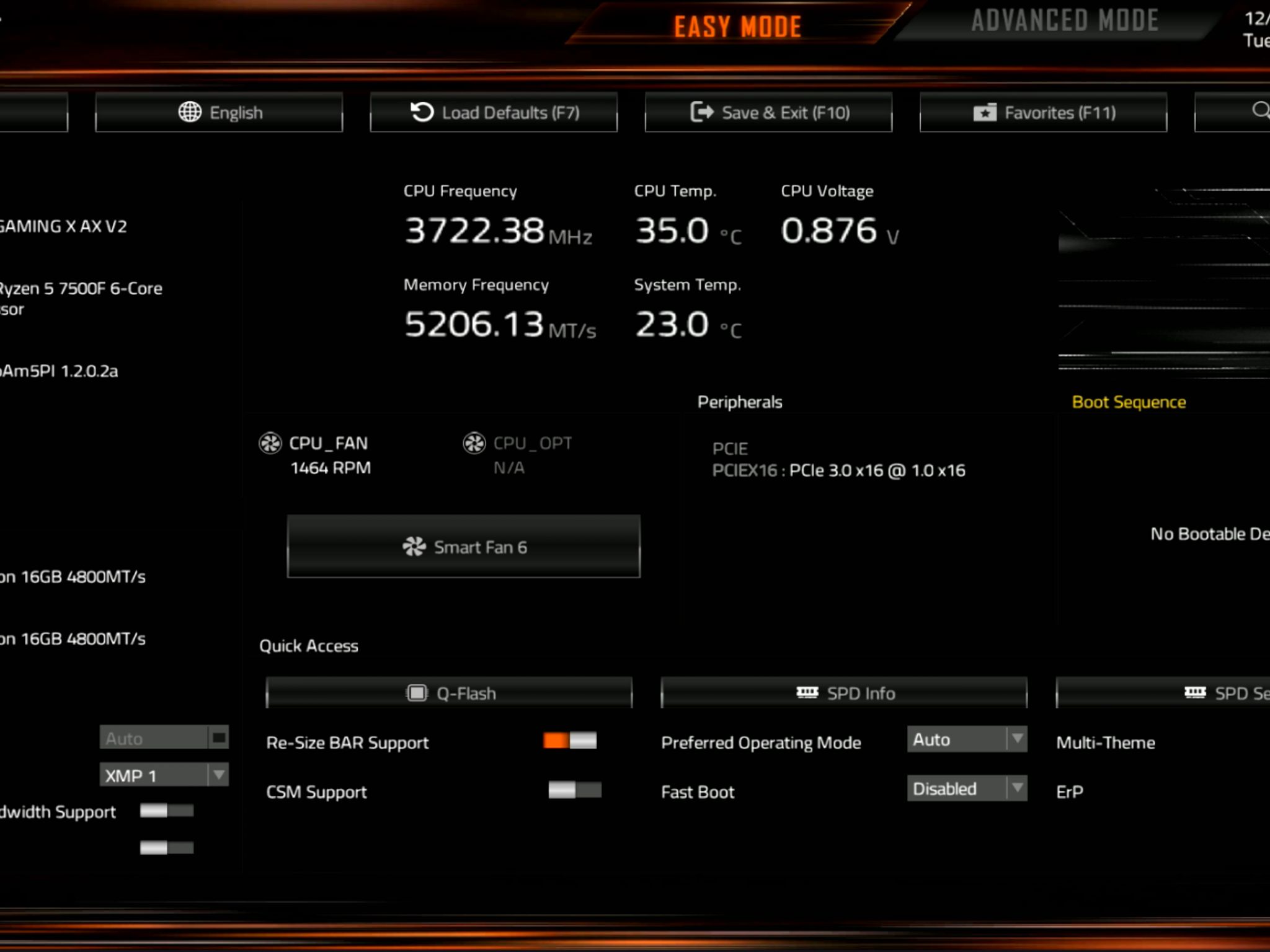

BIOS version updated to: F32e

PRODUCT INFORMATION

• Mfr Part#: B650GAMXAXV2
• UPC: 889523041376

GENERAL SPECIFICATIONS

• Chipset: AMD B650
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

CPU SUPPORT

• AMD CPU Support: Ryzen

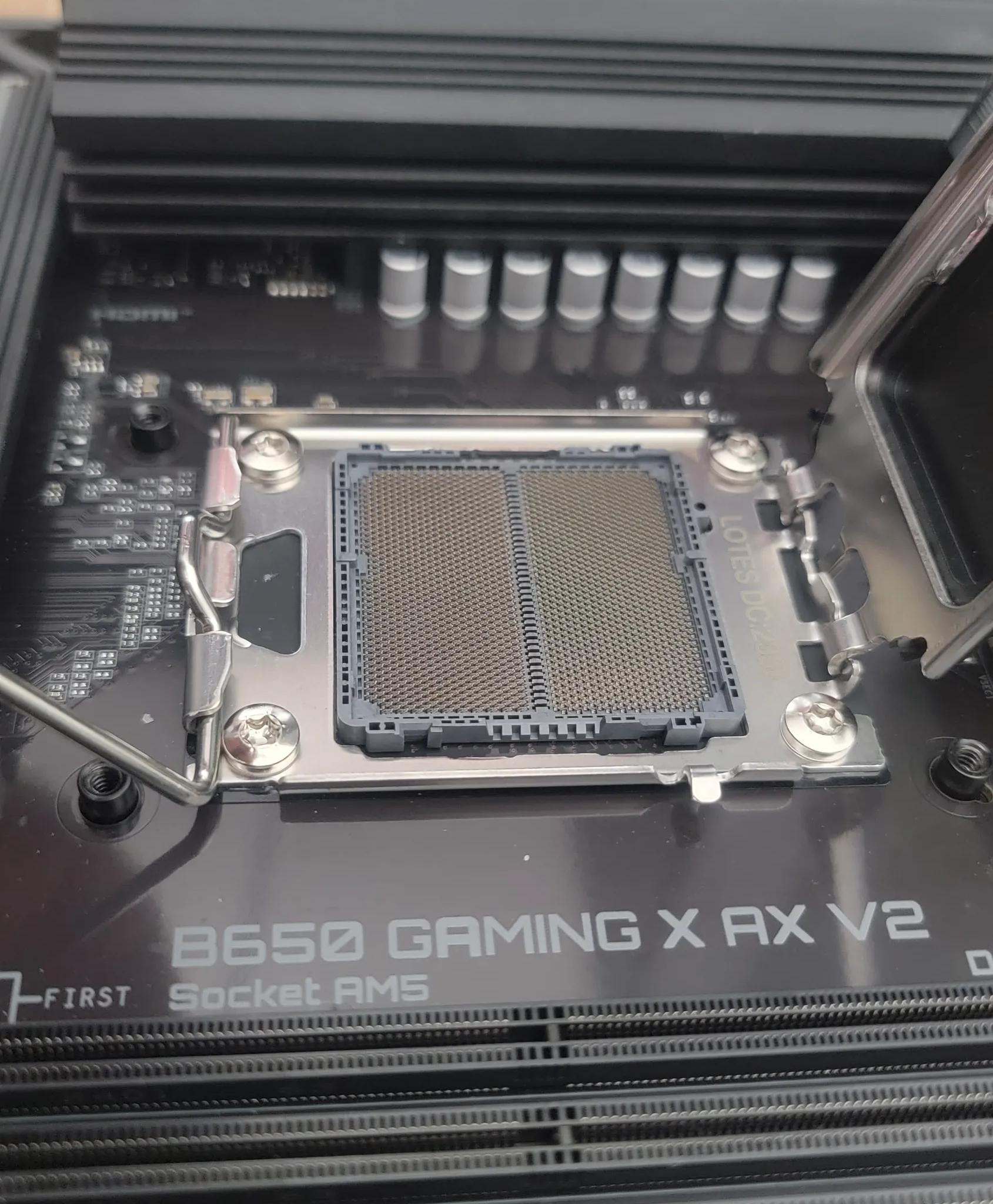

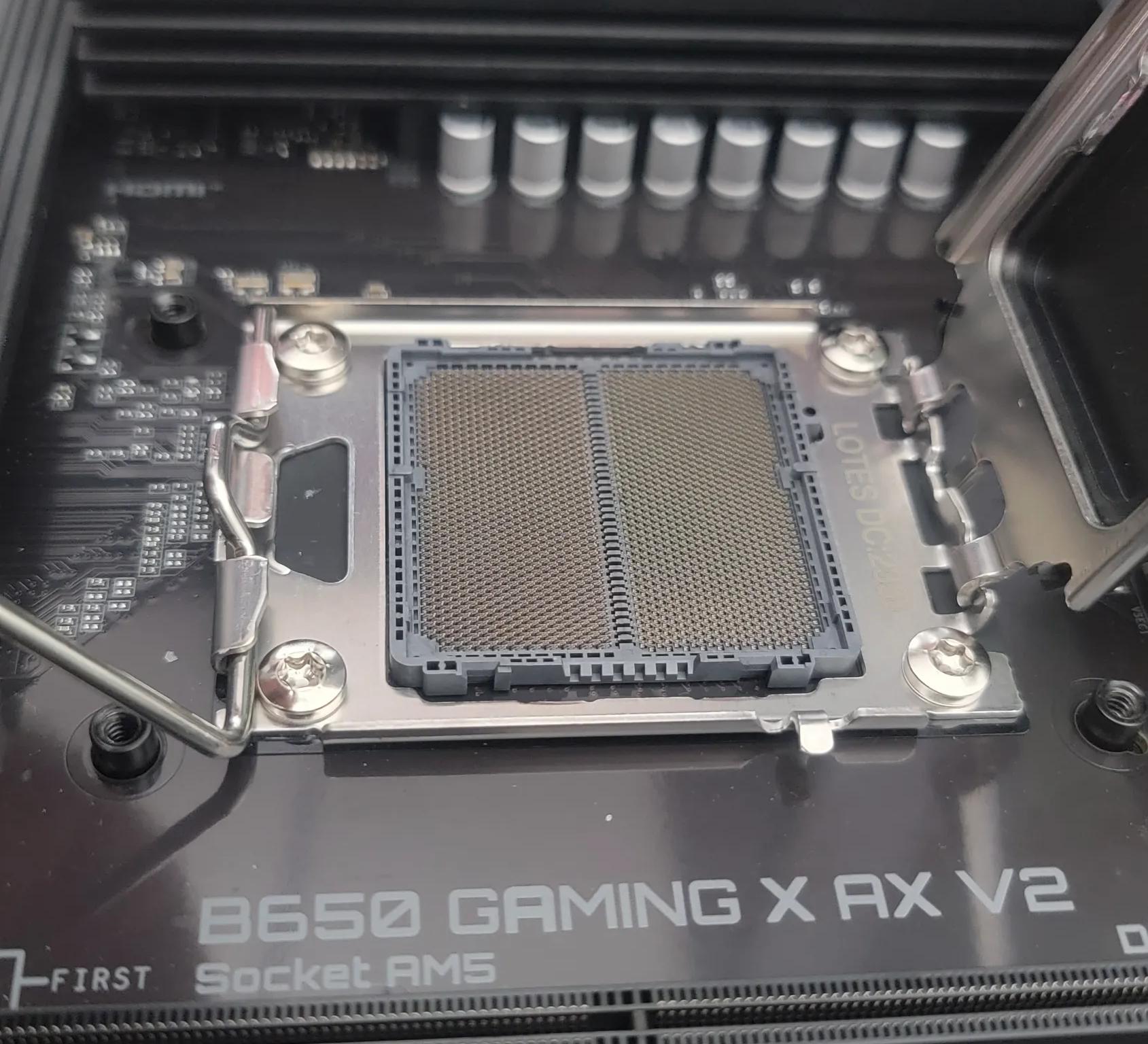

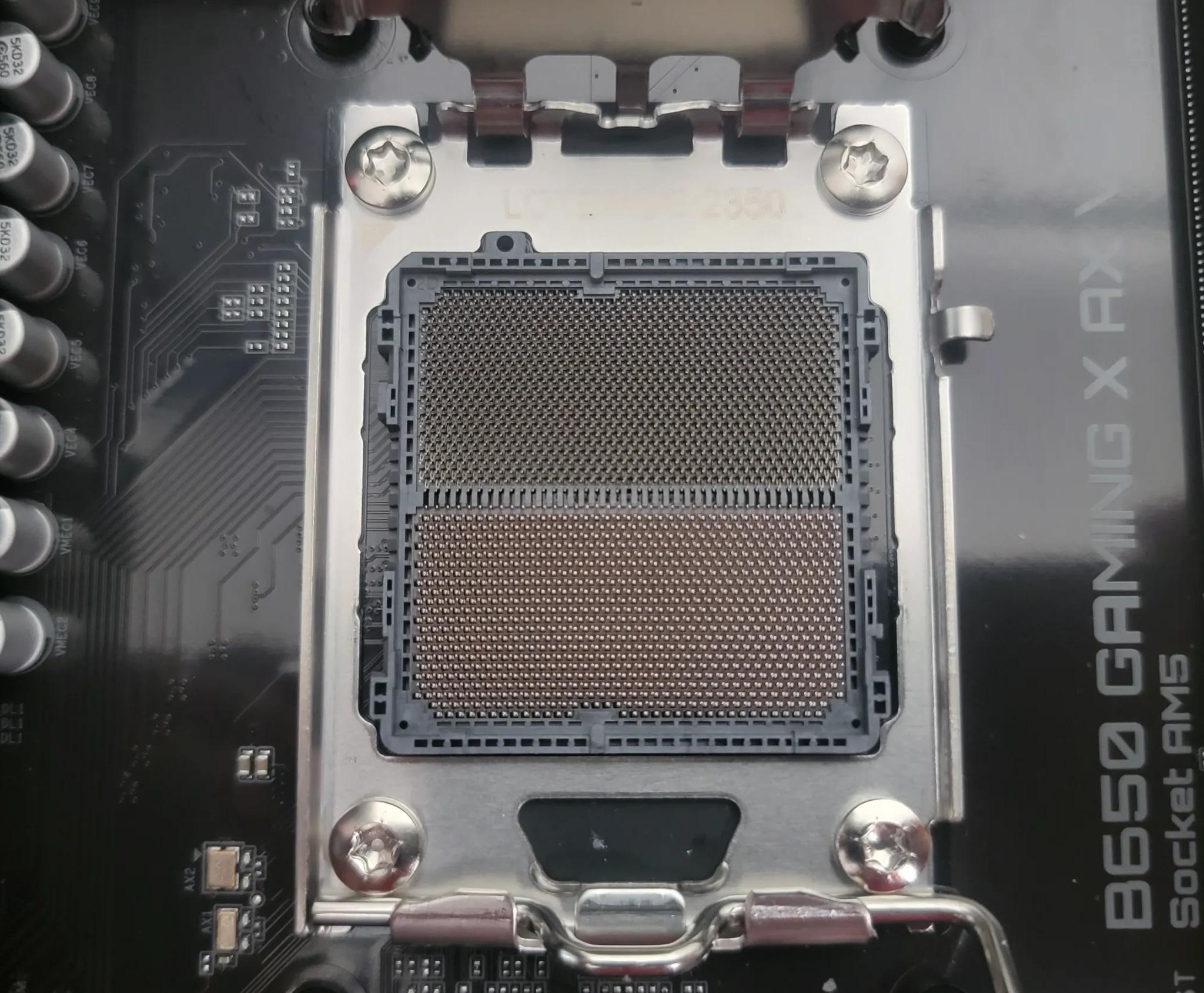

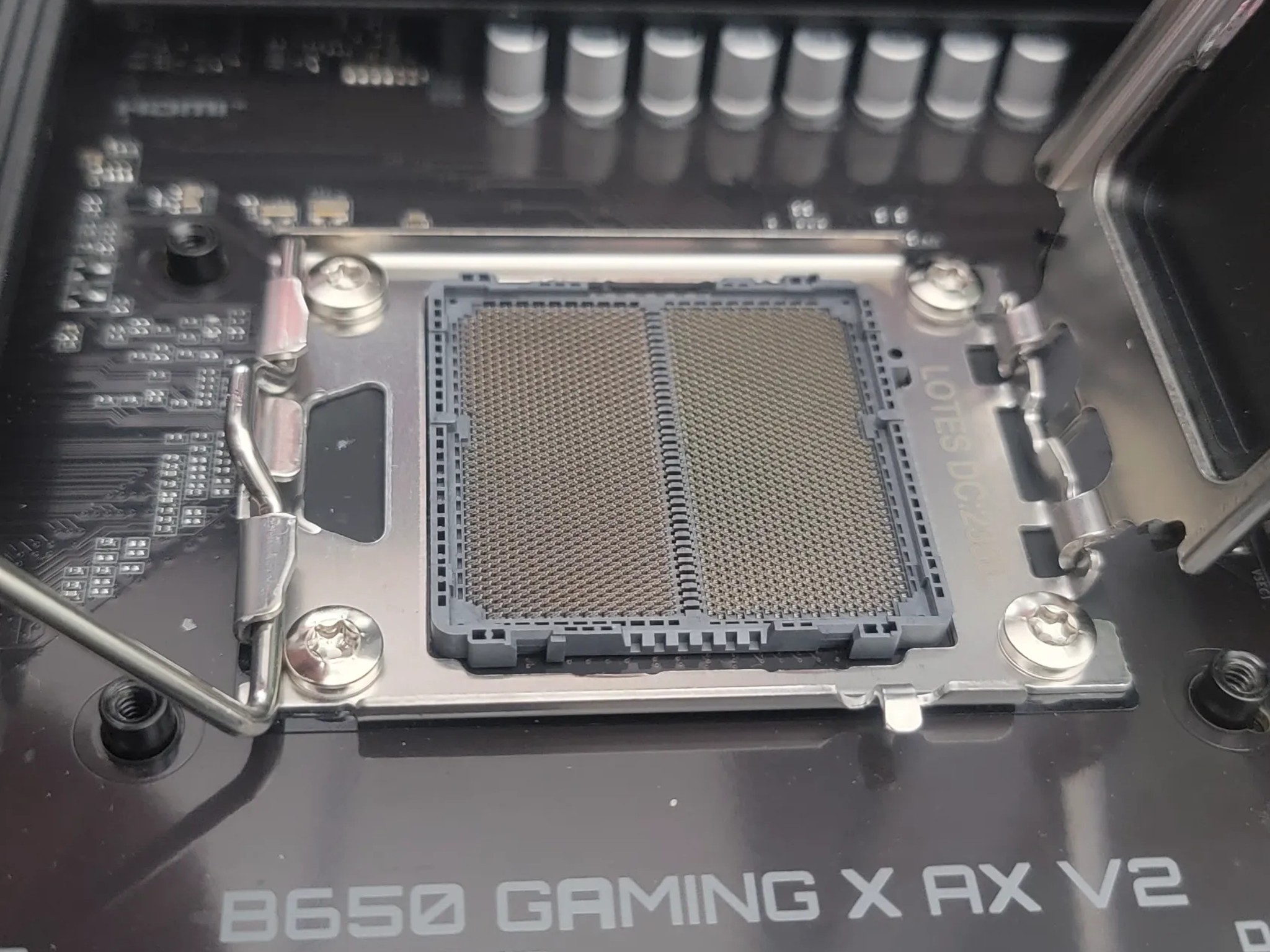

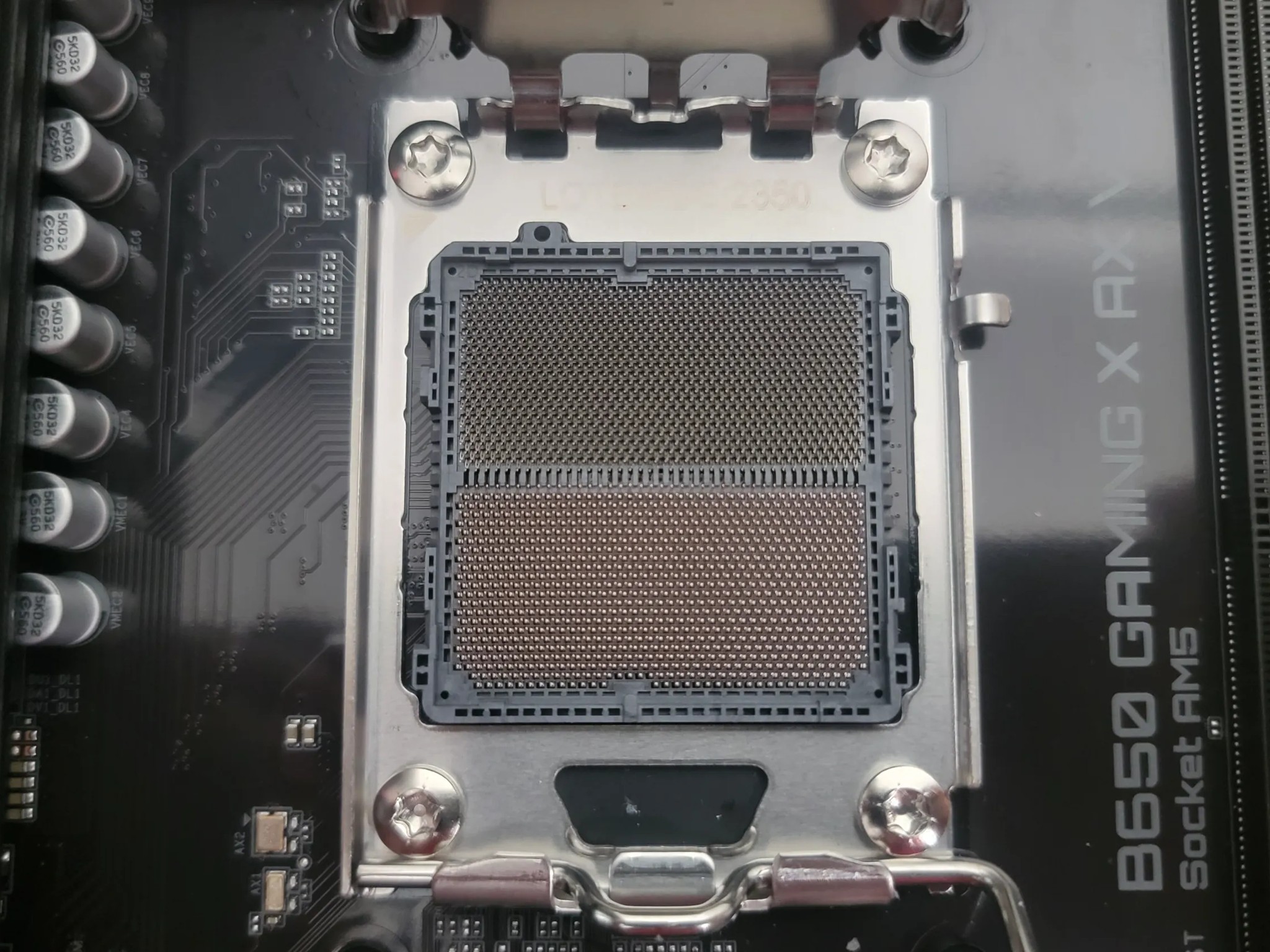

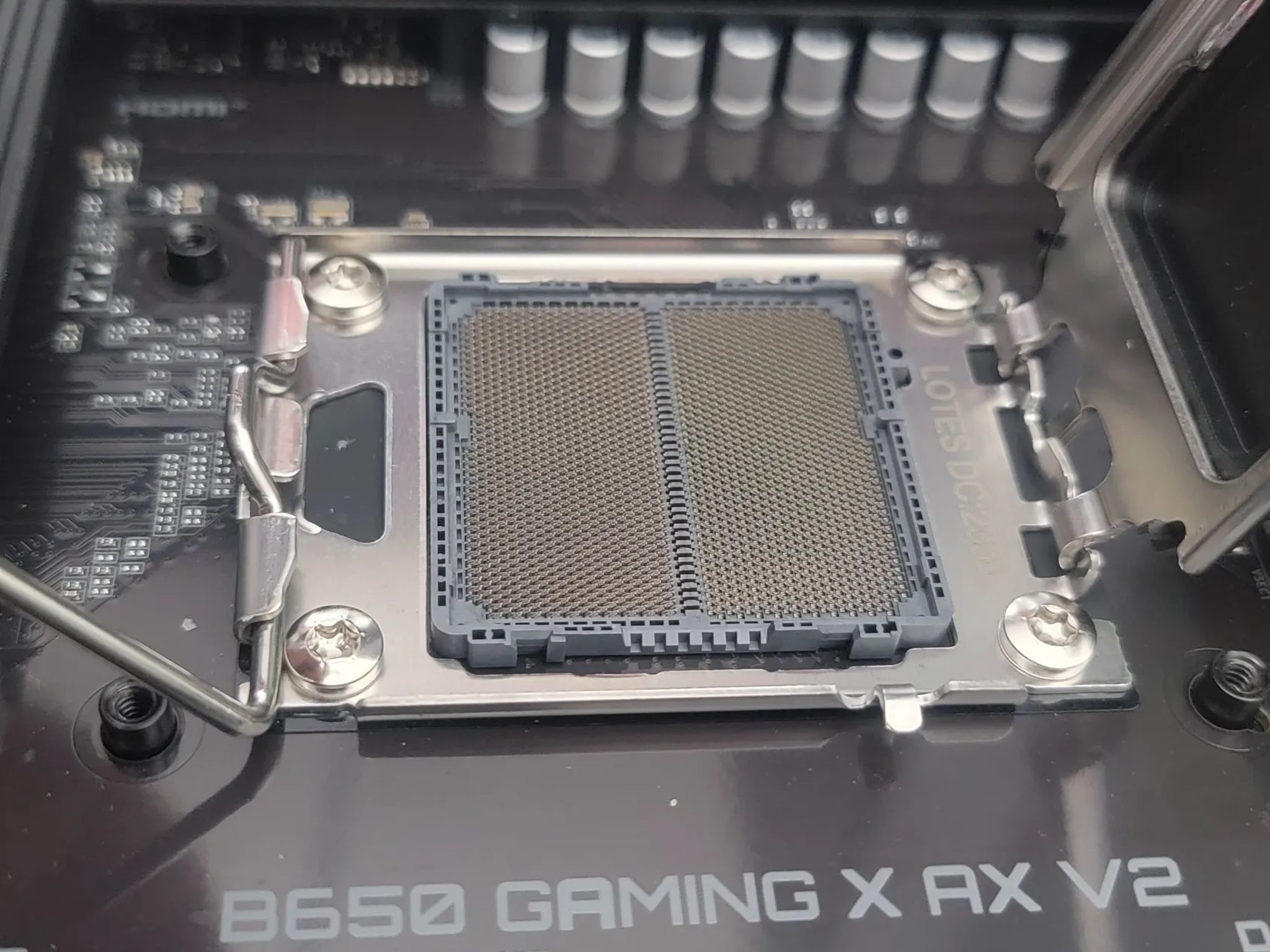

• Socket Type: AM5

MEMORY SPECIFICATIONS

• ECC: Non-ECC; Non-Registered

• Memory Type: DDR5-4800 DDR5-5200 DDR5-4400

• Memory Speeds Supported: Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

• Memory Slots: 4 x 288pin DIMM

• Memory Channel Support: Dual Channel

• Max Memory Supported: 256GB

• Maximum Memory Supported Per Slot: 64GB

• Supported Memory Technologies non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

VIDEO SPECIFICATIONS

• Onboard Graphic Chipset: Requires CPU with Integrated Graphics

STORAGE SPECIFICATIONS

• M.2 Port Type: 2280 25110

• SATA Express: 3 x M.2 Socket 3 M Key

• SATA 6Gb/s: 4

• RAID Support: RAID 0 RAID 1 RAID 10

AUDIO SPECIFICATIONS

• Audio Channels: 7.1

NETWORKING

• WiFi Support: Onboard WiFi

• Wireless LAN Chipset Realtek Wi-Fi 6E RTL8852CE

• LAN Speed: 10/100/1000/2500Mbps

• Wireless Technology: 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.3

EXPANSION SLOTS

• PCI Express 4.0 x16: 1
• PCI Express 3.0 x16: 2

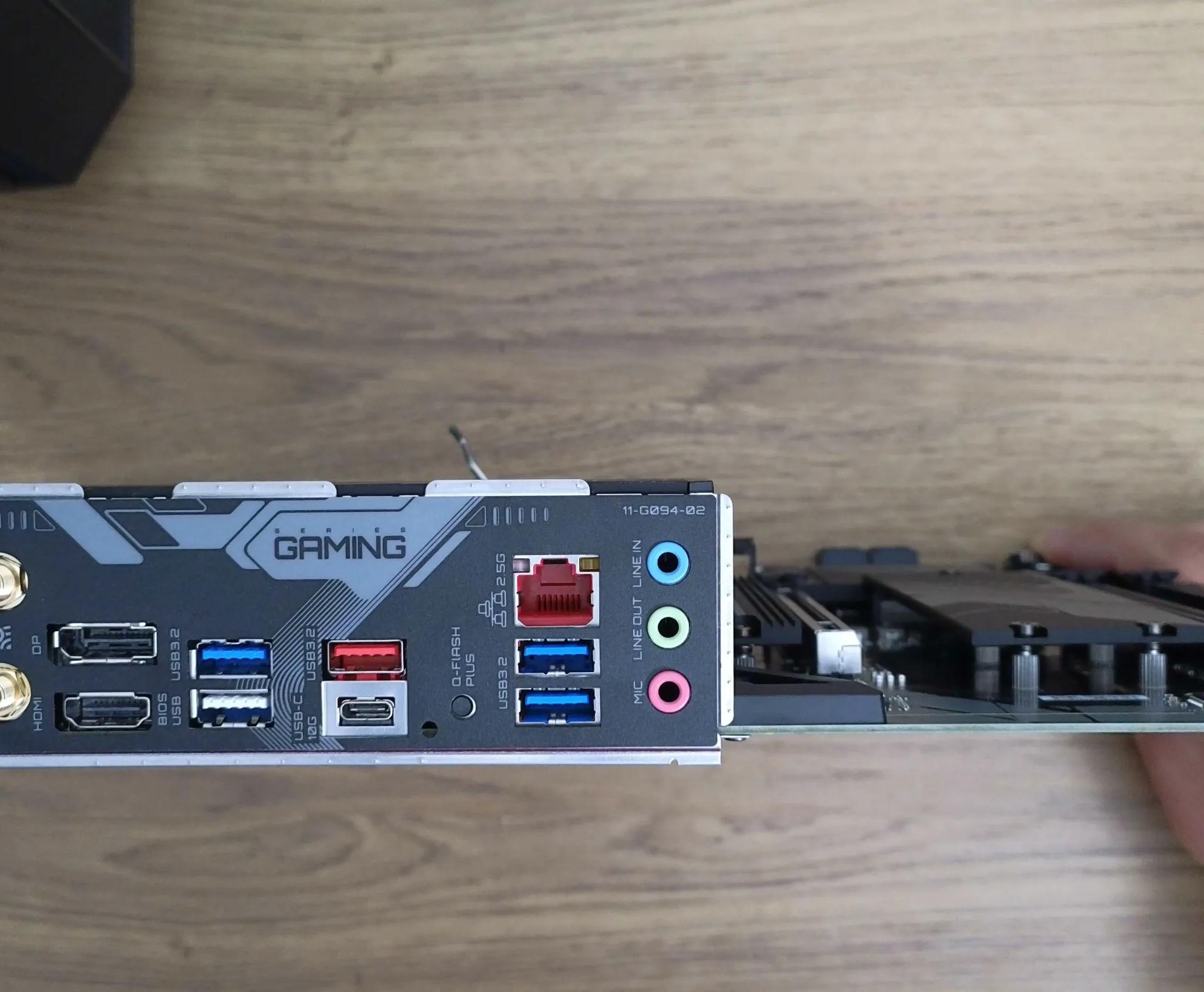

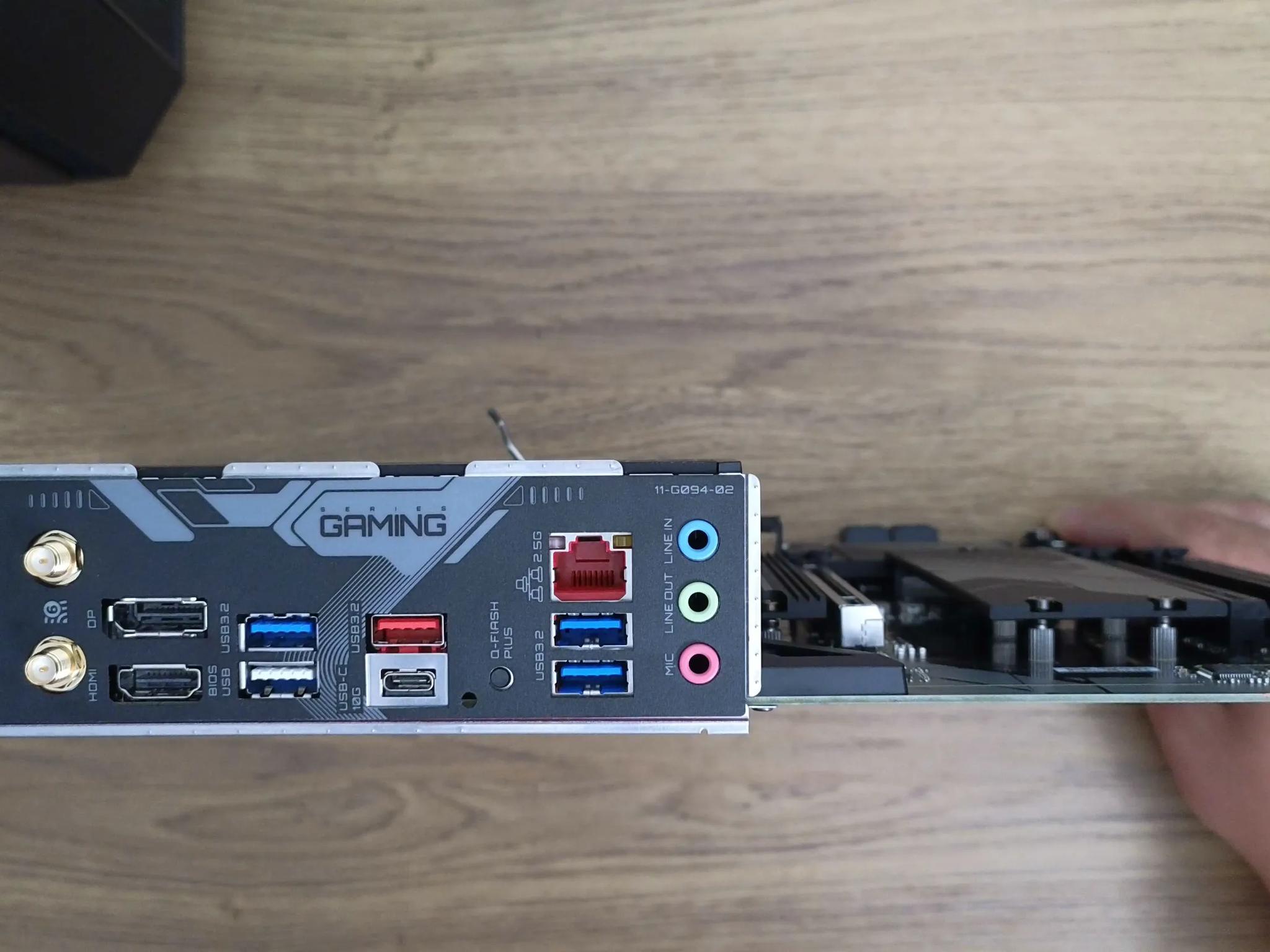

BACK PANEL PORTS

• Legacy Ports: 1 x PS/2

• LAN Ports: 1 x 10/100/1000/2500 RJ-45 LAN

• Audio Ports 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out

• Specialty Ports: 2 x WiFi Antenna Ports

• USB 2.0: 3 x USB 2.0 (Type-A)

• USB 3.1: 1 x USB 3.2 (Gen 2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) 3 x USB 3.2 (Gen 1 Type-A)

• Video Connectors: 1 x HDMI 2.1 1 x DisplayPort 1.4

INTERNAL I/O & CONNECTORS

• Headers: 1 x CPU Fan Header 1 x Water Pump Header 2 x System Fan Header

• USB: 2 x USB 2.0 Headers (4 Ports) 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)

POWER

• Power Connectors: 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector 1 x 4-pin +12 V Connector

PHYSICAL SPECIFICATIONS

• Depth: 12.00 in. (305.00 mm)
• Width: 9.61 in. (244.00 mm)

Form Factor: ATX

PACKAGE CONTENTS

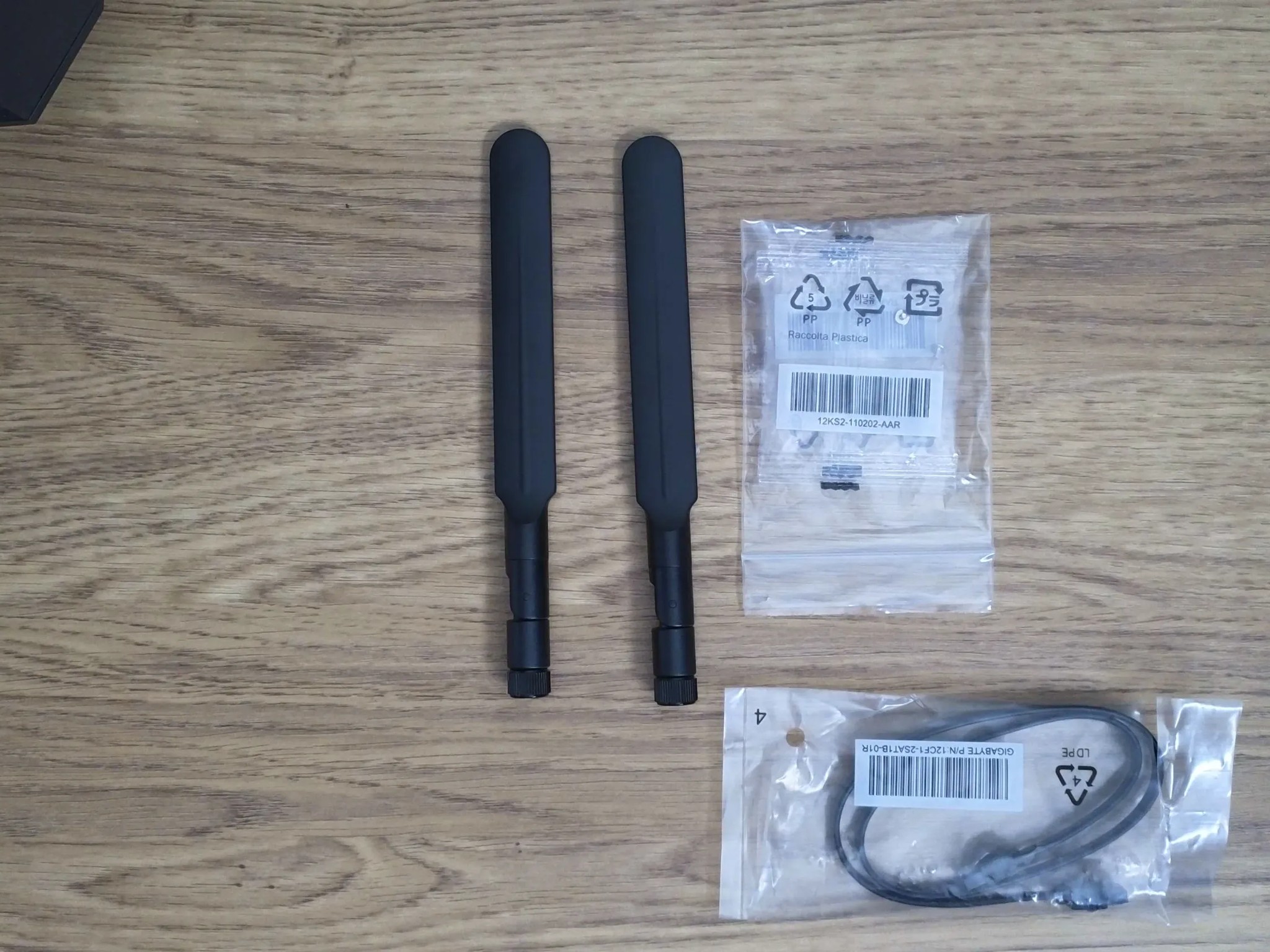

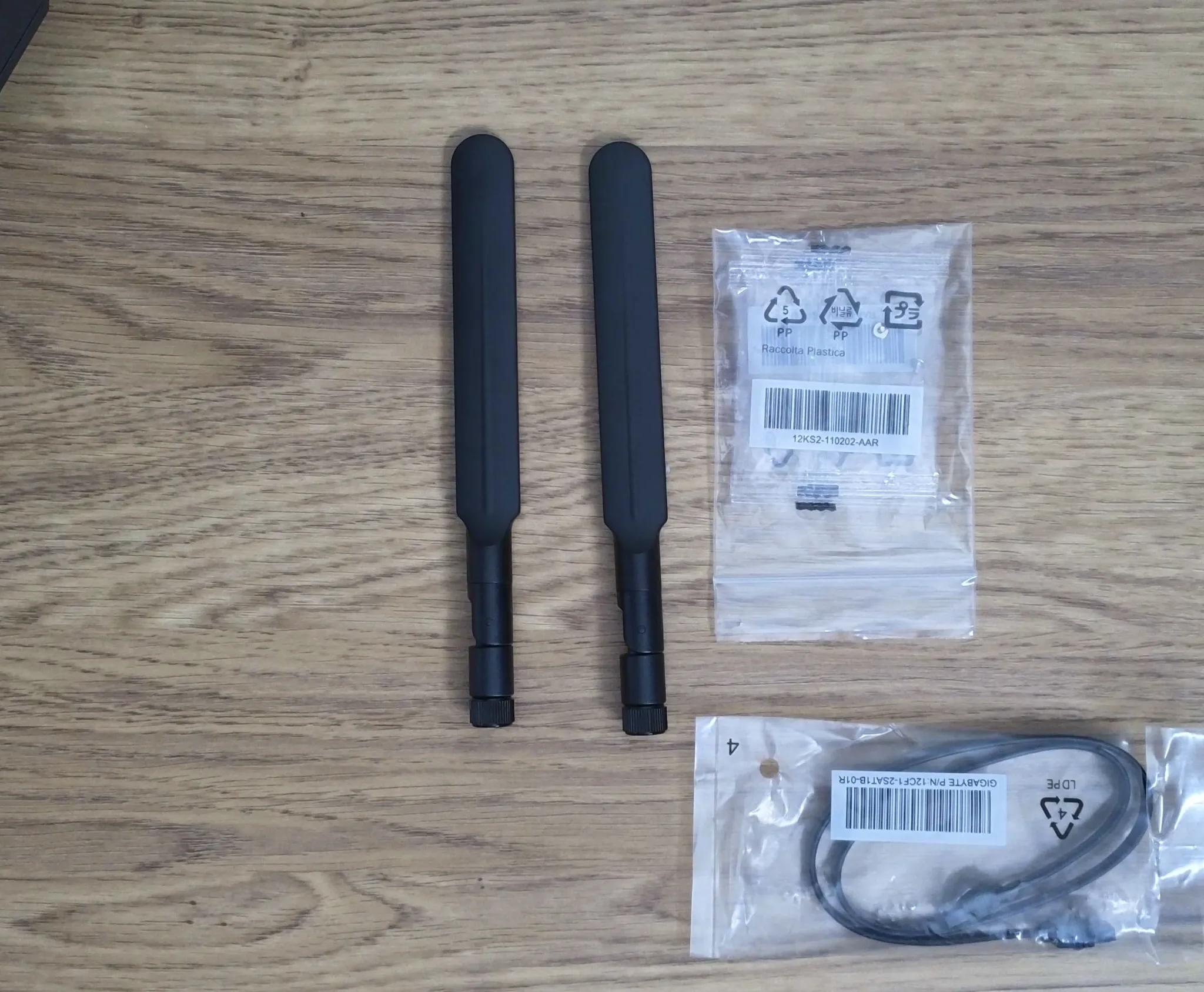

• What's in the Box: Motherboard, 1x SATA Cables, 2x Antennas, M.2 Screw
