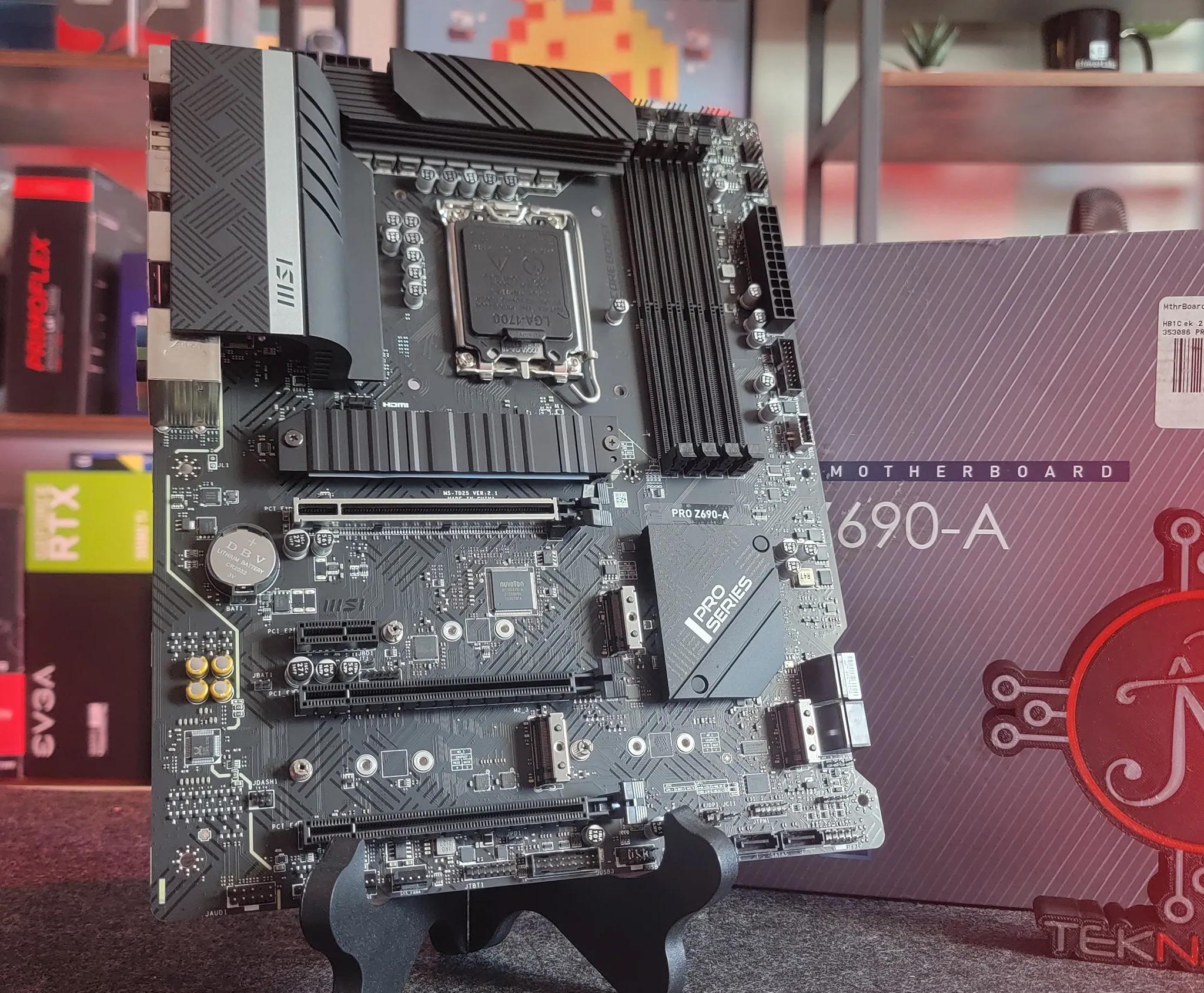

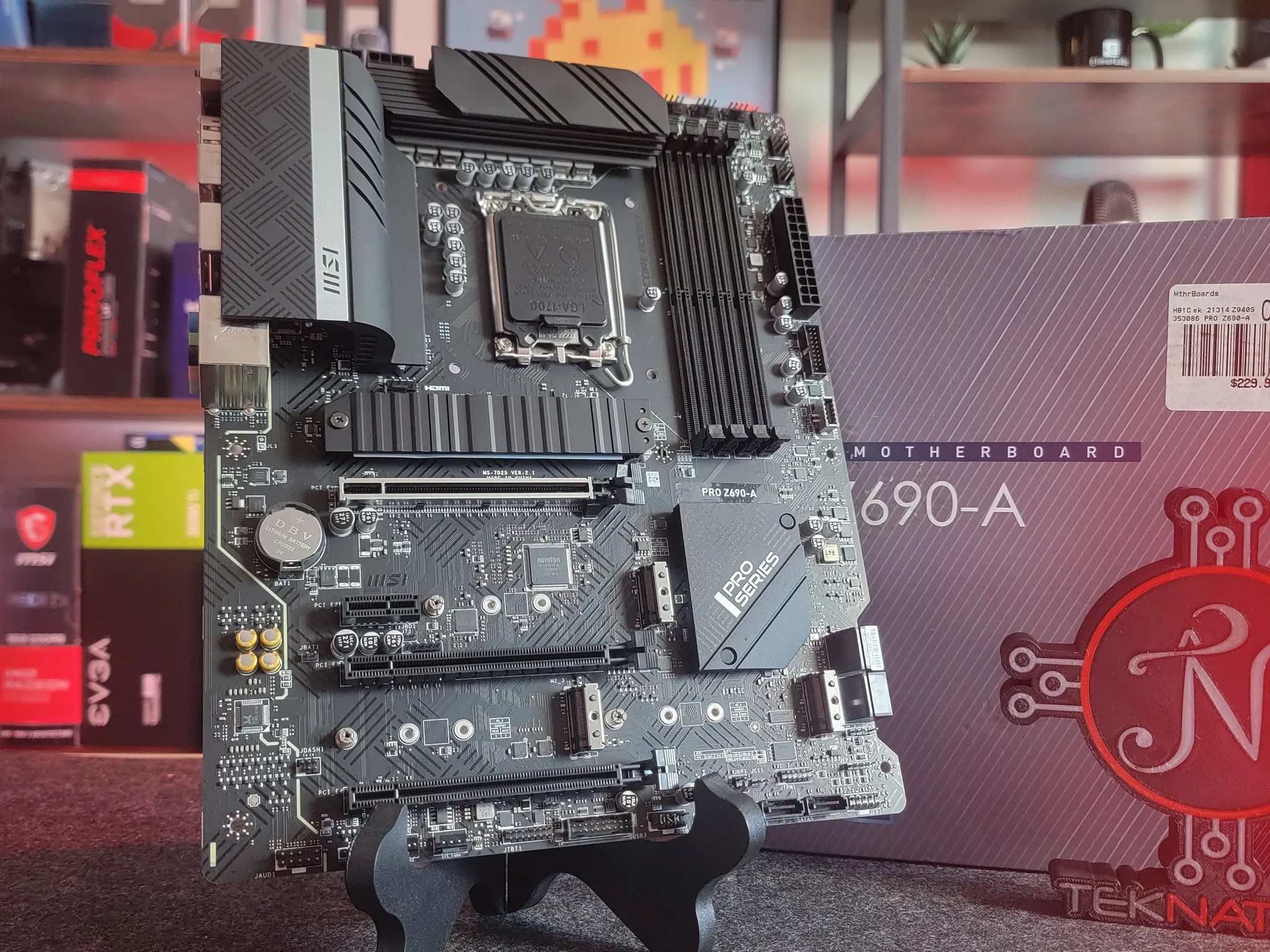

MSI PRO Z690-A DDR5 Motherboard ready for Intel 14th, 13th, 12th Gen in great condition

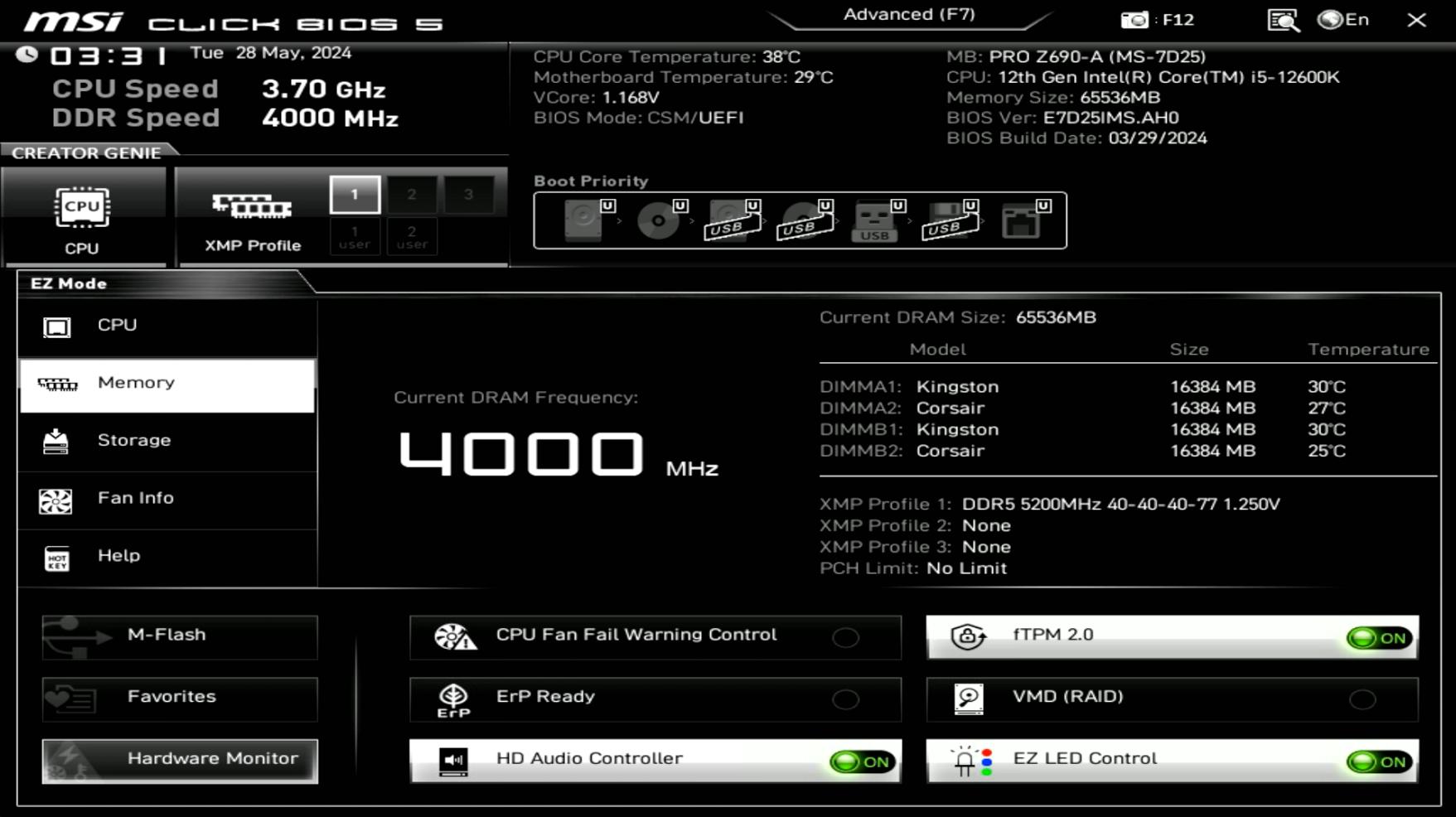

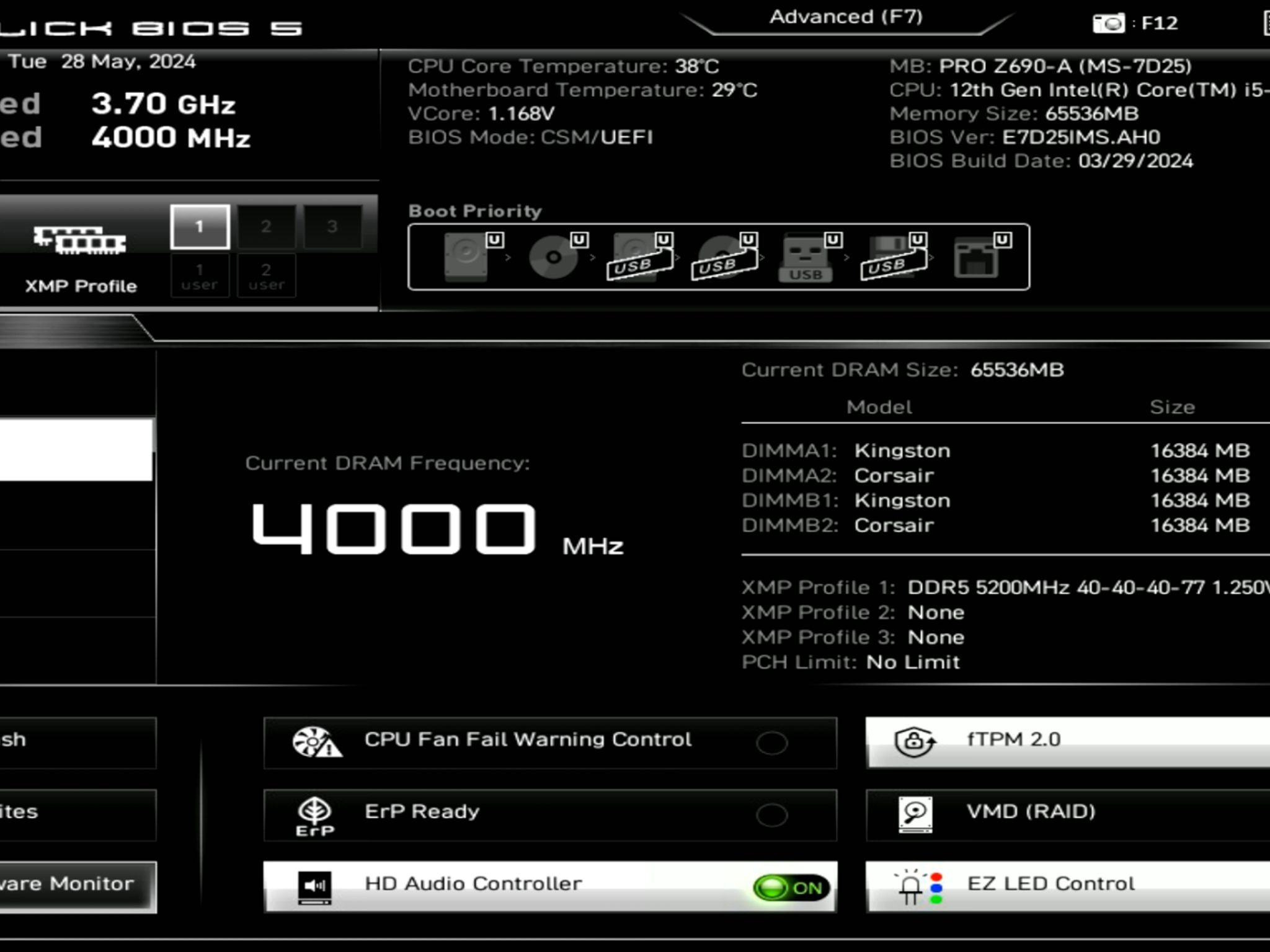

• The latest BIOS version installed: 7D25vAH

• Tested with 4 RAM modules of different brands and I was able to enable XMP successfully.

• Mfr Part#: PRO Z690-A

• UPC: 824142270387

• Chipset: Intel Z690

• Intel CPU Support: Core i7 Core i5 Core i3 Celeron Pentium Core i9

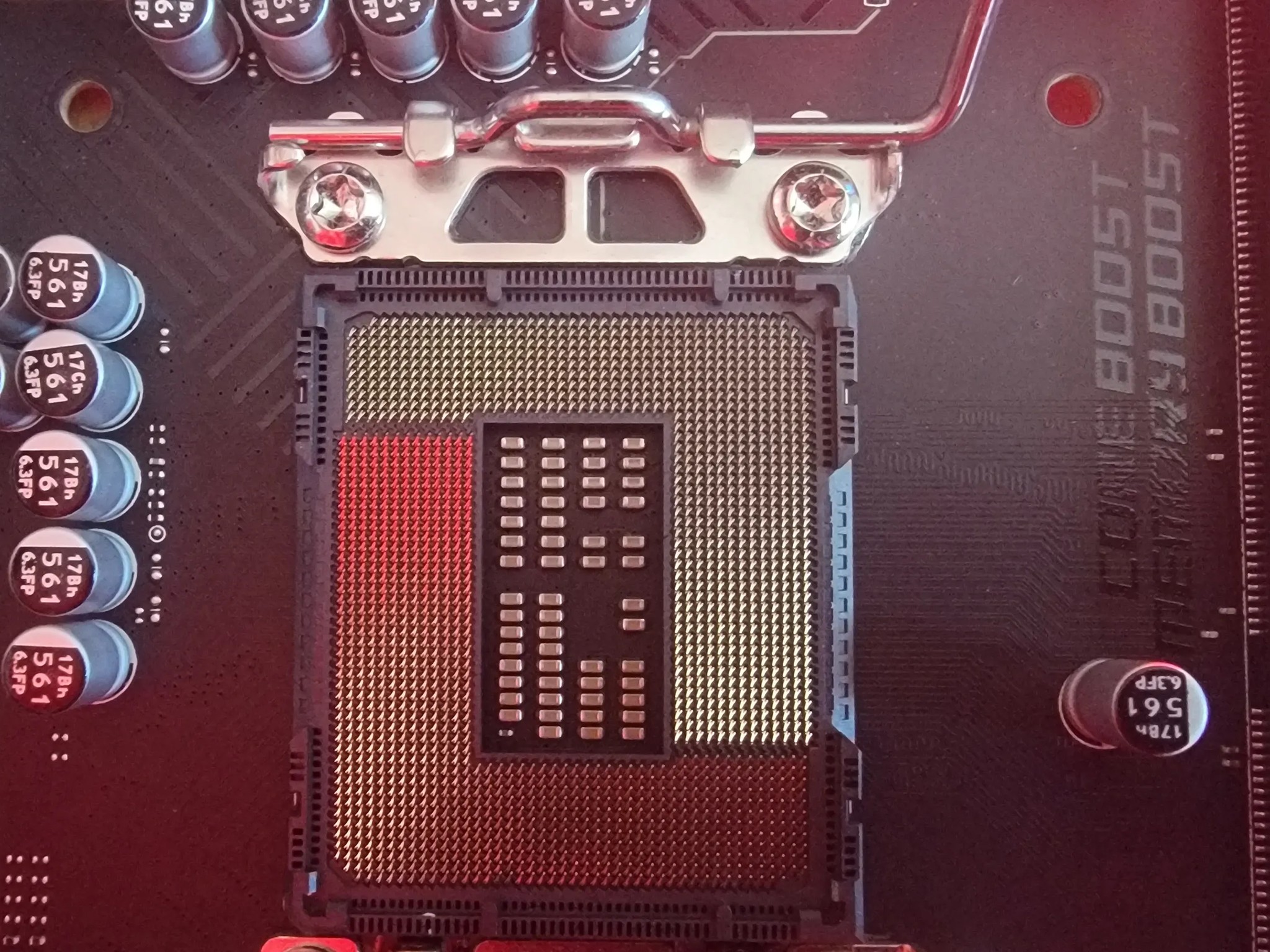

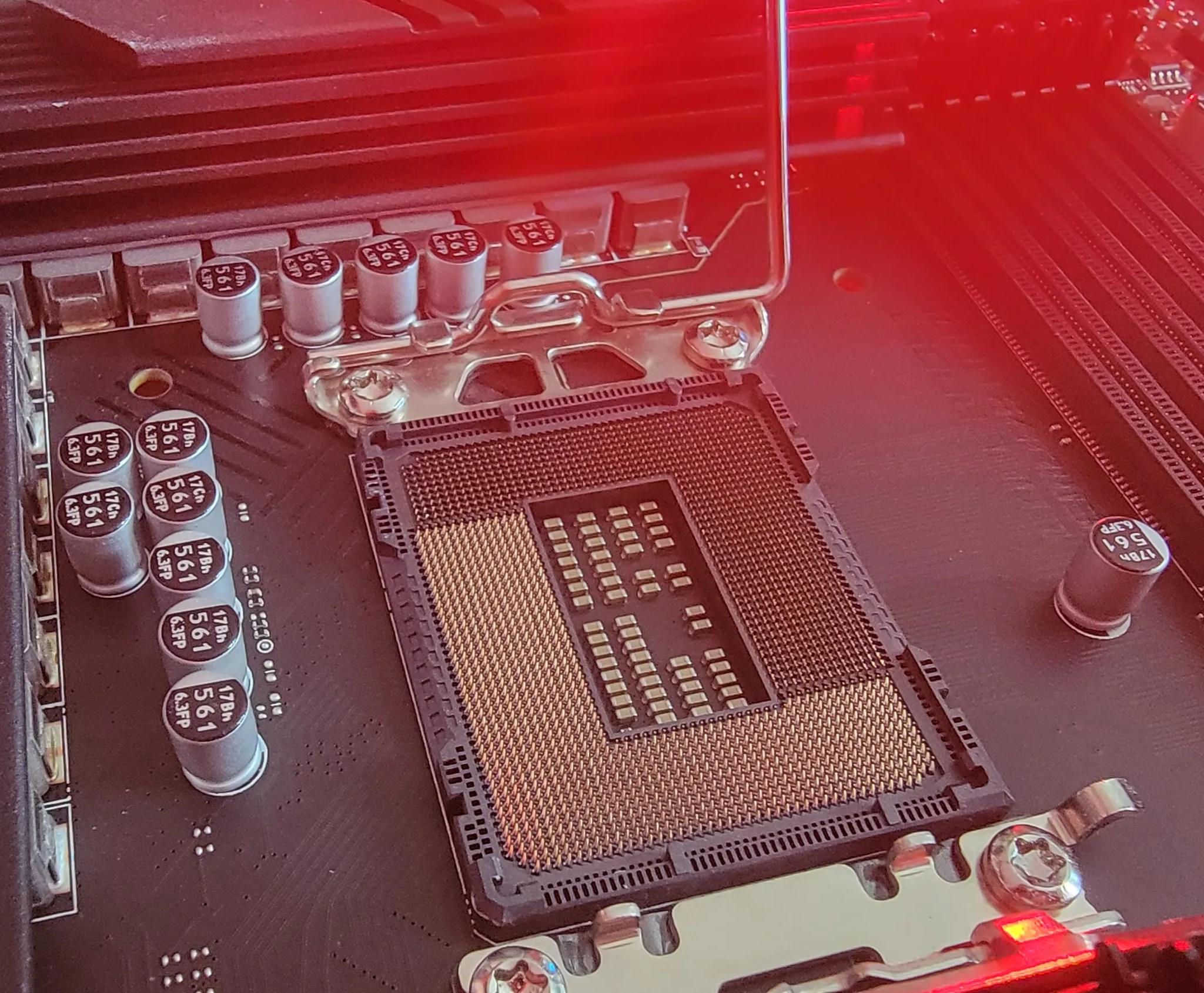

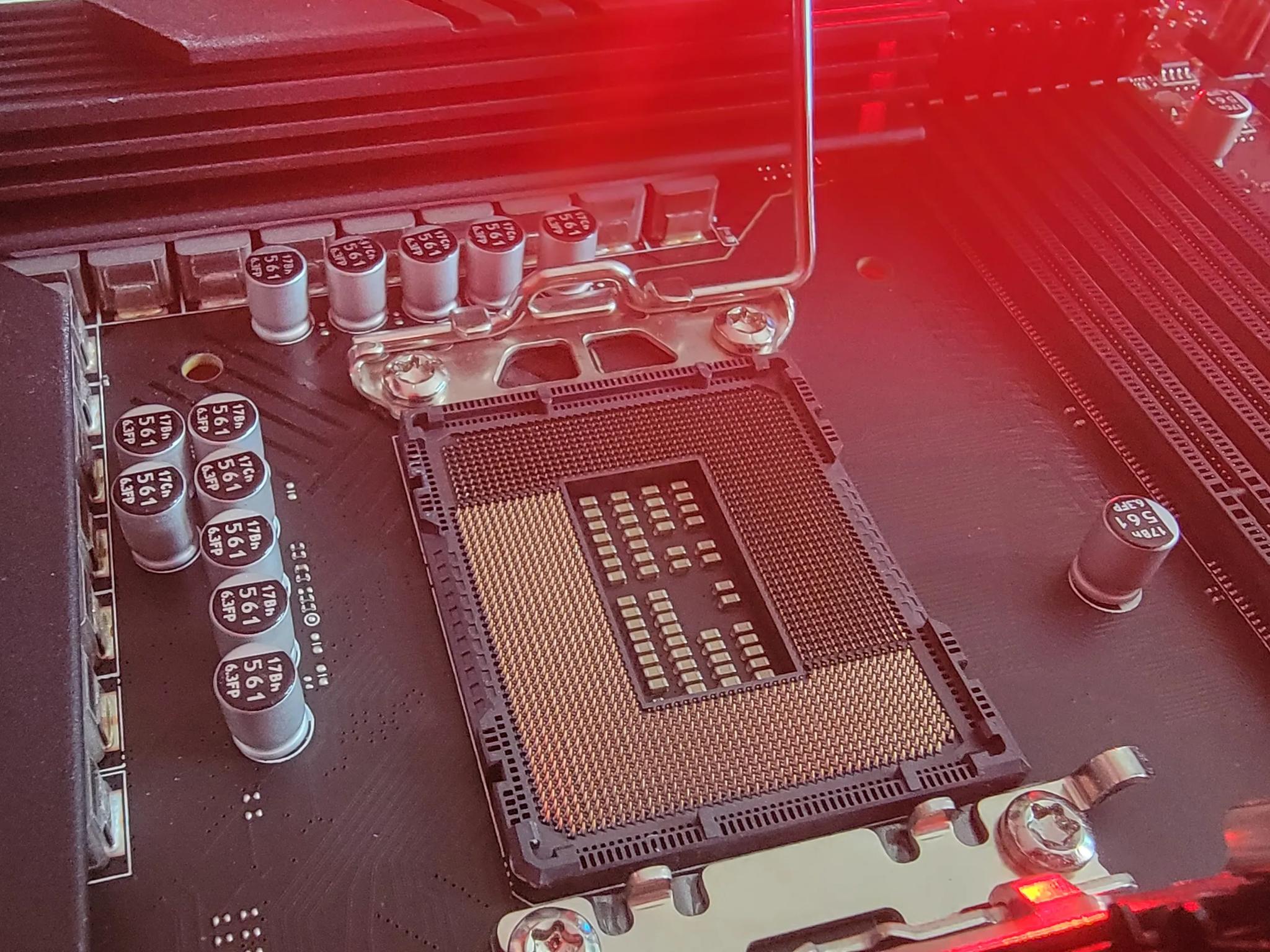

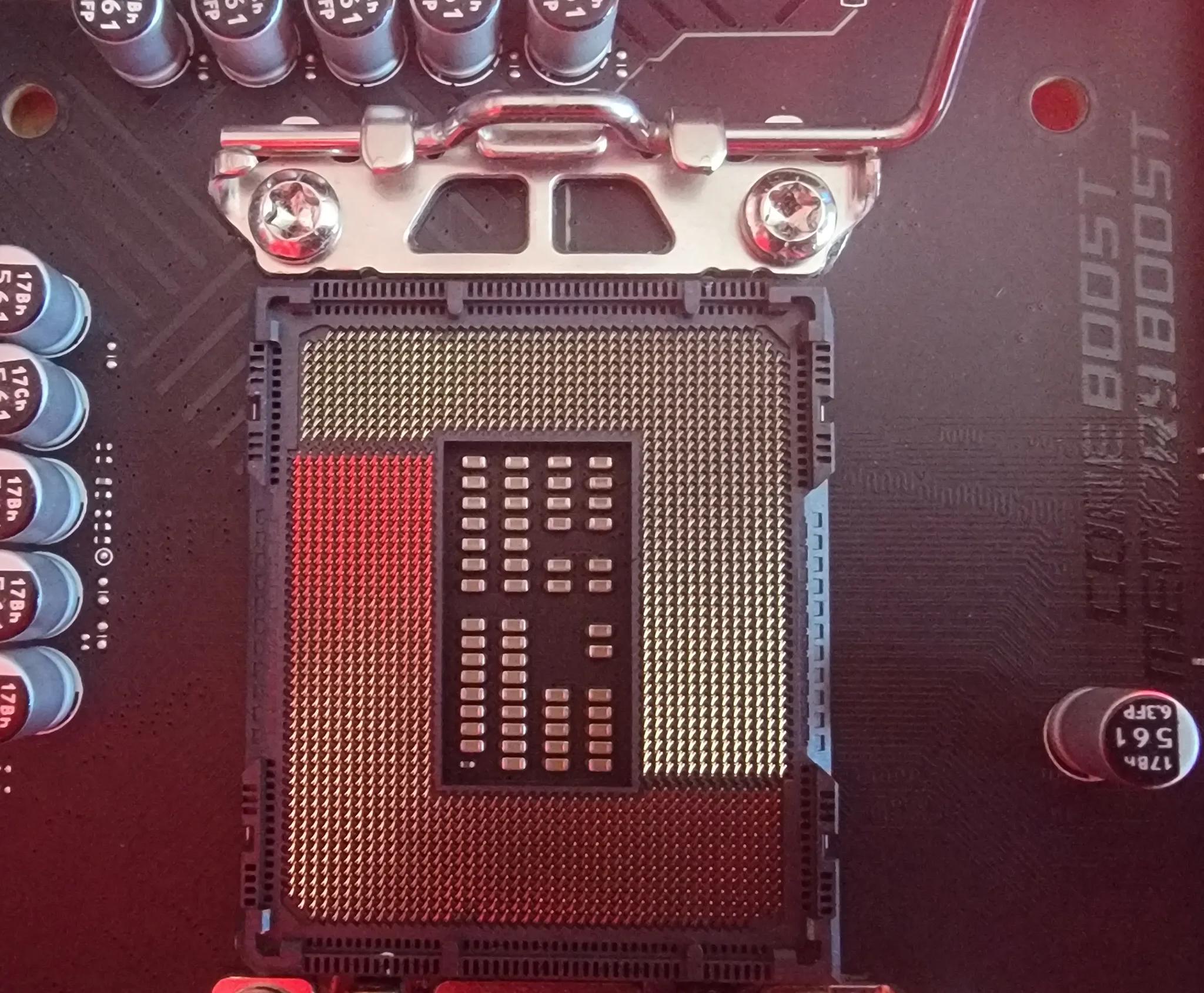

• Socket Type: LGA 1700

MEMORY SPECIFICATIONS

• Memory Type: DDR5-4800

• Memory Speeds Supported: 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800

• Memory Slots: 4 x 288pin DIMM

• Memory Channel Support: Dual Channel

• Max Memory Supported: 128GB

• Maximum Memory Supported Per Slot: 32GB

• Supported Memory Technologies: Non-ECC Memory Supported

VIDEO SPECIFICATIONS

• Onboard Graphic Chipset: Requires CPU with Integrated Graphics
• Multi-GPU Support: 2-Way CrossFireX

STORAGE SPECIFICATIONS

• M.2 Port Type: 2242 2260 2280 22110

• SATA Express: 4 x M.2 Socket 3 M Key

• SATA 6Gb/s: 6

• RAID Support: RAID 0 RAID 1 RAID 5 RAID 10

AUDIO SPECIFICATIONS

• Audio Chipset: Realtek ALC897
• Audio Channels: 7.1

NETWORKING

• LAN Chipset: Intel I225-V
• LAN Speed: 10/100/1000/2500Mbps

EXPANSION SLOTS

• PCI Express 5.0 x16: 1
• PCI Express 3.0 x16: 2
• PCI Express x1: 1

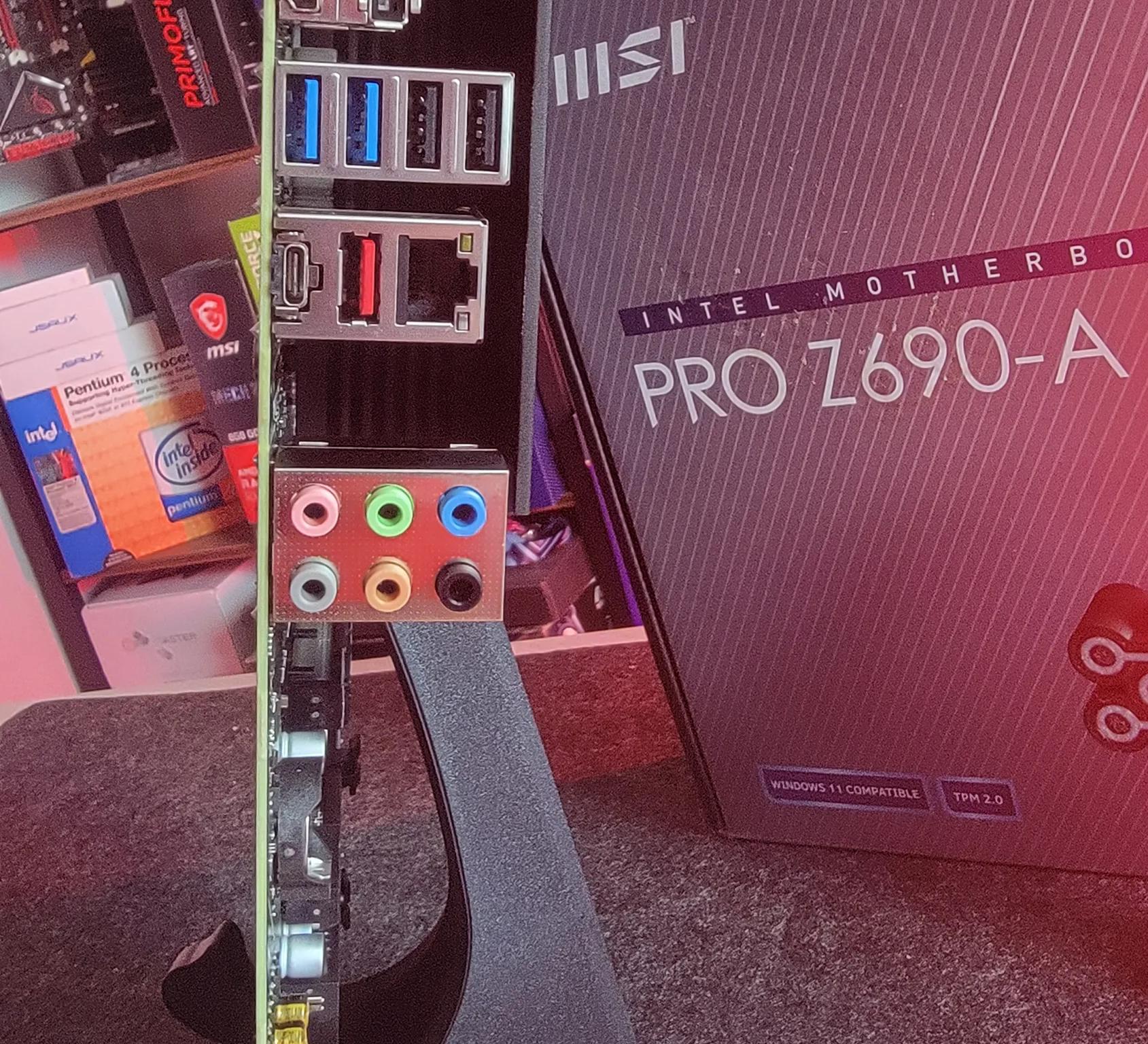

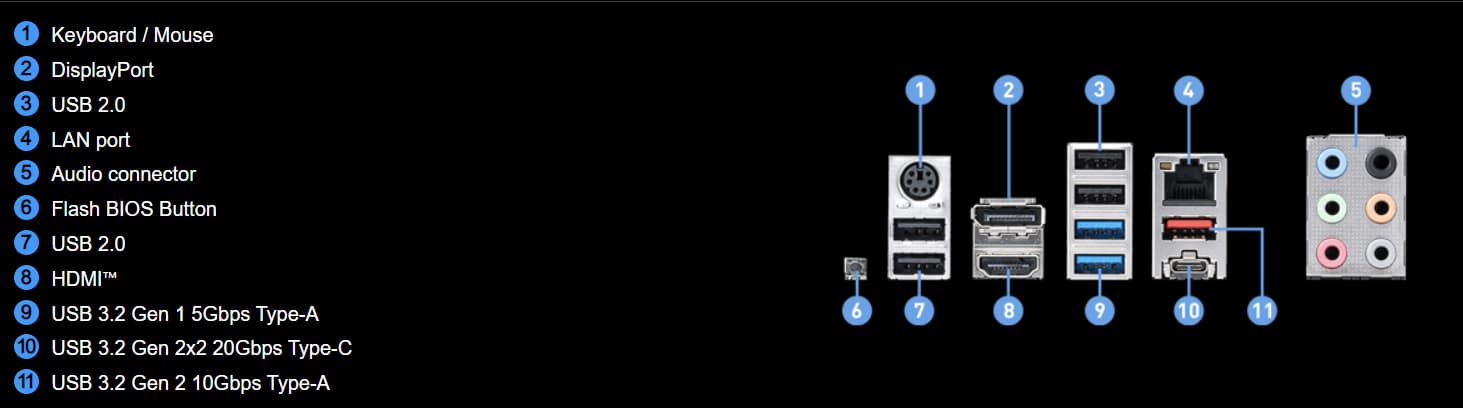

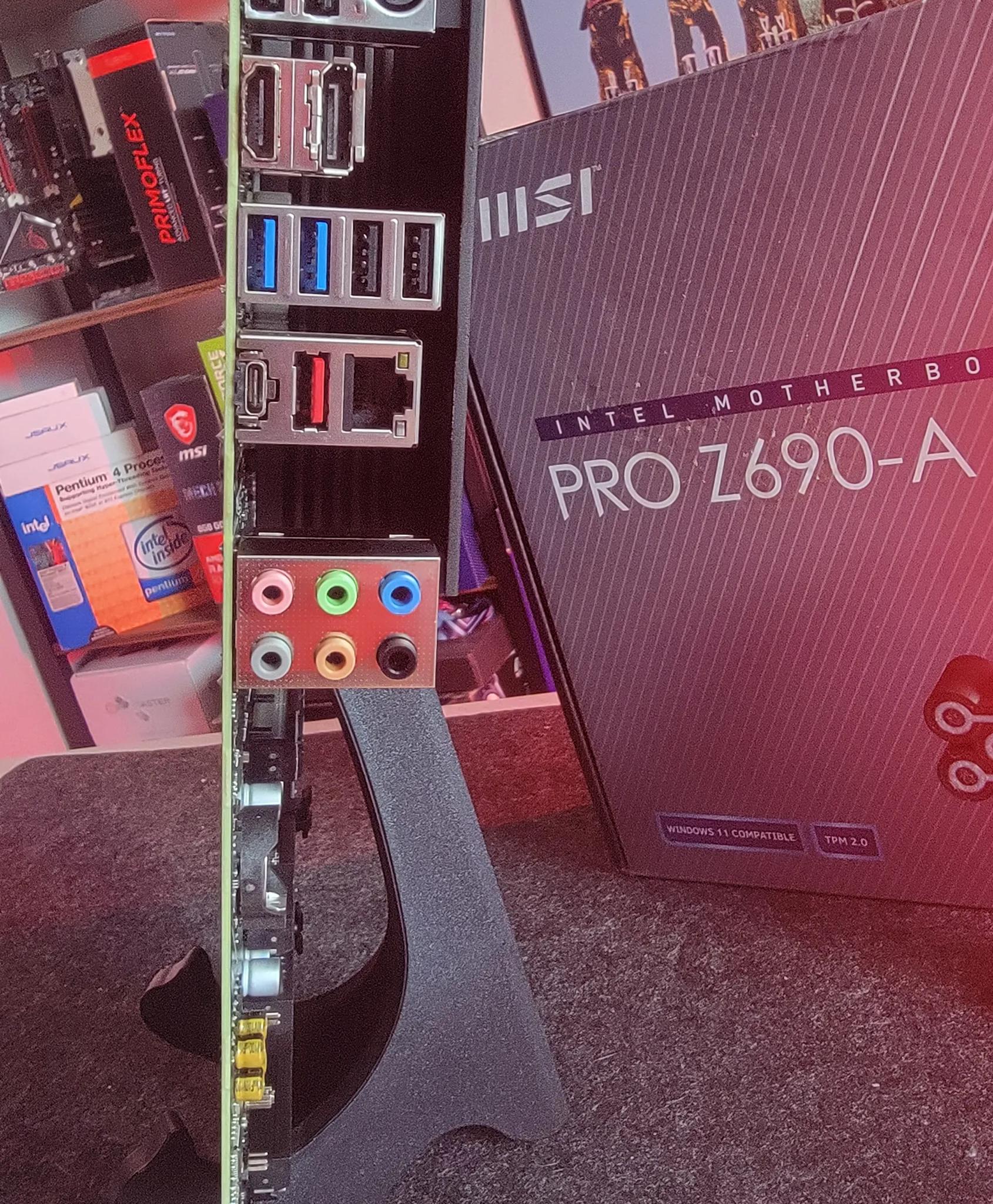

BACK PANEL PORTS

• Legacy Ports: 1 x PS/2

• LAN Ports: 1 x 10/100/1000/2500 RJ-45 LAN

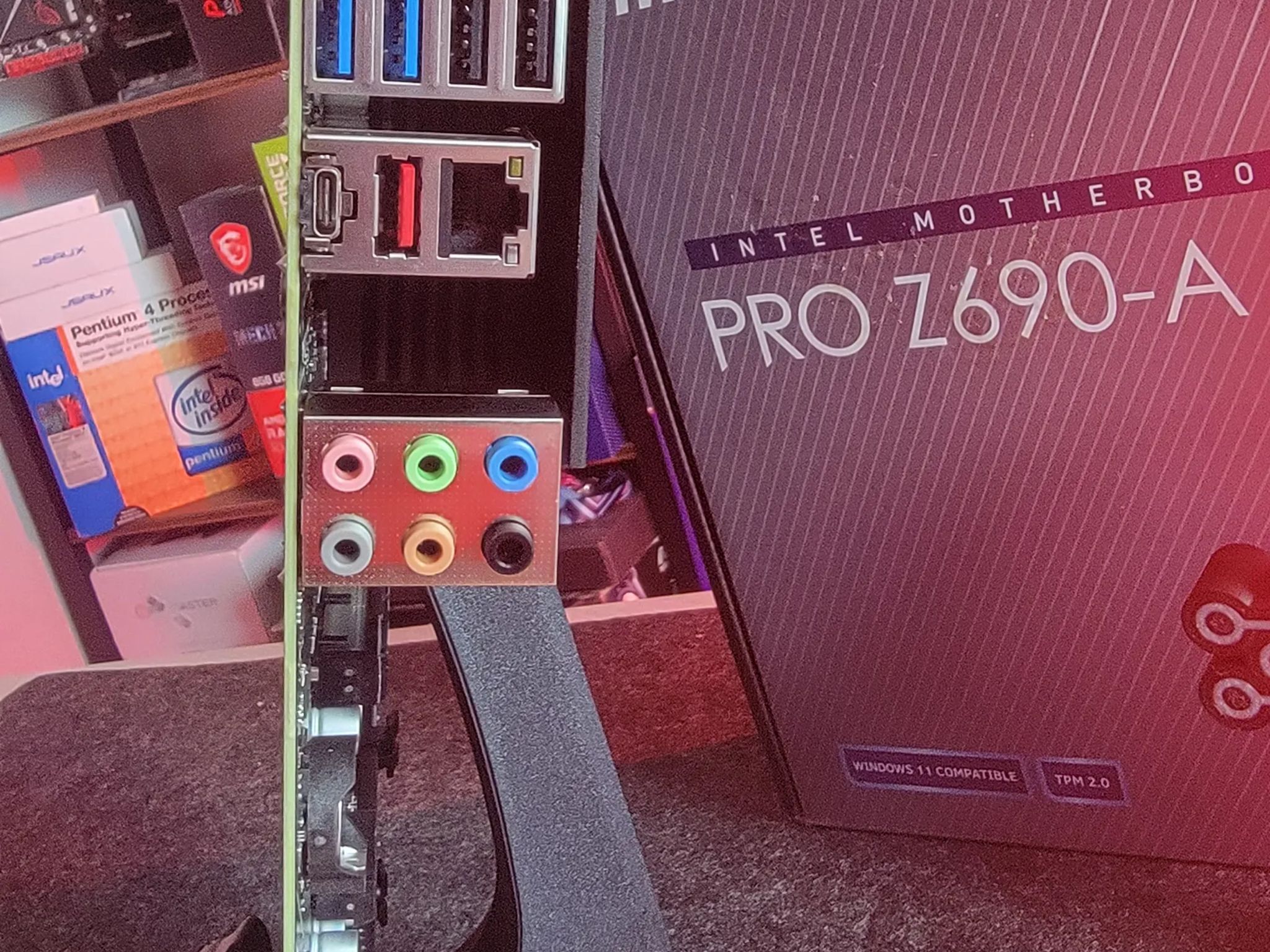

• Audio Ports: 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Rear Speaker 1 x 3.5 mm Subwoofer 1 x 3.5 mm Side Speaker 1 x 3.5 mm Line-Out

• USB 2.0: 4 x USB 2.0 (Type-A)

• USB 3.1: 1 x USB 3.2 (Gen 2x2 Type-C) 1 x USB 3.2 (Gen 2 Type-A) 2 x USB 3.2 (Gen 1 Type-A)

• Video Connectors: 1 x HDMI 2.1

INTERNAL I/O & CONNECTORS

• Headers: 1 x CPU Fan Header 1 x Water Pump Header 6 x System Fan Header

-USB: 2 x USB 2.0 Headers (4 Ports) 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports) 1 x USB 3.2 Gen 2 Type-C Header (1 Port)

POWER

• Power Connectors: 1 x 24-pin ATX Connector 2 x 8-pin +12 V Connector

ATX Connector: 24-pin ATX Power Connector

PHYSICAL SPECIFICATIONS

• Depth: 12.00 in. (305.00 mm)
• Width: 9.61 in. (244.00 mm)
• Form Factor: ATX
