7 nm AMD APU
CPU: Zen 2 4c/8t, 2.4-3.5GHz (up to 448 GFlops FP32)
GPU: 8 RDNA 2 CUs, 1.0-1.6GHz (up to 1.6 TFlops FP32)
APU power: 4-15W
RAM
16 GB LPDDR5 on-board RAM (5500 MT/s quad 32-bit channels)
Storage
Steam Deck 64GB*
Steam Deck 256GB
Steam Deck 512GB*
All include high-speed microSD card slot
*available while supplies last


Controls and Input

Gamepad controls
A B X Y buttons
D-pad
L & R analog triggers
L & R bumpers
View & Menu buttons
4 x assignable grip buttons
Thumbsticks
2 x full-size analog sticks with capacitive touch
Haptics
HD haptics
Trackpads
2 x 32.5mm square trackpads with haptic feedback
55% better latency compared to Steam Controller
Pressure-sensitivity for configurable click strength
Gyro
6-Axis IMU


Display

Resolution
1280 x 800 x RGB
Type
Optically bonded IPS LCD for enhanced readability
Display Size
7" diagonal
Brightness
400 nits typical
Refresh Rate
60Hz
Touch Enabled
Yes
Sensors
Ambient light sensor


Connectivity

Bluetooth
Bluetooth 5.0 (support for controllers, accessories and audio)
Wi-Fi
Dual-band Wi-Fi radio, 2.4GHz and 5GHz, 2 x 2 MIMO, IEEE 802.11a/b/g/n/ac


Audio

Channels
Stereo with embedded DSP for an immersive listening experience
Microphones
Dual microphone array
Headphone / mic jack
3.5mm stereo headphone / headset jack
Digital
Multichannel audio via DisplayPort over USB-C, standard USB-C, or Bluetooth 5.0


Power

Input

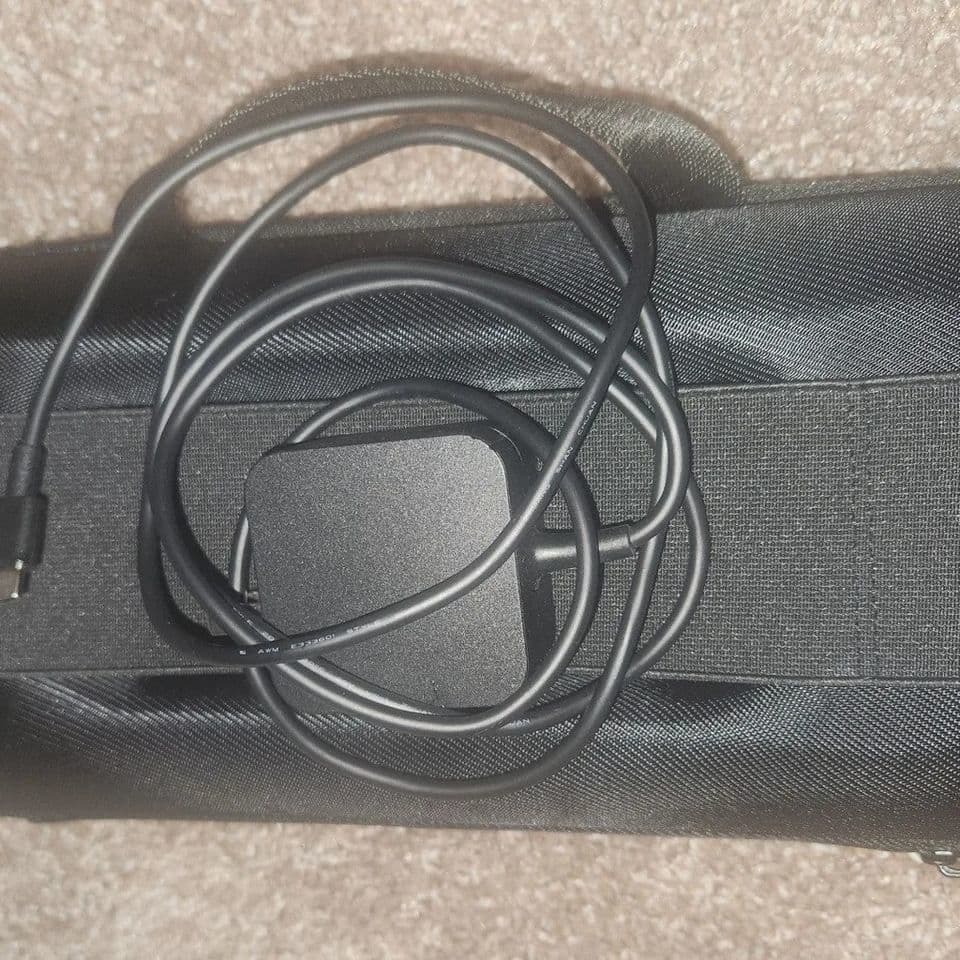

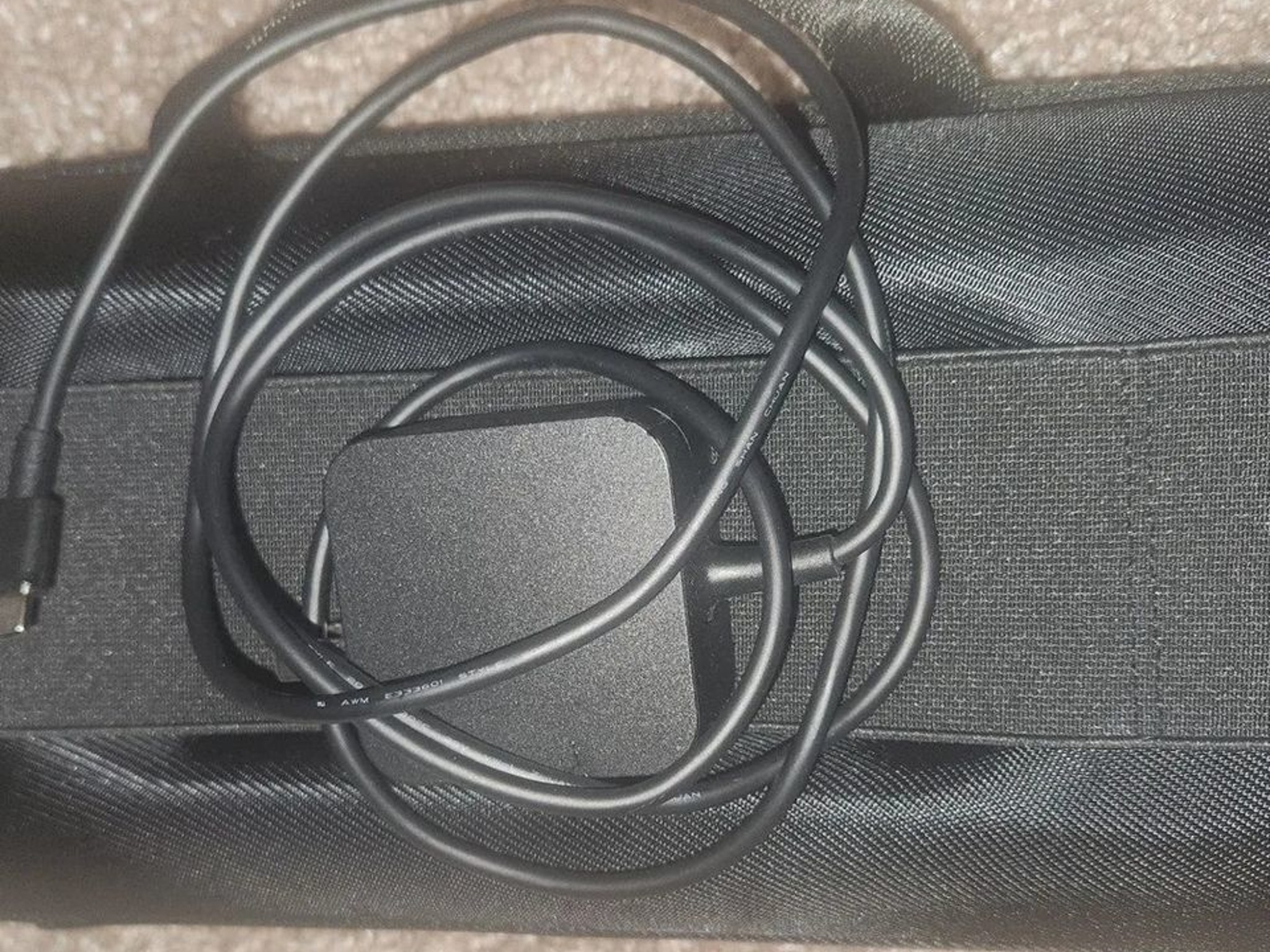

45W USB Type-C PD3.0 power supply
Battery
40Whr battery. 2 - 8 hours of gameplay


Expansion

microSD
UHS-I supports SD, SDXC and SDHC
External connectivity for
controllers & displays
USB-C with DisplayPort 1.4 Alt-mode support; up to 8K @60Hz or 4K @120Hz, USB 3.2 Gen 2


Size and Weight

Size
298mm x 117mm x 49mm
Weight
Approx. 669 grams


Software

Operating System
SteamOS 3 (Arch-based)
Desktop
KDE Plasma

Steam Deck

【Designed for ROG Ally】The JSAUX transparent back plate is made with exquisite craftsmanship and precise cutting, and fits 1:1 with the original backplate size to ensure a tight fit after installation. It ensures the precision of the product as well as maintains a good texture.

【Light Up Your ROG Ally】Experience 5 fascinating RGB light modes, cool light effects make your gaming machine more eye-catching. Built-in 170mAh Li-ion battery can be easily recharged via USB-C and enjoy up to 3 hours of uninterrupted RGB lighting.

【Customise Your ROG Ally】5 representative pattern modules with great tech element style. In addition, we also provide 4 additional transparent customisable sliders, for DIY enthusiasts can use their imagination to create their own ROG Ally personalised logo.

【Interior Exploration】Use the JSAUX transparent back plate to reveal the back of the ROG Ally and see the elements of the console's internal components, allowing you to get involved in the design.

【Installation Guide】 You will get the PC0110 back cover and installation kit.

ROG Ally - JSAUX RGB Transparent Back Plate

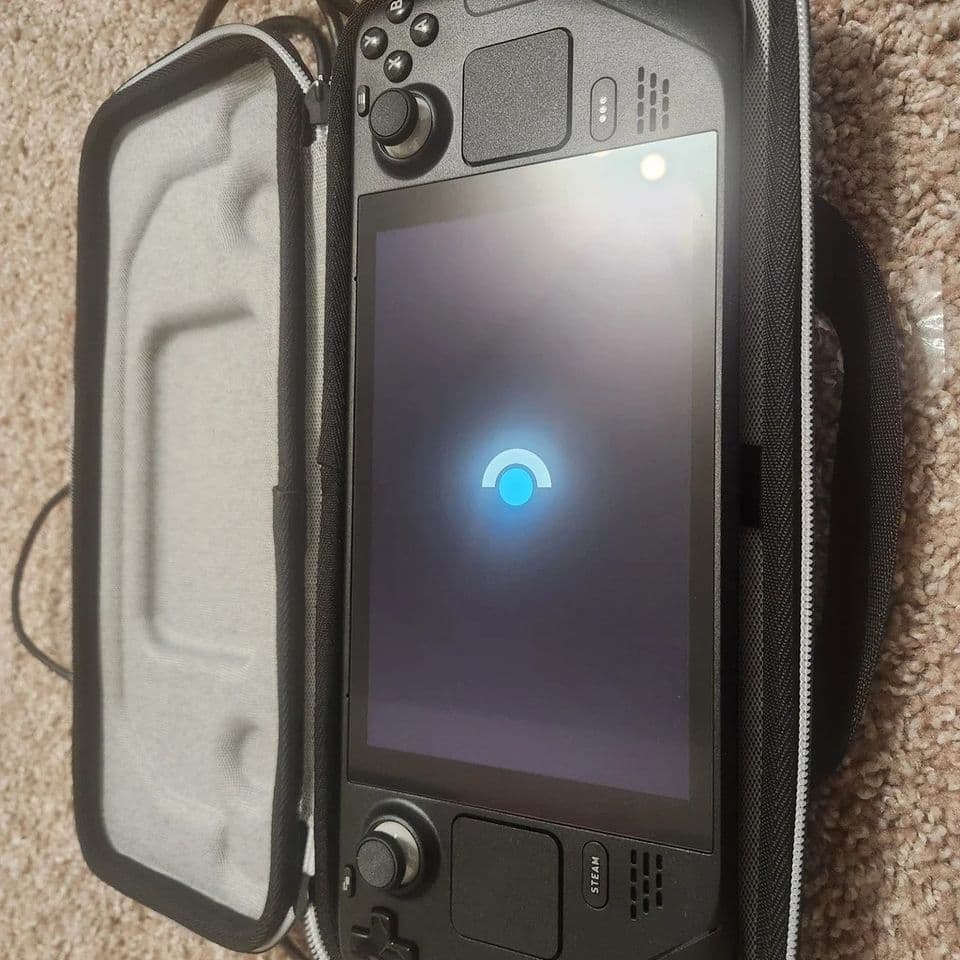

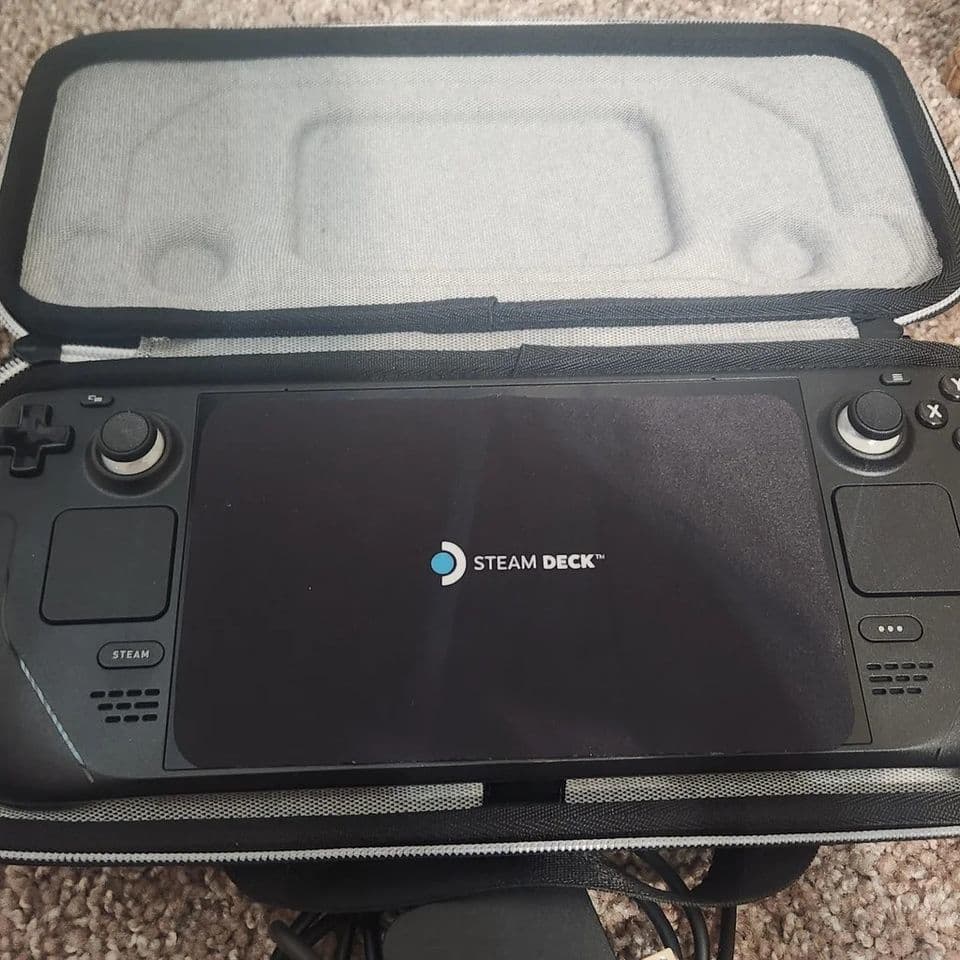

Slim Steam Deck carrying case: Specially designed for Steam Deck/ Steam Deck OLED players to travel and carry. Super thin and lightweight. Whether it is commuting to work or long-distance travel, it is your best choice. (We have reserved some space for a steam deck with an Extra thin protective TPU case)

Super protection: The durable hard shell Protects your Steam Deck Console free from scratches, providing maximum protection for your Steam Deck against the knocks, bumps, and drops that might happen on the go.

Excellent design: The EVA hard shell has raised areas, the accurate design perfectly fits the curves of the steam deck console, and prevents the joystick and buttons from being mis-touched; a built-in padded buffer avoids compression on shoulder buttons.

High quality: Made of splash-proof EVA hard shell material and equipped with heavy-duty YKK zippers, this Steam Deck travel case is portable, sturdy, and durable; to provide customers with the best experience from the details.
