ASRock B760M Pro RS/D4 WiFi Intel LGA 1700 microATX Motherboard

Mfr Part#: MBB760MPRORSD4W UPC: 4710483941719

Key Features

• Intel B760
• Intel LGA 1700 Processors
• 128GB Dual Channel 4 x 288pin DIMM Support

SPECIFICATIONS:

• Chipset: Intel B760

• BIOS: 128Mb AMI UEFI Bios

• Intel CPU Support: Core i7, Core i5. Core i3, Celeron, Pentium, Core i9

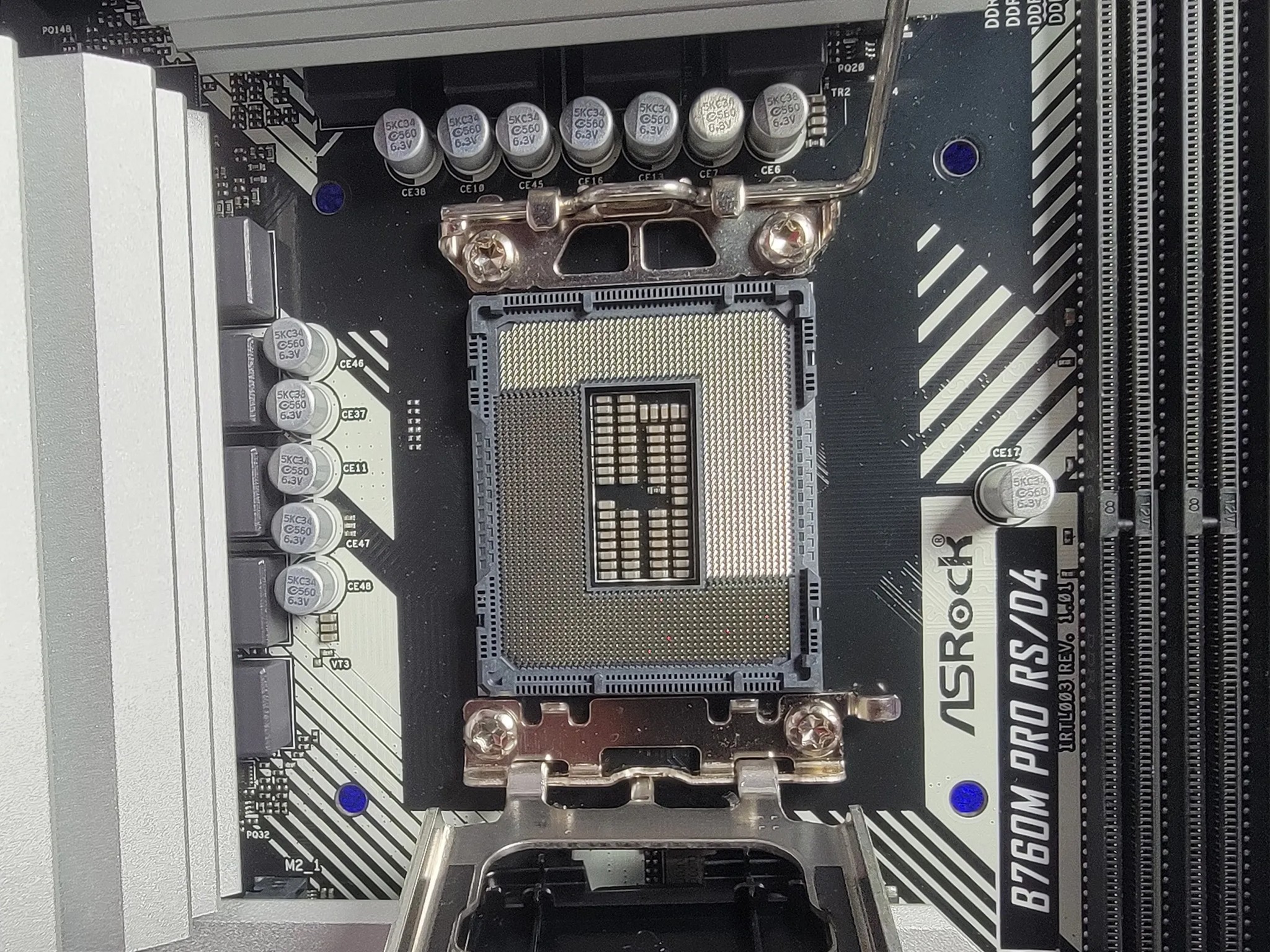

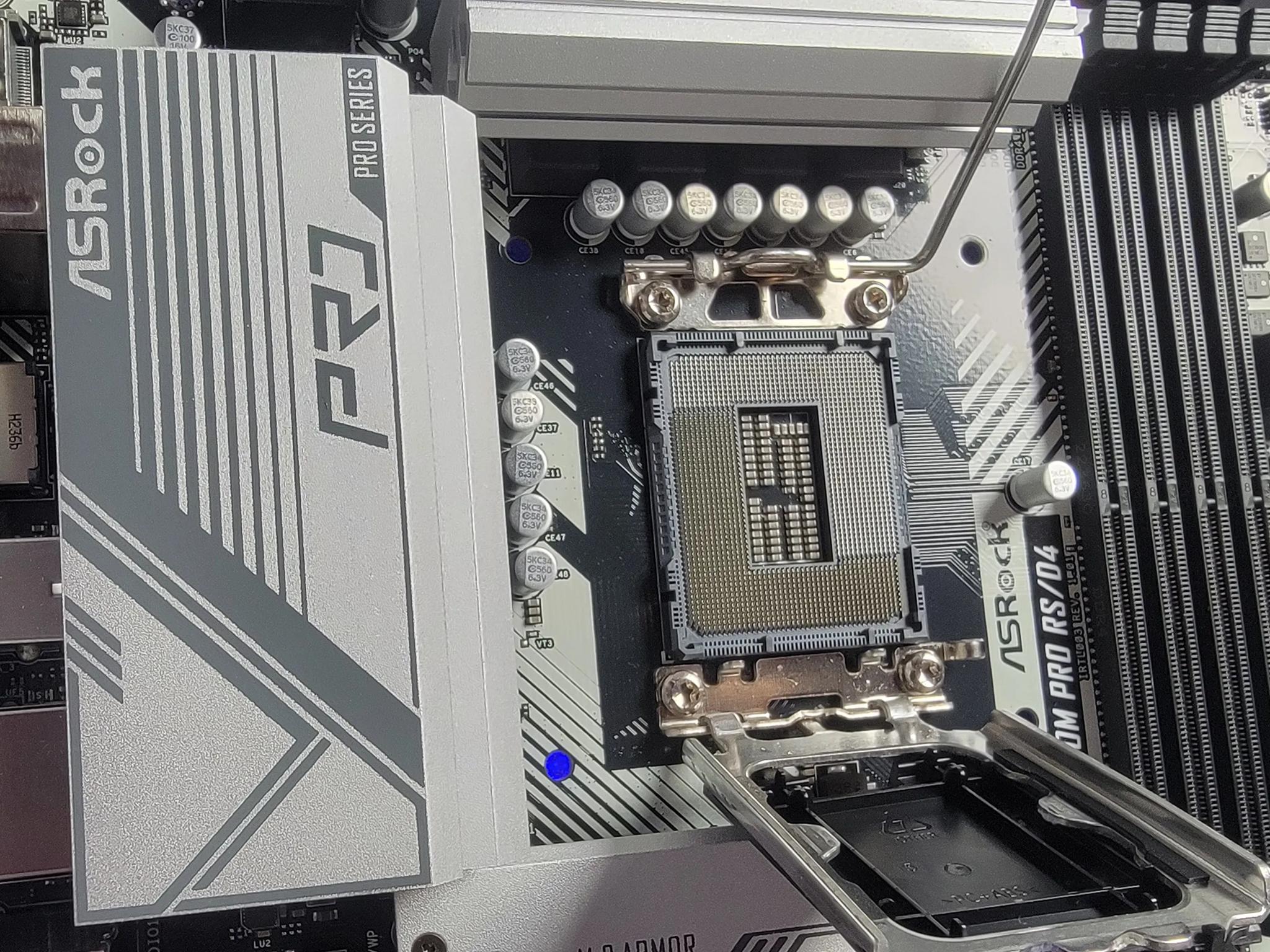

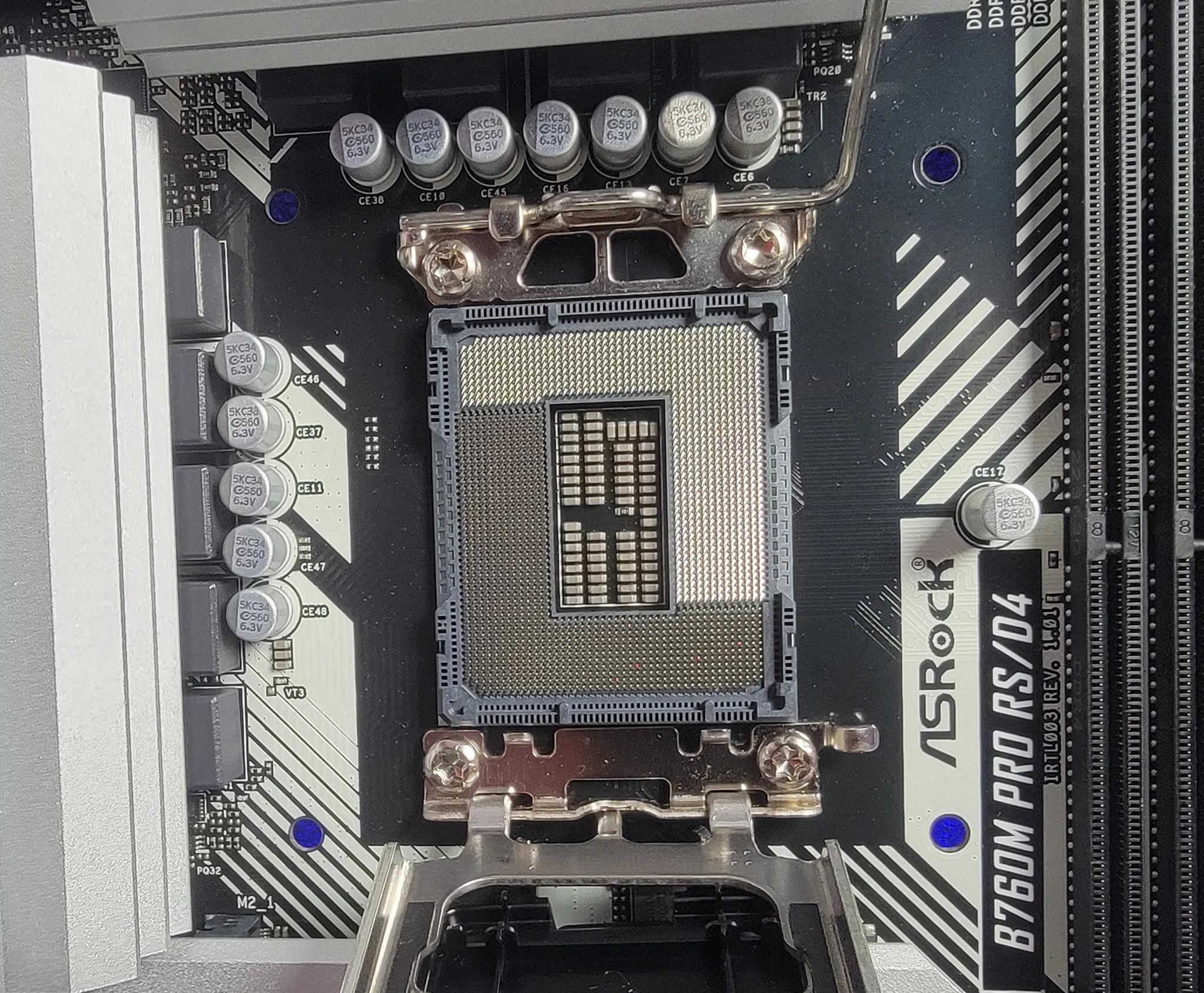

• Socket Type: LGA 1700

• Non-ECC: Non-Registered

• ECC: Non-Registered

• Memory Type: DDR4-2133 DDR4-2400 DDR4-2666 DDR4-2933 DDR4-3200 DDR4-2800 DDR4-3000

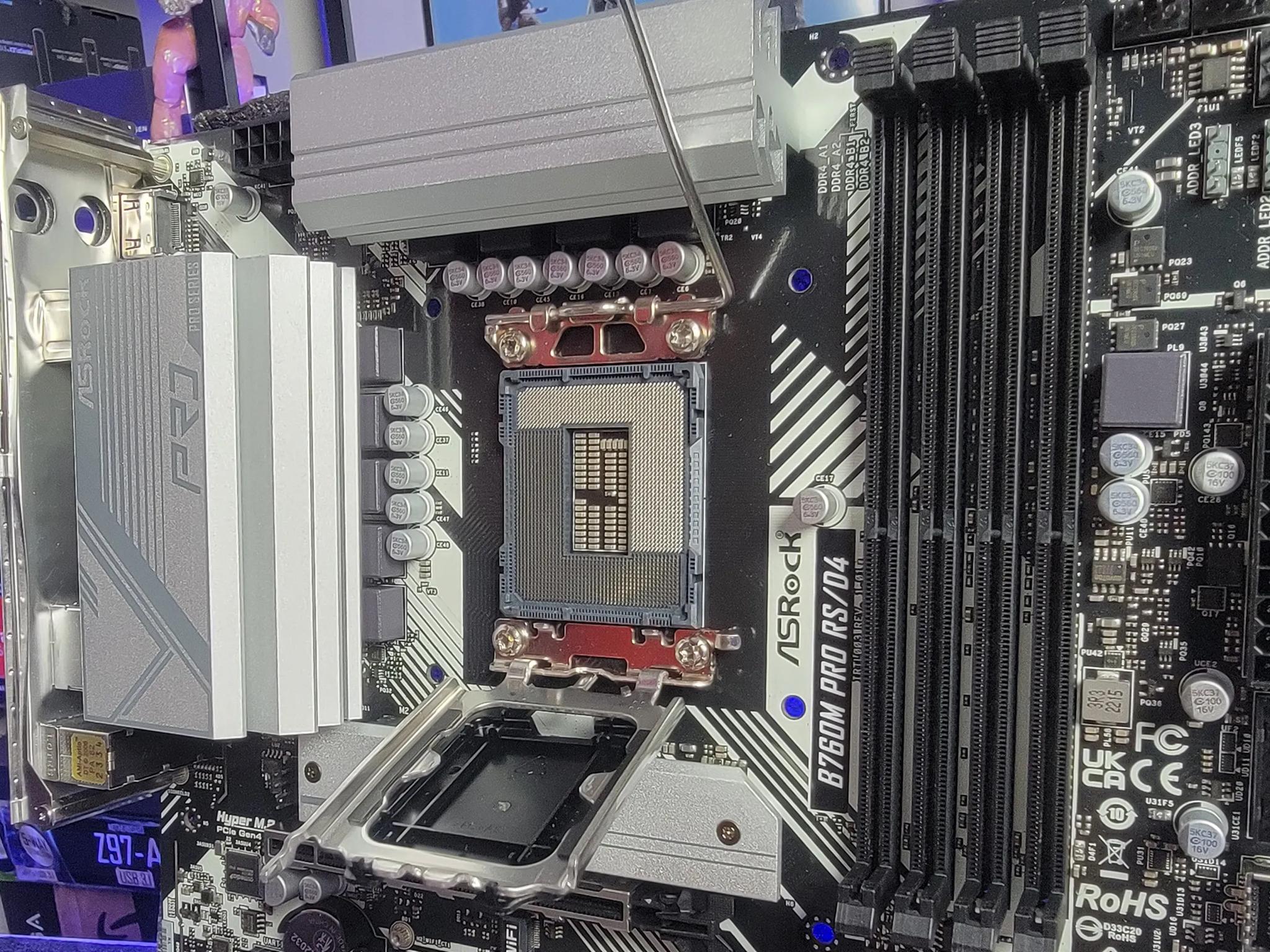

• Memory Slots: 4 x 288pin DIMM

• Memory Channel Support: Dual Channel

• Max Memory Supported: 128GB

• Maximum Memory Supported Per Slot: 32GB

• Supported Memory Technologies: ECC Memory Supported and Non-ECC Memory Supported

• Onboard Graphic Chipset: Requires CPU with Integrated Graphics

• M.2 Port Type: 2242 2260 2280

• SATA Express: 2 x M.2 Socket 3 M Key 1 x M.2 Socket 3 E Key

• SATA 6Gb/s: 4

• RAID Support: RAID 0 RAID 1 RAID 5 RAID 10

• Audio Chipset: Realtek ALC897

• Audio Channels: 7.1

• WiFi Support: M.2 Slot

• LAN Chipset: Dragon RTL8125BG

• LAN Speed: 10/100/1000/2500Mbps

• Wireless LAN Chipset: Intel 2x2 Wi-Fi 6E

• Wireless Technology: 802.11b 802.11g 802.11a WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) Bluetooth v5.3

• PCI Express 4.0 x16: 2

• PCI Express x1: 1

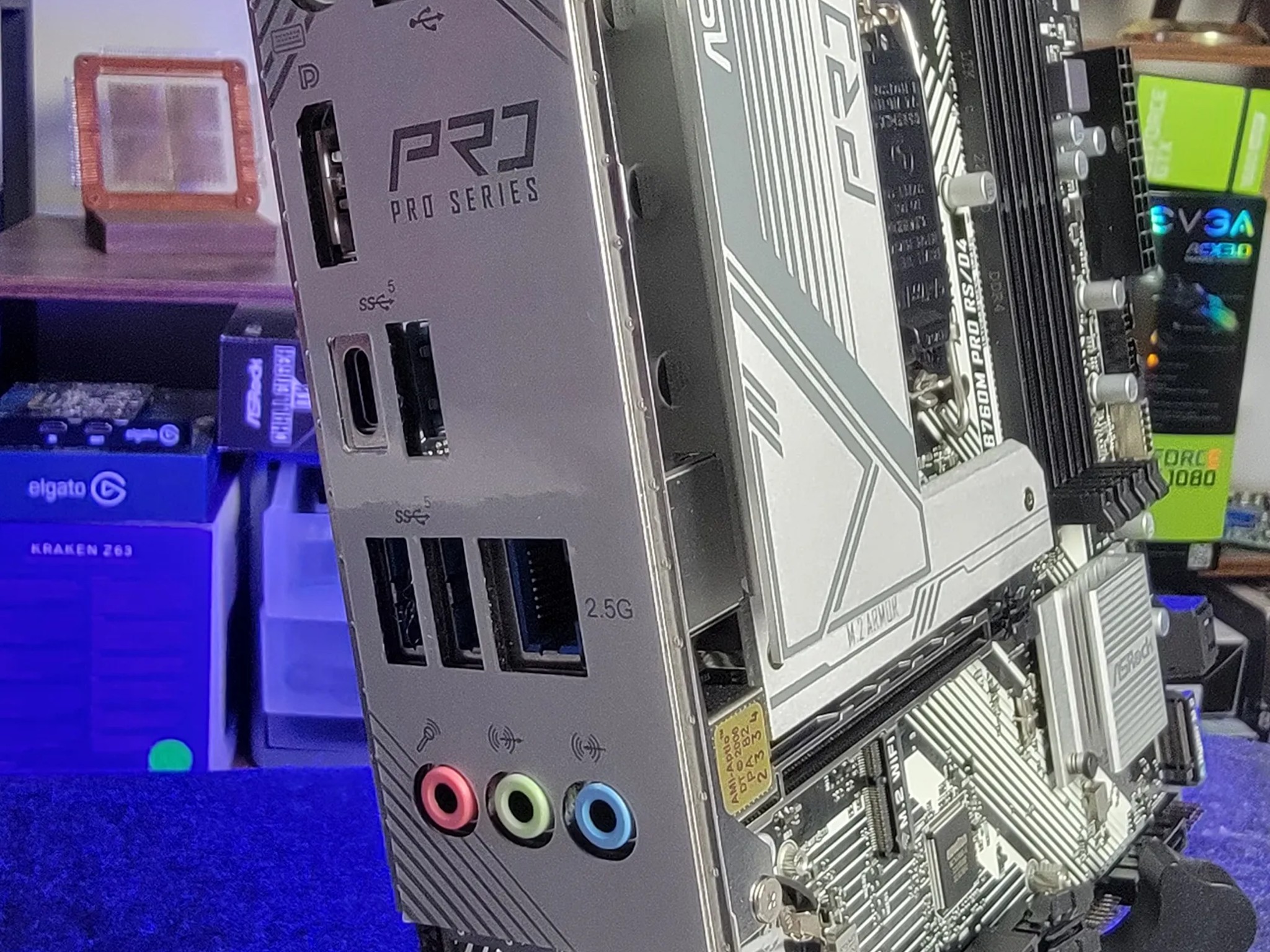

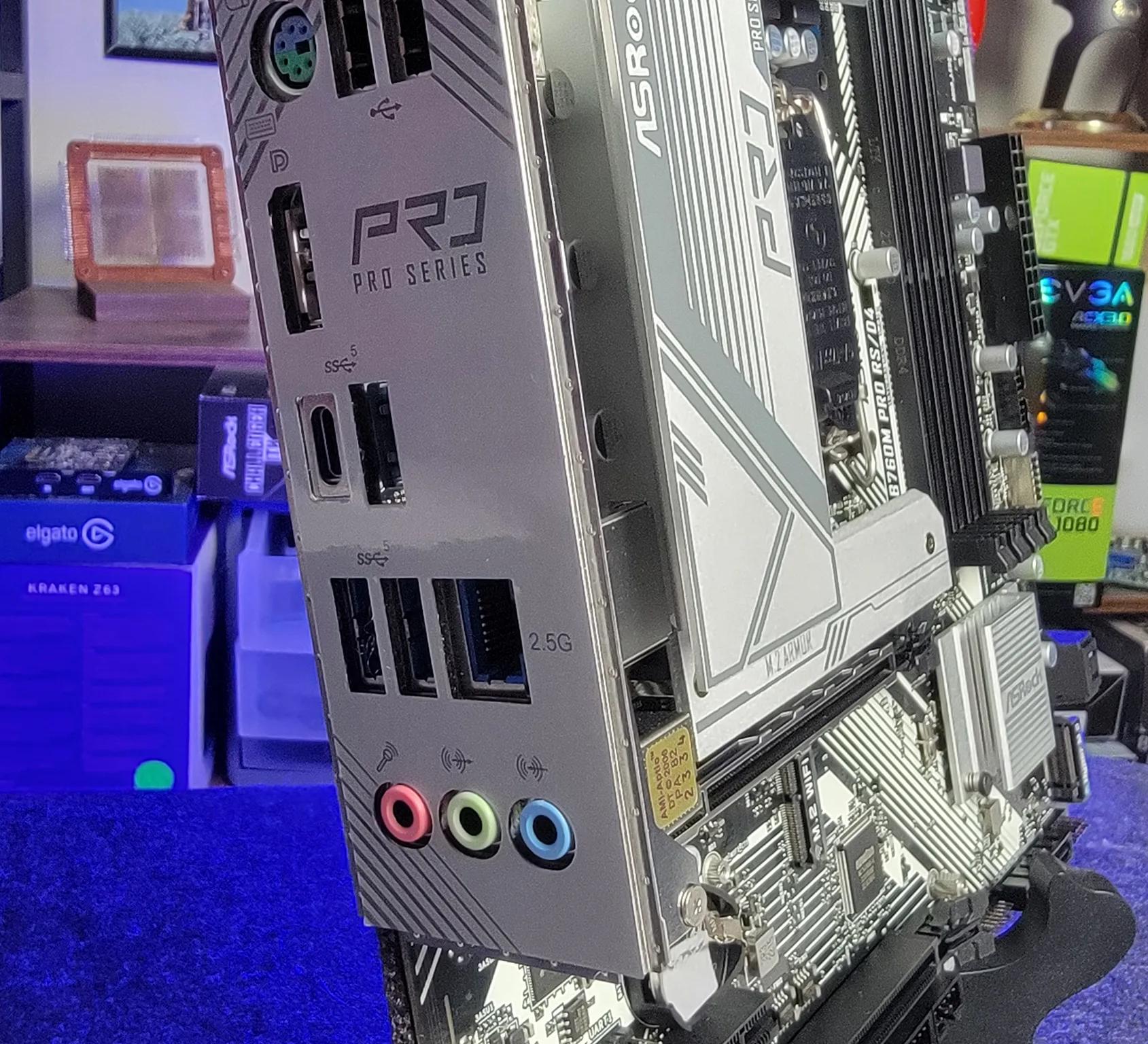

• Legacy Ports:: 1 x PS/2

• LAN Ports: 1 x 10/100/1000/2500 RJ-45 LAN

• Audio Ports: 1 x 3.5 mm Microphone 1 x 3.5 mm Line-In 1 x 3.5 mm Line-Out

• Specialty Ports: 2 x WiFi Antenna Ports

• Video Connectors: 1 x HDMI 2.1 1 x DisplayPort 1.4

• USB 3.1: 3 x USB 3.2 (Gen 1 Type-A) 1 x USB 3.2 (Gen 1 Type-C)

• USB 2.0: 2 x USB 2.0 (Type-A)

INTERNAL I/O & CONNECTORS

• Headers: 1 x CPU Fan Header 4 x System Fan Header 1 x Water Pump Header

• USB 2 x USB 2.0 Headers (4 Ports): 1 x USB 3.2 Gen 1 Type-A Header (2 Ports) 1 x USB 3.2 Gen 1 Type-C Header (1 Port)

• Power Connectors: 1 x 24-pin ATX Connector 1 x 8-pin +12 V Connector

• ATX Connector: 24-pin ATX Power Connector

PHYSICAL SPECIFICATIONS

• Depth: 9.60 in. (243.84 mm)
• Width: 9.60 in. (243.84 mm)
• Form Factor: microATX
