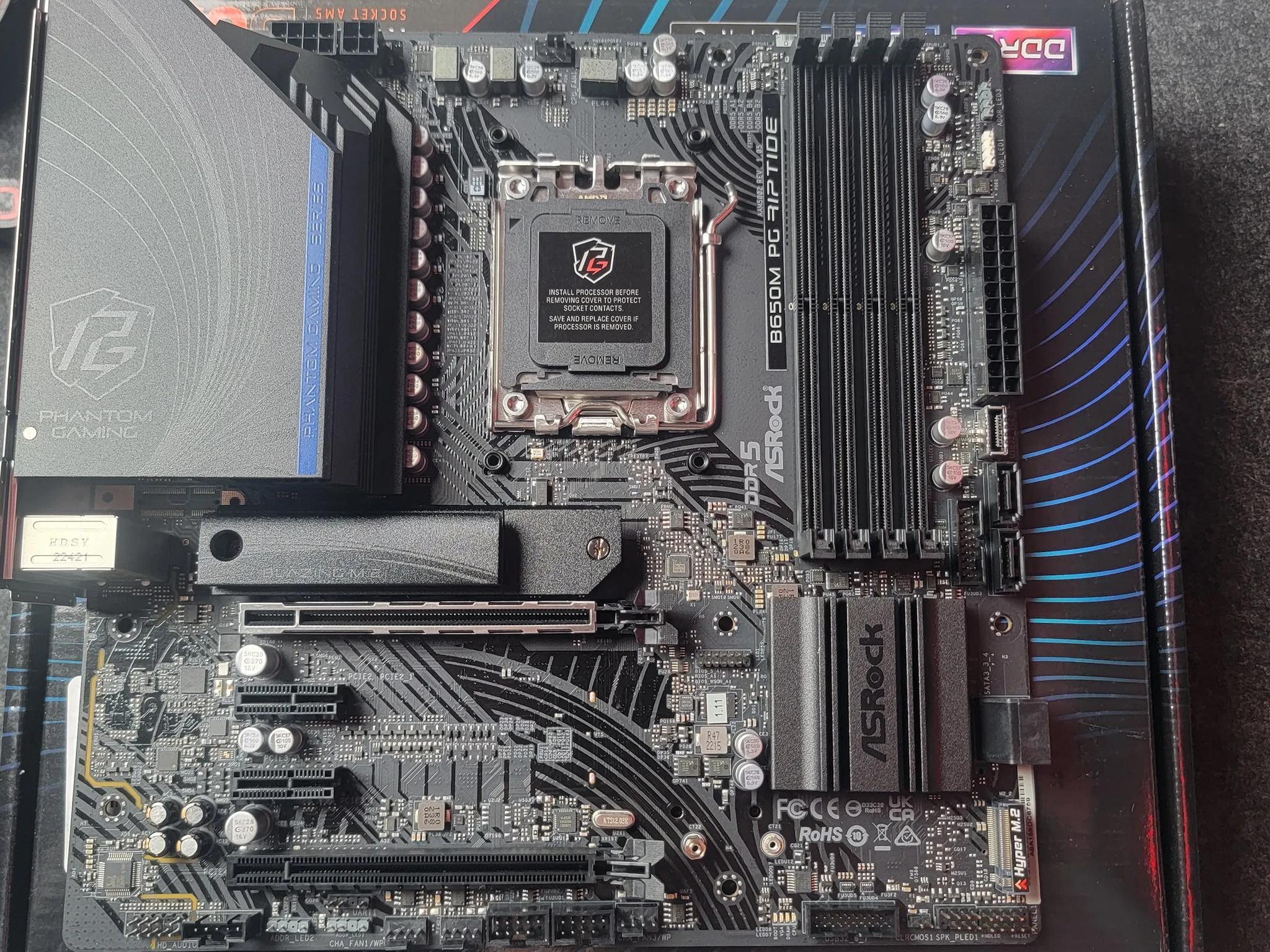

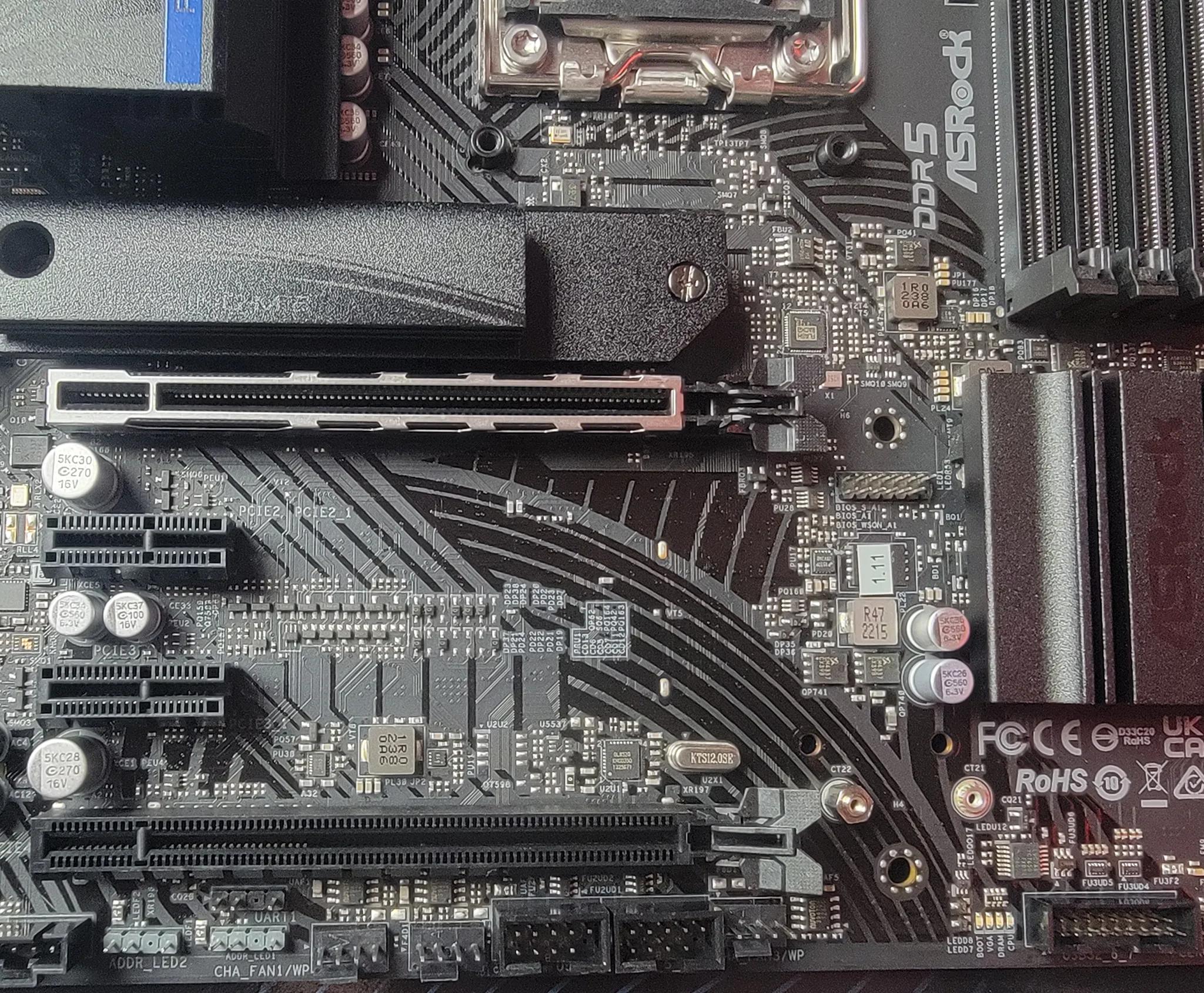

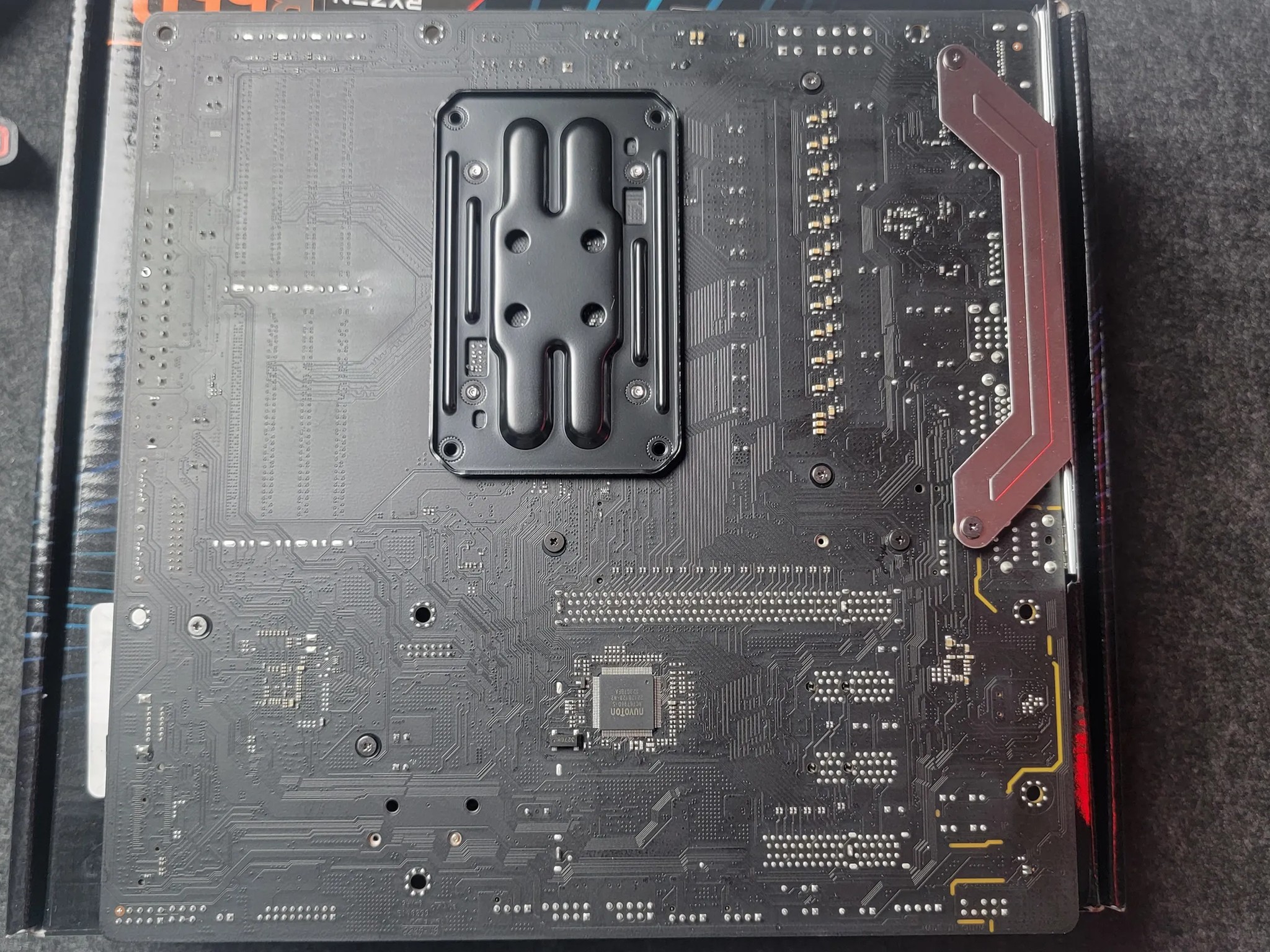

B650M PG Riptide AMD AM5 microATX Motherboard

BIOS updated to version 1.24

Mfr Part#: MBB650MPGRIPTID UPC: 4710483940835

• Chipset: AMD B650
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• AMD CPU Support: Ryzen

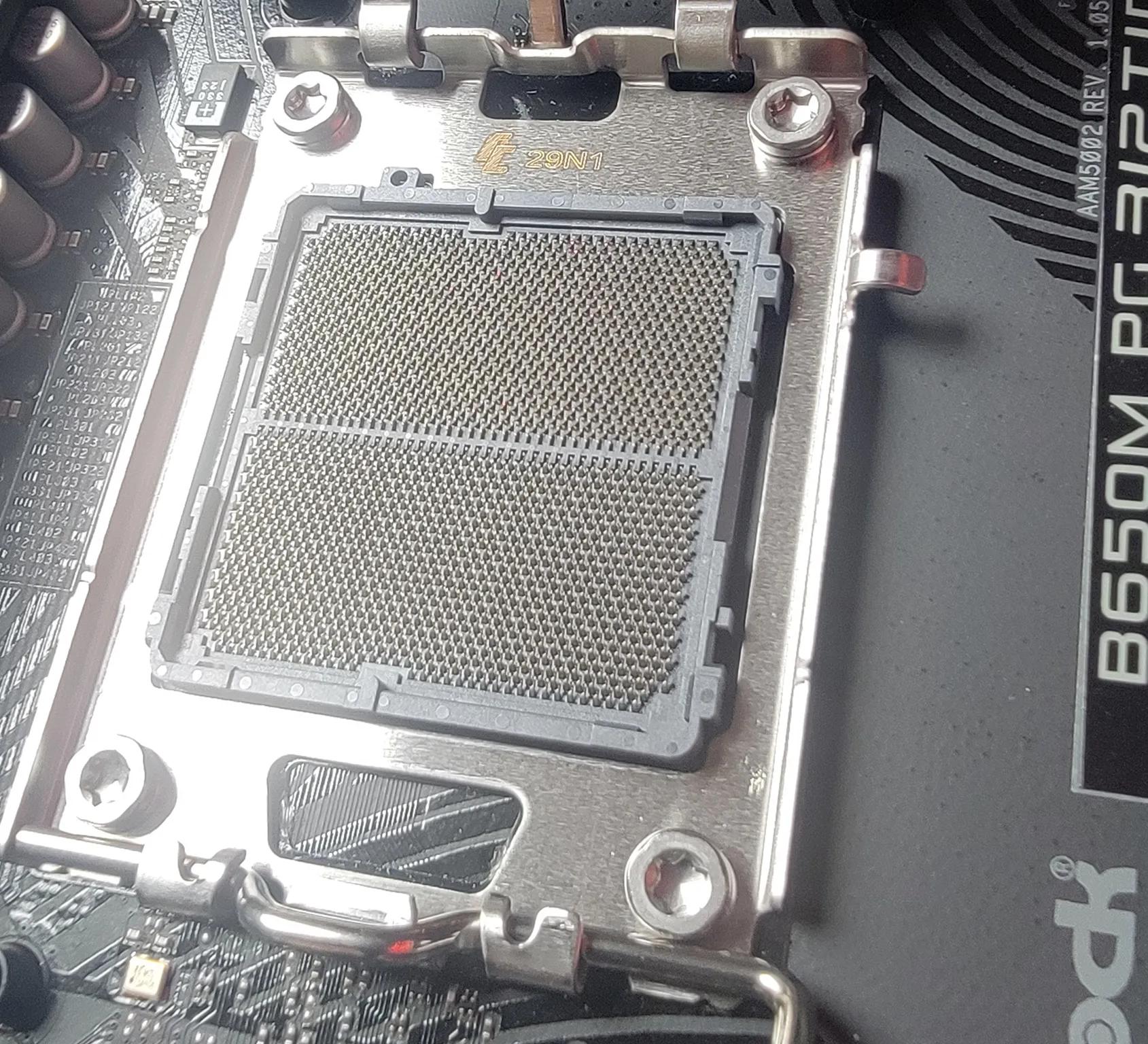

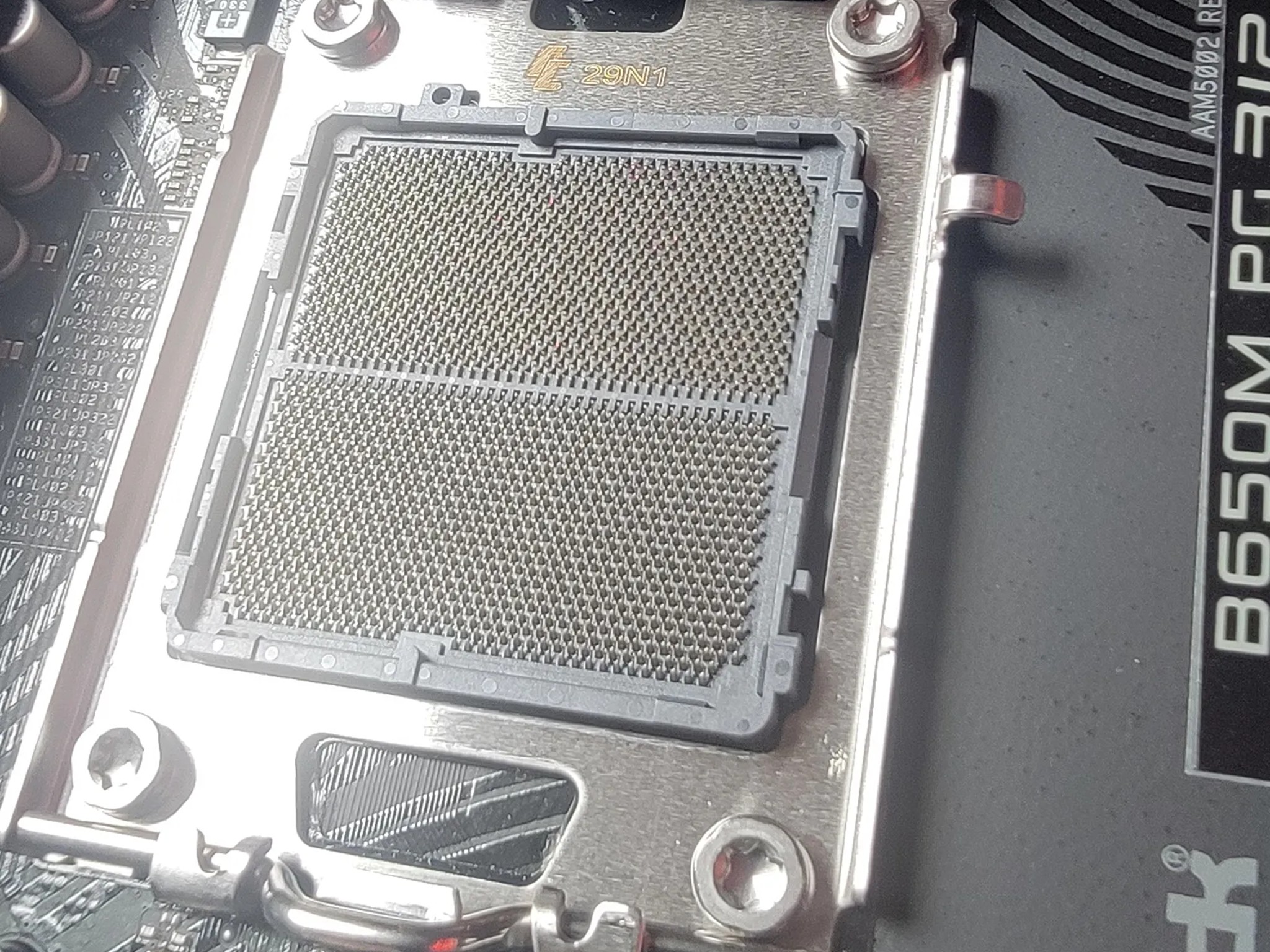

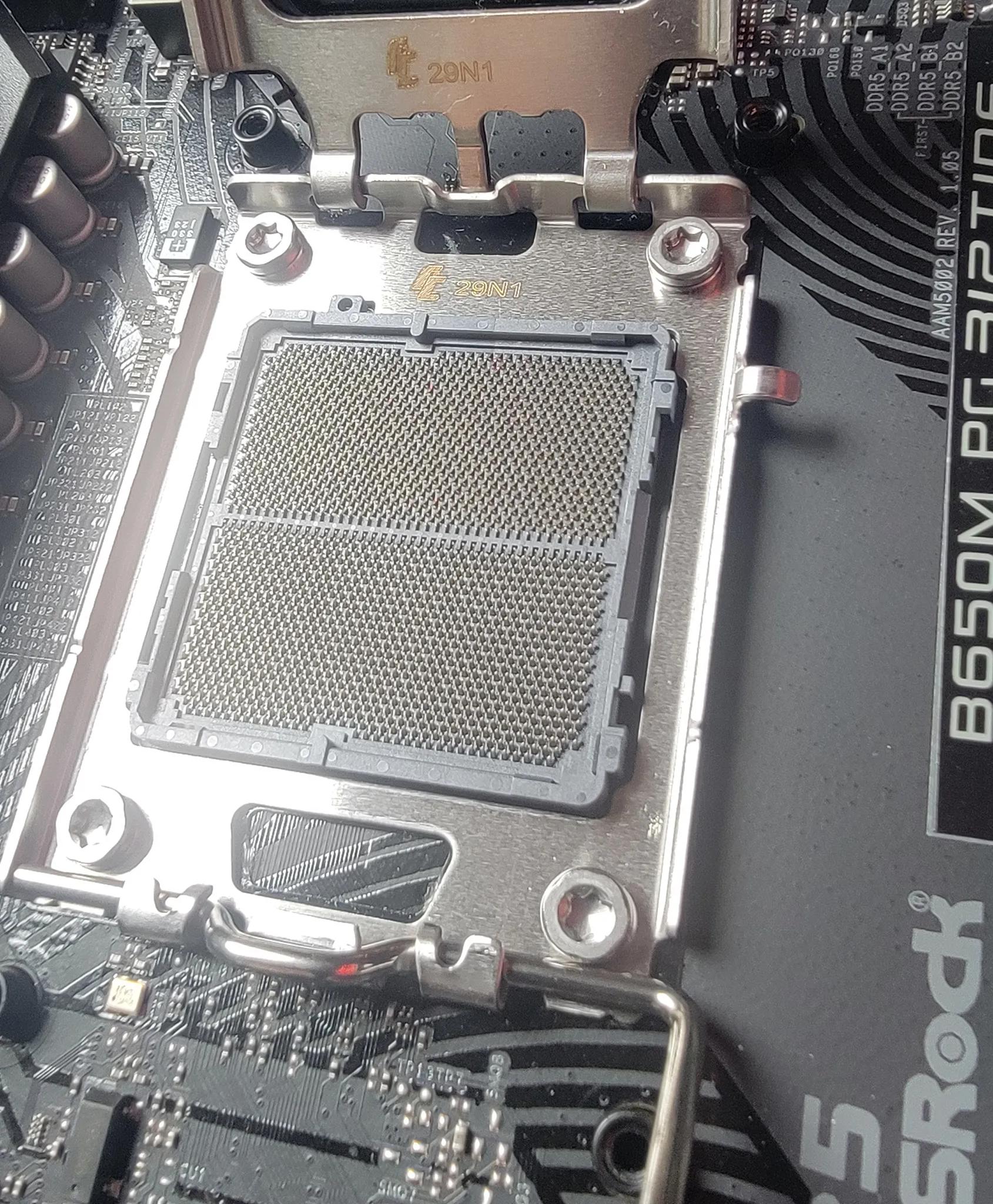

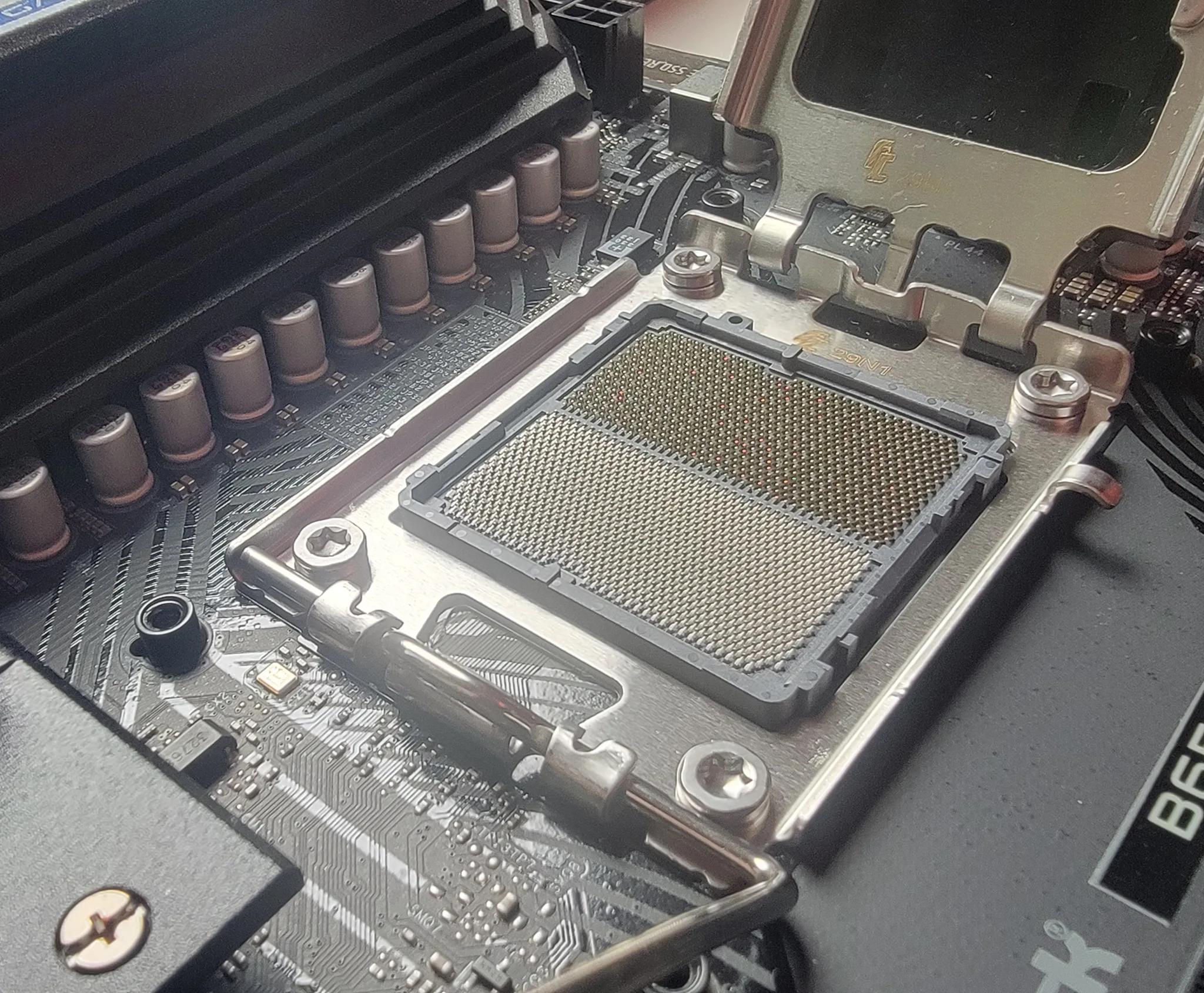

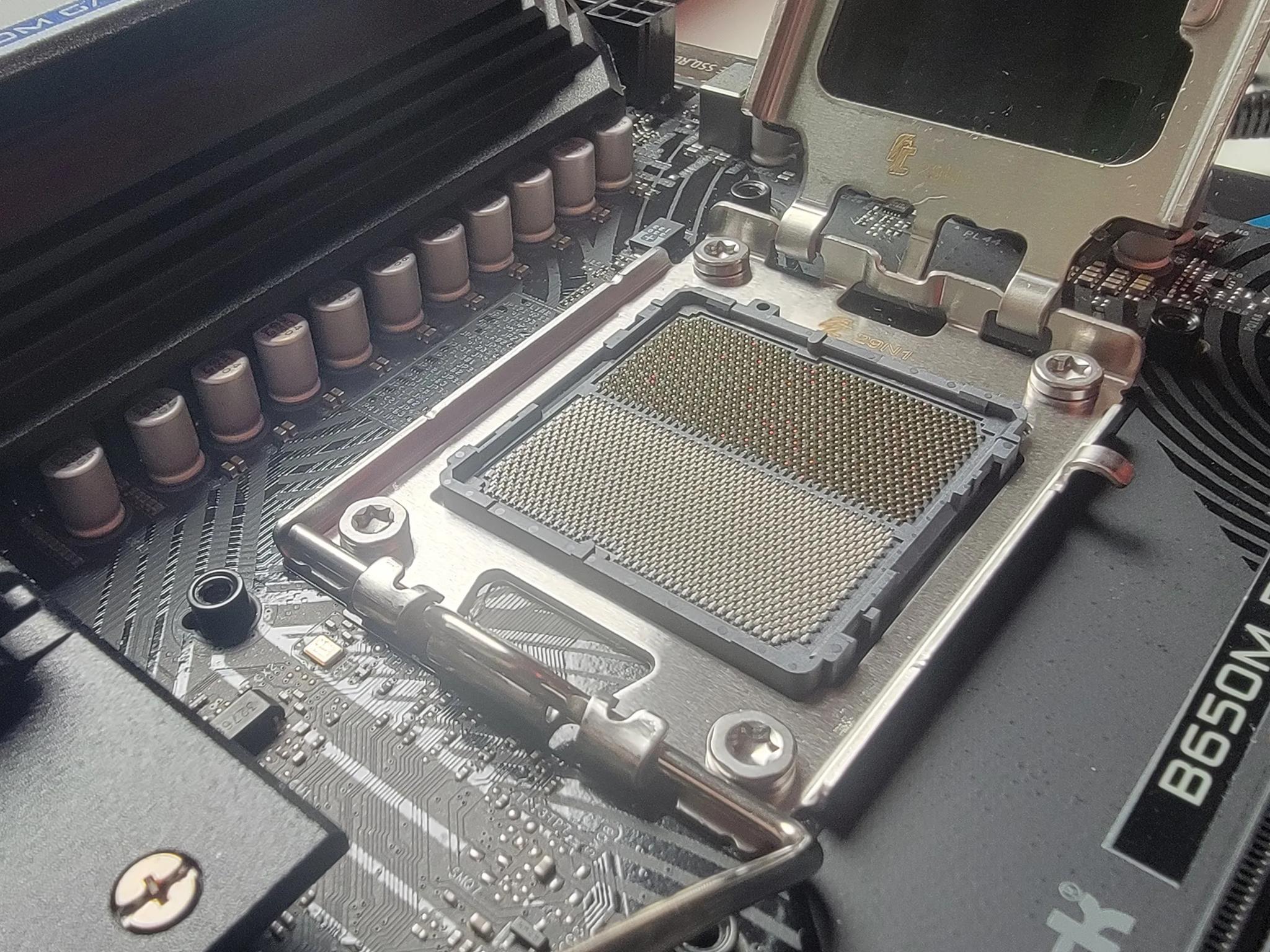

• Socket Type: AM5
• Memory Type: DDR5-4800
• Memory Speeds Supported: 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800
• Memory Slots: 4 x 288pin DIMM
• Memory Channel Support: Dual Channel
• Max Memory Supported: 128GB
• Maximum Memory Supported Per Slot: 32GB
• Supported Memory Technologies: ECC Memory Supported, Non-ECC Memory Supported
• Onboard Graphic Chipset: Requires CPU with Integrated Graphics
• Multi-GPU Support: 2-Way CrossFireX
• M.2 Port Type: 2260, 2280
• SATA Express: 2 x M.2 Socket 3, M Key
• SATA 6Gb/s: 4
• RAID Support: RAID 0, RAID 1, RAID 10
• Audio Chipset: Realtek ALC897
• Audio Channels: 7.1
• LAN Chipset: Dragon RTL8125BG
• LAN Speed: 10/100/1000/2500Mbps
• PCI Express 4.0 x16: 2
• PCI Express x1: 2

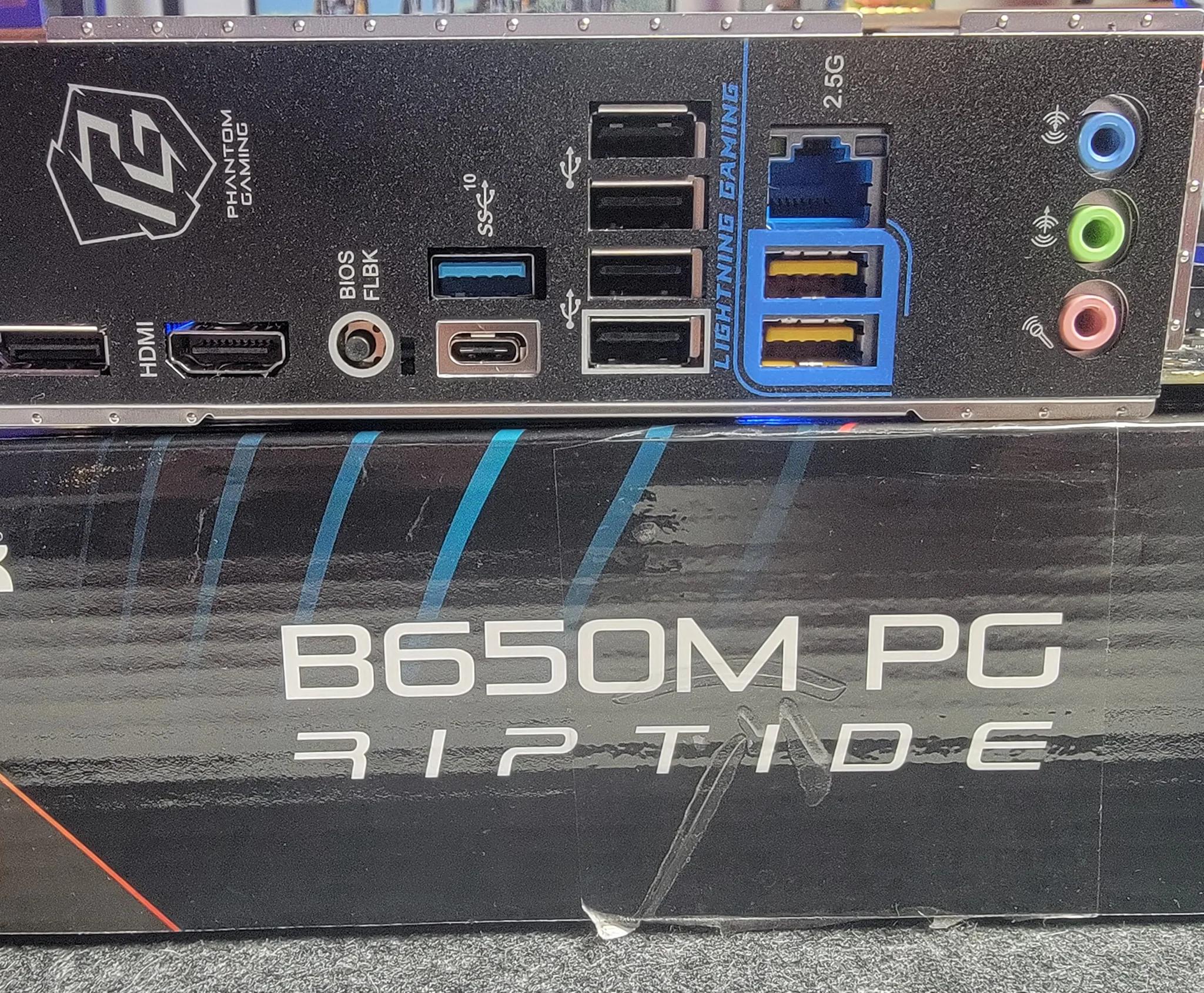

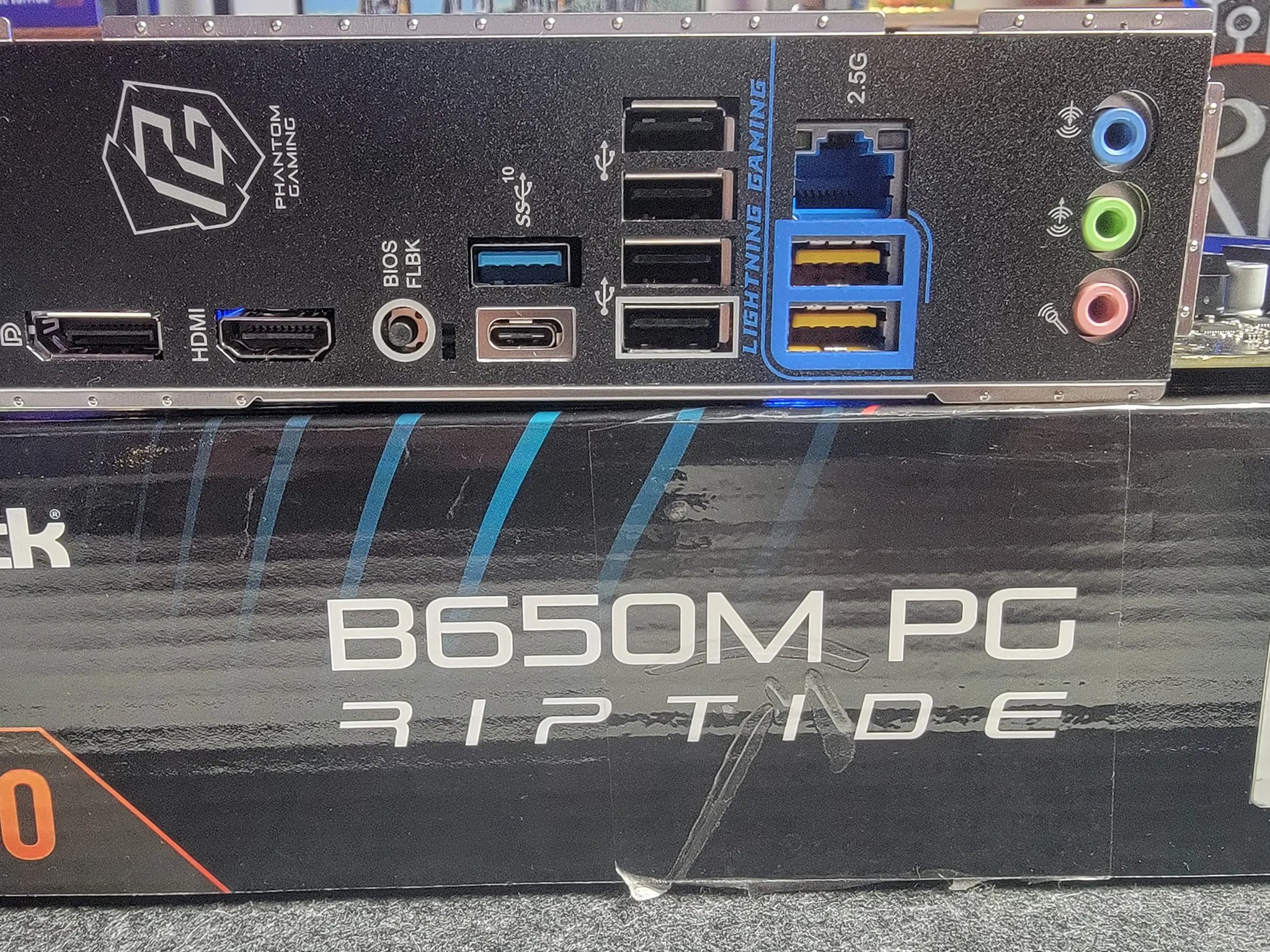

• LAN Ports: 1 x 10/100/1000/2500 RJ-45 LAN
• Audio Ports: 1 x 3.5 mm Microphone, 1 x 3.5 mm Line-In, 1 x 3.5 mm Line-Out
• USB 2.0: 4 x USB 2.0 (Type-A)
• Video Connectors: 1 x HDMI 2.1, 1 x DisplayPort 1.4
• USB 3.1: 1 x USB 3.2 (Gen 2 Type-C), 1 x USB 3.2 (Gen 2 Type-A), 2 x USB 3.2 (Gen 1 Type-A)
• Headers: 1 x CPU Fan Header, 1 x Water Pump Header, 3 x System Fan Header
• USB: 2 x USB 2.0 Headers (4 Ports), 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports), 1 x USB 3.2 Gen 1 Type-C Header (1 Port)
• Power Connectors: 1 x 24-pin ATX Connector, 1 x 8-pin +12 V Connector, 1 x 4-pin +12 V Connector
• ATX Connector: 24-pin ATX Power Connector
• Depth: 9.60 in. (243.84 mm)
• Width: 9.60 in. (243.84 mm)
• Form Factor: microATX
