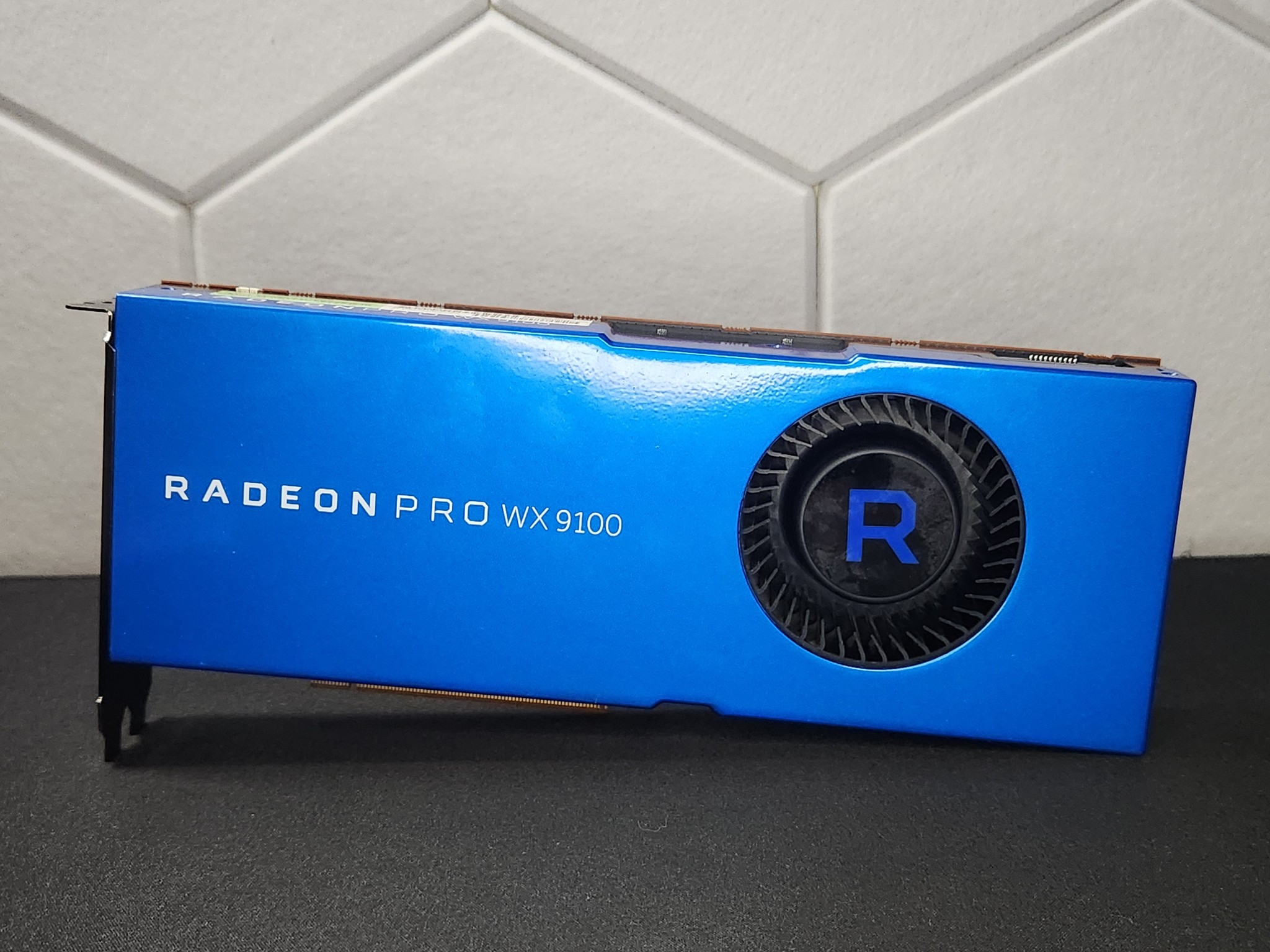

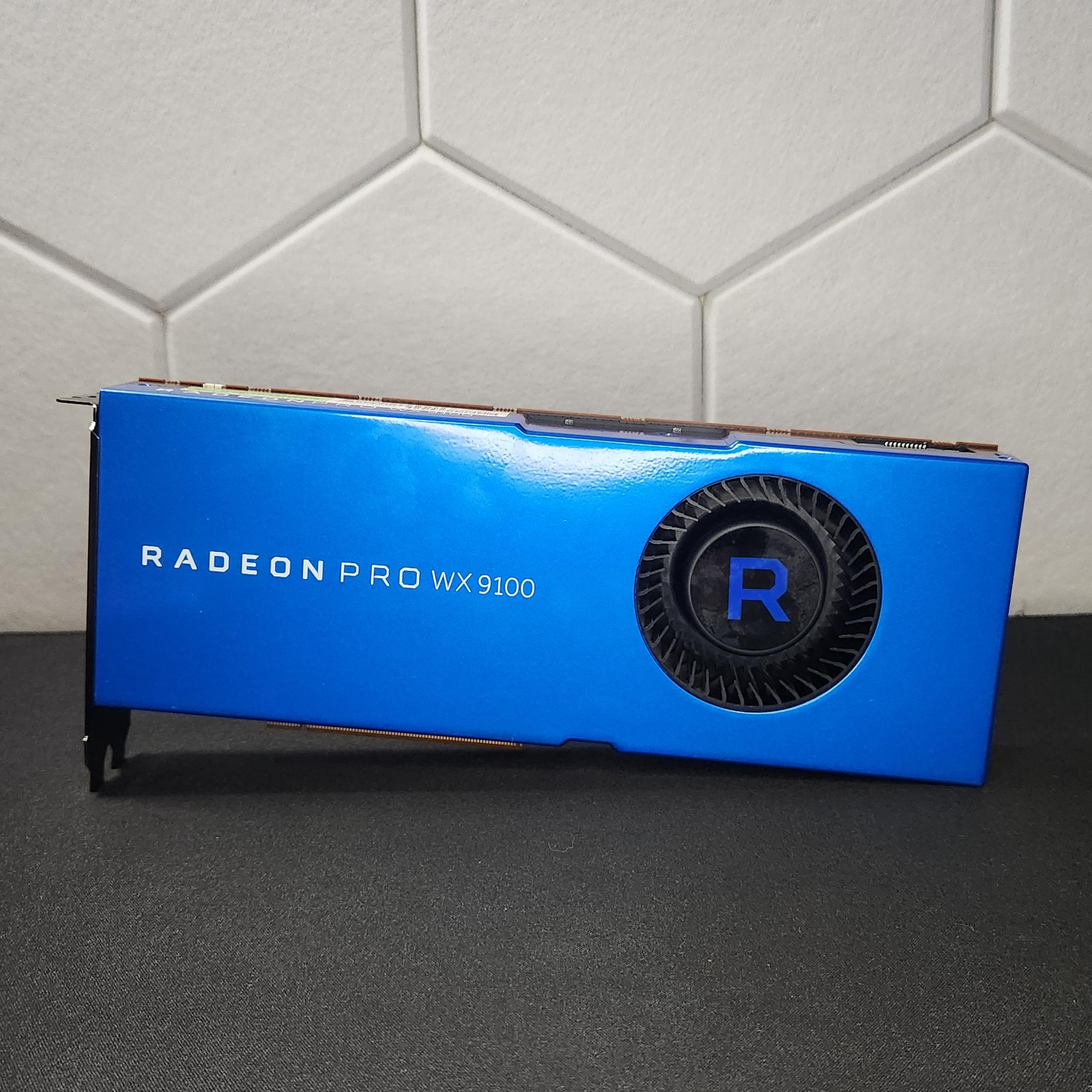

The AMD Radeon Pro WX 9100 is a professional workstation graphics card featuring a Vega architecture, 16GB of HBM2 memory, and 4,096 stream processors

Technical Specifications

• GPU Architecture: Vega (GCN 5.0)
• Lithography: 14 nm FinFETStream
• Processors: 4,096 (64 Compute Units)
• Peak Single Precision Performance (SPFP): Up to 12.3 TFLOPS
• Memory Size & Type: 16 GB HBM2
• Memory Bus Width: 2048-bit
• Memory Bandwidth: Up to 484 GB/s
• Core Clock: 1200 MHz (boost up to 1500 MHz)
• Memory Clock: 945 MHz

Compatibility & PowerBus

• Interface: PCIe 3.0 x16

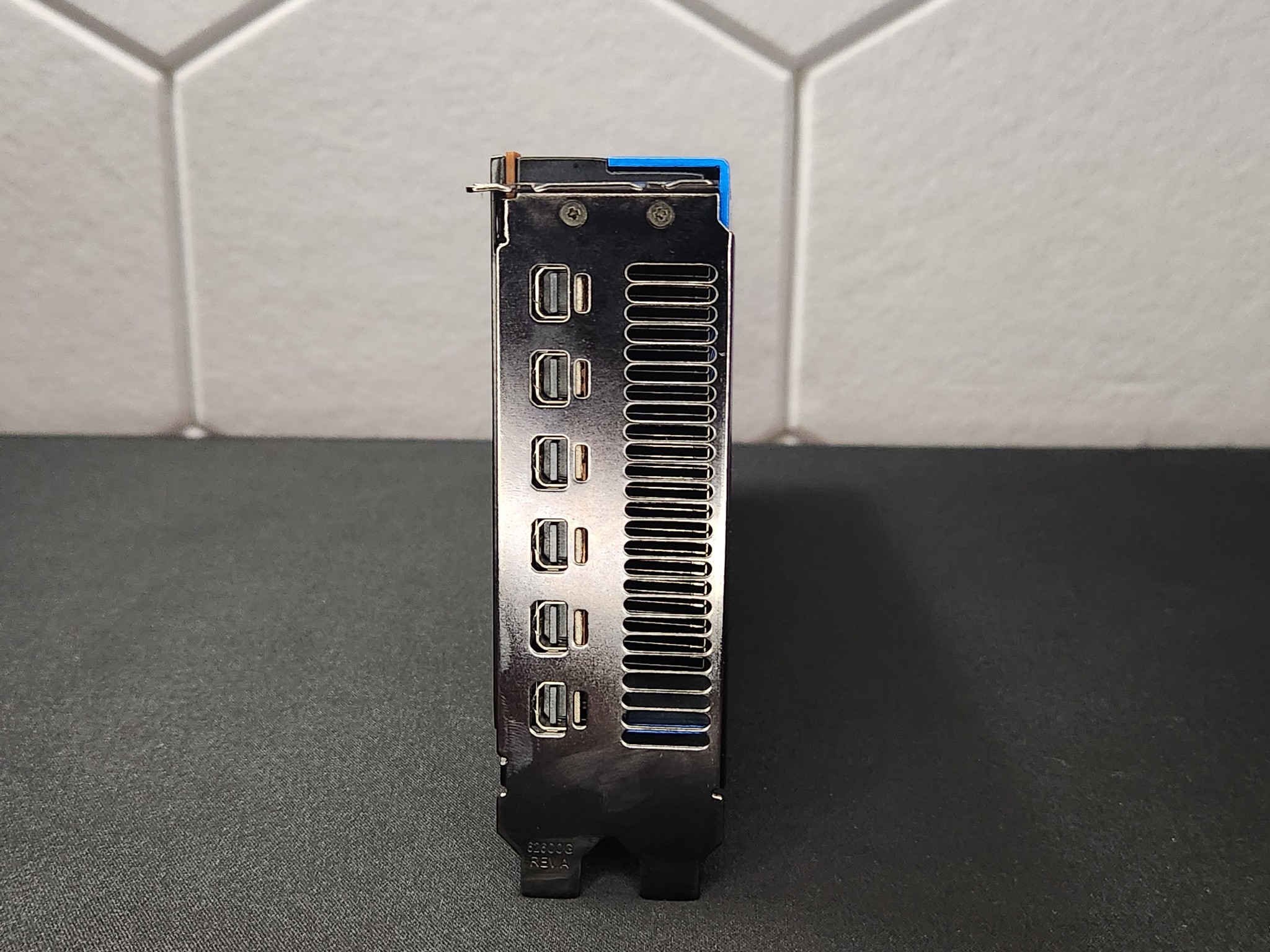

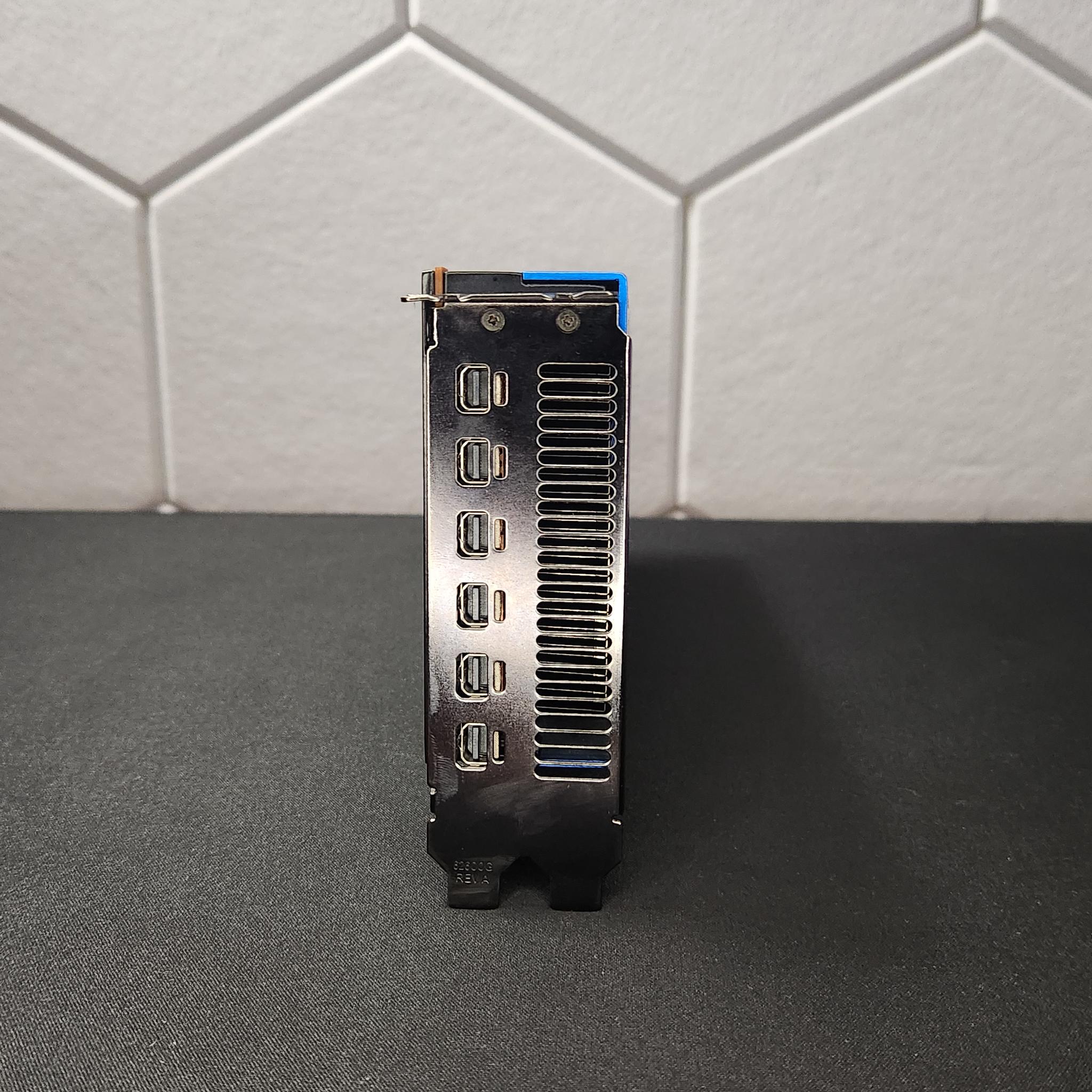

• Display Outputs: 6x Mini-DisplayPort 1.4a

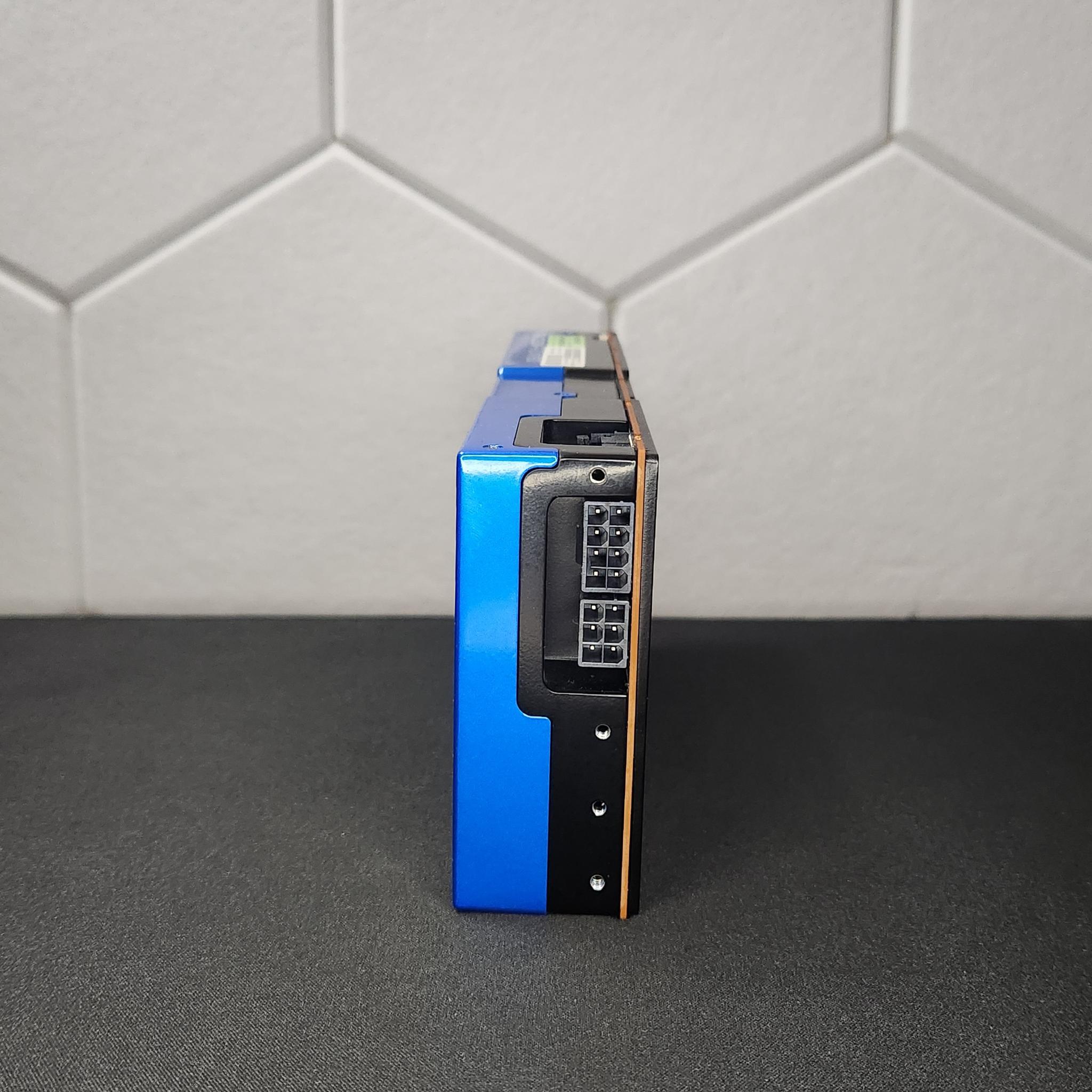

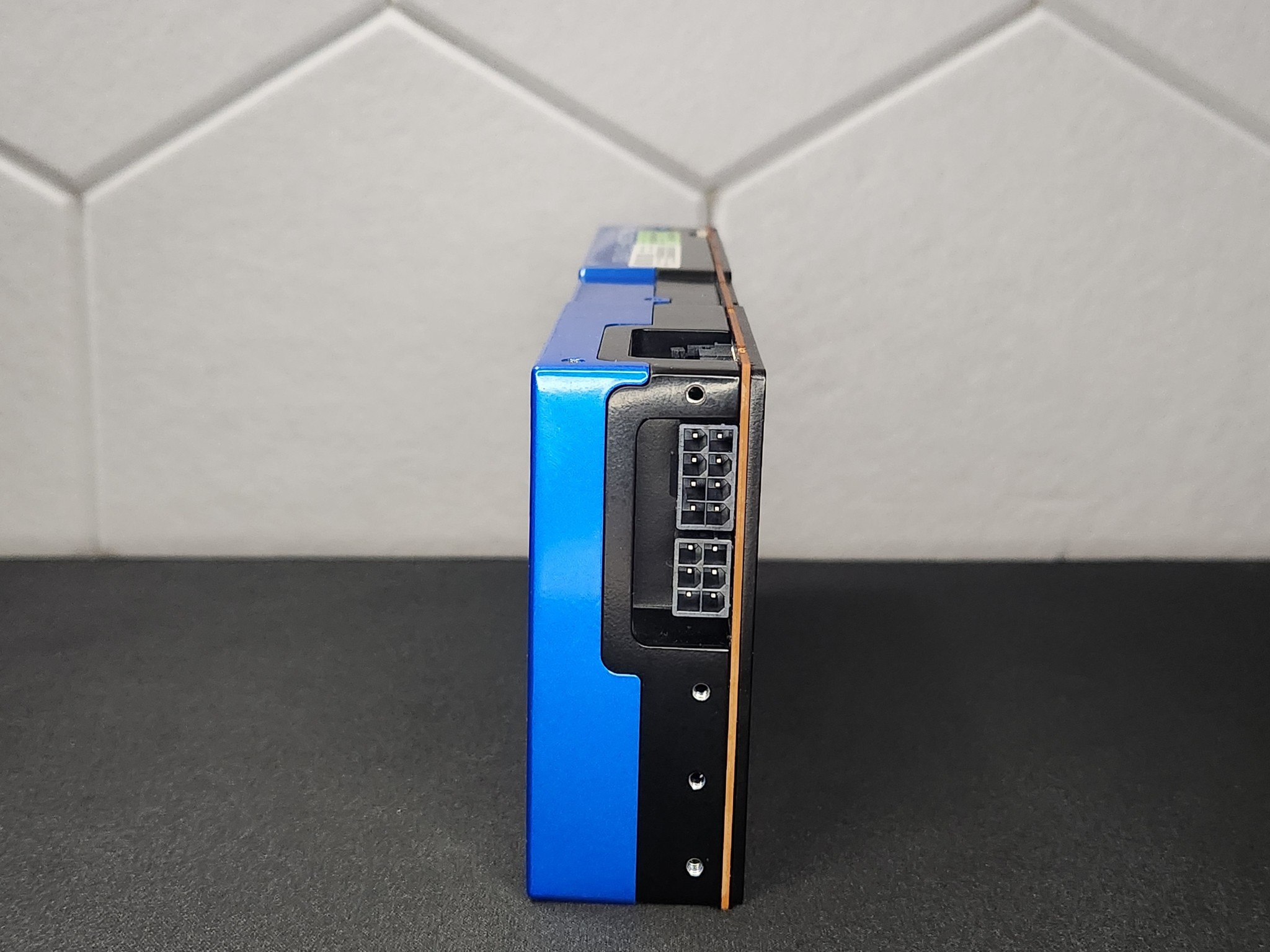

• Power Connectors: 1x 6-pin + 1x 8-pin
• Typical Board Power (TDP): 230 W
