PRODUCT BRIEF: Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors 10 Power Phase Design Supports DDR4 4066+ (OC) 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 (Key E) For WiFi AMD Quad CrossFireX™ and CrossFireX™ Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps 8 SATA3, 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 1 Hyper M.2 (PCIe Gen4x4) 2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear) Intel® Gigabit LAN ASRock Polychrome SYNC

Specifications:

Unique Feature:

ASRock USB 3.2 Gen2

• ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s) ASRock Super Alloy
• XXL Aluminum Alloy Heatsink
• Premium 50A Power Choke
• Sapphire Black PCB
• High Density Glass Fabric PCB
• 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop

CPU:

• Supports AMD AM4 Socket Ryzen™ 2000, 2000 G-Series, 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
• Digi Power design

Memory:

• Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
• Max. capacity of system memory: 128GB**
• Supports Extreme Memory Profile (XMP) memory modules
• 15μ Gold Contact in DIMM Slots

BIOS:

• 256Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
• SMBIOS 2.3 support
• CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment

LAN:

• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I211AT
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Connector:

• 1 x COM Port Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers*
• 1 x Addressable LED Header**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x AMD LED Fan USB Header
• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only)
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
• 1 x SPI TPM Header******

*Support in total up to 12V/3A, 36W LED Strip **Supports in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

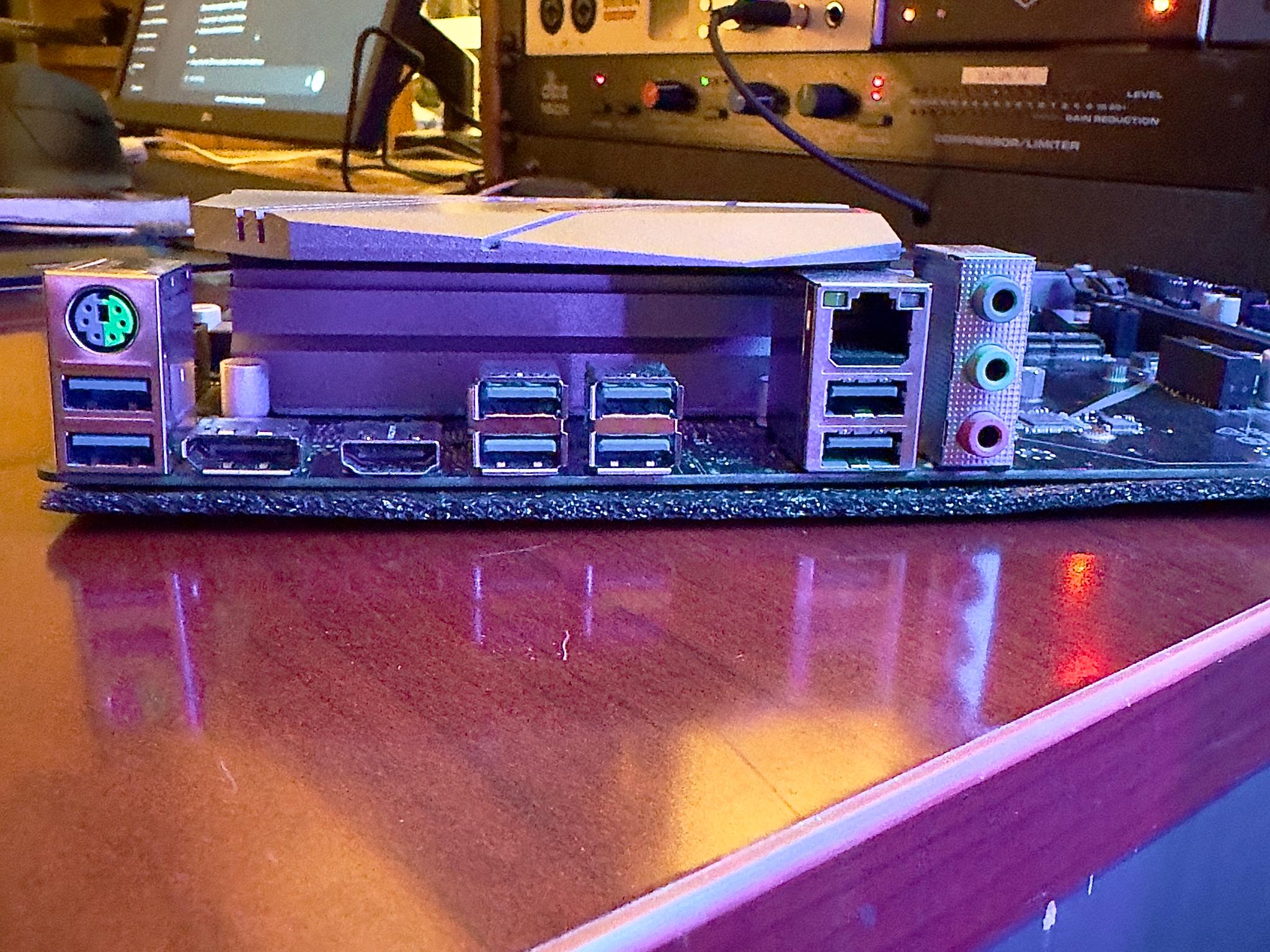

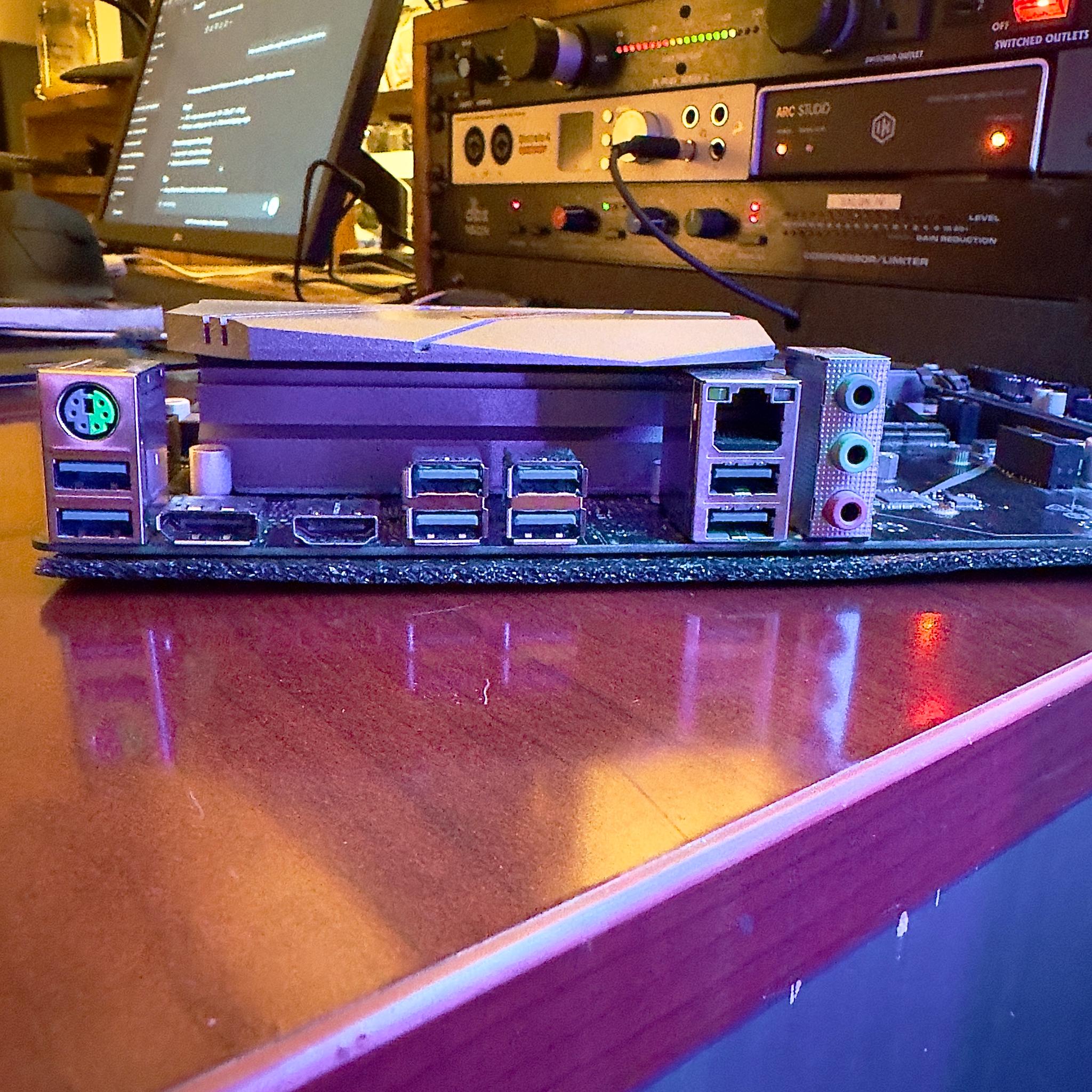

Rear Panel I/O:

• 3 x Antenna Ports (on I/O Panel Shield)
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.2
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
• 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

OS:

• Microsoft Windows® 10 64-bit / 11 64-bit
