Overview & Specs
Kingston FURY KF584CU40RSK2-48 is a kit of two 3G x 64-bit (24GB) DDR5-8400 CL40 Clocked Unbuffered DIMMs (CUDIMMs) 1Rx8, memory module, based on eight 3G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 48GB. Each module has been tested to run at DDR5-8400 at a low latency timing of 40-52-52 at 1.45V. The SPDs are programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS • Default (JEDEC): DDR5-6400 CL52-52-52 @1.1V • XMP Profile #1: DDR5-8400 CL40-52-52 @1.45V • XMP Profile #2: DDR5-8000 CL38-48-48 @1.45V • XMP Profile #3: DDR5-7600 CL38-46-46 @1.45V
Shipping & Returns

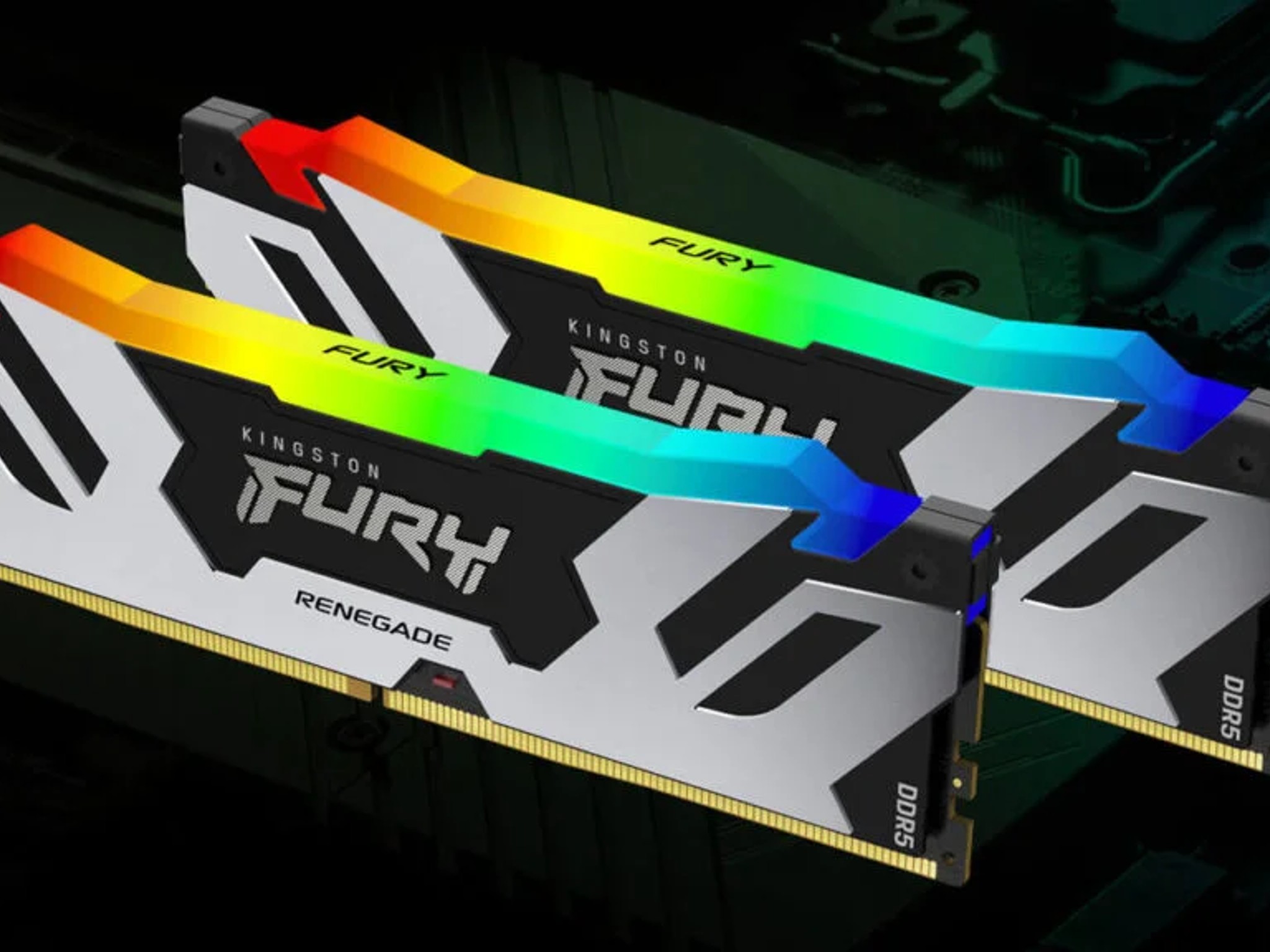

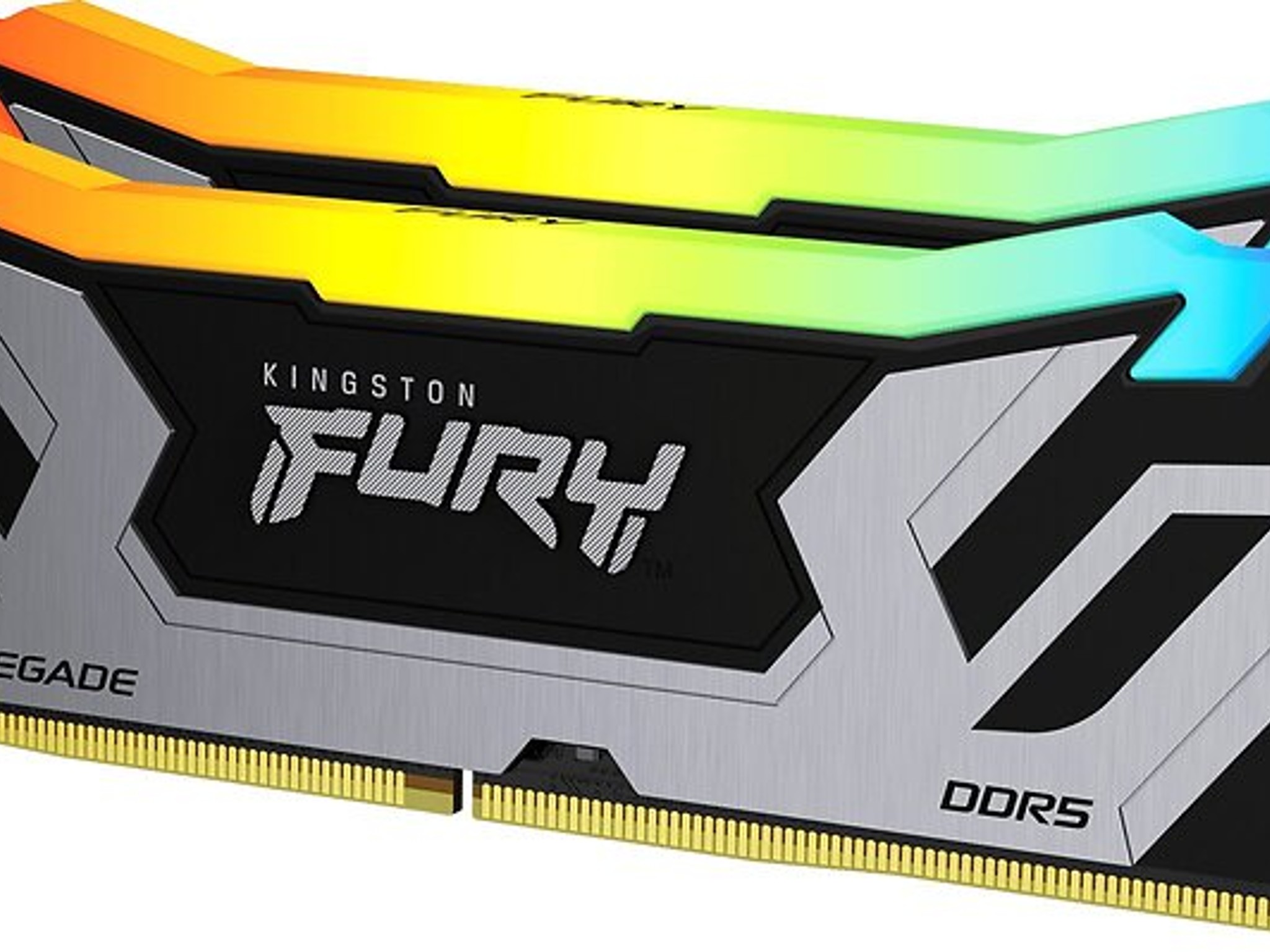

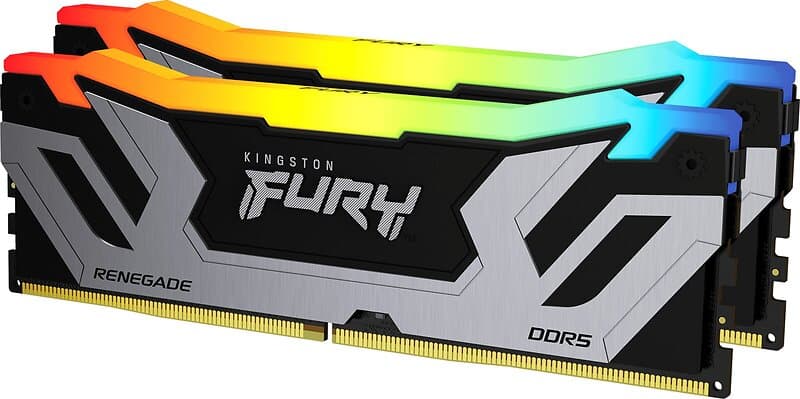

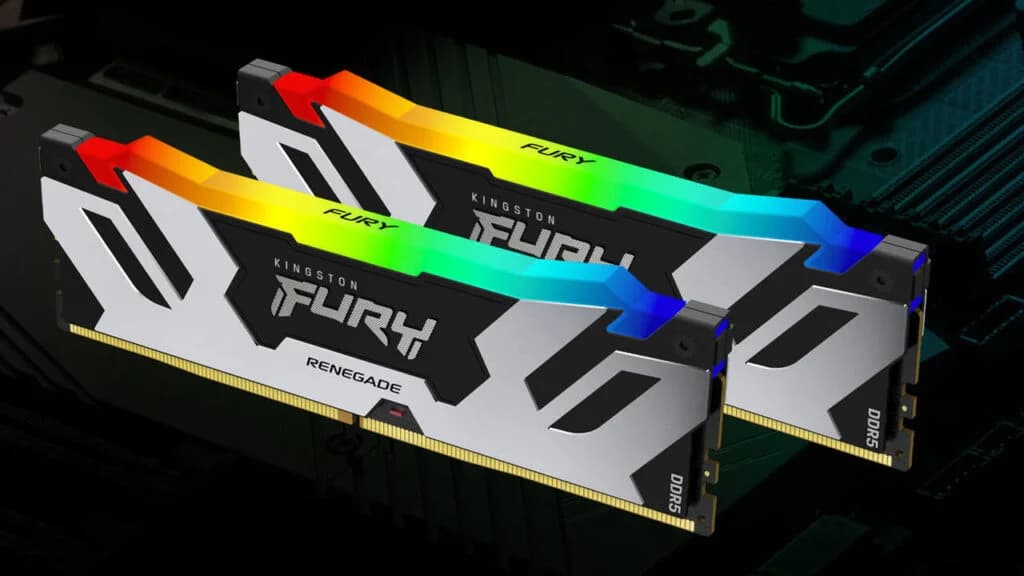

KINGSTON - FURY RENEGADE RGB - CUDIMM - 48GB (2X24GB) - 8400MHZ - KF584CU40RSAK2-48
Overview & Specs
Kingston FURY KF584CU40RSK2-48 is a kit of two 3G x 64-bit (24GB) DDR5-8400 CL40 Clocked Unbuffered DIMMs (CUDIMMs) 1Rx8, memory module, based on eight 3G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 48GB. Each module has been tested to run at DDR5-8400 at a low latency timing of 40-52-52 at 1.45V. The SPDs are programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS • Default (JEDEC): DDR5-6400 CL52-52-52 @1.1V • XMP Profile #1: DDR5-8400 CL40-52-52 @1.45V • XMP Profile #2: DDR5-8000 CL38-48-48 @1.45V • XMP Profile #3: DDR5-7600 CL38-46-46 @1.45V
