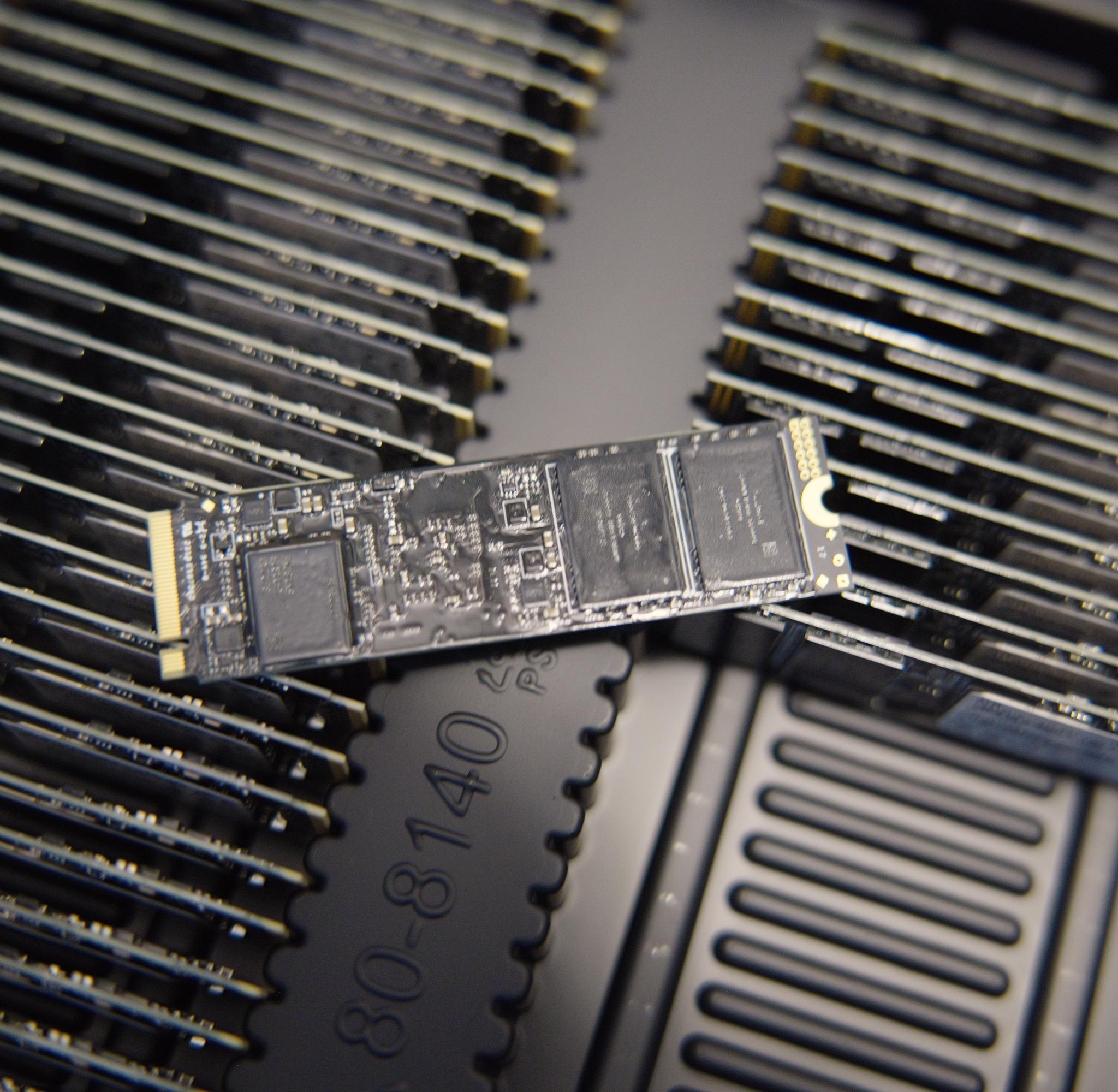

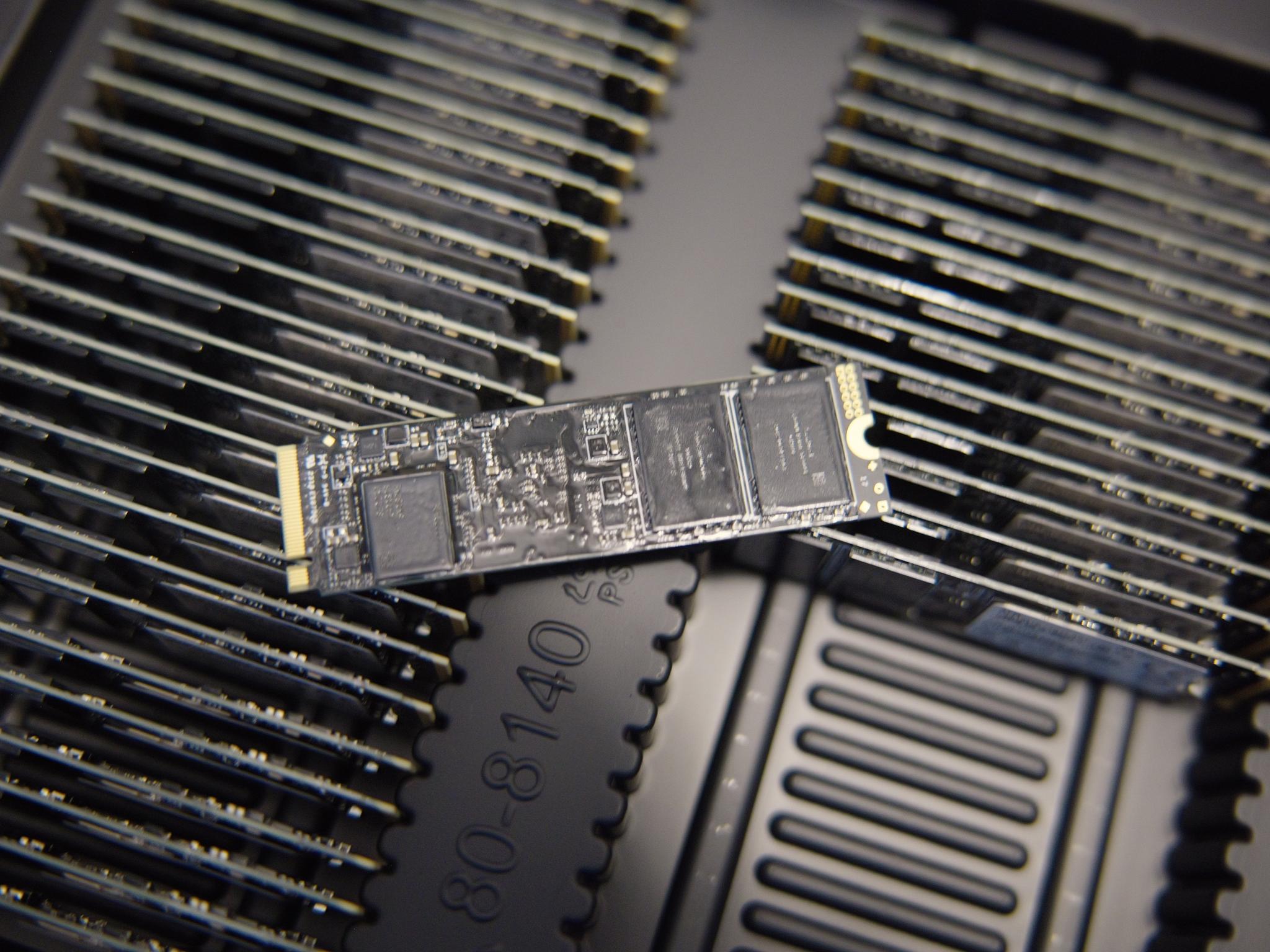

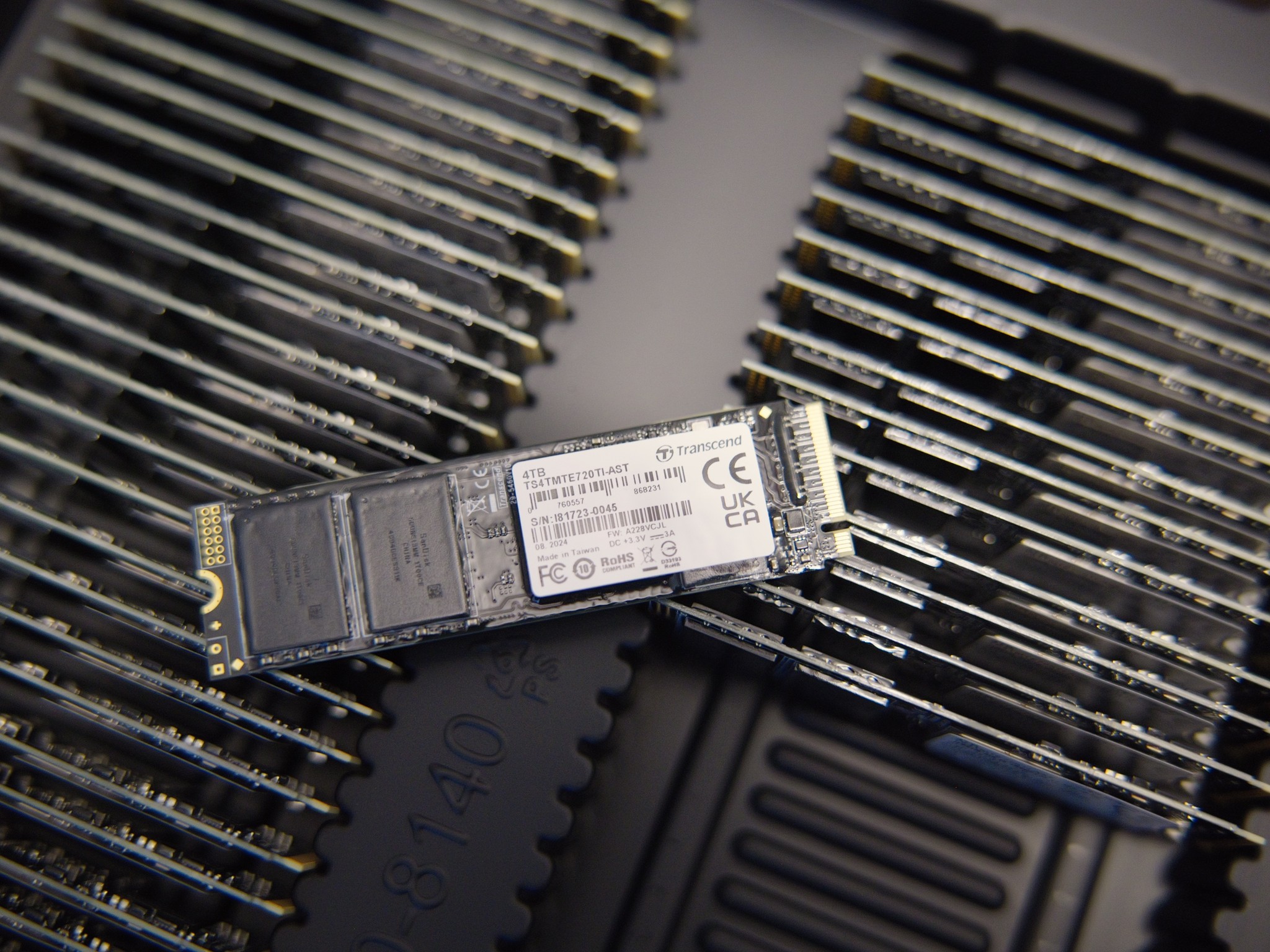

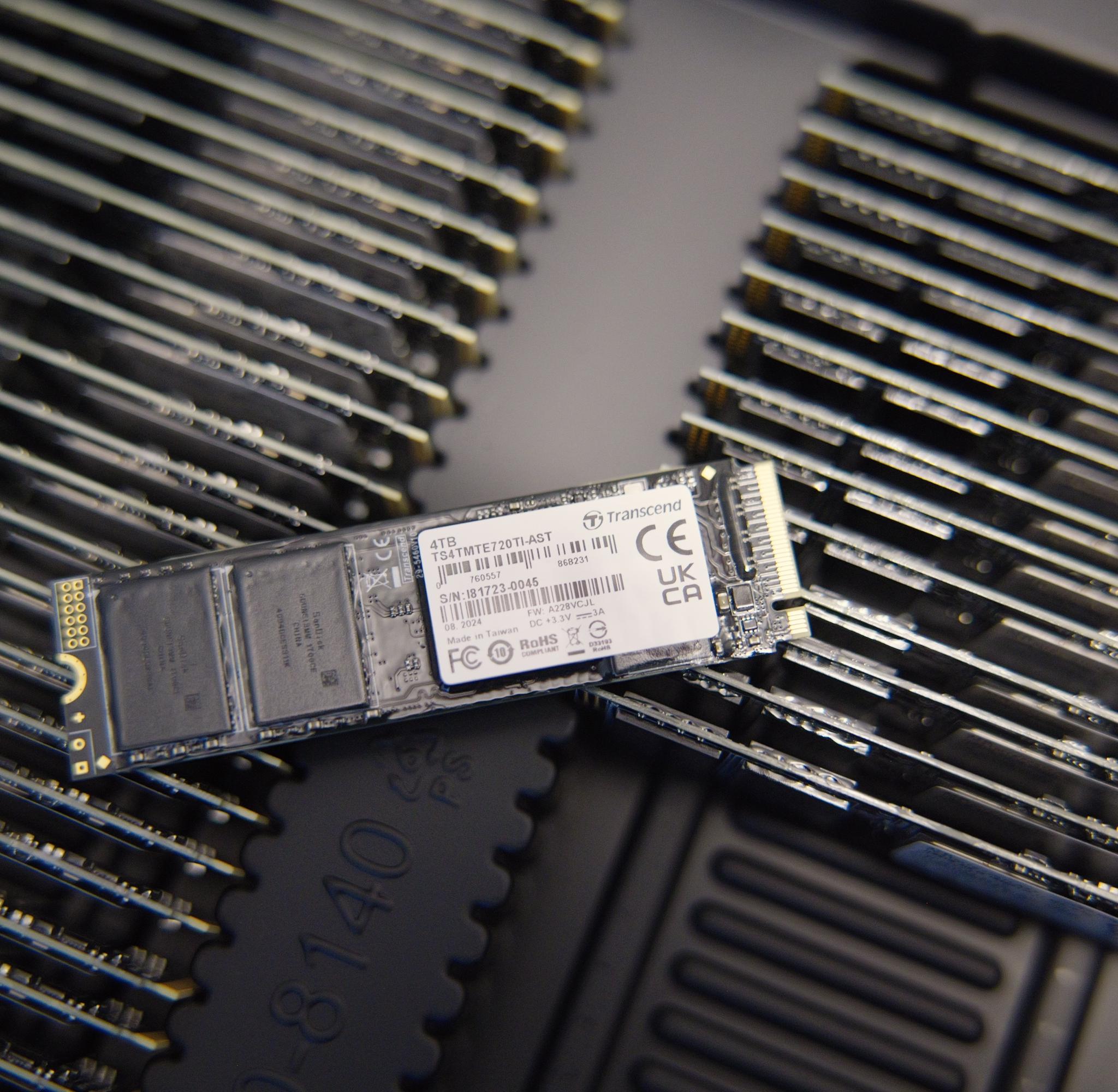

Transcend's M.2 2280 SSD MTE720T features the 112-layer 3D NAND flash, a PCI Express (PCIe) Gen4 x4 interface, and an 8-channel controller, compatible with NVM Express (NVMe) 1.4 specifications to achieve never-before-seen transfer speeds. Its built-in DRAM cache enables fast random read and write speeds, and improves drive endurance. In addition, the 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistors guarantee its reliability in harsh conditions. Transcend's MTE720T is also 100% chamber tested in-house for extended operating temperatures of -20℃~75℃.

Transcend also offers the MTE720T-I with wide temperature (-40℃~ 85℃) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Technologies

112-Layer 3D NAND Flash

30µ” PCB Gold Finger

Corner Bond

Extended Temperature

Wide Temperature

Dynamic Thermal Throttling

Thermal Sensor

Read Disturbance

Anti-Sulfur Technology

Garbage Collection

Wear Leveling

TRIM

Bad Block Management

Power Shield (PS)

Early Move Firmware Features Supports NVM command Dynamic thermal throttling Built-in LDPC ECC (Error Correction Code) functionality Advanced Global Wear-Leveling and Block management for reliability Advanced Garbage Collection Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices TRIM command for better performance NCQ command for better performance Full drive encryption with Advanced Encryption Standard (AES) (optional) Hardware Features Compliant with RoHS 2.0 standards Compliant with NVM Express specification 1.4 Compliant with PCI Express specification 4.0 Space-saving M.2 form factor (80mm) – ideal for mobile computing devices PCIe Gen 4 x4 interface DDR4 DRAM Cache embedded Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed Key components fortified by default with Corner Bond technology 30µ" PCB gold finger Anti-sulfur technology implemented to prevent sulfurization in the environment Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available Supports Transcend Scope Pro software
