Core GPU Specs

Architecture: NVIDIA Ampere

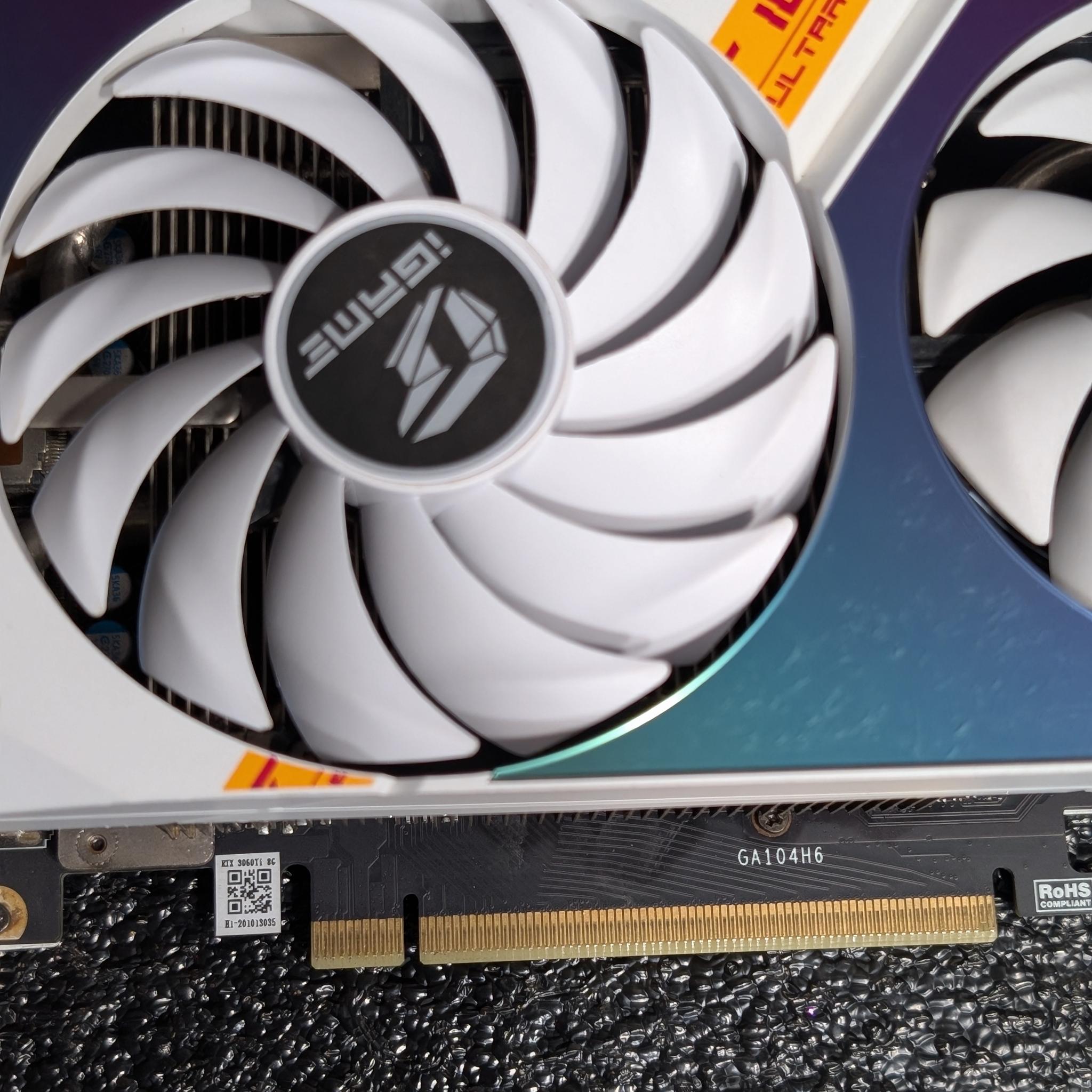

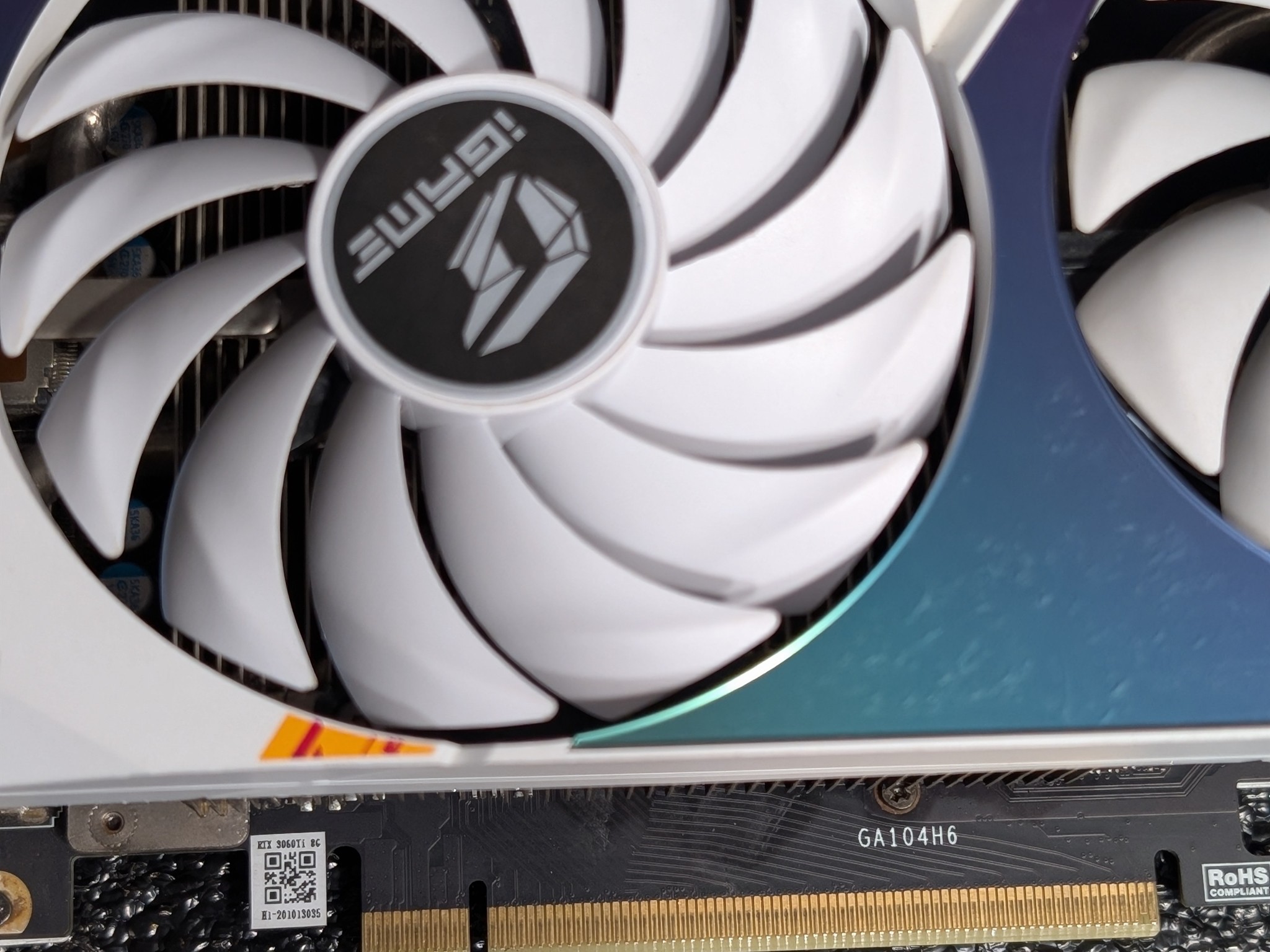

GPU Die: GA104

CUDA Cores: 4,864

Base Clock: ~1410 MHz

Boost Clock: ~1665 MHz

One-Key OC Boost: up to ~1770–1800 MHz depending on revision

Memory

VRAM: 8 GB

Memory Type: GDDR6 (some later variants GDDR6X)

Memory Speed: ~14 Gbps

Memory Bus: 256-bit

Memory Bandwidth: ~448 GB/s

Cooling & Design

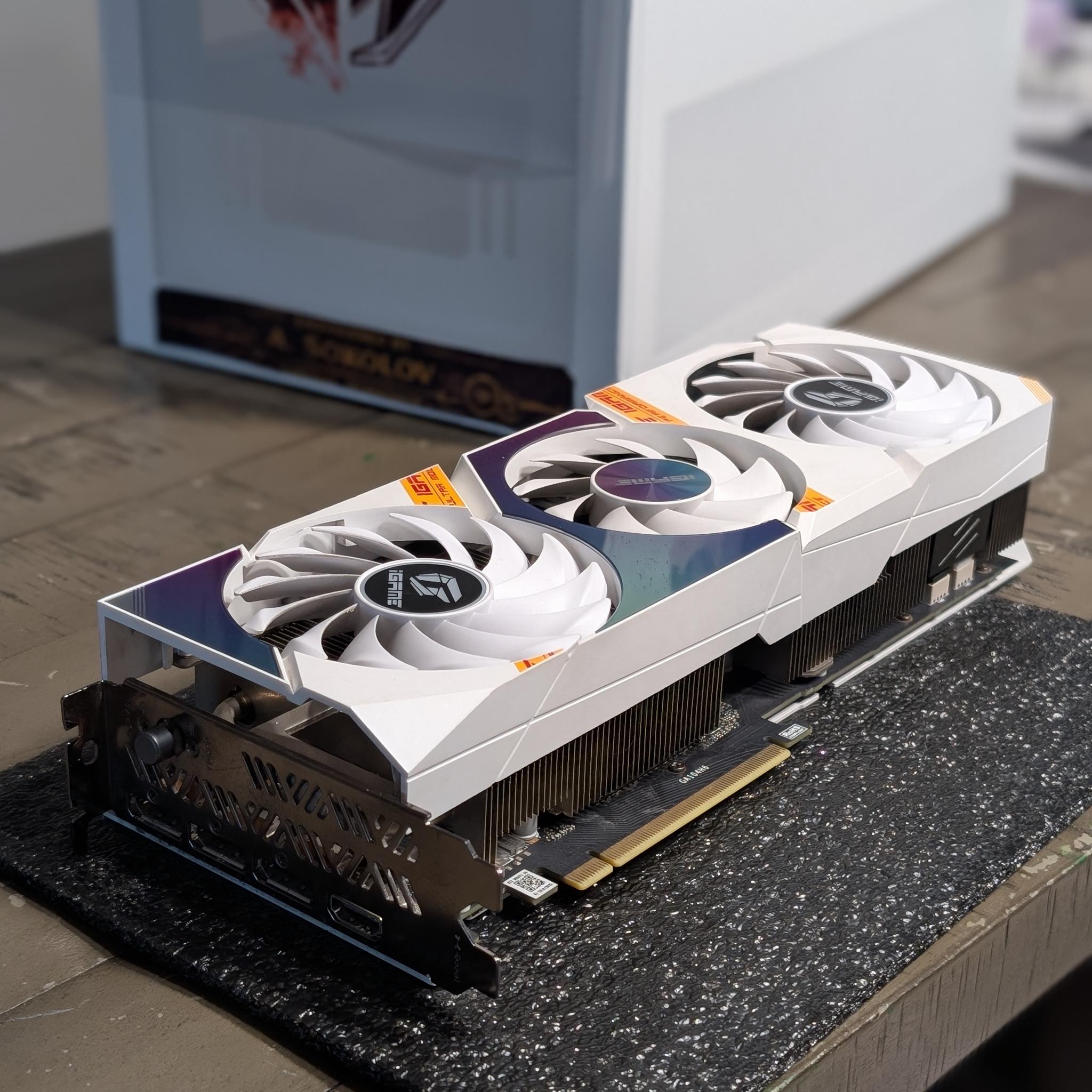

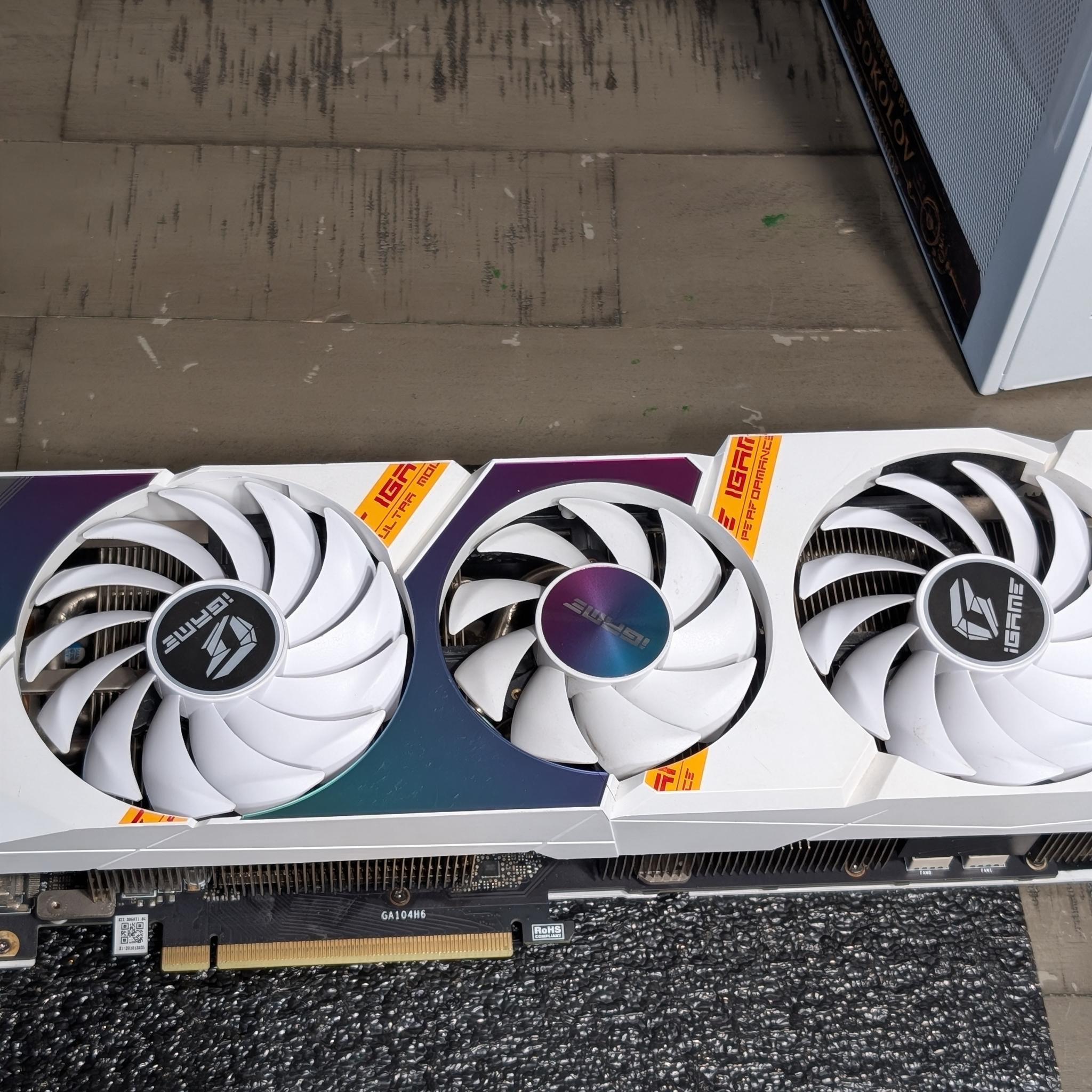

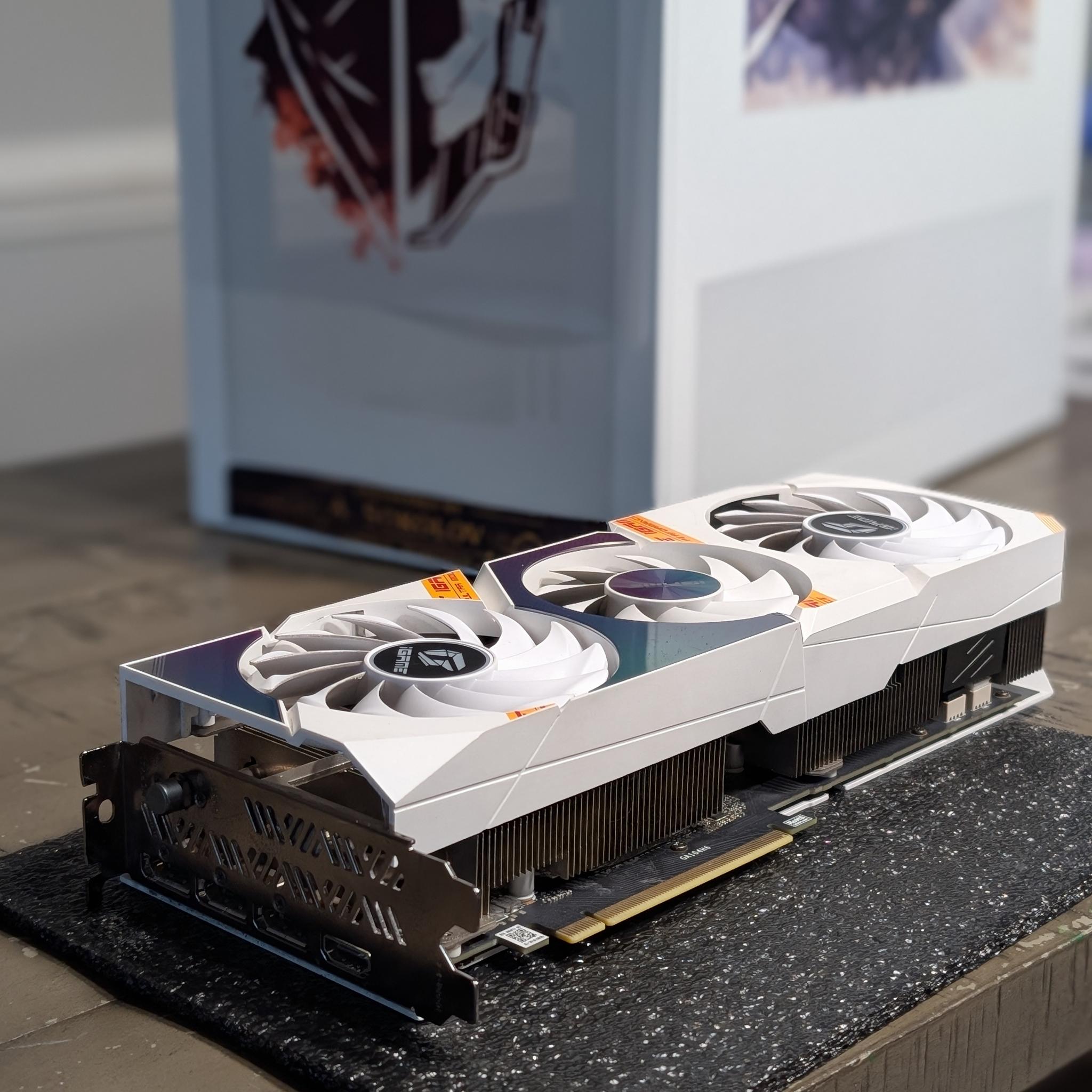

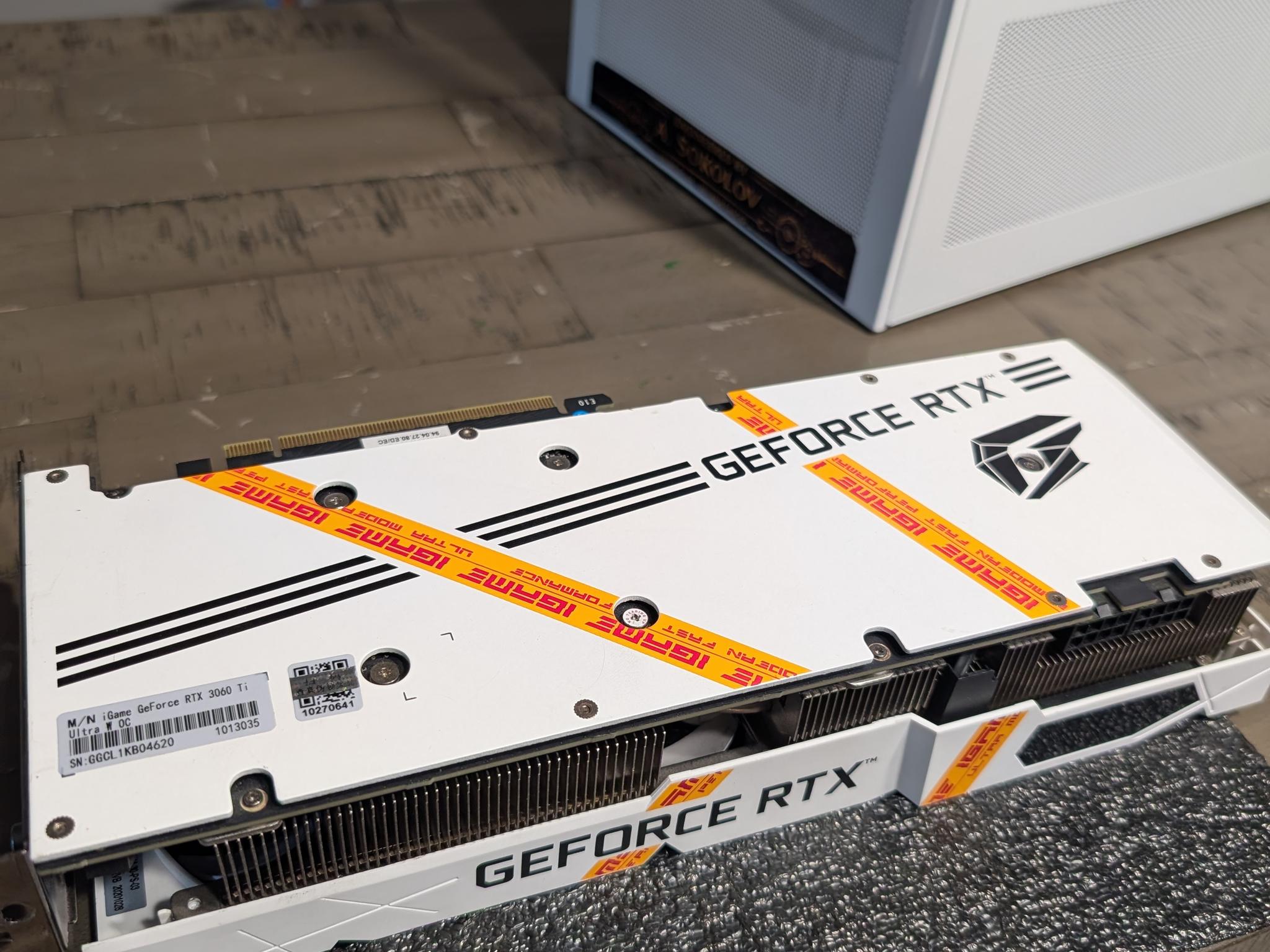

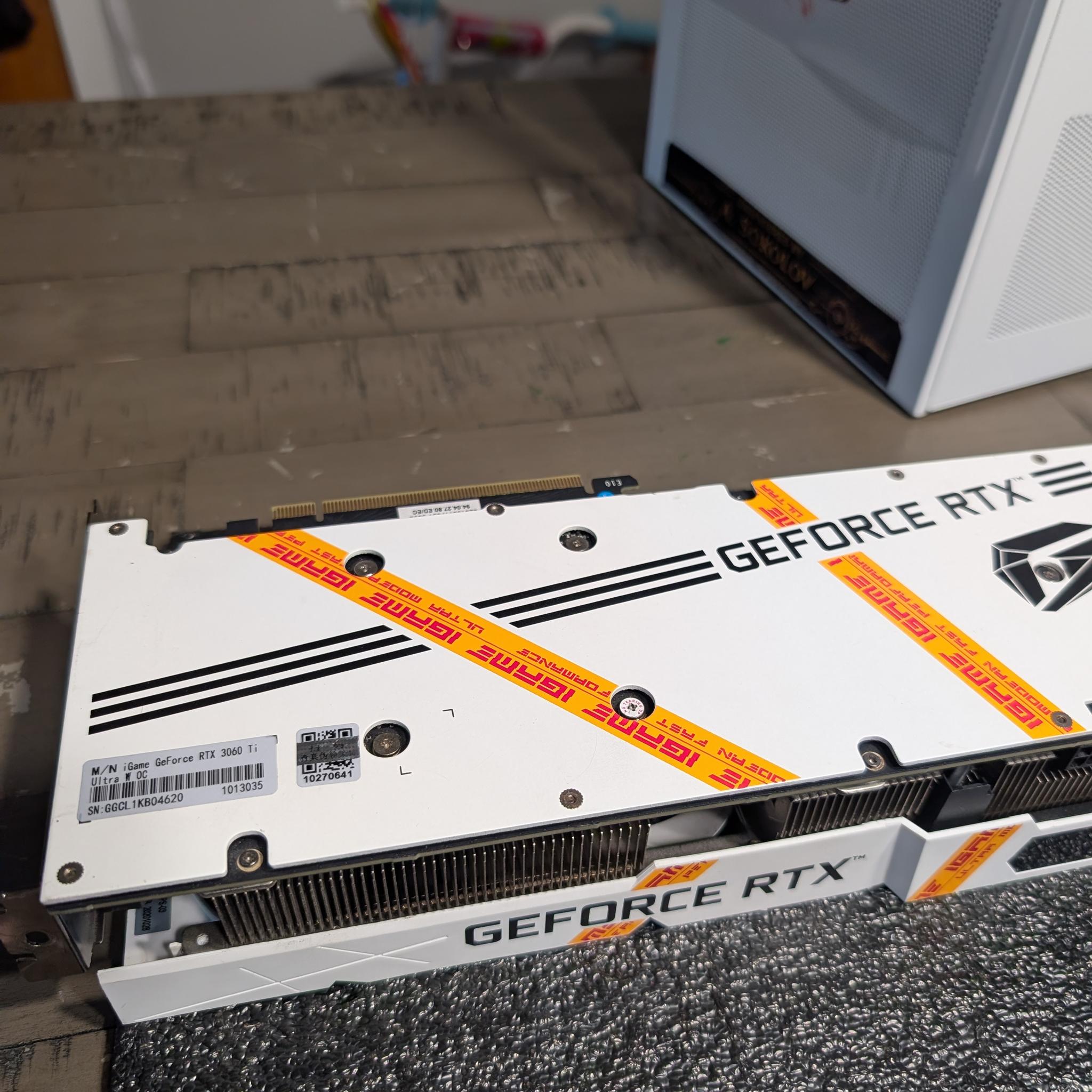

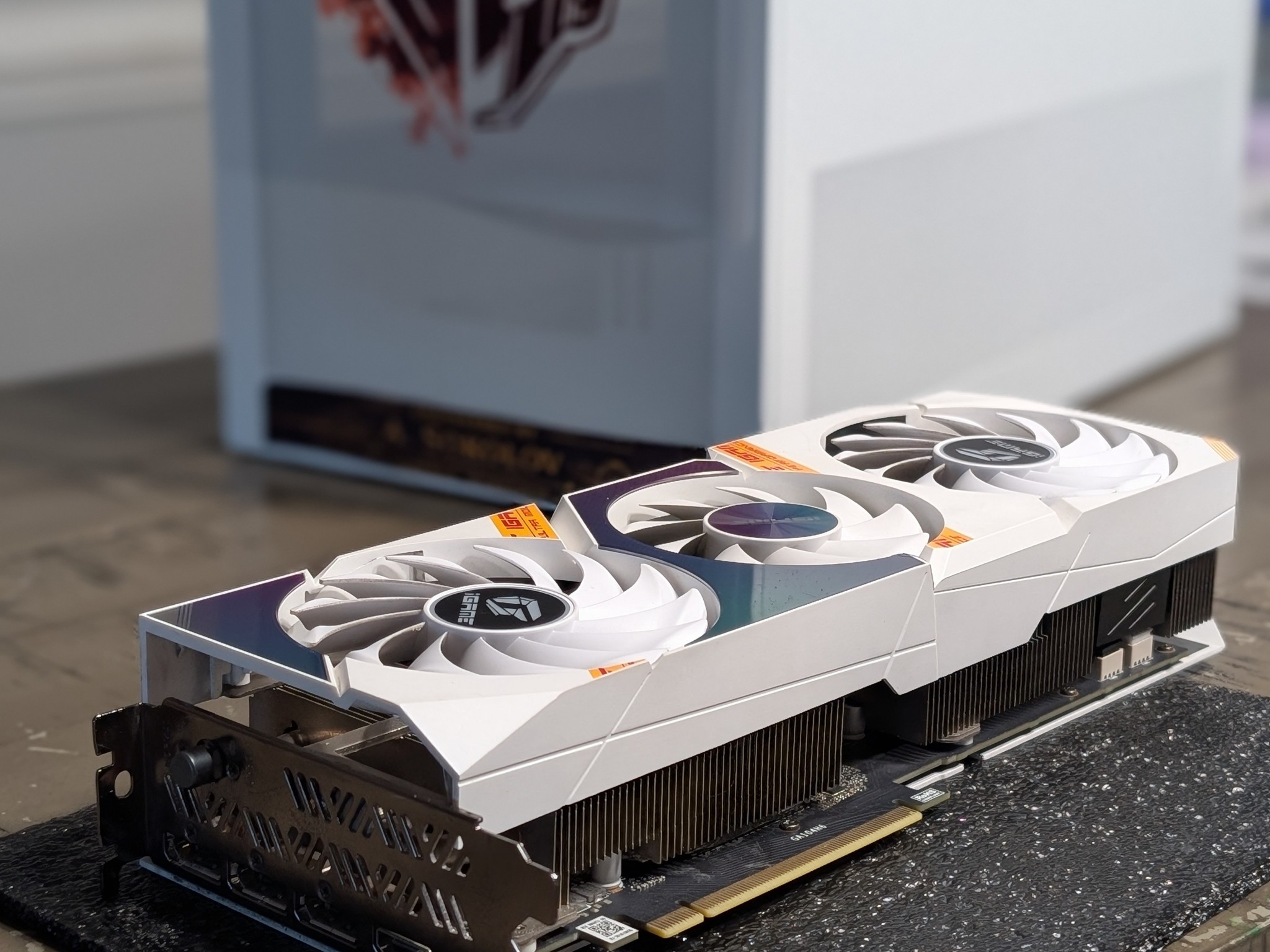

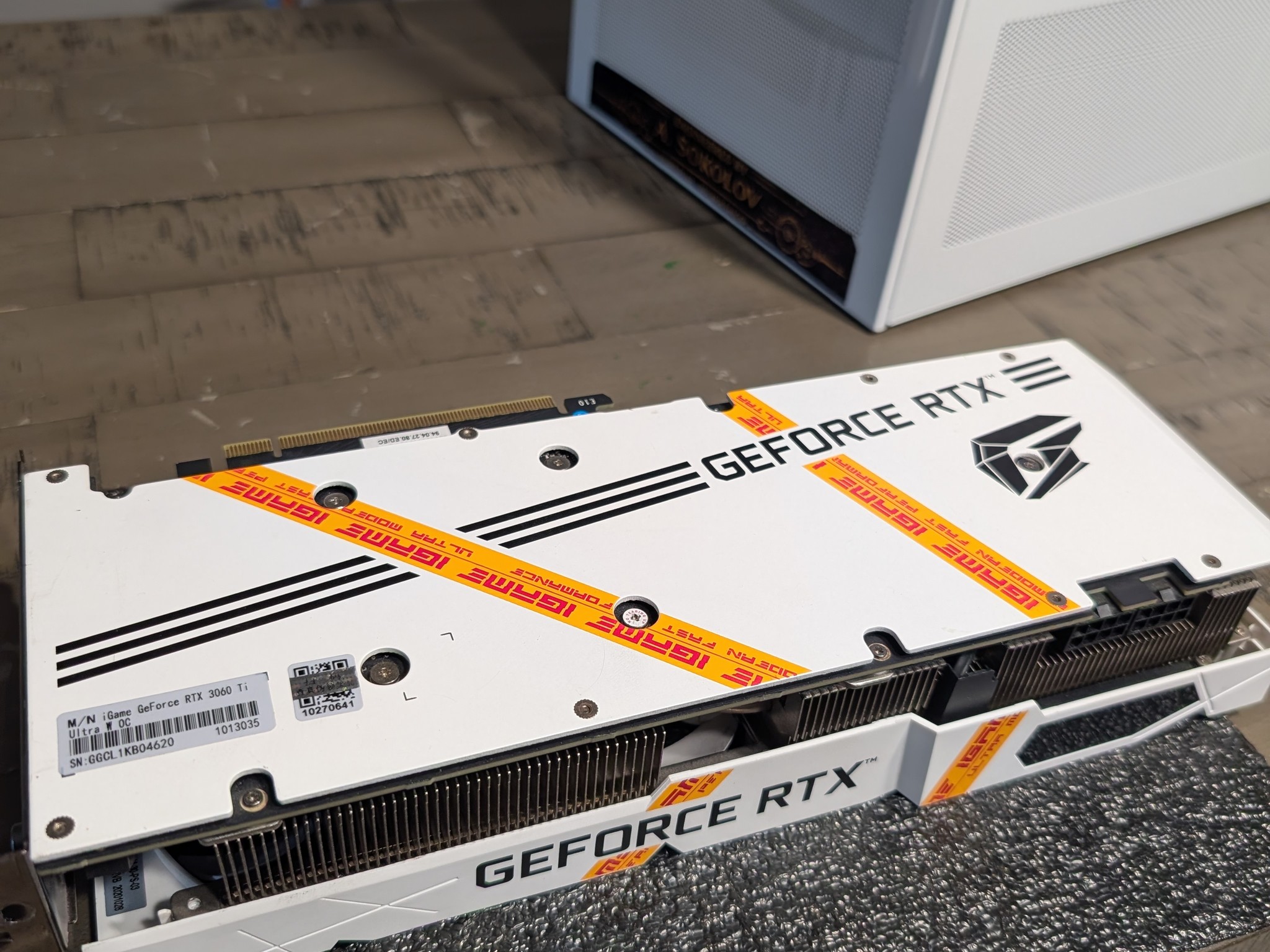

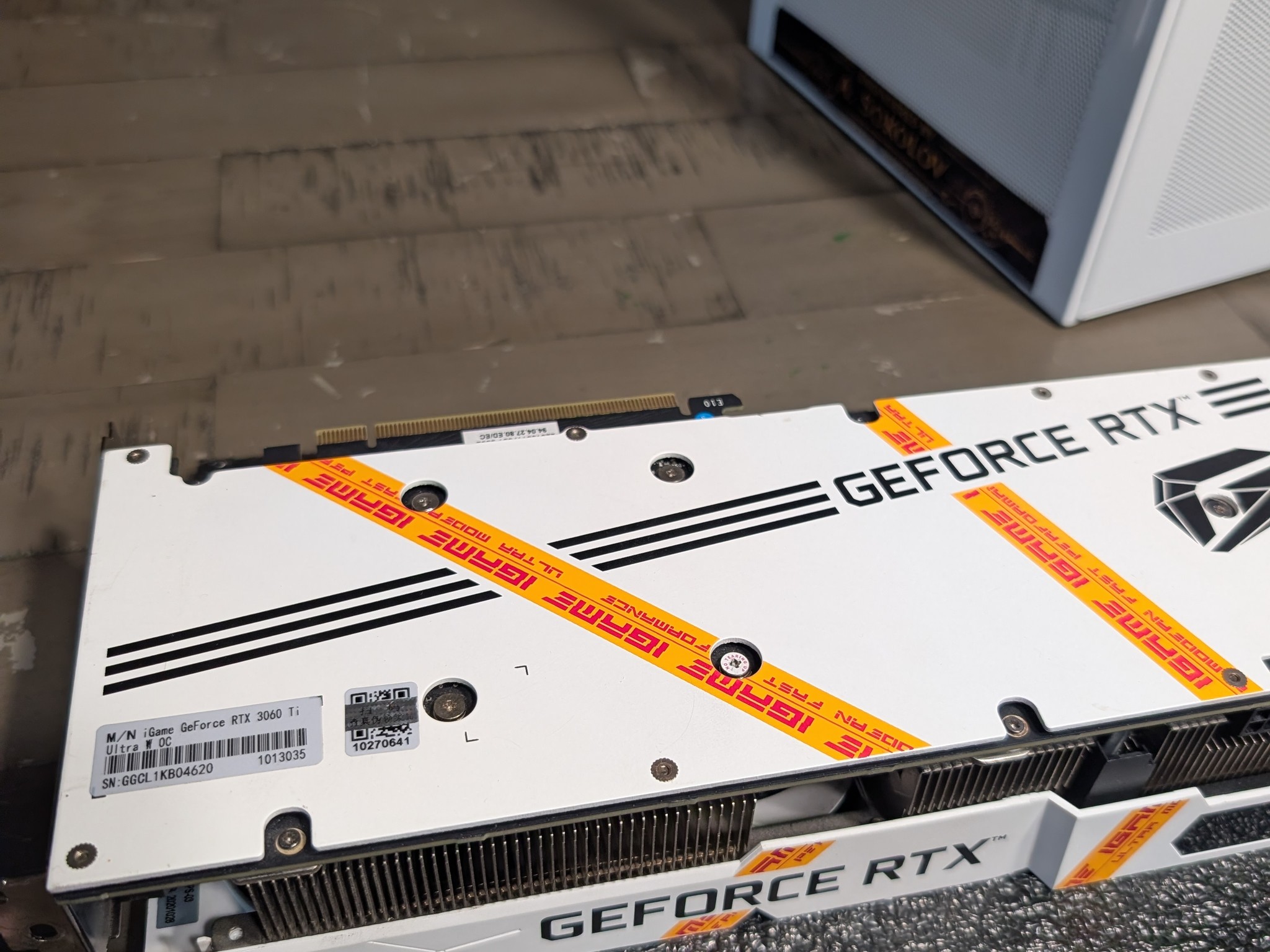

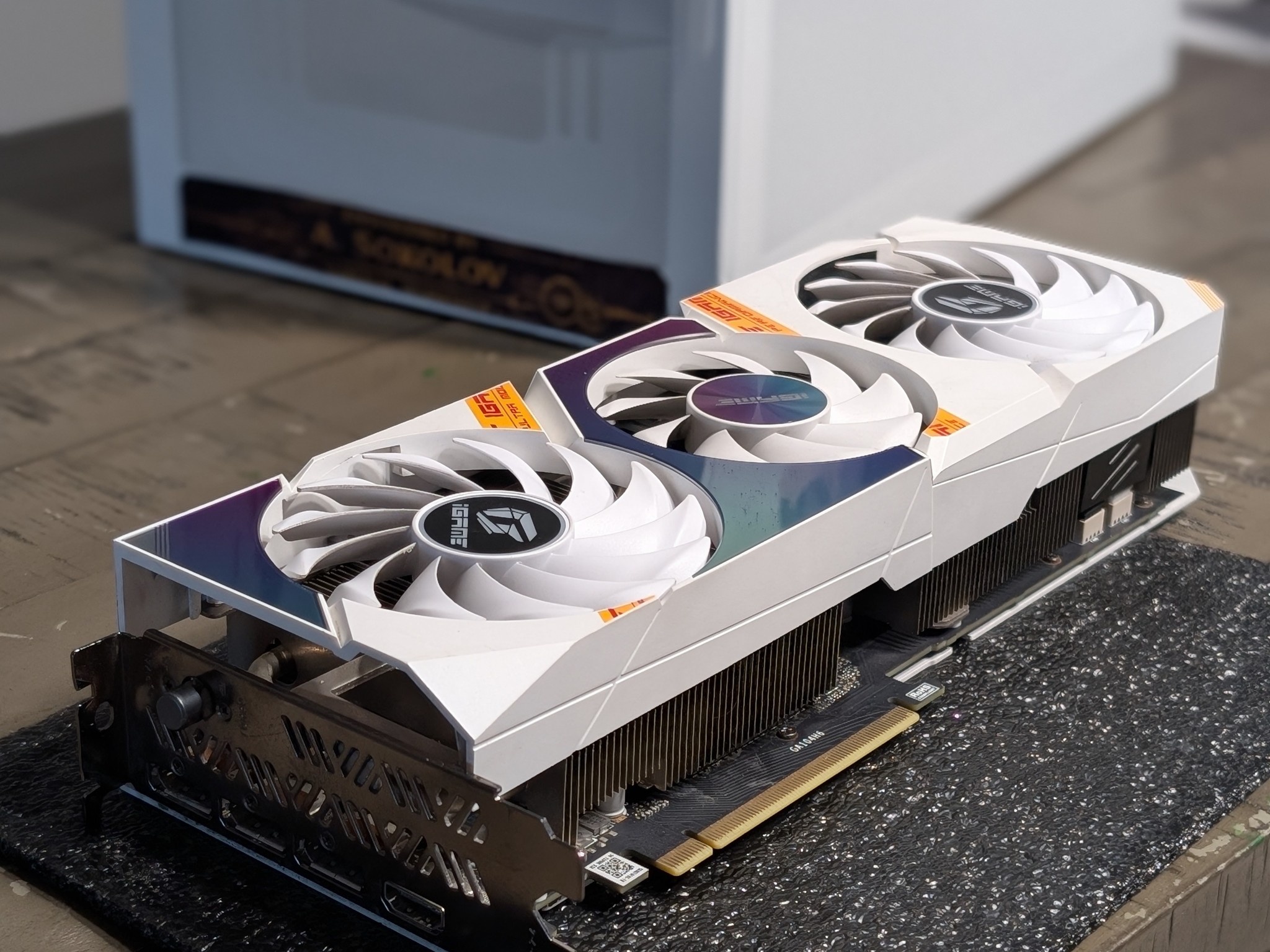

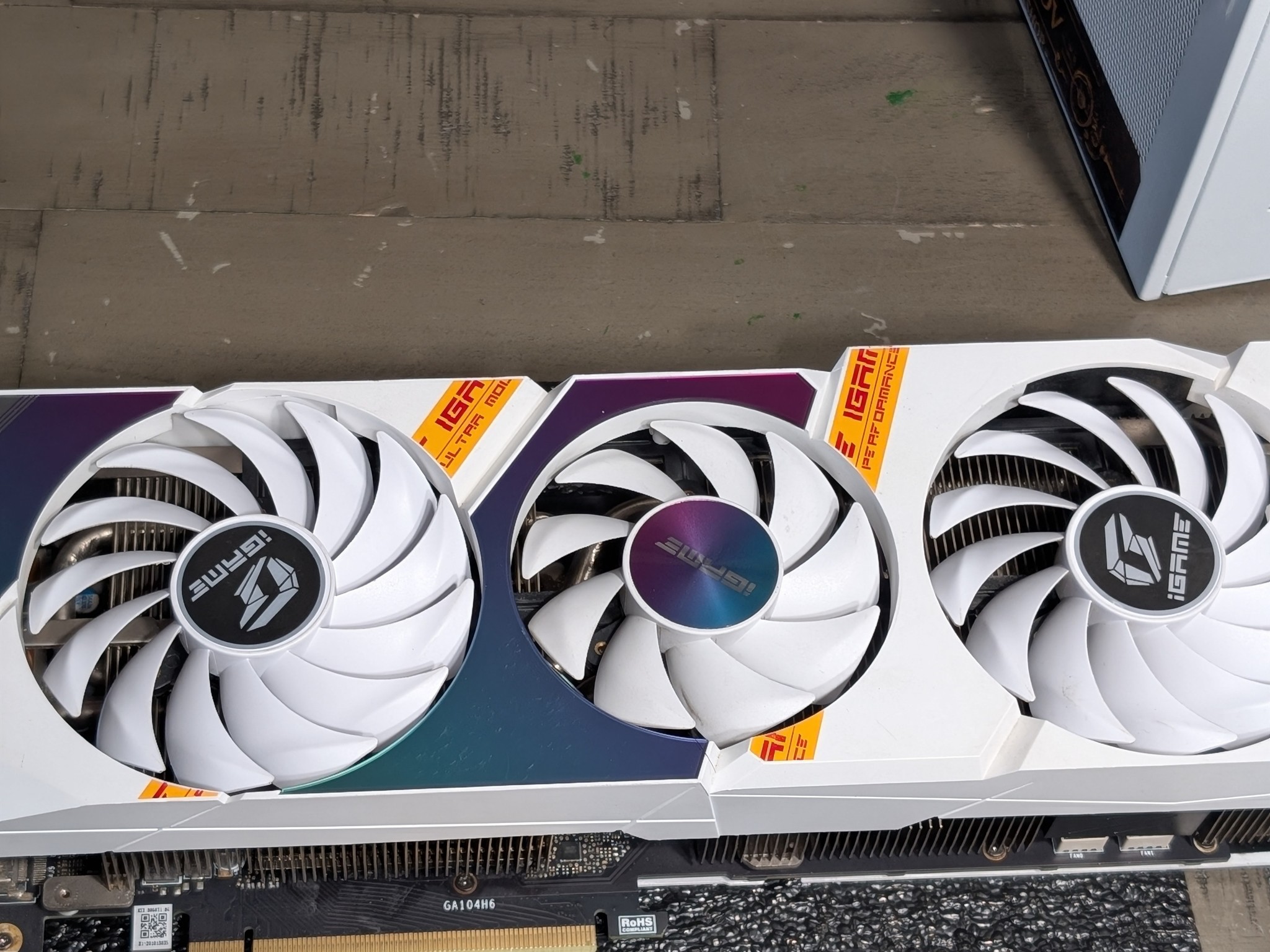

Cooler: Triple-fan iGame cooler

Heatpipes: multi-heatpipe design for airflow and thermals

Auto-Stop fans: fans shut off under low load

Aesthetic:

white shroud

colorful/pastel accents

RGB lighting

“Ultra W” theme (very popular in white builds)

Power & Connectivity

Power connectors: 2× 8-pin PCIe

Recommended PSU: ~600 W+

Typical board power: ~200–240 W depending on model

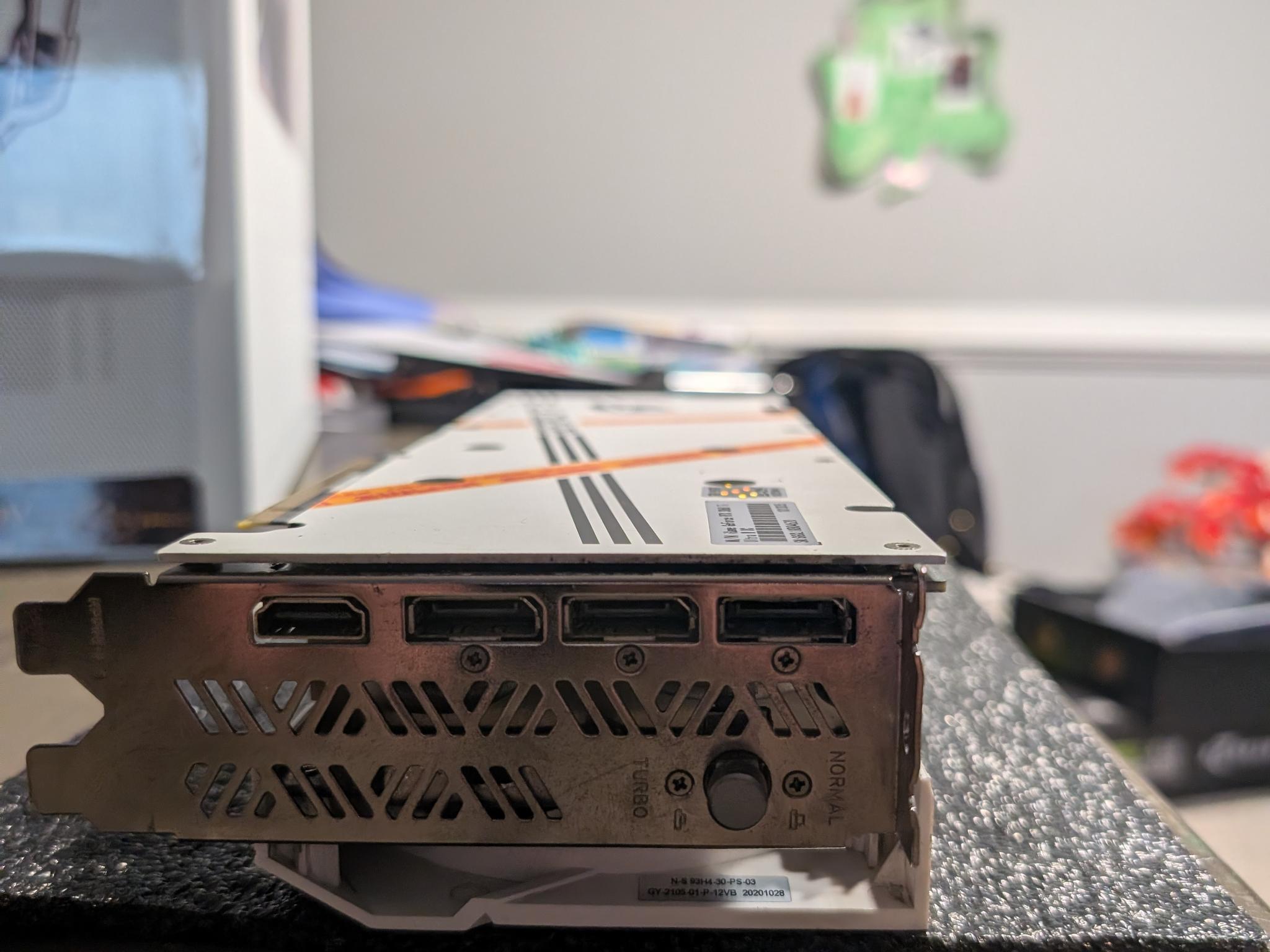

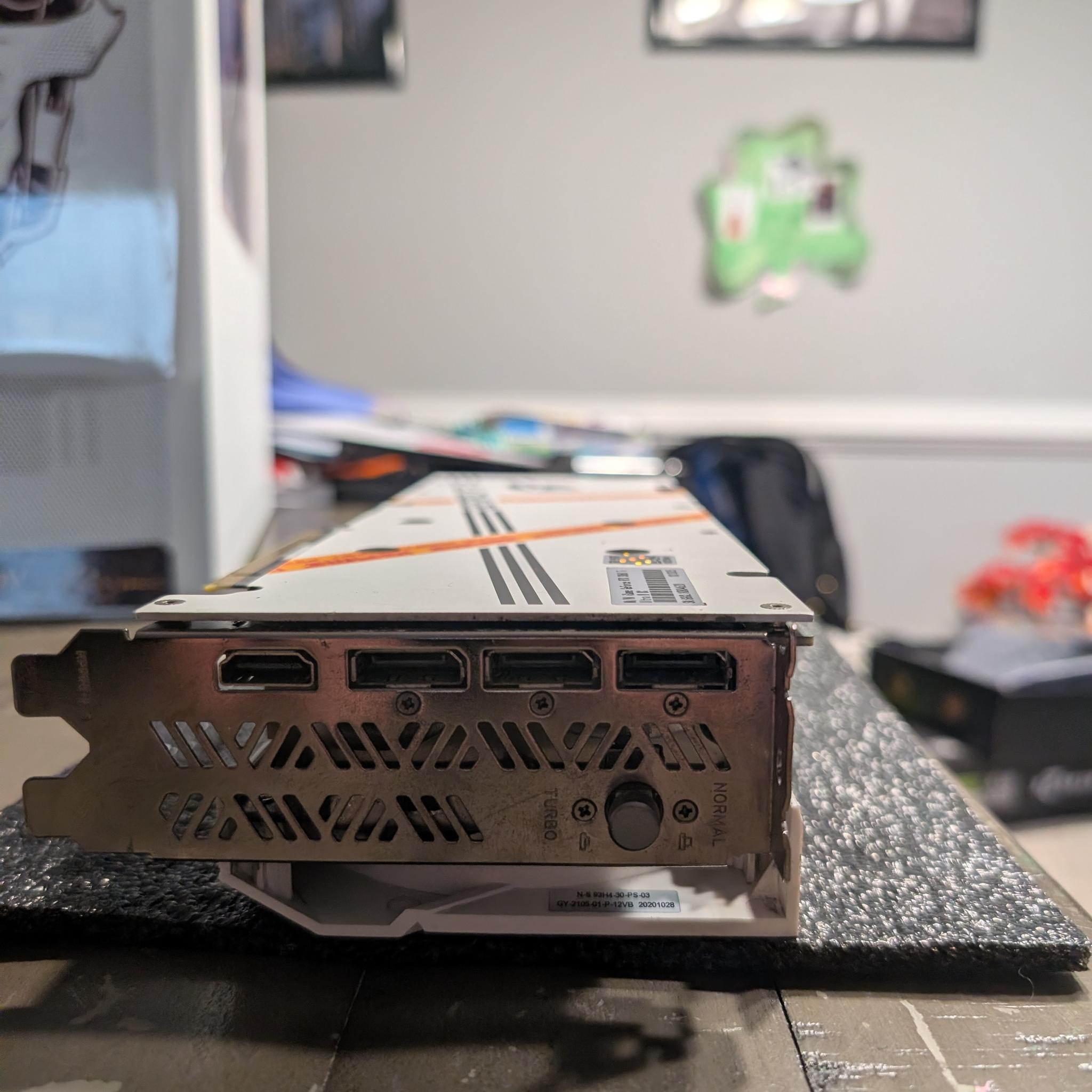

Display outputs

3× DisplayPort

1× HDMI

Performance (rough real-world)

Typical gaming targets for a 3060 Ti class card:

1080p: Ultra settings in most games

1440p: High/Ultra with DLSS

Ray tracing: playable with DLSS enabled

Often ~30–40% faster than a regular RTX 3060.

✅ Quick summary

Spec Value GPU GA104 (Ampere) CUDA cores 4864 VRAM 8 GB GDDR6 Bus 256-bit Memory speed 14 Gbps Boost clock ~1665–1770 MHz Outputs 3× DP, 1× HDMI Power 2× 8-pin
