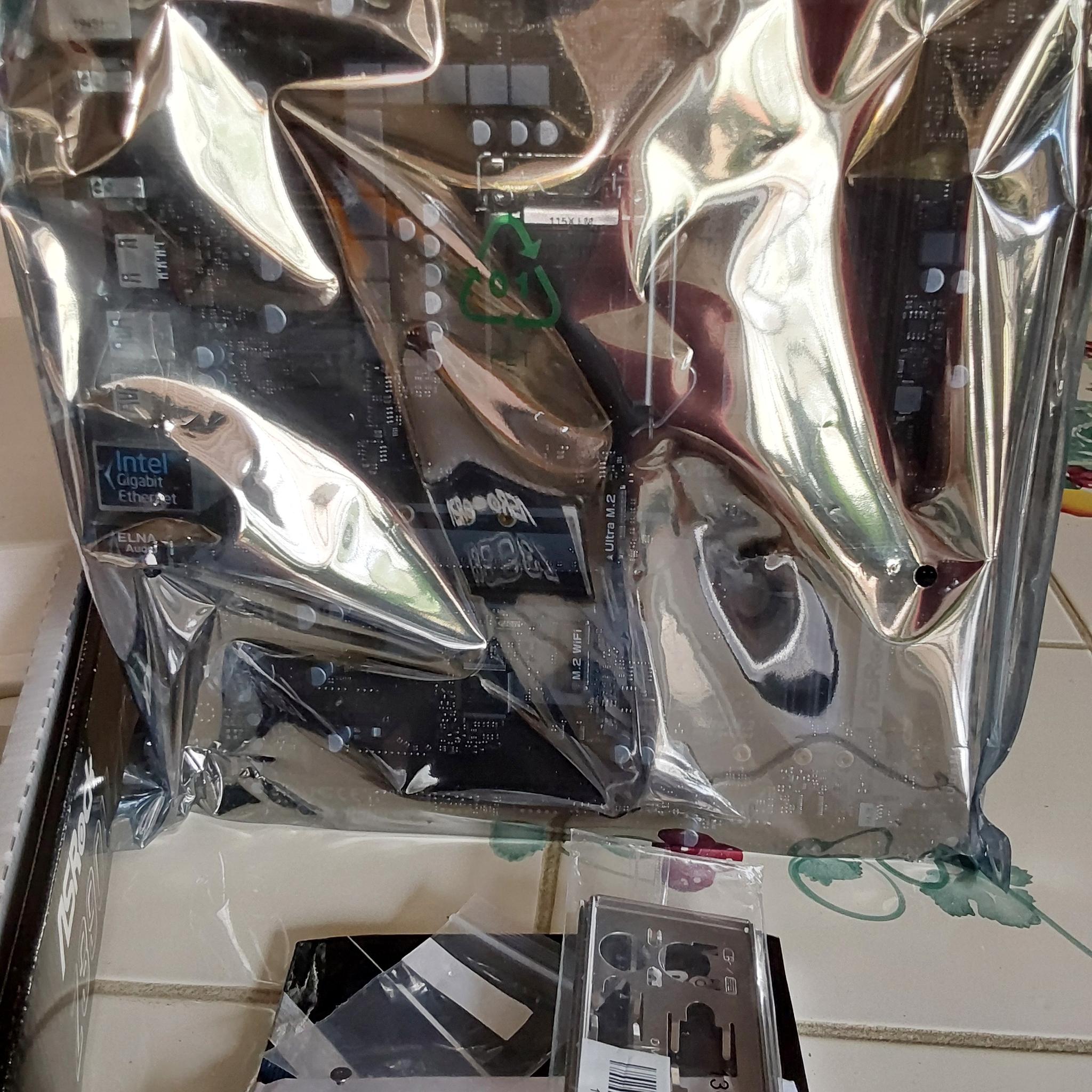

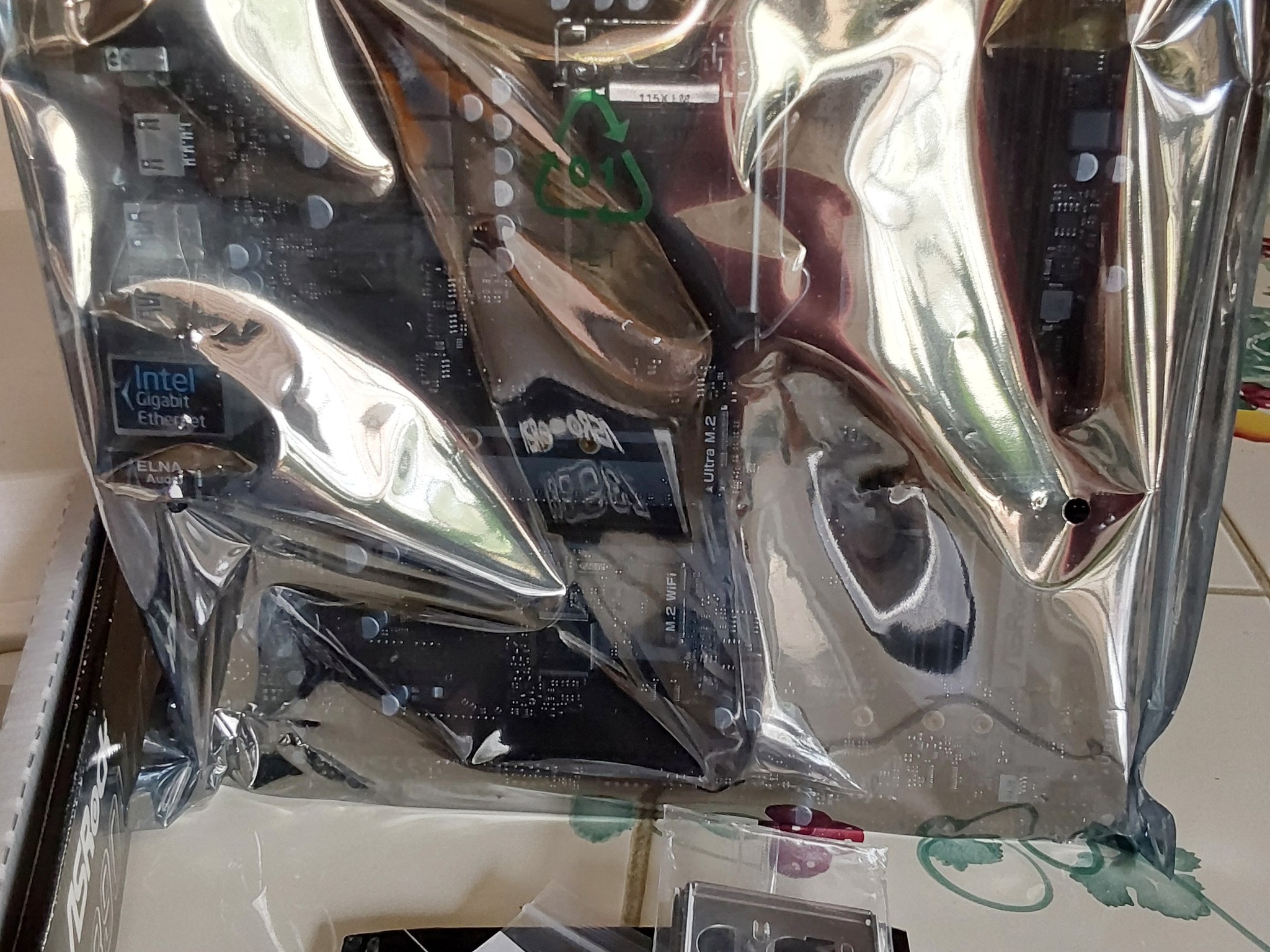

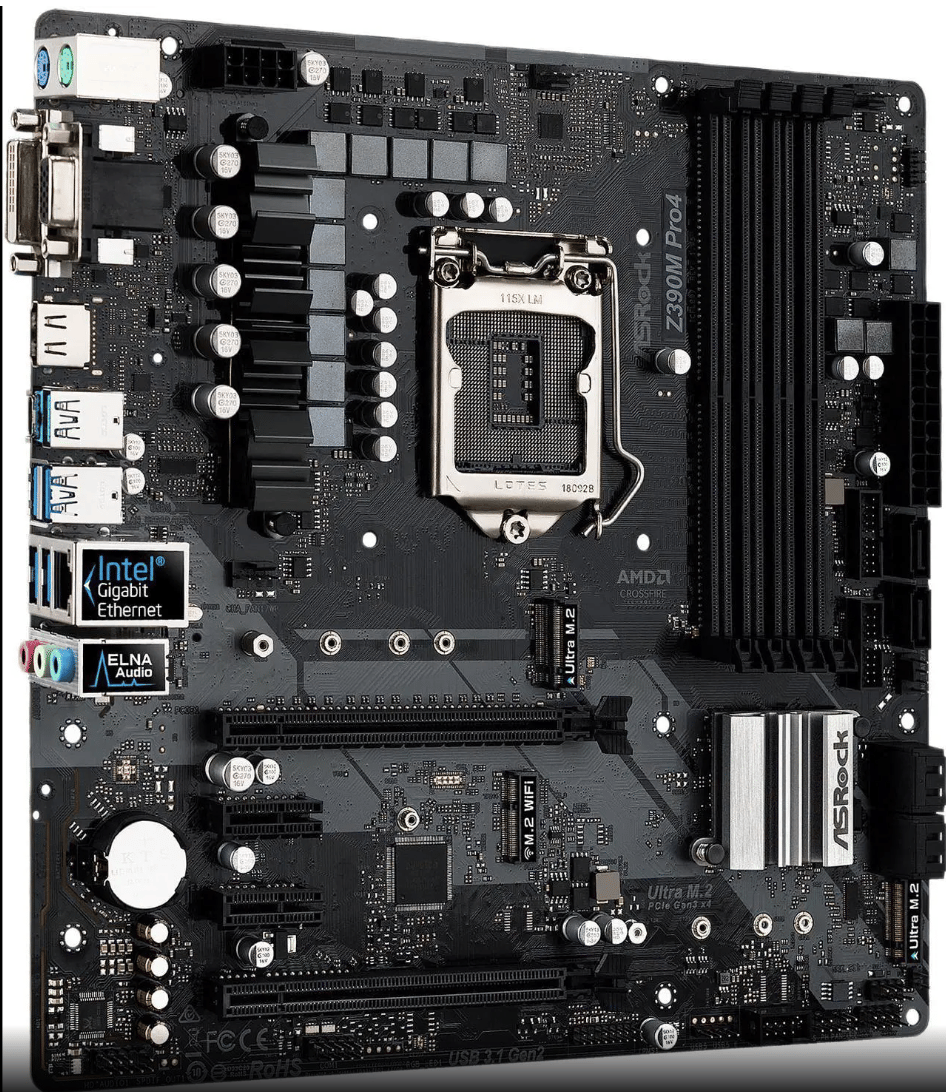

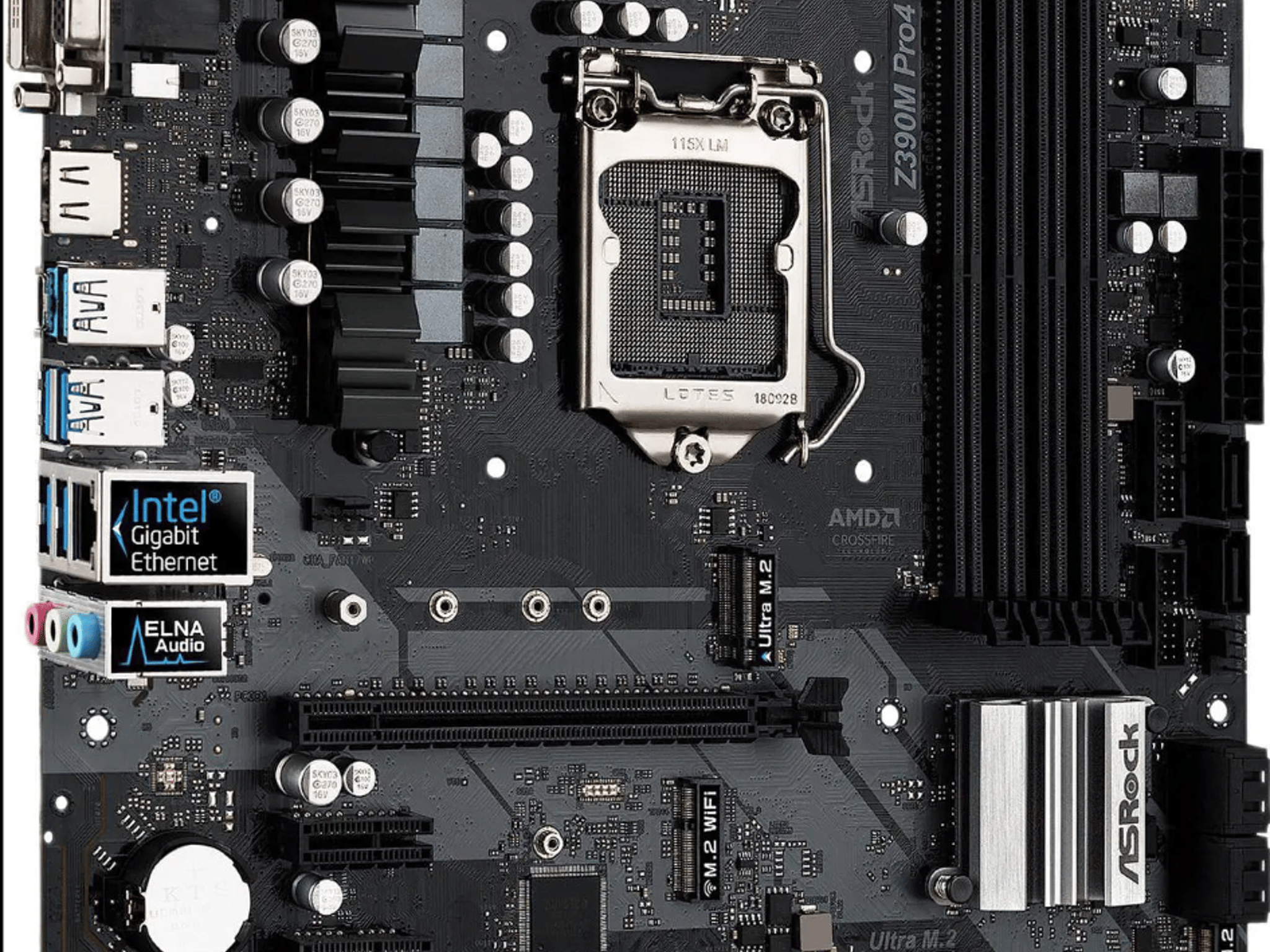

This is a NEW ASRock Z390M Pro4 Intel Z390 LGA 1151 Micro ATX Motherboard, never used, in original retail box with all parts, accessories and documentation. This dependable 300 series motherboard is compatible with Intel’s 9th and 8th generation LGA 1151 processors and DDR4 SDRAM.

Please scroll pictures for further details and specs

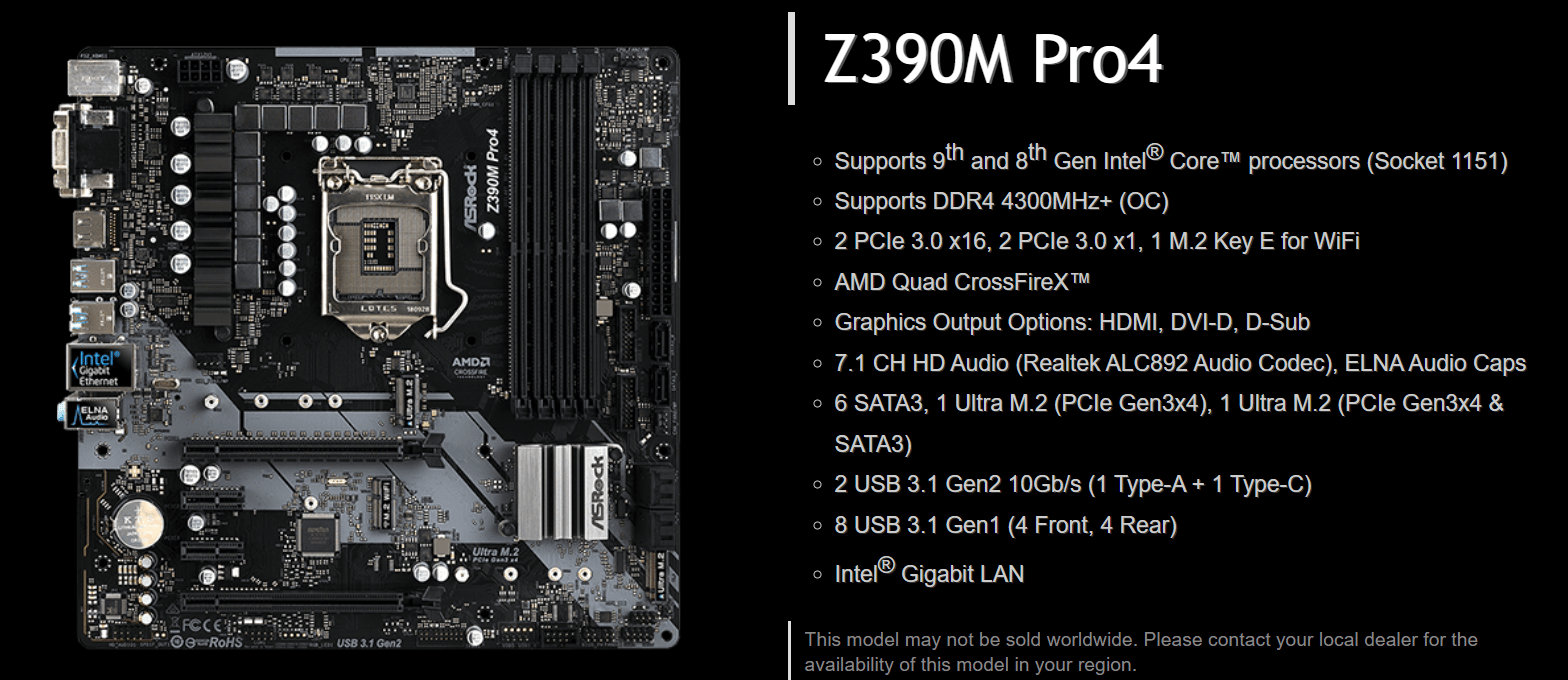

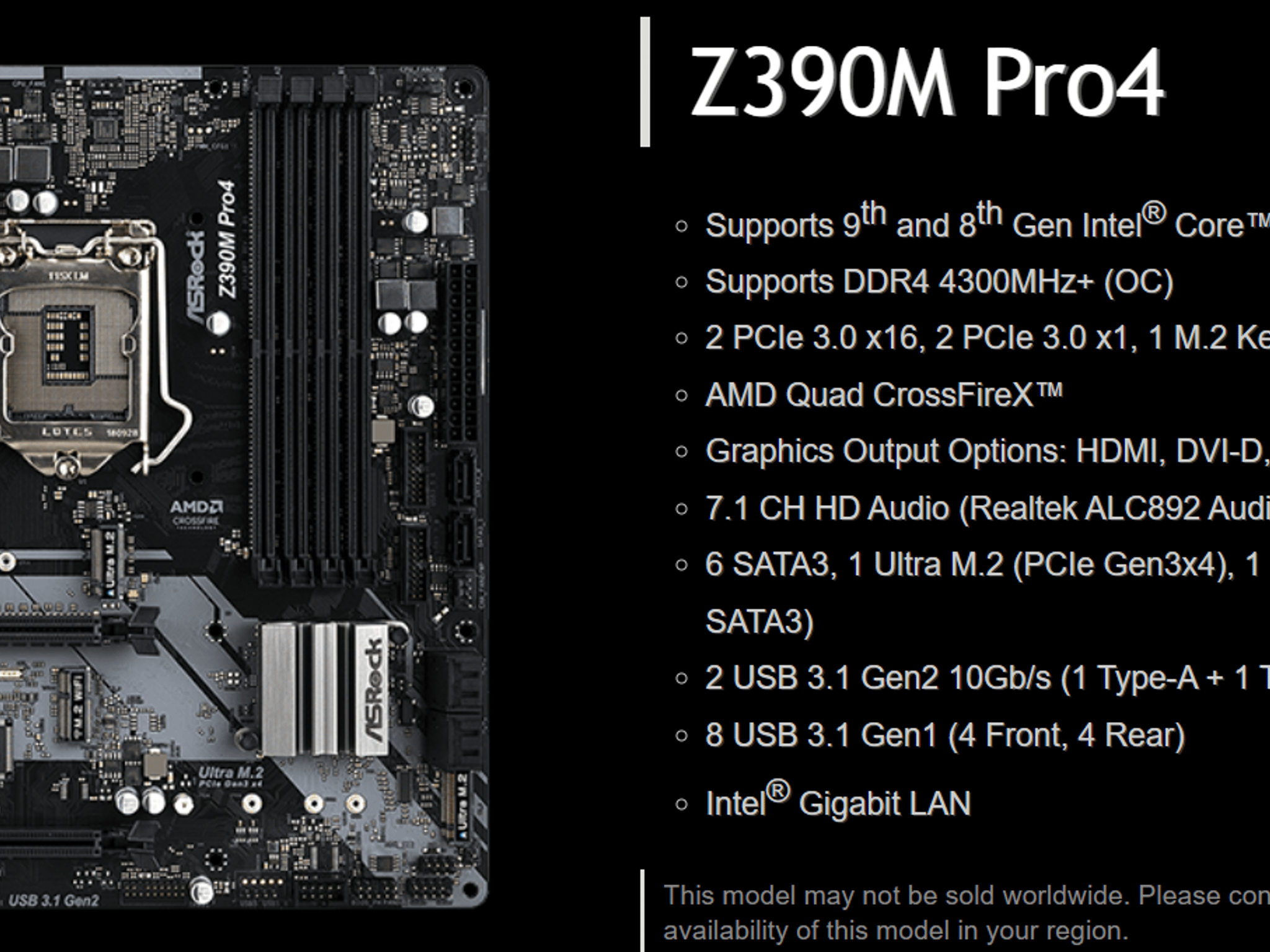

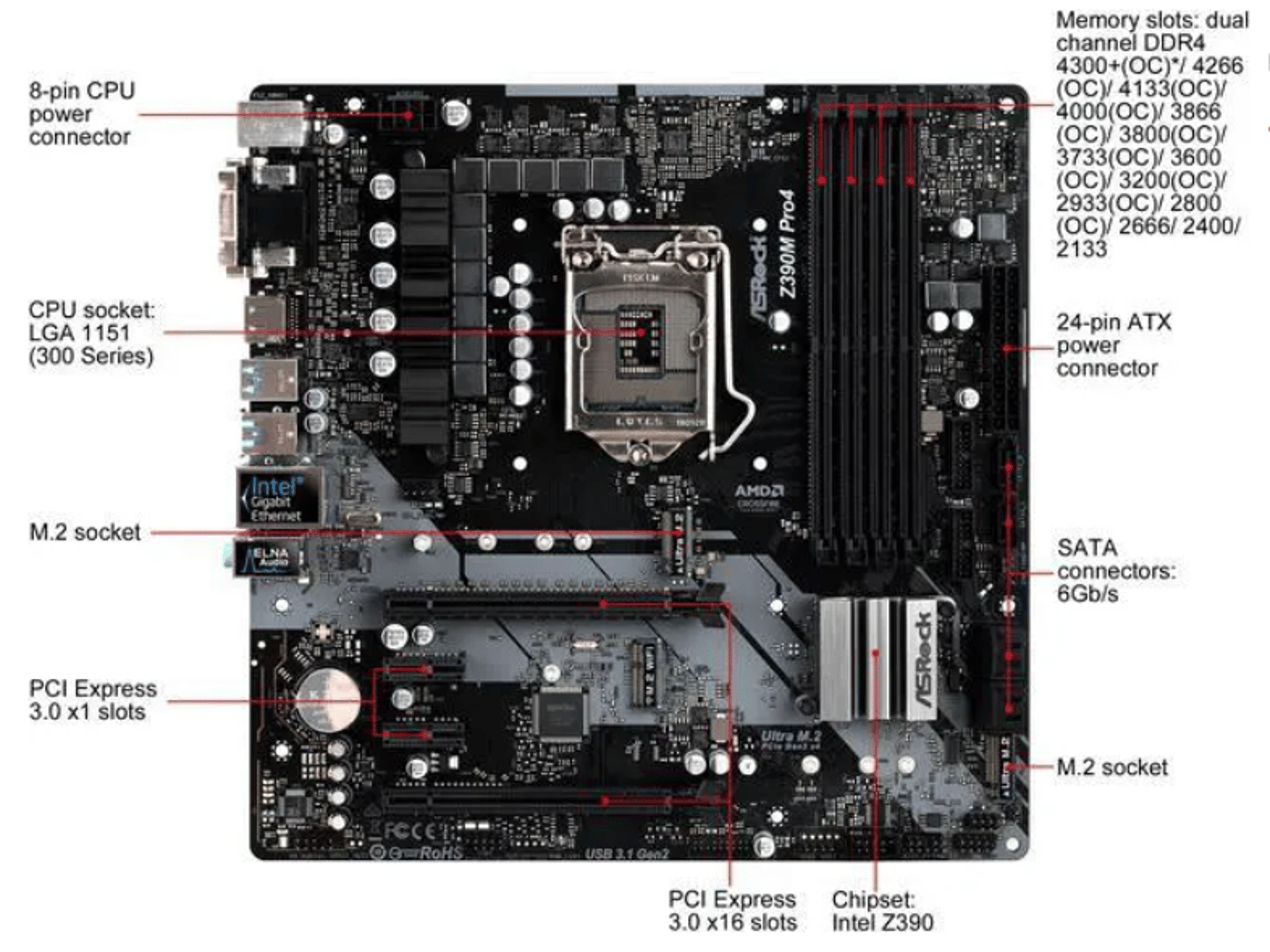

FEATURES & SPECS:

• ASRock Super Alloy: Premium 45A Power Choke; Sapphire Black PCB; High Density Glass Fabric PCB
• ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• Solid Capacitor design

CPU:

• Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151, Intel Z390 chipset)
• Supports CPU up to 95W, Intel K-Series unlocked CPUs, full range overclocking
• Digi Power design, 10 Power Phase design
• Supports Intel® Turbo Boost 2.0 Technology

Memory:

• Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• Supports DDR4 2133, 2400, 2666, 2800 (OC) to 4300+(OC), non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP) 2.0
• 15μ Gold Contact in DIMM Slots

Audio:

• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
• Premium Blu-ray Audio support
• Supports Surge Protection
• ELNA Audio Caps

LAN:

• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE

Slots:

• 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4)
• 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
• Supports AMD Quad CrossFireX™ and CrossFireX™
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT); supports CNVio1 WiFi module (Intel® Wireless-AC 9560/9462/9461) only.

Storage:

• 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug (If M2_2 is occupied, SATA3_4 and SATA3_5 will be disabled)
• 1 x Ultra M.2 Socket, M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• 1 x Ultra M.2 Socket, M Key type M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• Supports Intel Optane Technology
• Supports NVMe SSD as boot disks

Connectors:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports)
• 1 x Performance Mode / Easy OC Header

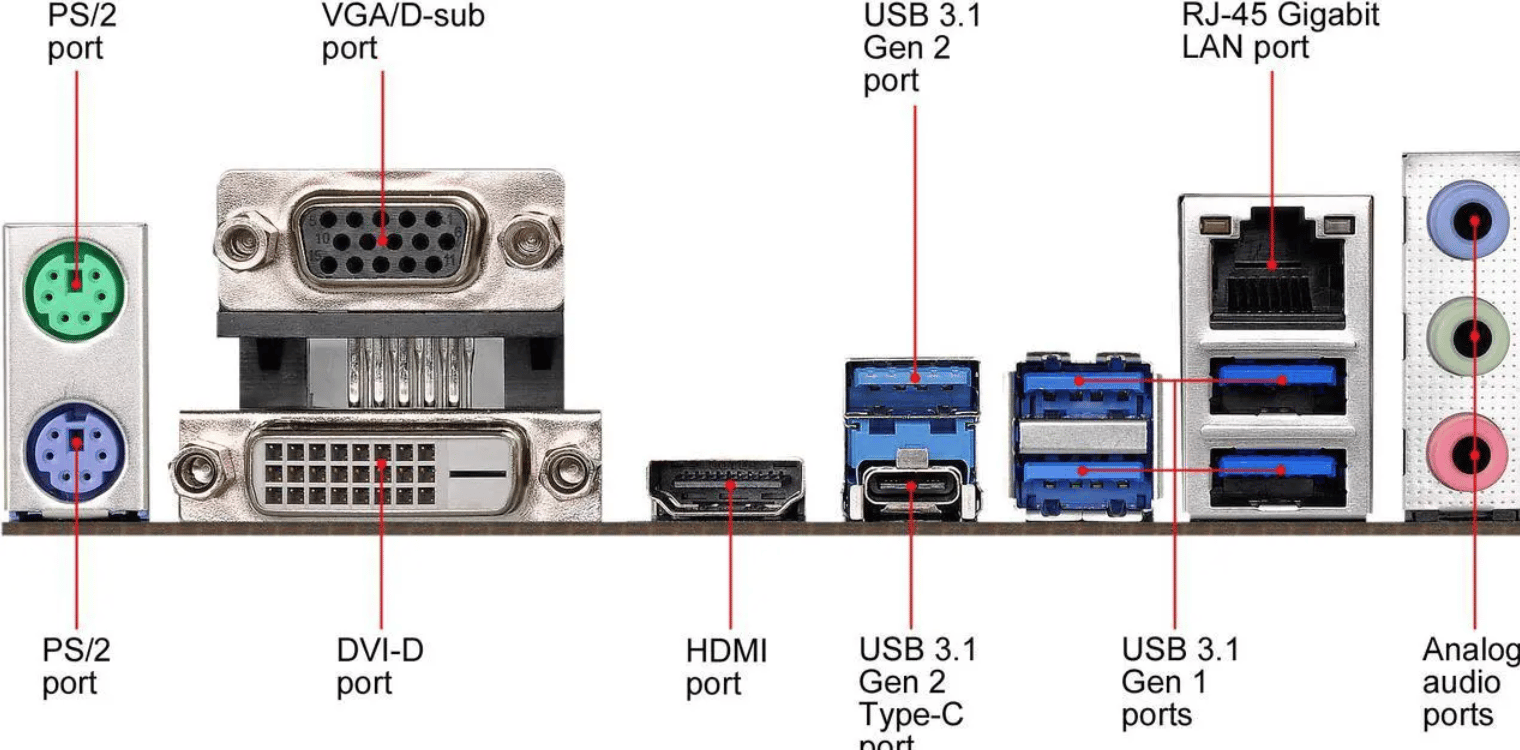

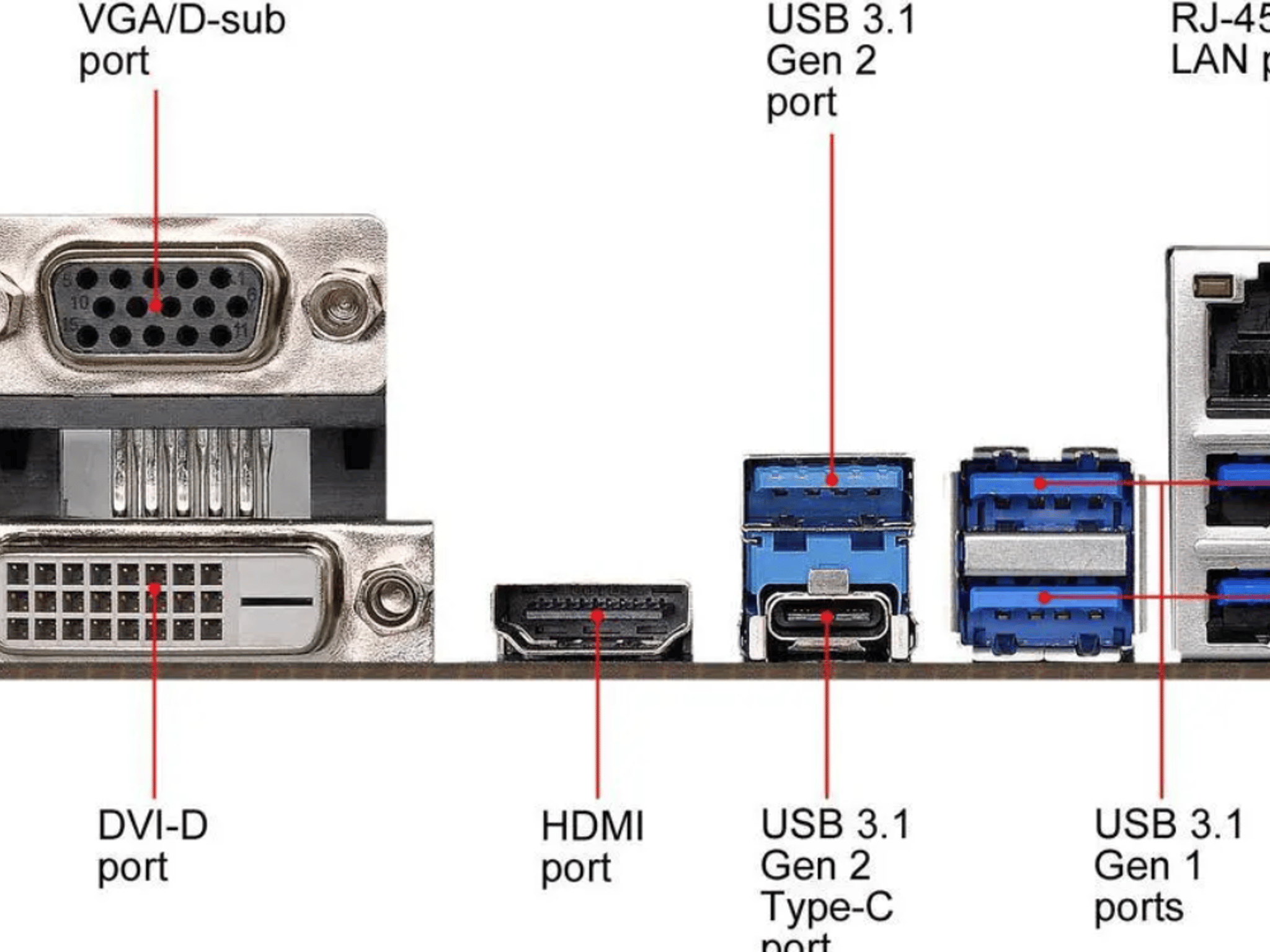

Rear Panel I/O:

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s)
• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s)
• 4 x USB 3.1 Gen1 Ports
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Hardware Monitor:

• Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• Case open detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V

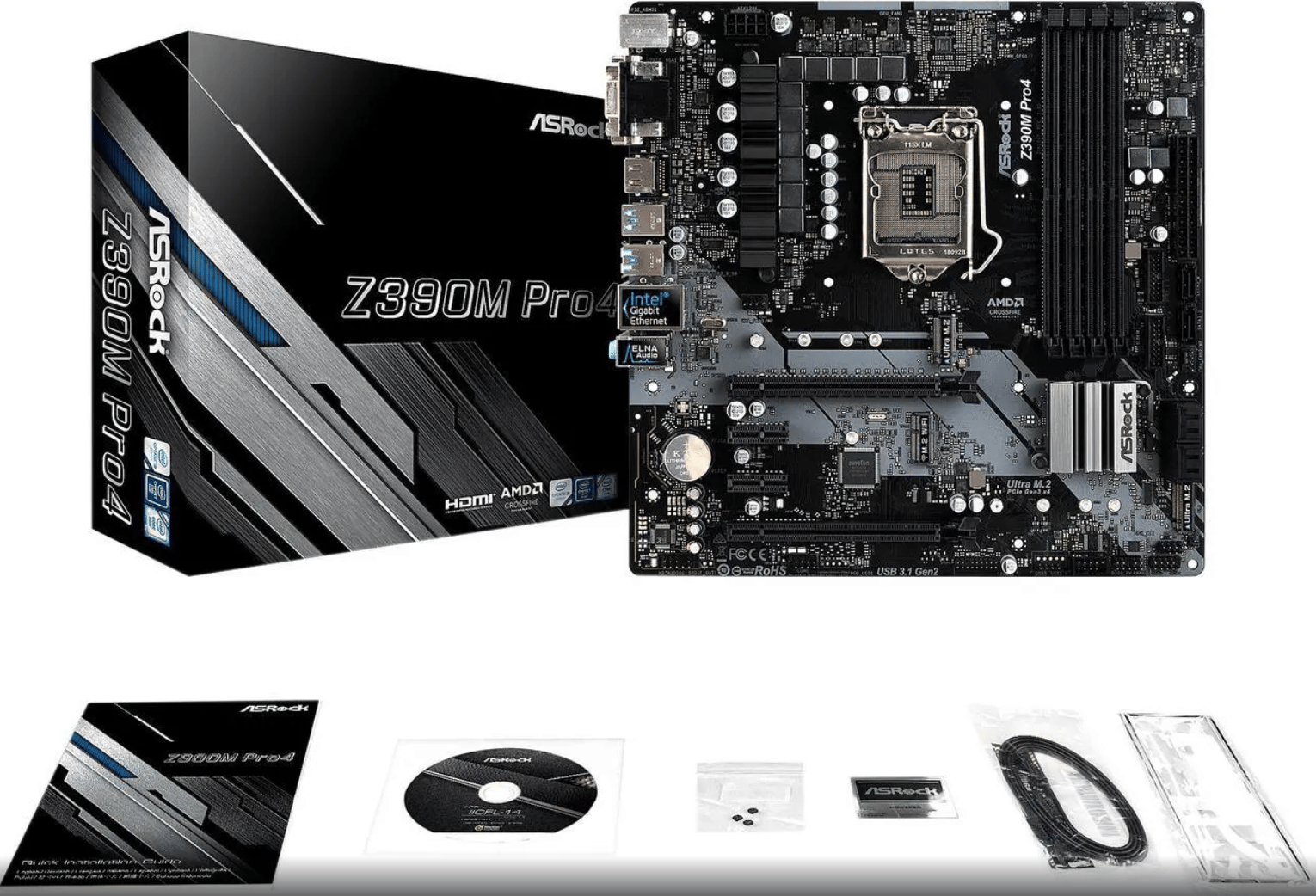

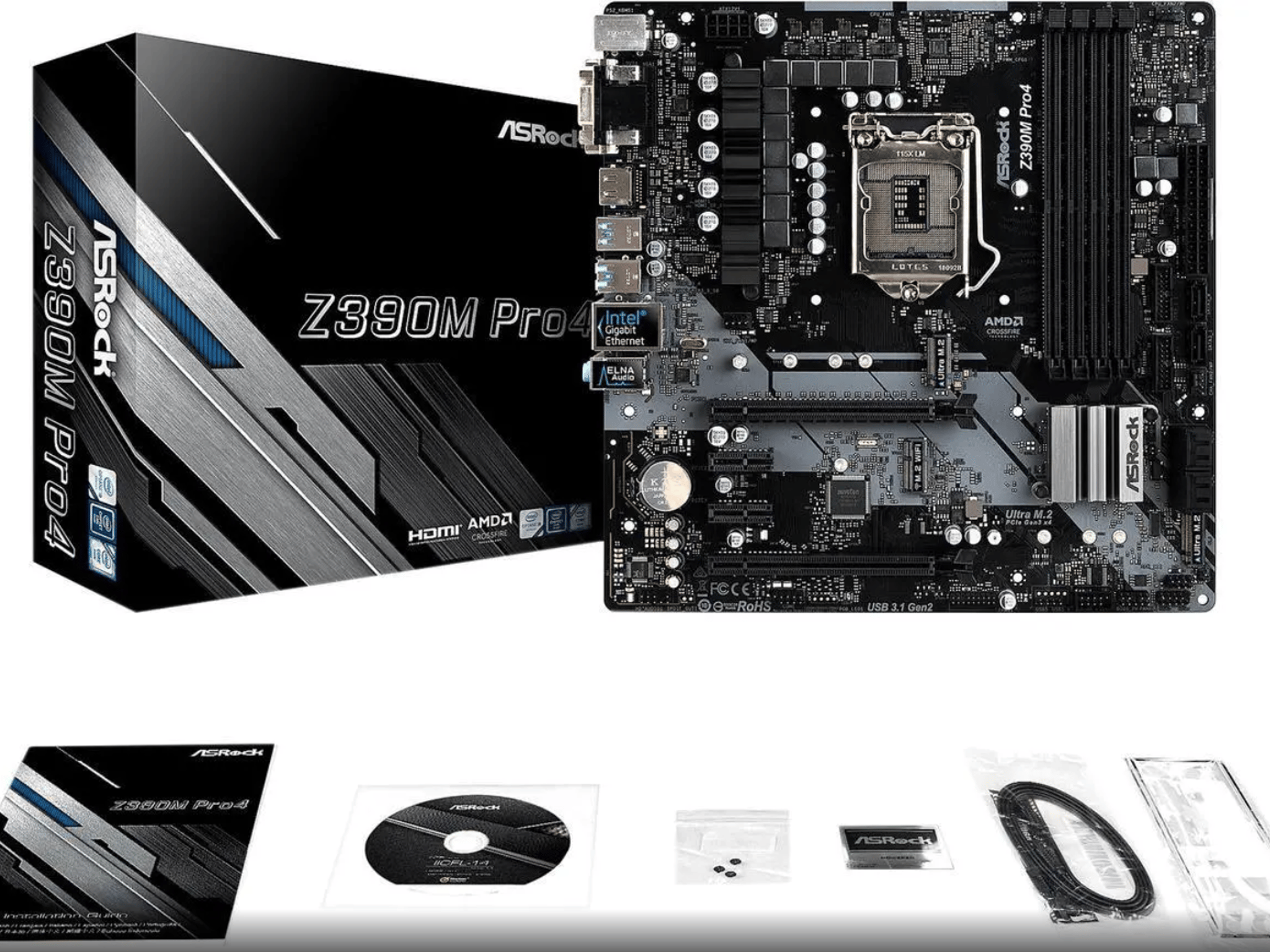

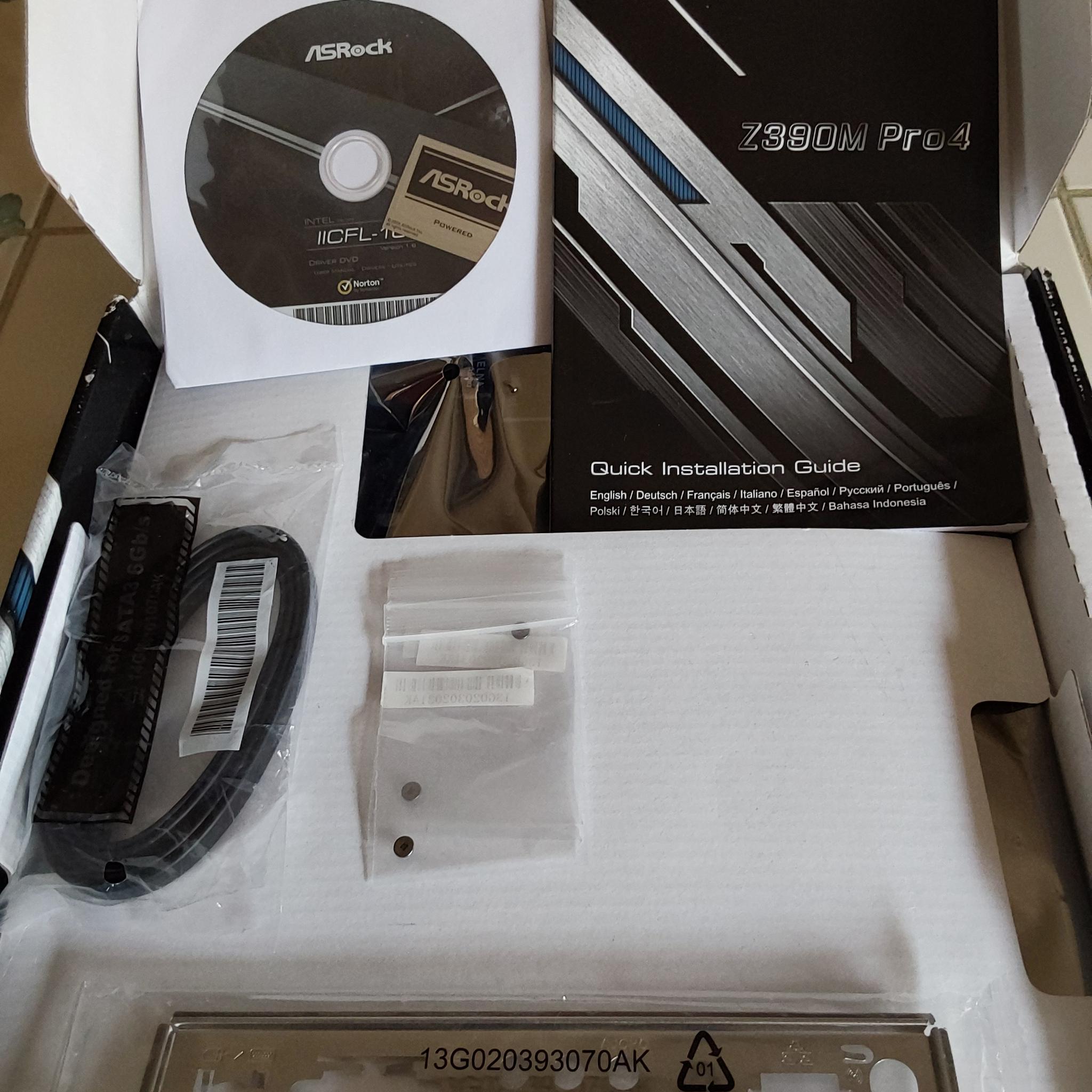

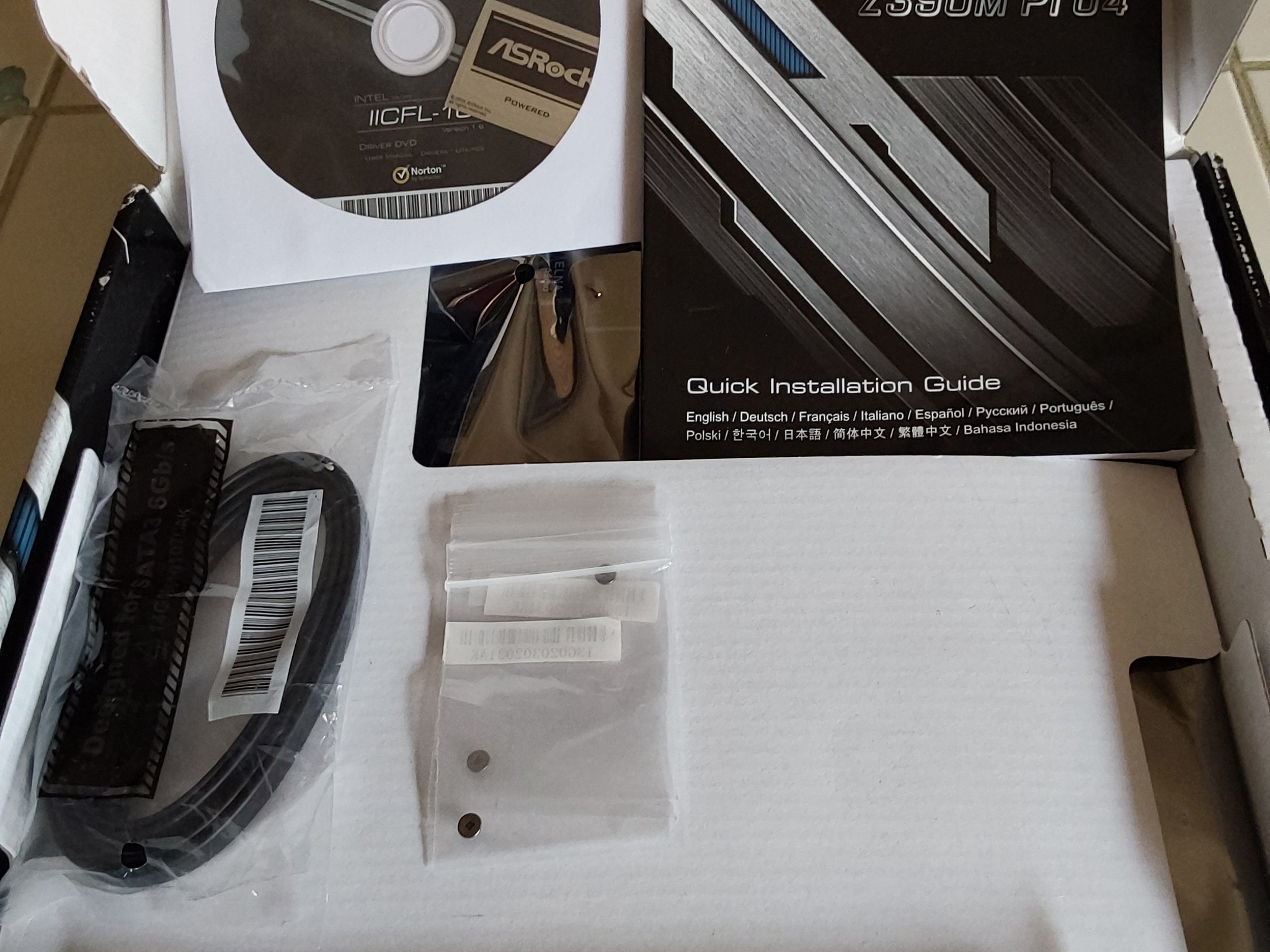

Accessories:

• I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

Form Factor: Micro ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm) OS: Microsoft® Windows® 10 64-bit / 11 64-bit
