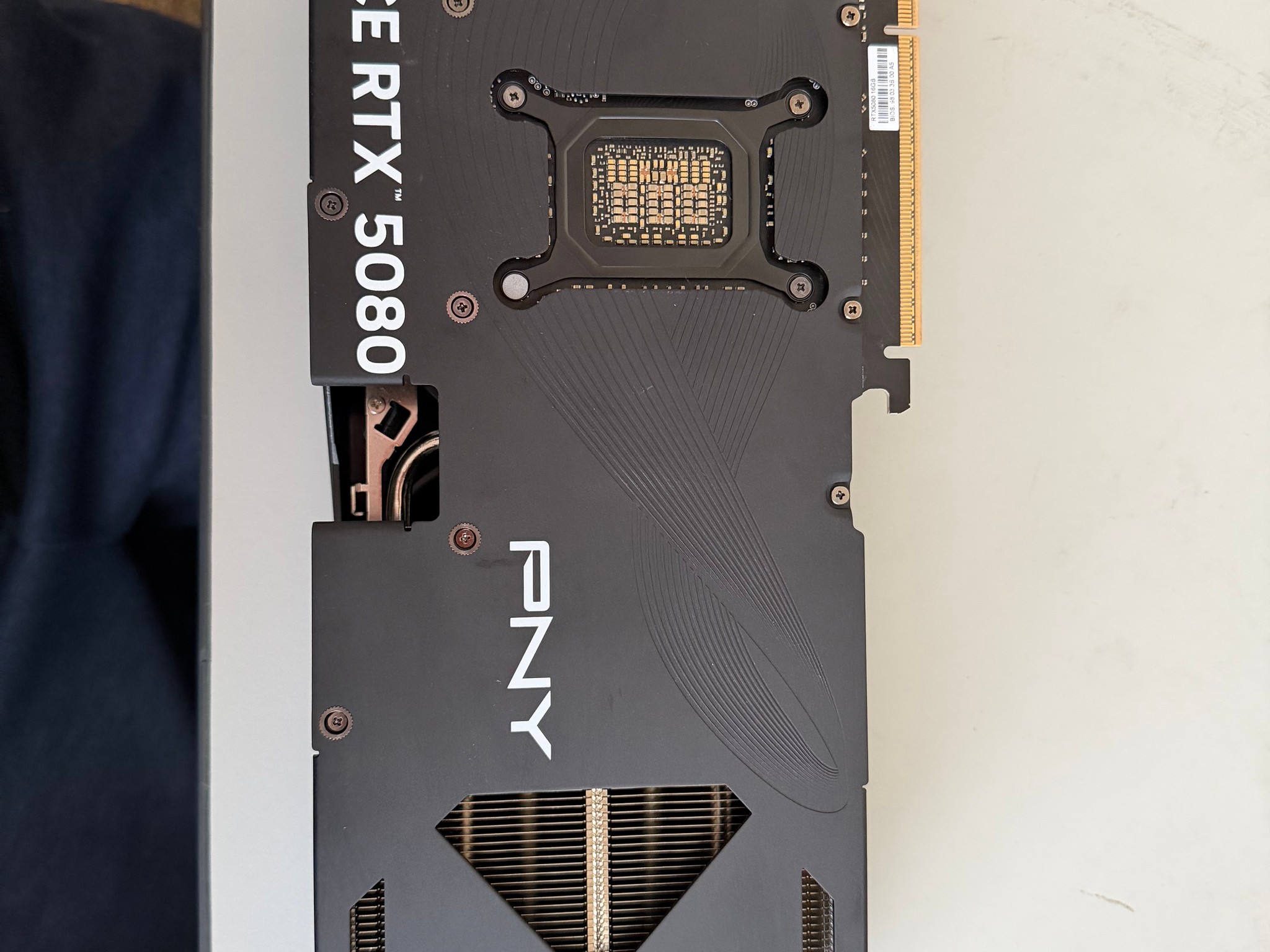

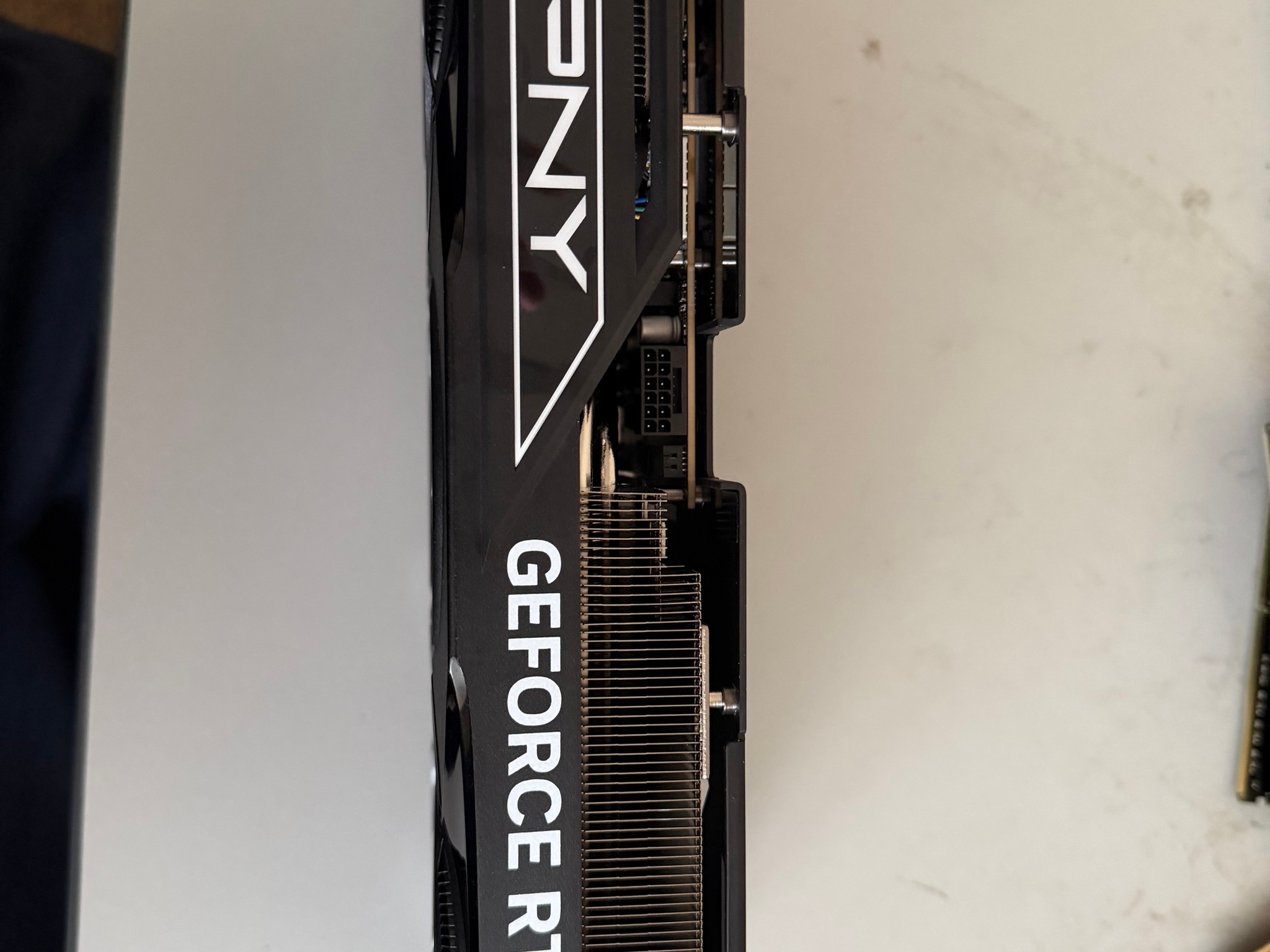

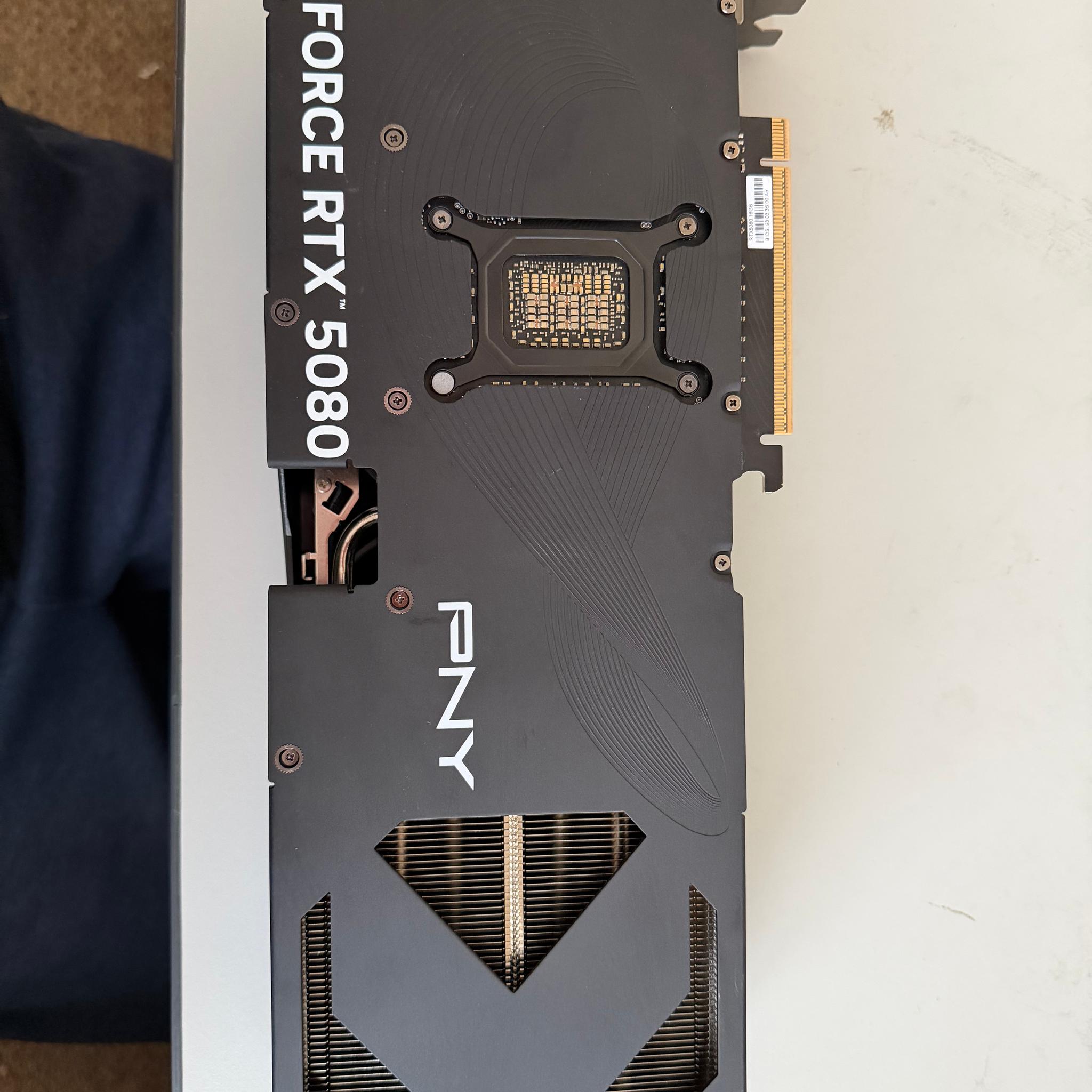

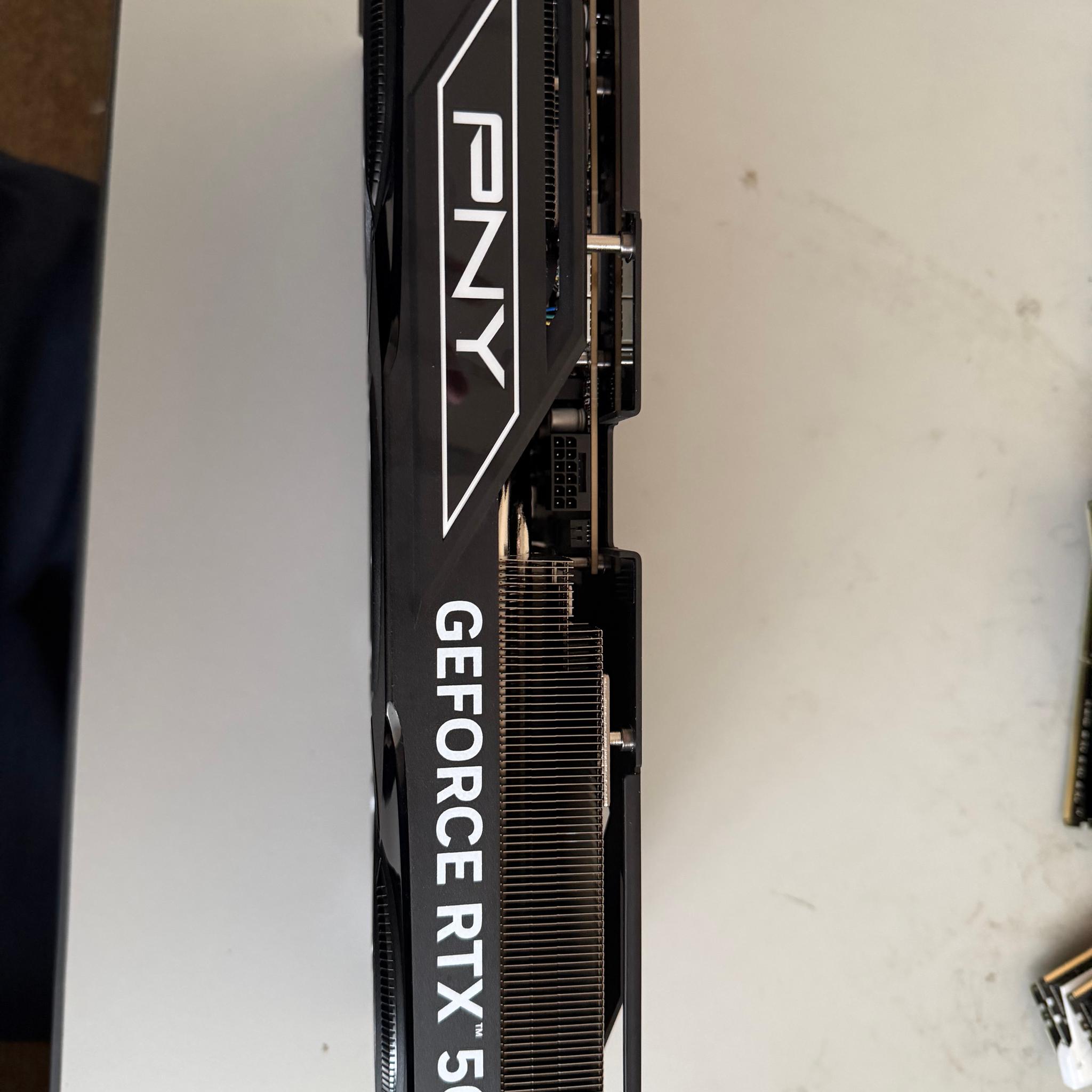

PNY GeForce RTX 5080 Triple Fan GPU & Performance

GPU: NVIDIA GeForce RTX 5080 Architecture: Blackwell (GB103) CUDA Cores: 10,752 Boost Clock: ~2580 MHz Base Clock: ~2295 MHz Shader Processors: 10,752

Memory

VRAM: 16GB GDDR7 Memory Bus: 256-bit Memory Speed: 30 Gbps Bandwidth: 960 GB/s

Display & Outputs

Display Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b Max Resolution: 8K (7680 x 4320) Max Simultaneous Displays: 4

Power

TDP: 360W Power Connector: 1x 16-pin (PCIe 5.0 / 600W connector) Recommended PSU: 850W

Cooling

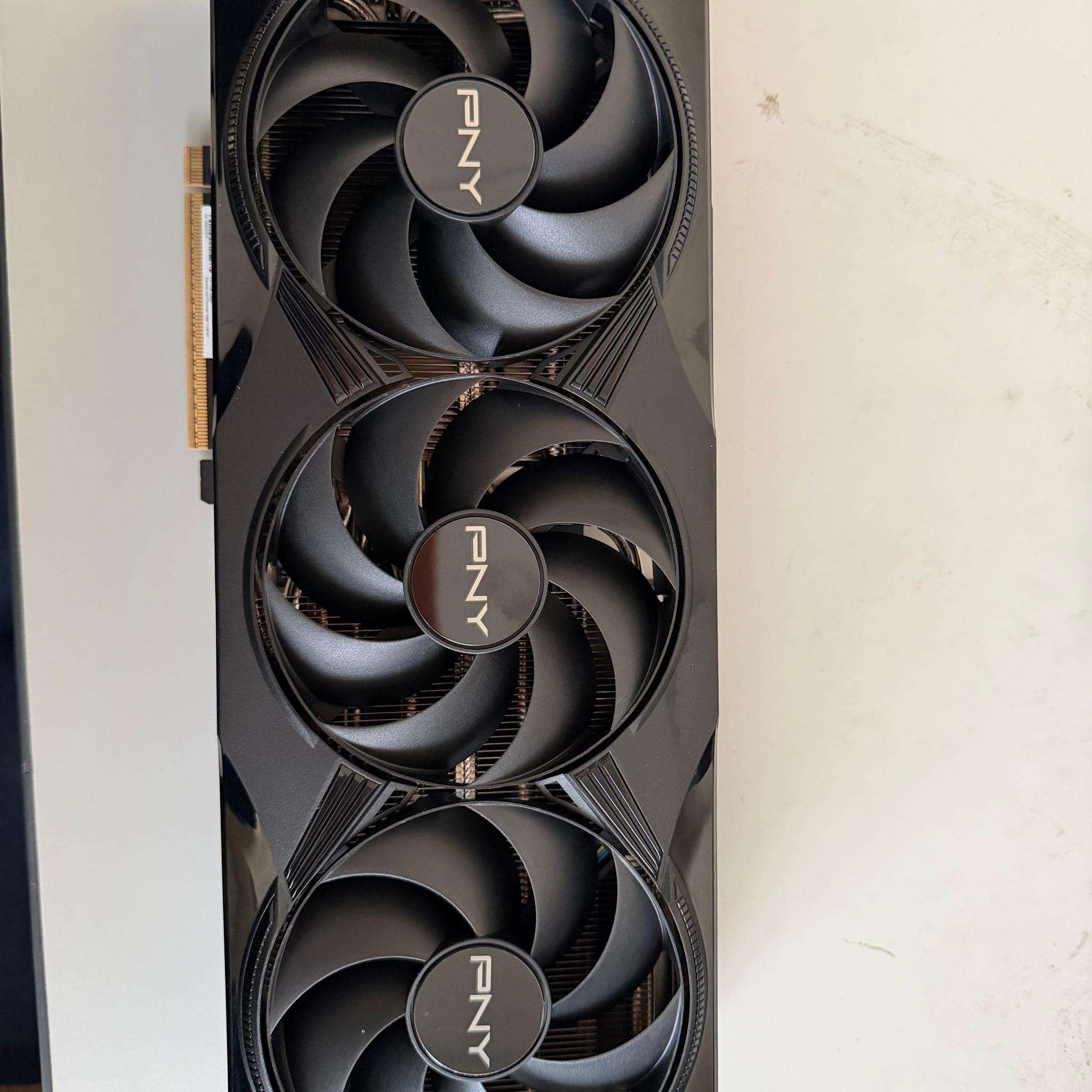

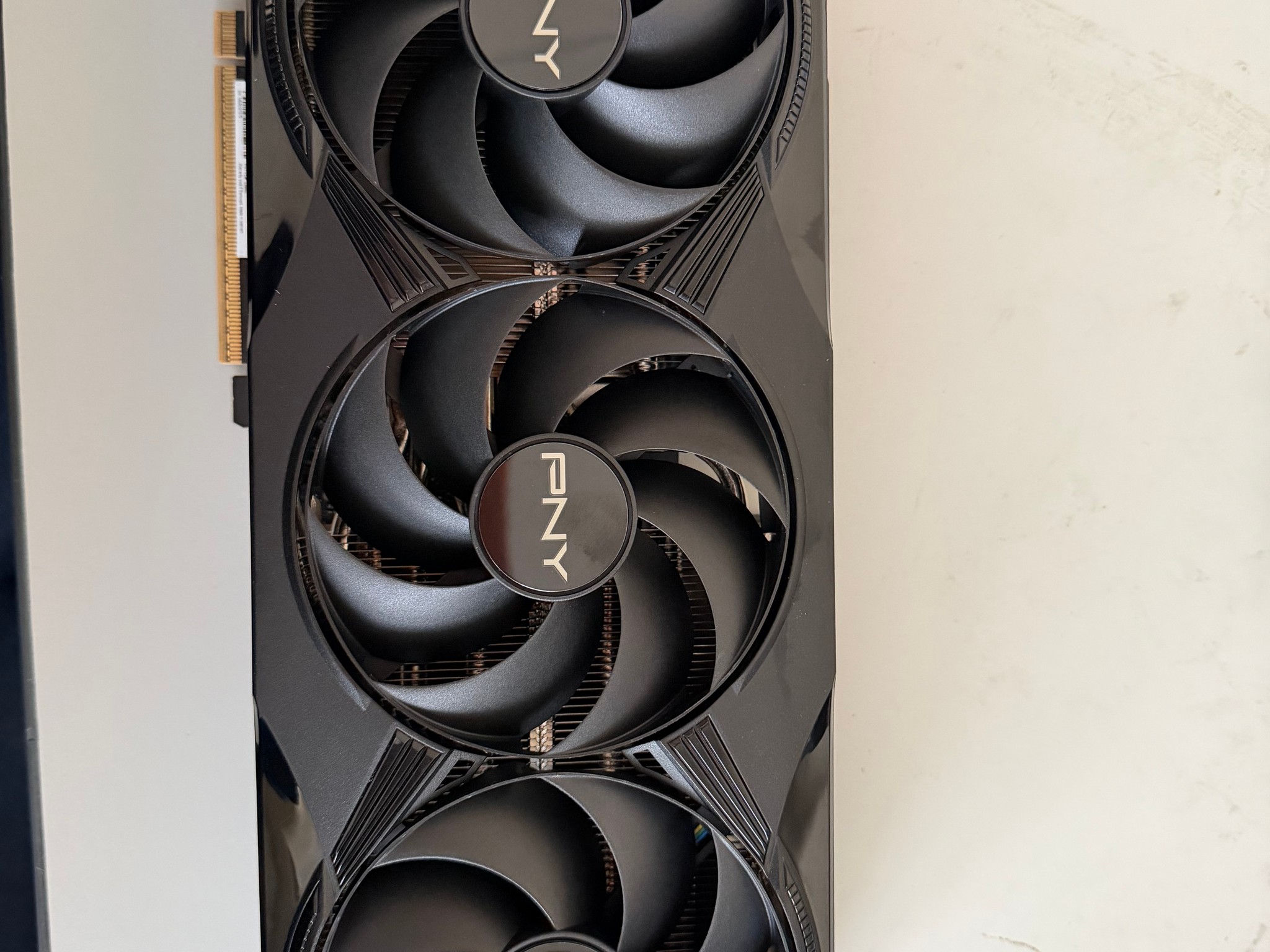

Design: Triple-Fan Cooling Fan Count: 3x Fans Heatsink: Aluminum fin-stack with heatpipes Zero RPM Mode: Yes (fans stop under low load)

Lighting

RGB: ❌ None (Non-RGB / Blower Edition styling)

Form Factor

Slot Width: 3-slot Card Length: ~330mm PCIe Interface: PCIe 5.0 x16

API & Feature Support

DirectX: 12 Ultimate OpenGL: 4.6 Vulkan: 1.3 NVIDIA DLSS 4 (Multi Frame Generation) NVIDIA Ray Tracing (4th Gen RT Cores) NVIDIA Reflex NVIDIA Broadcast NVIDIA App Support AV1 Encode & Decode (9th Gen NVENC) Resizable BAR: Yes HDCP 2.3: Yes
