🧠 GPU & Architecture

GPU: NVIDIA® GeForce RTX 5050 (Blackwell)

CUDA Cores: 2,560

Tensor Cores: 80

RT Cores: 20

Architecture: NVIDIA Blackwell

Process: TSMC 5 nm

🚀 Clocks

Extreme Performance Clock (MSI Center): 2617 MHz

Boost Clock: 2602 MHz (factory overclocked)

🧾 Memory

Size: 8 GB

Type: GDDR6

Memory Speed: 20 Gbps

Bus Width: 128-bit

Memory Bandwidth: 320 GB/s

📏 Performance & API

DirectX: 12 Ultimate

OpenGL: 4.6

DLSS: DLSS 4 supported

PCIe: PCIe Gen 5 x16 (operates at x8)

🖥 Display Outputs

DisplayPort: 3 × DisplayPort 2.1b

HDMI: 1 × HDMI 2.1b (up to 4K 480 Hz or 8K 120 Hz with DSC)

Max Resolution: 7680 × 4320

⚡ Power & Physical

TDP: ~130 W

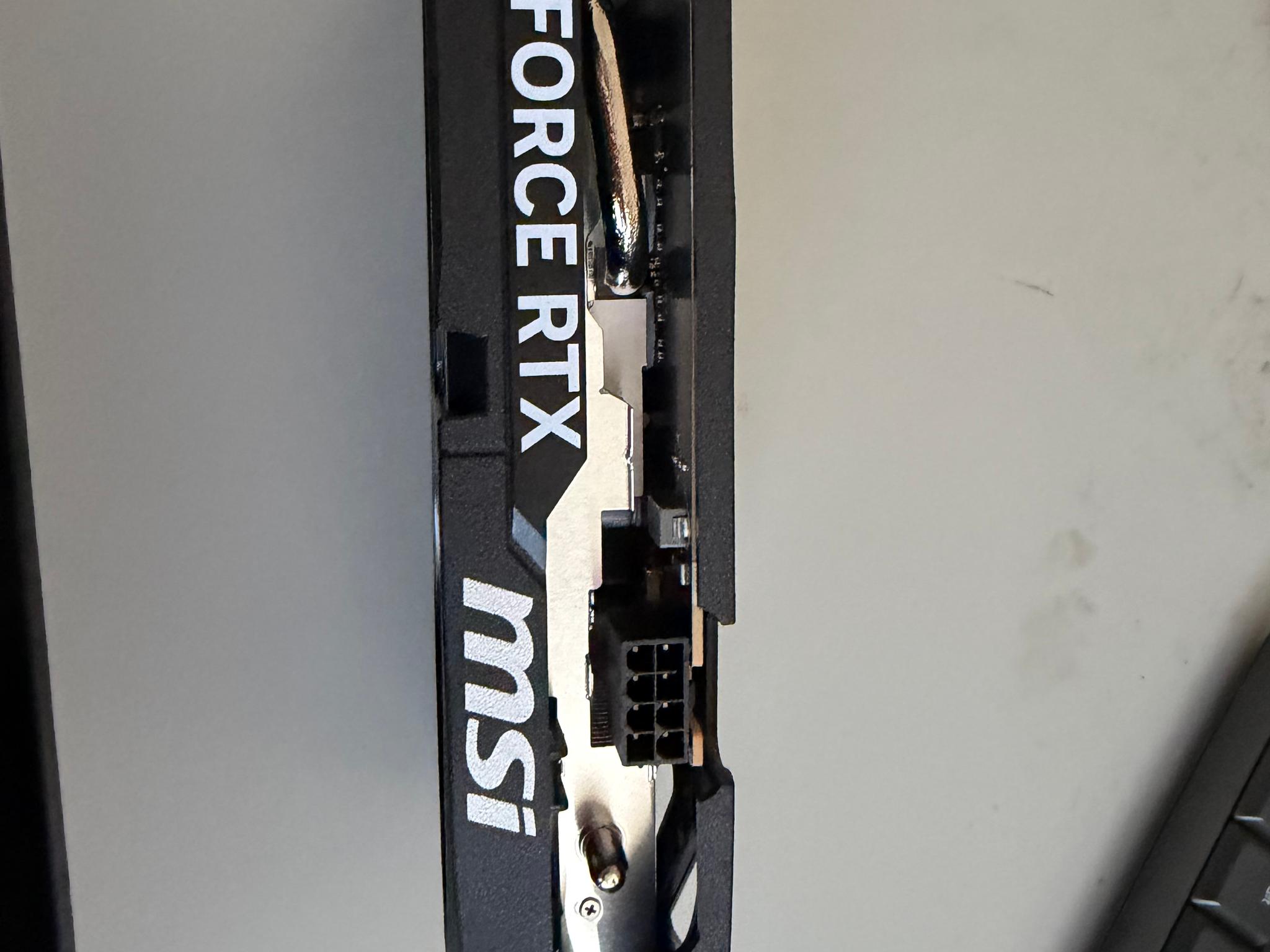

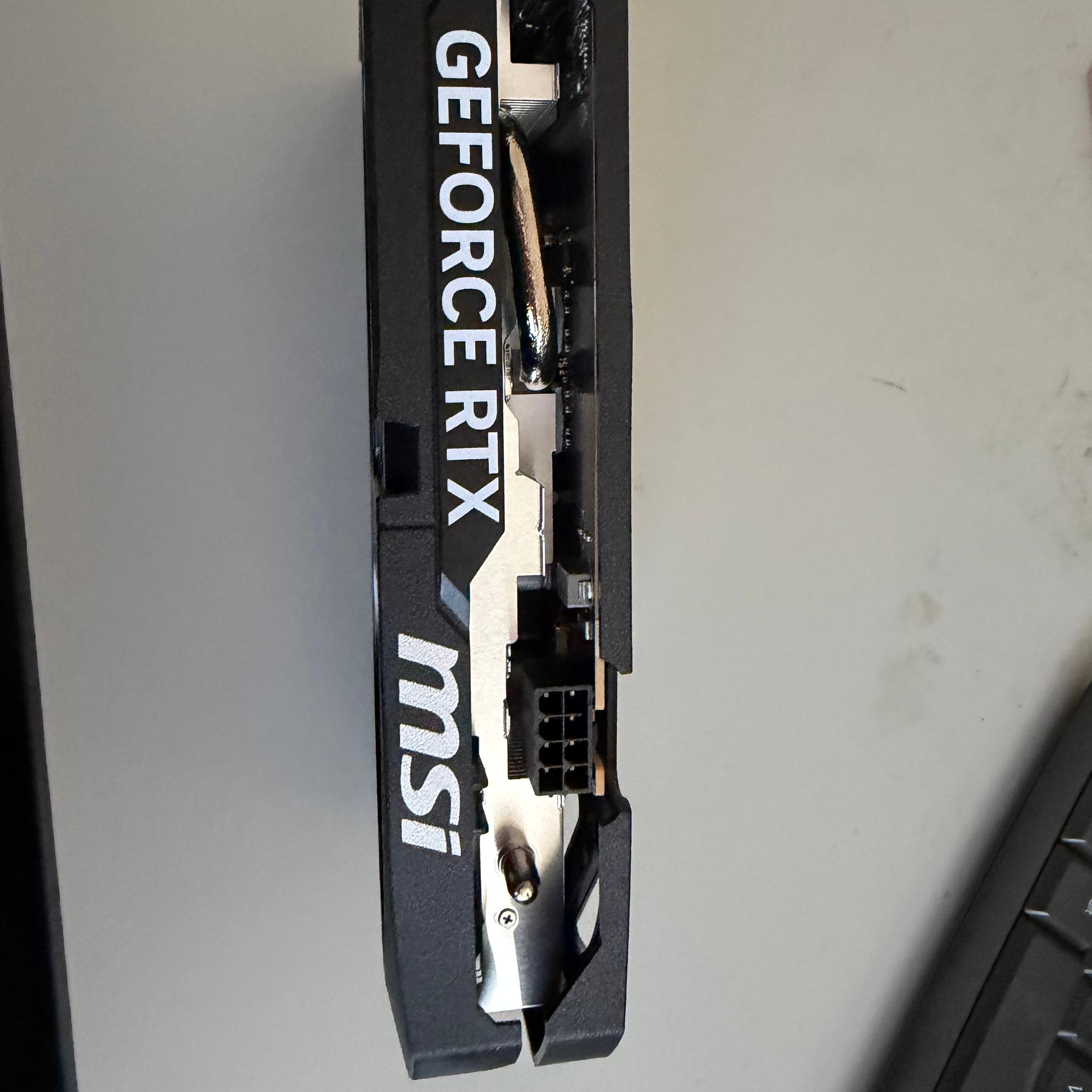

Power Connector: 1 × 8-pin

Recommended PSU: 550 W

Card Dimensions: ~197 × 120 × 40 mm

Weight: ~478 g / 812 g (varies by region/package)

🧊 Cooling & Features

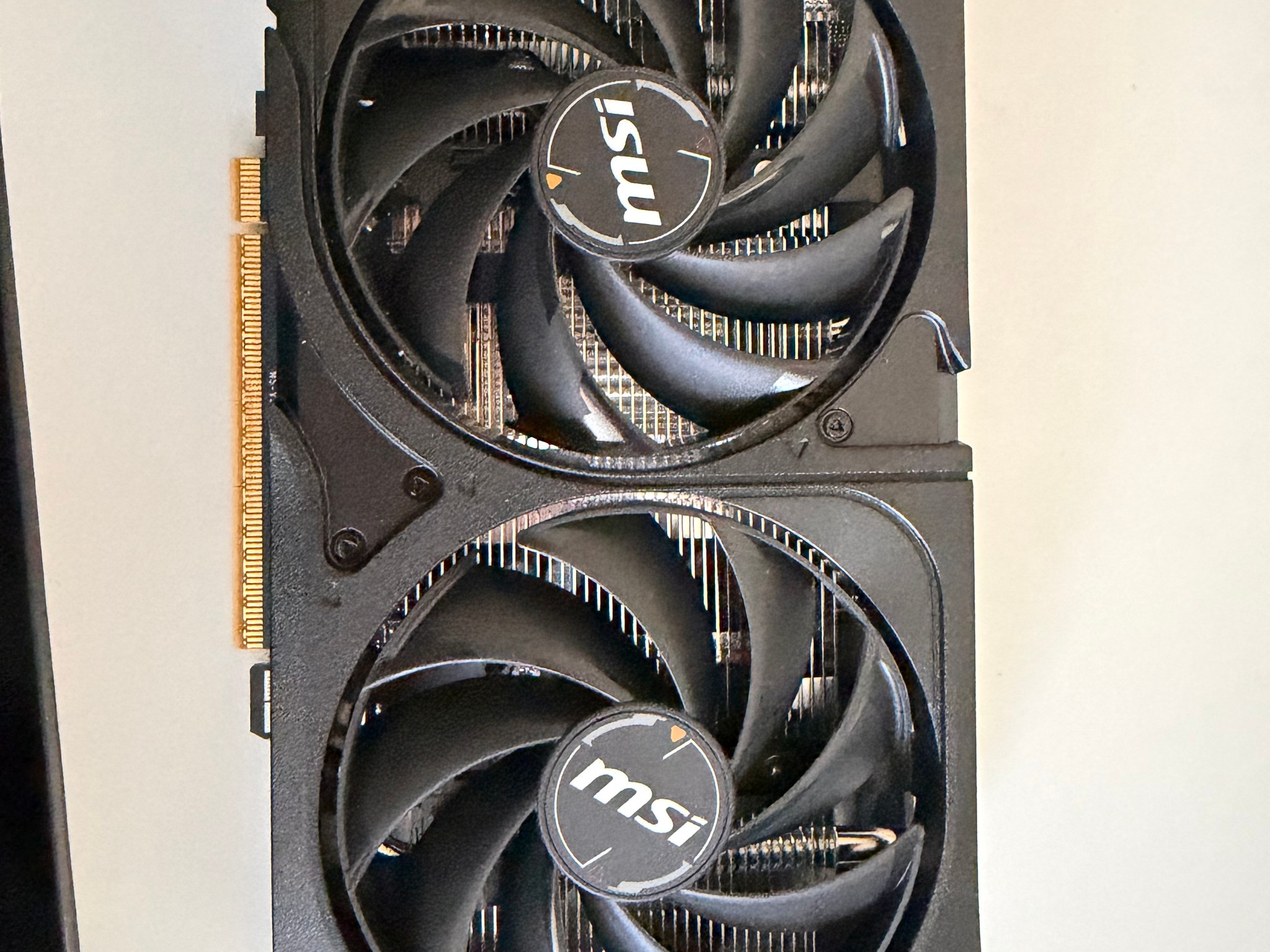

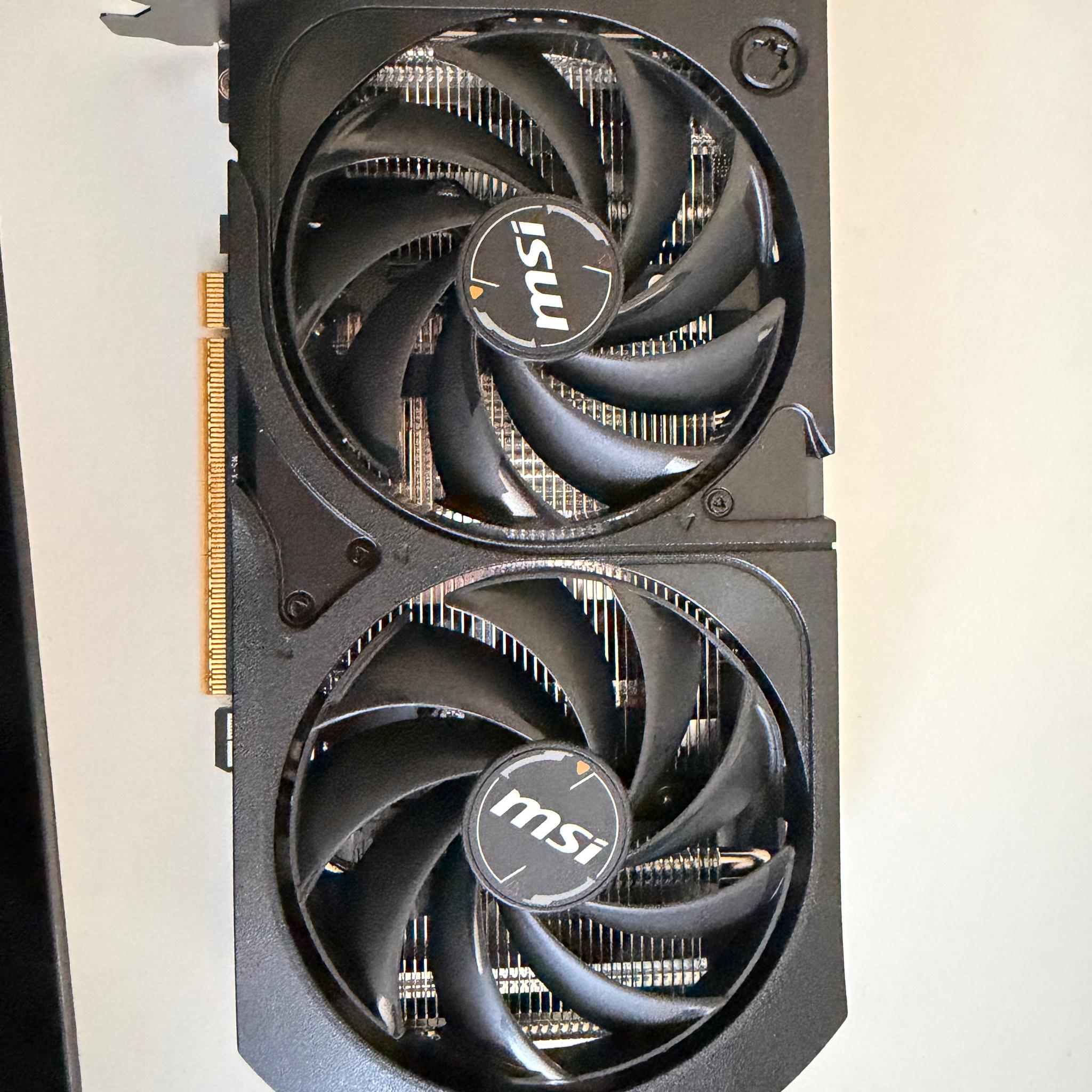

Cooling: Dual-fan Shadow 2X design with TORX Fan 5.0

Software Support: MSI Center & MSI Afterburner for tuning/monitoring
