Model: O11D Mini V2 Flow (Flow edition with pre-installed fans)

Form Factor: ATX / Micro-ATX / Mini-ITX support (Back-Connect ATX compatible)

Color: Typically Black (also available in White variant)

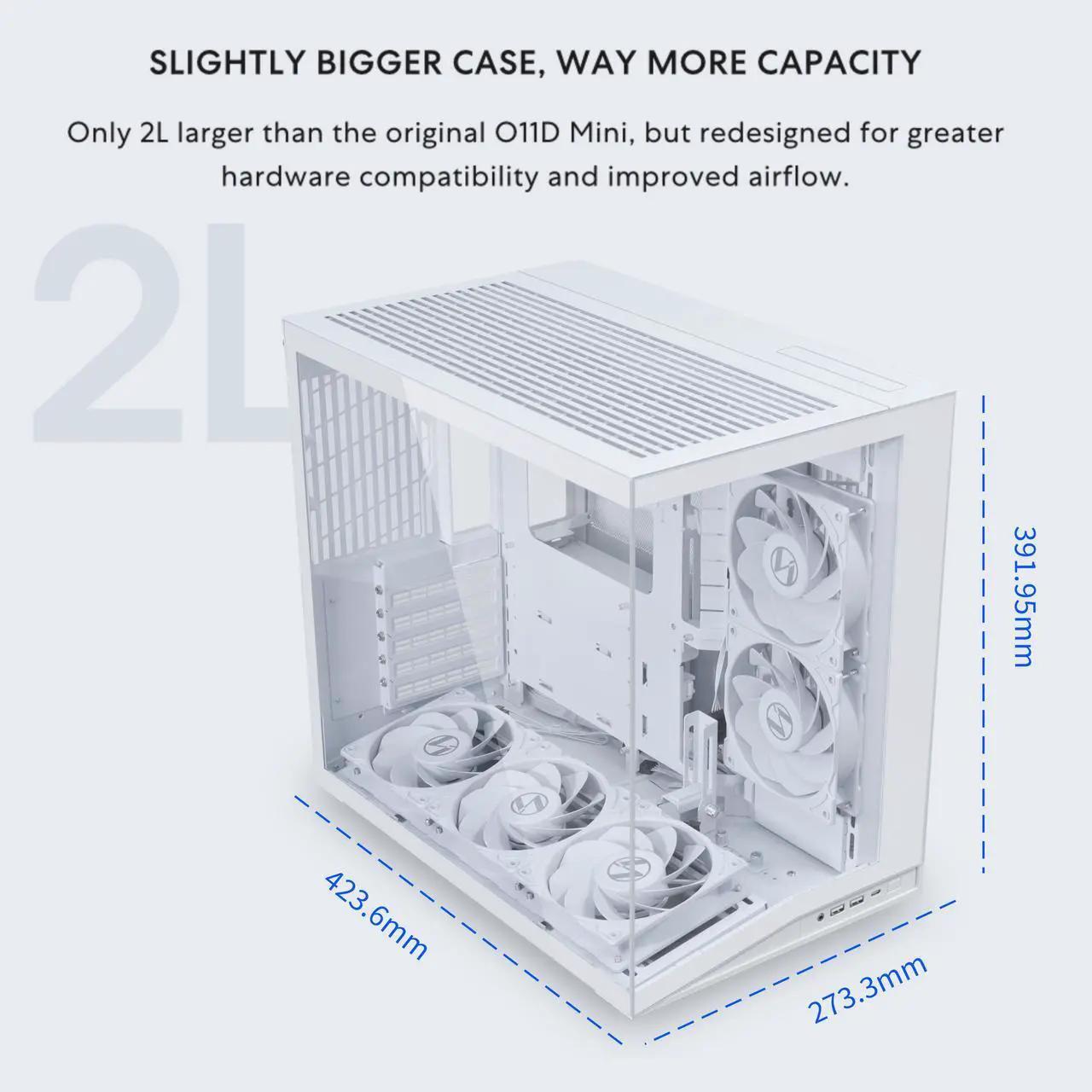

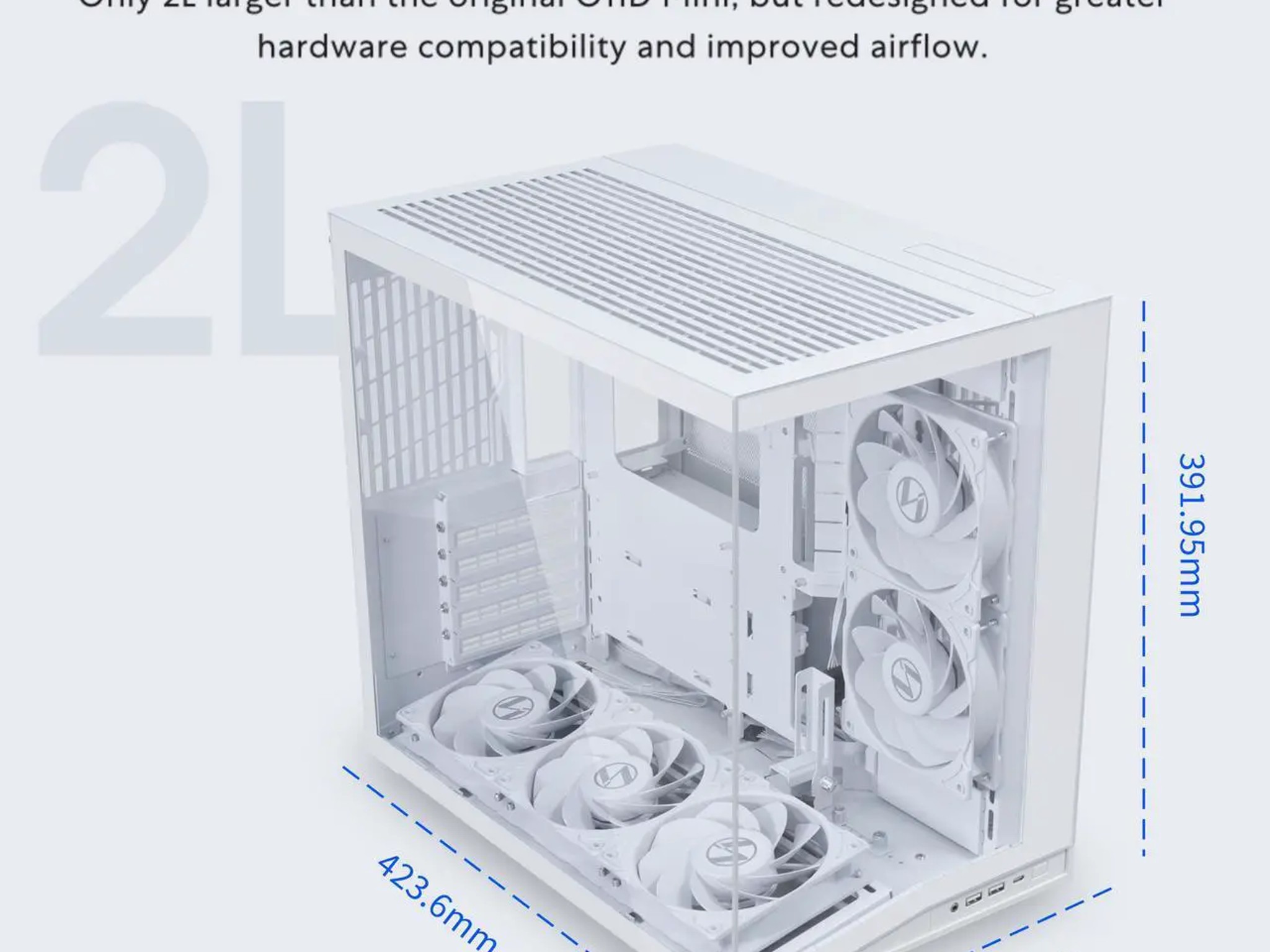

Dimensions (WxHxD): ~273.3 × 391.95 × 423.6 mm

Volume: ~45.38 L

Material: 2 mm aluminum panels, 1 mm mesh, 4 mm tempered glass

🛠 Supported Hardware

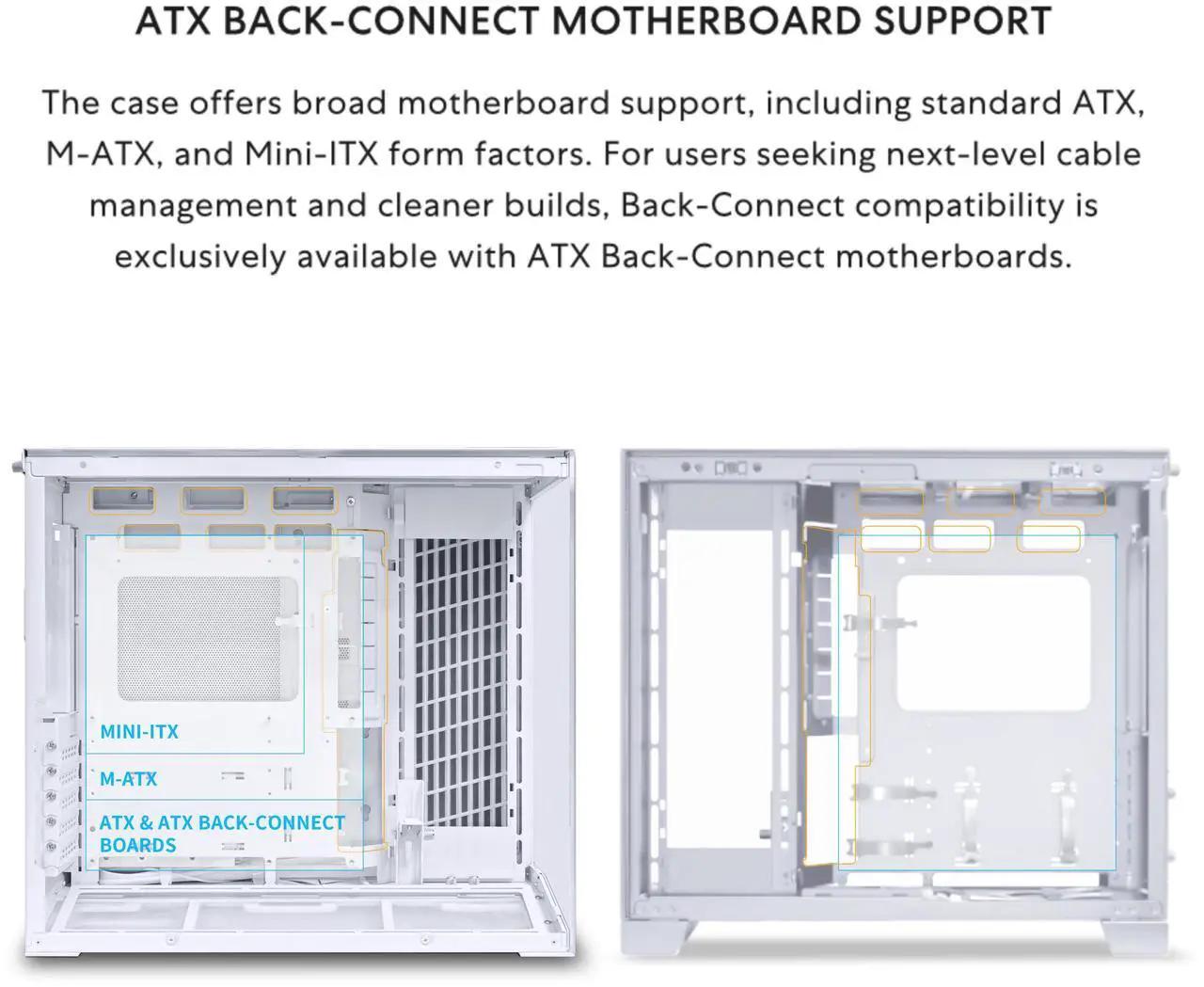

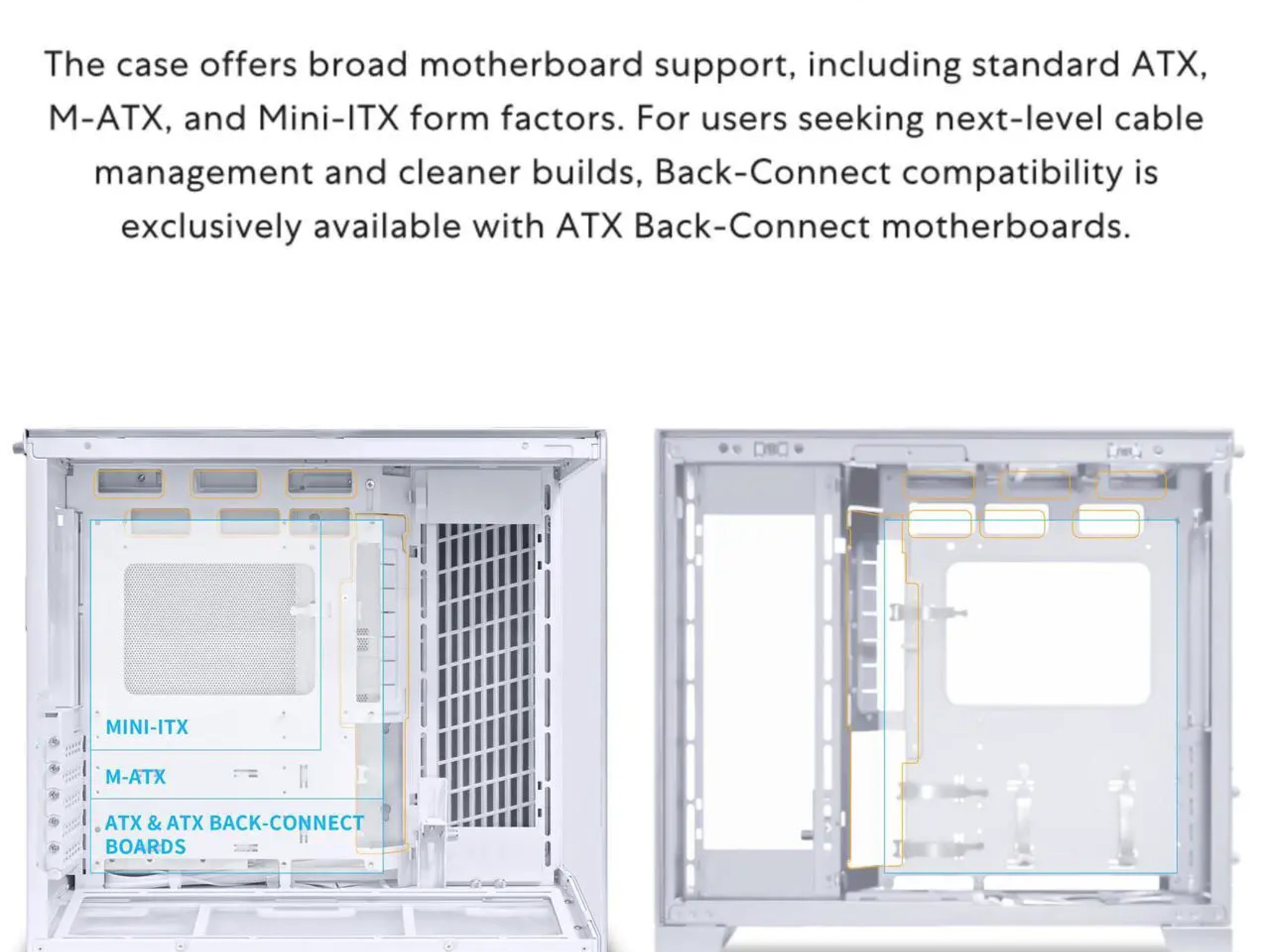

Motherboards: ATX / Micro-ATX / Mini-ITX (Back-Connect ATX compatible)

Expansion Slots: 5

GPU Clearance: Up to ~400 mm

CPU Cooler Height Clearance: Up to ~160 mm

PSU Support: ATX, up to ~200 mm length

💾 Storage

Drive Bays: • 2 × 2.5″ SSD or 3.5″ HDD (drive cages) • 2 × 2.5″ SSD behind motherboard tray

🌀 Cooling & Airflow

Pre-Installed Fans (Flow edition):

3 × 120 mm reverse-blade PWM fans (bottom)

2 × 120 mm reverse-blade PWM fans (side)

Fan Support:

Top: 3×120 mm or 2×140 mm

Side: 2×120 mm

Bottom: 3×120 mm

Rear: 1×120 mm

Radiator Support:

Top: up to 360 mm

Side: up to 240 mm

Dust Filters:

Bottom dust filter included

🔌 I/O Panel

2 × USB 3.0 (Type-A)

1 × USB 3.2 Type-C

1 × Audio combo jack

Power button
