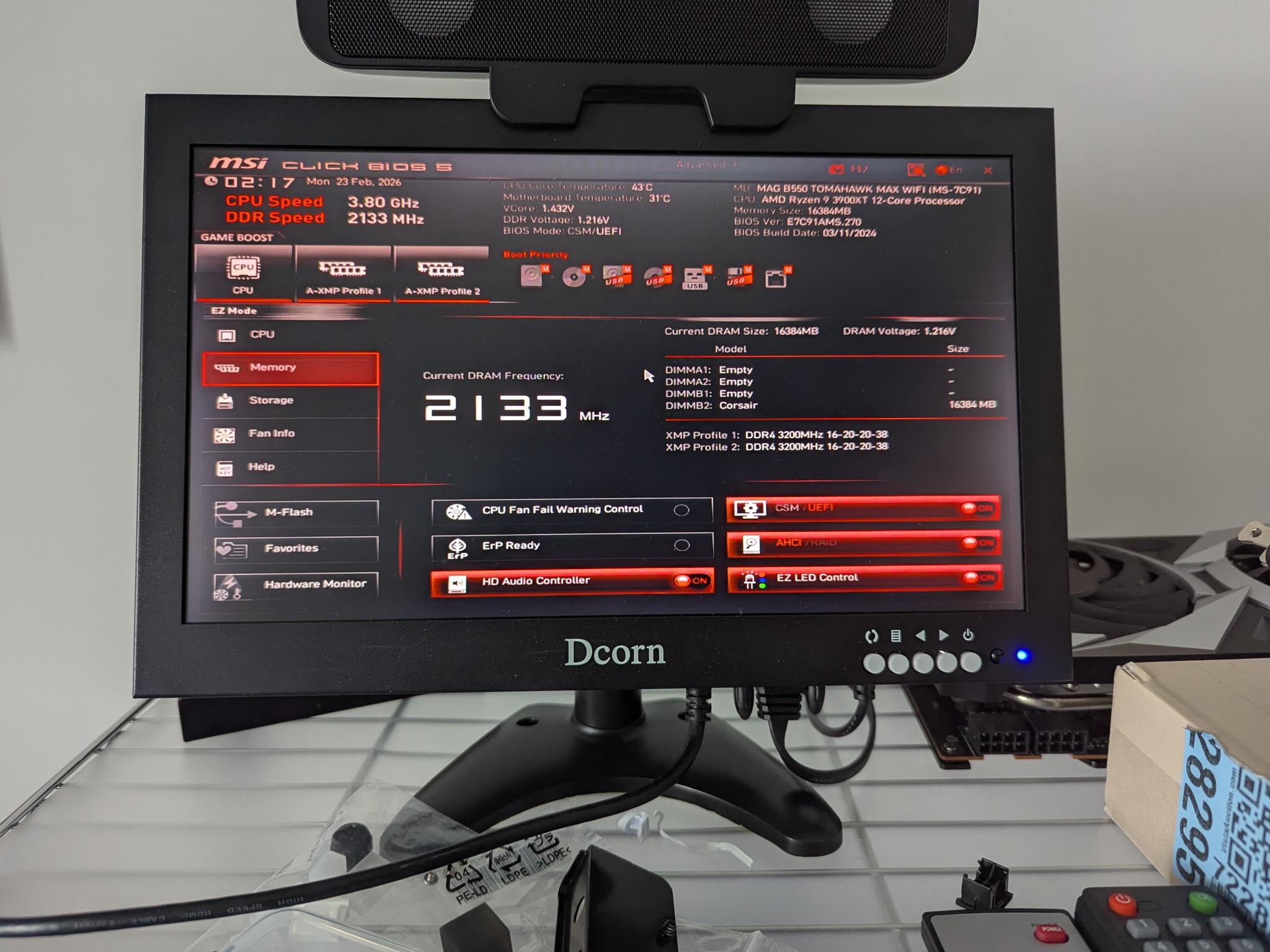

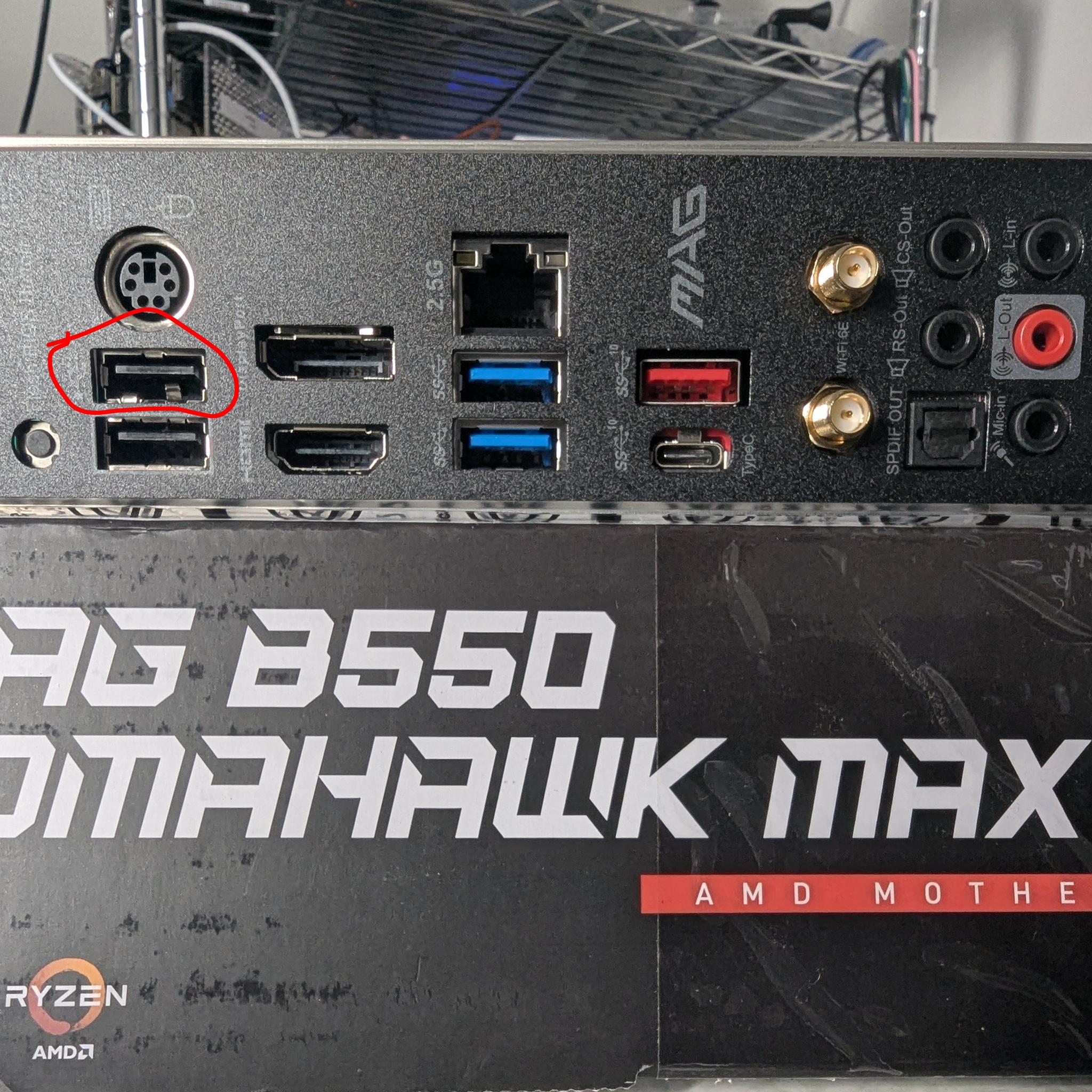

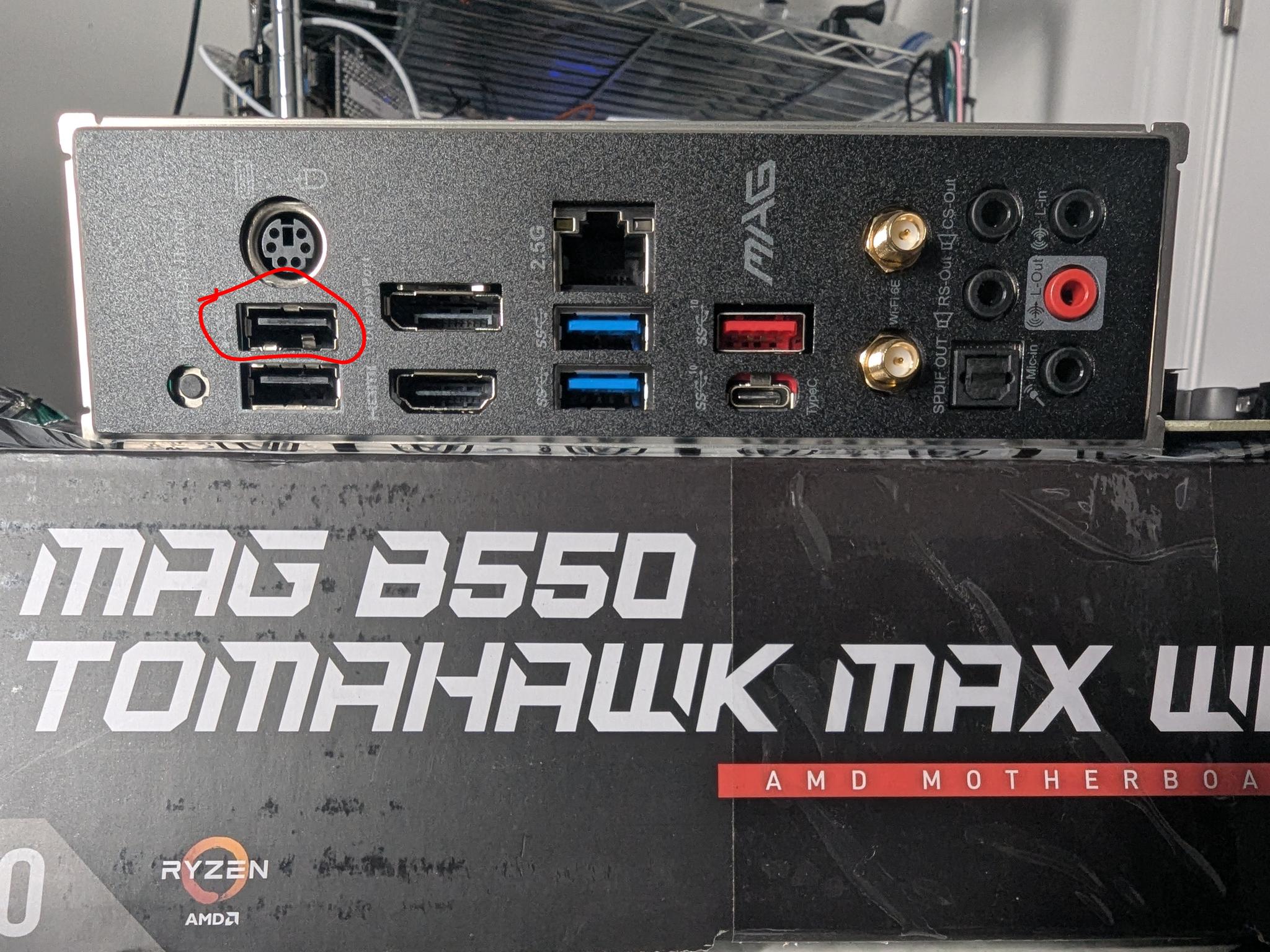

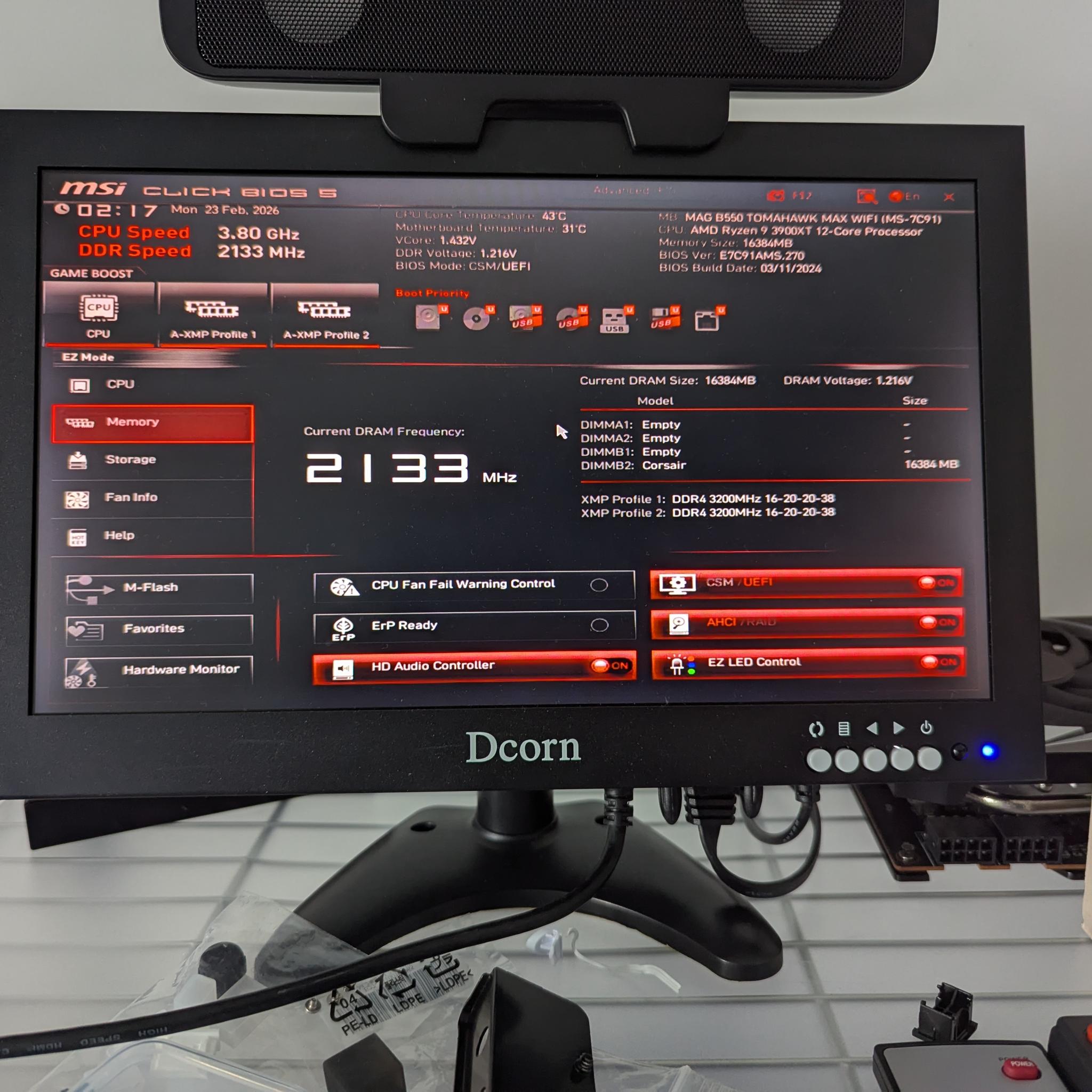

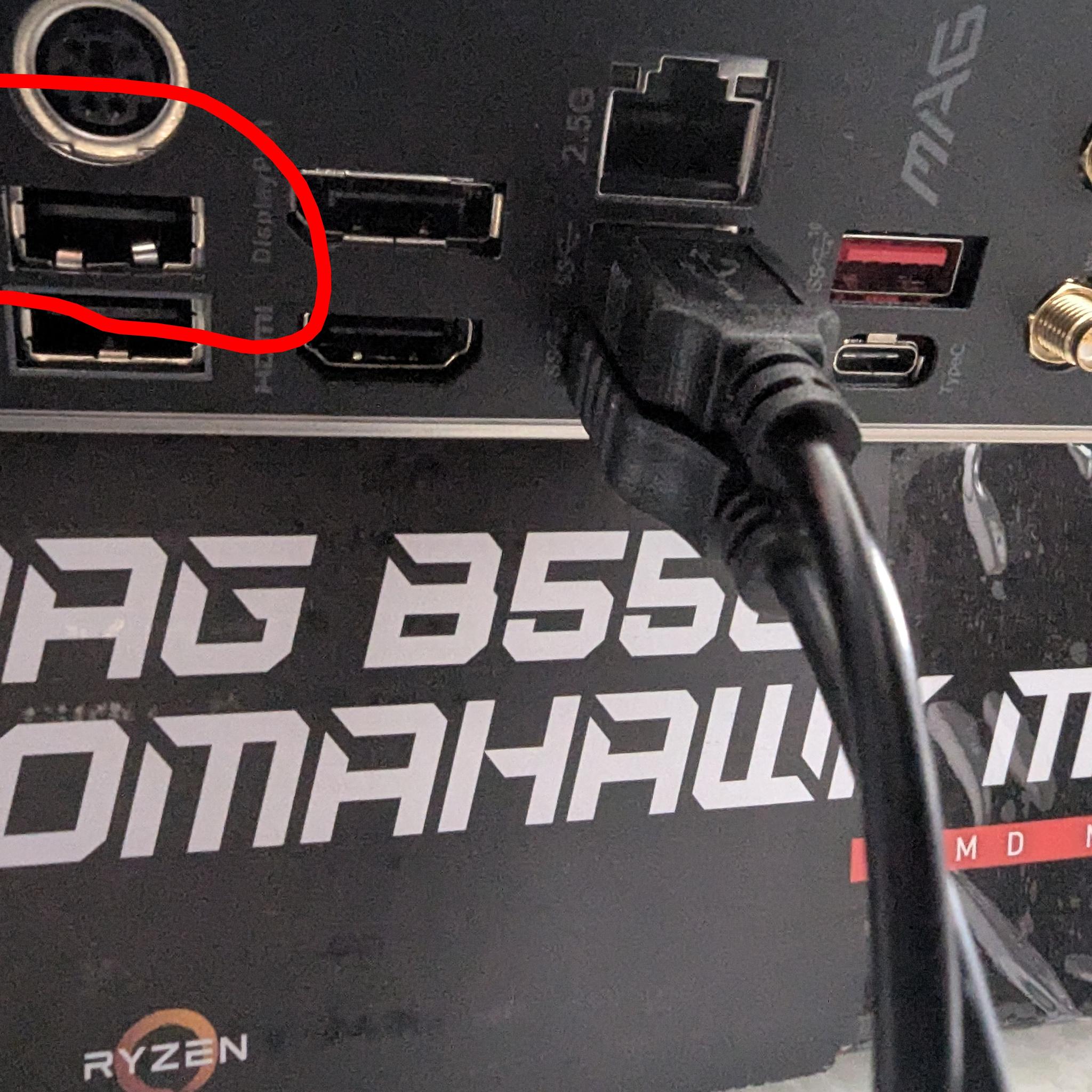

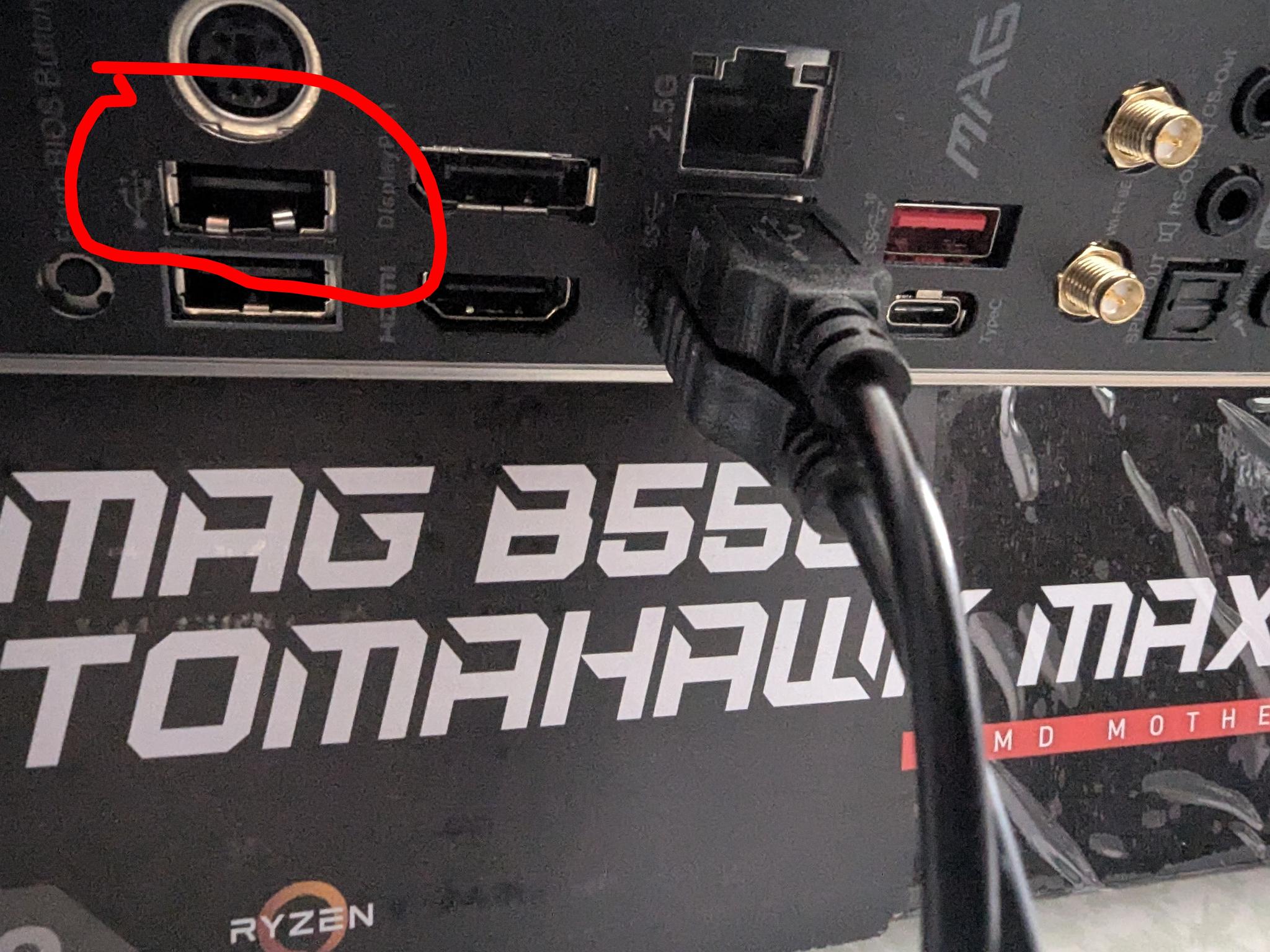

Open Box. Used for testing however. One of the USB ports is damaged. Does not affect functionality. BIOS is up to date

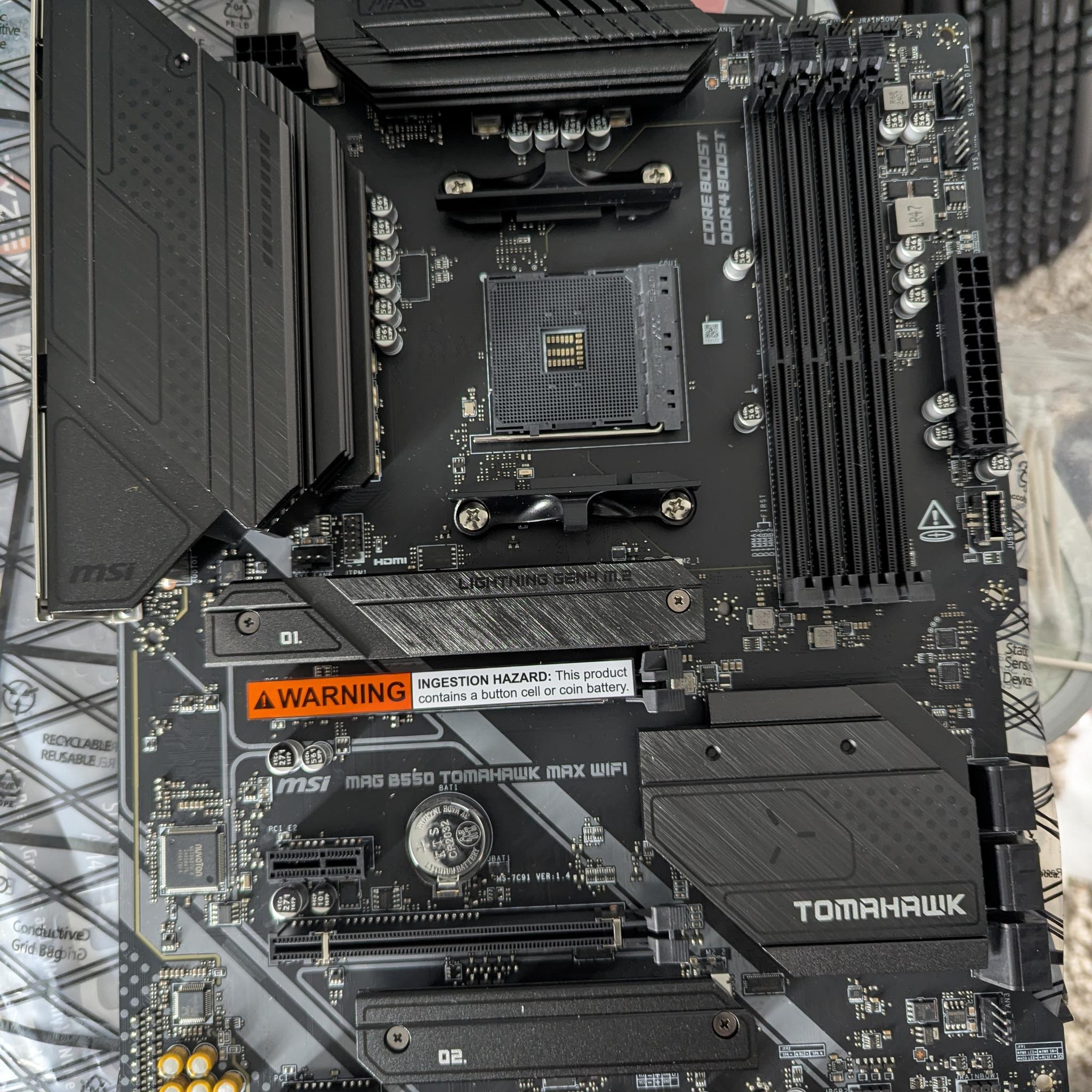

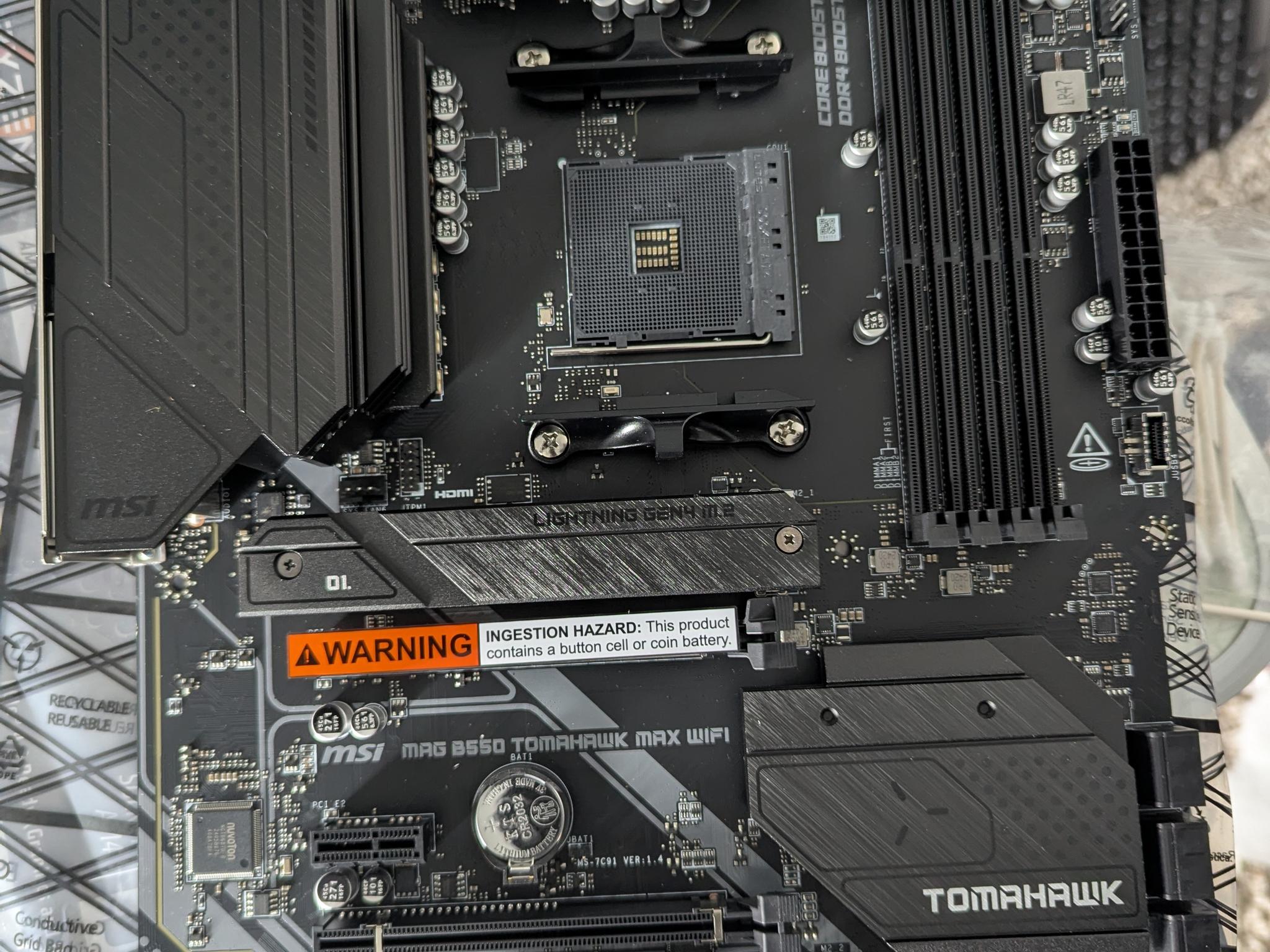

AM4 socket. 4 x DDR4 memory slots, support up to 128GB 1; Supports DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz by JEDEC; Supports DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4800/4866+ MHz by A-XMP OC MODE.
AMD CrossFireX Graphics Support 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2; 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1Maximum shared memory of 16GB.
Four 288-Pin DDR4 SDRAM DIMM Sockets Support up to 64GB of system memory.
Audio Realtek ALC1200 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output.
Storage 6x SATA 6Gb/s ports; 2x M.2 slots (Key M); M2_1 slot (from AMD Processor); Supports PCIe 4.0/3.0 x4 1; Supports SATA 6Gb/s; Supports 2242/2260/2280/22110 storage devices; M2_2 slot (from AMD B550 chipset); Supports PCIe 3.0x4; Supports 2242/2260/2280 storage devices.
Expansion Slot 1x PCIe 4.0/3.0 x16 slot (PCI_E1) 1; 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2; 2x PCIe 3.0 x1 slots.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices.
USB 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector); 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors).
LAN 1x Realtek RTL8125B 2.5Gbps LAN controller; 1x Realtek RTL8111H 1Gbps LAN controller.
Internal Connectors 1x 24-pin ATX main power; 1x 8-pin ATX 12V power; 6x SATA 6Gb/s; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors; 1x 4-pin CPU fan.
Internal Connectors 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 2x 4-pin RGB LED connectors; 2x 3-pin RAINBOW LED connectors; 1x TPM module connector; 1x Clear CMOS jumper.
- BrandMSI
- Form FactorATX

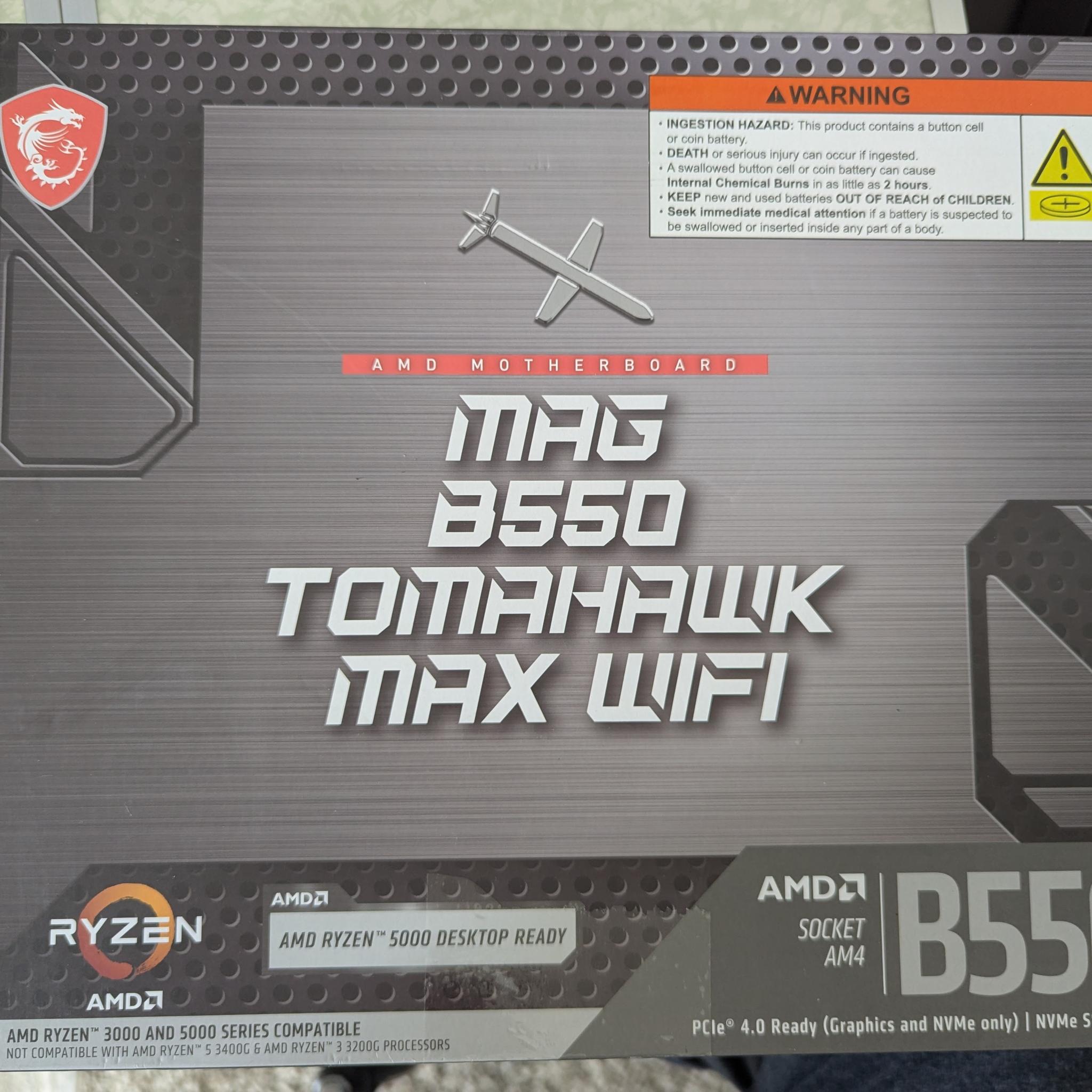

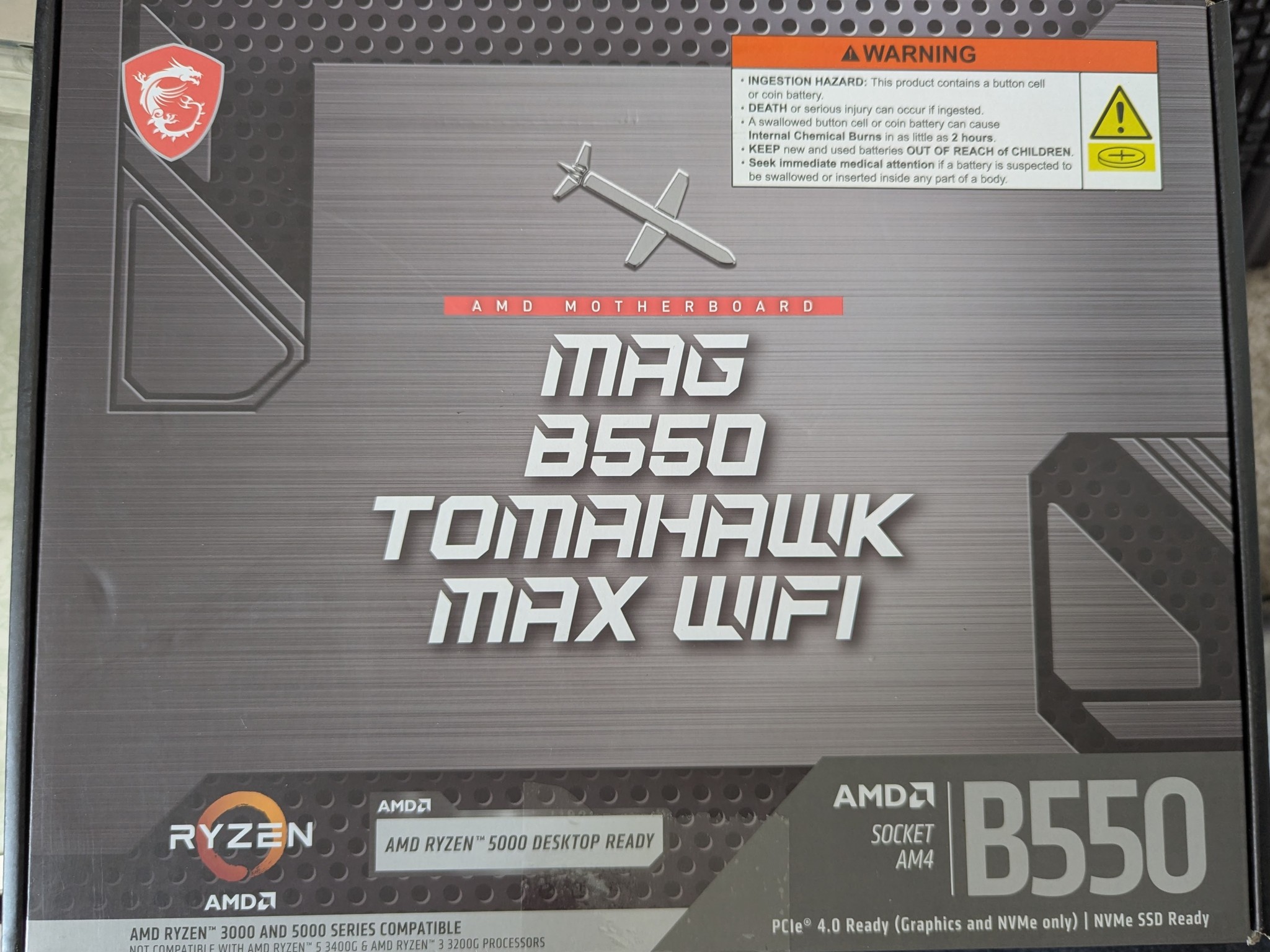

MSI B550 MAG Tomahawk Max WiFi AMD AM4 ATX Motherboard ** READ DESCRIPTION **
