GPU Architecture: AMD RDNA 4 (Navi 44 XT)

Stream Processors: 2,048

Compute Units: 32

TMUs / ROPs: 128 / 64

Process Node: TSMC N4P (4 nm)

⏱ Clock Speeds

Base Clock: Up to ~1900 MHz

Game (Typical) Clock: Up to ~2780 MHz

Boost Clock: Up to ~3320 MHz

💾 Memory

Memory Size: 8 GB GDDR6

Memory Bus Width: 128-bit

Memory Clock / Speed: ~20 Gbps effective

Memory Bandwidth: ~320–340 GB/s

🖥 Display & Outputs

DisplayPort: 2× DisplayPort 2.1

HDMI: 1× HDMI 2.1

🔌 Interface & Power

PCIe Interface: PCIe 5.0 ×16

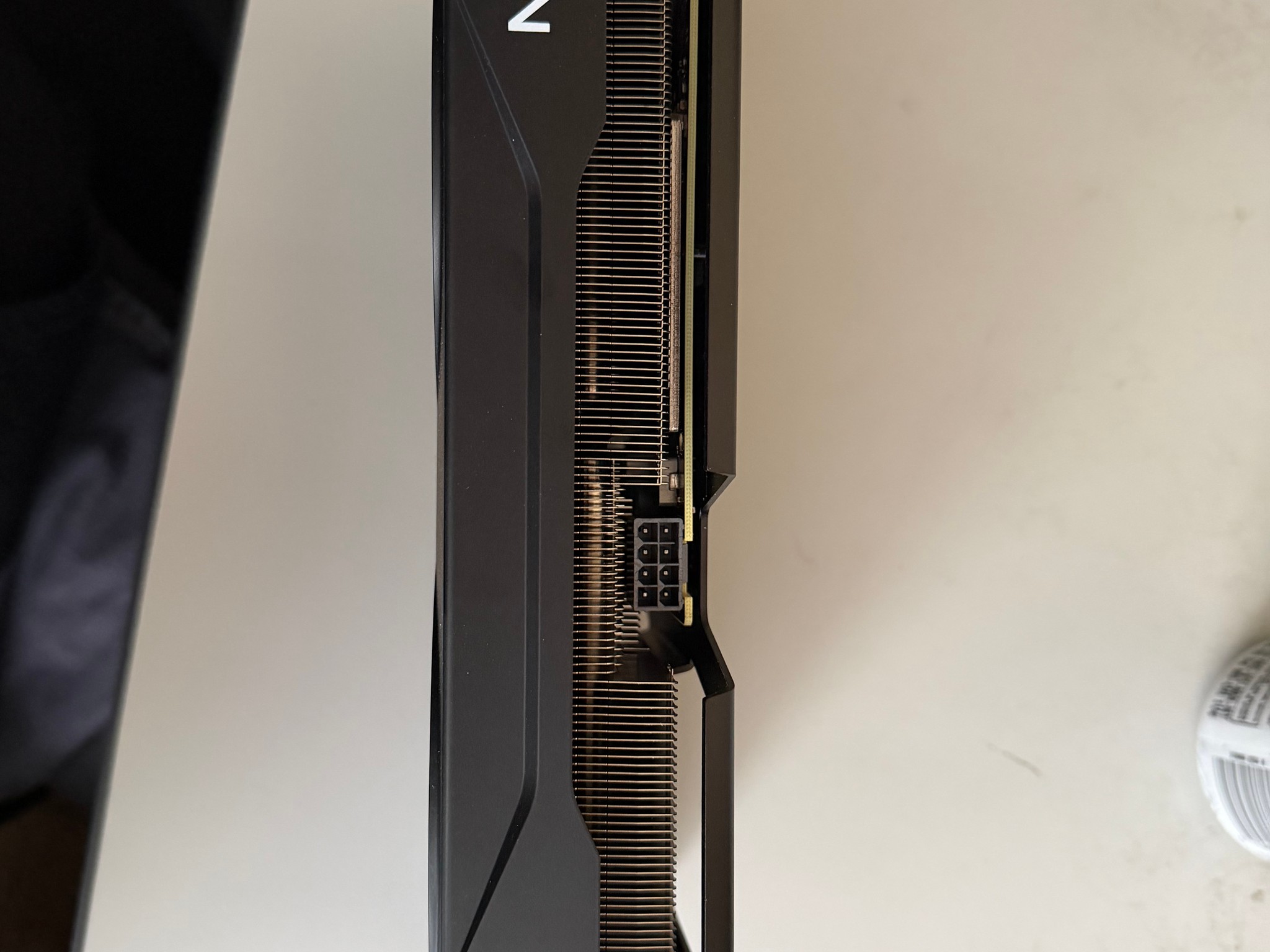

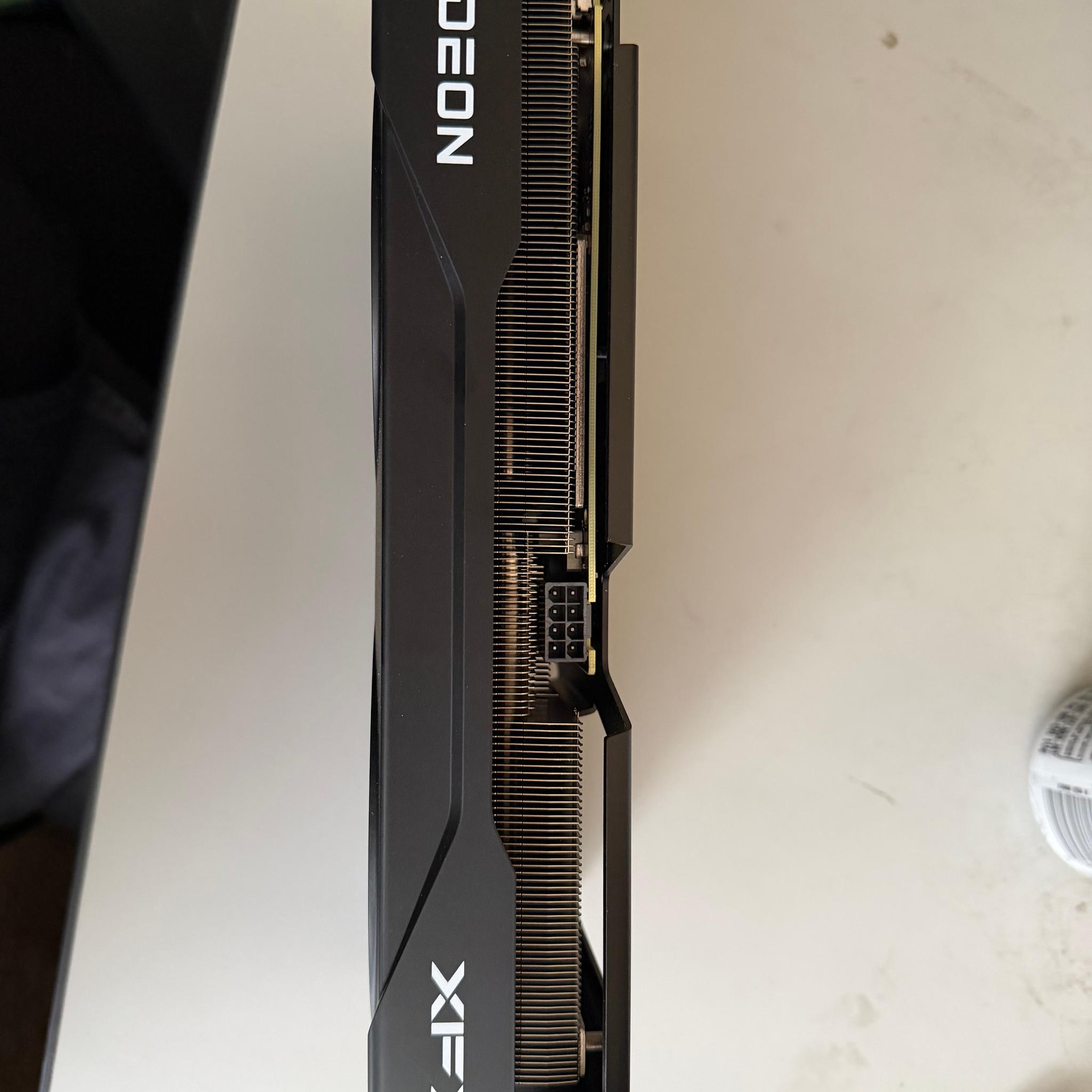

Power Connectors: 1× 8-pin PCIe

Recommended PSU: ~450 W

TDP / Board Power: ~182 W (partner OC spec)

📏 Physical & Cooling

Cooling: Dual-fan or triple-fan designs (varies by variant)

Card Profile: Dual-slot

Approx. Dimensions: ~270–290 mm length

🛠 Supported Features

DirectX: 12 Ultimate

OpenGL: 4.6

Vulkan: 1.3

Ray Tracing / AI: 3rd-gen RT + AI accel units

This makes the XFX Swift RX 9060XT OC a solid mid-range card for high-frame-rate 1080p and 1440p gaming with modern features like ray tracing, advanced upscaling (FSR), and PCIe 5.0 support.
