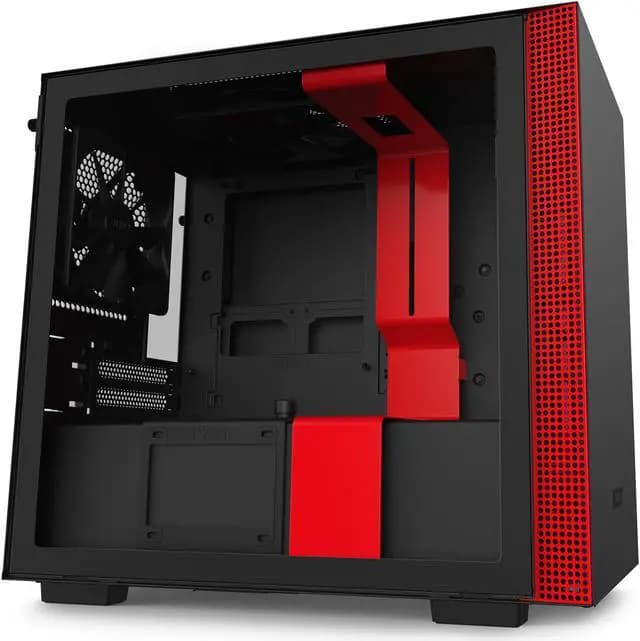

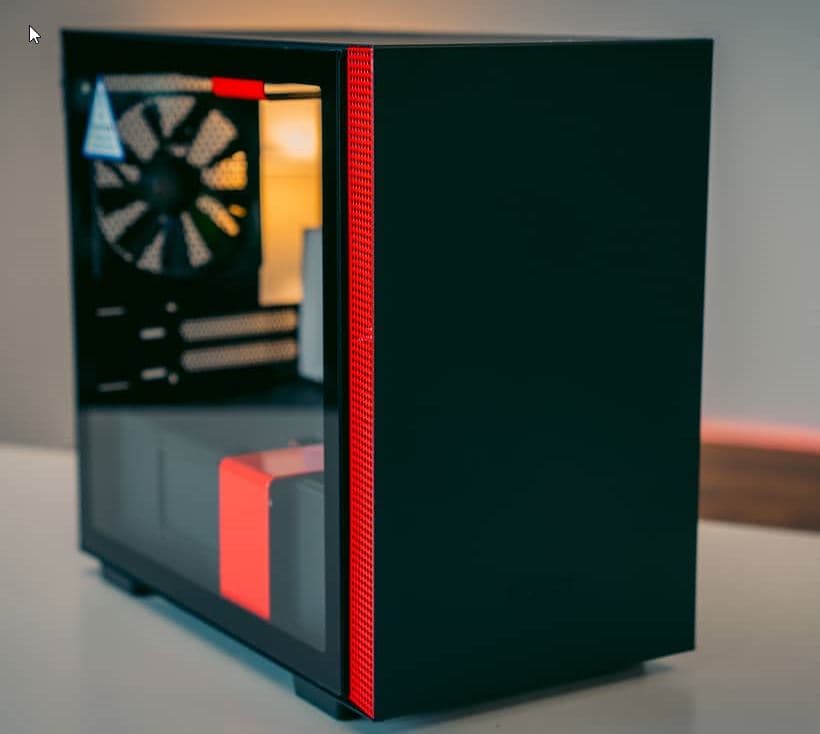

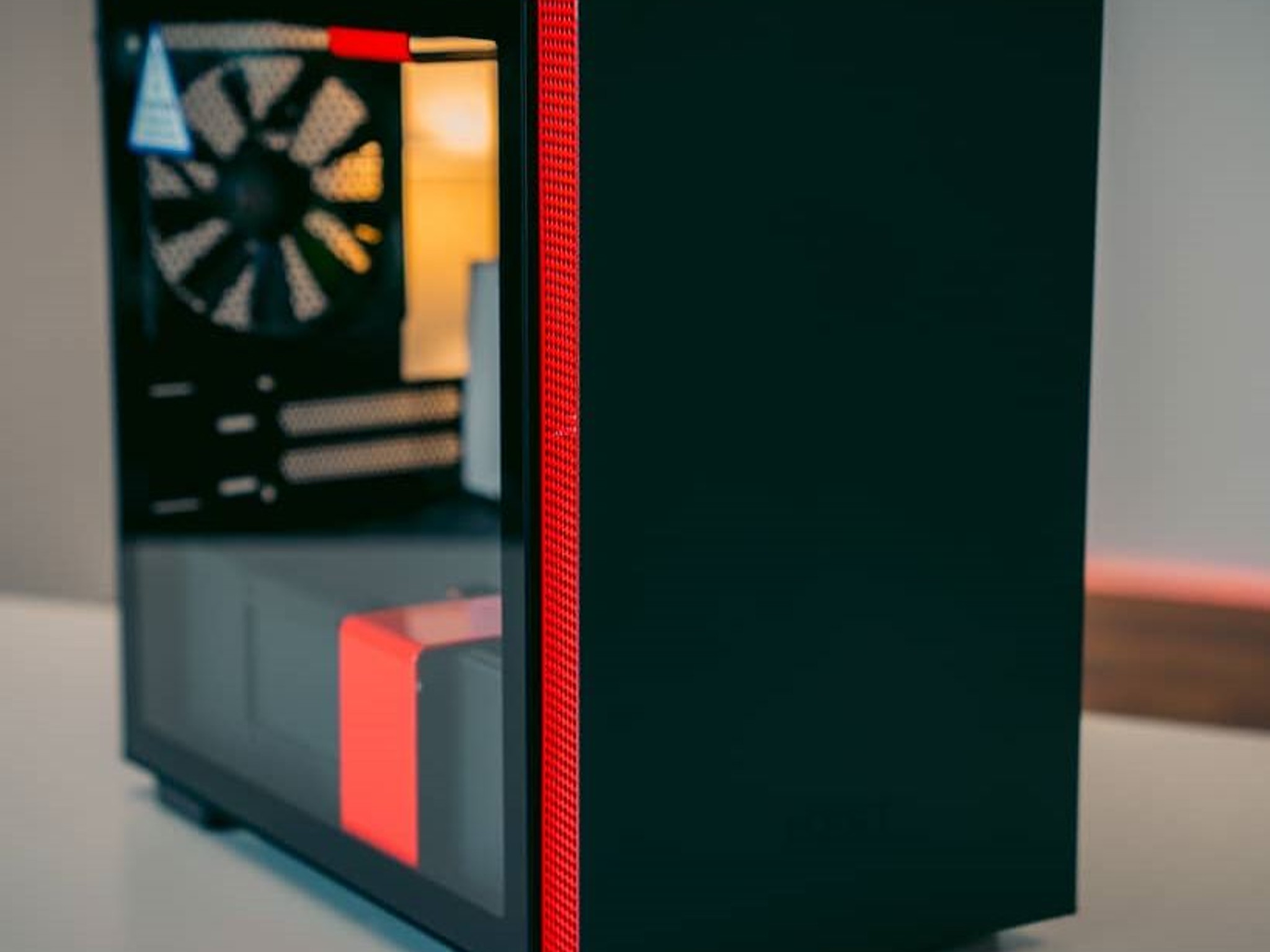

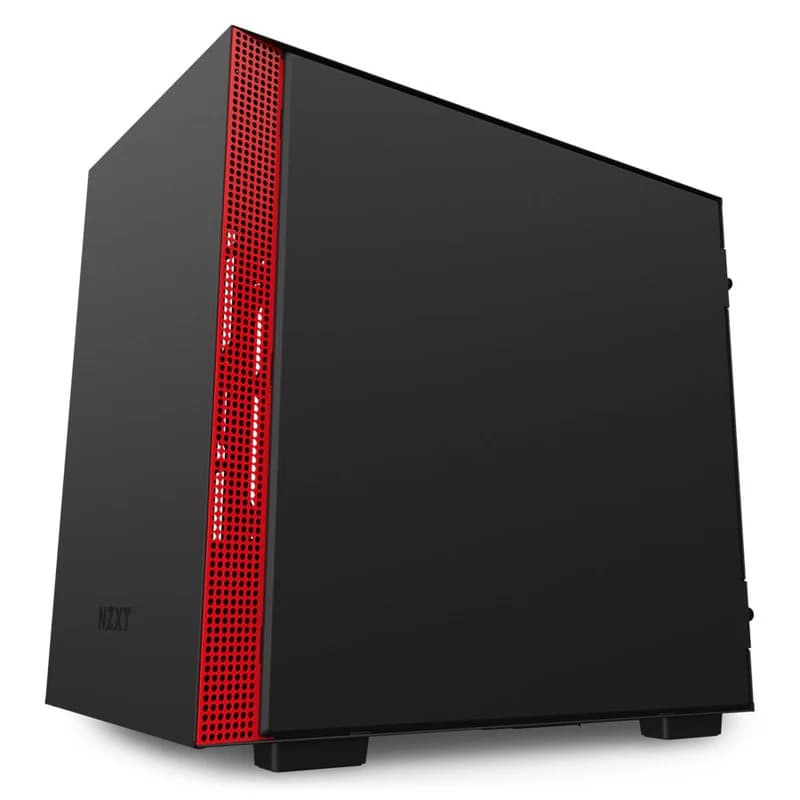

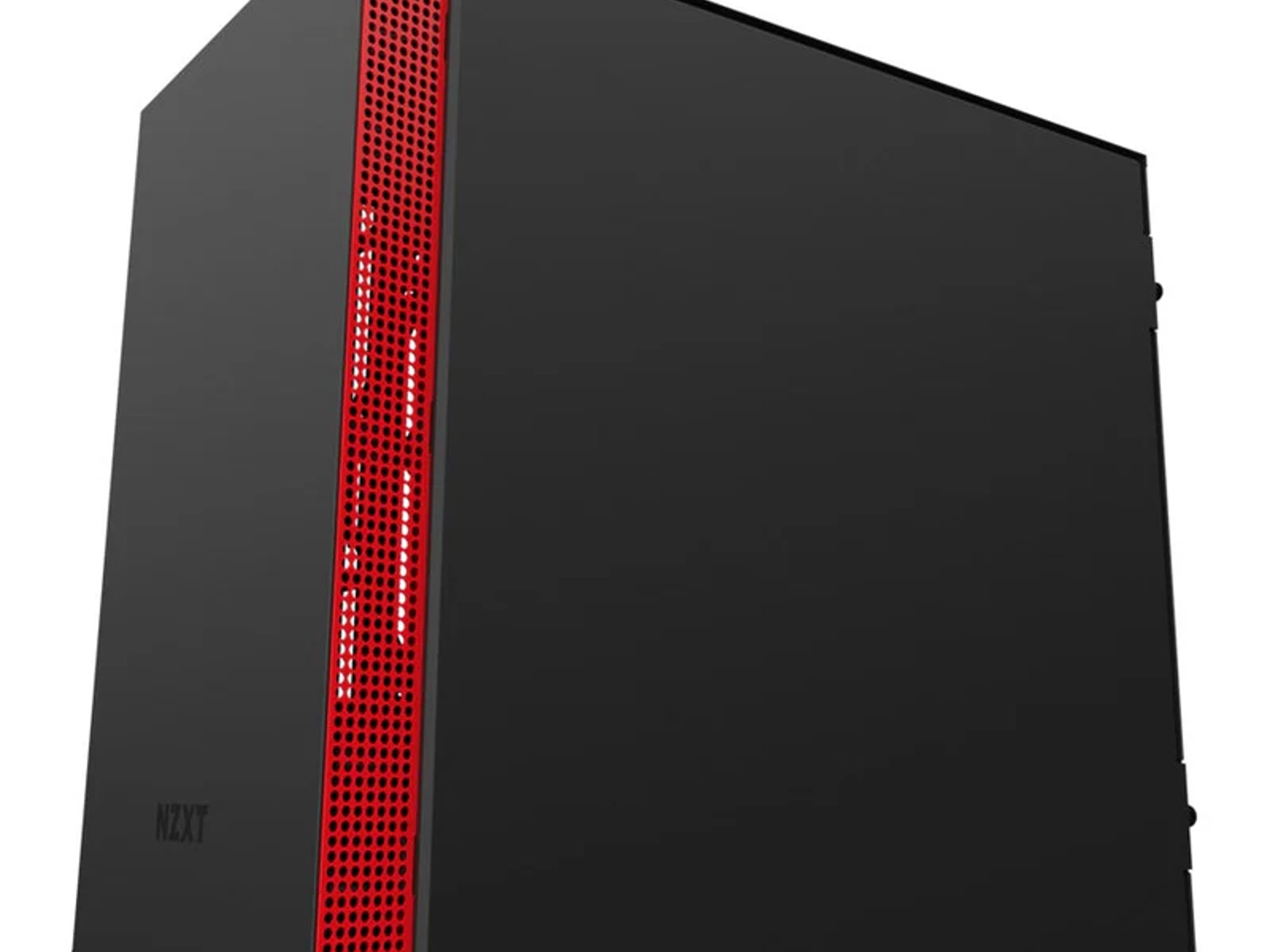

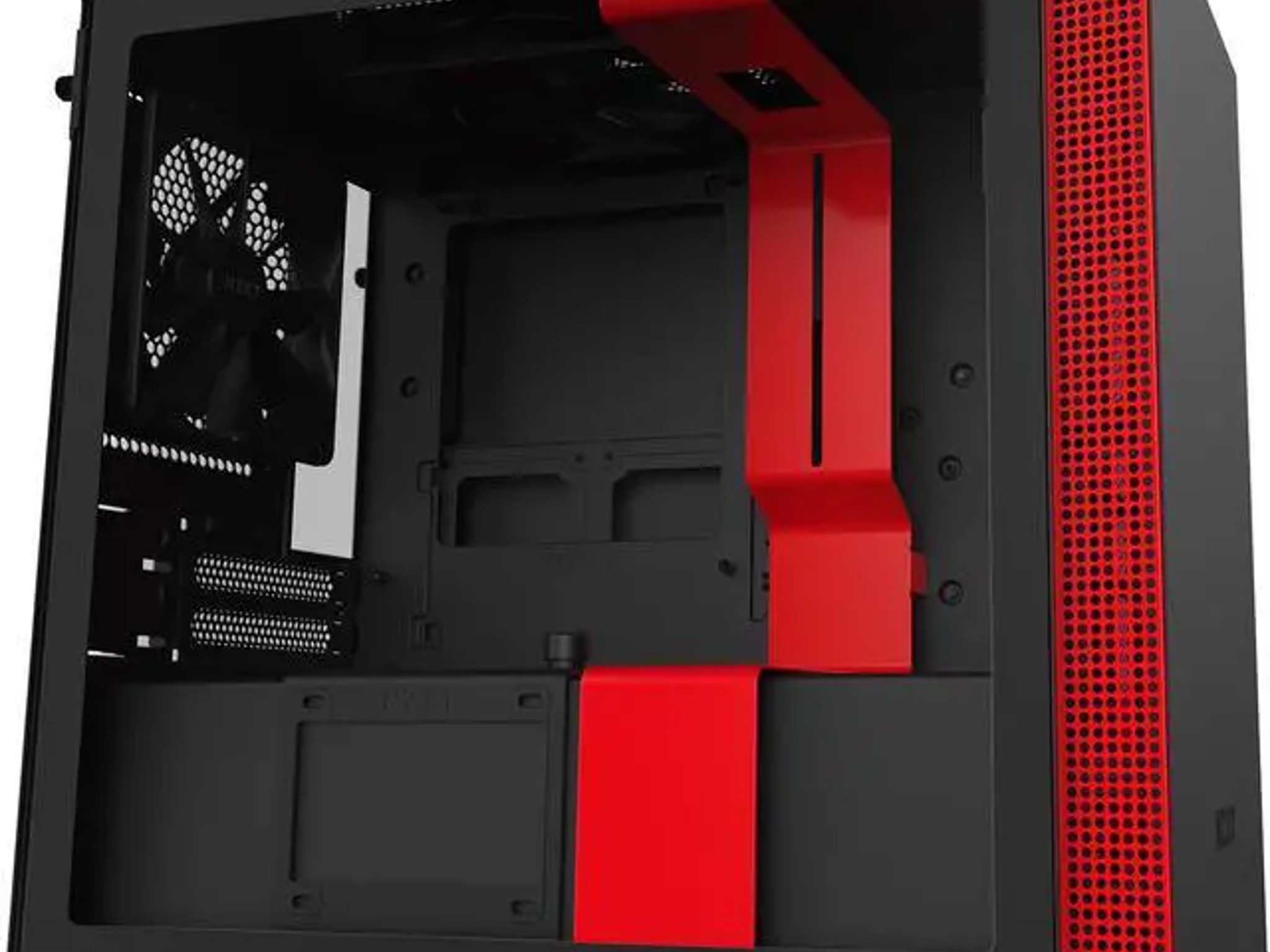

Model: NZXT H210i (Black-Red, Tempered Glass)

Form Factor: Mini-ITX tower chassis

Materials: SGCC Steel & Tempered Glass

Weight: ~5.9 kg (≈13 lb)

Warranty: 2 years

📏 Dimensions

Width: 210 mm (8.27″)

Height: 349 mm (13.74″)

Depth: 372 mm (14.65″)

🧩 Motherboard & Expansion

Supported Motherboards: Mini-ITX

Expansion Slots: 2 standard horizontal

🗄️ Drive Bays

2.5″: 3 + 1

3.5″: 1

🧠 Cooling & Fans

Included Fans

1 × 120 mm Aer F120 (rear)

1 × 120 mm Aer F120 (top)

Fan Support

Front: up to 2 × 120 mm or 2 × 140 mm

Top: 1 × 120 mm

Rear: 1 × 120 mm

Radiator Support

Front: up to 240 mm

Rear: up to 120 mm

Smart Device V2

3 fan channels (10 W/channel)

2 RGB channels

USB 2.0 internal connection

SATA power

🧱 Clearance / Compatibility

Max CPU cooler height: 165 mm

Max GPU length: up to ~325 mm (w/o front fans/rad)

GPU max thickness: 44 mm

Cable management clearance: ~16.3 mm

PSU max length: ~311 mm

🔌 Front I/O

1 × USB 3.2 Gen 2 Type-A

1 × USB 3.2 Gen 2 Type-C

1 × 3.5 mm Headset jack

🌀 Filters & Build Features

Removable dust filters on all air intake areas

Cable routing channels with straps for clean builds

Integrated LED addressable RGB strip supported by Smart Device

Includes accessories: screws, cable ties, headset splitter, GPU stand (varies by retailer)
