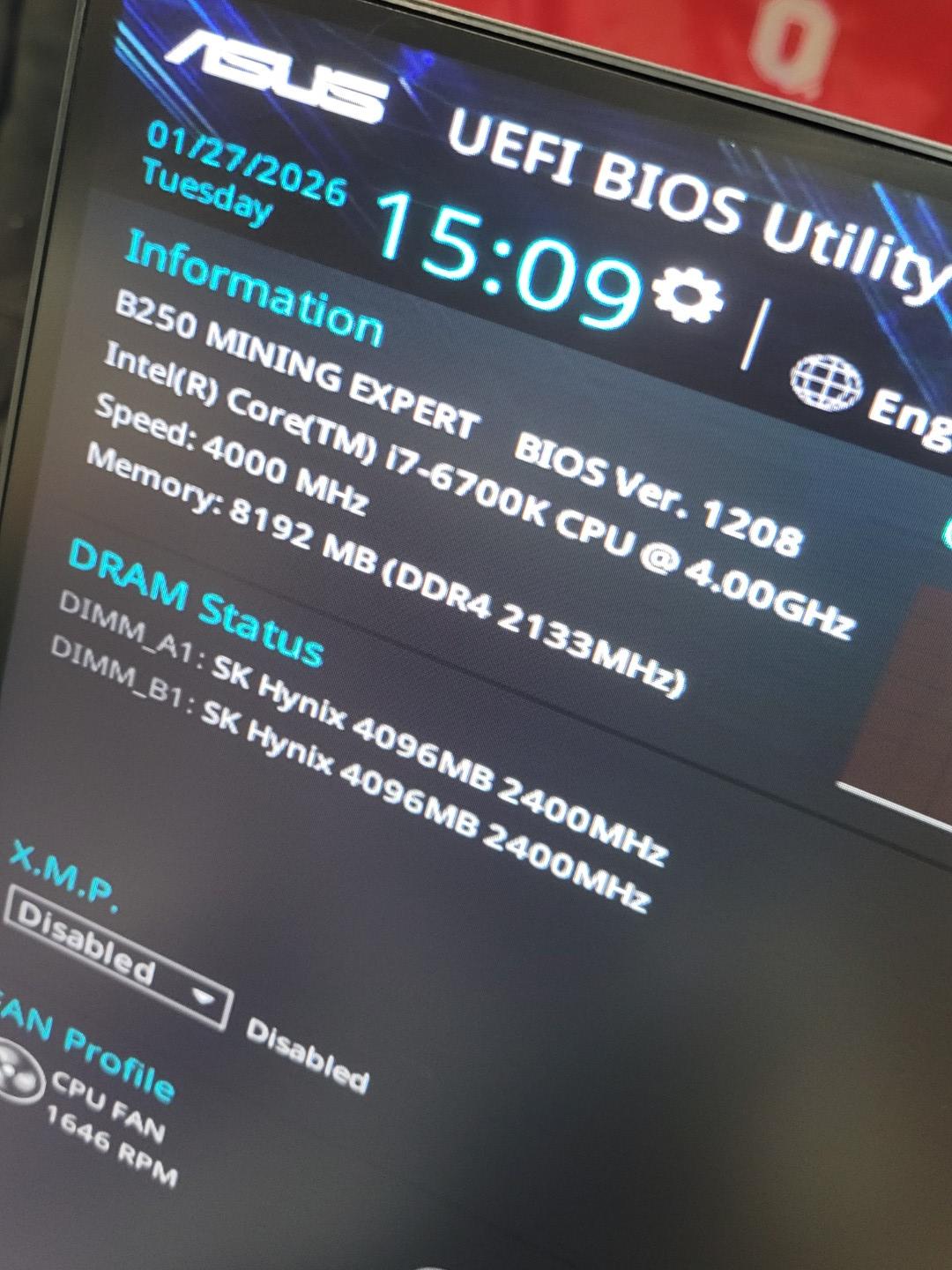

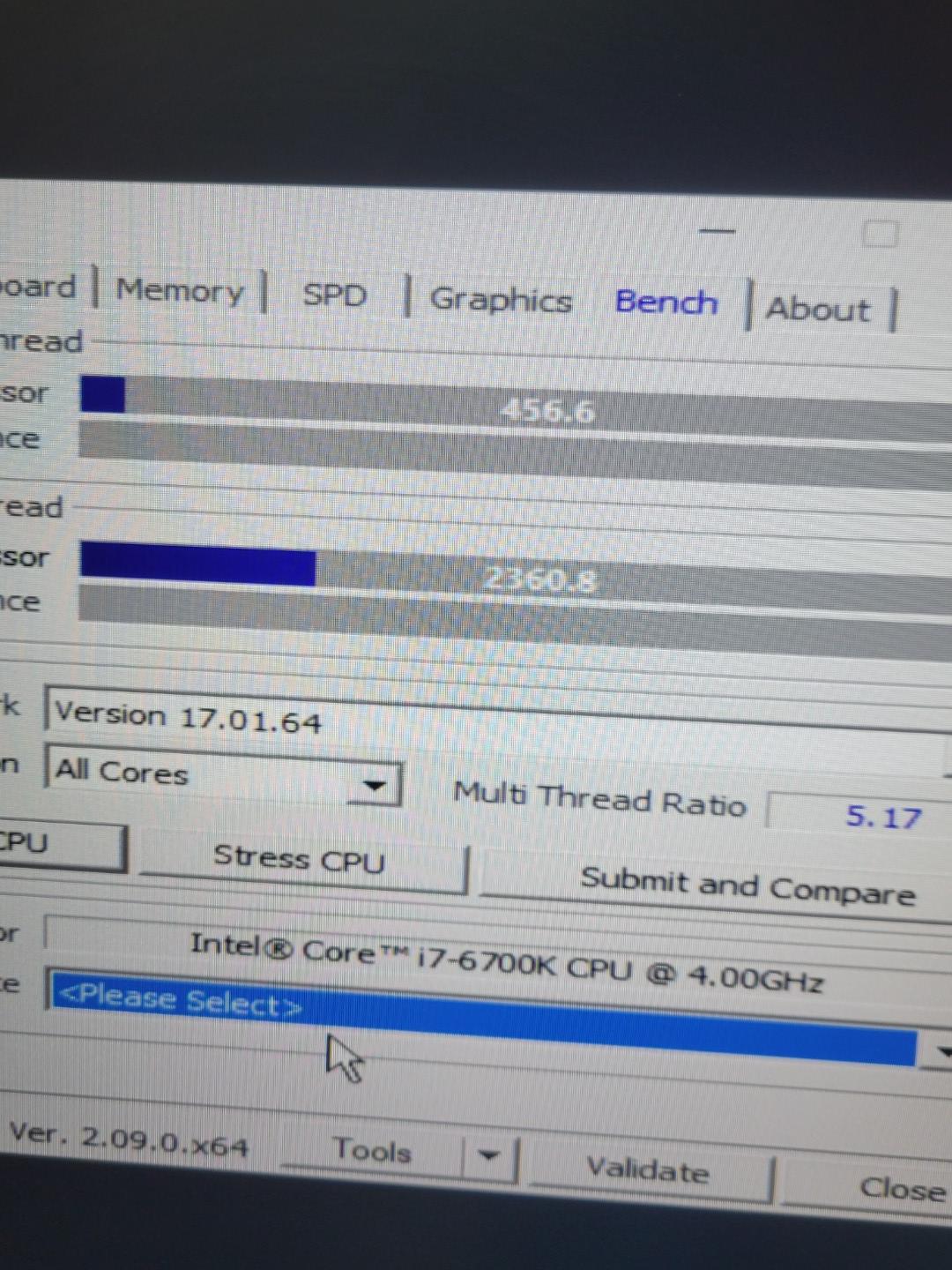

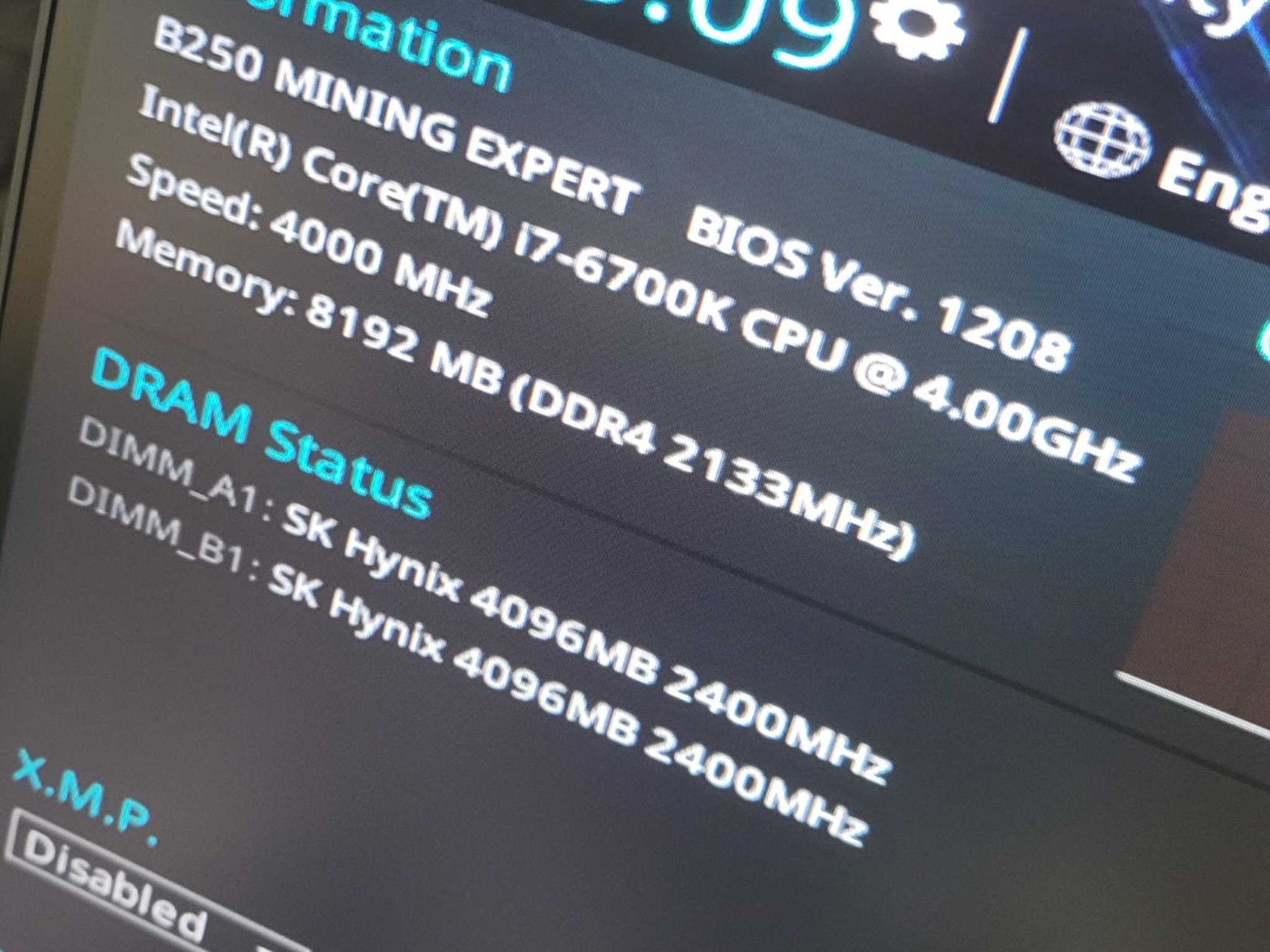

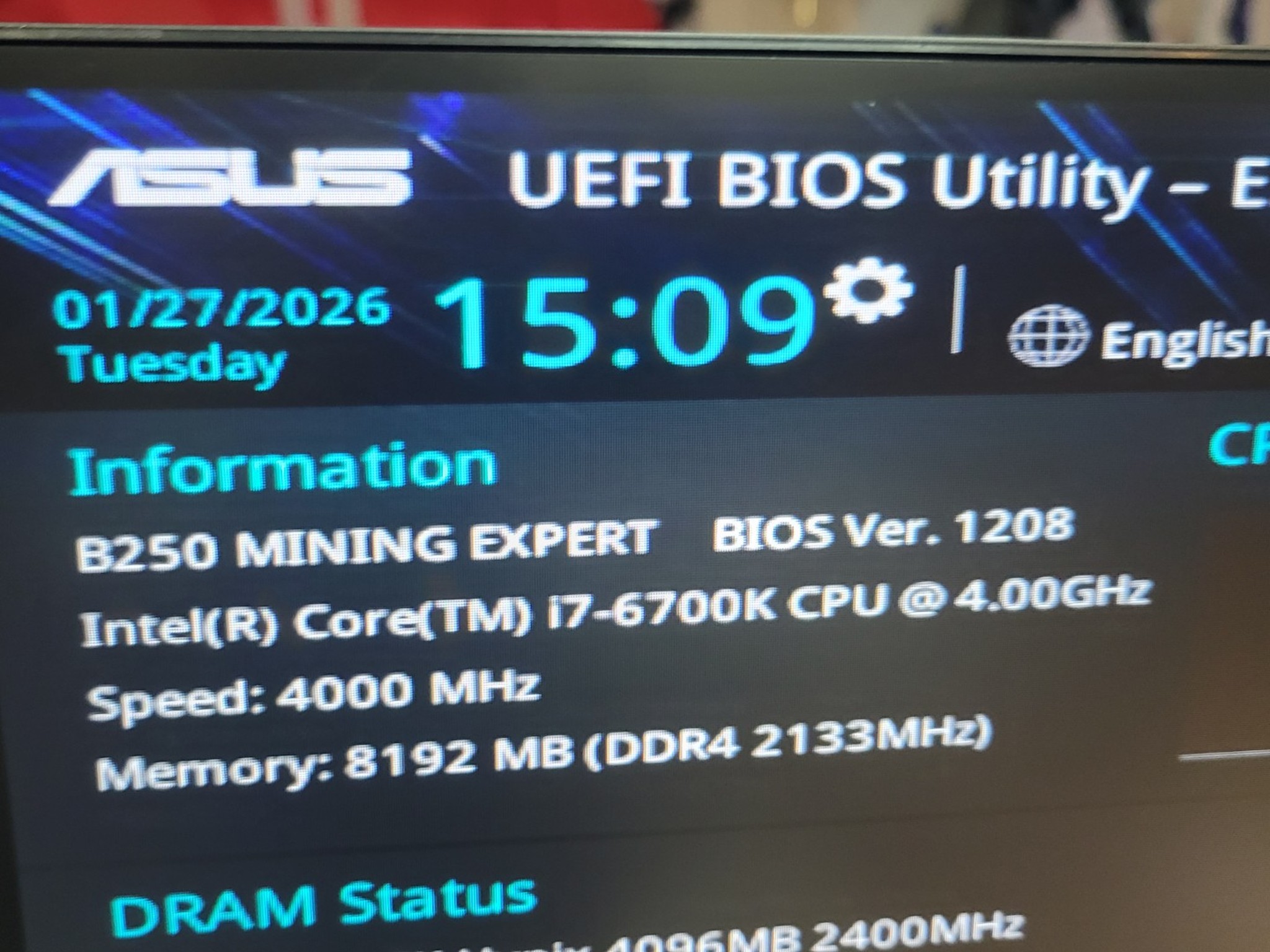

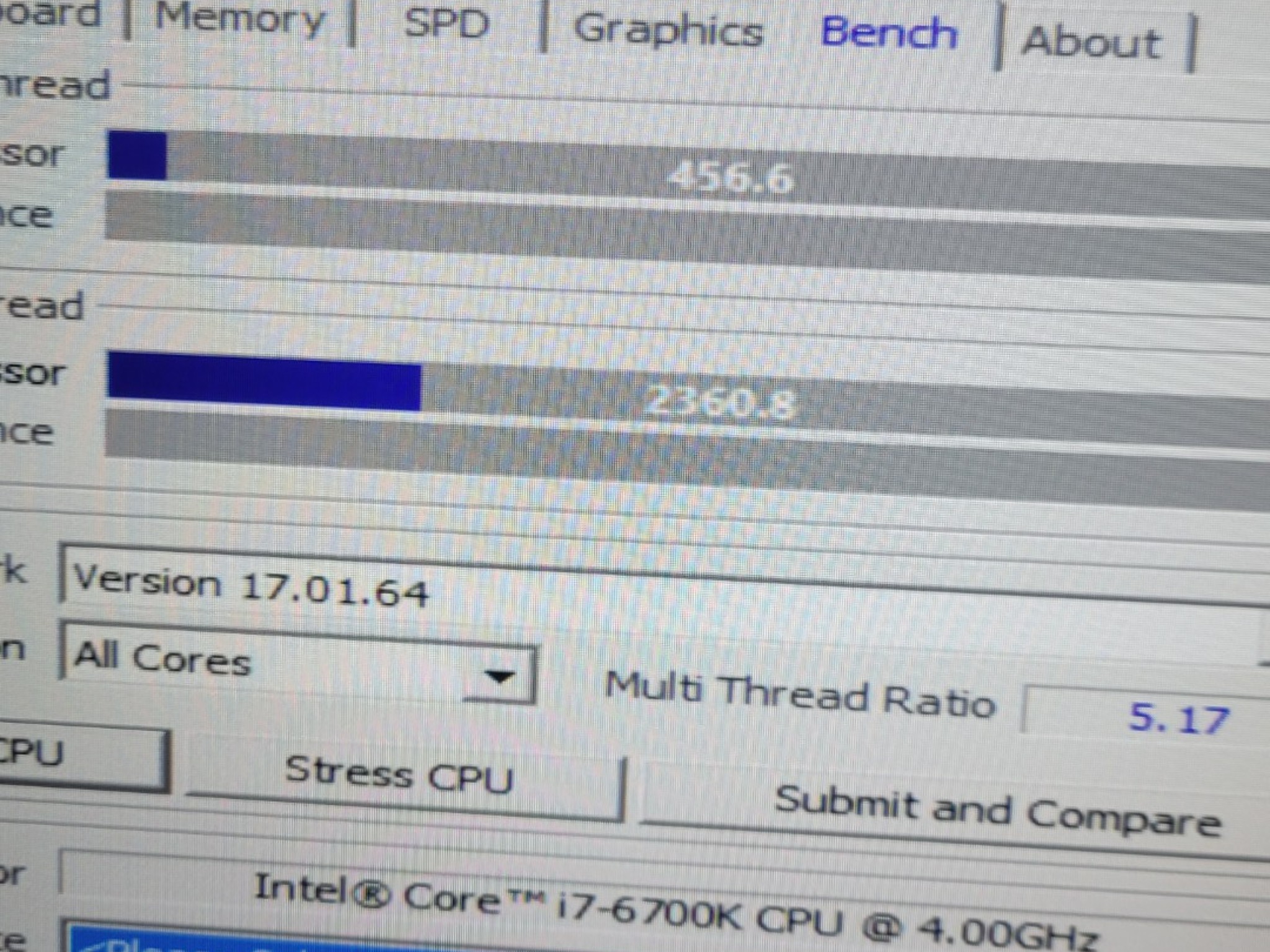

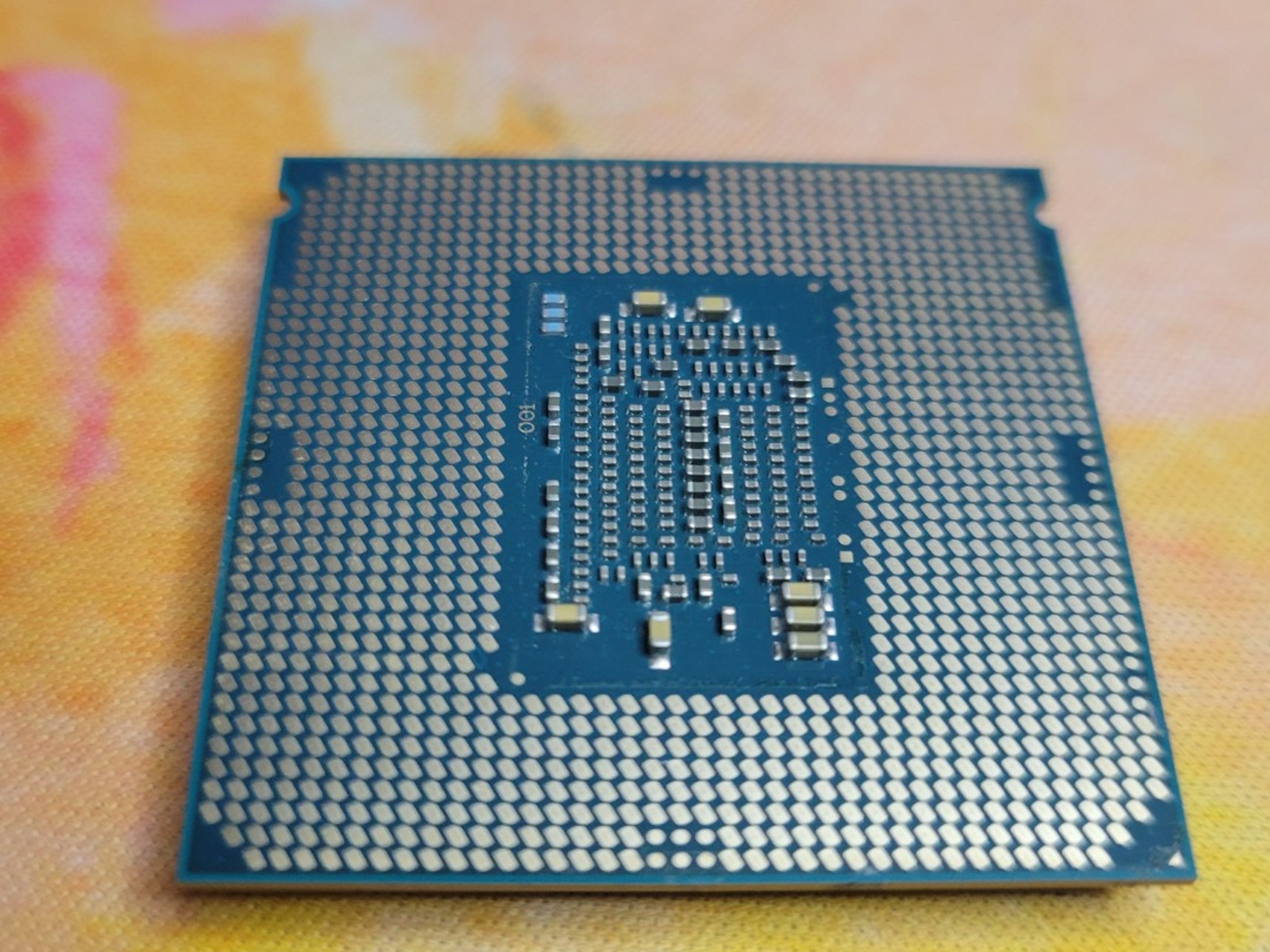

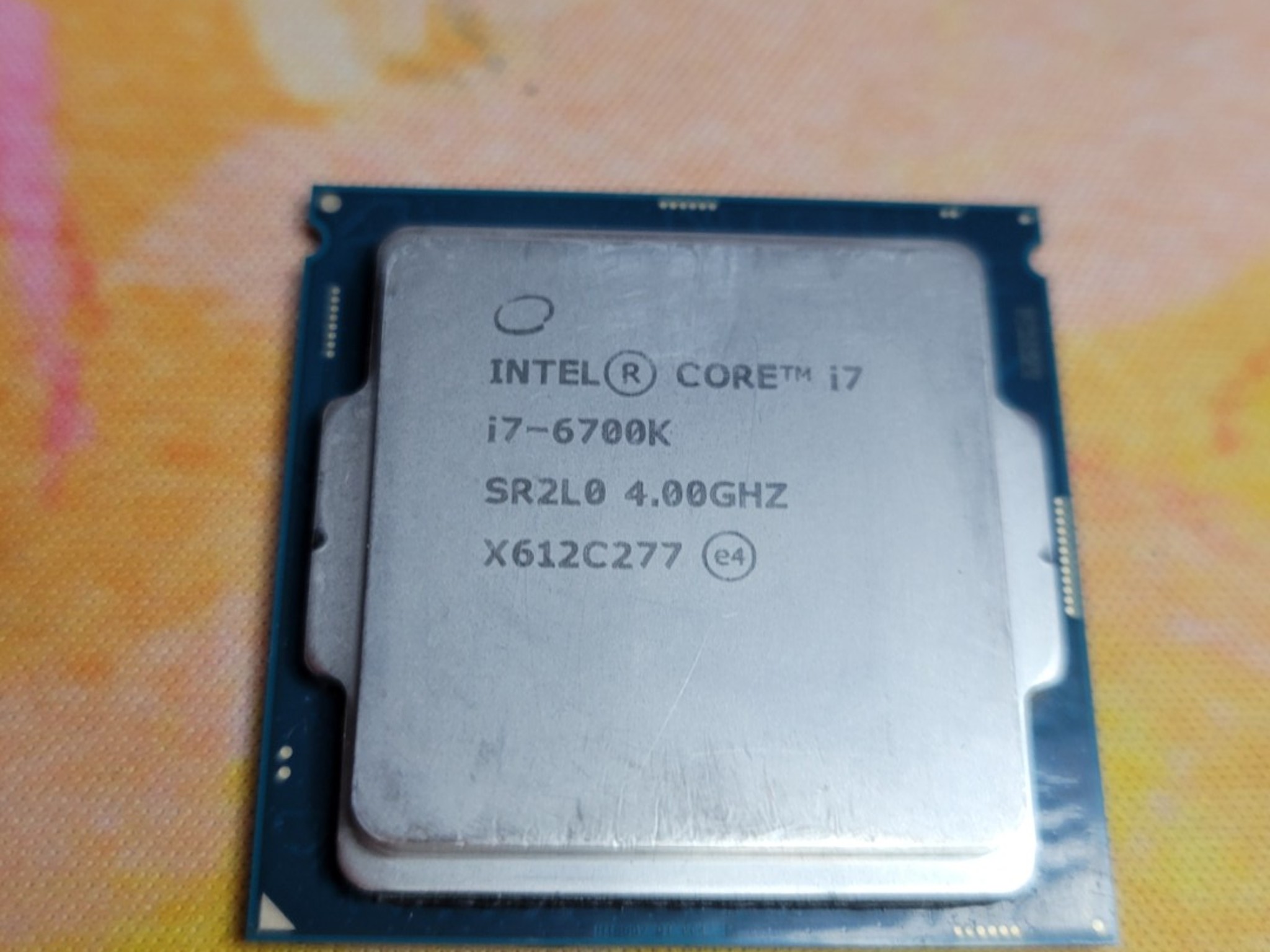

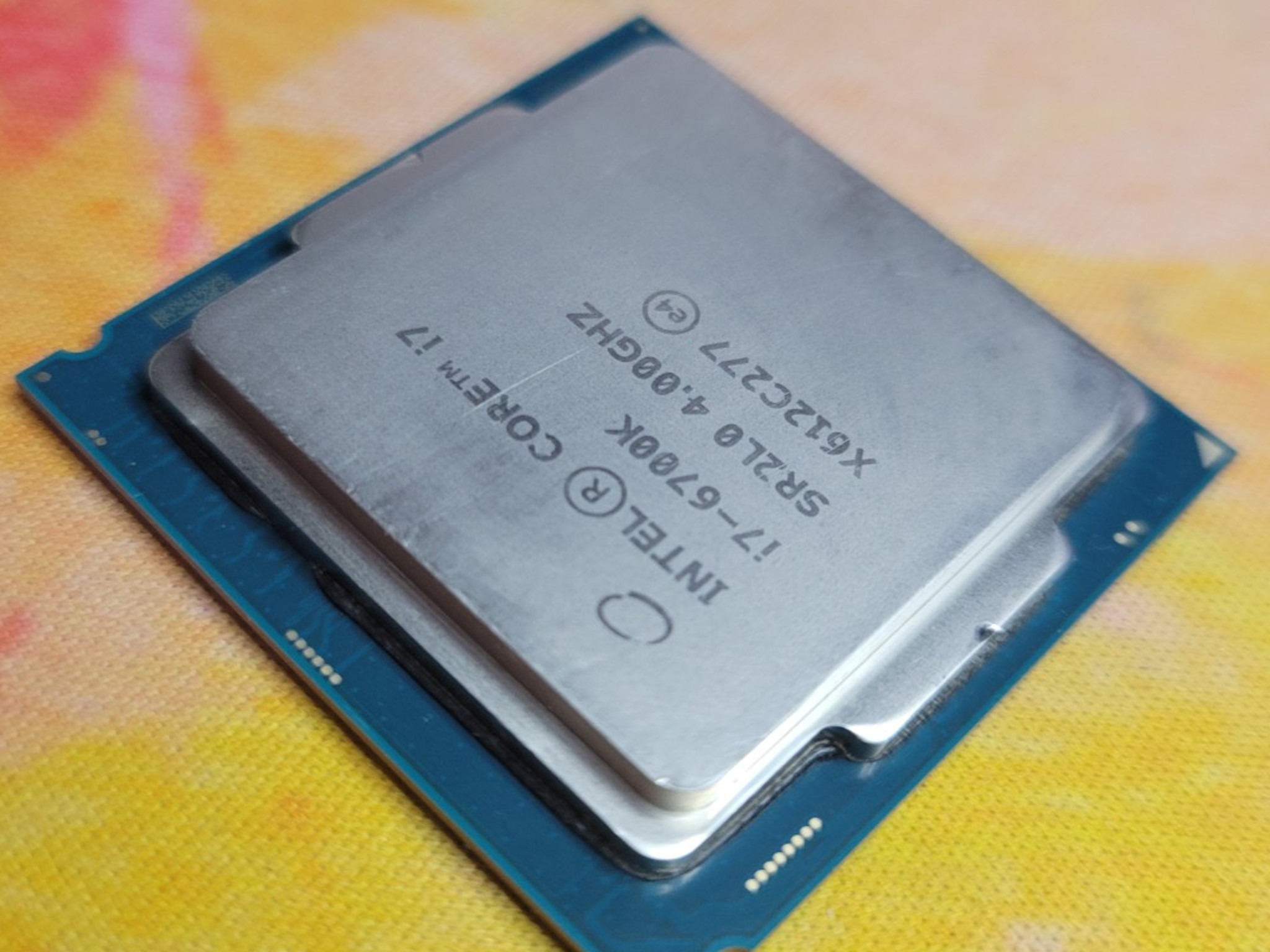

all CPU's are tested the day of listing with benchmark results in photos.

Essentials Product Collection 6th Generation Intel® Core™ i7 Processors Code Name Products formerly Skylake Vertical Segment Desktop Processor Number i7-6700K Lithography 14 nm CPU Specifications Total Cores 4 Total Threads 8 Max Turbo Frequency 4.20 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.20 GHz Processor Base Frequency 4.00 GHz Cache 8 MB Intel® Smart Cache Bus Speed 8 GT/s

of QPI Links

0 TDP 91 W Supplemental Information Marketing Status Discontinued Launch Date Q3'15 Servicing Status End of Servicing Lifetime End of Servicing Updates Date Friday, September 30, 2022 Embedded Options Available No Included Items Please note: The boxed product does not include a fan or heat sink Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V Max # of Memory Channels 2 Max Memory Bandwidth 34.1 GB/s ECC Memory Supported ‡ No GPU Specifications GPU Name‡ Intel® HD Graphics 530 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.15 GHz Graphics Video Max Memory 64 GB Graphics Output eDP/DP/HDMI/DVI 4K Support Yes, at 60Hz Max Resolution (HDMI)‡ 4096x2304@24Hz Max Resolution (DP)‡ 4096x2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz Max Resolution (VGA)‡ N/A DirectX* Support 12 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes

of Displays Supported ‡

3 Device ID 0x1912
