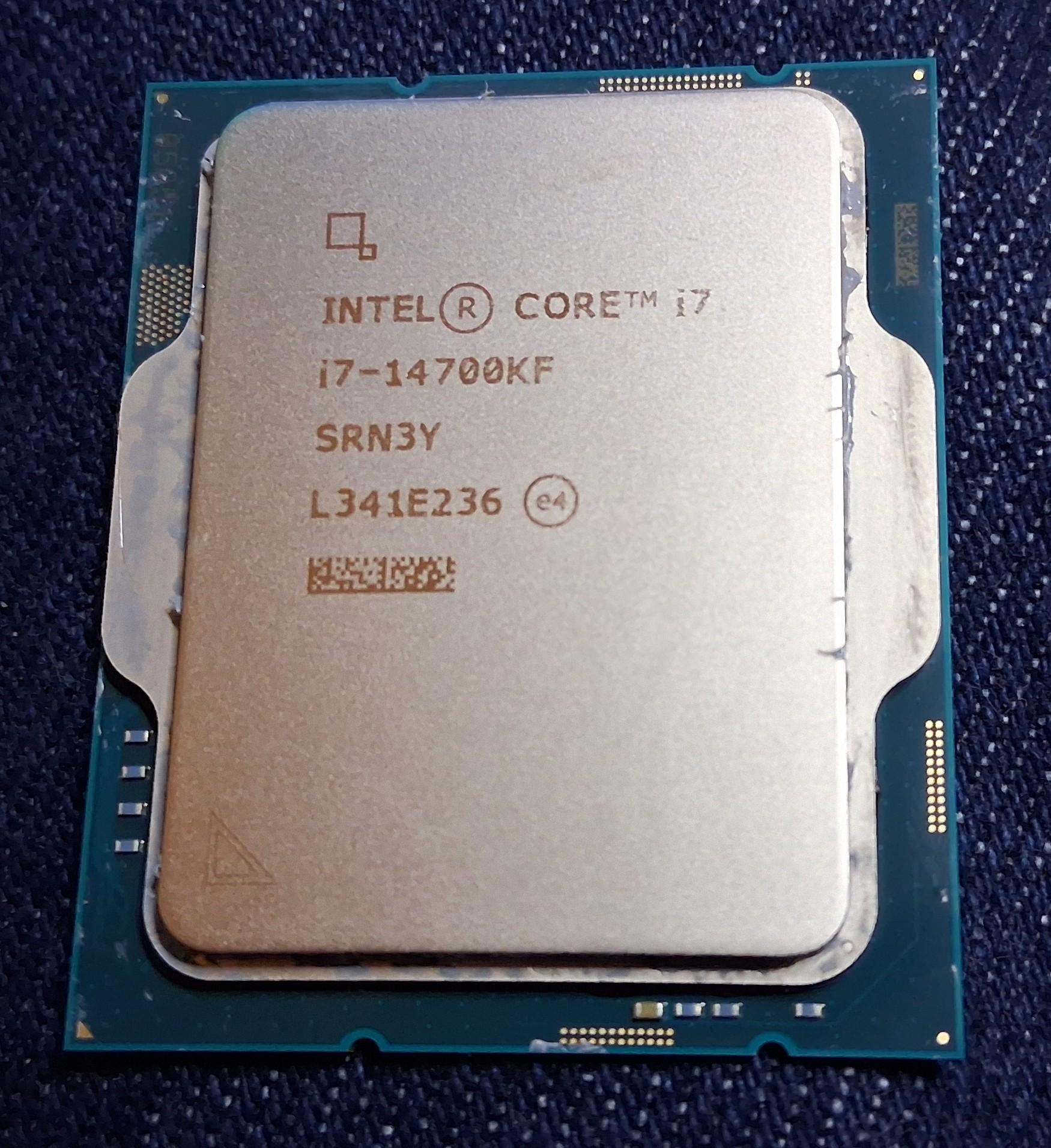

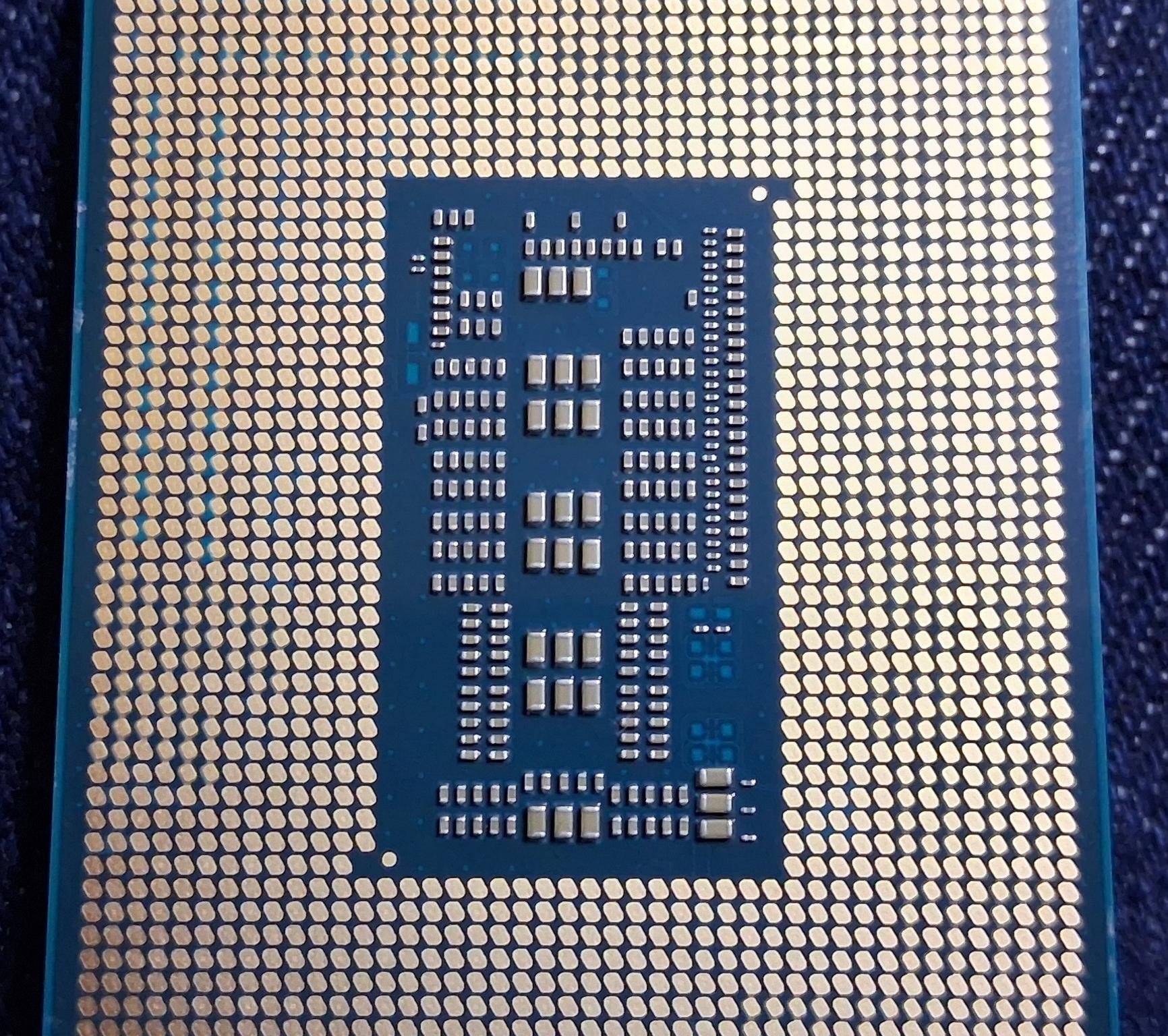

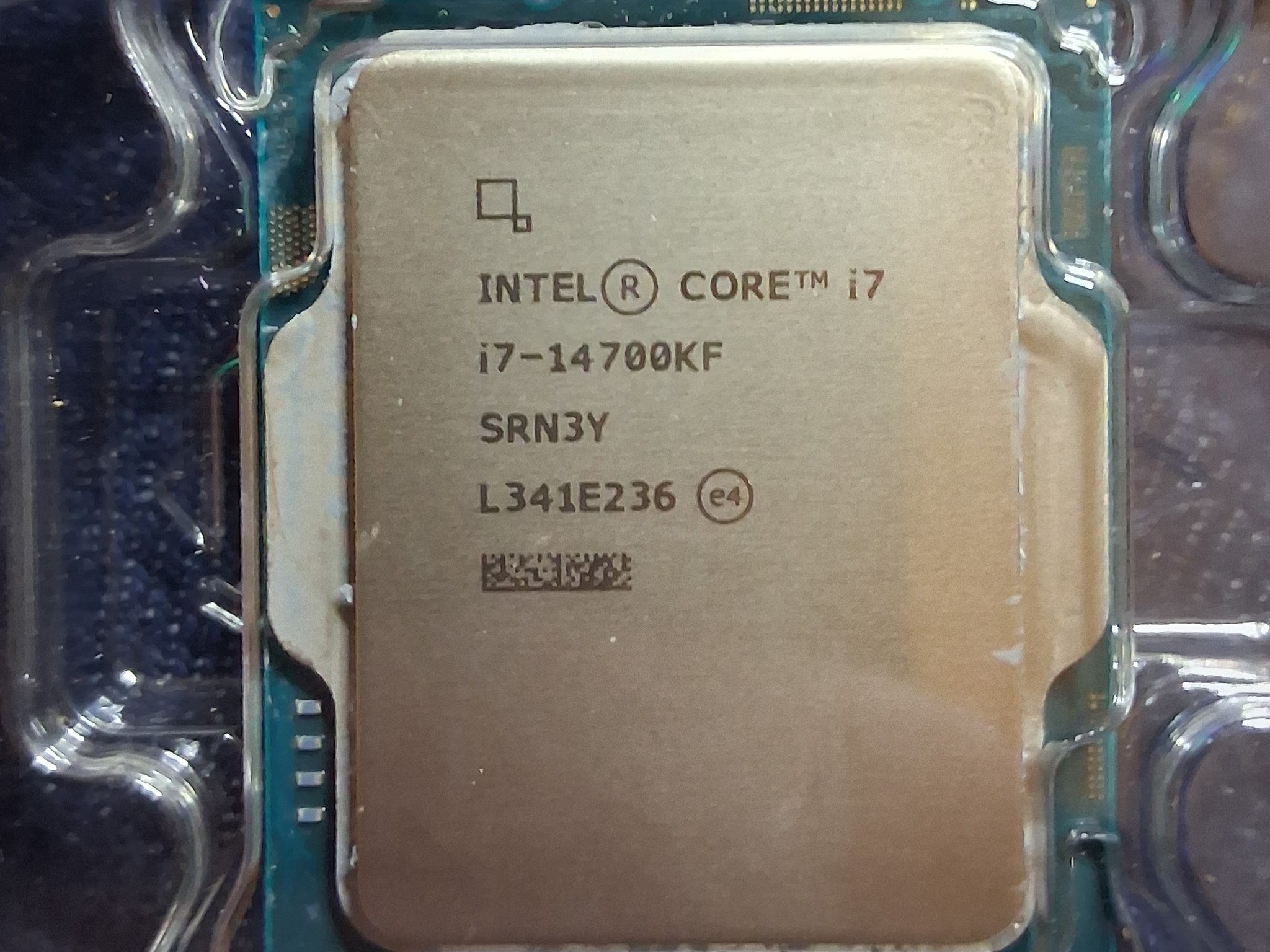

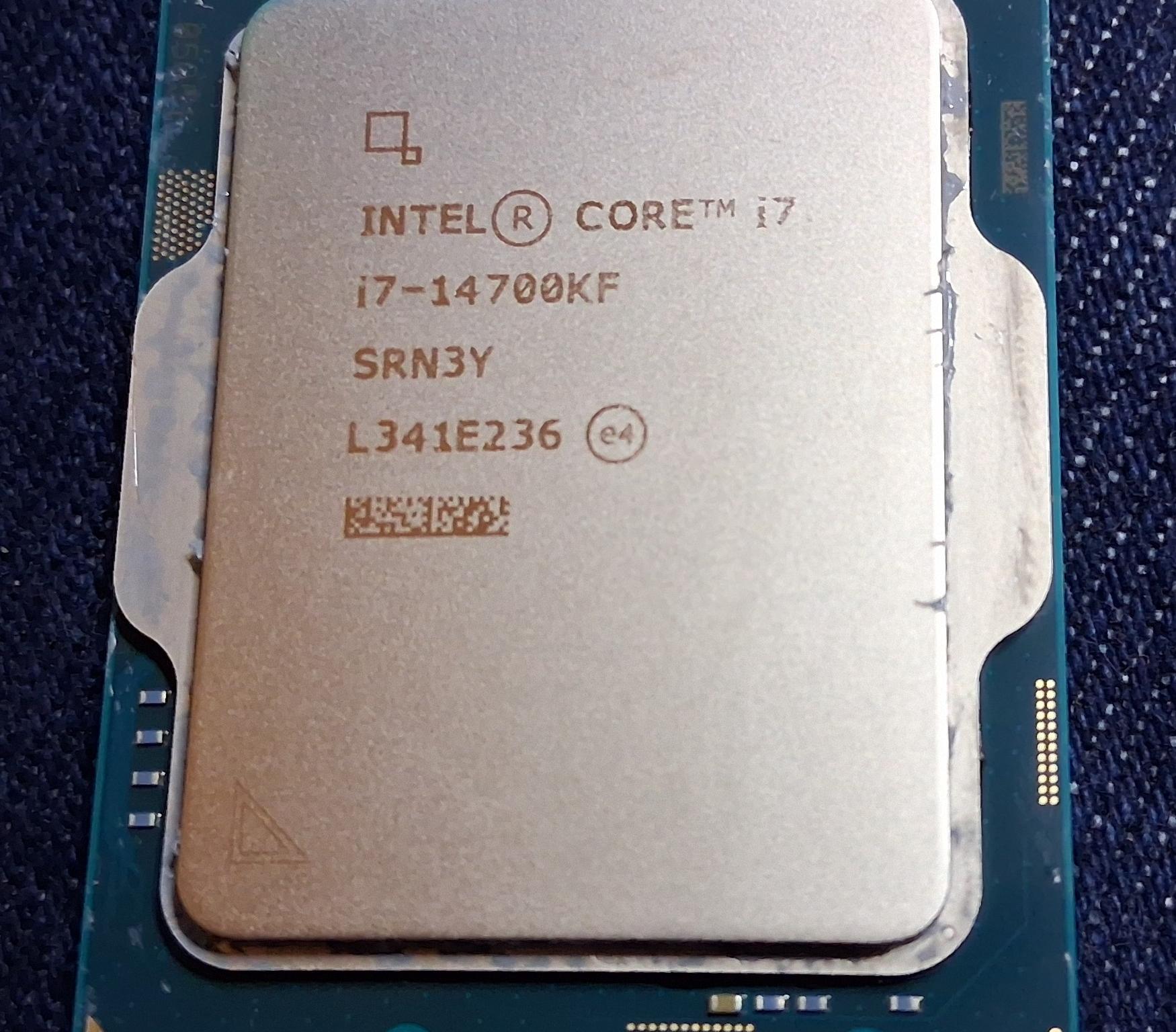

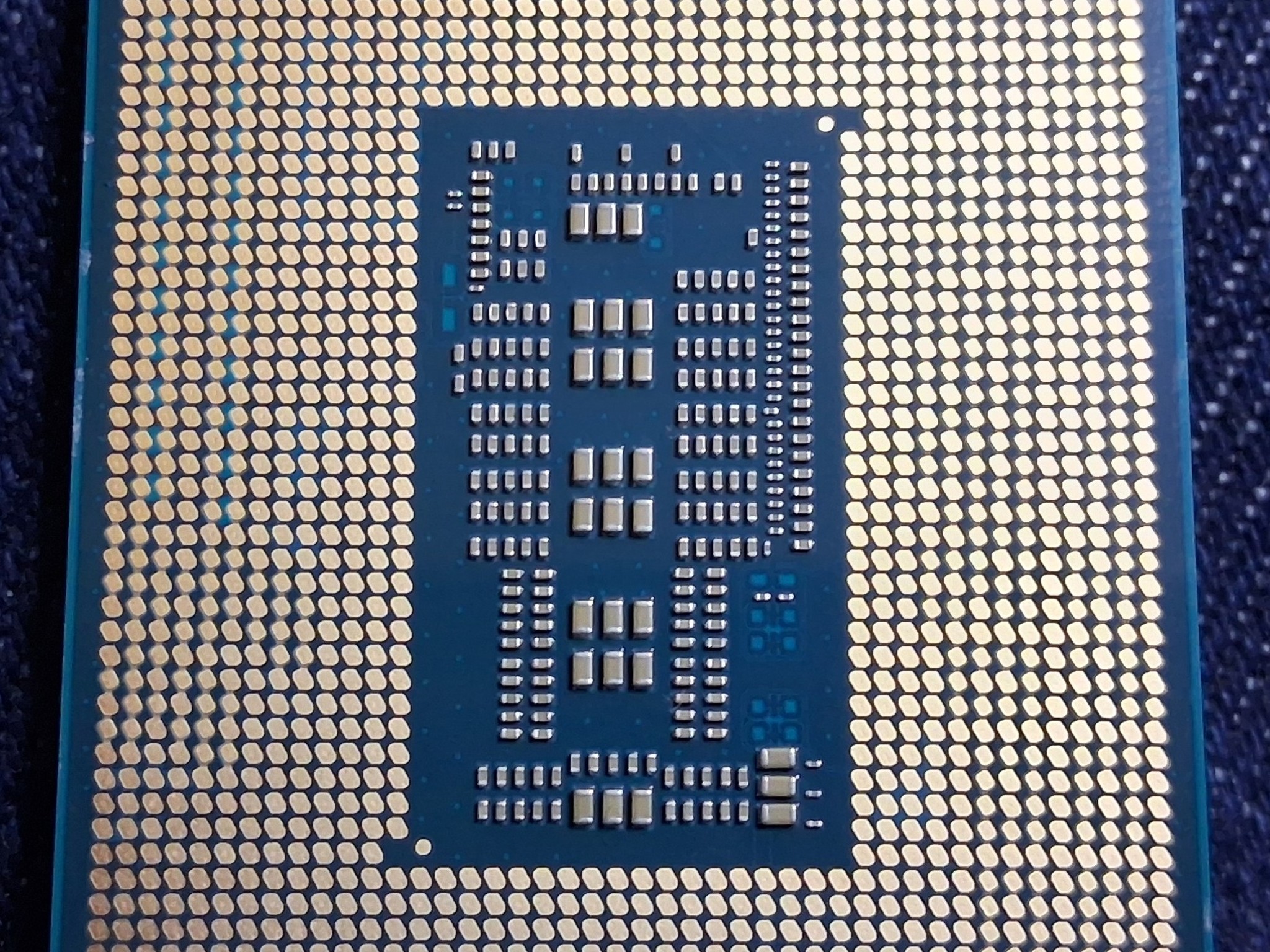

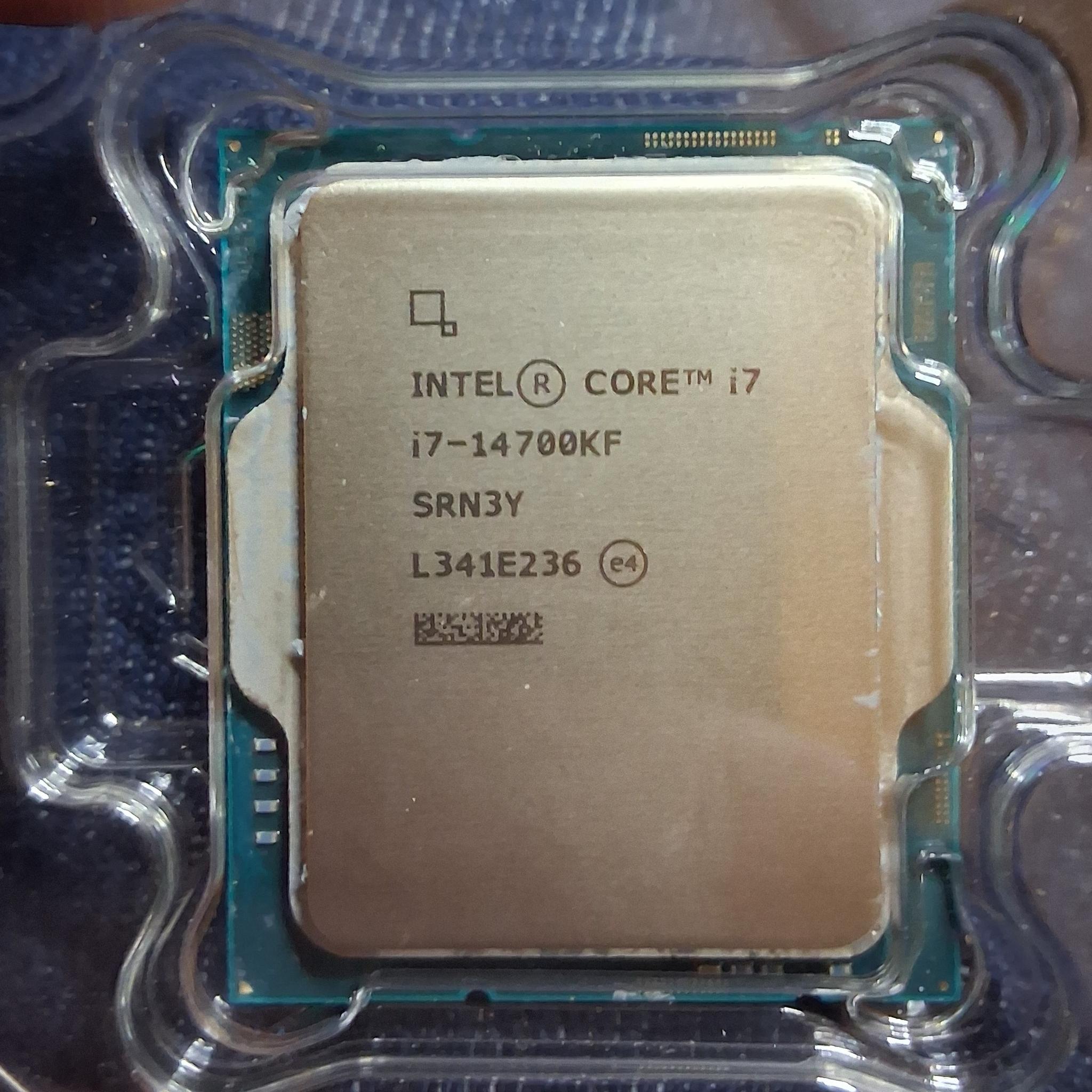

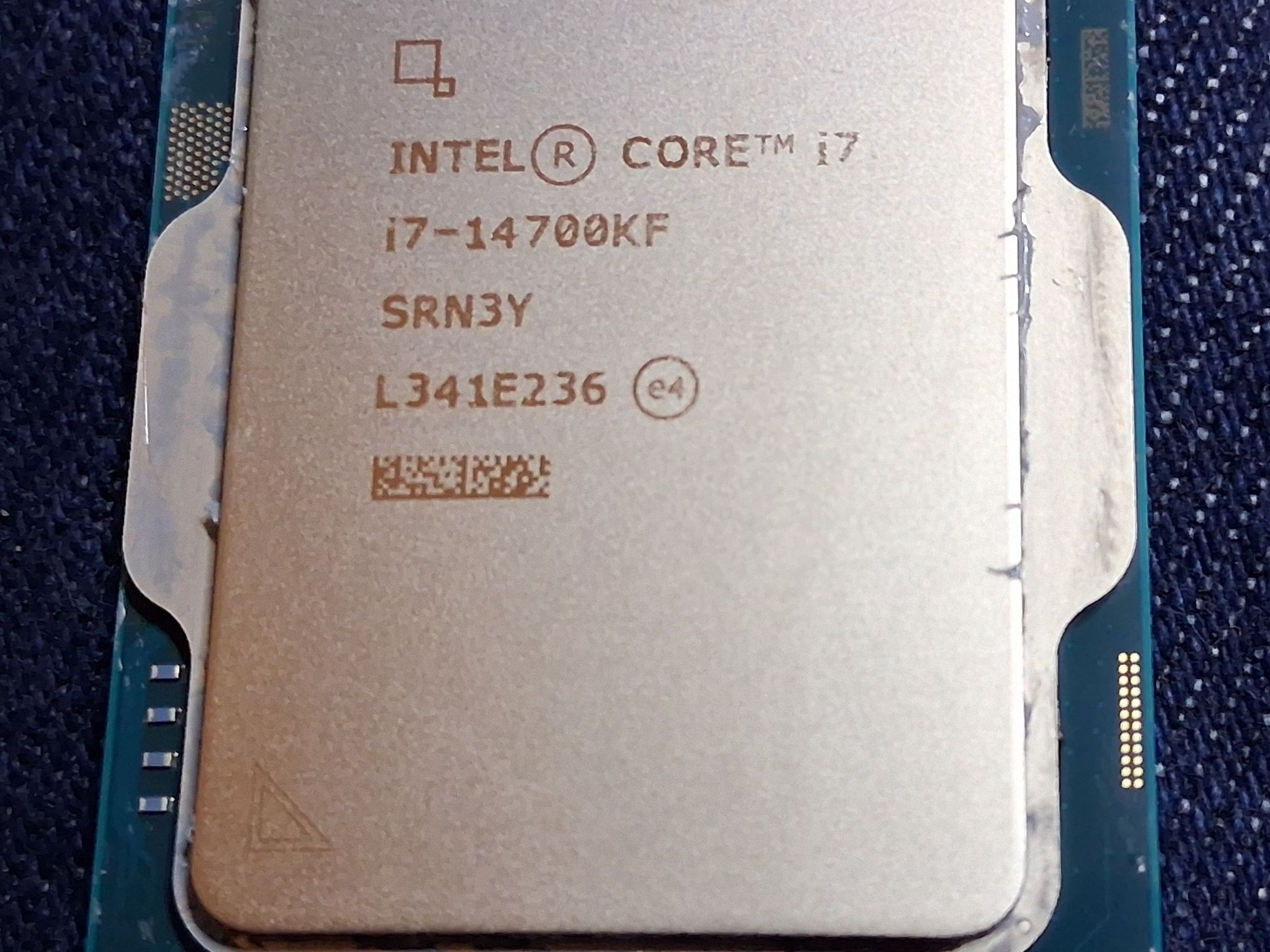

Product Collection Intel® Core™ i7 Processors (14th gen) Code Name Products formerly Raptor Lake Vertical Segment Desktop Processor Number i7-14700KF Lithography Intel 7

CPU Specifications

Total Cores 20

of Performance-cores 8

of Efficient-cores 12

Total Threads 28 Max Turbo Frequency 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency 5.6 GHz Performance-core Max Turbo Frequency 5.5 GHz Efficient-core Max Turbo Frequency 4.3 GHz Performance-core Base Frequency 3.4 GHz Efficient-core Base Frequency 2.5 GHz Cache 33 MB Intel® Smart Cache Total L2 Cache 28 MB Processor Base Power 125 W Maximum Turbo Power 253 W Supplemental Information Marketing Status

Launched

Launch Date Q4'23

Memory Specifications

Max Memory Size (dependent on memory type) 192 GB Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2 Max Memory Bandwidth 89.6 GB/s Expansion Options Direct Media Interface (DMI) Revision 4.0 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1x16+4, 2x8+4 Max # of PCI Express Lanes 20

Package Specifications

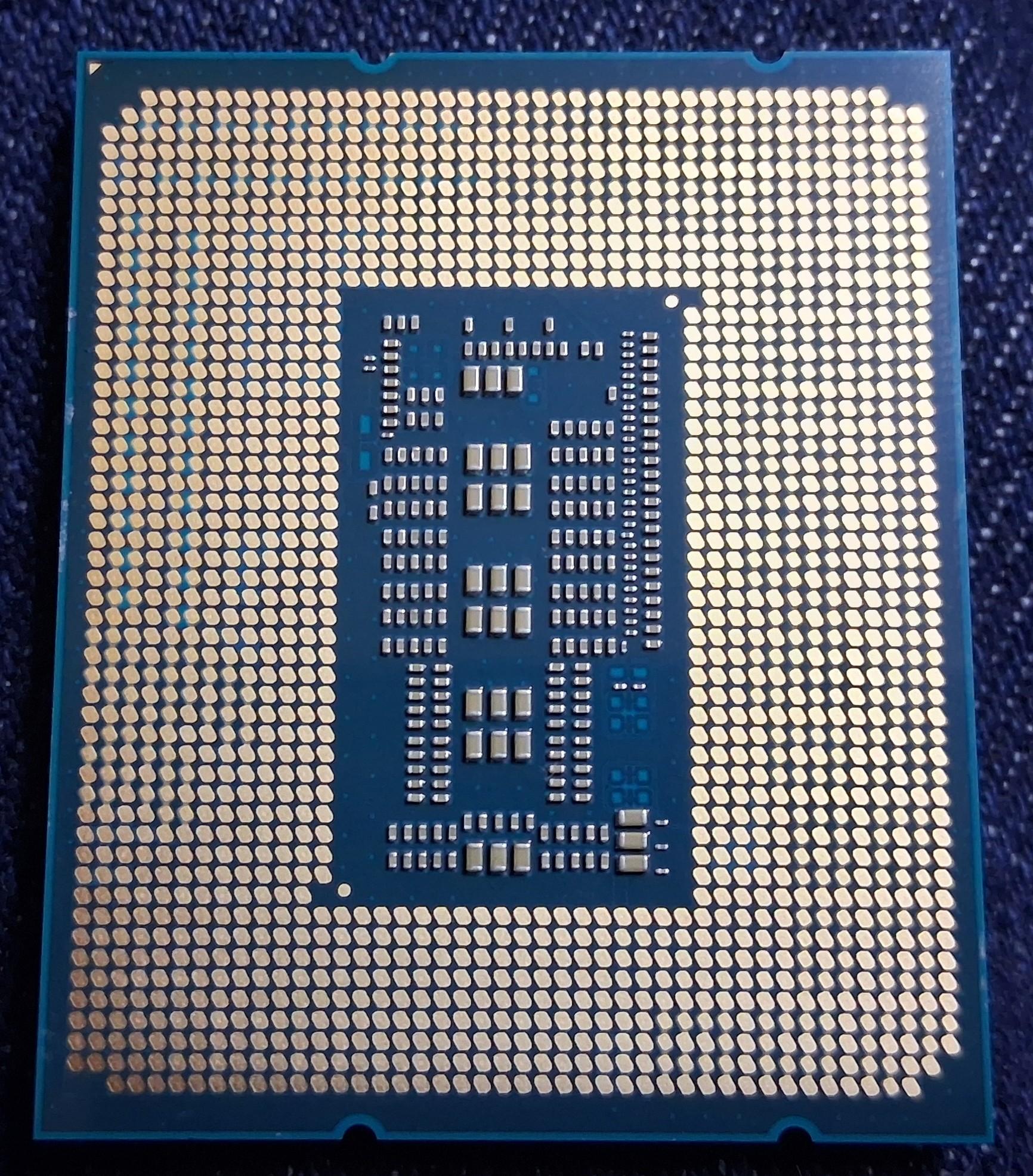

Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020A TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Max Operating Temperature 100 °C
