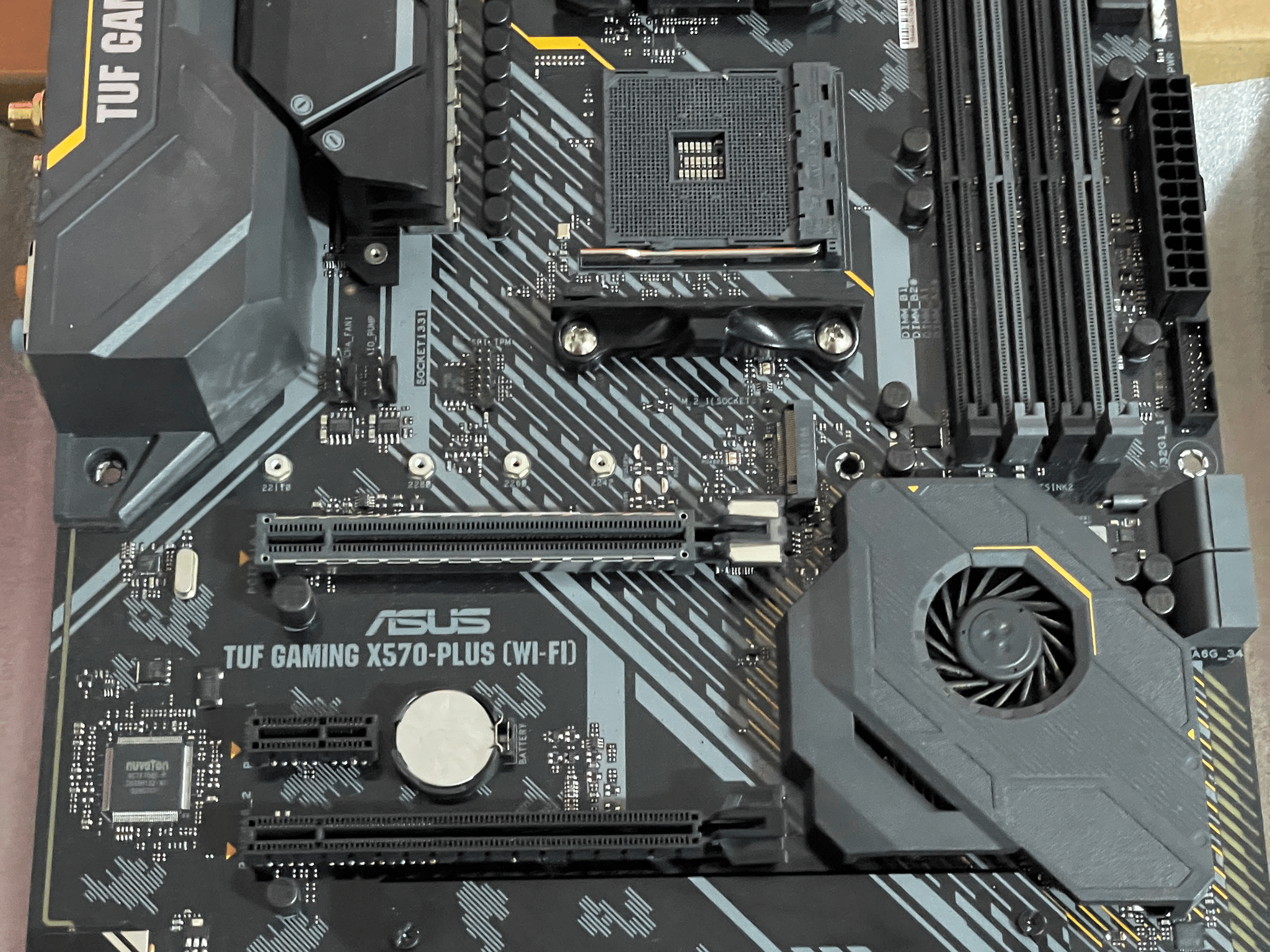

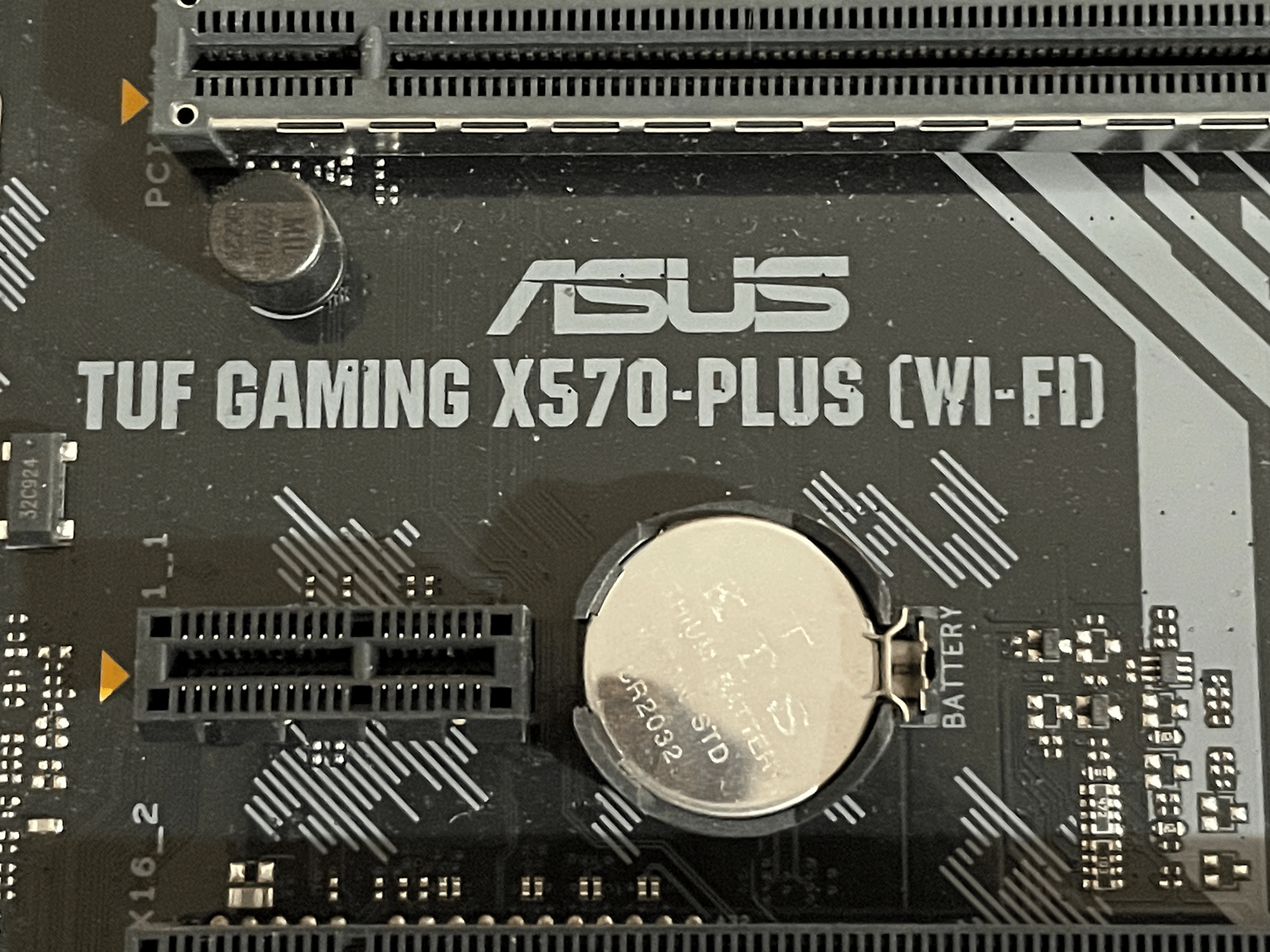

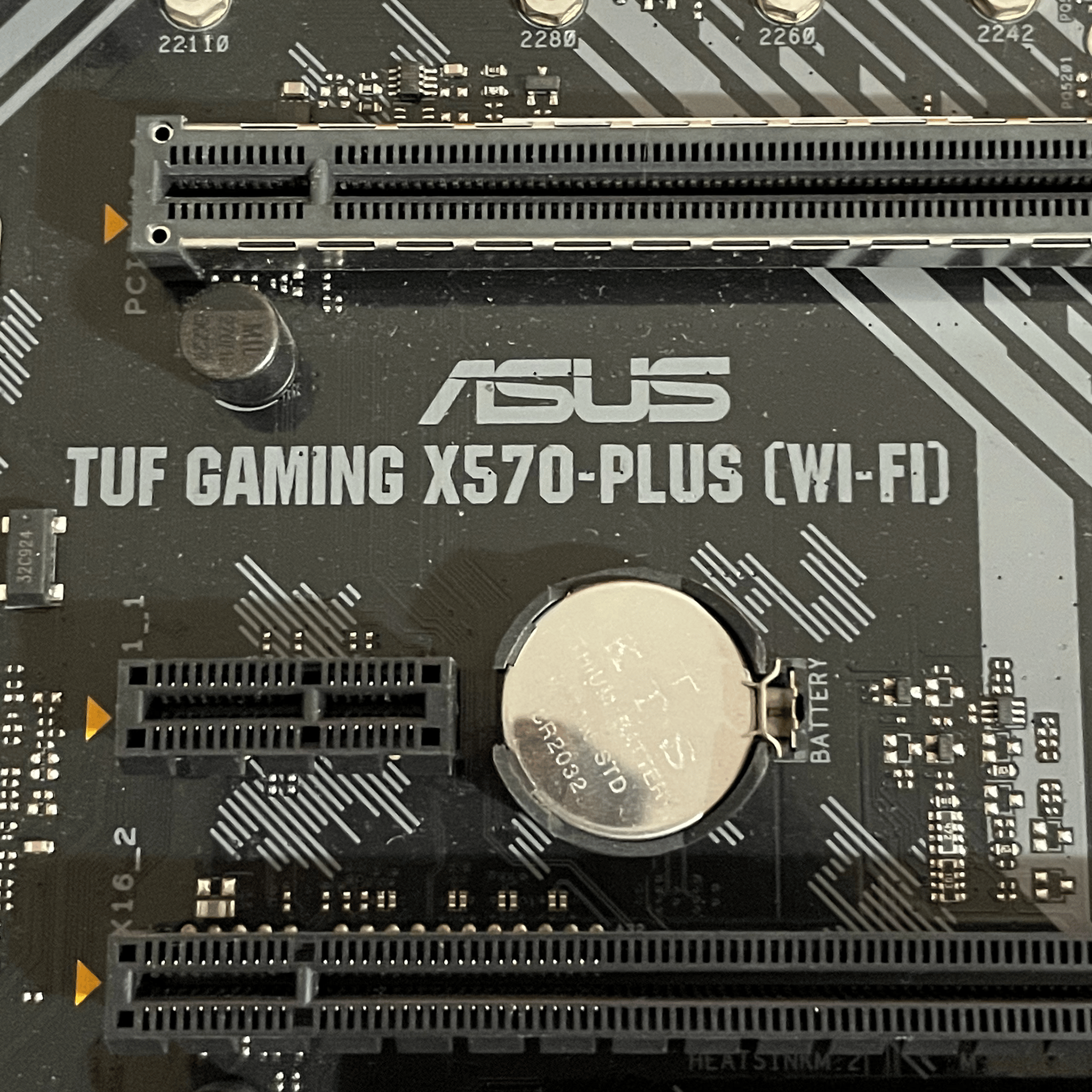

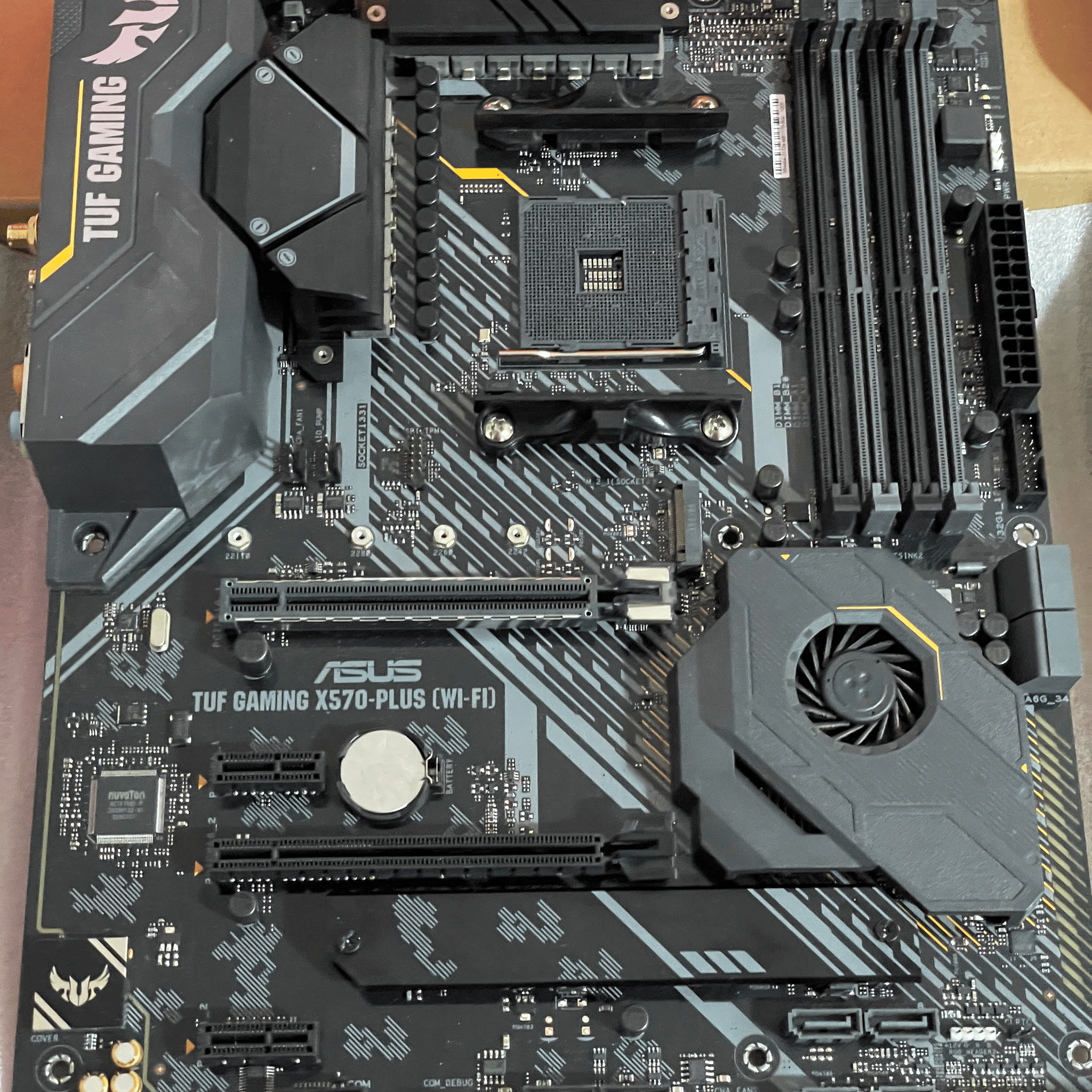

ASUS TUF GAMING X570-PLUS (WI-FI)

Motherboard was pulled from a functioning PC. Unsure of current bios.

AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

Bottom M2 is functional but missing a screw holder

• Onboard LAN: Realtek L8200A
• Max LAN Speed: 10/100/1000Mbps
• Wireless LAN: Intel Wireless-AC 9260
• Wi-Fi: 802.11 a/b/g/n/ac
• Supports dual band frequency 2.4/5 GHz
• Supports MU-MIMO
• Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
• Bluetooth: Bluetooth 5.0

2x M.2

• 3rd Gen AMD Ryzen Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

• 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support

• AMD X570 chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support

Rear Panel Ports

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
• 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)
• ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Internal I/O Connectors

• Onboard USB 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Other Connectors

• 2 x Aura RGB Strip Header(s)
• 1 x Addressable Gen 2 header(s)
• 1 x SPI TPM header
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header

General Disclaimers

• Store of Stuff(The Seller) offers no warranty on any of the included components/Unit(s)

• Product Usage is based on original manufacturer production date(s) where applicable

• Product condition is determined by Store of Stuff(The Seller) and is subjective, best judgment is always used
