HOLIDAY CLEARANCE TILL 1/1/23

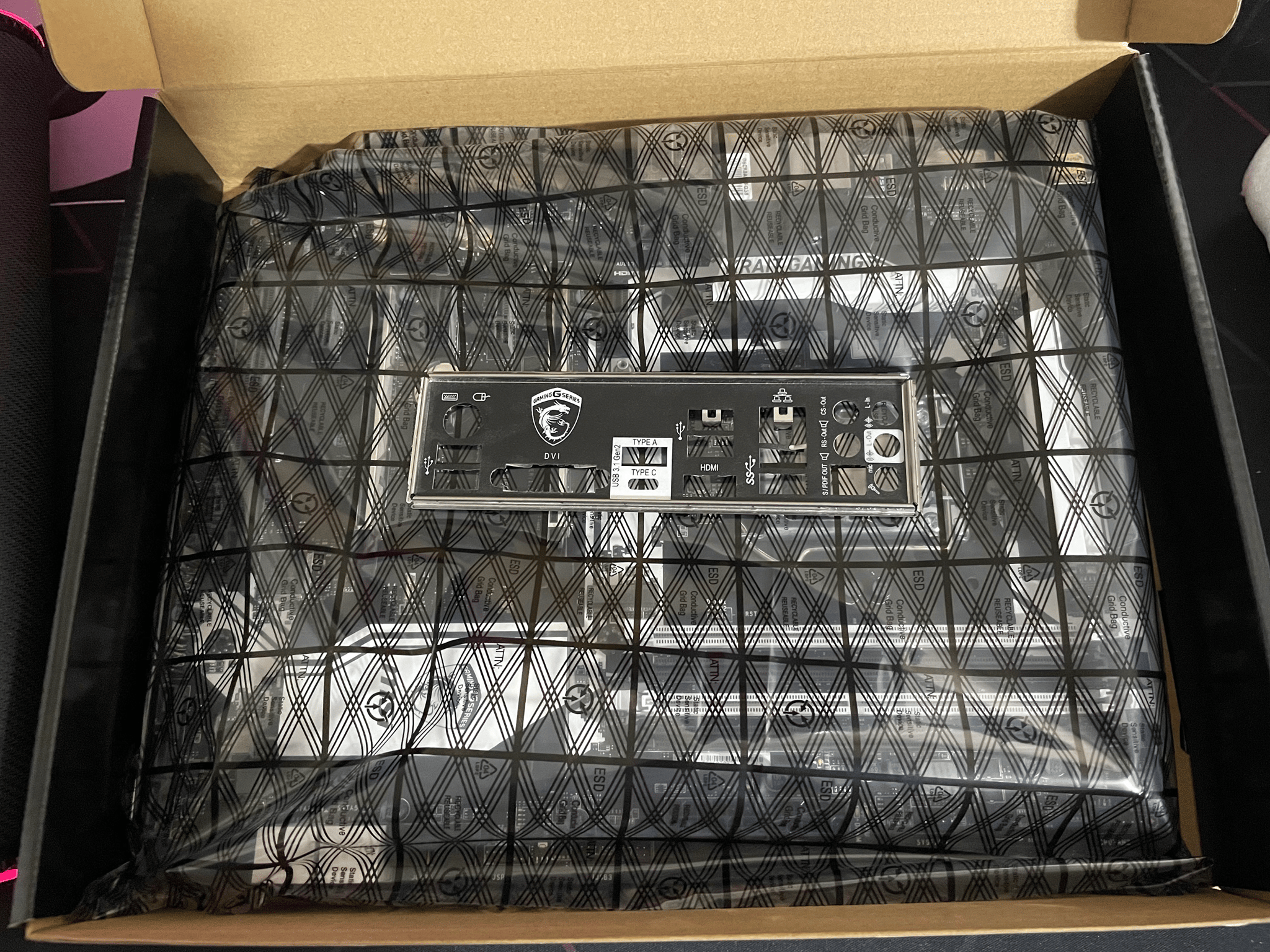

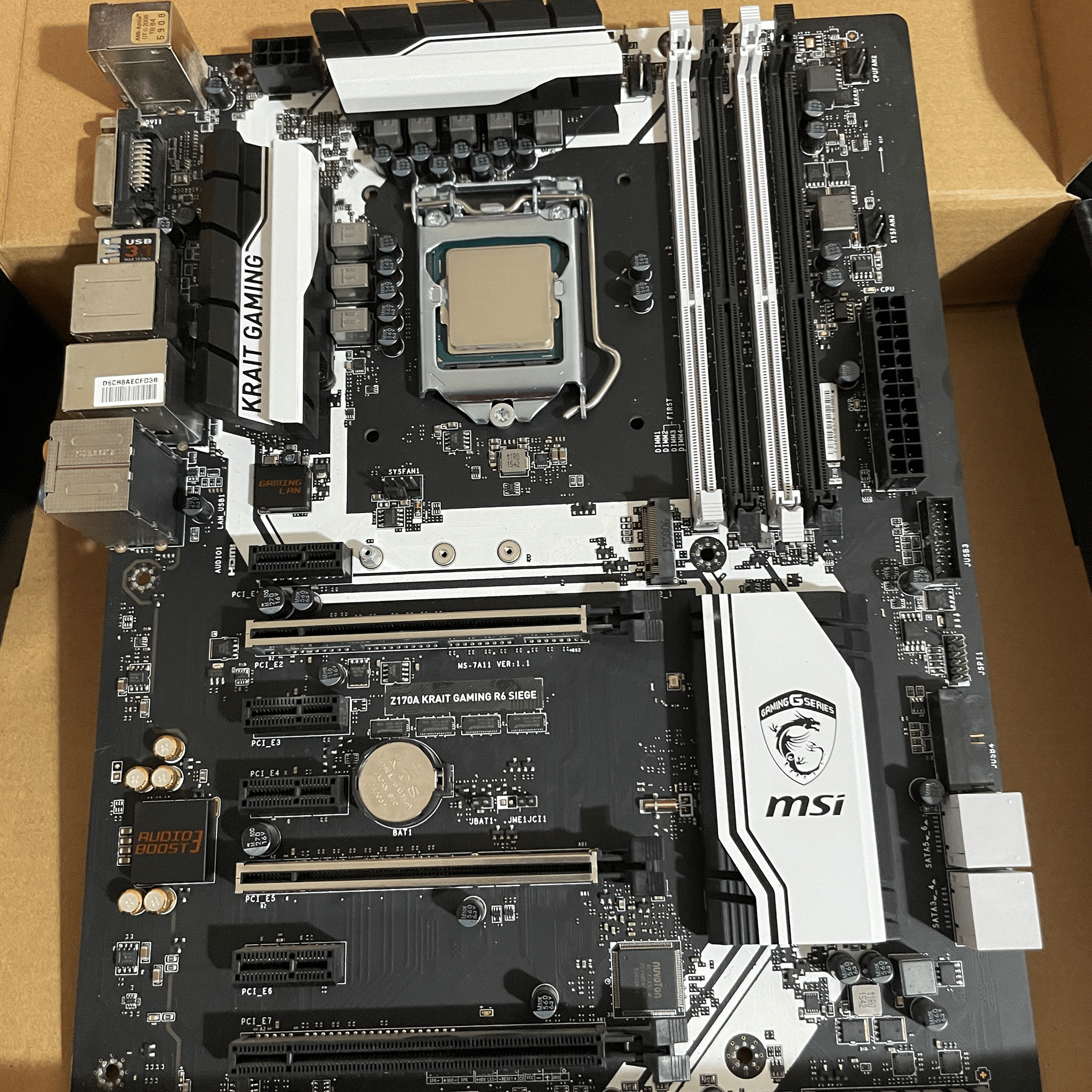

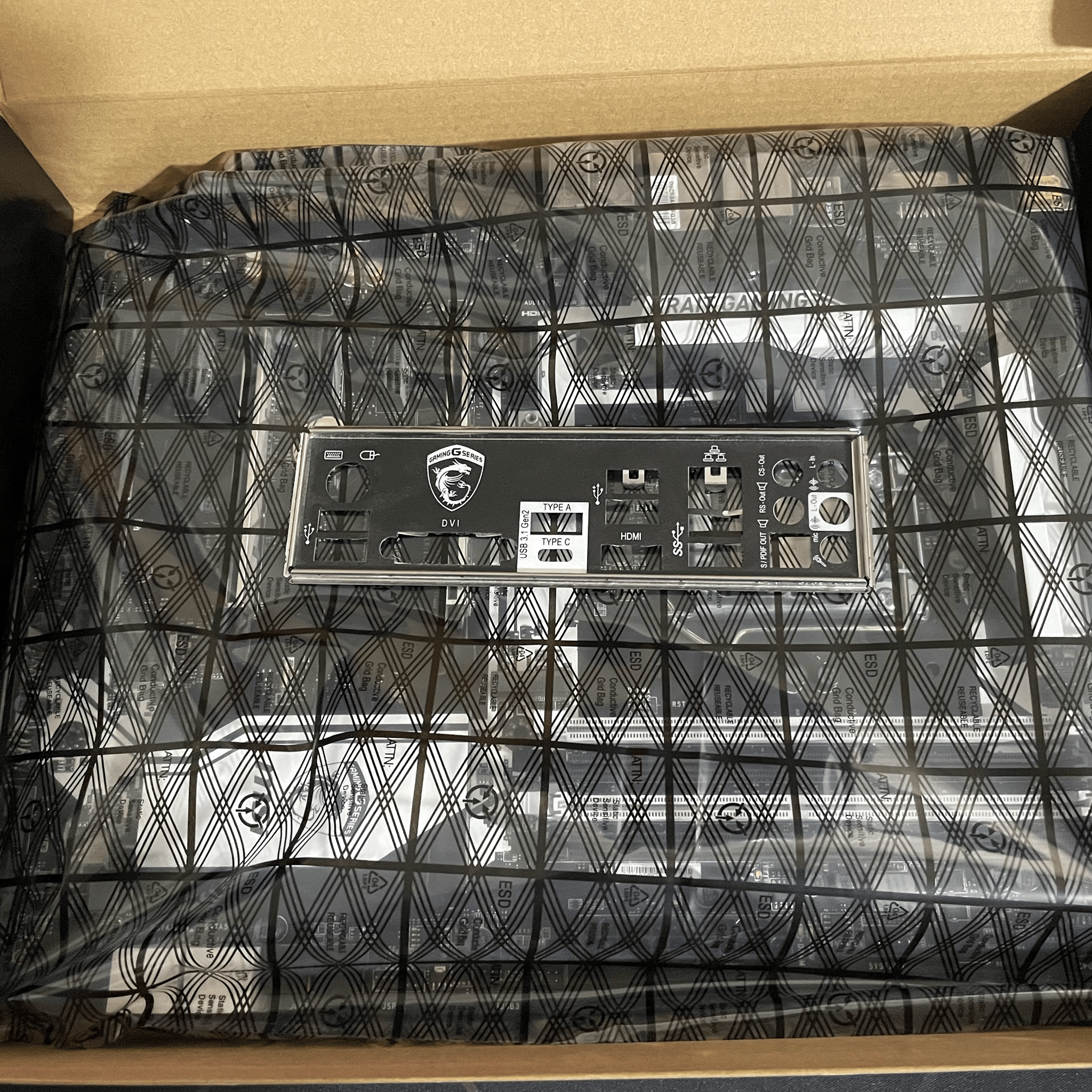

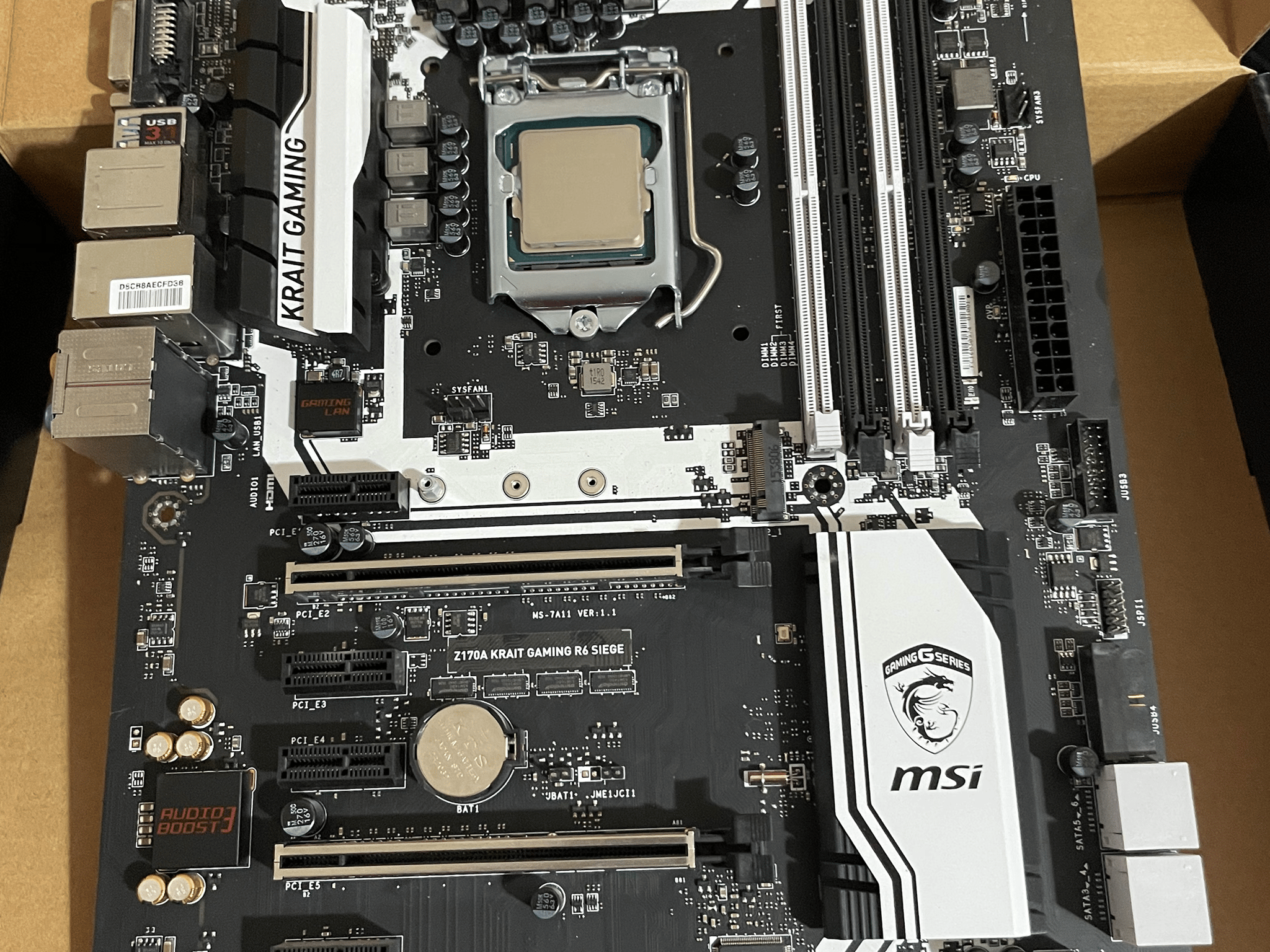

MSI Z170A KRAIT GAMING R6 SIEGE PLUS i5-6600K

Motherboard, and CPU were pulled from a functioning PC.

BIOS WAS UPDATED TO LATEST VERSION

General Specifications/Features/Whats Included

• MOBO: Z170A Krait Gaming R6 Siege
• CPU: Intel i5-6600k

General Specifications/Features for MOBO

• Memory Types: DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133
• Max # of Memory Channels: 2
• Max # of DIMMs: 4
• Integrated Graphics: Yes(From CPU)
• Graphics Output: HDMI
• Discrete Graphics2: PCIe 3.0 x16

I/O Specifications

• 6 x SATA 6Gb/s ports* (2 ports reserved for SATA Express port)
• 1 x SATAe port (PCIe 3.0 x2)

SATAe port is backward compatible with SATA. SATA and SATAe ports maximum support 6x SATAs or 1x SATAe + 4x SATAs.

• 1 x M.2 slot*

Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards

Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card

• SATA5 and SATA6 ports will be unavailable when installing the M.2 module in M.2 slot.*

The Turbo U.2 Host Card is not included, please purchase separately.

• Audio Chipset: Realtek ALC1150
• Audio Channels: 7.1 Channels
• LAN Chipset: Intel I219-V
• PS/2: 1 x PS/2 keyboard/mouse port
• Video Ports: 1 x DVI-D port
• HDMI: 1 x HDMI
• RJ45: 1 x RJ45
• USB 3.1: 1 x USB 3.1 Gen2 port
• 1 x USB 3.1 Gen2 Type-C port
• 2 x USB 3.1 Gen1 ports
• S/PDIF Out: 1 x Optical
• Audio Ports: 5 Ports

Internal I/O Connectors

• Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) Other Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 2 x 4-pin CPU fan connectors

• 3 x 4-pin system fan connectors

• 1 x Front panel audio connector

• 2 x Front panel connectors

• 1 x TPM module connector

• 1 x Chassis Intrusion connector

• 1 x Clear CMOS jumper

• 1 x TBT connector

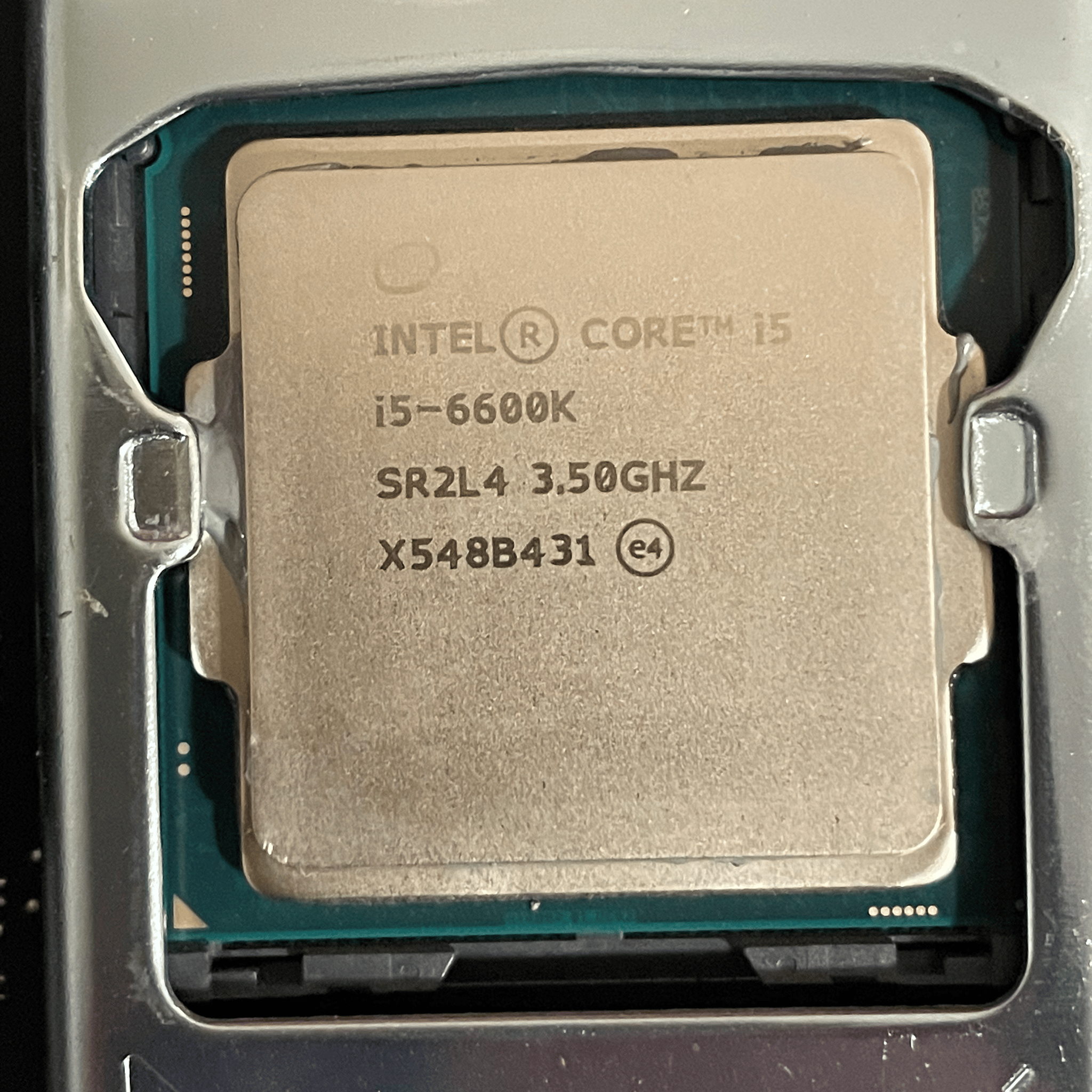

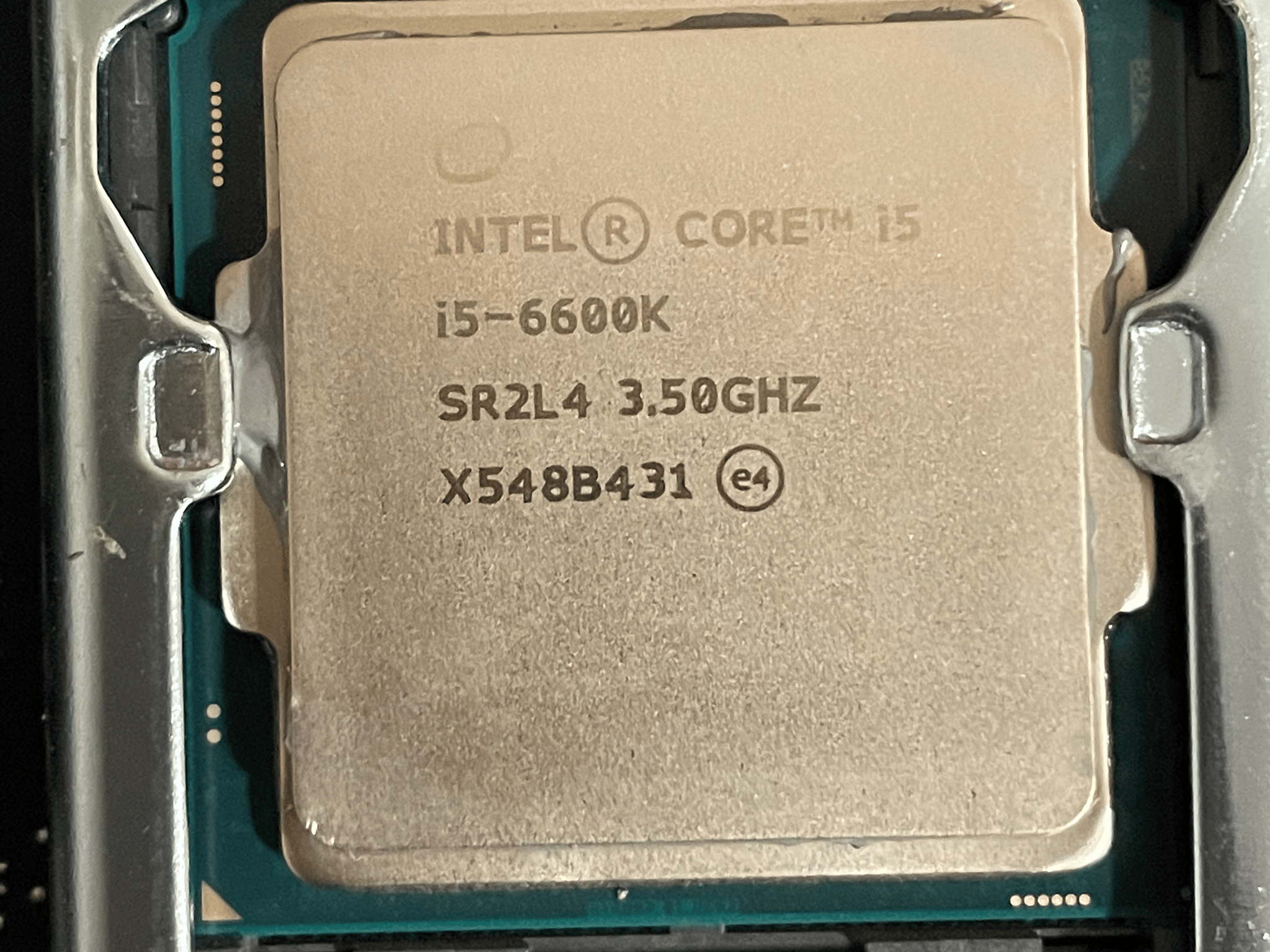

General Specifications/Features for CPU

• Cores: 4
• Threads: 4
• Max. Boost Clock Up to: 3.9GHz
• Base Clock: 3.5GHz
• Cache: 6MB
• Default TDP: 91W
• Unlocked for Overclocking: Yes
• Socket: LGA1151
• Launch Date: 2015
• PCI Express® Version PCIe: 3.0 16x
• System Memory Type: DDR4
• Memory Channels: 2
• Integrated Graphics: Yes
• Discrete Graphics Card Required: No

CPU WILL NOT COME WITH A CPU THERMAL SOLUTION

Got Questions? Let me know in the Official Jawa Discord or through site messaging!

General Disclaimers

• Store of Stuff(The Seller) offers no warranty on any of the included components/Unit(s)

• Product Usage is based on original manufacturer production date(s) where applicable

• Product condition is determined by Store of Stuff(The Seller) and is subjective, best judgment is always used
