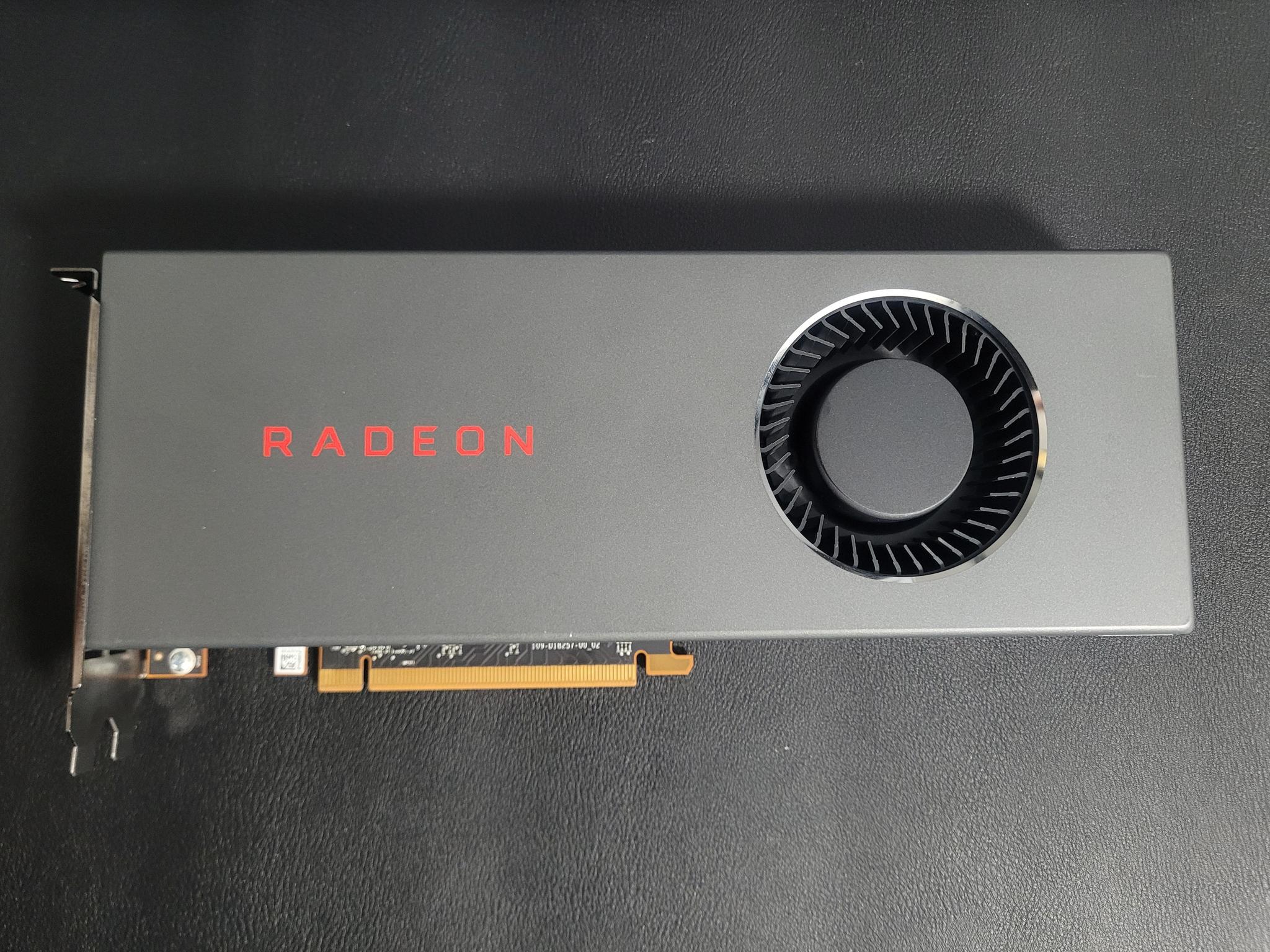

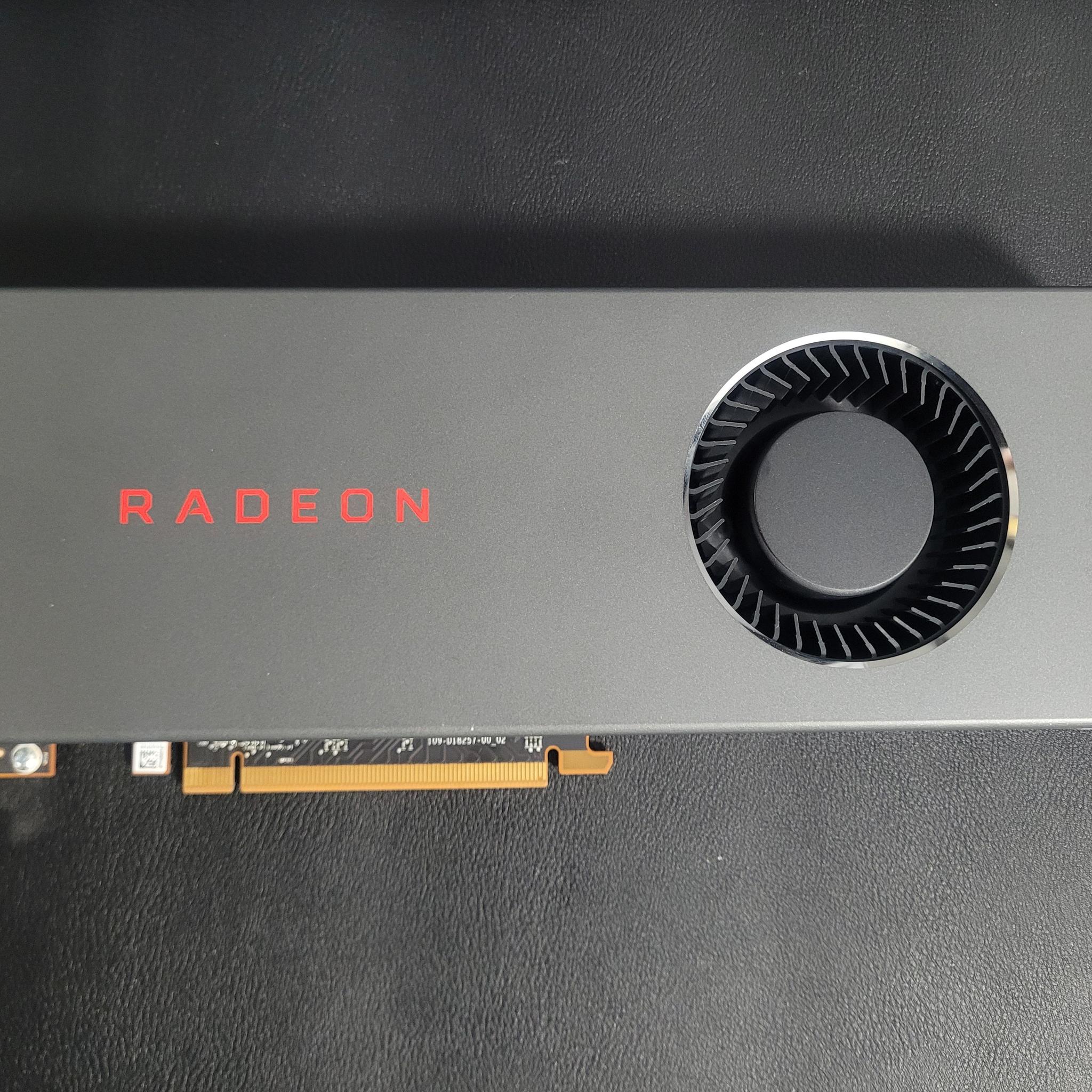

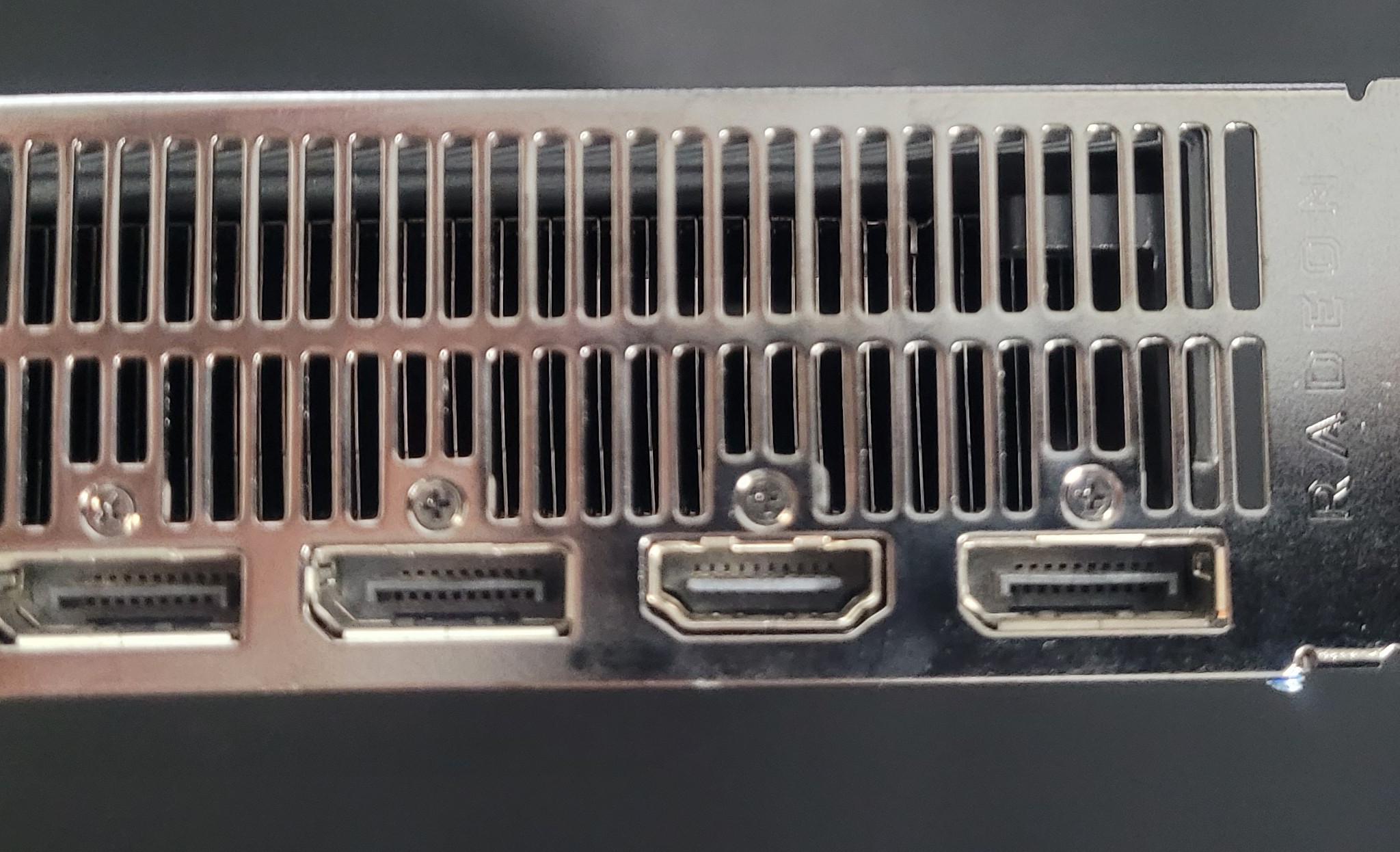

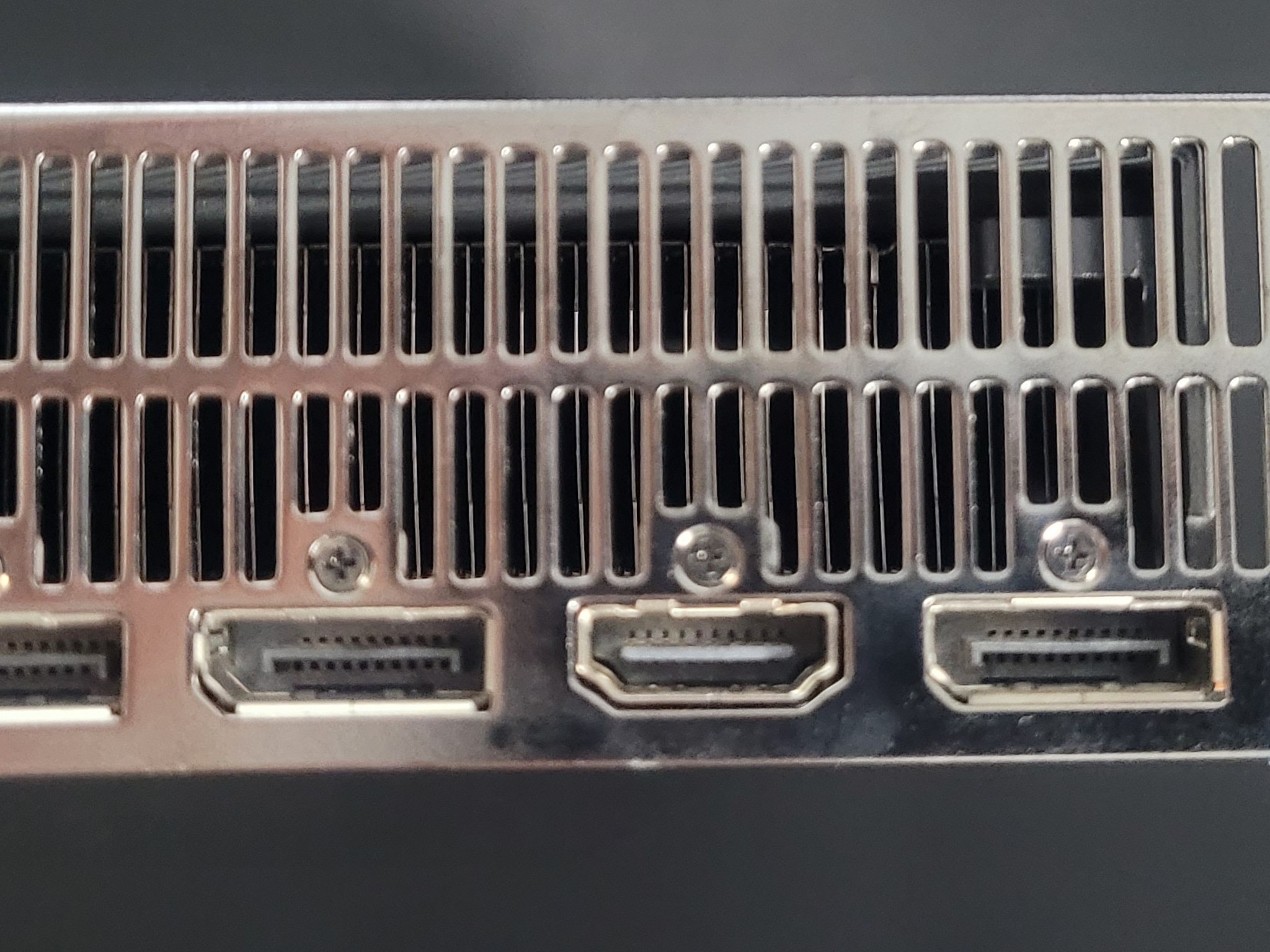

The Radeon RX 5700 was a performance-segment graphics card by AMD, launched on July 7th, 2019. Built on the 7 nm process, and based on the Navi 10 graphics processor, in its Navi 10 XL variant, the card supports DirectX 12. This ensures that all modern games will run on Radeon RX 5700. The Navi 10 graphics processor is an average sized chip with a die area of 251 mm² and 10,300 million transistors. Unlike the fully unlocked Radeon RX 5700 XT, which uses the same GPU but has all 2560 shaders enabled, AMD has disabled some shading units on the Radeon RX 5700 to reach the product's target shader count. It features 2304 shading units, 144 texture mapping units, and 64 ROPs. AMD has paired 8 GB GDDR6 memory with the Radeon RX 5700, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1465 MHz, which can be boosted up to 1725 MHz, memory is running at 1750 MHz (14 Gbps effective). Being a dual-slot card, the AMD Radeon RX 5700 draws power from 1x 6-pin + 1x 8-pin power connector, with power draw rated at 180 W maximum. Display outputs include: 1x HDMI 2.0b, 3x DisplayPort 1.4a. Radeon RX 5700 is connected to the rest of the system using a PCI-Express 4.0 x16 interface. The card's dimensions are 268 mm x 111 mm x 36 mm, and it features a dual-slot cooling solution.
