Overview & Specs

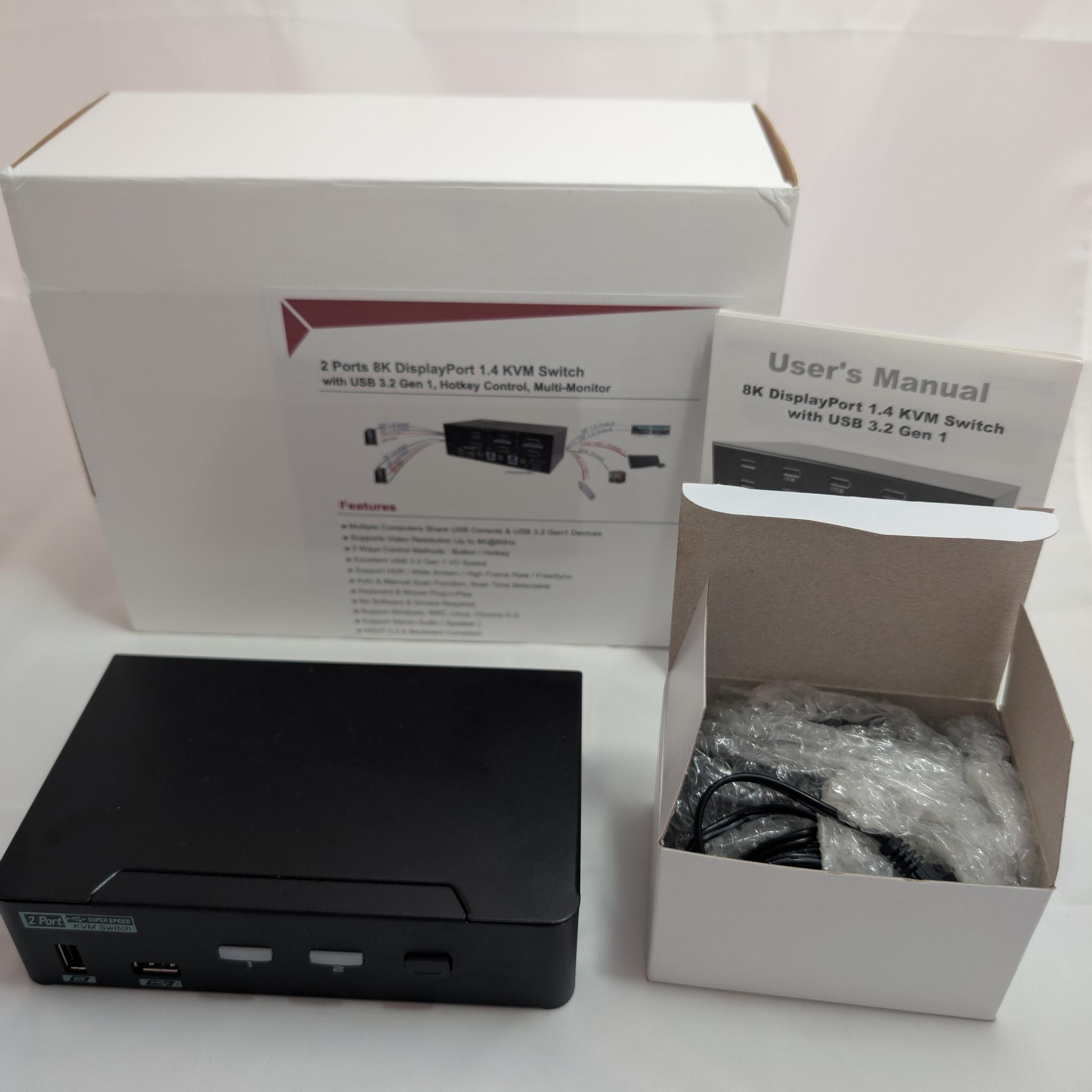

Level1Techs KVM switch for using two computers on a single DisplayPort monitor, USB keyboard, and USB mouse. Works great, better than any other KVM I tried. Includes original box, instructions, and power cable. Note: You will need at least two USB-A to USB-B cables and two DisplayPort cables beyond a normal PC setup.

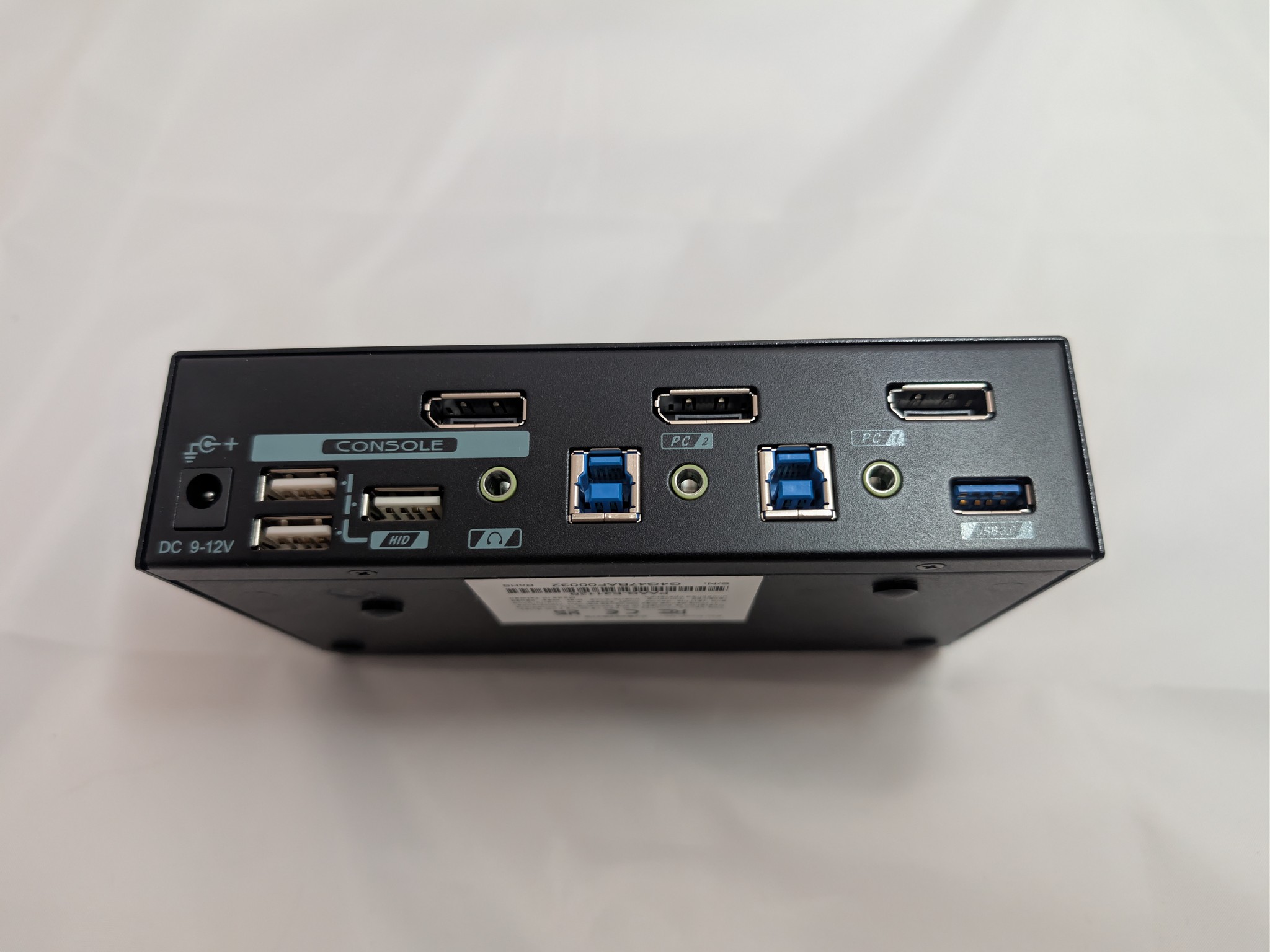

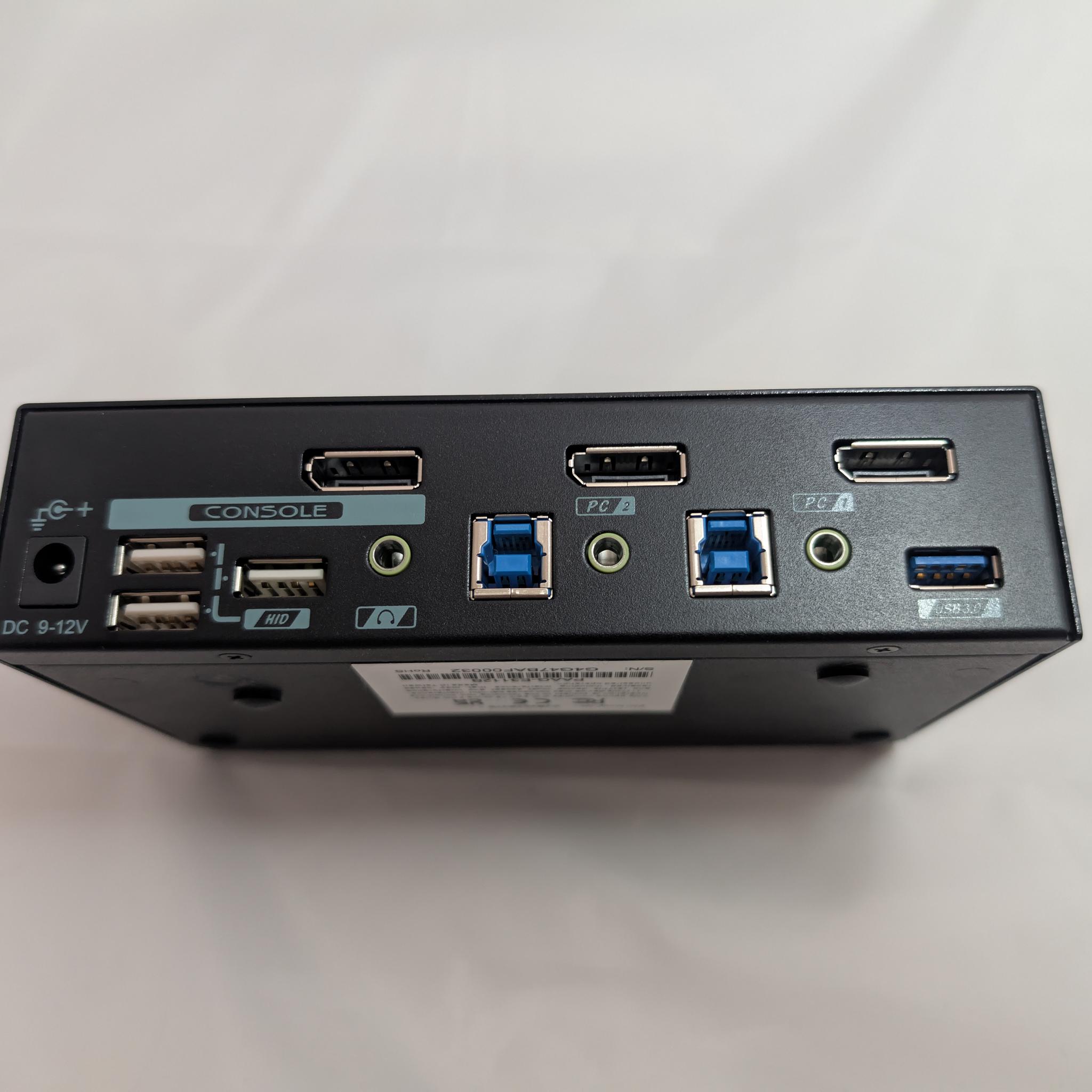

Rear Inputs:
- 2x 3.5mm Audio (may need a ground loop isolator)
- 2x DisplayPort 1.4
- 2x USB 3.0 "B" type (USB 3 5gbps, or USB 3.2 gen 1)
Rear Outputs:
- 1x DisplayPort 1.4
- 3x USB 2.0 Ports
- 1x USB 3.0 (USB 3 5gbps, or USB 3.2 gen 1)
- 1x Analog 3.5mm audio

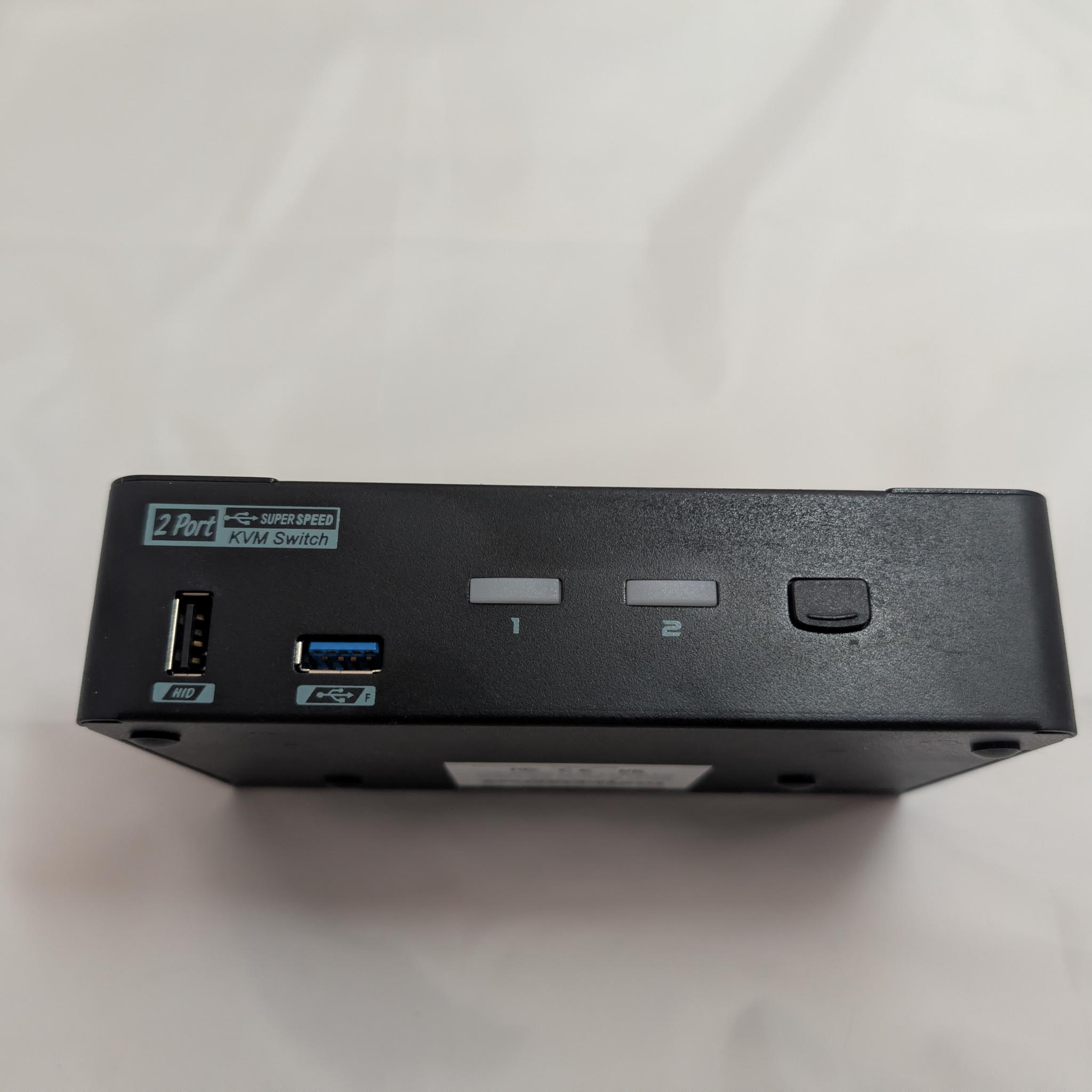

Front:
- Push button for switching Inputs
- 1x USB 2.0 HID port
- 1x USB 3.0 "A" type (USB 3 5gbps, or USB 3.2 gen 1) ports (up to 1A current)
Dimensions: 6.25"w x 4"d x 1.5"h (15.9 x 10.2 x 3.8 cm)
Shipping & Returns
Level1Techs DisplayPort KVM Switch, Single Monitor, Two Computer, USB 3.2 Gen 1
Overview & Specs
Level1Techs KVM switch for using two computers on a single DisplayPort monitor, USB keyboard, and USB mouse. Works great, better than any other KVM I tried. Includes original box, instructions, and power cable. Note: You will need at least two USB-A to USB-B cables and two DisplayPort cables beyond a normal PC setup.
Rear Inputs:
- 2x 3.5mm Audio (may need a ground loop isolator)
- 2x DisplayPort 1.4
- 2x USB 3.0 "B" type (USB 3 5gbps, or USB 3.2 gen 1)
Rear Outputs:
- 1x DisplayPort 1.4
- 3x USB 2.0 Ports
- 1x USB 3.0 (USB 3 5gbps, or USB 3.2 gen 1)
- 1x Analog 3.5mm audio
Front:
- Push button for switching Inputs
- 1x USB 2.0 HID port
- 1x USB 3.0 "A" type (USB 3 5gbps, or USB 3.2 gen 1) ports (up to 1A current)
Dimensions: 6.25"w x 4"d x 1.5"h (15.9 x 10.2 x 3.8 cm)
