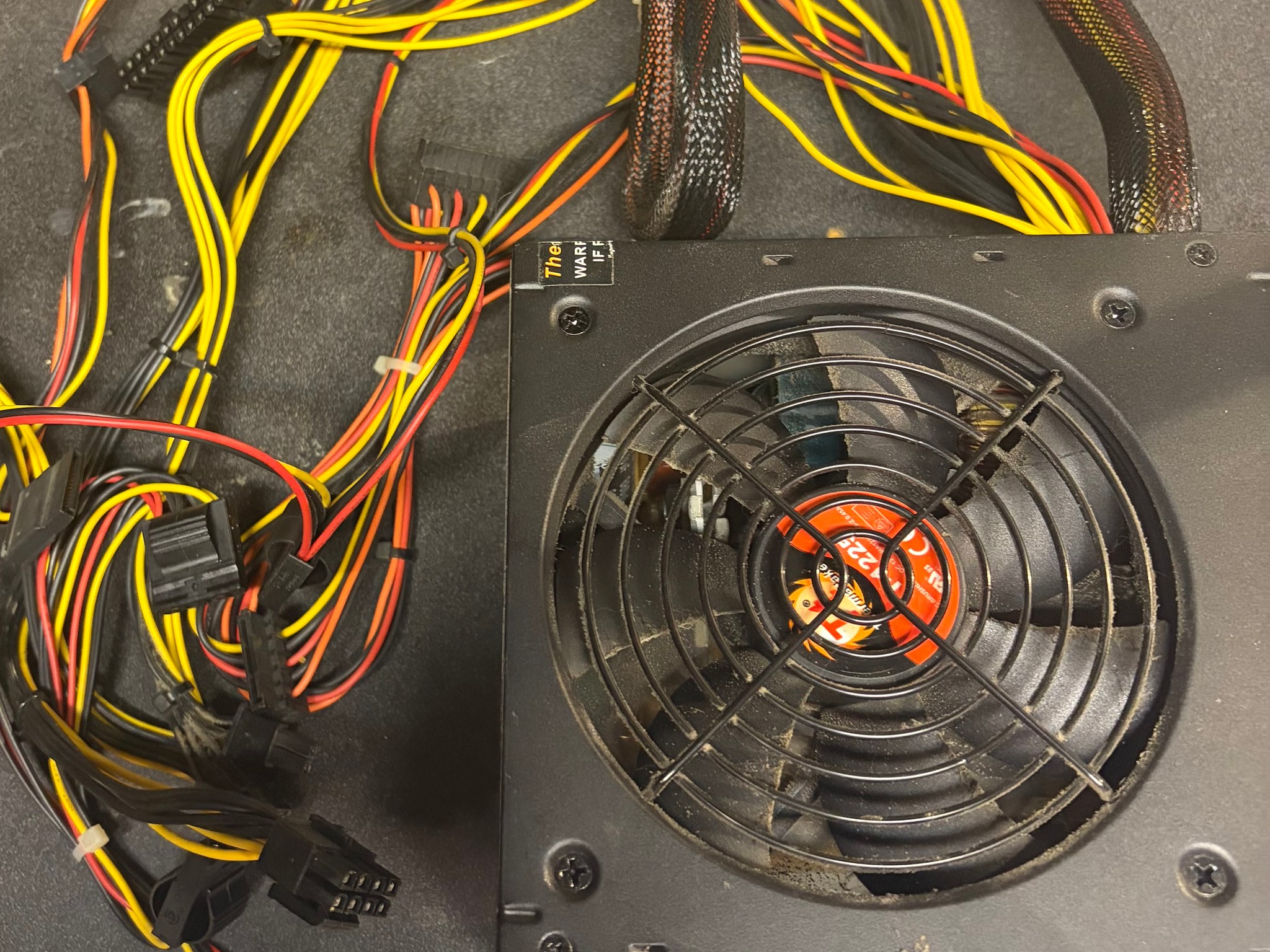

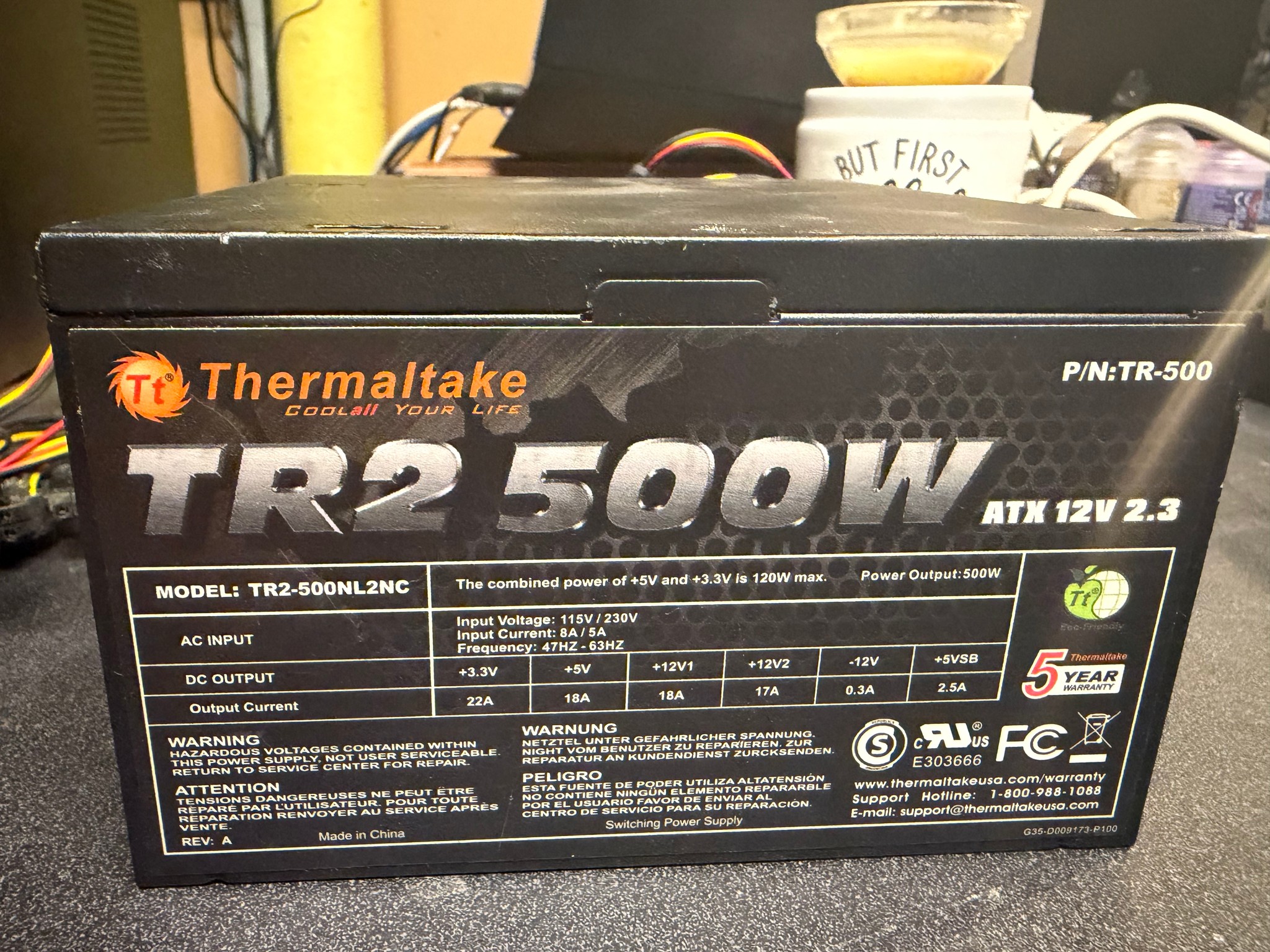

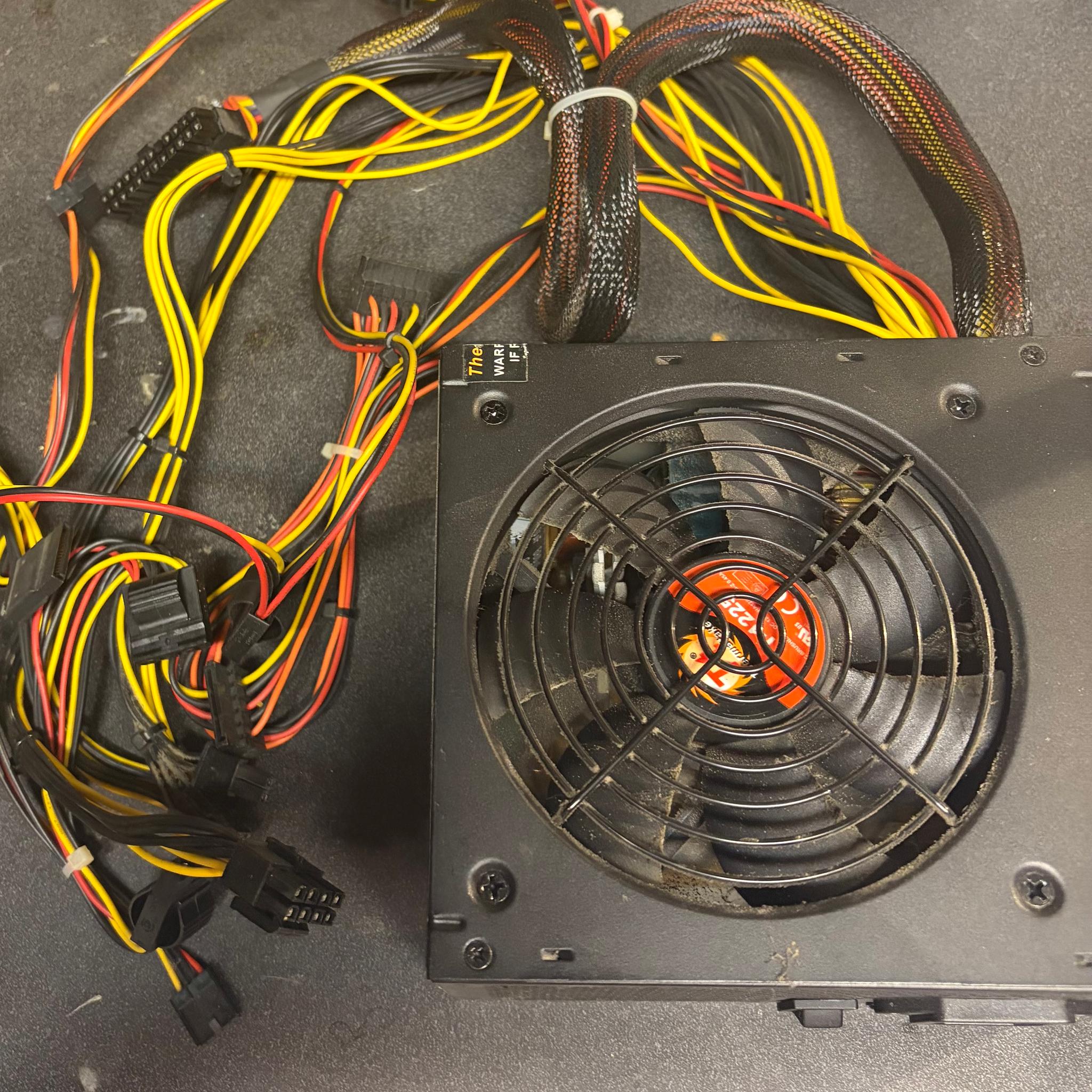

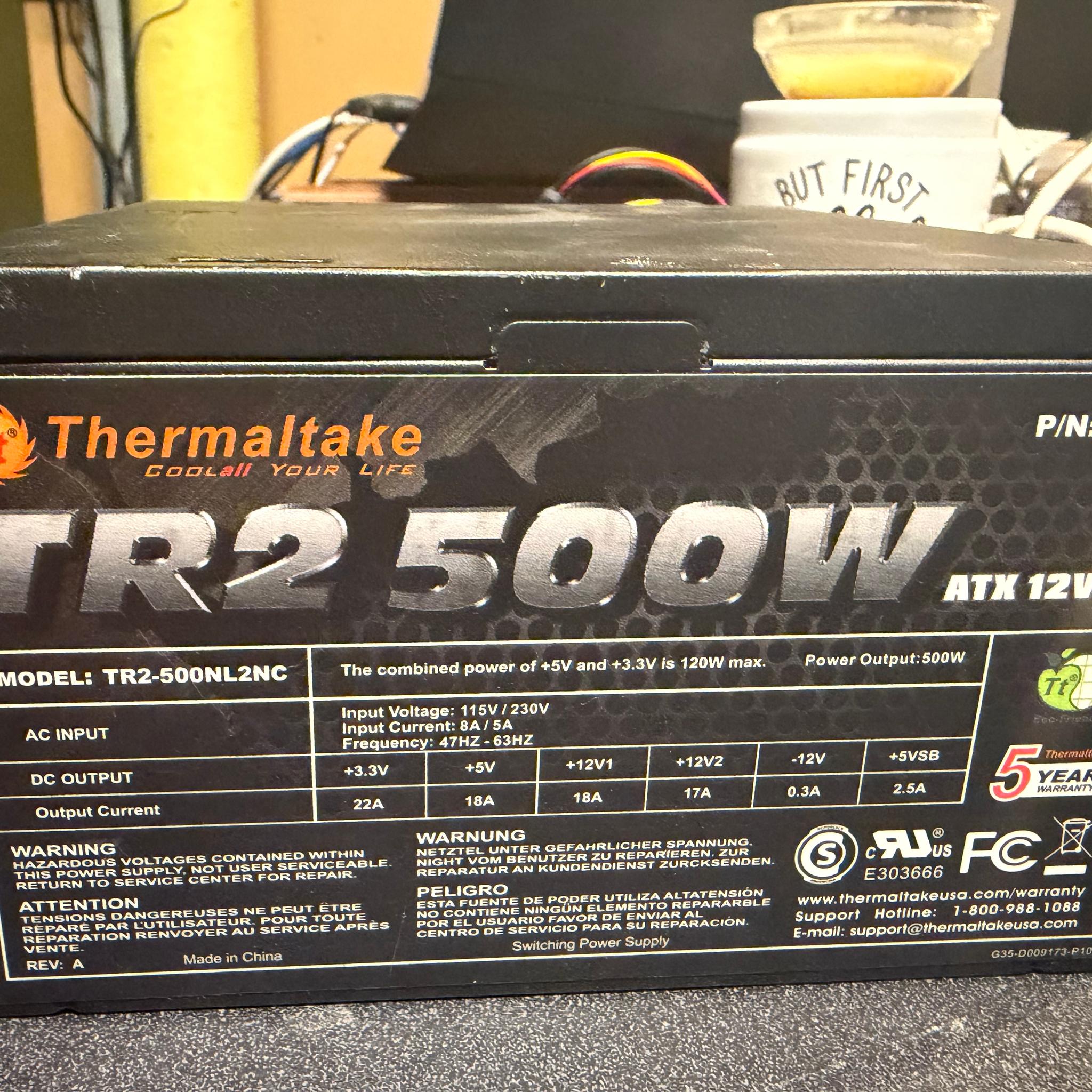

TR2 500W (US)

• Cable Management Optimized – Elongated cables enable enthusiasts and power users to properly route the cables in optimal location to prevent airflow blockage. Significantly improving computer system’s overall thermal efficiency, as well as the aesthetic.
• Intelligent 120mm Cooling Fan – Large 120mm cooling fan with intelligent temperature control automatically throttles the fan speed so you get added cooling while working on intensive application or gaming and whisper quiet operation when you need it.
• Designed With Powerful Graphic Card Support in Mind – So you want to play the latest game title in ultra-realistic settings? Dual 12V rails with plenty of juice to spare supports any graphic card (NVIDIA or AMD).
• Peace of Mind Warranty – All Thermaltake power supplies, not just the premium models, carry industry’s most trusted 5 Years Warranty.
• “Bullet-Proof” Protections – Good power supplies deliver stable and clean power. Great power supplies goes one step further to include industrial-grade power protections such as Over-Voltage Protection, Over Power Protection and Short-Circuit Protection to expect for the unexpected.
• ATX 12V V2.3 enables most reliable and robust power delivery.
• High-Quality components and dual 12V rails design enable non-stop usage with stable and reliable performance.
• Ready for next-generation multi-core Intel® & AMD CPU.
• Supports Nvidia® & ATI/AMD graphic cards.
• Dimension: 150mm(W)x86mm(H)x140mm(D).
• High reliability: MTBF>100,000 hours.
• Safety / EMI Approvals: UL/CUL/FCC

Connector Type Connectors & Cable length

20+4pin---1 x 20+4pin Main connector (600mm)

EPS/ ATX 12V 4+4pin--1 x EPS/ATX 12V 4+4pin connector (600mm) SATA

3 x S-ATA connectors (500mm + 150mm + 150mm) 3 x S-ATA connectors (500mm + 150mm + 150mm)

PCI-E 6+2pin + PCI-E 6pin--1 x 6+2pin PCI-E connector (500mm)+1 x 6pin PCI-E connector(150mm)

Molex & FDD-- 4 x Peripheral & 1 x FDD connectors (500mm + 150mm + 150mm + 150mm + 150mm
