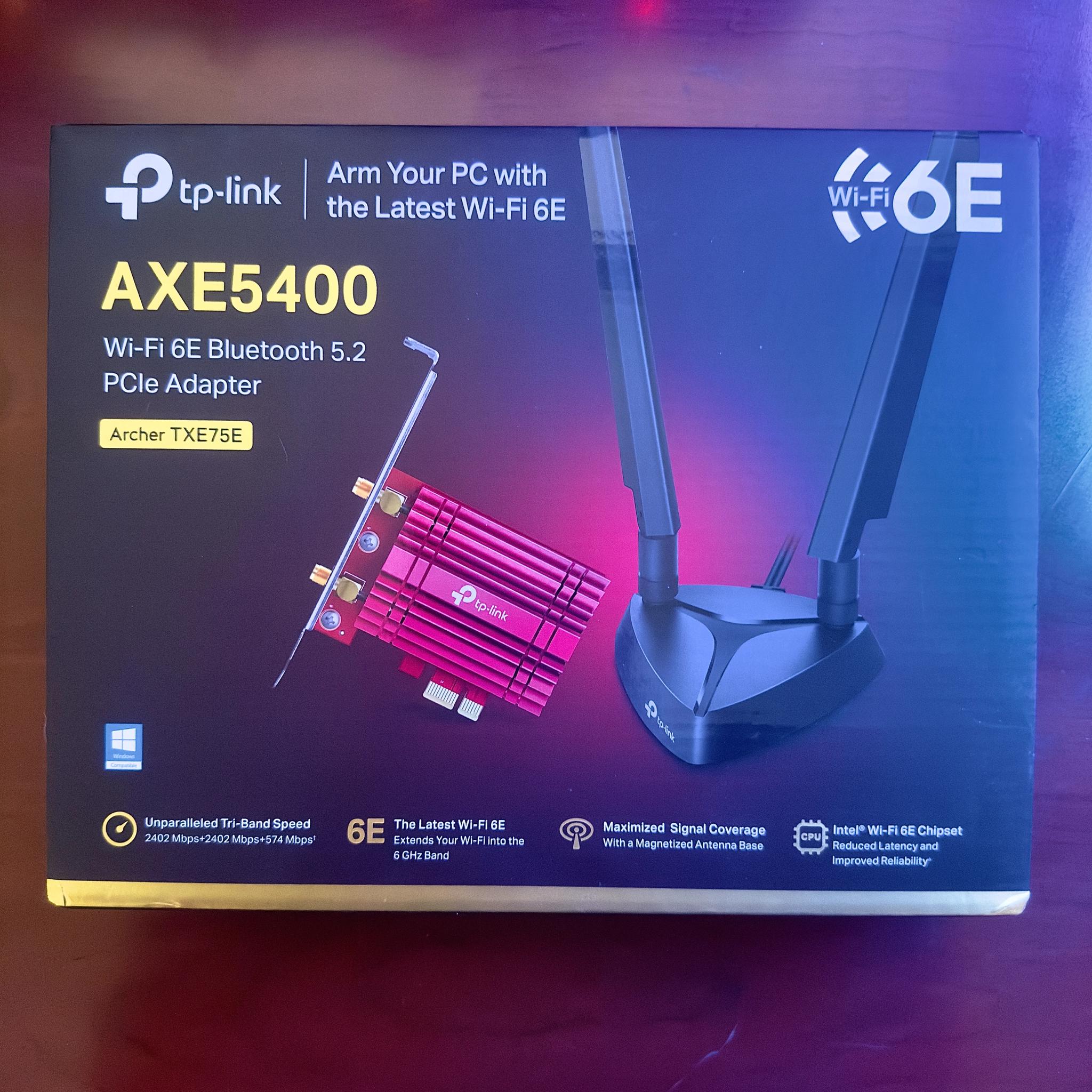

AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

 -Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
 -WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds
 -Reliable Connections — Wi-Fi 6E chipset’s reduced latency and improved reliability unlocks your Wi-Fi 6E router’s full potential

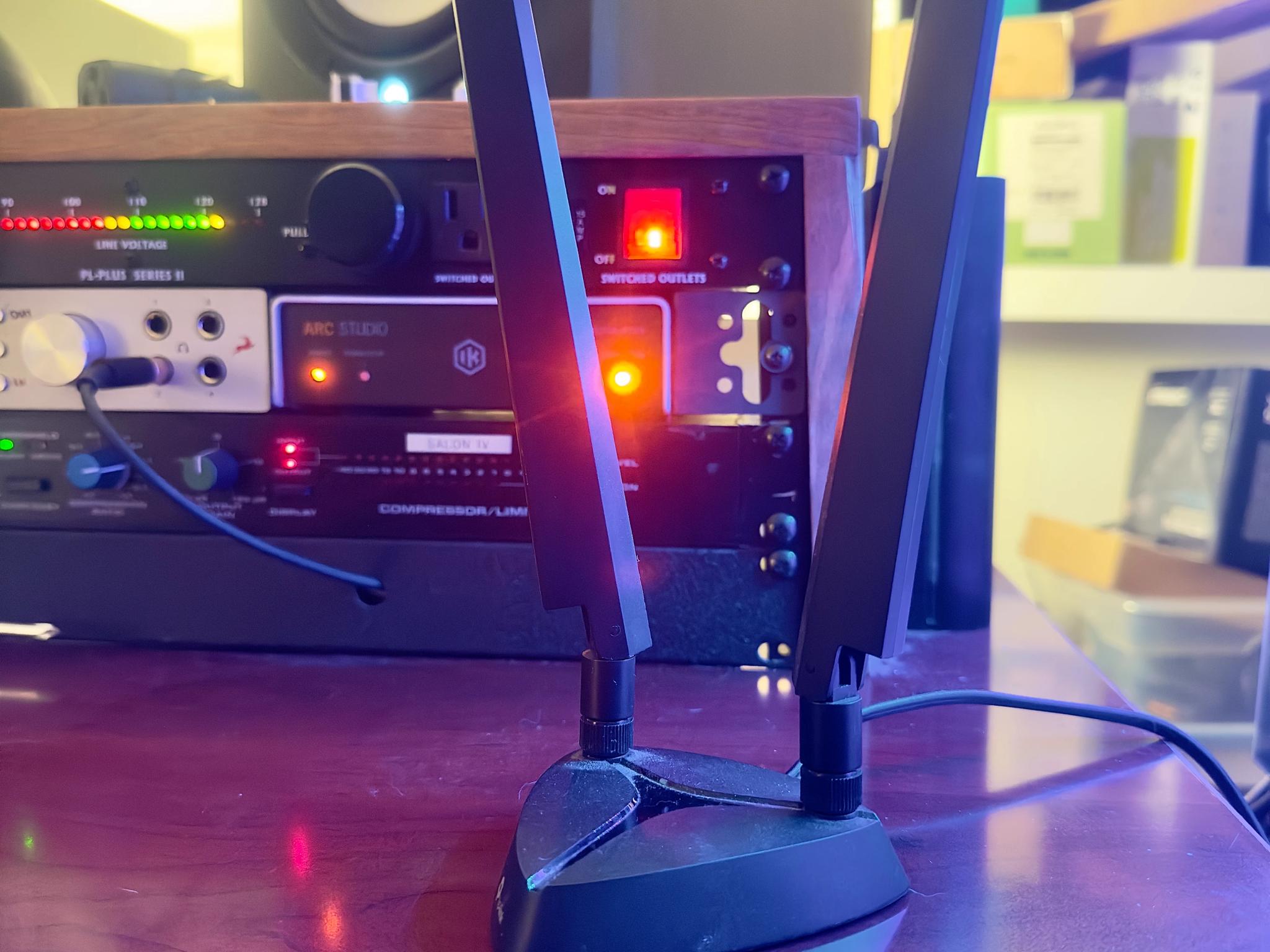

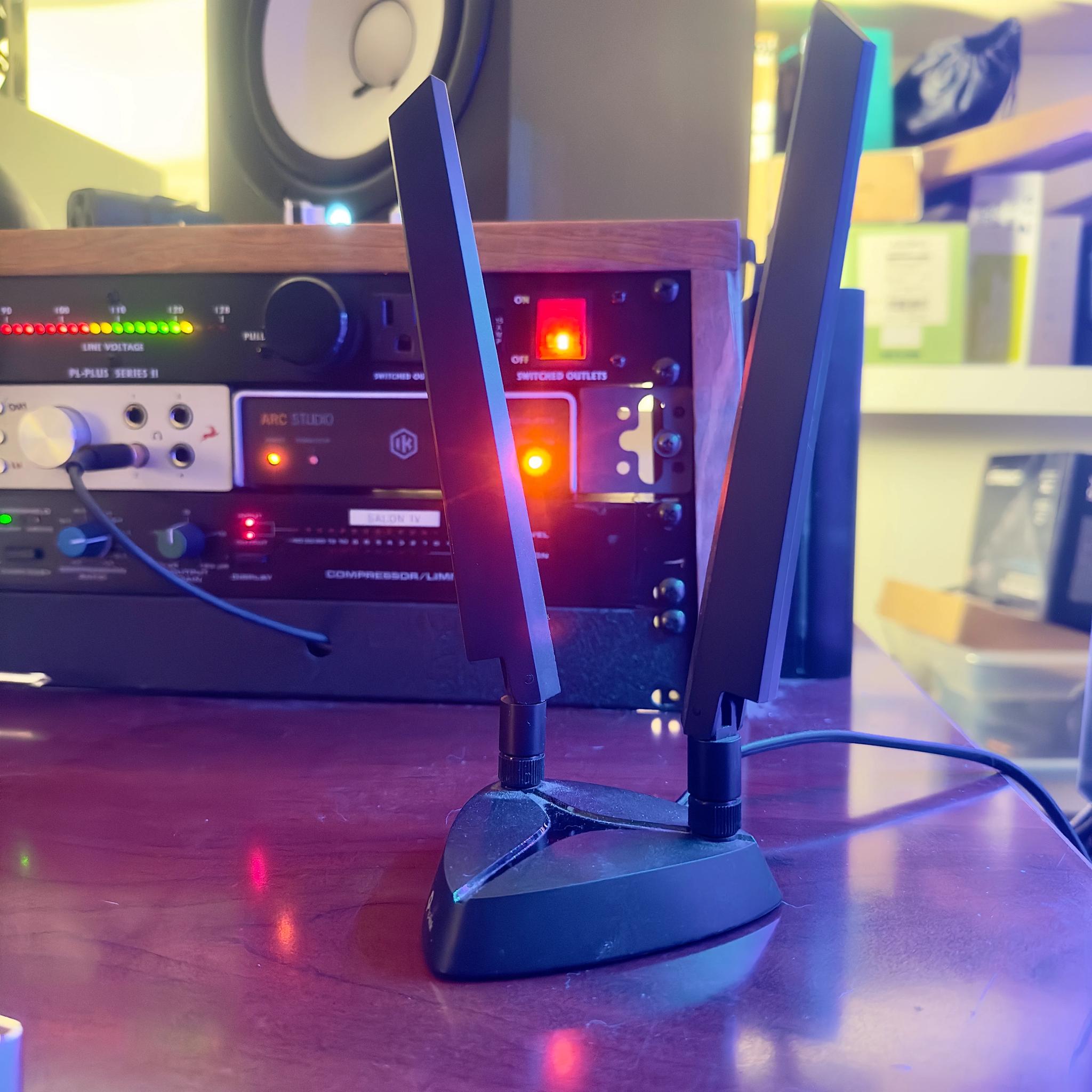

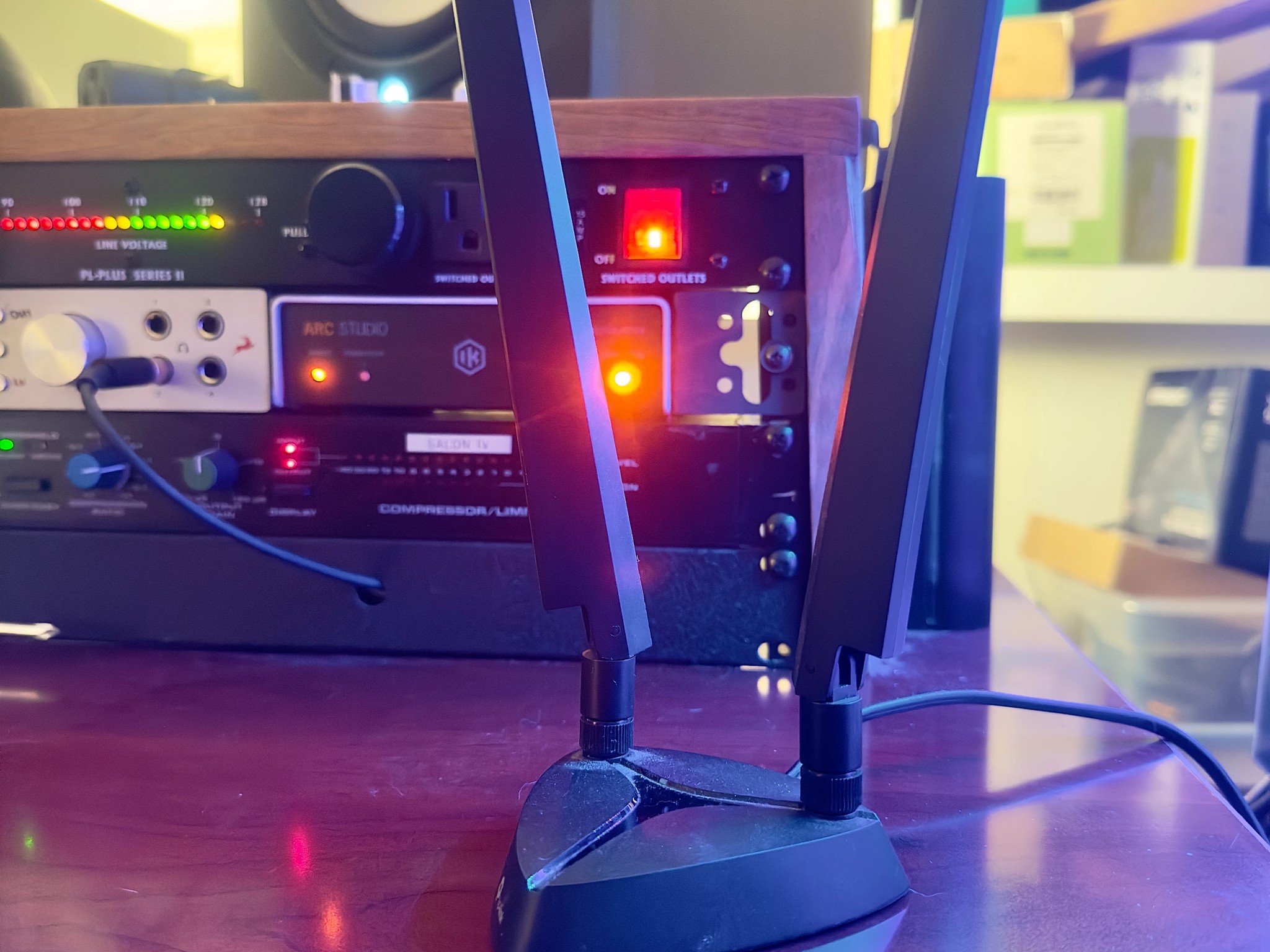

 -Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception
 -Bluetooth 5.2 — The latest Bluetooth technology achieves faster speeds and broader coverage
 -Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety

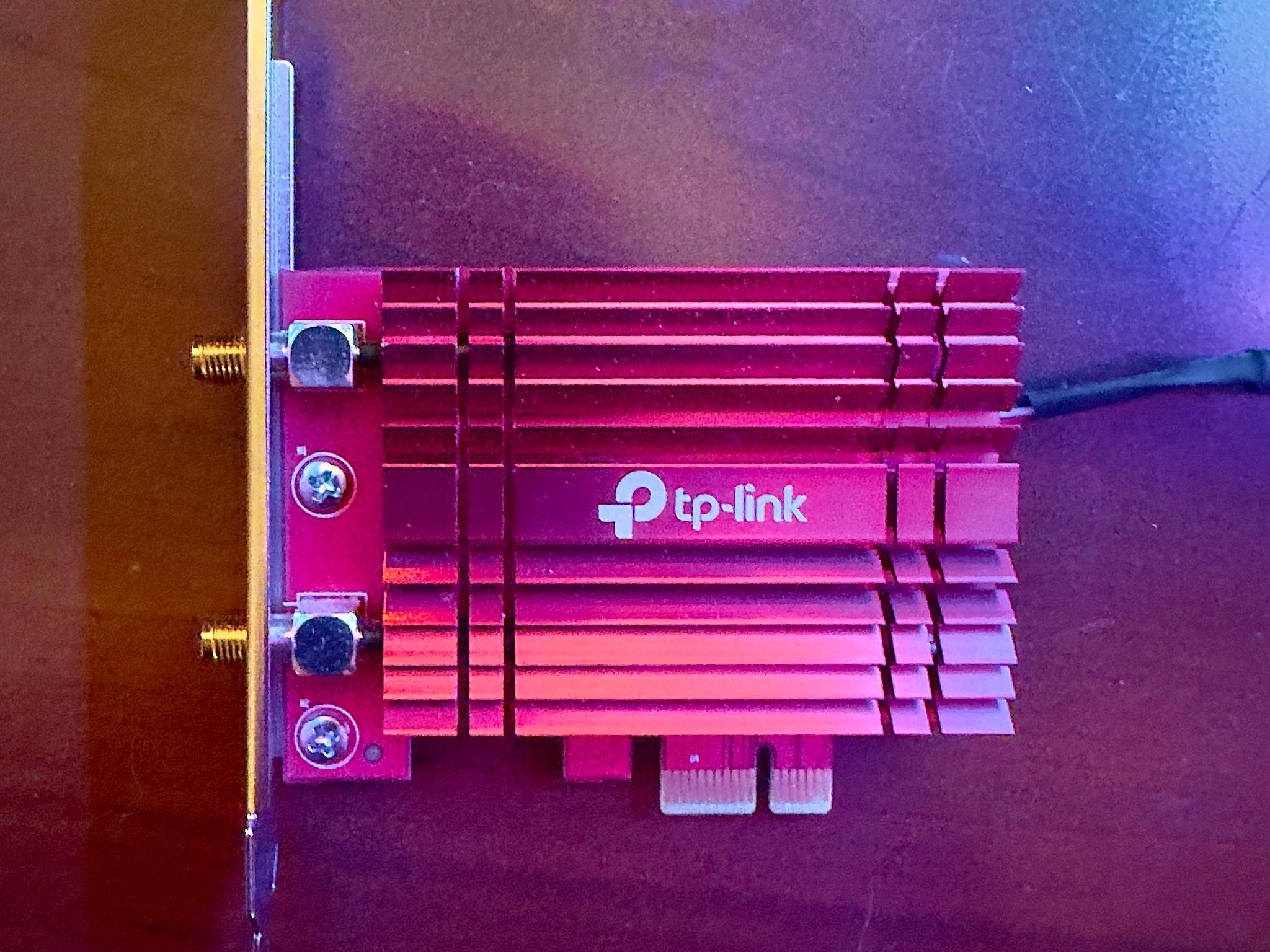

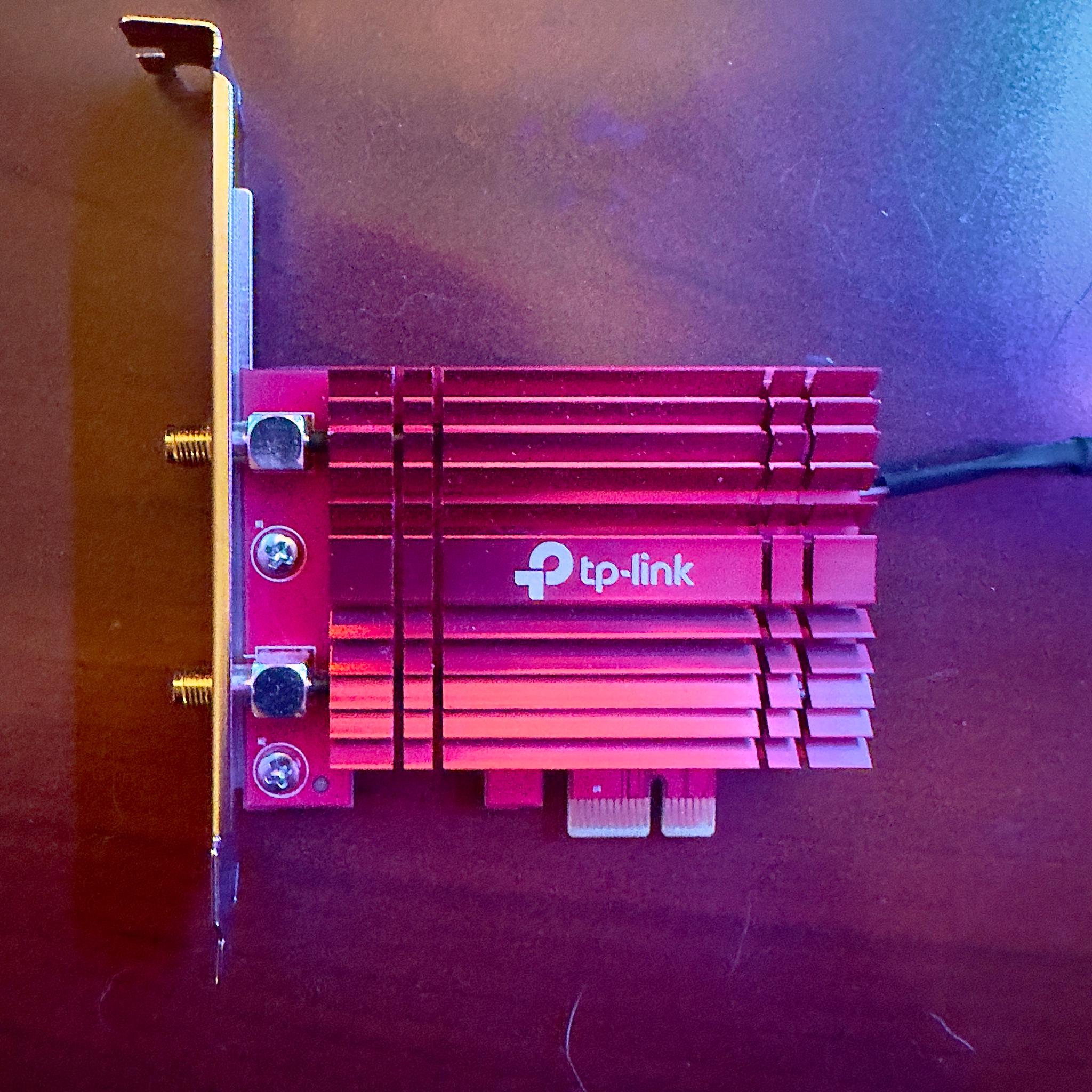

 -Reliably Engineered — The specialized heatsink and gold plating improve stability and performance even at high CPU temps
 -Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

HARDWARE FEATURES

Dimensions ( W x D x H ) 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm) Antenna 2× High-Gain Tri-Band Antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11a/b/g/n/ac/ax WLAN Signal Rate 6 GHz: 11ax: Up tp 2402Mbps 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) WLAN Reception Sensitivity 6 GHz: 11ax HE160 MCS0:-86 11ax HE160 MCS11:-56 5 GHz: 11ax HE80 MCS0: -90 dBm 11ax HE80 MCS11: -59 dBm 11a 54Mbps: -77 dBm 11ac VHT80 MCS0: -92dBm 11ac VHT80 MCS9: -64dBm 2.4 GHz: 11ax HE40 MCS0: -91 dBm 11ax HE40 MCS11: -60 dBm 11g 54Mbps: -76 dBm 11n HT40 MCS7: -72dBm WLAN Transmit Power 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP) 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP) 6 GHz: 12dBm(FCC) WLAN Modes Infrastructure mode Wireless Security WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK OTHERS

Certification FCC, CE, RoHS Package Content Archer TXE75E Magnetized Antenna Base with 1m RF Cable 2× High-Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD System Requirements Supported operating systems include Windows 11 Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Accessories Specifications Extension Cable Length: 1 m Bluetooth Header Cable Length: 0.3 m
